CME-109179 - Coffee maker Emerio - Free user manual and instructions

Product Type	Coffee Maker
Brand	Emerio
Model	CME-109179
Power Consumption	1000 W
Supply Voltage	220-240 V ~ 50/60 Hz
Capacity	Up to 18 small cups or 14 large cups
Water Reservoir	Removable, with water level indication
Filter Type	Paper filter (size 4 recommended)
Anti-Drip Function	Yes
Keep Warm Function	Yes, up to 40 minutes
Auto Shut-Off	After 40 minutes
Descaling Interval	Every 3-4 months (depending on water hardness)
Material	Plastic housing, glass carafe
Color	Black
Dimensions (Approx.)	25 x 20 x 35 cm
Weight (Approx.)	2 kg
Cord Length (Approx.)	0.8 m
Warranty	2 years
Safety Features	Overheat protection, automatic shut-off
Cleaning	Wipe exterior with damp cloth; removable parts hand wash
Intended Use	Household indoor use only

Frequently Asked Questions - CME-109179 Emerio

How do I descale the Emerio CME-109179?

Fill the reservoir with 400 ml of water and add a commercially available descaling agent according to its instructions. Let it sit for about 1 hour, then turn on the machine to let the solution pass through. Afterwards, brew two cycles of fresh water to rinse. Repeat every 3-4 months depending on water hardness.

Why is no water flowing through the coffee maker?

Ensure the filter holder handle is locked in the forward position. If the handle is not locked, the anti-drip function prevents water flow. Also check that the jug lid is closed.

What should I do before using the coffee maker for the first time?

Rinse all removable parts with warm water. Fill the reservoir to the maximum level with cold water and run two cycles without coffee powder. This cleans the internal system.

How many cups can I brew at once?

The machine can brew up to 18 small cups (about 85 ml each) or 14 large cups (about 125 ml each). Do not exceed the maximum water level.

Can I use ground coffee without a paper filter?

No, the machine is designed to use paper filters (size 4). Using no filter may cause coffee grounds to enter the carafe.

How do I clean the coffee maker?

Unplug and let cool. Wipe the exterior with a damp cloth. Wash the carafe, lid, filter holder, and jug lid with warm soapy water. Do not immerse the base in water.

Why does the coffee maker turn off by itself?

The machine has an automatic shut-off that activates after 40 minutes of being on. This prevents overheating and saves energy. You can press the power button to restart.

What is the meaning of the anti-drip function?

The anti-drip function stops coffee dripping from the filter when you remove the carafe during brewing. It only works if the jug lid is closed and the filter handle is locked.

Can I leave the carafe on the warming plate after brewing?

Yes, the warming plate keeps coffee warm for up to 40 minutes. However, do not place an empty carafe on the hot plate as it may damage the glass.

What if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its service agent, or a qualified person to avoid hazard. Do not use the appliance with a frayed cord.

USER MANUAL CME-109179 Emerio

Black coffee maker with clear glass and digital display (no visible text or symbols)

Coffee maker (EN)

Kaffeeautomat (DE)

Kaffebryggare (SE)

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children aged less than 8 years.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

8. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.

9. There is a potential risk of injuries from misuse.

10. The heating element surface is subject to residual heat after use.

11. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

12. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

16. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

19. Never leave the appliance unattended during use.

20. This appliance is not designed for commercial use.

21. Do not use the appliance for other than intended use.

22. Do not wind the cord around the appliance and do not bend it.

23. Fill the reservoir with water only – not with any other liquids.

24. If you want to make coffee several times consecutively, always switch off the device for about 5 minutes before operating again.

25. Use the appliance on a flat, dry and heat resistance surface.

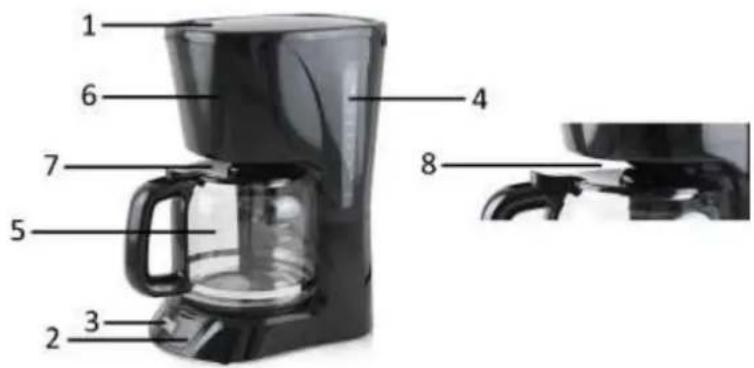

COMPONENT PARTS

1. Lid of reservoir
2. Tray
3. Power ON/OFF
4. Reservoir with water level indication
5. Jug
6. Filter reservoir
7. Lid of jug
8. Anti drip function

OPERATION

Before first-time use:

• Before using this device for the first time please carefully rinse all detachable components with warm water.
  • Fill the reservoir with cold water to the maximum water level indication.
  • Afterwards brew water twice without coffee powder.

To percolate coffee:

1. Connect the mains plug to an appropriate wall outlet.
2. Fill the reservoir with cold water.
3. Open the lid of the reservoir and fill it to the desired water level indication. You can brew a maximum of 18 small cups and 14 big cups.
4. Place a paper filter in the filter reservoir. Use the measuring spoon to add the amount of coffee powder appropriate to the amount of cups you want to brew.

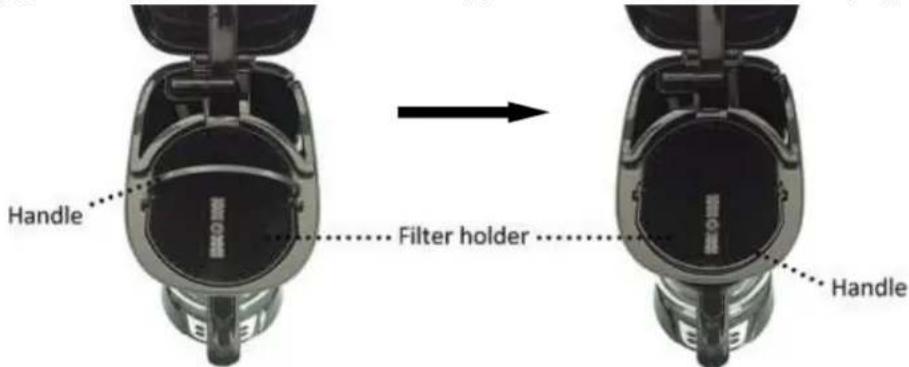

Note: There is a filter holder in the filter reservoir. Place the filter holder in position, fold down the handle to the front of the coffee maker to lock it in position. If the handle is not locked, the water will not flow down in the jug. When you take out the filter holder, you must first fold the handle up again.

1. Now place the jug on the tray of the appliance.
2. Close the lid of the reservoir and start brewing coffee by pressing the power ON/OFF switch. The lid of the jug needs to be closed in order to unlock the anti drip function.
3. If you leave the device switched on, the tray will keep the coffee warm after finishing brewing. The whole working process will last 40 minutes. After 40 minutes the unit will be automatically shut off and stop working. You can manually press the power switch again to switch on the appliance.

CAUTION! Do not put an empty jug back on the hot warming tray.

Descaling:

• Regularly descale the device. The intervals of descaling depend on the water hardness and frequency of operation. In case of average water hardness we suggest descaling every 3 or 4 months. Please use a commercially available decalcification agent.
• Fill 400 ml of water into the reservoir and add the necessary amount of decalcification agent in accordance with the dosing instructions.
• Let the decalcification agent sink in the device for about one hour. Switch on the unit after one hour and let the water pass through. After that you should brew water twice and rinse all detachable components, in order to clean off any residue.

CLEANING AND MAINTENANCE

• Before cleaning remove the mains plug and let the device cool down.
• Never immerse the device in water. Please use a slightly damp cloth to clean the surfaces.
• Avoid using acrid or scrubbing cleaning agents.
• Keep the device in a dry place out of reach from children when cooled off and cleaned.
• Do not wrap the cord around the device.

SPECIFICATIONS

Supply voltage: 220-240V \~ 50/60Hz

Power consumption: 1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
