CME-112698 - Coffee maker Emerio - Free user manual and instructions

Product Type	Coffee Maker
Brand	Emerio
Model	CME-112698
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	850 W
Capacity	1.25 L (approx. 10 cups)
Dimensions (W x D x H)	22 x 17 x 28 cm
Weight	1.2 kg
Material	Plastic housing, glass carafe
Water Tank	Removable, transparent
Filter Type	Paper filter (Size 4)
Keep Warm Function	Automatic keep warm plate
Anti-Drip System	Yes
Indicator Light	Power on indicator
Cord Length	0.8 m
Cleaning	Wipe exterior with damp cloth; descale regularly
Safety Features	Auto shut-off, boil-dry protection
Spare Parts	Carafe, filter basket available
Repairability Index	6.5/10 (estimated)

Frequently Asked Questions - CME-112698 Emerio

How do I descale my Emerio CME-112698 coffee maker?

To descale, fill the water tank with a mixture of water and descaling solution (or vinegar), run a brewing cycle without coffee, then rinse with fresh water. Repeat if necessary.

What type of coffee filter should I use?

Use standard size 4 paper filters. You can also use a permanent filter if it fits the basket.

Why is my coffee maker not brewing?

Check if the water tank is filled, the filter basket is correctly placed, and the machine is plugged in. Also ensure the carafe is properly positioned on the hot plate.

How do I clean the glass carafe?

Wash the carafe with warm soapy water and a soft sponge. Avoid abrasive cleaners. Rinse thoroughly.

Can I use ground coffee directly without a paper filter?

No, always use a paper filter or a compatible reusable filter to prevent grounds from entering the coffee.

Why does my coffee taste bitter?

Bitterness can be due to over-extraction. Use a coarser grind, less coffee, or reduce brewing time. Also ensure the machine is clean.

How do I set the keep warm function?

The keep warm function activates automatically after brewing. The hot plate stays on for about 40 minutes; you cannot adjust the duration.

What is the maximum capacity of the water tank?

The water tank holds up to 1.25 liters, which brews approximately 10 cups of coffee (125 ml each).

Is the coffee maker safe to leave unattended?

The machine has an auto shut-off feature that turns off after 40 minutes of inactivity. However, it's recommended to always supervise during use.

Where can I find replacement parts for my Emerio coffee maker?

Replacement parts like the carafe and filter basket can be ordered from Emerio's official website or authorized retailers. Contact customer support for availability.

USER MANUAL CME-112698 Emerio

Black and white photo of a coffee maker with clear glass and lid, no visible text or symbols

Coffee maker (EN)

Kaffeeautomat (DE)

Kaffebryggare (SE)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children aged less than 8 years.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

8. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph “cleaning and maintenance” of the manual.

9. Warning: Potential risk of injuries from misuse.

10. The heating element surface is subject to residual heat after use.

11. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

12. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

13. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

14. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

15. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

16. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

17. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

18. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

19. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

20. Never leave the appliance unattended during use.

21. This appliance is not designed for commercial use.

22. Do not use the appliance for other than intended use.

23. Do not wind the cord around the appliance and do not bend it.

24. Fill the reservoir with water only – not with any other liquids.
25. If you want to make coffee several times consecutively, always switch off the device for about 5 minutes before operating again.
26. Use the appliance on a flat, dry and heat resistance surface.
27. Never use the appliance of the glass jug shows signs of cracks or glass jug having a loose or weakened handle. Only use the class jug with this appliance. Use carefully as the glass jug is very fragile.

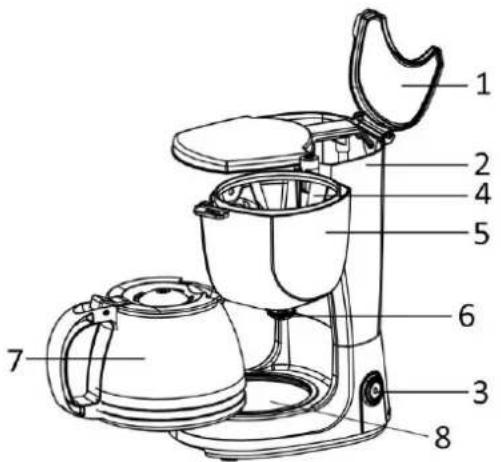

COMPONENT PARTS

1. Lid of reservoir
2. Reservoir with water level indication
3. On/off button and indicator light
4. Reusable mesh filter
5. Filter reservoir
6. Anti-drip valve
7. Glass jug
8. Warming plate

OPERATION

Before first-time use:

• Before using this device for the first time please carefully rinse all detachable components with warm water.
  • Fill the reservoir with cold water to the maximum water level indication.
  • Afterwards brew water twice without coffee powder.

To percolate coffee:

1. Connect the mains plug to an appropriate wall outlet.
2. Open the lid of the reservoir and fill the reservoir with cold water. Do not fill the water over the maximum level.
3. Swing the filter reservoir out, and add the amount of coffee powder into the reusable mesh filter according to your own taste.
4. Close the filter reservoir, a click sound will be heard when the filter reservoir is closed completely.
5. Insert the glass jug in place onto the warming plate horizontally, ensure the center hole in the glass jug lid aligns with the anti-drip valve.
6. Start brewing coffee by pressing the On/off button.
7. If you leave the appliance switched on, the warming plate will keep the coffee warm after finishing brewing. The whole working process will last 40 minutes. After 40 minutes the unit will be automatically shut off and stop working.

Note: The appliance is designed with an Anti-drip function. You can temporarily remove the glass jug and pour out coffee during brewing cycle without coffee dripping from the appliance within 30 seconds.

CAUTION! When pouring coffee from the glass jug, pour it slowly. Do not incline the glass jug suddenly in a large tilting angle, in case the hot coffee flow out from the lid rim and hurt people. Do not put an empty glass jar back on the hot warming tray.

CLEANING AND MAINTENANCE

• Before cleaning remove the mains plug and let the device cool down.
• Never immerse the device in water. Please use a slightly damp cloth to clean the surfaces.
- Avoid using acrid or scrubbing cleaning agents.
• All detachable parts can be cleaned in warm soapy water. Rinse and dry.
• The glass jug, filter reservoir and reusable mesh filter are dishwasher safe.

Descaling:

- Regularly descale the device. The intervals of descaling depend on the water hardness and frequency of operation. In case of average water hardness we suggest descaling every 3 or 4 months. Please use a commercially available decalcification agent.

• Fill 400 ml of water into the reservoir and add the necessary amount of decalcification agent in accordance with the dosing instructions.
• Let the decalcification agent sink in the device for about one hour. Switch on the unit after one hour and let the water pass through. After that you should brew water twice and rinse all detachable components, in order to clean off any residue.

TECHNICAL DATA

Operating voltage: 220-240V\~ 50-60Hz

Power: 750W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.
