Product Type	Range Hood
Brand	Thermex
Model	Decor 942
Voltage	220-240 V AC
Frequency	50 Hz
Control Type	Mechanical Push Buttons
Number of Speeds	3 (typical)
Lighting Type	Halogen Lamps
Filter Type	Metallic anti-grease (washable) + Optional activated carbon
Activated Carbon Filter Replacement	Every 2 months (non-regenerable)
Anti-Grease Filter Cleaning	Monthly in hot water/detergent or dishwasher
Noise Level	~65 dB (estimated)
Max Extraction Rate	Up to 600 m³/h (estimated)
Energy Class	Not specified
Installation Type	Wall-mounted or ceiling-mounted
Safety Features	All-pole disconnect switch required, earthing mandatory
Maintenance	Disconnect power before cleaning; use damp cloth with neutral detergent
CE Marking	Yes
Intended Use	Domestic only

Frequently Asked Questions - Decor 942 Thermex

How do I install the Thermex Decor 942 range hood?

Installation must be performed by a qualified professional. Follow the dimensional drawings provided in the manual for drilling locations. Ensure no hidden wires, pipes or beams are behind walls. Disconnect the main power before installation.

What type of filters does the Decor 942 use?

It uses metallic anti-grease filters that are washable (monthly) and optional activated carbon filters for recirculation mode (replace every 2 months).

How do I clean the filters?

Remove the metallic filters using the handle. Wash them in hot water with a mild detergent or in a dishwasher. For activated carbon filters, they cannot be washed and must be replaced.

How do I replace the halogen lamps?

Disconnect the hood from the mains and wait for the lamps to cool. Follow the diagram in the manual, using gloves to handle the new bulbs.

Can I use the hood without filters?

No, never operate the range hood without the anti-grease filters. Accumulated grease can cause a fire hazard.

What is the recommended installation height?

The manual does not specify exact height; however, typical installation for a hood above a gas stove is 65-75 cm, and above an electric stove is 55-65 cm. Refer to local regulations.

Does the Decor 942 require a dedicated electrical circuit?

It requires a 220-240V AC, 50Hz supply with earthing. It is recommended to have an all-pole disconnect switch with at least 3mm contact gap installed in the fixed wiring.

Can I use the hood with a flueless gas heater?

Caution: When using the hood simultaneously with a fuel-burning appliance, ensure proper ventilation to avoid backdraft. The depressurization must not exceed 0.04 mbar. Consult a professional.

What do I do if the hood is not extracting properly?

Check that the filters are clean, the duct is not blocked, and the voltage is stable. If problems persist, contact a qualified technician.

Is the Thermex Decor 942 suitable for outdoor use?

No, this appliance is designed for domestic indoor use only. It should not be exposed to weather or used for commercial purposes.

USER MANUAL Decor 942 Thermex

Hand holding a light bulb with a screwdriver inserted, against a wooden surface (no text or symbols visible)

Illustration of a light bulb inside a device (no text or symbols)

Mechanical diagram showing a rotating component with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to interact with a grid-patterned screen (no text or symbols visible)

Procedure for montering

- Måltegninger

Prosedyre for festing

This equipment can be used by children aged 8 or more, people with physical, mental and sensory disabilities or inexperienced users it they were instructed under proper supervision or trained on the safe use of the equipment and if they are fully aware of the related risks. Children shall not play with the equipment. The cleaning and maintenance are at user's expense and shall not be performed by unsupervised children.

• As soon as the equipment is delivered, remove the package immediately. Verify its overall aspect and, should any type of anomaly be found, notify it immediately to the sales point or the installer.
• Its equipment is intended for domestic use. It shall not be employed for industrial or professional purposes nor for any other purpose than that for which it has been designed.
• The supplier will not provide any warranty for the consequences and damages caused by an improper installation or a misuse of the equipment.
• Do not attempt to modify the characteristics of this equipment, that would represent a hazard. Repairs shall be exclusively made by a specialized and authorized technician. To avoid risks, the manipulation of the equipment is strictly forbidden so is the replacement of the power cable.
• If the fume hood is not supplied with a power cable and a pin or any other means for the disconnection of the mains power supply, with a separation of the contact between all poles that provides the total disconnection under conditions of overvoltage category III, shall be incorporated to disconnecting means to the fixed system, according to the installation rules (two-pole switch directly connected to power supply terminals which shall have a separation of the contact between poles so as to interrupt the supply of electricity in case of overvoltage category III).
• Once the equipment has been installed, the disconnection of the equipment from the power supply shall be allowed. Disconnection can be

done by keeping the jack accessible or adding a switch to the electric system in accordance with the installation rules.

• If the power cord is damaged, it shall be replaced either by the producer, its customer service or qualified personnel in order to avoid risks.
• It is of vital importance to place particular attention as to where the wall or ceiling will be perforated so as to verify the presence of hidden electrical cables, pipes or iron beams, etc. This may cause serious breakdowns, electrical derivations or the transmission of noises and vibrations.
• IMPORTANT: During the installation phase, before electrically connecting the equipment, always disconnect the power panel that will supply it (differential or thermal-magnetic of the general house switchboard).
• WARNINGS: Always disconnect the exhaust hood from the electrical outlet before proceeding to cleaning and maintenance operations by plugging off the electrical outlet, differential or thermal-magnetic of the general home switchboard. To clean the exhaust hood, never use steam or high-pressure devices (rules regarding electric safety).
• It is forbidden to cook directly on the flame or operate the gas stoves with no container to cook on the same flame (aspirated flames may damage the equipment and the warranty will be cancelled accordingly). The use of the equipment on a fuel stove is not authorized (wood, coal,...).
• Frying under the equipment shall be constantly monitored since oils and fats being subjected to high temperatures may ignite. Do not flame under the exhaust hood.
• Precaution: burns of accessible parts are likely to occur as they can get hot when using cooking appliances.
• Follow the cleaning frequency and filter substitution. The accrual of fat deposits may provoke fires. Never use the exhaust hood without the anti-fat filter.

• The equipment shall abide by the existing rules on the ventilation of closed spaces. Technically, the air expelled shall not pass through the duct used for the discharge of smokes from appliances using gas or any other fuel (central heating systems, etc...).

• Ventilate the environment appropriately in case of a simultaneous operation of the exhaust hood and any other equipment supplied by an energy source other than electricity so that the exhaust hood will not draw gas compounds.

• Attention! During the simultaneous operation of a suction-filtration exhaust hood and a heating system independent of air (gas heaters, oil, coal, chimney, etc...), great attention has to be placed so as to avoid that the exhaust hood does not absorb part of the air intended for the combustion process since dangerous amounts of carbon monoxide may surge within the premises, that would represent a life-threatening danger. When installing an exhaust hood joined or connected to a fuel element such as a heater, chimney or local heating system, it is mandatory to contact the producer or installer of such elements to obtain an optimal and risk-free operation.
• It is necessary to maintain a depressurized environment of maximum 0.04 mbar. Such conditions allow an excellent working of the exhaust hood. In order to achieve such environment a permanent air intake is necessary in order to avoid air stagnation (it is advised to use a ventilation grid for this purpose). Windows or doors shall not be used.
• The electrical supply of the power network shall be stable and cope with the indicated electrical standards, 220/240v AC, 50Hz. Should it be not stable and receive voltage variations in the supply, intensity or frequency such as armonici, transistor, voltage dips, overloads, electrical storms, etc..., the hood may show malfunctions or even breakdowns, and the repair would not be covered by the warranty. In that case, the exhaust hood shall be disconnected and the company must contact an electrician or electrical company in order to solve the supply problem.
• The hood is a household appliance act to extract smoke, it can not be used as support element of objects or utensils.
• In the constant effort to improve our products, we reserve the right to make changes following their enhancement to their technical, functional and aesthetic characteristics.

Declaraon of Conformity CE

This appliance is in compliance with the following European Directives: 93/68/CE : General regulations - 2006/95/CE : Concerning low tensions - 89/336/CE : Electromagnetic compatibility - CE Regulation n° 1935/2004: this appliance is suitable to come in contact with food products.

Electrical Connecon

• Before connecting the appliance to the electricity supply, check that the voltage corresponds to that on the data plate and that the power supply cable is suitable for the appliance load also stated on the data place.
• If the appliance is connected directly to the mains, fit an all-pole disconnect switch with minimum contact gap of 3 mm, adequate for the appliance load and complying to regulations.
• The plug used must support the power of work of the appliance.

- Do not use reducers, adapters or switches for connection to the mains, since these could overheat and cause burns - Earth connection is required by law

If the power cable must be replaced, use a cable having identical characteristics to the original supplied by the manufacturer, suitable for the load and temperature. This is available from After-sales service.

Important!

The entire installation process is exclusively reserved for qualified workers, installers or authorized technical service.

Before proceeding with the installation, make sure that all components are in perfect conditions. Otherwise, contact the vendor and do not proceed with the installation.

Once installed, the likely imperfections of the equipment such as scratches, impacts, etc..., will not be covered by under warranty.

Scrapping

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point.

Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.

PLEASE NOTE

DO NOT REMOVE THE PROTECTIVE PLASTIC SHEET FROM THE HOOD UNTIL THE INSTALLATION IS NOT COMPLETELY FINALIZED

Procedure for xing

• Dimensional Drawings

- Follow the direcons of the template for drilling

Connecng and ng

Before connecng the appliance, check the household installaon.

Appliance without power cable: Only connect as shown the conncon diagram. If necessary, t the copper bridge supplied. Mains power cable: Type H05 VV-F or a higher grade, min. wire cross-secon 1.5 mm2.

Appliance with preed power cable: The power cable must only be replaced by a trained aer-sales engineer.

Installing: Do not trap the power cable and do not route it over sharp edges. If the oven is a built-under type, route the cable on the rear corners of the oven to the socket.

Electrical Connecon

Connect the device to the mains and check the operaon:

• voltage, see the rang plate
- connect adhering strictly to the relevant diagram

1. Brown
2. Blue
3. Yellow and Green

Wiring Diagram

Mechanical Push Buon

Intake warning

• Use only a damp doth with neutral liquid detergent.
- Do not use wet sponges or cloths, water jets, thinners, solvents, hydrochloric acid, bleach, alcohol or abrasive substances.
- Unplug the appliance or switch o the circuit breaker before carrying out maintenance operaons.

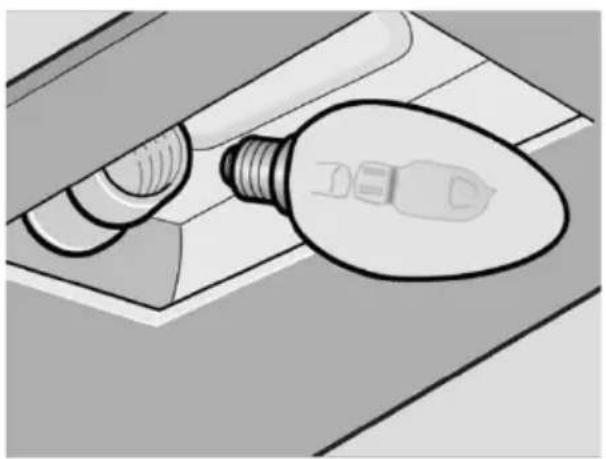

Halogen Lamps Replacement

• Disconnect the hood from the mains and wait a few minutes for the lamp to cool.
• Follow the instrucons in the related design, using gloves.

Filters Replacement

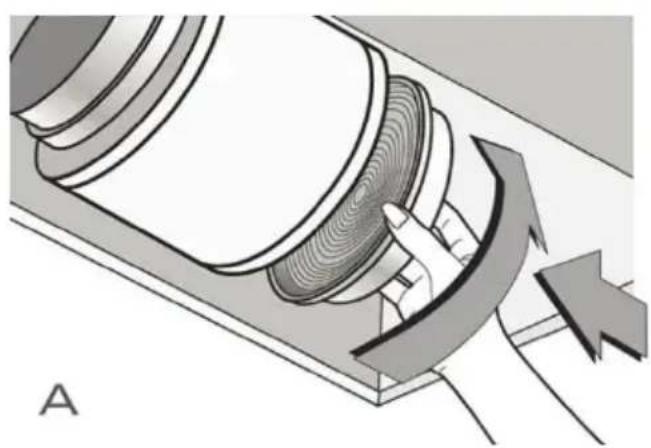

• A. ACTIVATED CARBON FILTERS (Only Itering types):
- The Iter assembly can not be regenerated and must be replaced at least every two months.

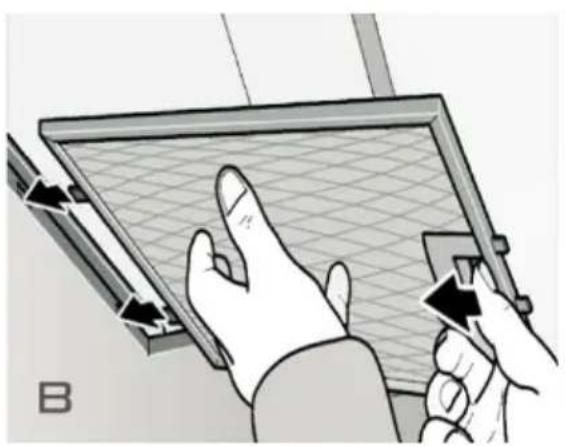

• B. METALLIC ANTI-GREASE FILTERS:
- The Iters must be washed at least one a month with hot water and detergent.
- It can also be washed in the dishwasher.
- Open by means of the handle.

Tips for Energy Saving

• Always use the cover corresponding to each pot. When cooking without a lid, the energy consumpon is somewhat greater.
  • Use a glass lid to see inside without having to li it.
  • Use containers atbed. If the base is not at, the energy consumpon is greater.
• For small amounts, use small pans. A large bowl and lled just needs a lot of energy.
• For cooking, use a lile water. Thus, it saves energy and preserves all the vitamins and minerals in vegetables.
