Brand	Blaupunkt
Model	ADH701
Product Type	Dehumidifier
Rated Power (27°C, 60% RH)	390 W
Maximum Power Consumption (32°C, 90% RH)	510 W
Voltage	220-240 V ~ 50 Hz
Current (max)	2.4 A
Water Tank Capacity	5.5 L
Airflow Rate	195 m³/h
Refrigerant	R290 (75 g)
Noise Level	≤47 dB(A)
Operating Temperature Range	5-32 °C
Humidity Setting Range	35-80% RH (5% increments)
Operating Modes	Auto, Silent, Strong, Continuous
Timer	Delayed start and shutdown (up to 24 hours)
Oscillation	Yes, for air outlet fins
Continuous Drainage	Yes, using included tube (12 mm)
Automatic Defrost	Yes
Child Lock	Yes, press +/- for 5 seconds
Night Mode (Display Off)	Yes, press MODE for 5 seconds
Recommended Replacement Filter	Blaupunkt ACC032
Safety Features	Full tank indicator, overheat protection, flame retardant refrigerant
Placement Clearance	At least 30 cm from walls/objects
Minimum Room Size	6 m²
Included Accessories	Continuous drainage tube (12 mm)

Frequently Asked Questions - ADH701 BLAUPUNKT

How do I set the target humidity level on the Blaupunkt ADH701?

Press the MODE button to select Silent mode, then use the + and - buttons (1e) to adjust humidity from 35% to 80% in 5% increments.

How do I use the continuous drainage feature?

Insert the included continuous-drainage tube (12 mm, item 7) into the water outlet (item 6) at the back of the unit, and place the other end over a floor drain or sink. The water will drain continuously, bypassing the tank.

What does the full-tank indicator do?

When the water tank is full, the dehumidifier stops and a signal tone sounds, while the full tank icon (1h) lights up on the control panel. Empty the tank to resume operation.

How do I set the timer for delayed start or shutdown?

To set a delayed start, press the TIMER button (1d) while the unit is off. To set a shutdown timer, press it while the unit is on. Each press advances by one hour, up to 24 hours. The display shows remaining time.

What should I do if the display shows a defrost indicator?

The defrost indicator (1j) lights up when the unit automatically activates defrost mode. The fan runs but the compressor stops to defrost components. The unit returns to normal mode automatically after defrosting.

How do I clean the air filter?

Turn off and unplug the unit. Remove the filter (located behind the front grille) and clean it with a vacuum or wash with mild detergent. Allow to dry completely before reinstalling. Replace with Blaupunkt ACC032 filter when worn.

How do I activate child lock?

Hold down the + and - buttons (1e) simultaneously for 5 seconds. The buttons become locked. Repeat to unlock.

Can I use the dehumidifier in a bathroom?

No, the unit should not be placed in areas exposed to water, such as bathrooms or near showers. It is for indoor domestic use only in rooms above 6 m².

What is the recommended minimum distance from walls?

Place the unit at least 30 cm away from walls, furniture, curtains, or other objects to ensure proper air circulation.

What should I do if the power cord is damaged?

If the power cord is damaged, do not use the dehumidifier. Contact an authorized service professional to repair or replace the cord to avoid electrical hazards.

USER MANUAL ADH701 BLAUPUNKT

White industrial air purifier device with control panel and digital display (no visible text or symbols)

Enjoy it.

Air dehumidifier

Luftentfeuchter

Osuszacz powietrza

Vysoušeč vzduchu

Odvlhčovač vzduchu

Légszárító

Razvlažilnik zraka

Odvlaživač zraka

Αποξηραντήρας αέρα

Влагоуловител

Uscător de aer

Oro sausintuvas

Õhukuivati

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Important notes

Symbol		Alert typeSymbol	Description
Caution: risk of fireAlert type: WARNINGDescription:This symbol indicates that the device contains flammable refrigerant. A fire hazard exists if the refrigerant leaks and comes into contact with an external ignition source.		NOTE	This symbol indicates the need to read the instructions manual carefully.
		NOTE	This symbol indicates that a service specialist should perform the required works in accordance with the installation manual.
		NOTE	This symbol indicates that information is available in the instructions manual or installation manual.

• Store the device in a room where there are no permanent fire (e.g. operating gas equipment) and ignition sources (e.g. operating electric heater).
• Store the device in a way that prevents mechanical damage.
  • Do not pierce or expose to fire.
• Any person involved in servicing or working on a refrigerant circuit should have a current valid certificate issued by an accredited organisation that confirms their qualifications regarding the safe handling of refrigerants according to requirements. Servicing works must be performed only according to the device manufacturer's guidelines.
• Maintenance or repair works that require the assistance of other trained personnel should be performed under the supervision of a person competent in the use of flammable refrigerants.
  • Before performing any works on circuits containing

flammable refrigerants, it is essential to perform a safety inspection to minimise ignition risks. Works should be performed according to a control procedure to minimise the risk of flammable gas or vapours being present during the works. All maintenance personnel and other persons working in the vicinity must be instructed in the nature of the work. Avoid working in confined spaces. Isolate the area around the workplace. Ensure that the area has been inspected by means of the control of flammable materials.

• Refrigerant may be odourless.
- The device contains a determined amount (in grams) of R290 refrigerant (see the nameplate).
• R290 is a refrigerant that meets the requirements of the European directives concerning environmental protection.
- Do not pierce any element of the refrigerant circuit.
- When installing, operating or storing the device in a place without adequate ventilation, the room must be designed in such a way that no refrigerant will accumulate (in case of leakage). Refrigerant accumulation can cause a fire or explosion due to the presence of electric heaters, stoves or other sources of ignition.
- Transport of equipment containing flammable refrigerant: see transport regulations.
• Equipment symbol designation: see local regulations.
- Disposal of equipment containing flammable refrigerant: see national regulations.
• Equipment/devices storage: store in compliance with the manufacturer's guidelines.
• Storage of packed (unsold) equipment: The protective packaging of stored equipment should prevent the refrigerant from leaking in case of mechanical damage to the

equipment. The maximum number of items of equipment to be stored together is specified in local regulations.

- To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product.

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an earthed socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

• Make sure the cable is grounded, 3-cores with a socket and an earth cable.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

- All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Position the unit to ensure optimal air flow. The dehumidifier should be placed at least 30 cm away from walls, furniture, curtains, etc.

- The air-intake and outlet ventilation grilles should be cleaned on a regular basis.

- Do not cover the unit or the ventilation grilles. Do not place any objects on the unit.

- Do not use the unit near solvents, paints, insecticides or any other chemicals.

- Do not place or use the unit in areas where it could be exposed to water, e.g. near showers, bathtubs, washbasins, etc.

- Do not tilt the unit if you suspect that there is any water in

the water tank.

• Place the unit on a surface with a load-carrying capacity of at least 40 kg.
• Do not use the unit in spaces smaller than 6^2 · m
• Do not insert any objects into the inlet or outlet grilles.
  • Do not direct the air flow towards animals or plants.
• The water which accumulates in the dehumidifier is unsuitable for consumption (it is highly demineralised). It should be discharged into the waste-water system.
• The unit can be used at temperatures 5-32°C. The unit is not designed to maintain a very-low humidity level (below 35%) for a prolonged period.
• Before the first use, remove all protective elements such as cardboard, foil, and foamed polystyrene.
• Wait at least 3 hours before switching on the unit following transportation, or if it has been turned upside down (i.e. placed in non-vertical position).

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL SPECIFICATIONS

Rated power: 390W(27°C, 60%)

Maximum power consumption: 510W (32°C, 90%)

Maximum current: 2,4A (32°C, 90%)

Voltage: 220-240V \~50Hz

Tank volume: 5,51

Air-flow rate: 195m^3/h

Refrigerant: R290/75g

Maximum noise level: ≤47dB(A)

Maximum condensation pressure: 3,3,3,2MPa

Maximum evaporation pressure: 1,5 Mpa

Recommended air filter: Blaupunkt ACC032

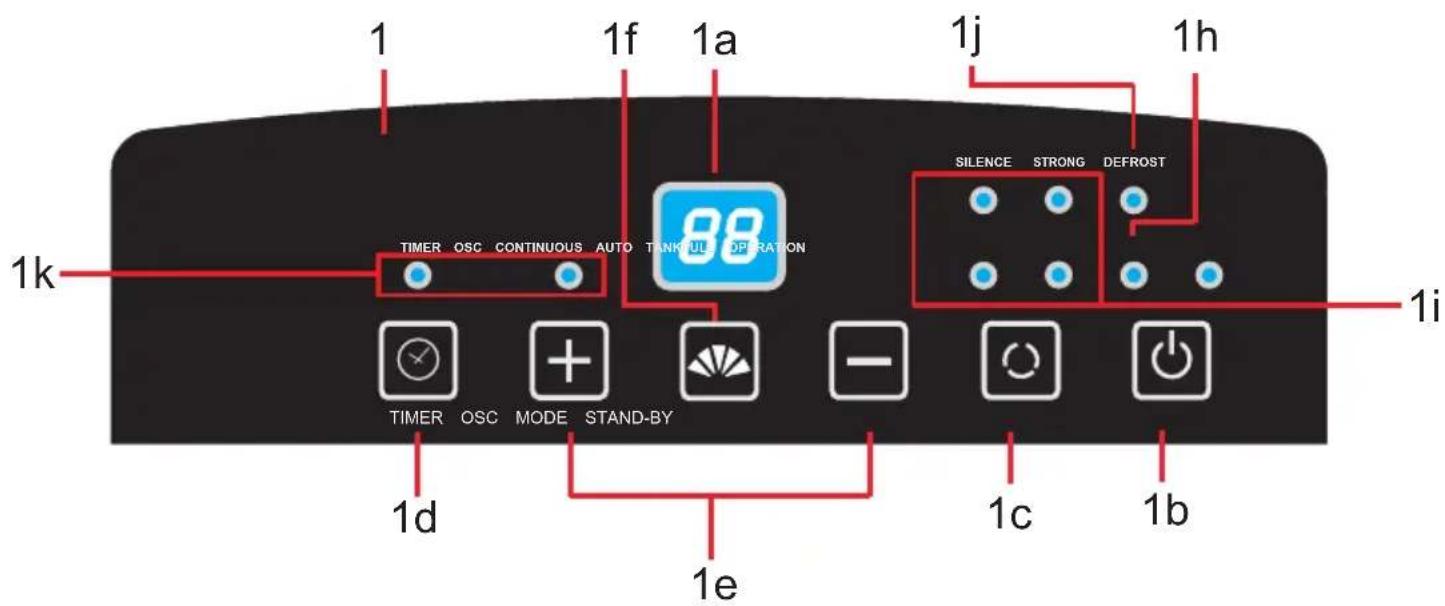

1. Control panel

1a. Display

1b. Power on/off button

1c. MODE button

1d. TIMER button

1e. + and - buttons

1f. Oscillation button

1h. Full-water-tank indicator

1i. Operating-mode indicators

(Silent/Strong/Continuous/Auto)

1j. Defrosting-mode indicator

1k. Timer and oscillation indicators

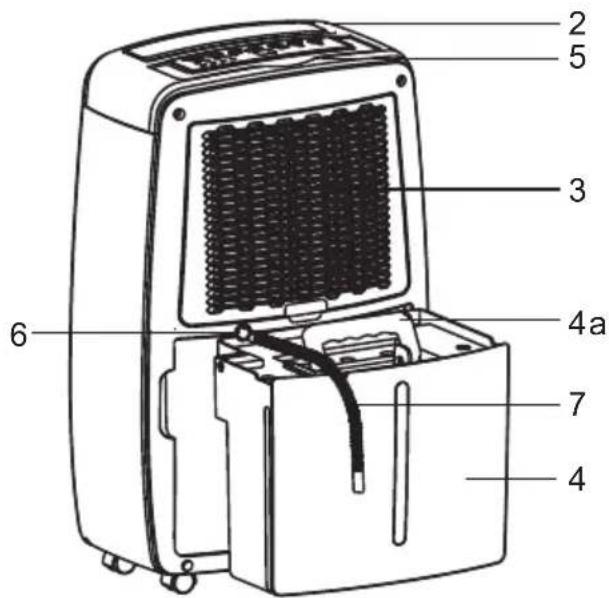

1. Air outlet

2. Air inlet grille

3. Water tank

4a. Water-tank handle

1. Handle

2. Water outlet

3. Tube for continuous water drainage (12 mm)

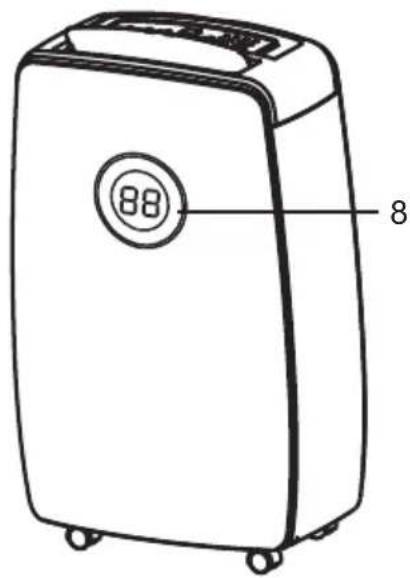

4. Lateral display with LED indicator

INSTRUCTIONS FOR USE

1. Start-up procedure

Press the power on/off button (1b). The unit will switch on in the last selected mode.

1. Shutdown procedure

Press the power on/off button (1b). The unit will switch off after a while. Do not interrupt the shutdown procedure by removing the plug from the electrical outlet.

1. To change the operating mode: press the MODE button (1c). Each time you press the button, the mode will change in the following sequence: Auto (automatic mode), Silent (silent mode), Strong (fast-drying mode), Continuous (continuous-drying mode). Press again to return to the Auto mode. The operating mode indicators (1i) show the current operating mode.

Automatic mode: the target humidity level is set at 55%; the fan speed depends on the ambient humidity level.

Silent mode: the fan speed is at its lowest - you can set the target humidity level.

Fast-drying mode: the fan speed is at its highest, and the drying process goes on in continuous mode.

Continuous-drying mode: the fan speed is at its lowest, and the drying process goes on in continuous mode.

1. Adjustment of the target humidity level: set the target air-humidity level using the + and - (1e) buttons: 35%-80% (at 5% increments). The target humidity level can only be set in the silent mode.

2. Oscillation of the air-outlet fins: the oscillation mode can be activated or deactivated using the oscillation button (1f).

3. Full-tank indicator: if the tank is full of water, the dehumidifier will terminate the drying process and

generate a signal tone, and the full tank icon (1h) will light up on the panel.

7. Timer

Delayed-start function: press the timer button (1d) while the unit is connected to the power supply. Each time you press the button, the set-time period will advance by one hour. The unit will switch on at the end of the set time period. The display will show the time remaining to the activation.

To change the set time period, press the timer button (1d). The time indicator on the display will start flashing. While the time indicator is flashing, the set time period will advance each time you press the timer button (1d) – stop at the desired time - until 24 hours is reached, and then it will return to zero. To deactivate the timer, set the time to 0.

Shutdown timer: press the timer button (1d) while the unit is on. Each time you press the button, the set time period will advance by one hour. The unit will switch off at the end of the set time period. After you set the timer, the display will show for a while the time remaining to the shutdown, and then it will change to the humidity level. To check how much time remains to the shutdown, press the timer button (1d) again.

When you change the operating mode, the timer will be deactivated. Set it again.

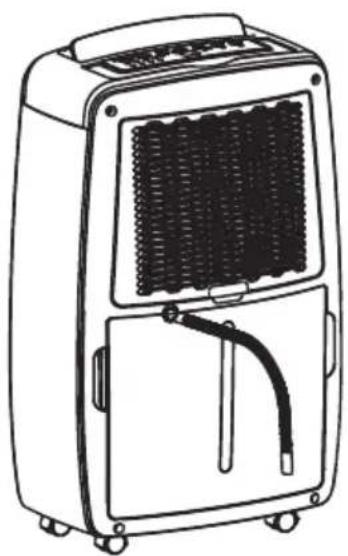

8. Continuous water drainage

To facilitate the continuous water drainage's bypassing the water tank, insert the continuous-drainage tube (7) into the water outlet (6) and the other end of the tube into the drainage outlet.

1. Automatic defrosting: if the unit's components are frosted, the dehumidifier will automatically switch into the defrost mode. The fan will remain on, and the compressor will switch off. Once the components have been defrosted, the dehumidifier will automatically return to the normal operating mode.

When the defrost mode is activated, the defrost mode indicator (1j) will light up.

1. Child lock function: to lock the buttons, hold down the + and - buttons (1e) for 5 seconds. To unlock buttons, also hold down the + and - buttons (1e) for 5 seconds.

2. Night mode: to switch off the lateral display and the LED indicator, hold down the MODE button for 5 seconds. To switch on the lateral display and the LED indicator, also hold down the MODE button for 5 seconds.

(Silent/Strong/Continuous/Auto)

Prostornina posode: 5,51

Pretok zraka: 195m³/h

(Silent/Strong/Continuous/Auto)

(Silent/Strong/Continuous/Auto)

(Silent/Strong/Continuous/Auto)
