Product type	Range hood
Brand	Gram
Model	EFS 5693-90 B

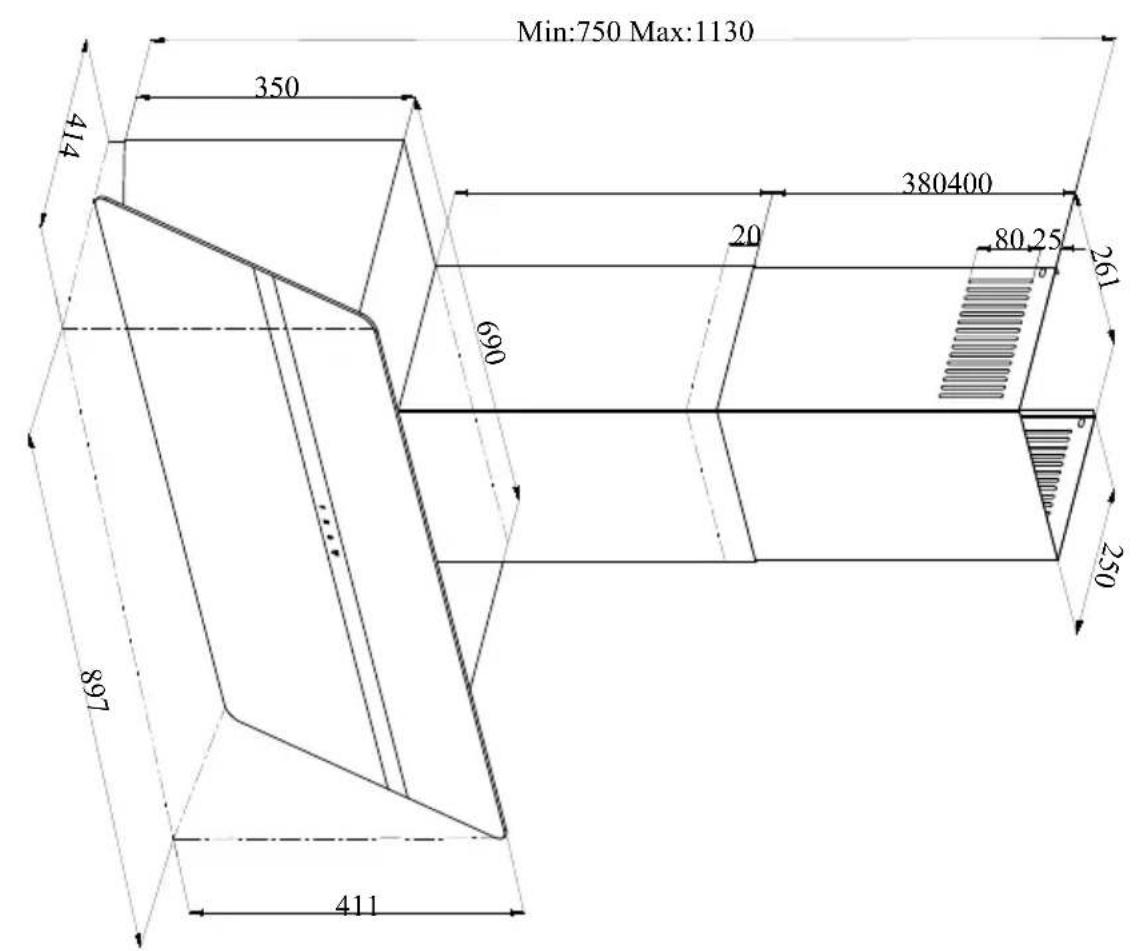

Width (minimum)	750 mm
Width (maximum)	1080 mm
Height	Approx. 897 mm
Installation type	Wall-mounted chimney hood
Control type	Touch sensors
Fan speeds	3 speeds (low, medium, high)
Timer function	Yes, 15-minute auto-off
Lighting	Independent on/off; compatible with incandescent/halogen/LED modules
Grease filter	Aluminum, washable (dishwasher safe)
Charcoal filter	Optional for recirculation mode, replace every 2 months
Air extraction type	Ducted (extraction) or recirculation (with charcoal filter)
Duct diameter	120 mm
Maximum duct length	4-5 m
Power supply	220-240 V / 50-60 Hz (check rating plate)
Safety features	Auto-off timer, child supervision advised
Cleaning frequency	Aluminum filter: monthly; surfaces: monthly
Material	Stainless steel (typical)

Frequently Asked Questions - EFS 5693-90 B GRAM

What is the minimum installation distance above an electric hob?

Refer to the product technical sheet. If the gas cooker instructions specify a greater distance, that must be observed (typically around 650-750 mm for electric, but check manual).

How do I clean the aluminum grease filter?

Clean the aluminum grease filter every month either in the dishwasher or by hand using a mild detergent or liquid soap.

When should I replace the charcoal filter?

Replace the charcoal filter at least every 2 months, or more frequently with intensive use. It cannot be washed or regenerated.

How do I activate the timer function?

Touch the active speed sensor for at least 3 seconds. The sensor will flash, indicating the timer is enabled. The hood will switch off automatically after 15 minutes.

Can I use the hood without ducting?

Yes, in recirculation mode. You must install a charcoal filter and optionally an air guide vane. The air is filtered and returned to the room.

How do I replace the lights?

Refer to Figure 7 in the manual. Use incandescent/halogen/LED modules of the same specification as factory-installed. Disconnect power before replacement.

What should I do if the power cord is damaged?

The power cord must be replaced by a specialist repair shop to avoid hazards.

Is the hood suitable for use over a gas stove?

Yes, but ensure the installation distance meets both the hood and gas cooker specifications. The flame must not extend beyond the pot.

How often should I clean the hood surfaces?

Clean the inside and outside surfaces at least once a month using a damp cloth and neutral detergent. Avoid abrasive cloths or solvents.

What does the crossed-out wheelie bin symbol mean?

It means the appliance should not be disposed of with household waste. Take it to a designated collection point for electrical and electronic equipment.

USER MANUAL EFS 5693-90 B GRAM

Before using the appliance, please carefully read this manual!

BETJENINGSVEJLEDNING - EMFANG

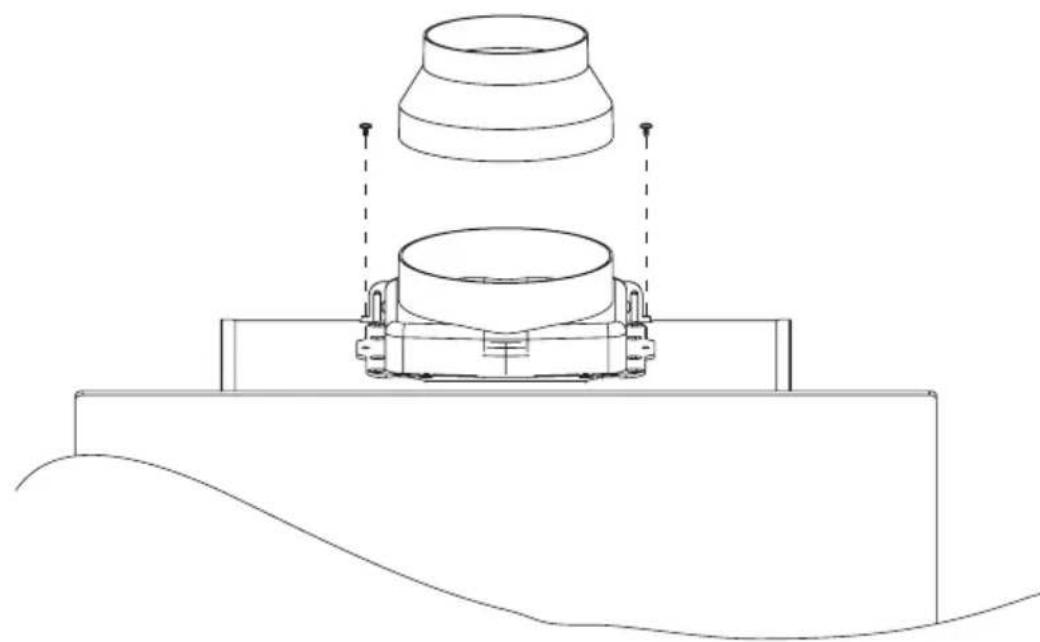

Technical line drawing of a mechanical assembly with two cylindrical components mounted on a base, no text or symbols present.

3a

3c

4x

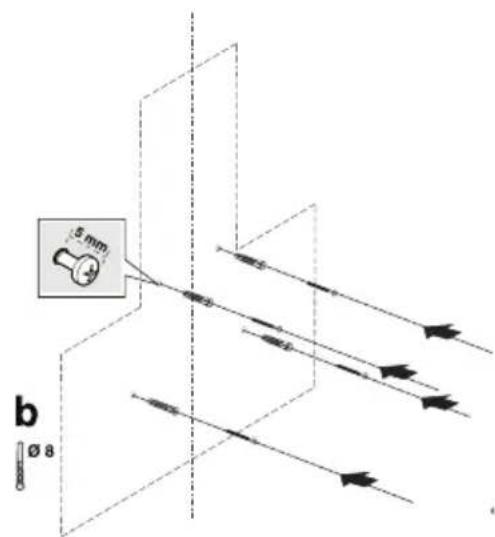

∅ 8 mm

2x

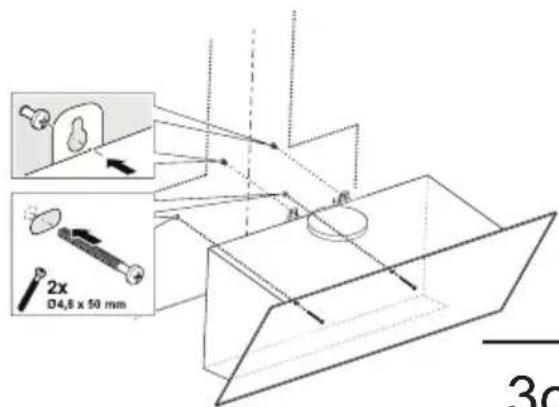

∅ 4,8 x 50 mm

3b

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS
GUIDELINES CONCERNING THE SAFETY OF USE 7

INSTALLATION		10
OPERATION	AND	MAINTENANCE	11
ENVIRONMENTAL	PROTECTION		13

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

● Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.
- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.
●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).
- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood
●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
  ●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.
  ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ●Children should be su-

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

Installation

Step-by-step appliance installation is shown on page 6-7

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

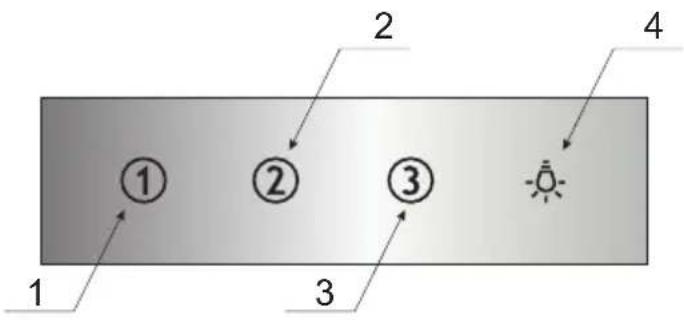

Control Panel

It is equipped with a touch controls. Touch one the sensors to enable the desired function:

1 Low speed (1). Use this speed when cooking a little food with hardly any fumes.
2 Medium speed (2). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
3 High speed (3). Use this speed when frying or grilling, with large amount of fumes.
4 Lighting on/off. The lighting operates independently of hood fan.

Touch sensor corresponding to the selected speed to turn off the kitchen hood.

Timer function

When using the Timer function, the hood is set to switch off automatically after 15 minutes. To enable Timer function at any fan speed touch the active speed sensor for at least 3 seconds. Sensor flashes. Flashing indicates that Timer function has been enabled. To cancel Timer function touch the active speed sensor. The appliance will turn off. To turn on the appliance, touch the sensor corresponding to the desired fan speed. Cancelling the Timer function does not turn off the lighting.

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

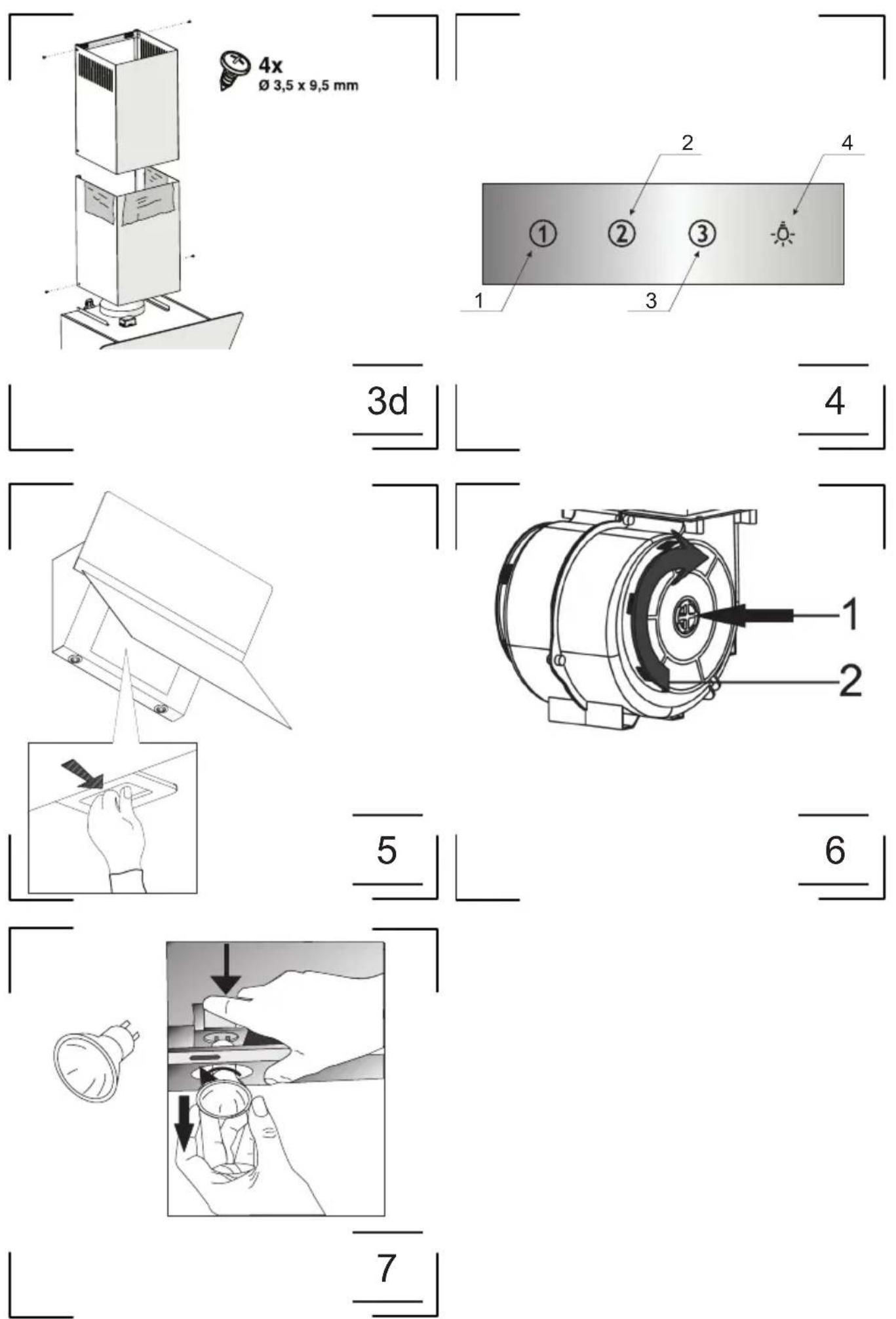

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

Dismantling of charcoal filter is shown on Figure 6.

Lighting

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
● ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

TIL LYKKE MED DIT NYE GRAM EMFANG

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

INNEHÅLLSFÖRTECKNING

SÄKERHETSANVISNINGAR 31

INSTALLATION 34

ANVÄNDNING OCH SKÖTSEL 35

MILJÖSKYDD 37

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

BRUK OG VEDLIKEHOLD 43

MILJ∅VERN 45

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.
