EFU 604-90 X - Range hood GRAM - Free user manual and instructions

Product Type	Range Hood
Brand	Gram
Model	EFU 604-90 X
Width	90 cm (35.4 inches)
Depth	50 cm (19.7 inches)
Height (Minimum-Maximum)	65-100 cm (25.6-39.4 inches)
Weight	15 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption (Motor)	150 W
Lighting Power	2 x 2 W LED
Total Power	200 W
Airflow (Max)	650 m³/h
Noise Level (Max)	68 dB(A)
Energy Efficiency Class	B
Filter Type	Aluminum grease filter (dishwasher safe)
Number of Filters	2
Controls	Electronic touch controls with 3 speeds + boost
Lighting	2 x LED strips (cool white)
Installation Type	Wall-mounted chimney hood
Extraction Mode	Ducted (outdoor) or recirculation (with optional carbon filter)
Duct Diameter	150 mm (6 inches)
Carbon Filter Model	CF-90 (optional, order separately)
Grease Filter Cleaning	Every 2 months or as needed, dishwasher safe
Safety Features	Motor thermal cut-out, auto shut-off (optional timer)

Frequently Asked Questions - EFU 604-90 X GRAM

How do I install the EFU 604-90 X range hood?

Refer to the manual for detailed installation steps. Ensure the hood is mounted at a height of 65-75 cm above the cooking surface. Secure the chimney to the wall and connect the ducting (150 mm) if in extraction mode. If recirculation, install the carbon filter.

Can the hood be used in recirculation mode?

Yes, you can use recirculation mode by installing the optional carbon filter (model CF-90). The air will be filtered and returned into the kitchen.

How often should I clean the grease filters?

Clean the aluminum grease filters every 2 months, or more frequently if you cook often. They are dishwasher safe; remove and wash at low temperature.

How do I replace the carbon filter?

The carbon filter should be replaced every 3-6 months depending on usage. To replace, remove the grease filters, detach the old carbon filter, and insert the new one. Ensure it's properly seated.

What is the maximum airflow and noise level?

The maximum airflow is 650 m³/h with a noise level of 68 dB(A) at the highest speed. Lower speeds produce less noise.

Why is my hood making excessive noise?

Check if the ducting is blocked or if the filters are dirty. Also, ensure the installation is secure and not vibrating against the wall. If noise persists, contact support.

How do I reset the filter saturation indicator?

After cleaning or replacing filters, press and hold the boost button for 5 seconds until the indicator light turns off. Refer to the manual for exact steps.

Can I use the hood without ducting?

Yes, but only if you install the carbon filter for recirculation. Without the filter, the hood will not effectively remove odors and grease.

What is the warranty period?

Gram typically offers a 2-year warranty for domestic use. Register your product on the Gram website after purchase to activate warranty.

How do I change the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. If they fail, contact service center. Do not attempt to replace yourself.

USER MANUAL EFU 604-90 X GRAM

Before using the appliance, please carefully read this manual!

BRUGSANVISNING - K∅KKENEMFANG

Isometric diagram of a kitchen appliance with a height measurement (h), no text or symbols present

h = min 450mm

Isometric diagram of a kitchen appliance with a stove and a cabinet, showing height measurement (no text or symbols)

1

4

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Hand holding a rectangular object with a downward arrow, no text or symbols present

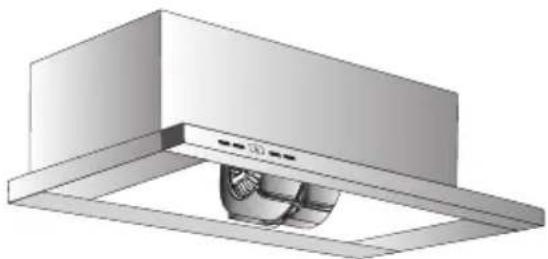

3D rendering of a ceiling-mounted device with a spherical component inside, no visible text or symbols

Diagram of a turbofan with fan blades and fan blades, showing internal structure and airflow direction (no text or labels)

5

6a

Diagram of a kitchen ventilation system with two fans and a rotating fan (no text or symbols)

6b

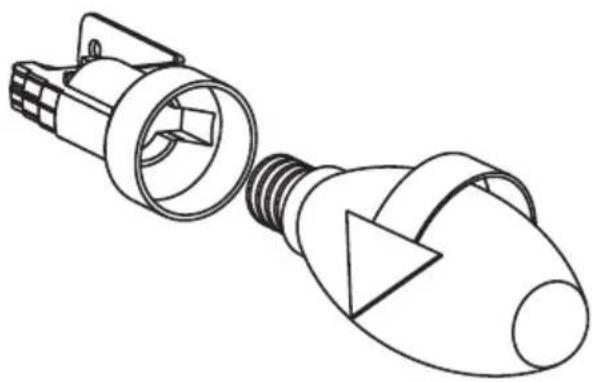

Line drawing of two types of fluorescent bulbs with internal components (no text or symbols)

7

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS
GUIDELINES CONCERNING THE SAFETY OF USE 6

INSTALLATION		8
OPERATION	AND	MAINTENANCE	10
ENVIRONMENTAL	PROTECTION		11

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

- Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

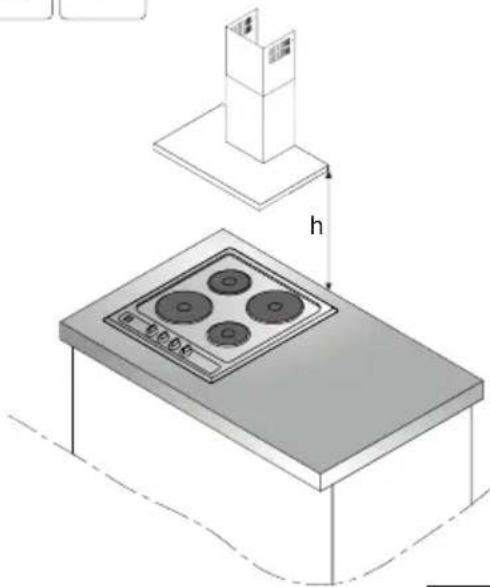

- For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.

●Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.

●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).

- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood

●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

- If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

●Children should be su-

GUIDELINES CONCERNING THE SAFETY OF USE

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

Technical line drawing of a mechanical assembly with labeled components (A, B, C, D), no text or symbols present.

3.1

Technical line drawing of a mechanical component with a cylindrical top and base, showing a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical housing with a circular component and a downward arrow indicator (no text or symbols)

3.2

3.4

Simple line drawing of a rectangular container with two internal compartments and a top opening (no text or symbols)

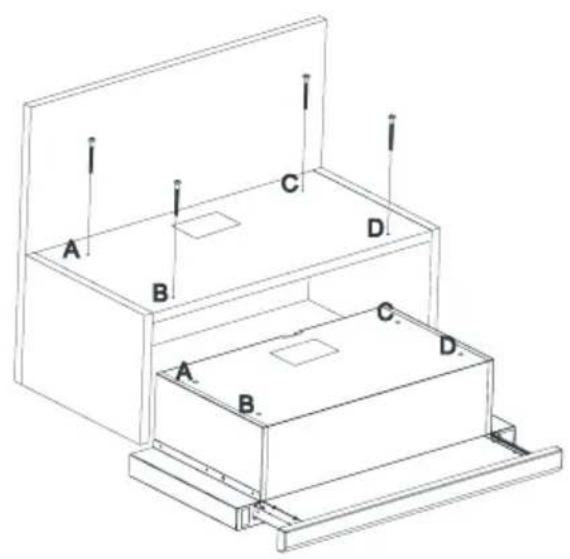

The click-fit angle brackets must be positioned and screwed onto the right and the left side to fit with the suspension element on the side of the extractor hood. (Fig. 3.4).

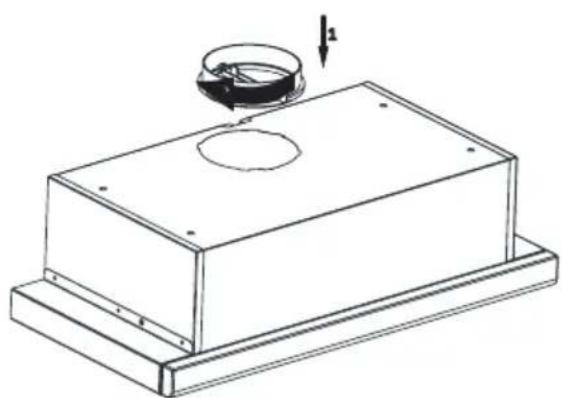

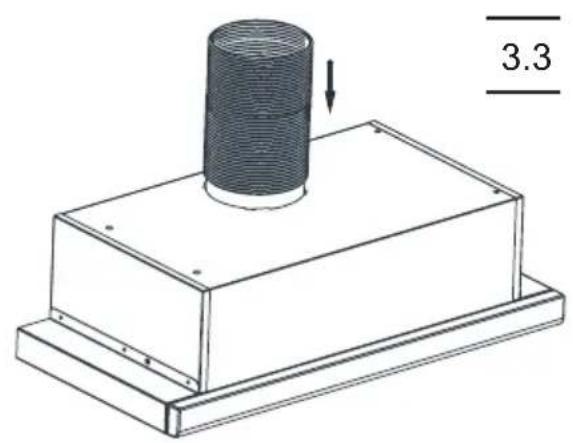

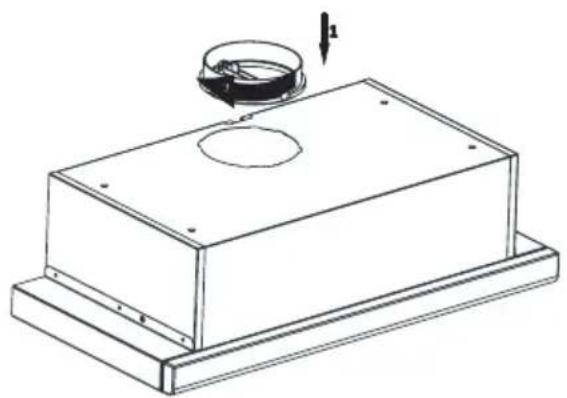

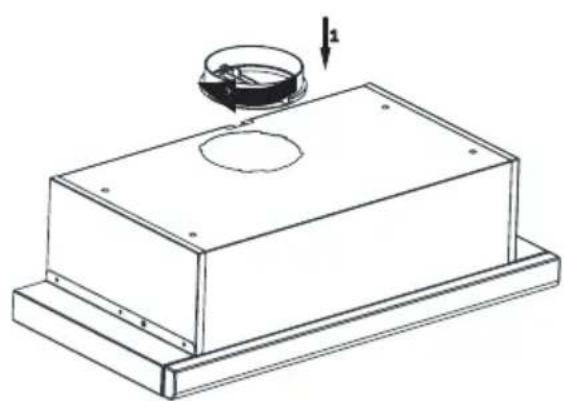

Place the extraction hose fitting that comes with the extractor hood on top of the product. Now turn the extraction hose clockwise. Connect the extraction channel to the extraction hose.

3.5

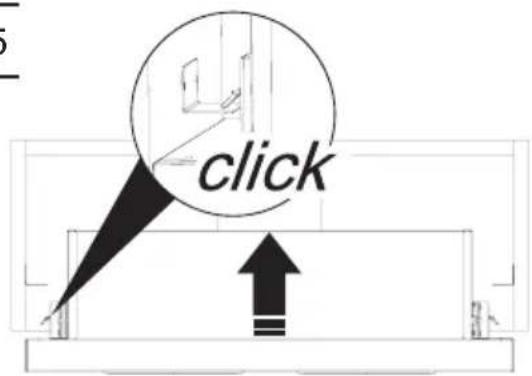

Now press the extractor hood up into the cabinet until it clicks into place in the suspension mechanism on the click-fit angle brackets. (Fig. 3.5)

3.6

Pure technical diagram of a rectangular enclosure with curved arrows indicating rotational motion (no text or symbols)

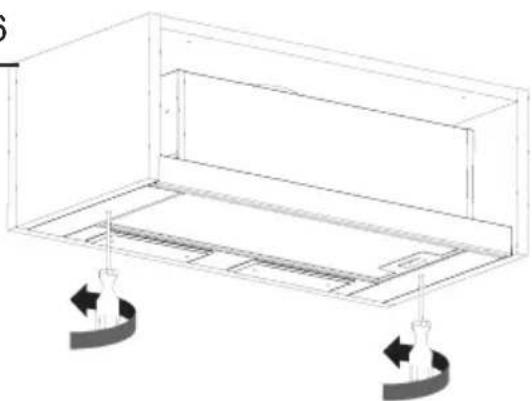

Use a screwdriver to secure the extractor hood in the cabinet. Screw from below using the suspension mechanism as support. (Fig. 3.6).

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

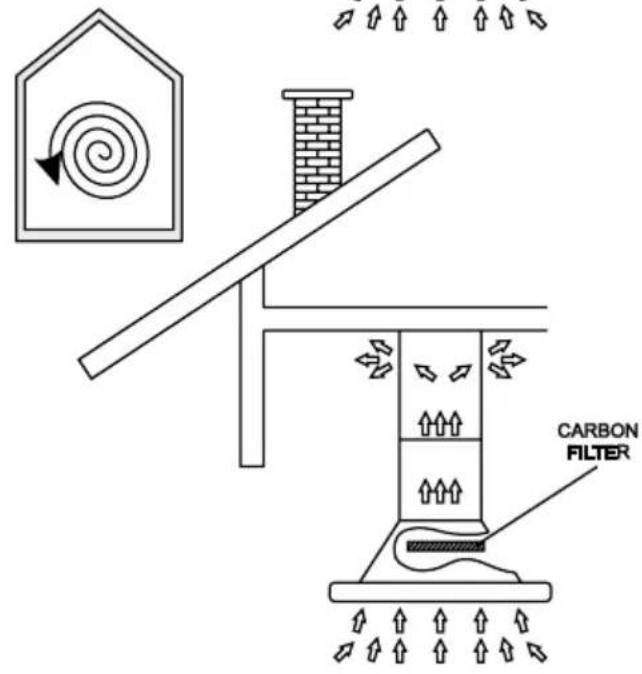

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

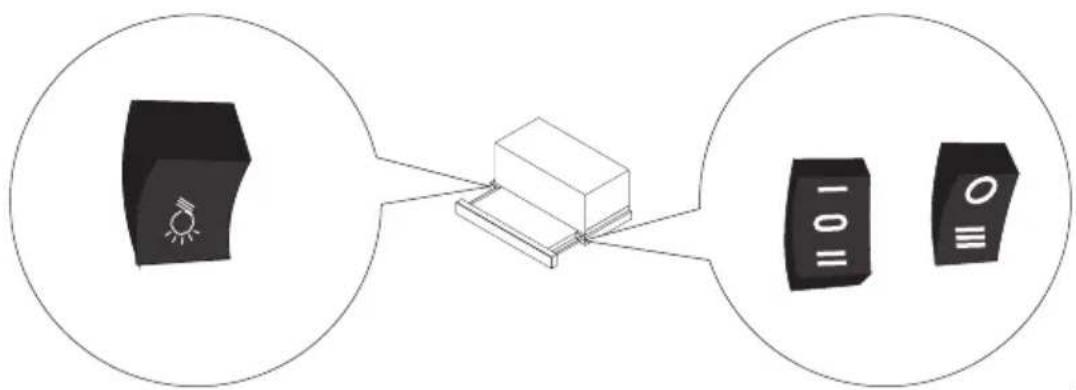

Light switch

Press the light switch to turn the light on or off. Pull out the front panel to turn the light on

Motor switch Settings 1 & 2

To use the product at settings 1 and 2, press the button up and down.

Motor switch Setting 3

Activate setting 3 by pressing the switch down. Deactivate by pushing the switch back up.

Maintenance

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

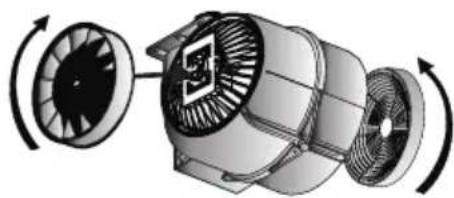

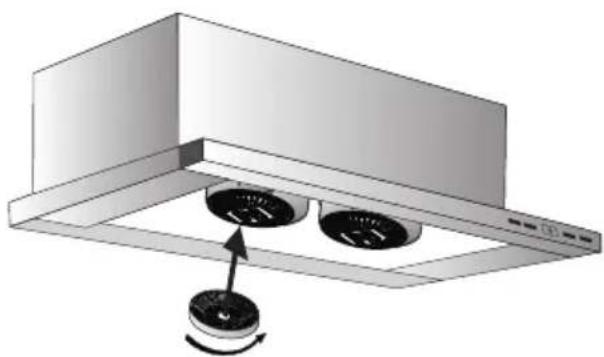

Dismantling of charcoal filter is shown on Figure 6.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
