Product Type	Energy-saving father & child floor lamp
Model Numbers	1241/022L, 1242/022L
Operating Voltage	230-240 V~, 50 Hz
Bulb Types (included)	1 x 9 W E14 energy-saving bulb (reading lamp) 1 x 22 W E27 energy-saving bulb (uplight)
Bulb Types (compatible)	E14 up to 25 W (reading lamp) E27 up to 60 W (uplight)
Rated Power	Max 25 W (reading lamp) Max 60 W (uplight)
Protection Class	Class II (estimated)
Main Functions	Uplight and reading lamp with separate ON/OFF switches; flexible arm for directing reading light
Assembly Required	Yes, includes support tubes, base, lamp glasses, threaded rings, and tools
Intended Use	Indoor, dry enclosed spaces, domestic only
Care Instructions	Use a dry, fluff-free cloth; do not use water or solvents; unplug before cleaning
Safety Warnings	Keep at least 0.5 m from illuminated materials; do not cover; replace damaged bulbs; allow to cool before touching
Warranty	3 years from purchase date; only for original purchaser; does not cover wear parts or improper use
Disposal	Separate collection for electrical/electronic appliances; do not dispose with household waste
Manufacturer	ORFGEN Marketing, 59929 Brilon, Germany
Certification	CE compliant (EMC 2004/108/EC, Low Voltage Directive 2006/95/EC)

Frequently Asked Questions - IAN 74184 Livarno Lux

How do I assemble the floor lamp?

You will need a second person for assembly. Follow steps: screw the support tubes together, attach the flexible arm, mount the support tube mount, insert into base, tighten nuts with provided spanner, then attach lamp glasses and bulbs. Refer to the manual for detailed instructions.

What bulbs can I use with this lamp?

The lamp comes with energy-saving bulbs: 9W E14 for reading lamp and 22W E27 for uplight. Alternatively, you can use 230-240V~ bulbs up to 25W E14 and 60W E27. Ensure correct fitting and voltage.

How do I replace a bulb?

First unplug the lamp from the mains. Allow the lamp to cool completely. Unscrew the defective bulb counterclockwise, then screw in a new bulb clockwise. Use only recommended bulb types and wattages.

Can I use this lamp outdoors?

No, this lamp is suitable only for indoor use in dry, enclosed spaces. Do not expose to moisture or dirt.

How do I clean the lamp?

Always unplug the lamp and allow it to cool. Use a dry, fluff-free cloth. Never use water, solvents, or petrol. Do not immerse in water.

What does the warranty cover?

The product has a 3-year warranty from the date of purchase for the original purchaser. It covers material or manufacturing defects only. It does not cover wear parts or damage from improper use. Unauthorized tampering voids the warranty.

What safety precautions should I take?

Check the lamp and mains lead for damage before use. Keep the lamp at least 0.5 m from any illuminated materials. Do not cover the lamp. Never operate unattended. Allow to cool before touching. Use only specified bulbs.

How do I dispose of the lamp?

Do not dispose of this product with household waste. It should be taken to a recycling collection point for electrical and electronic appliances. Packaging materials are environmentally friendly and can be recycled.

The lamp does not turn on. What should I check?

Ensure the lamp is plugged into a working socket. Check that the bulbs are properly screwed in. If the bulb is defective, replace it. If the problem persists, contact the service center.

Can I adjust the direction of the reading light?

Yes, the flexible arm allows you to bend the reading lamp into your desired position for optimal lighting.

USER MANUAL IAN 74184 Livarno Lux

ENERGY-SAVING FATHER & CHILD FLOOR LAMP

GB IE

ENERGY-SAVING FATHER & CHILD FLOOR LAMP

Operation and Safety Notes

DK

ENERGIBESPARENDEGULVLAMPE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

SE

GB / IE Operation and Safety Notes Page 5

Introduction

Proper use....Page 6

Included items Page 6

Description of parts and features....Page 6

Technical data....Page 6

Safety

Safety advice......Page 7

Preparing the product for use

Assembling the lamp....Page 8

Switching the lamp on/off....Page 8

Directing the lamp....Page 8

Replacing a bulb....Page 8

Care and cleaning......Page 8

Disposal Page 9

Warranty and Service

Warranty Declaration......Page 9

Service address......Page 9

Declaration of Conformity....Page 9

Manufacturer....Page 9

Energy-Saving Father & Child Floor Lamp

●Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Please read carefully and completely through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

Properuse

This light is suitable only for interior use, in dry and enclosed spaces. This lamp is intended for use only in a domestic environment.

Includeditems

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

1 Floor lamp, Model 1241 / 022L or 1242 / 022L
2 Lamp glasses
1 Energy-saving bulb, 9 W, E 14
1 Energy-saving bulb, 22 W, E 27
2 Threaded rings
1 Tool
1 Support tube (reading lamp)
1 Support tube (uplight)
2 Threaded rods (support tube mount)
1 Support tube mount
2 Serrated lock washers

2 Nuts

1 Open spanner

1 Operating instructions

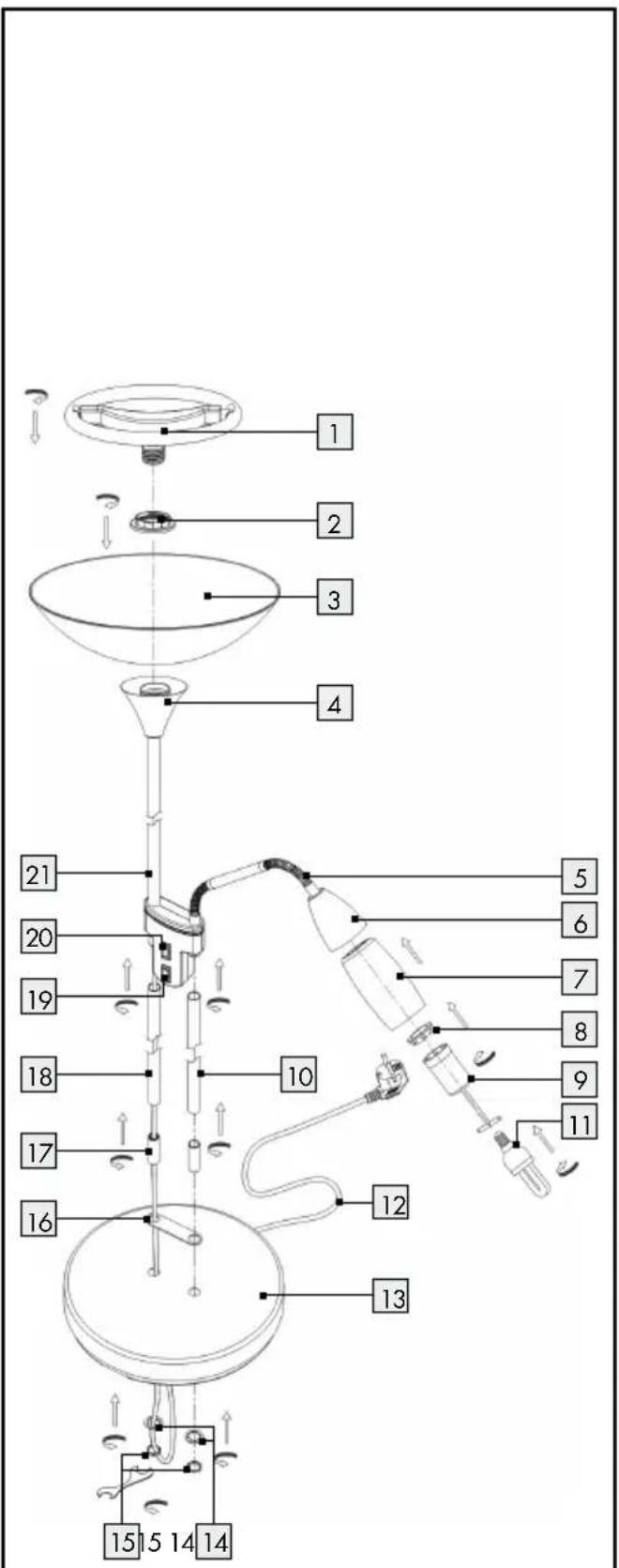

● Description of parts and features

1241/022L + 1242/022L

1 Bulb (uplight)
2 Threaded ring (uplight)
3 Lamp glass (uplight)
4 Fitting (socket) (uplight)
5 Flexible arm
6 Fitting (socket) (reading lamp)
7 Lamp glass (reading lamp)
8 Threaded ring (reading lamp)
9 Tool
10 Support tube (reading lamp)
11 Bulb (reading lamp)
12 Mains lead with mains plug
13 Base
14 Serrated lock washers
15 Nuts
16 Support tube mount
17 Threaded rods (support tube mount)
18 Support tube (uplight)
19 ON/OFF switch (reading lamp)
20 ON/OFF switch (uplight)
21 Upper support tube

●Technicaldata

Model No.: 1241/022L or 1242/022L

Operating voltage: 230-240V\~, 50Hz

Bulbs: Energy-saving bulbs:

230-240V\~, E14, 9W;

E27, 22 W (included)

or

230-240V\~, E14, 25W;

E27, 60 W (not included)

Rated max. power: 1 x 25 W (reading lamp)

1 x 60 W (uplight)

Protection class:

●Safety

Safetyadvice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice!

To avoid danger to life from electric shock

■ Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way.

CAUTION! A damaged light bulb means your life is at risk from electric shock. If there is any damage, repairs to be carried out or other problems related to the light bulb, please contact the service centre or a qualified electrician.

In order to prevent hazards, if the outer flexible cable of this lamp becomes damaged it may only be replaced by the manufacturer, a service representative of the manufacturer or a similar specialist!
Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (230-240 V \~).
■ Never let the lamp come into contact with water or other liquids.
■ Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock.

To avoid danger of fire and injury

CAUTION! RISK OF INJURY! Check bulbs for damage immediately after unpacking. Do not fit defective bulbs into the light. If they are, contact the service point for a replacement.

■ CAUTION! RISK OF INJURY FROM

BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp.

RISK OF FIRE! Install the light so that it is at least 0.5 m from any illuminated materials. Fire can result from the development of too much heat.

Immediately replace the faulty light bulb with a new one. Remove the lamp from the socket before changing the light bulb.
- Do not allow any objects to cover the lamp. Fire can result from the development of too much heat.
■ Never leave the lamp operating unattended.
Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children.

Working safely

Use only 230-240 volt \~ energy-saving bulbs with an E14 fitting and a maximum power output of 9 watts for the reading lamp. Use only 230-240 volt \~ energy-saving bulbs with an E27 fitting and a maximum power output of 22 watts for the uplift.

or

Use only 230-240 volt \~ bulbs with an E14 fitting and a maximum power output of 25 watts for the reading lamp. Use only 230-240 volt \~ bulbs with an E27 fitting and a maximum power output of 60 watts for the uplift.

• Install the light so that it is protected from moisture and dirt.
  Prepare carefully before assembly and allow yourself enough time. Lay out all the individual components and additional tools or materials required so that you can see and reach them.
• Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.

● Preparing the product for use

- Assembling the lamp

Note: You will require a second person to help with the assembly of the product.

Note: Assembly is identical for both models (1241/022L or 1242/022L).

Before installation, remove the two black plastic rings on the end of the support tube 18 to allow the components to be screwed together properly.
☐ First screw the support tube 18 clockwise into the upper support tube 21 . Ensure that the mains lead does not become trapped when it is fed through the support tubes 18 , 21 .
☐ Then screw the support tube 10 clockwise into the flexible arm 5.
☐ Screw the two threaded rods 17 clockwise into the support tubes 10, 18 and push the support tube mount 16 on to the threaded rods 17.
☐ Insert the floor lamp with the threaded rods 17 into the preformed holes in the base 13.
Place the serrated lock washers 14 at the underside of the support tube 13 on to the threaded rods 17. Using the open spanner, tighten the nuts 15 clockwise on to the threaded rods 17 to fix the floor lamp to the base 13.

Note: Ensure that you hold the support tubes 10, 18 and threaded rods 17 firmly in place when you are tightening the nuts 15.

Note: Ensure that the threaded rods are screwed in as far as possible so that the lamp is stable when standing up.

☐ Push the lamp glasses 3, 7 over the fittings 4, 6. Fix the lamp glasses in place with the threaded rings 2, 8 using the tool 9.

Note: Use a dry, fluff-free cloth for inserting the bulbs.

□ Screw the bulbs 1, 11 clockwise into the fittings 4, 6.

☐ Insert the mains plug 12 into a properly installed socket.

Your lamp is now ready for operation.

- Switching the lamp on / off

☐ Use the ON / OFF switch 20 to switch the uplift on or off.

☐ Use the ON / OFF switch 19 to switch the reading lamp on or off.

- Directing the lamp

☐ Bend the flexible arm 5 to bring the reading lamp into the desired position.

- Replacing a bulb

WARNING! RISK OF ELECTRIC SHOCK!

First pull the mains plug 12 out of the mains socket.

⚠️ CAUTION! RISK OF BURNS! First allow the lamp to cool completely.

□ Unscrew the defective bulb 1, 11 anticlockwise out of the fitting 4, 6.

☐ Then screw a new bulb clockwise into the fitting.

Note: Use only 230-240 volt \~ energy-saving bulbs with an E14 fitting and a maximum power output of 9 watts for the reading lamp. Use only 230-240 volt \~ energy-saving bulbs with an E27 fitting and a maximum power output of 22 watts for the uplift.

or

Use only 230-240 volt \~ bulbs with an E14 fitting and a maximum power output of 25 watts for the reading lamp. Use only 230-240 volt \~ bulbs with an E27 fitting and a maximum power output of 60 watts for the uplift.

● Care and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

First pull the mains plug 12 out of the mains socket. ⚠ CAUTION! RISK OF BURNS! First allow the lamp to cool completely.

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety reasons, never clean the lamp with water or other fluids nor immerse it in water.

Care and cleaning/Disposal/Warranty and Service

Do not use any solvents, petrol or similar. This would cause damage to the light.
□ Always use a dry, fluff-free cloth for cleaning.

●Disposal

The packaging and ancillary packing consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Products marked in this way may not be disposed of along with normal domestic waste but have to be handed in at a recycling collection point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and to ease the burden on the environment.

● Warranty and Service

●WarrantyDeclaration

This product has a 3-year warranty from the date of purchase; the warranty is only valid for the original purchaser and is not transferable. Please keep your receipt as proof of purchase. The warranty applies to material or manufacturing defects only. It does not cover wear parts or damage caused by improper use. The guarantee lapses in cases of unauthorized tampering. Your statutory rights are not restricted in any way by this warranty. Please contact the service centre by telephone. In the event of any claims under the warranty. This is the only way to ensure that your instrument can be returned free of charge.

●Serviceaddress

Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.

● Declaration of Conformity CE

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Directive 2006/95/EC). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

1 x 60 W (Deckenfluter)

Schutzklasse:

●Sicherheit

Sicherheitshinweise

59929 Brilon (Germany)

© by ORFGEN Marketing

Last Information Update · Informationsstatus · Tilstand

af information · Stand der Informationen: 04 / 2012

Ident.-No.: 1241/022L+1242/022L042012-SE/DK
