IAN 280087 - Lamp Livarno Lux - Free user manual and instructions

Type	LED Mood Light with Remote Control
Model	IAN 280087 / Item No. 14118006L
Dimensions (approx.)	20 cm diameter x 19.5 cm height
Weight	Not specified (est. 0.5–1 kg)
Power Supply (Main Unit)	230 V~ 50 Hz, total power input approx. 2.5 W
Light Source	18 RGB LEDs (non-replaceable), output per LED approx. 0.2 W
Remote Control Battery	1 x CR2025 button cell (3 V)
Remote Control Range	Approx. 5 m (infrared)
Intended Use	Indoor decorative lighting (not room lighting or night light)
Functions	7 static colors, brightness adjustment, color change modes: Flash, Strobe, Fade, Smooth
Color Selection	Via remote control: 5 color buttons plus white button
Brightness Levels	7 levels
Operation	Remote control with ON/OFF, dimming, color and mode selection
Protection Class	II (double insulation)
Safety Certifications	CE
Warranty	36 months from date of purchase
Cleaning Instructions	Unplug before cleaning; use dry, lint-free cloth; removable glass ball
Disposal	Separate collection for electrical/electronic equipment; batteries via recycling
Spare Parts / Repairability	LEDs not replaceable; entire unit must be replaced if light source fails. Remote control battery replaceable (CR2025).
Included Accessories	1 LED mood light, 1 infrared remote control, 1 CR2025 battery, 1 set of instructions

Frequently Asked Questions - IAN 280087 Livarno Lux

How do I turn on the LED mood light?

Plug the unit into a mains socket (230 V~ 50 Hz). Use the ON button (6) on the remote control to turn it on. The remote control requires the insulating strip to be removed before first use.

How do I change the color of the light?

Press one of the color buttons (12) or the white button W (7) on the remote control to select a static color. You can also choose from dynamic modes: FLASH, STROBE, FADE, SMOOTH by pressing the corresponding buttons (8-11).

How do I adjust the brightness?

Press the brighter button (3) to increase brightness and the dimmer button (4) to decrease. There are 7 brightness levels.

What type of battery does the remote control use and how do I replace it?

The remote control uses a CR2025 button cell (3V). Open the battery compartment (13), pull out the battery drawer (15), remove the old battery, insert a new one with correct polarity (+ facing up), and slide the drawer back in.

Can I use the light outdoors or as a night light?

No, the light is designed for indoor use only in dry, enclosed spaces. Do not use it as room lighting or a night light.

What should I do if the remote control stops working?

Check that the battery is inserted correctly and has sufficient charge. Ensure there are no obstacles between the remote control's infrared diode (14) and the light. The range is about 5 meters. Replace the battery if needed.

How do I clean the LED mood light?

Unplug the light from the mains. Clean with a dry, lint-free cloth. The glass ball can be removed for thorough cleaning: hold the base (19) and turn the glass ball (18) clockwise to remove, then reinstall by turning counterclockwise.

Are the LEDs replaceable?

No, the LEDs are non-replaceable. If the light source reaches the end of its service life, the entire unit must be replaced.

What is the warranty period and how do I claim it?

The product comes with a 36-month warranty from the date of purchase. In case of defects, send the appliance to the Service Centre address with the item number 14118006L and proof of purchase.

How should I dispose of the product and batteries?

Dispose of the product at a collection site for electrical and electronic appliances. Batteries must be recycled separately according to local regulations (Directive 2006/66/EC). Do not dispose in household waste.

USER MANUAL IAN 280087 Livarno Lux

Operation and Safety Notes

DE AT CH

LED-STIMMUNGSLICHT

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GR CY

GB/IE/NI/CY Operation and Safety Notes

Page 5

List of pictograms used....Page 6

Introduction......Page 6

Intended Use Page 6

Parts Description....Page 6

Technical Data Page 7

Scope of delivery Page 7

General safety instructions......Page 7

Safety Instructions for Batteries Page 8

Start-up Page 8

Operation Page 8

Selecting a light colour....Page 8

Selecting the colour change....Page 8

Switching off the light....Page 9

Changing the battery....Page 9

Cleaning and Care....Page 9

Disposal Page 9

Warranty and Service......Page 9

Warranty Page 9

Service address......Page 10

Declaration of conformity....Page 10

Manufacturer......Page 10

List of pictograms used
	Read the instructions! Direct current	[YSK4]
	This light is only suitable for indoor use in dry and enclosed spaces.		Observe the warnings and safety notices!
	Do not use this as room lighting or as a night light.		Danger to life and risk of accident for infants and children!
	Volt (AC)		Electric shock warning!Danger to life!
	Hertz (mains frequency)		Caution!Explosion hazard!
	Watt (effective power)		Dispose of the packaging and product in an environmentally-friendly manner!
	Safety class II

LED mood light

●Introduction

Congratulations on the purchase of your new product. You have selected a high quality product. These instructions are

part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

Intended Use

This light is suited for use in dry in-

door spaces and must not be used outside. Alternating calming and

reviving colours create an overall feeling of well-being. This product is not intended for commercial use.

This product is an illuminated

decoration. Do not use this as room lighting or as a night light.

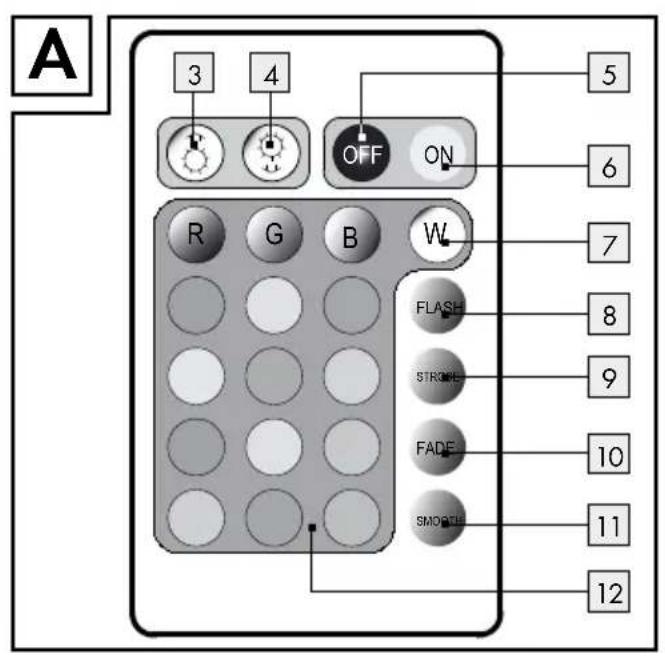

Parts Description

1 LED mood light

2 Remote control

3 button

4 button

5 OFF button

6 ON button

7 W button

8 FLASH button

9 STROBE button

10 FADE button

11 SMOOTH button

12 Colour buttons

13 Battery compartment

14 Infrared diode

15 Battery drawer
16 Battery
17 Insulating strip
18 Glass ball
19 Lamp base

Technical Data

Colour changing LED mood light with power supply

Total power input: approx. 2.5 W

Colour Changing LED Mood Light

Item number: 14118006L

Supply voltage: 230 V\~50 Hz

Light bulb: 18 x RGB LED

(not replaceable)

Output per LED: approx. 0.2 W

Dimensions: approx. ∅ 20 x 19.5 cm

Protection class: II/

Remote Control

Voltage: 1 x 3 V = CR2025 button

cell

Range: approx. 5 m

- Scope of delivery

1 LED mood light
1 Infrared remote control
1 CR2025 button cell (inserted)
1 Set of instructions for use

General safety instructions

Before using the product, please familiarise yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.
■ ATTENTION: Extremely rapid flashing may in some cases impair vision in children or predisposed persons (e.g. due to mental health conditions).
Do not look directly into the light source (light bulb, LED etc.).
- Do not use optical instruments to look at the light.

Avoid the danger of death from electric shock!

• Verify the available mains voltage matches the required operating voltage of the product before use (see „Technical Data“).
• Do not use the product if you detect any kind of damage.
  This product has delicate electronic components. Radio transmitting equipment in the immediate vicinity may therefore cause interference. If you experience faults, remove such equipment from the vicinity of the light.
  ■ Never allow the product to come into contact with water or other liquids.
  ■ The LEDs are not replaceable.
  The lamp's light source is not replaceable, the entire light needs to be replaced if the light source reaches the end of its service life.
  ■ Always unplug the mains plug from the socket before installation, removal or cleaning.
  This product does not contain any parts that can be serviced by the user.
• Only operate the product with the built-in LED controller.
  Please note, with the LED mood light plugged in it still uses a small amount of power whilst off. Unplug from the socket to switch the device off completely.

Safety Instructions for Batteries

WARNING! DANGER TO LIFE! Batteries

are not intended for children. If accidentally swallowed seek immediate medical attention!

CAUTION! EXPLOSION HA-

ZARD! Never recharge non-rechargeable batteries, do not short-circuit and/or open batteries!

■ Never throw batteries into fire or water!
Do not exert mechanical loads to batteries!

Risk of battery leakage

In the event of a battery leak, immediately remove it from the device to prevent damage!
Avoid contact with the skin, eyes and mucous membranes! In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention!
- Avoid extreme conditions and temperatures which may affect the batteries, e.g. on radiators / in direct sunlight.
■ Remove the battery from the device if it will not be used for a prolonged period!

Risk of equipment damage

■ Only use the specified battery type!
When inserting the battery ensure the correct polarity! This is shown on the battery compartment!
If necessary, clean the battery and device contacts before inserting the battery!
■ Promptly remove drained batteries from the product!

- Start-up

Colour Changing LED Mood Light

Place the LED mood light on a firm, level surface.
Plug into a socket. Verify the available mains voltagecorrespondswiththerequiredoperating voltageoftheproduct(230V\~).

The LED mood light is now ready for use.

Remote Control

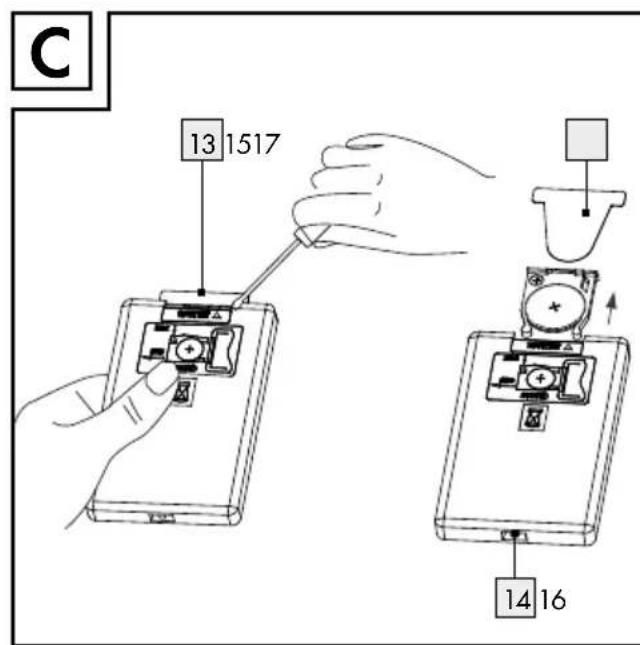

Remove the insulating strip between the battery 16 and the battery compartment 13 on the remote control 2 before use.

Note: Please note, the remote control uses infrared light. The signal cannot be transmitted "around the corner" as radio waves do. Light-tight objects may not be located between the infrared diode 14 and the light.

Operation

Use the remote control 2 to select a light colour or different colour change programs (Fig. A):

- Selecting a light colour

Press one of the colour button 12 or the W button 7 to select a colour corresponding with the button colour.
Press the button 3 to gradually increase the brightness.
Press the button 4 to gradually dim the light.

Choose from 7 brightness settings.

- Selecting the colour change

⑧: brighter

⑨: dim

5 x R: selects the desired colour

5 x G: selects the desired colour

5 x B: selects the desired colour

1 x W: selects the desired colour

FLASH button: rapid colour change

STROBE button: slow colour change

FADE button: flowing colour change

SMOOTH button: slow, flowing colour change

- Switching off the light

When switching off the LED mood light with the OFF button 5 on the remote control 2, the last colour or colour change selected will be used when switching the light on again with the ON button 6.

However, when disconnecting the LED mood light from the mains supply by unplugging it from the socket, the LED mood light will always light up white when switched on again.

- Changing the battery

Change the battery when the range of the remote control 2 noticeably declines or the LED mood light 1 no longer responds to the remote control.

☐ Pull the battery draw ☑ out of the remote control ☐.

- Remove the battery 16. - Insert the new battery 16.

Only use type CR2025 batteries and note the polarity when inserting the battery. This is shown on the back of the remote control 2.

Slide the battery drawn back into the remote control 2.

- Cleaning and Care

☐ Unplug the LED mood light 1 from the socket before cleaning.

☐ Clean the LED mood light and the remote control 2 with a dry, lint-free cloth.

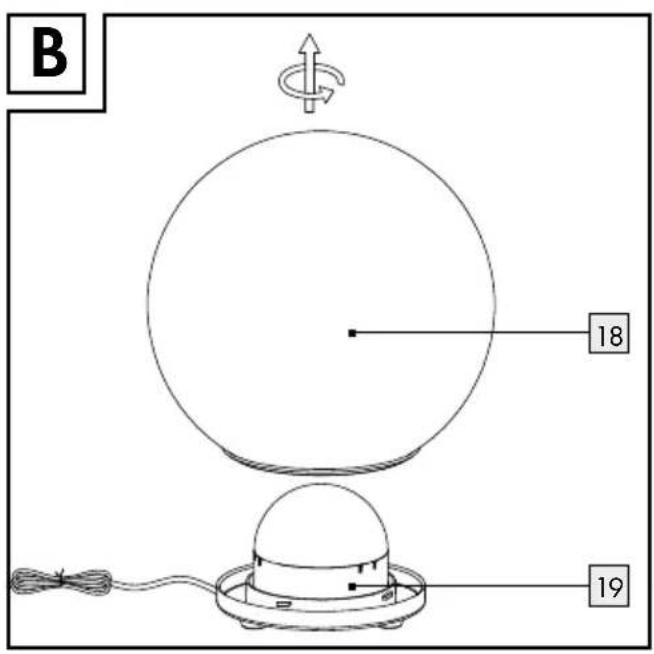

Remove the glass ball from the lamp base by holding on to the lamp base and carefully turning the glass ball clockwise.

Carefully lift the glass ball off the lamp base 19

After cleaning, carefully install the glass ball onto the lamp base 19.

Secure the glass ball by holding on to the lamp base 19 and carefully turning the glass ball 18 counter-clockwise.

- Disposal

The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with a line through it means that, in the European Union, the product has to be disposed

of in a separate refuse collection.

This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead take them for recycling at a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

Improper disposal of batteries can harm the environment!

Per Directive 2006 / 66 / EC and its amendments, defective or used batteries must be recycled. Return batteries and / or the product to the provided recycling facilities. Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations.

The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

● Warranty and Service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14118006L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the

operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the article number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer
