USER MANUAL PDSP 1000 A1 PARKSIDE

Green and red Parkside air pusher with metallic spray can on wooden surface (no text or symbols visible)

SANDBLASTER GUN

Operation and Safety Notes

Translation of original operation manual

PNEVMATIČNA-PESKALNA PIŠTOLA

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

PL

GB Operation and Safety Notes Page 5

Hand wearing gloves and spray gun applying paint to a metal frame (no text or symbols visible)

Person in gloves applying spray to a car hood with red and white paint (no text or symbols visible)

Introduction

Proper use ...... Page 7

Features and equipment ...... Page 7

Included items Page 8

Technical data Page 8

Safety advice ...... Page 8

Operation

Connecting the compressed air source ...... Page 10

Filling the blast medium container ...... Page 11

Using the sandblasting gun (see Figs. B, C) ...... Page 11

Cleaning Page 12

Service Page 12

Warranty Page 13

Disposal Page 14

Declaration of Conformity / Manufacturer Page 15

The following pictograms are used in these operating instructions / on the device:
	Read instruction manual!
	Observe caution and safety notes!
	Risk of explosion!
	Wear hearing protection, dust protection mask and protective glasses.
	Keep children away from the device!
	Never point the device at people or animals.
	No smoking!
	Dispose packaging and appliance in an environmentally-friendly way!

Sandblaster gun PDSP 1000 A1

- Introduction

Please make sure that you familiarise yourself fully with the way the sandblasting gun works before you use it for the first time and that you understand how to handle compressed air sand blasting guns correctly. To help you do this, please read the accompanying operating instructions. Keep these instructions in a safe place. If you pass the sandblasting gun on to anyone else, please ensure that you also pass on all the documentation. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.

- Proper use

This device is intended for the removal of rust and paint from metal surfaces. Any other use or modification to the device shall be considered as improper use and could give rise to considerable risk of accident. We will not accept liability for loss or damage arising from improper use. The device is intended for private, domestic use only.

● Features and equipment

1 Sandblasting gun
2 Trigger
3 Plug-in nipple for compressed air connection
4 Blast medium container
5 Blast nozzle

- Included items

1 Sandblaster gun PDSP 1000 A1

1 Operating instructions

- Technical data

Max. Working pressure: 8 bar

Recommended working air pressure: 3 - 5 bar

Compressed air consumption: 130 - 260 l/min

Nozzle ø: 2.8 mm

Container capacity: 1000 ml

Volume flow rate: typically 200 - 220 g / Min.

Required air quality: Cleaned and oil-free

Working settings: Working air pressure setting at

the pressure reducer max. 8 bar.

Sound pressure level: xx dB(A)

Sound power level: xx dB(A)

Values determined in accordance with EN 14462 (EN1953/A1:2009).

Safety advice

WARNING: Read all the safety advice and instructions.

Even minor failures to observe the safety advice and instructions could lead to severe injury.

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.

Check the device for damage before bringing it into

use. Do not use the device if you discover any defects.

Keep children and other people away while you are operating the sandblasting gun. Dis-tractions can cause you to lose control of the device.

RISK OF INJURY! IMPROPER USE! Never point the device at people or animals.

For your own safety, wear suitable personal protective equipment.

Wear an approved dust mask / protective hood!

Wear protective glasses!

RISK OF EXPLOSION! Do not use the sandblasting gun 1 in environments containing gases, open flames, fires or gas-operated water heaters.

NO SMOKING!

Work in adequately ventilated spaces only.

Never use oxygen or other combustible gas as the energy source.

Never exceed the maximum working air pressure of 8 bar.

WARNING! RECOIL FORCES! High working pressures can give rise to recoil forces that under certain conditions can result in danger from continuous loading.

DANGER OF INJURY! Disconnect the device from the compressed air source before carrying out any repairs or maintenance of the device or moving it to another location.

■ DANGER OF INJURY! Disconnect the device from the compressed air source before filling it with blast medium.
NOTE! Please observe the safety advice provided by the manufacturer of the blast medium.
■ Use only materials for the blast medium that are suitable for the sandblasting gun. Do not use quartz sand.
There is the danger of toxic silicon dust forming.
■ Take precautions to ensure that other people are not contaminated (dust generation).
■ Ensure that the spent blast medium is trapped and collected so that it can be disposed of in an environmentally compatible manner.
- Do not remove rating plates or labels - they are safety-relevant parts of the device.
If you are inexperienced in the use of this type of device, you should seek out information or training to learn how to handle it safely.

Operation

- Connecting the compressed air source

NOTE: Operate the sandblasting gun 1 only with cleaned, condensate- and oil-free compressed air and never exceed the maximum working air pressure at the device of 8 bar.

NOTE: The compressed air source must be fitted with a (filter) / pressure reducer so that the air pressure can be regulated.

☐ Connect the sandblasting gun to a suitable compressed air source by connecting the quick-release coupling of the air supply hose with the plug-in nipple 3 to the sandblasting gun 1. It locks itself in place automatically.

● Filling the blast medium container

■ Always use a suitable blast medium for your sand blasting work. NOTE: We recommend using a silica-free blast medium (e.g. ground blast furnace slag) with a grading of 0.2 mm - 0.8 mm.

☐ Ensure that the blast medium is completely dry and not too coarse. NOTE: The maximum particle size is 0.8 mm.

☐ Turn the bayonet cap of the blast medium container 4 to open it.

☐ Pull the blast medium container 4 off downwards.

☐ Fill the blast medium container 4 with the desired amount of blast medium.

☐ Ensure that the maximum capacity of the container (1000 ml) is not exceeded.

☐ Screw the blast medium container 4 back on and lock it in place by inserting and turning it on to the container lid (see Figs. A).

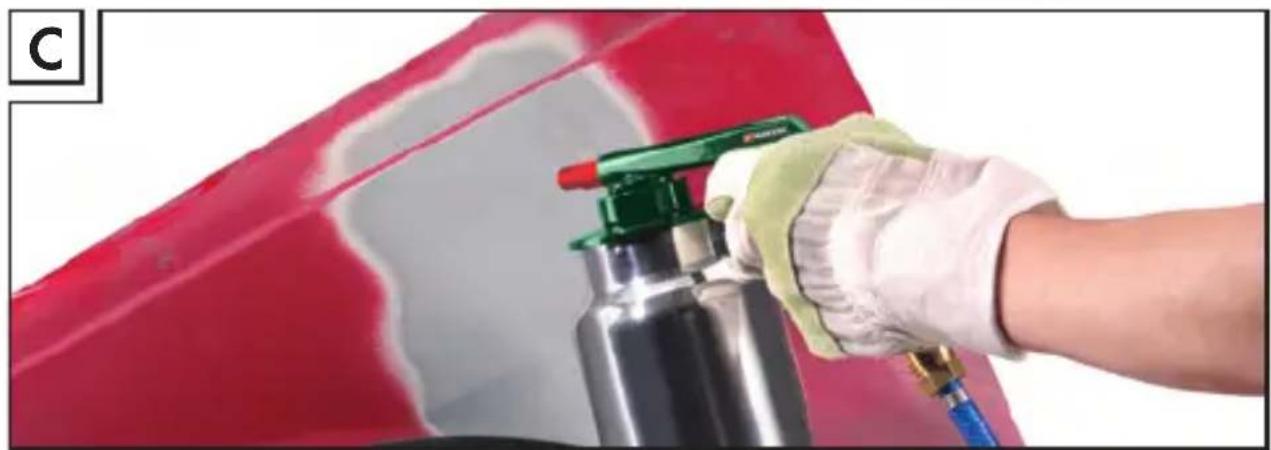

● Using the sandblasting gun (see Figs. B, C)

□ Carefully prepare the workpiece before sand blasting it. Clean it if necessary.

NOTE: Deposits of dust and grease can have a considerably detrimental effect on the result.

□ Carefully mask or tape off everything that is not to be sand blasted.

☐ Ensure that there is always a minimum distance of 20 cm between the sandblasting gun 1 and the surface being sand blasted.

Switching on:

☐ Press the trigger 2 to start operating the sandblasting gun 1.

Switching off:

☐ Release the trigger 2 to stop operating the sandblasting gun 1.
□ After you finish work, disconnect the device from the compressed air source.

NOTE: First disconnect the hose from the compressed air source and only then disconnect the compressed air supply hose from the device. This will ensure that the compressed air supply hose does not wave around in an uncontrolled manner.

- Cleaning

WARNING! DANGER OF INJURY! Always disconnect the device from the compressed air source before you clean or maintain it.

□ Clean the sandblasting gun 1 and blast medium container 4 after you finish working. Blow out the sandblasting gun 1 and the blast medium container 4 with compressed air.

□ Store the sandblasting gun 1 in a dry, enclosed room.

- Service

WARNING! Have your sandblasting gun repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your sandblasting gun remains safe to use.

● Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

DES UK LTD

Tel.: [phone] (£ 0.10 / minute)

e-mail: [e-mail]

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Do not dispose of the device with your household rubbish!

For details of disposing of the appliance at the end of its useful life, please contact your district or city council.

● Declaration of Conformity / Manufacturer

We, Kompernaß GmbH, the person responsible for documents: Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006 / 42 / EC)

Applicable harmonised standards:

DIN EN 1953:1998+A1:2009, DIN 31000:1979+A1:2007

Type / Device description:

Sandblaster gun PDSP 1000 A1

Date of manufacture (DOM): 04 - 2010

Serial number: IAN 49392

Declaration of Conformity / Manufacturer

Bochum, 30.04.2010

Hans Kompernaß

- Managing Director -

We reserve the right to make technical modifications in the course of further development.

Wstep

Date of manufacture (DOM): 04 - 2010

Date of manufacture (DOM): 04 - 2010

44867 Bochum (Germany)

Njemačka

HR

Ovlašteni servis: Microtec sistemi d.o.o.

Tel.: [phone]

email: [e-mail]

Zbrinjavanje

Date of manufacture (DOM): 04 - 2010

Serijski broj: IAN 49392

Bochum, 30.04.2010

Hans Kompernaß

- poslovoda -
