Product Type	Portable Round Barbecue
Brand	Florabest
Model	FTKG 29 B1
Dimensions (Assembled)	Approx. 42 x 31 x 31 cm
Cooking Grill Diameter	Approx. 29 cm
Weight	Approx. 2.3 kg
Fuel Type	Charcoal
Max Charcoal Capacity	400 g
Intended Use	Outdoor domestic grilling only
Assembly Required	Yes, with included hardware
Tools Needed for Assembly	Phillips screwdriver, open-ended spanners (5.5 mm, 8 mm)
Parts Included	Hood, cooking grill, charcoal bowl, firebowl, 3 support legs, 2 handles, 2 ventilation plates, 3 bracket closures, 3 brackets, assembly hardware, manual
Safety Features	Warning against using spirit/petrol; must use ignition aids per EN 1860-3; operate on level surface; keep children away; do not move when hot
Cleaning Instructions	Allow to cool completely; clean with mild detergent and water; avoid abrasive cleaners
Warranty	3 years from date of purchase
Disposal	Via approved waste management center; dispose of packaging environmentally
Manufacturer	KOMPERNASS HANDELS GMBH, Burgstrasse 21, 44867 Bochum, Germany
Service Hotline (UK)	0871 5000 720 (£0.10/min)
Service Hotline (Cyprus)	8009 4409

Frequently Asked Questions - FTKG 29 B1 FLORABEST

How do I assemble the FTKG 29 B1 barbecue?

Follow the step-by-step instructions in the manual. You will need a Phillips screwdriver and open-ended spanners (5.5 mm and 8 mm). Attach the handle to the hood, secure the ventilation plates, mount the support legs to the firebowl, and assemble the charcoal bowl. Finally, attach the cooking grill handle.

What type of charcoal should I use?

Use standard barbecue charcoal. The charcoal bowl can hold up to 400 g. Do not use spirit or petrol for ignition; use firelighters compliant with EN 1860-3.

How do I light the barbecue safely?

Place charcoal in the bowl, add one or two solid firelighters, and ignite them with a match or lighter. Let them burn for 2-4 minutes, then add more charcoal. Never use spirit or petrol. Wait until the charcoal has a white ash coating (about 20 minutes) before grilling.

Can I use the barbecue indoors?

No. This barbecue is for outdoor use only. Using it in an enclosed space can cause carbon monoxide poisoning, which is fatal.

How do I clean the FTKG 29 B1?

Allow the barbecue to cool completely. Clean the cooking grill with mild detergent and a household sponge. For other parts, use a cloth with water and mild detergent. Avoid abrasive or aggressive cleaners as they may damage the enamel.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not transport damage, wear parts, or damage from improper use. Keep your receipt as proof of purchase.

How can I transport the barbecue?

After it has cooled, place the hood onto the firebowl and secure it with the bracket closures. Attach the handle to the cooking grill for carrying. You can remove the handle when grilling.

What should I do if parts are missing or damaged?

Contact the service hotline (UK: 0871 5000 720, Cyprus: 8009 4409) or email [e-mail] / [e-mail]. Provide your proof of purchase and the model number FTKG 29 B1.

How do I dispose of the barbecue?

Take it to an approved waste management center or community waste facility. Dispose of packaging materials in an environmentally friendly manner. Do not dispose of hot ashes in combustible containers.

Can I use lighter fluid or gasoline to start the fire?

No. The manual explicitly warns against using spirit or petrol. Only use ignition aids that comply with EN 1860-3. Using flammable liquids can cause uncontrollable heat and injury.

USER MANUAL FTKG 29 B1 FLORABEST

PORTABLE ROUND BARBECUE FTKG 29 B1

GB CY

PORTABLE ROUND BARBECUE

Operating instructions

GR CY

Ψησταριά

Οδηγίες χρήσης

DE AT CH

TISCH-KUGELGRILL

Bedienungsanleitung

IAN 96151

GB CY

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GR CY

GB/CY Operating instructions Page 1

Table of contents

Introduction 2

Information about these operating instructions 2

Copyright....2

Intended use 2

Safety....3

Basic safety instructions.... 3

Scope of delivery / part names 4

Assembly material 4

Assembly 5

Preparing for assembly 5

Required Tools 5

Using the device 8

Cleaning and care 9

Disposal 9

Appendix 10

Technical details....10

Warranty 10

Service....11

Importer....11

Introduction

Information about these operating instructions

Congratulations!

With your purchase you have decided in favour of a high quality product. Familiarise yourself with the product before installation and before taking it into use for the first time. In this regard, please read the following assembly instructions and safety notices with care. Use this appliance only as described and only for the specified areas of application. Retain these instructions for future reference. Please also, pass these documents onto any future owner(s) of the product.

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This round barbecue is intended exclusively for the preparation of grilled foods. It is suitable only for use outdoors. This round barbecue is intended for use only in domestic environments, not for commercial applications.

No liability will be assumed for damage caused by misuse or improper handling, the use of force or unauthorised modification.

Claims of any kind for damage resulting from unintended use, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted.

The user is the sole bearer of the risk.

Safety

This section provides you with important safety information about handling the device.

The device complies with the statutory safety regulations.

Incorrect usage can lead to personal injury and property damage.

Basic safety instructions

WARNING

Risk of burns

1. Place the round barbecue on a secure, level and firm surface during use, otherwise it could tip over.
2. CAUTION! Do not use spirit or petrol to ignite or reignite the grill! Use only ignition aids that comply with EN 1860-3. The defl agration could cause an uncontrollable development of heat.
3. ATTENTION! During use, the round barbecue will become very hot and may not be moved, otherwise it could tip over.
4. ATTENTION! Keep children and pets well away from it!
5. When grilling, wear appropriate grilling gloves and use grilling tongs.
6. Never leave the round barbecue unsupervised when hot.
7. Allow the round barbecue to cool down completely before cleaning it.
8. Never use water to extinguish the glowing charcoal.

WARNING

Risk of suff ocation!

▶ CAUTION! Danger of carbon monoxide poisoning. Never operate the grill in an enclosed space, but only outdoors!

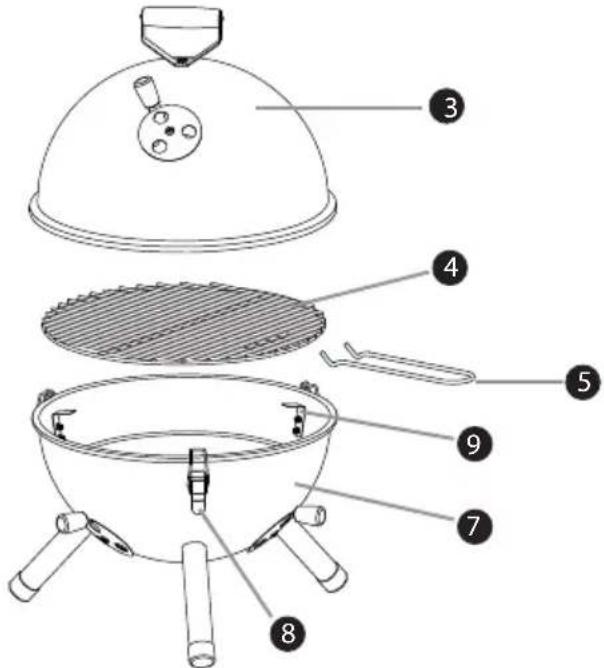

Scope of delivery / part names

1 x handle for hood
2 3 x ventilation plates
③ 1 x hood
4 1 x cooking grill
5 1 x handle for cooking grill
6 1 x charcoal bowl
7 1 x fi rebowl
8 3 x bracket closures
9 3 x brackets
10 3 x support legs

This operating manual

Assembly material

NOTE

▶ Check the contents for completeness and for signs of visible damage.

▶ If the contents are not complete, or are damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Assembly

Preparing for assembly

Allow yourself plenty of time to assemble the round barbecue. Find a level work surface about one to two square metres in size. Remove all individual items from the packaging and place them where they are conveniently handy.

Required Tools

Phillips head screwdriver

Open-ended spanners width across fl ats 5,5 mm, width across fl ats 8 mm

WARNING

▶ To avoid possible injury, the screw heads should always face outwards.

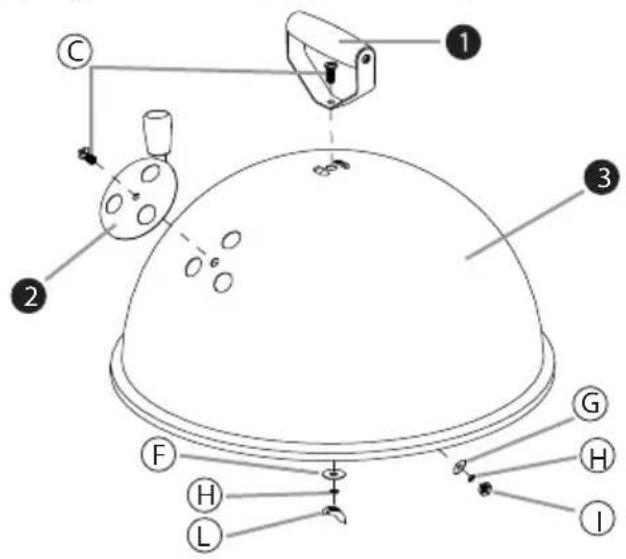

Step 1

♦ Screw the handle 1 to the hood 3 using bolt M5 x 10 Ⓒ, washers ∅6 x 16 Ⓕ, spring ring ∅5 Ⓗ and wing nut M5 Ⓛ.
◆ Secure the air vent ② to the hood ③ using bolt M5 x 10 Ⓒ, washer ∅6 x 12 Ⓖ, spring washer ∅5 Ⓗ and nut M5 Ⓘ.

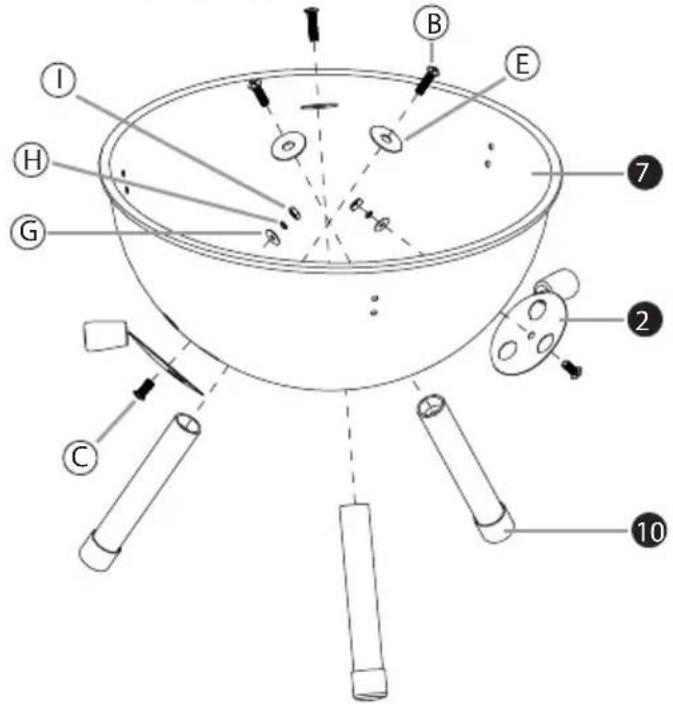

Step 2

♦ Screw the support legs 10 to the fi rebowl 7 using bolts M6 x 30 B and washers ∅6 x 25 E.
Secure the ventilation plates 2 to the fi rebowl 7 using screws M5 x 10 ©, washers ∅6 x 12 G, spring rings ∅5 H and nuts M5 I.

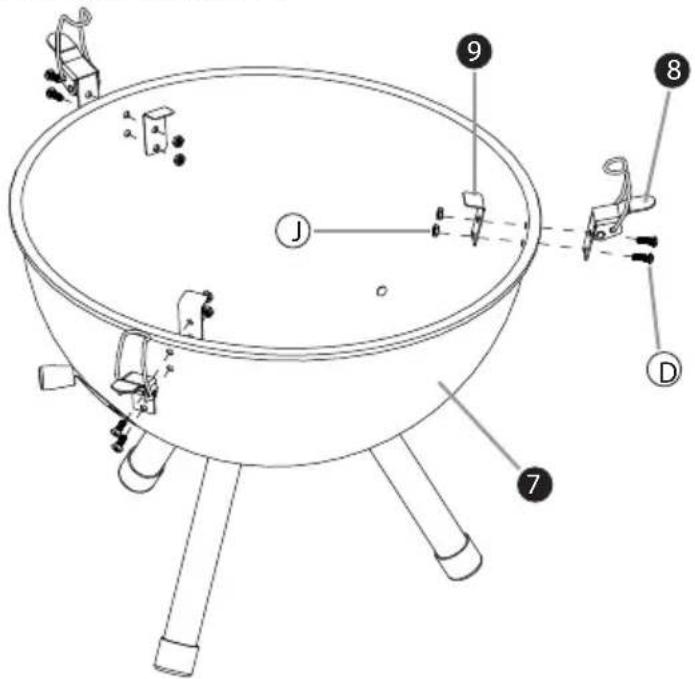

Step 3

◆ Secure the bracket closures 8 and the brackets 9 to the fi rebowl 7 using bolts M3×10 D and nuts M3 J.

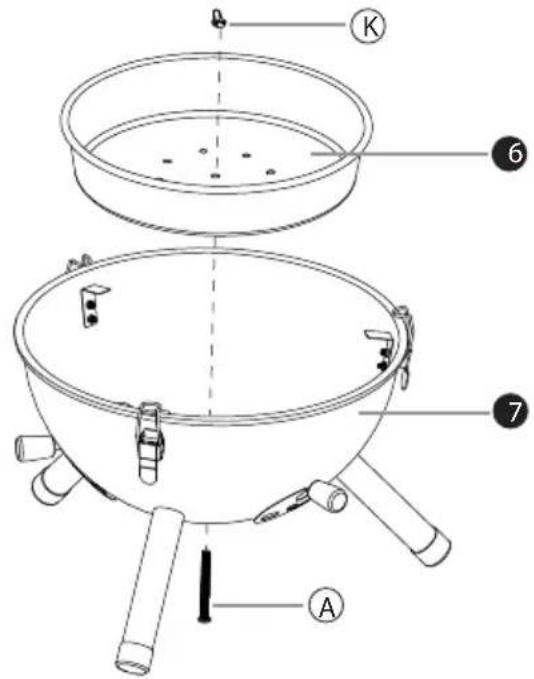

Step 4

Place the charcoal bowl ⑥ into the fi rebowl ⑦ and screw in place using bolt M6 x 60 A and wing nut M6 K.

Step 5

◆ Attach the handle 5 to the cooking grill 4 and place it onto the brackets 9. You can now remove the handle 5 from the cooking grill 4 again, so that it does not interfere when you are barbecuing.

If you would like to transport the round barbecue, place the hood 3 onto the fi rebowl 7 and secure it with the bracket closures 8.

Using the device

NOTE

Before initial use, the round barbecue must be warmed up for at least 30 minutes.

WARNING

Warning about burns!

• Place the round barbecue on a secure, level and firm surface during use, otherwise it could tip over.
  ▶ CAUTION! Do not use spirit or petrol to ignite or reignite the grill! Use only ignition aids that comply with EN 1860-3. The defl agration could cause an uncontrollable development of heat.

■ Layer a portion of the charcoal into the charcoalbow ^6 .
Place one or two solid fi relighters on the existing layer of charcoal and ignite the solid fi relighters with a match or lighter.
- Allow the fi relighters to burn for 2 to 4 minutes. Then slowly fi ll the charcoal-bowl ⑥ with charcoal.
■ After about 20 minutes the charcoal will display a white coating of ash. The optimal burning temperature has now been reached.
■ Use a suitable metal tool to distribute the charcoal evenly in the charcoal-bowl 6.
■ Hook in the 4 cooking grill and start barbecuing.
If you are barbecuing using the hood 3, ensure that the ventilation plates 2 on the fi rebowl 7 and the hood 3 are open in order to provide a supply of oxygen.

Cleaning and care

WARNING

Risk of burning

▶ Allow the round barbecue to cool down completely before cleaning it or putting it into storage. NEVER use water to extinguish the glowing charcoal.

CAUTION

- Do not use abrasive or aggressive cleaning agents, they can damage the enamelled components.

For normal cleaning, use a cloth and water with normal detergent.

Clean the cooking grill with detergent and a household sponge.

Disposal

Dispose of fl ammable materials carefully and in an environmentally friendly manner. Only dispose of residual waste in containers made of metal and intended for this purpose or made of non-fl ammable materials.

Dispose of the round barbecue via an approved waste management centre or at your community waste facility. Observe the currently applicable regulations. Please contact your waste management centre should you be in any doubt.

Dispose of all packaging materials in an environmentally friendly manner.

Appendix

Technical details

Dimensions (assembled): approx. 42 x 31 x 31 cm

Cooking grill approx. ∅ 29 cm

Weight 2.3 kg approx.

Fuel Charcoal

Charcoalbowl capacity max. 400 g

Warranty

The warranty provided for this device is 3 years from the date of purchase. This device has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact Customer Service by telephone. This is the only way to guarantee free dispatch of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, parts subject to wear and tear or damage to fragile components such as switches.

This device is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifications not carried out by one of our authorised service centres. Your statutory rights are not restricted in any way by this warranty.

The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts. Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase. Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 96151

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN 96151

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
