IAN 279763 - Massage device SILVERCREST - Free user manual and instructions

Type of product	Shiatsu massage cushion for the neck
Brand	SilverCrest
Model	IAN 279763
Dimensions (L x W x H)	approx. 32 x 18 x 12 cm
Weight	approx. 1.21 kg
Power supply	100-240 V~, 50/60 Hz, max. 0.5 A (adapter input)
Power adapter output	12 V = 1.2 A
Operating time	max. 15 minutes (auto-off)
Power cable length	approx. 1.80 m
Protection class	II
Main functions	Shiatsu massage with digital pressure, inward and outward rotation, integrated heating function
Intended use	Massage of neck and shoulders, private use only
Package contents	1 massage cushion with control, 1 power adapter, 1 cover, 1 instruction manual
Cover care	Machine washable at 30 °C, delicate cycle; do not bleach, do not tumble dry, do not iron
Cushion cleaning	Damp cloth or sponge with a little liquid soap; no chemical cleaner
Safety	Do not use in water or humid environments, do not puncture with sharp objects, risk of burns on hot surface, do not use on babies, children, persons insensitive to heat, animals; consult a doctor if you have a pacemaker
Warranty	3 years from date of purchase for material and manufacturing defects
Customer service (FR)	080 53 400 06 (toll-free), Mon.-Fri. 8am-6pm, [e-mail]
Customer service (CH)	0800 200 510 (toll-free), Mon.-Fri. 8am-6pm, [e-mail]
Manufacturer	MGG Elektro GmbH, Steinstraße 27, 40210 Düsseldorf, Germany
Model number (IAN)	279763

Frequently Asked Questions - IAN 279763 SILVERCREST

How to use the SilverCrest IAN 279763 Shiatsu massage cushion?

Place the cushion on the back of a chair, secure it with the Velcro strap, plug in the power adapter and turn on the device with the On/Off button. Use the rotation buttons to choose the massage direction and the heat button to activate the heating function. Do not exceed 15 minutes of continuous use.

What is the maximum recommended usage time?

The maximum operating time is 15 minutes. The device turns off automatically after this period. Allow the device to cool down before using it again.

Can the massage cushion be machine washed?

Only the cover is machine washable. Use a delicate cycle at 30 °C. Do not bleach, do not tumble dry, and do not iron. The cushion itself can be cleaned with a damp cloth and a little mild soap.

Can I use the massage cushion if I have a pacemaker?

Consult your doctor and the manufacturer of your pacemaker before use. Do not use the cushion on the chest area as it may affect the function of the pacemaker.

Is the massage cushion suitable for pregnant women?

No, using the massage cushion is not recommended during pregnancy, after taking painkillers or alcohol, or on swollen, burned, or injured areas.

What to do if the massage heads rotate slowly?

Reduce the pressure on the massage heads. Excessive pressure can slow down their rotation.

How to store the massage cushion after use?

Allow the device to cool down, carefully wind the cable without twisting it, and store it in a dry place without placing anything on top to avoid creases. Preferably use the original packaging.

Can the massage cushion be used on the face or feet?

No, the cushion is designed for the neck and shoulders. Do not use it on the face, throat, feet, or other sensitive body parts.

What is the warranty for the SilverCrest IAN 279763 massage cushion?

The warranty is 3 years from the date of purchase for material and manufacturing defects. It does not cover damages due to improper use, wear parts, or unauthorized repairs.

Where can I find customer service for this product?

For France, call 080 53 400 06 (toll-free, Mon.-Fri. 8am-6pm) or write to [e-mail]. For Switzerland, call 0800 200 510 or write to [e-mail].

USER MANUAL IAN 279763 SILVERCREST

Operation and Safety Notes

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 35

Intended use......Page 36

Description of parts....Page 37

Scope of delivery....Page 37

Technical Data Page 37

Important safety instructions....Page 37

Start-up Page 40

Troubleshooting Page 41

Cleaning and Care....Page 41

Storage Page 42

Disposal Page 42

Warranty / Service centre Page 42

Declaration of conformity....Page 43

List of pictograms used:
	Please read the operating instructions!		Keep children away from the massage cushion!
	Observe the warning and safety instructions!		Do not stick needles into the device!
	Volt (AC) Fire hazard!
	Hertz (mains frequency)		The cover is machine-washable.Set the washing machine to a delicate wash cycle at 30 °C.
	Risk of burns!Warning - hot surfaces.		Do not use bleach.
	Caution - Risk of electric shock!Danger to life!		Do not dry in a tumbler dryer.
	Risk of death by electric shock from damaged power cable or mains plug!		Do not iron.
	Safety class II Do not dry clean.
	Do not use the massage cushion in damp conditions.		Dispose of the packaging and the massage cushion in an environmentally friendly manner!

Shiatsu Neck Massage Cushion

Introduction

We congratulate you on the purchase of your new device. You have selected a high quality product. Please make yourself

familiar with the massage cushion before preparing it for use or using it for the first time. To do so, please carefully read the following operating instructions and the important safety information. Use the massage cushion only as described and for the indicated purposes. Keep these instructions in a safe place. If you pass the massage cushion on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This massage cushion is intended for massaging the human body. It can be used to massage to specific areas of the neck and shoulder region of the human body. You can complement the massage with thermal treatment. The combination of intensive shiatsu massage and the thermal function make the massage cushion effective and relaxing to use. The massage cushion is only for private use; it is not intended for medical or commercial purposes and is not a substitute for medical treatment. In particular it must not be used to massage babies, infants, vulnerable persons, or animals. The massage cushion is only suitable for use in dry indoor locations. Any other form of use or any modifications to the massage cushion are not permitted and may result in injury and / or damage to the cushion. The manufacturer accepts no liability for any damage caused by improper use. The massage cushion is not intended to be used for commercial purposes.

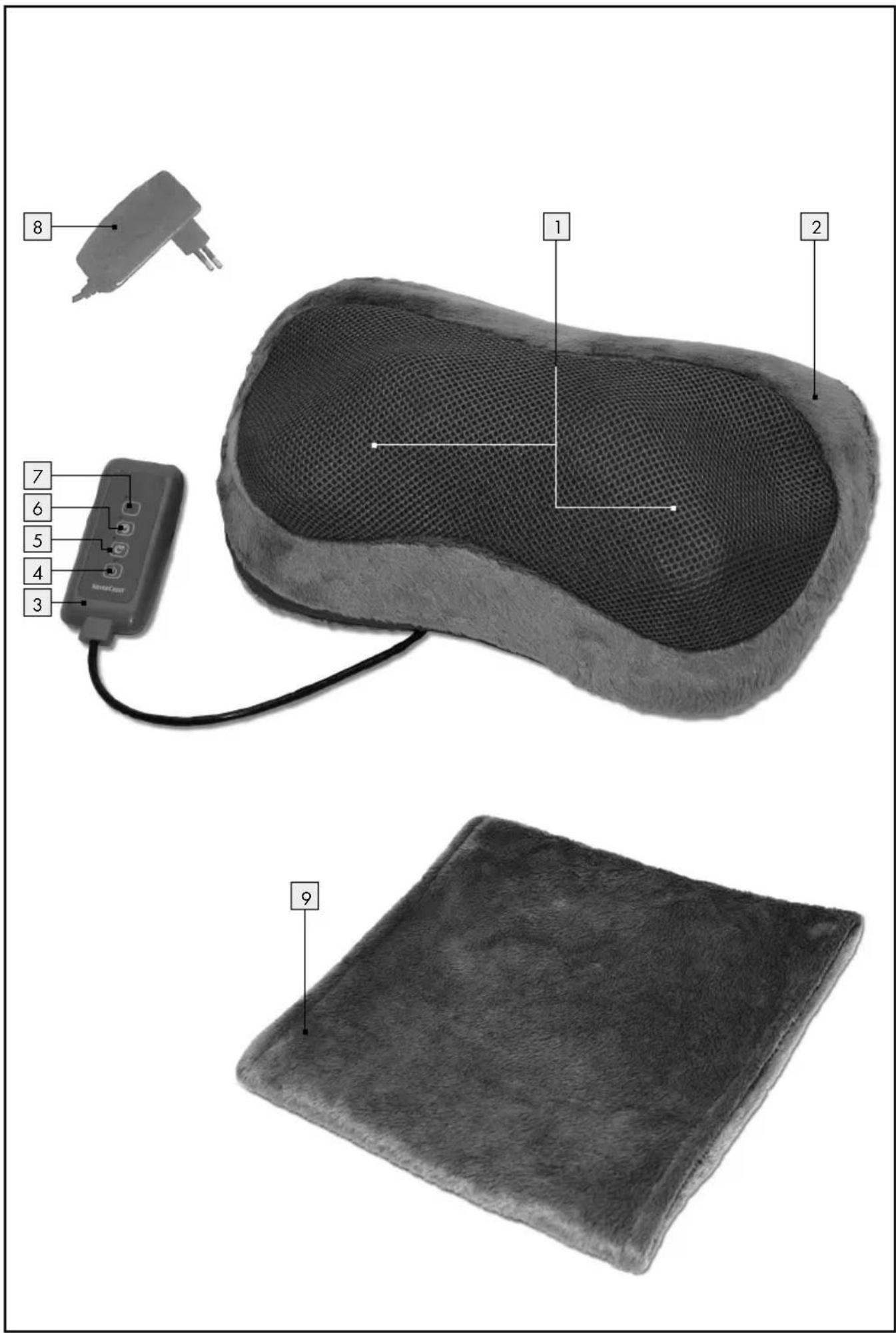

• Description of parts

1 Massage Heads
2 Massage Cushion
3 Control unit
4 ON / OFF button with LED
5 - Button with LED for massage with inward rotation
6 Button with LED for massage with outward rotation
7 Heat button (lighting and heating function)
8 Plug-in mains adapter
9 Cover

- Scope of delivery

Immediately after unpacking, check that all the items are present and that the product is in perfect condition.

1 Massage Cushion with Operating Device
1 Plug-in mains adapter
1 Cover
1 Set of instructions for use

●TechnicalData

Mains input: 100-240V\~, 50/60Hz, max. 0.5A

Mains output: 12V = 1.2A

Duration of use: max. 15 minutes (automatic shut-off)

Dimensions: approx. 32 x 18 x 12 cm

Weight: approx. 1.21 kg

Power cord length: approx. 1.80 m

Protection class: II/☐

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Düsseldorf, Germany

IMPORTANT INSTRUCTIONS – KEEP FOR FUTURE REFERENCE!

Important safety instructions

WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following safety and hazard information is intended not only to protect your health and the health of others, but also to protect the massage cushion. Observe this

safety advice. If you pass the massage cushion on to anyone else, please pass on these operation instructions as well.

WARNING!

DANGER TO LIFE AND

RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. Suffocation hazard.

Important safety instructions

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

WARNING! DANGER OF

ELECTRICSHOCK! Ensure that the massage cushion, operating device, mains adapter and power supply cord do not come into contact with water, steam or other liquids. Use the massage cushion only in dry indoor environments (e.g. never in the bath, sauna). If a massage cushion falls into water, do not attempt to pick it up. Pull the mains adapter out of the mains socket immediately. There is a risk of electric shock.

Do not improperly use the power supply cord to carry, hang up or to unplug the massage cushion from the mains. Do not allow the power supply cord to become trapped, kinked

or twisted. Keep the massage cushion and power supply cord away from heat, oil and sharp edges. If the power supply cord is damaged or severed, do not touch the power supply cord, instead pull the mains plug out of the socket immediately. Damaged or tangled power supply cords increase the risk of electric shock.

Do not use the massage cushion in damp conditions (e.g. when bathing or showering).

WARNING!

Do not insert needles or pointed objects into the massage cushion. There is a risk of electric shock.

- Operate the massage cushion: - only with the supplied mains adapter plug and at the voltage indicated on the mains adapter, - never operate it during a thunderstorm.

WARNING! DANGER OF ELECTRIC SHOCK AND IN-

JURY! Do not subject the massage cushion to shock and do not drop it. Before every use, check the massage cushion, mains adapter plug and its cords carefully for signs of wear and / or damage. Do not use it if you see

signs of wear and tear or damage or if the massage cushion has been used incorrectly and switch it off immediately in case of defects or malfunction. In this case, return it to the dealer before using it again. There is a danger of electric shock and injury.

FIRE HAZARD! Do not

cover the massage cushion during use (cushions, covers etc.). Never use the massage cushion near petrol or other readily flammable substances.

Ask your doctor and, if relevant, the manufacturer of your heart pacemaker before you use this massage cushion. Under certain circumstances, the electrical and magnetic fields emitted from the massage cushion could interfere with the proper functioning of your pacemaker. However, the values are well under the permitted limits.

WARNING!

Do not use the

massage cushion for massaging around the heart if you have a heart pacemaker. Otherwise there is a danger to life.

CAUTION! RISK OF

INJURY! Do not use this massage cushion on vulnerable people, children, or people who

are insensitive to heat (e.g. diabetics, people whose skin is affected by illness or who have scarred skin in the area where the heat will be applied) or animals. Do not use the massage cushion during pregnancy, after taking painkilling medication or alcohol. There is a risk of injury.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

Take care that you do not fall asleep while the massage cushion is in operation. There is a risk of skin burns. Do not use the massage cushion while driving.

RISK OF BURNS! The

surface of the massage cushion becomes hot during op- eration. People who are insensitive to heat must be careful while

using the massage cushion. There is a risk of skin burns.

- Do not use the massage cushion on swollen, burned, inflamed, diseased or injured parts or regions of the body or areas of skin. There is a risk of injury. If you are in doubt, seek medical advice before using the massage cushion, in particular:

• if you suffer from a serious illness or have had an operation on the upper part of your body,
• if you have a heart pacemaker, implant or other medical device,
• if you are suffering from thrombosis,
• if you suffer from pains with an undiagnosed cause.

The massage cushion must not be used on the face (e.g. eyes), on the larynx, the feet or other sensitive body parts. There is a risk of injury.
■ Repairs may only be carried out only by qualified specialist personnel or in a workshop approved by the manufacturer. Improper repairs may result in considerable danger for the user.

- Start-up

Do not open the zip fastener on the massage cushion. It is provided for reasons connected with the manufacturing process only.

Note: The massage cushion may give off an odour of plastic on first use. This odour will cease to develop after a short while.

Note: Do not lie, sit or stand with your full weight on the moving parts of the massage cushion and do not place any objects on the cushion.

Note: Ensure that you are experiencing the massage as pleasant and relaxing. If necessary, vary the pressure and/or your position. Stop the massage at once if it is painful or unpleasant.

Note: The massage cushion has two functions for a targeted massage treatment, finger pressure massage and heat. The thermal function can also be used without the shiatsu massage. If necessary pull the cover 9 over the massage cushion 1.

Note: The massage cushion 1 can be used with or without a cover 9.

Note: Use the massage cushion for a maximum of 15 minutes. Longer use may lead to over-stimulation and hence tension in the muscles. The device will automatically shut off after approx. 15 minutes.

Note: Allow the device to cool down before you use it again.

Place the massage cushion on the back rest of a high chair and attach it to the back with a velcro band.
Sit on the chair and check if the massage cushion is in the desired position. If not, change the position.
☐ Insert the connector plug into the power cable in the massage cushion. Position the cord to avoid creating a trip hazard. Plug the mains adapter 8 into the socket. Ensure that this is always accessible.
Control the massage cushion with the operating device 3.
☐ Switch the device on by pressing the ON/OFF 4 button. The green power indicator light switches on.

Start-up / Troubleshooting / Cleaning and Care

Press the button 6 to switch on the massage function with outward rotation. The green LED switches on.
Press the button 5 to change the direction of rotation. The LED switches off and is now green.

Note: You can also start the massage with the other rotation direction.

The thermal function can be switched on at any time during the shiatsu massage. Press the heat button 7, to activate this function. The red LED switches on. The heat is distributed across the 2 massage heads.
Press the heat button again to switch off the heat function. The red light switches off.
Press the ON / OFF button to switch the device off. The green power indicator light switches off. Then pull the mains adapter 8 out of the mains socket.

- Troubleshooting

○ Problem
- Cause
Rectification

○ Massage heads rotate slower
● Too much pressure on massage heads
- Reduce pressure on massage heads

○ The massage heads are not moving
● Device is not connected to the mains supply
Insert the plug-in mains adapter and switch on the device.

Note: Contact your specialist dealer or the service address if your massage cushion is still not functioning properly.

- Cleaning and Care

■

DANG RACING!

LIFE BY ELECTRIC SHOCK!

Always remove the plug-in mains

adapter from the mains socket before cleaning

the 8 massage cushion. Otherwise there is a risk of electric shock.

。

DANG RORNING!

ELECTRIC SHOCK! Ensure that the massage cushion is 8 completely

dry before you connect the plug-in mains adapter to the cushion. Otherwise there is a risk of electric shock.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY!

Do not use chemical cleaners or

scouring agents for cleaning the massage cushion. It may otherwise be damaged.

☐ Only clean the massage cushion in the indicated way. Under no circumstances must any liquid be allowed to enter the massage cushion or the accessories.

☐ Small stains can be removed with a cloth or moist sponge and if necessary with a little mild detergent. Do not use solvent-containing cleaners.

□

Clean the cover 9 in accordance with the cleaning symbols on the label. It is machine-washable. Set

the washing machine to a delicate wash cycle at 30 °C.

□

Use a mild detergent at the dose recommended by the manufacturer.

Note: Failure to observe the following warnings may damage the massage cushion.

□

Do not bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).

□

Do not dry in a tumbler dryer.

□

Do not iron.

□

Do not dry clean.

Storage

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Let the massage cushion cool before putting it away. Otherwise material damage could occur.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! To prevent the massage cushion from becoming sharply creased, do not place other objects on top of the cushion when it is stored. Otherwise material damage could occur.
If you do not intend to use the massage cushion for a long time, store it in the original packaging in a dry environment and without weighing it down.
☐ Unwind the cable in case it is twisted.
☐ Roll up the mains adapter cord carefully to avoid breaking the cable.

●Disposal

The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electric equipment in the household waste!

In accordance with the European Directive on waste electrical and electronic equipment and its transposition into national law, used electrical equipment must be collected separately and recycled in an environmentally friendly manner.

Contact your local refuse disposal authority for more details of how to dispose of your worn out massage cushion.

● Warranty / Service centre

We provide a 3-year warranty covering faults in materials or manufacture of the massage cushion from the purchase date.

The warranty does not cover:

- Damage from improper use.

·Wearparts.

• Damage caused by the customer.
• If the device has been opened by an unauthorised repair shop.

This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.

In the event of a claim, please contact our Service Department listed below:

Service Hotline (toll-free):

GB

∅ 0800 93 10 319

(Mon-Fri: 8 am-6 pm)

[e-mail]

If we ask you to return the defective massage cushion, please send it to the following address:

NU Service GmbH

Lessingstraße 10b

89231 Neu-Ulm

Germany

IAN 279763

● Declaration of conformity

The massage cushion complies with the requirements of the relevant European and national guidelines. This is confirmed by the CE mark. The relevant declarations are held by the manufacturer.

CE

NU Service GmbH

Lessingstraße 10 b

D-89231 Neu-Ulm
