CONTENTS

1. SAFETY INFORMATION...... 3
2. SAFETY INSTRUCTIONS......4
3. PRODUCT DESCRIPTION....6
4. DAILY USE....8
5. FLEXIBLE INDUCTION COOKING AREA.... 11
6. HINTS AND TIPS....14
7. CARE AND CLEANING....16
8. TROUBLESHOOTING....16
9. INSTALLATION....19
10. TECHNICAL INFORMATION......21
11. ENERGY EFFICIENCY....22

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.

1.2 General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• Do not use a steam cleaner to clean the appliance.
• After use, switch off the hob element by its control and do not rely on the pan detector.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Keep the minimum distance from the other appliances and units.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.

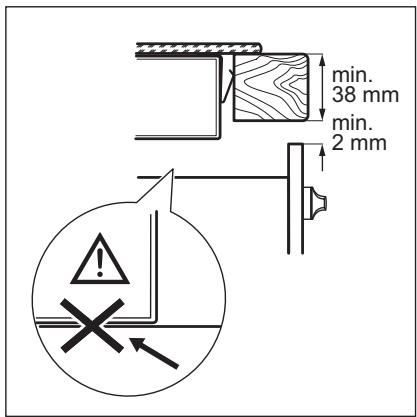

• The bottom of the appliance can get hot. Make sure to install a non-combustile separation panel under the appliance to prevent access to the bottom.

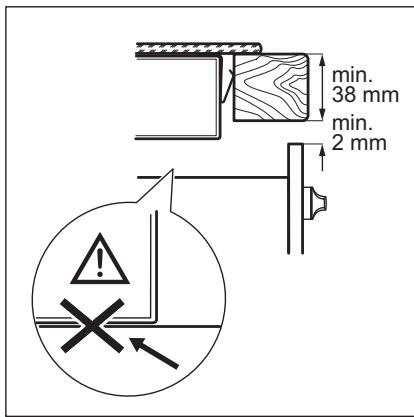

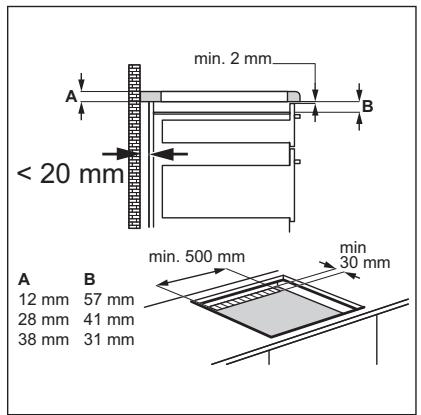

- Make sure that the ventilation space of 2 mm, between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.

2.2 Electrical Connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.

• Use the strain relief clamp on the cable.

• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets

• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

2.3 Use

WARNING!

Risk of injury, burns and electrical shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.

• Set the cooking zone to "off" after each use.

• Do not rely on the pan detector.

• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash.

WARNING!

Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

- This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

2.4 Care and cleaning

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

3. PRODUCT DESCRIPTION

3.1 Cooking surface layout

1 1 3 2

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

2.6 Service

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

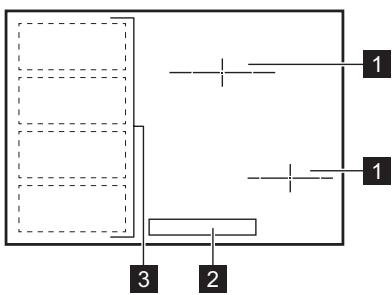

1 Induction cooking zone
2 Control panel
3 Flexible induction cooking area consisting of four sections

3.2 Control panel layout

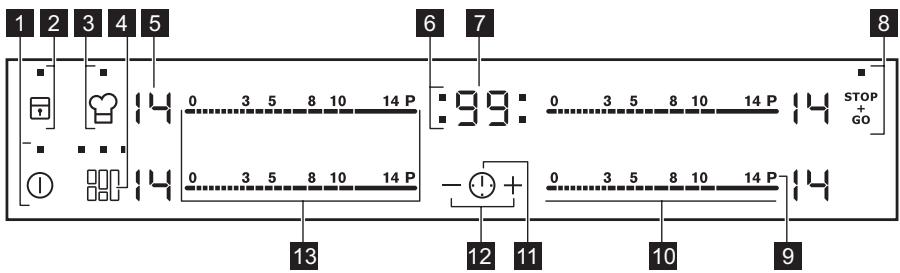

1 2 3 4 5 6 7 8 14 0 3 5 8 10 14 P 99: 0 3 5 8 10 14 P 14 STOP + GO 14 0 3 5 8 10 14 P - + 0 3 5 8 10 14 P 13 12 11 10 9

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

	Sensor field	Function	Comment
1	➊	ON / OFF	To activate and deactivate the hob.
2	➌	Lock / The Child Safety Device	To lock / unlock the control panel.
3	➎	ProCook	To activate and deactivate the function.
4	➿	FlexiBridge	To switch between three modes of the function.
5	-	Heat setting display	To show the heat setting.
6	-	Timer indicators of cooking zones	To show for which zone you set the time.
7	-	Timer display	To show the time in minutes.
8	STOP \ + \ GO	STOP+GO	To activate and deactivate the function.
9	P	Power function	To activate and deactivate the function.
10	-	Control bar	To set a heat setting.
11	➊	-	To select the cooking zone.
12	+ / -	-	To increase or decrease the time.
13	-	Control bar	To set the heat setting for flexible induction cooking area.

3.3 Heat setting displays

Display	Description
	The cooking zone is deactivated.
	The cooking zone operates.
	STOP+GO function operates.
	Automatic Heat Up function operates.
	Power function operates.
	There is a malfunction.
	OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / residual heat.
	Lock / The Child Safety Device function operates.
	Incorrect or too small cookware or no cookware on the cooking zone.
	Automatic Switch Off function operates.
	ProCook function operates.

3.4 OptiHeat Control (3 step Residual heat indicator)

WARNING!

☐ / ☐ / ☐ There is a risk of burns from residual heat. The indicator shows the level of the residual heat.

The induction cooking zones make the heat necessary for cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

4. DAILY USE

WARNING!

Refer to Safety chapters.

4.1 Activating and deactivating

Touch Ⓐ for 1 second to activate or deactivate the hob.

4.2 Automatic Switch Off

The function deactivates the hob automatically if:

• all cooking zones are deactivated,
- you do not set the heat setting after you activate the hob,
- you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates. Remove the object or clean the control panel.
- the hob gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
- you use incorrect cookware. The symbol F comes on and the cooking zone deactivates automatically after 2 minutes.

- you do not deactivate a cooking zone or change the heat setting. After some time ☐ comes on and the hob deactivates.

The relation between the heat setting and the time after which the hob deactivates:

Heat setting	The hob deactivates after
, 1 - 3	6 hours
4 - 7	5 hours
8 - 9	4 hours
10 - 14	1.5 hour

4.3 The heat setting

To set or change the heat setting:

Touch the control bar at the correct heat setting or move your finger along the control bar until you reach the correct heat setting.

14 0 3 5 8 10 14 P

4.4 Cooking zone indication

max.

The horizontal line shows the maximum size of the cookware.

Refer to "Technical information" chapter.

4.5 Automatic Heat Up

If you activate this function you can get a necessary heat setting in a shorter time. The function sets the highest heat setting for some time and then decreases to the correct heat setting.

To activate the function the cooking zone must be cold.

To activate the function for a cooking zone: touch P (P comes on). Immediately touch the correct heat setting. After 3 seconds R comes on.

To deactivate the function: change the heat setting.

4.6 Power function

This function makes more power available to the induction cooking zones. The function can be activated for the induction cooking zone only for a limited period of time. After this time the induction cooking zone automatically sets back to the highest heat setting.

Refer to “Technical information” chapter.

To activate the function for a cooking zone: touch P. comes on.

To deactivate the function: change the heat setting.

4.7 Timer

Count Down Timer

You can use this function to set how long the cooking zone should operate for a single cooking session.

First set the cooking zone then set the function. You can set the heat setting before or after you set the function.

To set the cooking zone: touch ① again and again until the indicator of a necessary cooking zone comes on.

To activate the function: touch + of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash slowly the time counts down.

To see the remaining time: set the cooking zone with Ⓐ. The indicator of the cooking zone starts to flash quickly. The display shows the remaining time.

To change the time: set the cooking zone with ⚠. Touch + or —.

To deactivate the function: set the cooking zone with ⚙️ and touch —. The remaining time counts back to 00. The indicator of the cooking zone goes out.

When the time comes to an end, the sound operates and 00 flashes. The cooking zone deactivates.

To stop the sound: touch ⚠️.

CountUp Timer (The count up timer)

You can use this function to monitor how long the cooking zone operates.

To set the cooking zone: touch ① again and again until the indicator of a necessary cooking zone comes on.

To activate the function: touch — of the timer. UP comes on. When the indicator of the cooking zone starts to flash slowly the time counts up. The

display switches between UP and counted time (minutes).

To see how long the cooking zone

operates: set the cooking zone with ⚠️. The indicator of the cooking zone starts to flash quickly. The display shows how long the zone operates.

To deactivate the function: set the cooking zone with ⚙ and touch + or -. The indicator of the cooking zone goes out.

Minute Minder

You can use this function as a Minute Minder when the hob is activated and the cooking zones do not operate (the heat setting display shows ☐).

To activate the function: touch ⚠️.

Touch + or — of the timer to set the time. When the time comes to an end, the sound operates and 00 flashes.

To stop the sound: touch ⚠️.

The function has no effect on the operation of the cooking zones.

4.8 STOP+GO

This function sets all cooking zones that operate to the lowest heat setting.

When the function operates, you cannot change the heat setting.

The function does not stop the timer functions.

To activate the function: touch STOP + GO . U comes on.

To deactivate the function: touch STOP + GO. The previous heat setting comes on.

4.9 Lock

You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting.

Set the heat setting first.

To activate the function: touch 🔍. 🔒 comes on for 4 seconds. The Timer stays on.

To deactivate the function: touch 📋. The previous heat setting comes on.

When you deactivate the hob, you also deactivate this function.

4.10 The Child Safety Device

This function prevents an accidental operation of the hob.

To activate the function: activate the hob with ①. Do not set the heat setting. Touch ☐ for 4 seconds. L comes on. Deactivate the hob with ①.

To deactivate the function: activate the hob with ①. Do not set the heat setting. Touch ☐ for 4 seconds. ☐ comes on. Deactivate the hob with ①.

To override the function for only one cooking time: activate the hob with Ⓙ. comes on. Touch ⏻ for 4 seconds.

Set the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob with ① the function operates again.

4.11 OffSound Control (Deactivation and activation of the sounds)

Deactivate the hob. Touch Ⓐ for 3 seconds. The display comes on and goes out. Touch 📋 for 3 seconds. 📄 or 📄 comes on. Touch + of the timer to choose one of the following:

• b1 - the sounds are off
• 60 - the sounds are on
  To confirm your selection wait until the hob deactivates automatically.

When the function is set to ☐ you can hear the sounds only when:

• you touch ①
  • Minute Minder comes down
  • Count Down Timer comes down
• you put something on the control panel.

4.12 Power management function

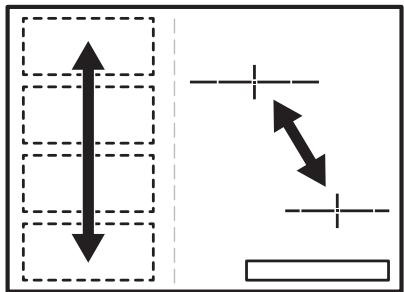

• Cooking zones are grouped according to the location and number of the phases in the hob. See the illustration.
• Each phase has a maximum electricity loading of 3700 W.
• The function divides the power between cooking zones connected to the same phase.
• The function activates when the total electricity loading of the cooking zones connected to a single phase exceeds 3700 W.
• The function decreases the power to the other cooking zones connected to the same phase.

- The heat setting display of the reduced zones changes between two levels.

Pure geometric diagram with arrows and lines, no text or symbols present

5. FLEXIBLE INDUCTION COOKING AREA

WARNING!

Refer to Safety chapters.

5.1 FlexiBridge function

The flexible induction cooking area consists of four sections. The sections can be combined into two cooking zones with different size, or into one large cooking area. You choose the combination of the sections by choosing the mode applicable to the size of the cookware you want to use. There are three modes: Standard (activated automatically when you activate the hob), Big Bridge and Max Bridge.

To set the heat setting use two left side control bars.

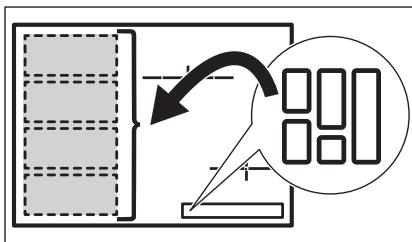

Switching between the modes

To switch between the modes use sensor field: ☐☐☐.

When you switch between the modes the heat setting is set back to 0.

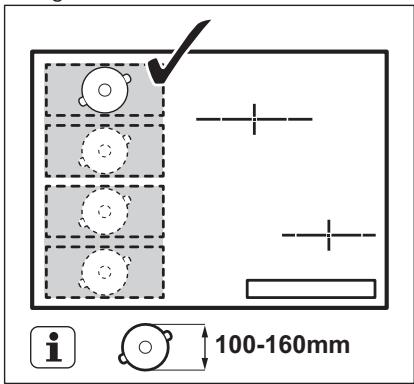

Diameter and position of the cookware

Choose the mode applicable to the size and the shape of the cookware. The cookware should cover the selected area as much as possible. Place the cookware centrally on the selected area!

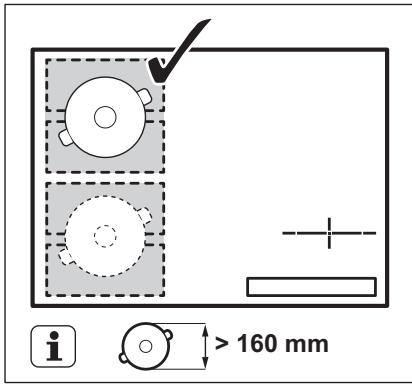

Place the cookware with the bottom diameter smaller than 160 mm centrally on a single section.

100-160mm

Place the cookware with the bottom diameter larger then 160 mm centrally between two sections.

i > 160 mm

5.2 FlexiBridge Standard mode

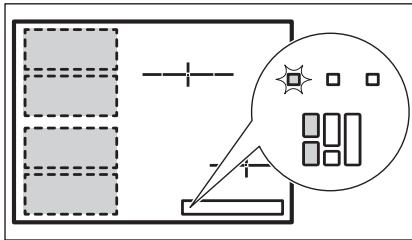

This mode is active when you activate the hob. It connects the sections into two separate cooking zones. You can set the heat setting for each zone separately. Use two left side control bars.

Diagram showing a layout with labeled boxes and a magnified view of rectangular blocks with star symbols

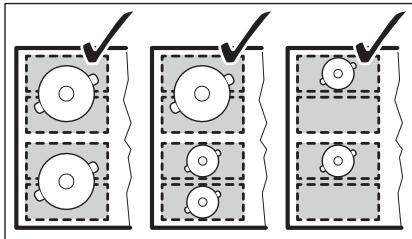

Correct cookware position:

Diagram showing three panels with circular objects and checkmarks, likely illustrating a selection or status process.

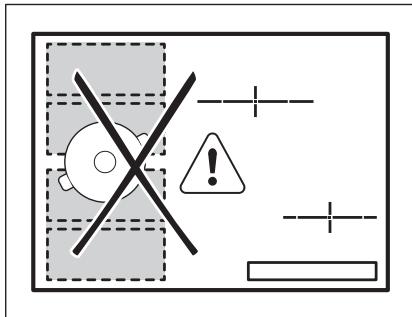

Incorrect cookware position:

Safety warning sign with cross symbol, warning triangle, and plus signs in a grid layout

5.3 FlexiBridge Big Bridge mode

To activate the mode press until you see the correct mode indicator. This mode connects three rear sections into one cooking zone. The one front section is not connected and operates as a separate cooking zone. You can set the heat setting for each zone separately. Use two left side control bars.

Pure diagram of a rectangular frame with dashed borders and a magnified inset showing geometric shapes (no text or symbols)

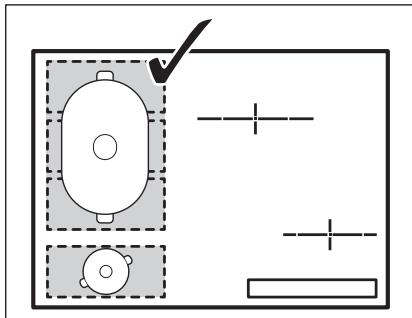

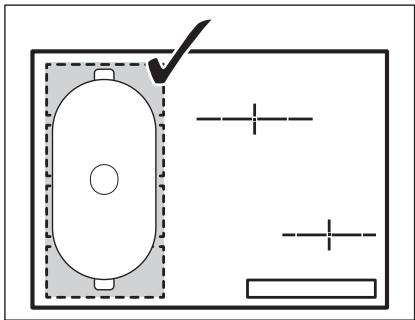

Correct cookware position:

To use this mode you have to place the cookware on the three connected sections. If you use cookware smaller than two sections the display shows F and after 2 minutes the zone switches off.

Top-down diagram of a room layout with furniture and fixtures (no text or symbols)

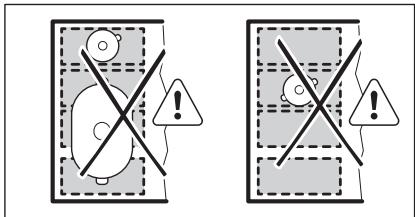

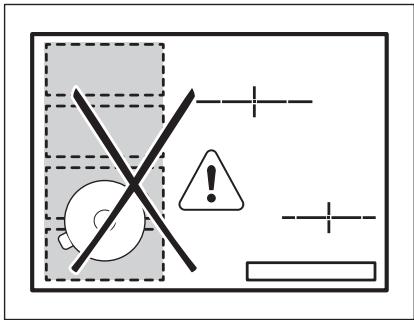

Incorrect cookware position:

Safety warning symbols for a device with crosshair and warning triangle, indicating no protection or absence of any other hazard.

5.4 FlexiBridge Max Bridge mode

To activate the mode press until you see the correct mode indicator. This mode connects all sections into one cooking zone. To set the heat setting use one of the left side control bars.

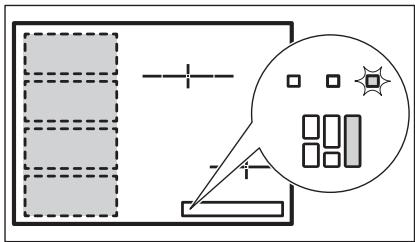

Diagram showing a layout with dashed boxes, a plus sign, and a magnified view of rectangular blocks with a star symbol.

Correct cookware position:

To use this mode you have to place the cookware on the four connected sections. If you use cookware smaller than three sections the display shows and after 2 minutes the zone switches off.

Top-down schematic of a room layout with a central oval object, dashed border, and checkmark (no text or symbols)

Incorrect cookware position:

Safety warning sign with cross symbol, warning triangle, and warning signs in a grid layout

5.5 🤒 ProCook function

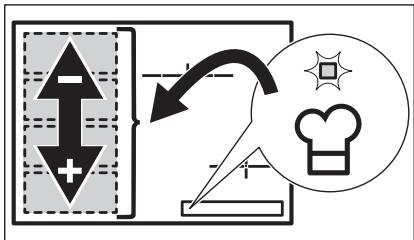

This function allows you to adjust the temperature by moving the cookware to a different position on the induction cooking area.

The function divides the induction cooking area into three areas with different heat settings. The hob senses the position of the cookware and sets the heat setting corresponding with the position. You can place the cookware in the front, middle or rear position. If you place the cookware in the front you get the highest heat setting. You can decrease the heat setting by moving the cookware in the middle or to the rear position.

Use only one pot when you operate the function.

General information:

• 160 mm is the minimum bottom diameter of the cookware for this function.
• Heat setting display for the left rear control bar shows the position of the cookware on the induction cooking area. Front 1_- , middle 1_- , rear 1^- .

0 3 5 8 10 0 3 5 8 10

• Heat setting display for the left front control bar shows the heat setting. To change the heat setting use left front control bar.

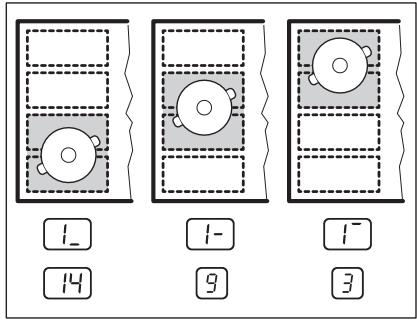

• When you activate the function for the first time you will get heat setting 14 for the front position, 9 for the middle position and 3 for the rear position.

1_ 14 9 3 1- 1-

You can change the heat settings for each position separately. The hob will remember your heat settings next time you activate the function.

Activating the function

To activate the function place the cookware in the correct position on the cooking area. Touch 📋. The indicator above the symbol comes on. If you do not place the cookware on the cooking area F comes on and after 2 minutes the flexible induction cooking area is set to ☐.

Deactivating the function

To deactivate the function touch 🏠 or set the heat setting to 📄. The indicator above the symbol 🔊 goes off.

6. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

6.1 Cookware

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

Use the induction cooking zones with correct cookware.

Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, the bottom made of multi-layer (with correct mark from a manufacturer).
  • not correct: aluminium, copper, brass, glass, ceramic, porcelain.

Cookware is correct for an induction hob if:

• some water boils very quickly on a zone set to the highest heat setting.
• a magnet pulls on to the bottom of the cookware.

The printing on the flexible induction cooking area may become dirty or change colour from sliding the cookware. You can clean the area in a standard way.

The bottom of the cookware must be as thick and flat as possible.

Cookware dimensions

Induction cooking zones adapt to the dimension of the bottom of the cookware automatically to some limit.

The cooking zone efficiency is related to the diameter of the cookware. The cookware with a smaller diameter than the minimum receives only a part of the power generated by the cooking zone.

Refer to “Technical information” chapter.

6.2 The noises during operation

If you can hear:

• crack noise: cookware is made of different materials (sandwich construction).
• whistle sound: you the cooking zone with high power level and the cookware is made of different materials (sandwich construction).
  • humming: you use high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

The noises are normal and do not refer to hob malfunction.

6.3 Öko Timer (Eco Timer)

To save energy, the heater of the cooking zone deactivates before the count down timer sounds. The difference in the operation time depends on the heat setting level and the length of the cooking operation.

6.4 Examples of cooking applications

The relation between the heat setting and the cooking zone consumption of power is not linear. When you increase the heat setting, it is not proportional to the increase of the cooking zone consumption of power. It means that the cooking zone with the medium heat setting uses less than a half of its power.

The data in the table is for guidance only.

Heat setting	Use to:	Time (min)	Hints
- 1	Keep cooked food warm.	as necessary	Put a lid on the cookware.
1 - 3	Hollandaise sauce, melt: butter, chocolate, gelatine.	5 - 25	Mix from time to time.
1 - 3	Solidify: fluffy omelettes, baked eggs.	10 - 40	Cook with a lid on.
3 - 5	Simmer rice and milkbased dishes, heating up ready-cooked meals.	25 - 50	Add the minimum twice as much liquid as rice, mix milk dishes part procedure through.
5 - 7	Steam vegetables, fish, meat.	20 - 45	Add some tablespoons of liquid.
7 - 9	Steam potatoes.	20 - 60	Use max. 14 I water for 750 g of potatoes.
7 - 9	Cook larger quantities of food, stews and soups.	60 - 150	Up to 3 l liquid plus ingredients.
9 - 12	Gentle fry: escalope, veal cor-don bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.	as nec-essary	Turn halfway through.
12 - 13	Heavy fry, hash browns, loin steaks, steaks.	5 - 15	Turn halfway through.
14	Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
P	Boil large quantities of water. Power function is activated.

7. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

7.1 General information

• Clean the hob after each use.
• Always use cookware with clean bottom.
• Scratches or dark stains on the surface have no effect on how the hob operates.
• Use a special cleaner applicable for the surface of the hob.
• Use a special scraper for the glass.

the dirt can cause damage to the hob. Put the special scraper on the glass surface at an acute angle and move the blade on the surface.

- Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and some detergent. After cleaning, rub the hob dry with a soft cloth.

7.2 Cleaning the hob

- Remove immediately: melted plastic, plastic foil, and food with sugar. If not,

8. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

8.1 What to do if...

Problem	Possible cause	Remedy
You cannot activate or operate the hob.	The hob is not connected to an electrical supply or it is connected incorrectly.The fuse is released.	Check if the hob is correctly connected to the electrical supply. Refer to the connection diagram.Make sure that the fuse is the cause of the malfunction. If the fuse releases again and again, contact a qualified electrician.
		Activate the hob again and set the heat setting in less than 10 seconds.
	You touched 2 or more sensor fields at the same time.	Touch only one sensor field.
	STOP+GO function operates.	Refer to "Daily use" chapter.
	There is water or fat stains on the control panel.	Clean the control panel.
An acoustic signal sounds and the hob deactivates. An acoustic signal sounds when the hob is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The hob deactivates.	You put something on the sensor field ➊.	Remove the object from the sensor field.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
Automatic Heat Up function does not operate.	The zone is hot.	Let the zone become sufficiently cool.
	The highest heat setting is set.	The highest heat setting has the same power as the function.
The heat setting changes between two levels.	Power management function operates.	Refer to "Daily use" chapter.
The sensor fields become hot.	The cookware is too large or you put it too near to the controls.	Put large cookware on the rear zones if possible.
There is no signal when you touch the panel sensor fields.	The signals are deactivated.	Activate the signals. Refer to "Daily use" chapter.
The flexible induction cooking area does not heat up the cookware.	The cookware is in the wrong position on the flexible induction cooking area.	Place the cookware in the correct position on the flexible induction cooking area. The position of the cookware depends on the activated function or function mode.Refer to "Flexible induction cooking area" chapter.
	The diameter of the bottom of the cookware is incorrect for the activated function or function mode.	Use cookware with diameter applicable to the activated function or function mode. Use cookware with diameter smaller than 160 mm on a single section of the flexible induction cooking area.Refer to "Flexible induction cooking area" chapter.
- comes on.	Automatic Switch Off operates.	Deactivate the hob and activate it again.
L comes on.	The Child Safety Device or the Lock function operates.	Refer to "Daily use" chapter.
F comes on.	There is no cookware on the zone.	Put cookware on the zone.
	The cookware is incorrect.	Use the correct cookware. Refer to "Hints and tips" chapter.
	The diameter of the bottom of the cookware is too small for the zone.	Use cookware with correct dimensions.Refer to "Technical information" chapter.
	FlexiBridge function operates. One or more sections of the function mode which operates are not covered by the cookware.	Place the cookware on the correct number of sections of the function mode which operates or change the function mode.Refer to "Flexible induction cooking area" chapter.
	ProCook function operates. Two pots are placed on the flexible induction cooking area.	Use only one pot.Refer to "Flexible induction cooking area" chapter.
and a number come on.	There is an error in the hob.	Disconnect the hob from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect it again. If comes on again, speak to an Authorised Service Centre.
4 comes on.	There is an error in the hob because a cookware boils dry. Automatic Switch Off and the overheating protection for the zones operate.	Deactivate the hob. Remove the hot cookware. After approximately 30 seconds, activate the zone again. If the cookware was the problem, the error message goes out. Residual heat indicator can stay on. Let the cookware become sufficiently cool. Check if your cookware is compatible with the hob. Refer to “Hints and tips” chapter.

8.2 If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an

error message that comes on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

9. INSTALLATION

WARNING!

Refer to Safety chapters.

9.1 Before the installation

Before you install the hob, write down the information bellow from the rating plate. The rating plate is on the bottom of the hob.

Serial number ....

9.2 Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units

and work surfaces that align to the standards.

9.3 Connection cable

• The hob is supplied with a connection cable.
• To replace the damaged mains cable use the following (or higher) mains cable type: H05BB-F Tmax 90°C. Speak to your local Service Centre.

9.4 Attaching the seal

1. Clean the worktop around the cut out area.
2. Attach the supplied seal stripe to the lower edge of the hob along the outer edge of the glass ceramic. Do not extend it. Make sure that the ends of

the seal stripe are located in the middle of one side of the hob.

1. Add some mm when you cut the seal stripe to the length.

2. Push the two ends of seal stripe together.

9.5 Assembly

Diagram illustrating a recycling process with labeled arrows and a recycling bin icon

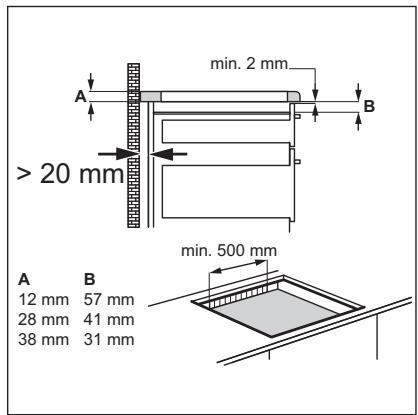

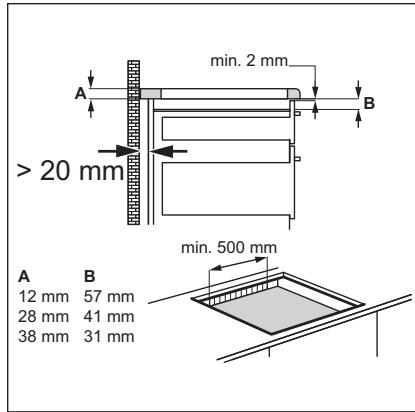

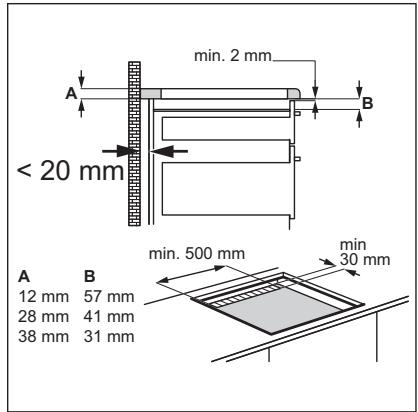

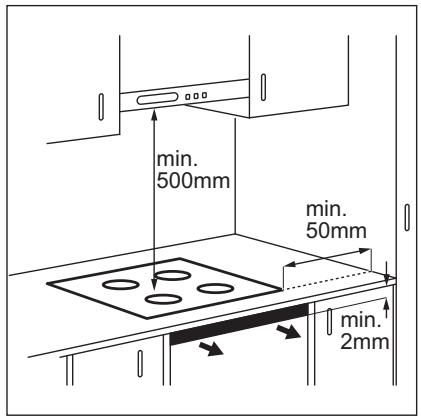

min. 2 mm A B < 20 mm min. 500 mm min 30 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

min. 2 mm A B > 20 mm min. 500 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

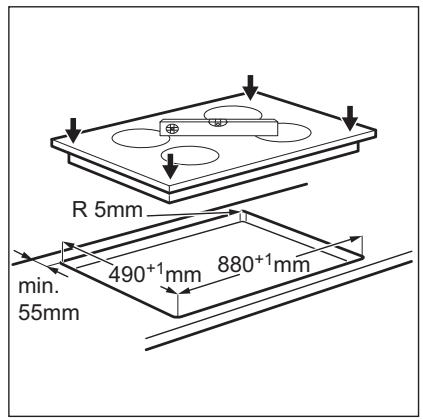

R 5mm min. 55mm 490+1mm 880+1mm

Illustration of a hand holding a pen writing on an open book, with a magnified inset showing the tip of the pen (no text or symbols present)

10. TECHNICAL INFORMATION

10.1 Rating plate

Modell EHX9565FOK

Typ 58 GCD CH AU

Induction 7.4 kW

Ser.Nr. ....

ELECTROLUX

PNC 949 596 294 00

220 - 240 V 50 - 60 Hz

Made in Germany

7.4 kW

10.2 Cooking zones specification

Cooking zone	Nominal power (maximum heat setting) [W]	Power function [W]	Power function maximum duration [min]	Cookware diameter [mm]
Middle rear	2300	3200	10	125 - 210
Right front	2300	3200	10	125 - 210
Flexible induction cooking area	2400	3300	10	minimum 100

The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.

For optimal cooking results use cookware not larger than the diameter in the table.

11. ENERGY EFFICIENCY

11.1 Product information according to EU 66/2014

Model identification		EHX9565FOK
Type of hob		Built-In Hob
Number of cooking zones		2
Number of cooking areas		1
Heating technology		Induction
Diameter of circular cooking zones (∅)	Middle rearRight front	21.0 cm21.0 cm
Lenght (L) and width (W) of the cooking area	Left	L 44.0 cmW 24.0 cm
Energy consumption per cooking zone (EC electric cooking)	Middle rearRight front	174.9 Wh / kg172.6 Wh / kg
Energy consumption of the cooking area (EC electric cooking)	Left	187.4 Wh / kg
Energy consumption of the hob (EC electric hob)		178.3 Wh / kg

EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

11.2 Energy saving

You can save energy during everyday cooking if you follow below hints.

- When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.
• Before you activate the cooking zone put the cookware on it.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

12. ENVIRONMENT CONCERNS

Recycle the materials with the symbol 📋. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do

not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. CONSIGNES DE SÉCURITÉ....25
2. INSTRUCTIONS DE SÉCURITÉ.... 26
3. DESCRIPTION DE L'APPAREIL....29
4. UTILISATION QUOTIDIENNE....31
5. ZONE DE CUISSON À INDUCTION FLEXIBLE....34
6. CONSEILS....38
7. ENTRETIEN ET NETTOYAGE.... 39
8. EN CAS D'ANOMALIE DE FONCTIONNEMENT.... 40
9. INSTALLATION....43
10. CARACTÉRISTIQUES TECHNIQUES......45
11. RENDEMENT ÉNERGÉTIQUE.... 46

NOUS PENSONS À VOUS

Pure geometric diagram with arrows and lines, no text or symbols present

5. ZONE DE CUISSON À INDUCTION FLEXIBLE

AVERTISSEMENT!

Pure diagram of a rectangular block with internal compartments and a circular inset showing geometric shapes (no text or symbols)

Diagram showing three panels of a room with four circular objects, each marked with a checkmark and a number inside.

Safety warning sign with crosshair, warning triangle, and warning symbols

5.3 FlexiBridge Mode Big Bridge

Pure diagram of a rectangular block with dashed lines and a magnified inset showing geometric shapes (no text or symbols)

Top-down diagram of a room layout with furniture and fixtures (no text or symbols)

Safety warning symbols for a device with crossed and uncorrected warning signs

5.4 FlexiBridge Mode Max Bridge

Diagram showing a grid layout with a magnified view of a 3D object labeled '81' and a star symbol, likely illustrating a geometric or architectural concept.

Simple line drawing of a room layout with a central oval object and a checkmark, no text or symbols present.

Safety warning sign with cross symbol, warning triangle, and warning signs in a grid layout

Simple line drawing of a CD or DVD player with no text or symbols

Simple line drawing of a bowl with handles, enclosed in dashed rectangular boxes (no text or symbols)

Simple line drawing of a monitor with a circular head and two small legs, enclosed in a dashed border (no text or symbols)

Diagram illustrating a recycling process with a container and labeled recycling symbol

min. 2 mm A B < 20 mm min. 500 mm min. 30 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

min. 2 mm A B > 20 mm min. 500 mm A B 12 mm 57 mm 28 mm 41 mm 38 mm 31 mm

R 5mm min. 55mm 490+1mm 880+1mm

Illustration of a hand holding a pen over an open book, with a magnified inset showing the tip of the pen (no text or symbols present)

10. CARACTÉRISTIQUES TECHNIQUES

10.1 Plaque signalétique

Modèle EHX9565FOK

Type 58 GCD CH AU

Induction 7.4 kW

Abstract geometric composition with overlapping white circles on a gray background (no text or symbols)
