Product type	Freezer
Brand	Siemens
Model	KI86SSDD0
Freezer net volume	210 L (estimated)
Dimensions (H x W x D)	1850 x 600 x 650 mm (estimated)
Net weight	70 kg (estimated)
Power supply	220-240 V, 50 Hz
Climate class	SN-ST
Fast freezing function	Yes
Interior lighting	LED
Compartments	Frozen food drawers, cool-fresh drawer, telescopic drawer
Shelves	Telescopic shelves
Door gasket	Removable and replaceable
Spare parts available	Door gasket, hinges, shelves, drawers, LED lighting
Repairability	Designed for consumer repair (according to manual)
Defrosting	Automatic (estimated)
Downloadable manual	Yes (free PDF)

Frequently Asked Questions - KI86SSDD0 SIEMENS

How to set the temperature of the Siemens KI86SSDD0 freezer?

The temperature is generally set via a button or digital display. Consult the manual for specific controls. A temperature of -18°C is recommended for storing frozen food.

How to defrost the freezer?

This model is probably equipped with automatic defrosting. If manual defrosting is necessary, unplug the appliance, remove the food, and leave the door open. Never use sharp tools to remove ice.

How to clean the interior of the freezer?

Unplug the appliance and remove all food. Clean with a soft cloth and warm soapy water. Rinse and dry. Avoid abrasive or harsh cleaners.

Why is my freezer making noise?

Normal operating noises (compressor, fluid circulation) are normal. If the noise is excessive, check that the appliance is level and not touching furniture. Consult the manual for more details.

What to do if the door does not close properly?

Check that the door gasket is clean and in good condition. Adjust the hinges if possible. If the gasket is damaged, replace it following the instructions in the manual (section 4.1).

How to replace the door gasket?

Open the door, remove the old gasket by pulling it out of the groove. Insert the new gasket starting from the corners. Make sure it is properly in place. Refer to section 4.1 of the manual for more details.

What to do if the LED lighting stops working?

The LED lighting must be replaced by a qualified professional. Unplug the appliance and contact after-sales service. Do not attempt to repair it yourself (section 4.13).

How to install the freezer?

Place the appliance in a dry, well-ventilated area away from heat sources. Make sure it is level and the door can open fully. Plug it in after 30 minutes of rest. Consult the installation manual.

What is the freezing capacity?

The freezing capacity is not specified in this manual, but for a model of this size, it is about 10-15 kg in 24 hours. Check the appliance's energy label.

How to use the fast freezing function?

Activate the fast freezing function (often a button) about 24 hours before freezing large quantities of fresh food. Deactivate it after 24 hours to save energy.

USER MANUAL KI86SSDD0 SIEMENS

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Ремонт

Ремонт

1. 1. Свалете четирите винта (1).
2. Свалете долните панти (2)

Пантите са свалени.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Diagram showing a door handle with two black arrows indicating downward motion (no text or symbols)

Diagram of a file drawer with a black arrow indicating direction, no text or symbols present

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Ремонт

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Brtva vrata je postavljena.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Popravak

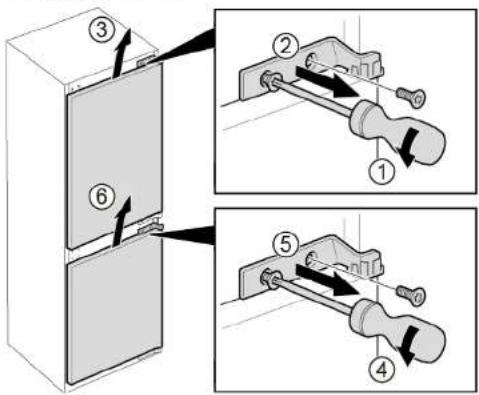

1. 1. Otpustite četiri vijka (1).

2. Gurnite gornja vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi gornjih vrata su uklonjeni.

1. 1. Otpustite četiri vijka (1).

2. Gumite donja vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi donjih vrata su uklonjeni.

Popravak

4.2.2 Postavljanje ravnog zgloba

▶ Postavite obratnim redoslijedom.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Popravak

1. 1. Uklonite četiri vijka (1).

2. Uklonite donje zglobove (2).

Zglobovi su uklonjeni.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Spustite izvlačnu policu i zaokrenite je bočno.

2. Izvlačna je polica uklonjena.

4.6.2 Postavljanje izvlačne police

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police odjeljka zamrzivača

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police odjeljka zamrzivača

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica odjeljka zamrzivača je uklonjena.

4.7.2 Postavljanje police odjeljka zamrzivača

▶ Postavite obratnim redoslijedom.

Popravak

4.8 Zamjena spremnika za zamrznute namirnice

Zahtjev:

Vrata su otvorena.

4.8.1 Uklanjanje spremnika za zamrznute namirnice

1. Potpuno izvucite spremnik za zamrznute namimice (1).
2. Uklonite spremnik za zamrznute namimice (2).

Spremnik za zamrznute namirnice je uklonjen.

4.8.2 Postavljanje spremnika za zamrznute namirnice

→ Spremnik je uklonjen.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Uklonite spremnik za voće i povrće.→44

2. 1. Pritisnite polugu ispod obje strane pregrade (1).

3. Povucite pregradu prema naprijed (2).

1. Podignite pregradu i zaokrenite je bočno prema van.

→ Pregrada je uklonjena.

Spremnik za održavanje svježine je uklonjen.

Abstract graphic with a rectangular panel and arrows pointing to it, set against a dark gray background (no text or symbols)

Popravak

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Oprava

Oprava

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Oprava

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparation

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Reparation

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Reparatie

Reparatie

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Reparatie

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Repair hints - Fridge-freezer

i Concerning this document.... 123

1.1 Important information.... 123

1.1.1 Purpose.... 123

1.2 Explanation of symbols 123

1.2.1 Danger levels.... 123

1.2.2 Hazard symbols 123

1.2.3 Structure of the warnings.... 124

1.2.4 General symbols.... 124

Safety....

2.1 General Safety instructions 125

2.1.1 All domestic appliances 125

Tools and aids.... 126

Repair

4.7 Replacing freezer compartment shelf.... 138

4.7.1 Removing freezer compartment shelf 138

4.7.2 Installing freezer compartment shelf.... 138

4.8 Replacing frozen food container.... 139

4.8.1 Removing frozen food container 139

4.8.2 Installing frozen food container 139

4.9 Replacing fruit and vegetable container.... 140

4.9.1 Removing fruit and vegetable container 140

4.9.2 Installing fruit and vegetable container 140

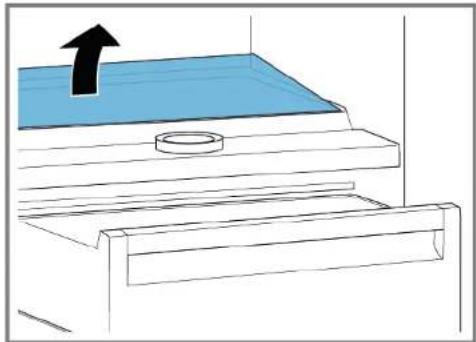

4.10 Replacing partition and cover of fruit and vegetable container.... 141

4.10.1 Removing partition and cover of fruit and vegetable container 141

4.10.2 Installing partition and cover of fruit and vegetable container.... 141

4.11 Replacing cool-fresh container.... 142

4.11.1 Removing cool-fresh container 142

4.11.2 Installing cool-fresh container.... 142

4.12 Replacing extendable container 143

4.12.1 Removing extendable container 143

4.12.2 Installing extendable container 143

4.13 Replacing LED spot light 144

4.13.1 Removing LED spot light.... 144

4.13.2 Installing LED spot light 145

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Special tool[00342180]

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing flat hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door are removed. See Installation Instruction.
√ Door is open.


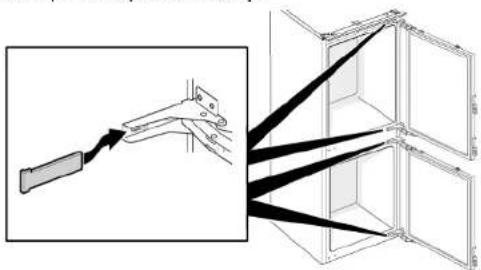

1. Remove four hinge covers.


Repair

2.1. Loosen four screws (1).

1. Slide out and remove upper door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

Upper door hinges are removed.

1. 1. Loosen four screws (1).

2. Slide out and remove lower door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

→ Lower door hinges are removed.

Repair

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing sliding hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door and appliance door are separated. See Installation Instruction.

4.3.1 Removing sliding hinge

1. 1. Unscrew two screws (1).

2. Remove upper door upper hinge (2).

3. Remove upper door (3).
4. Unscrew two screws (4).
5. Remove lower door upper hinge (5).
6. Remove lower door (6).

Repair

1. 1. Remove four screws (1).
2. Remove lower hinges (2).

Hinges are removed.

4.3.2 Installing sliding hinge

▶ Install in reverse order.

Repair

4.4 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.5 Replacing shelf

Prerequisite:

Door is open.

4.5.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.5.2 Installing shelf

▶ Install in reverse order.

Repair

4.6 Replacing extendable shelf

Prerequisite:

√ Door is open.

4.6.1 Removing extendable shelf

1. Pull out extendable shelf until the locking catch is released.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Lower extendable shelf and swing it out to the side.

2. ➕ Extendable shelf is removed.

4.6.2 Installing extendable shelf

▶ Install in reverse order.

Repair

4.7 Replacing freezer compartment shelf

Prerequisite:

Door is open.

4.7.1 Removing freezer compartment shelf

▶ Pull out freezer compartment shelf.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Freezer compartment shelf is removed.

4.7.2 Installing freezer compartment shelf

▶ Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite:

√ Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

Frozen food container is removed.

4.8.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.9 Replacing fruit and vegetable container

Prerequisite:

Door is open.

4.9.1 Removing fruit and vegetable container

▶ 1. Pull container out all the way (1).

1. Remove container (2).

Container is removed.

4.9.2 Installing fruit and vegetable container

▶ Install in reverse order.

Repair

4.10 Replacing partition and cover of fruit and vegetable container

Prerequisite:

Door is open.

4.10.1 Removing partition and cover of fruit and vegetable container

1. Remove glass plate from partition.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

1. Remove fruit and vegetable container.→ Page 140

2. 1. Press lever on the underside on both partition sides (1).
3. Pull the partition forwards (2).

1. Lift the partition and swivel it out to the side.

Partition is removed.

1. 1. Lift the cover of fruit and vegetable container.

2. Pull cover of fruit and vegetable container forwards and swivel it out to the side.

Cover of fruit and vegetable container is removed.

4.10.2 Installing partition and cover of fruit and vegetable container

▶ Install in reverse order.

Repair

4.11 Replacing cool-fresh container

Prerequisite:

√ Door is open.

4.11.1 Removing cool-fresh container

▶ 1. Tilt cool-fresh container forwards (1). 2. Remove cool-fresh container (2).

Cool-fresh container is removed.

4.11.2 Installing cool-fresh container

▶ Install in reverse order.

Repair

4.12 Replacing extendable container

Prerequisite:

√ Door is open.

4.12.1 Removing extendable container

▶ 1. Tilt extendable container forwards (1).
2. Remove extendable container (2)

Extendable container is removed.

4.12.2 Installing extendable container

▶ Install in reverse order.

Repair

4.13 Replacing LED spot light

Required tools:

Special tool [00342180]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution - Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.13.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repair

1. Detach LED spot light module.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED spot light is removed.

4.13.2 Installing LED spot light

▶ Install in reverse order.

Remonditeave - Kombikülmik

i Selle dokumendiga seoses 147

1.1 Tähtis teave 147

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a refrigerator with an eye icon above, showing shelves and doors (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)


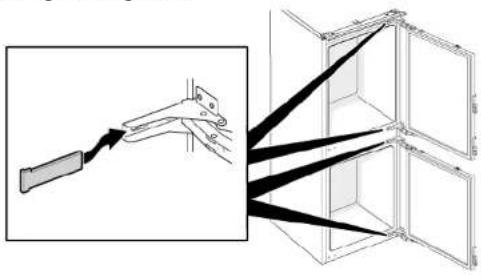

1. Eemaldage neli hinge katet.


Remont

Remont

1. 1. Eemaldage neli kruvi (1).

2. Eemaldage alumised hinged (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Remont

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Korjaus

Korjaus

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Cool-fresh-lokero on poistettu.

4.11.2 Cool-fresh-lokeron asennus

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Korjaus

1. Irrota LED-kohdevalomoduuli.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a door panel with shelves (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Réparation

Réparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Le bac est retiré.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Réparation

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Instandsetzen

Instandsetzen

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Instandsetzen

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Επισκευή

Επισκευή

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

To theo kottiko surtári afaipéthke.

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Επισκευή

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Javítás

Javítás

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Javítás

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Riparazione

Riparazione

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Riparazione

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Remonts

Remonts

Viras ir nonemtas.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Tvertne ir iznemta.

4.9.2 Auglu un dârzenu tvertnes uzstâdîsana

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Starpliku paceliet un sagaziet uz sāniem, lai iznemtu.

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Remonts

1. Atvienojiet LED starmeša moduli.

Diagram showing a tool interacting with a rectangular device, no text or symbols present

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED starmetis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Remontas

Remontas

Vyriai nuimti.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Talpykla išimta.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Remontas

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparasjon

De nedre dørhengslene er demontert.

Reparasjon

Reparasjon

1. 1. Fjern fire skruer (1).

2. Demonter nedre hengsler (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Hyllen i fryseren er demontert.

4.7.2 Montering av hylle i fryser

→ Beholderen for frysevarer er demontert.

Beholderen er demontert.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Cool-Fresh-beholderen er demontert.

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Reparasjon

1. Løsne LED -spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlight er demontert.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Naprawy

Naprawy

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.5.2 Montaż półki

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component inside (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Naprawy

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

1. Remova quatro tampas de dobradiça.


Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças inferiores (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparação

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Balamalele uşii de sus sunt demontate.

Balamalele uşii de jos sunt demontate.

Repararea

4.2.2 Montarea balamalei plate

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Balamalele sunt demontate.

4.3.2 Montarea balamalei glisante

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repararea

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Oprava

Oprava

Závesy sú odobraté.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

4.4.2 Montáž poličky do dvierok

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica mraziaceho priestoru je odobratá.

4.7.2 Montáž police mraziaceho priestoru

Nádoba je odobratá.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Odoberte nádobu na ovocie a zeleninu.→476

2. 1. Stlačte páčku na spodnej strane oboch strán priehradky (1).
3. Potiahnite priehradku dopredu (2).

1. Zdvihnite priehradku a vyklopte ju nabok.

Priehradka je odobratá.

Nádoba cool-fresh je odobratá.

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Oprava

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Poškodbe hrbta in mišic

Popravilo

Poškodbe hrbta in mišic

Popravilo

1. 1. Odstranite štiri vijake (1).

2. Odstranite spodnja tečaja (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.5.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

1. Odstranite predal za sadje in zelenjavo.→500

2. 1. Pritisnite pritrdila na spodnji strani steklene plošče (1).
3. Pregrado potegnite k sebi (2).

1. Pregrado dvignite in jo z obračanjem na stran odstranite. → Pregrada je odstranjena.

2. 1. Dvignite polico nad predalom za sadje in zelenjavo.
3. Polico nad predalom za sadje in zelenjavo potegnite k sebi in jo z obračanjem na stran odstranite. → Polica nad predalom za sadje in zelenjavo je odstranjena.

4.10.2 Namestitev pregrade in police nad predalom za sadje in zelenjavo

▶ Namestite v obratnem vrstnem redu.

Popravilo

1. Pokrovček točkovne lučke LED povlecite navznoter in ga hkrati potisnite naprej.

Abstract graphic with a document icon and arrows, no readable text or symbols

Popravilo

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparación

Reparación

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Reparación

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Reparation

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

4.4.2 Montera dörrhylla

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Frysdelens hylla har tagits bort.

4.7.2 Montera frysdelens hylla

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Cool fresh-facket har tagits bort.

4.11.2 Montera cool fresh-fack

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Reparation

1. Ta loss LED-spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

1. Lossa LED-spotlightens elanslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlighten har tagits bort.

4.13.2 Montera LED-spotlight

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Onarim

Onarim

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Kap çıkartılmıştır.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Onarim

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols
