CCE1104/1N - Range hood CANDY - Free user manual and instructions

Product type	Wall-mounted extractor hood
Brand	Candy
Model	CCE1104/1N
Width	60 cm
Depth	50 cm
Height (without chimney)	15 cm
Net weight	8 kg
Power supply	230 V / 50 Hz
Motor power	150 W
Lighting	2 LED bulbs of 3 W each
Suction speeds	3 speeds
Maximum airflow	650 m³/h
Maximum noise level	62 dB
Filter type	Washable metal grease filter + charcoal filter (optional)
Extraction mode	External evacuation or recirculation
Air outlet diameter	150 mm
Control type	Mechanical push buttons
Material	Brushed stainless steel
Installation	Wall-mounted, under cabinet
Energy class	B
Repairability index	7.5 / 10
Grease filter maintenance	Monthly dishwasher or hand washing
Charcoal filter replacement	Every 3 to 6 months depending on use

Frequently Asked Questions - CCE1104/1N CANDY

How to install the Candy CCE1104/1N hood?

Installation must be carried out by a qualified professional. The hood is fixed to the wall with suitable wall plugs. Make sure to maintain a minimum distance of 65 cm between the hood and the hob. The diameter of the exhaust duct is 150 mm.

How to clean the grease filters?

The metal filters can be washed in the dishwasher at 60°C or by hand with detergent. Let them dry completely before putting them back. It is recommended to clean them every month.

When should the charcoal filter be replaced?

The charcoal filter should be replaced every 3 to 6 months depending on frequency of use. It is not washable. Use only genuine Candy filters.

How to turn on the hood light?

Press the button dedicated to lighting (bulb symbol). The bulbs are integrated LEDs; if they no longer light up, contact after-sales service for replacement.

The hood makes noise, is this normal?

The maximum noise level is 62 dB. Abnormal noise may be due to a filter not properly engaged, an obstruction in the duct, or a motor defect. Check these points before contacting customer service.

Can I use the hood in recirculation mode?

Yes, the hood works in extraction or recirculation mode. In recirculation mode, install a charcoal filter (not supplied) and ensure the air outlet is free.

How to adjust the suction speed?

Three speeds are available via the push buttons. Use speed 1 for gentle cooking, speed 2 for normal cooking, and speed 3 for strong odors or steam.

What to do if the hood does not turn on?

Check the electrical supply (plug, fuse). If the problem persists, the motor or control board may be faulty. Contact an authorized repairer.

What is the recommended mounting height?

The distance between the hood and the hob should be at least 65 cm for electric cooking and 75 cm for gas cooking, to ensure good extraction and safety.

How to clean the exterior of the hood?

Use a soft, damp cloth with a mild detergent. Avoid abrasive or alcohol-based products. Dry with a clean cloth to avoid marks.

USER MANUAL CCE1104/1N CANDY

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Prije ugradnje, isključite uređaj i odspojite iz električne mreže.

1. Z a naj bol ji rad ni uč in ak, kuhinjska napa treba biti postavljer na visini 65 \~75 cm iznad štednjaka/ploče za kuhanje.

Za nagnuti panel model

- potrebno izbušiti 2x8mm dodatne rupe i pričvrsne vijke i zaporne vijke prije ugradnje

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

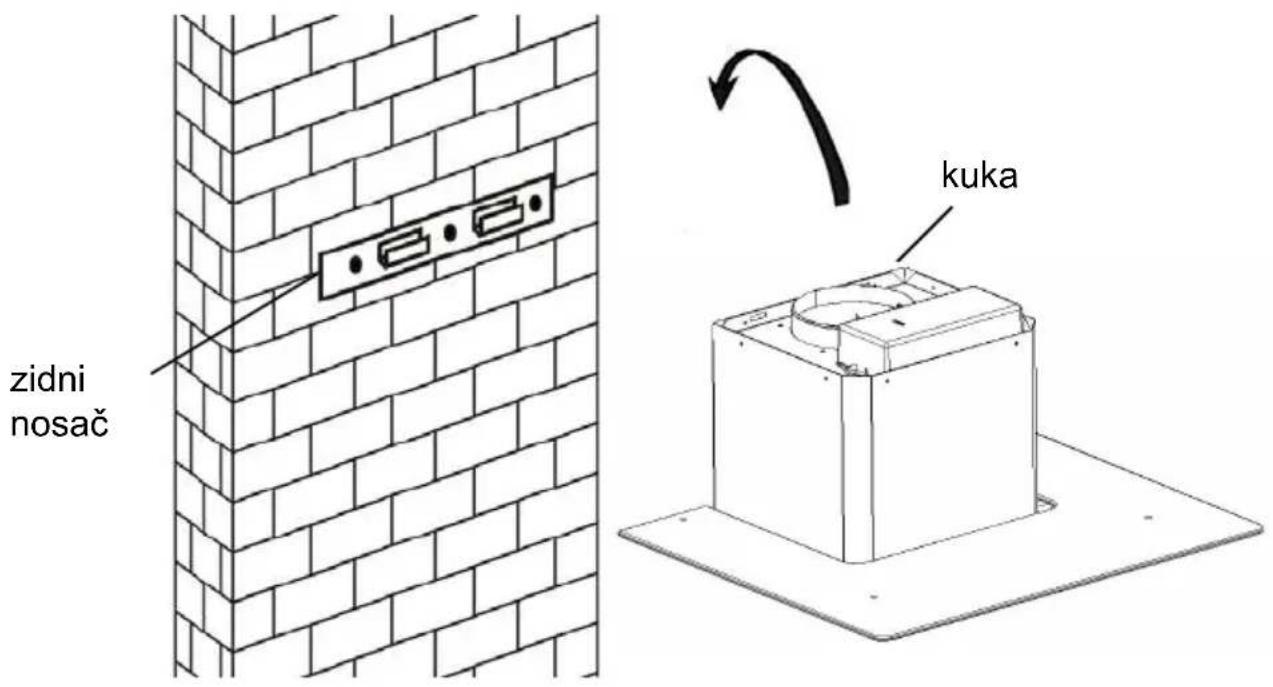

1. Podignite napu i objesite je na zidni nosač pomoću kuke.

Isometric line drawing of a brick wall with a mounted cylindrical object and support structure (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Pri unutarnjoj ventilaciji, za filtriranje dima i para koristi se aktivni ugljeni filt Prije ugradnje aktivnog ugljenog filtera, prvo uklonite filter za masnoću. Pritisnite zasun i povucite filter prema dole.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

CLOSE ZATVARANJE

VAŽNA NAPOMENA:

o Budite sigurni da je aktivni ugljeni filter sigurno i ispravno učvršćen. I suprotnom se može olabaviti i izazvati opasnost.
o Sa ugrađenim aktivnim ugljenim filterom, usisna snaga kuhinjske biti će manja.

OPIS DIJELOVA KUHINJSKE NAPE

Grid of eight circular icons with cross and circle patterns, no text or symbols present

RADNE TIPKE

Tipka za malu brzinu

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Diagram showing a brick wall with electrical outlets and a box on a base, with an arrow indicating rotation (no text or symbols)

Isometric line drawing of a brick chimney mounted on a base, with no text or symbols present.

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor with a circular component and labeled 'CLOSE' (no other text or symbols)

Poznámka:

Grid of eight circular symbols with cross and circle outlines, no text or labels present

Obsluha

① On / Off tlačítko

Pure technical line drawing of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 29

SAFETY PRECAUTION 29

SPECIFICATION 31

INSTALLATION (VENT OUTSIDE) 32

INSTALLATION (VENT INSIDE) 36

DESCRIPTION OF COMPONENTS 37

OPERATION 38

MAINTENANCE 38

TROBULESHOOTING 39

CONFORMITY WITH DIRECTIVES 40

ENVIRONMENTAL PROTECTION 40

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlin design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

By placing the marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

SAFETY PRECAUTION

Never let the children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, no shop and other commercial purpose.

The cooker hood and its filter should be clean regularly in order to keep in good working condition.

Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.

Forbid the direct baking from the gas cooker.

Please keep the kitchen room a good convection.

Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.

There shall be adequate ventilation of the room when the range hocs is used at the same time as appliances burning gas or other fuels;

he air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;

Regulations concerning the discharge of air have to be fulfilled.

This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.

Children should be supervised to ensure that they do not play with appliance.

Do not flambé under the range hood.

CAUTION: Accessible parts may become hot when used with cooking appliance

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugsφ8×φ6 white color		9
ScrewsST4.0×30		9
φ7.2screwsST4.0×8		2

If you have an outlet to the outside, your cooker hood can be connected below picture by means of an extraction duct (enamel, aluminum, flexible pi inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

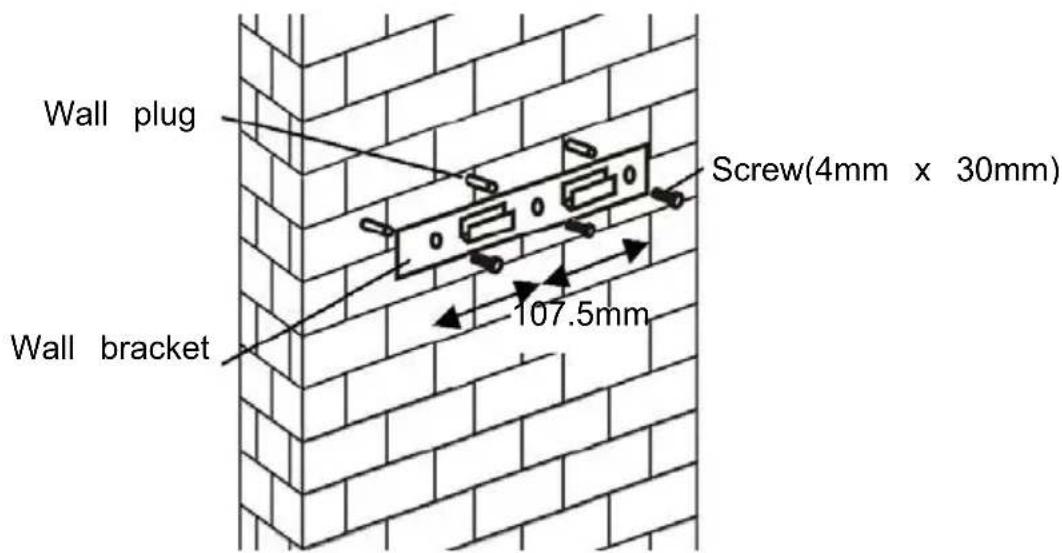

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

For inclined panel Model

- eed to drill 2x8mm extra holes & fixing screws & screw plugs before installation. Voor schuine modellen

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

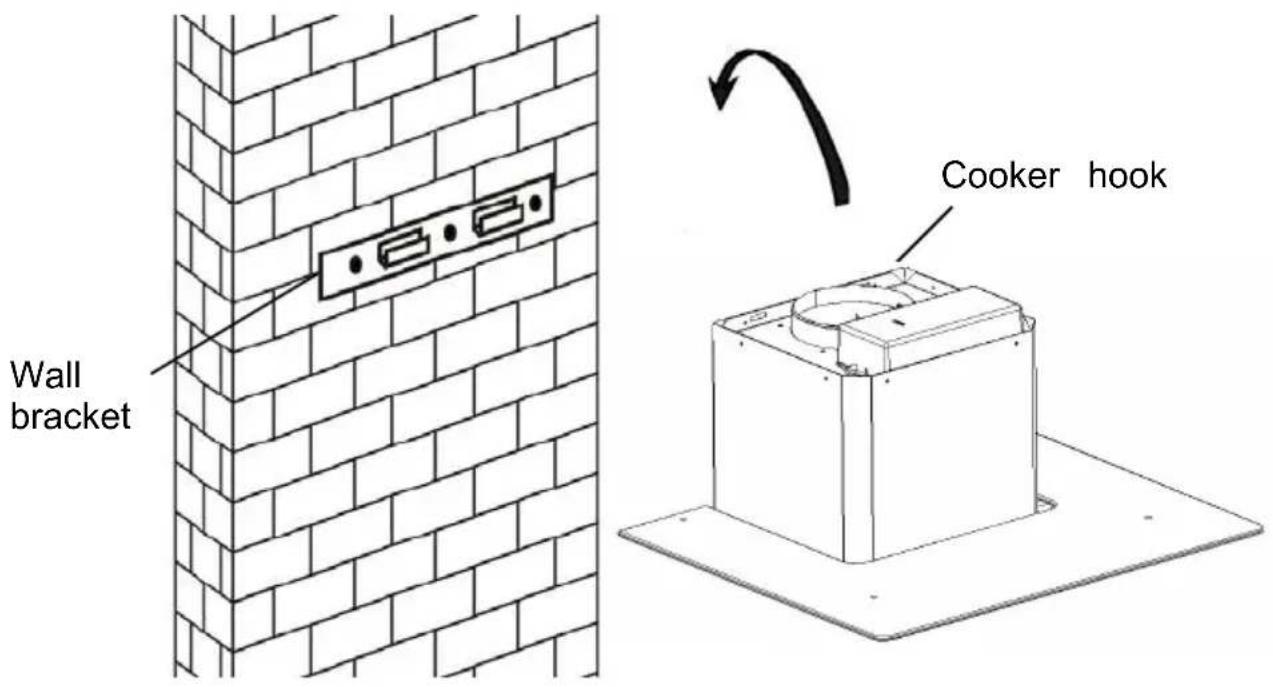

1. Leave up the cooker hood and hang onto the wall bracket hook.

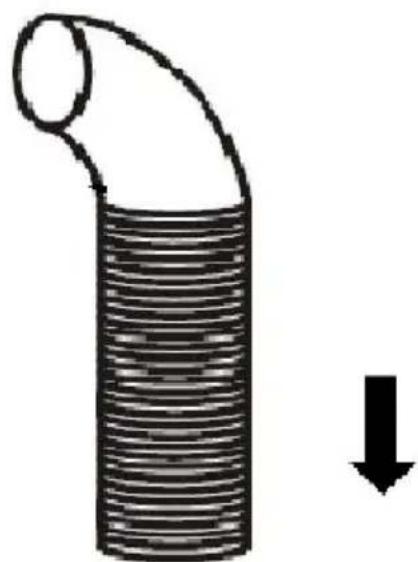

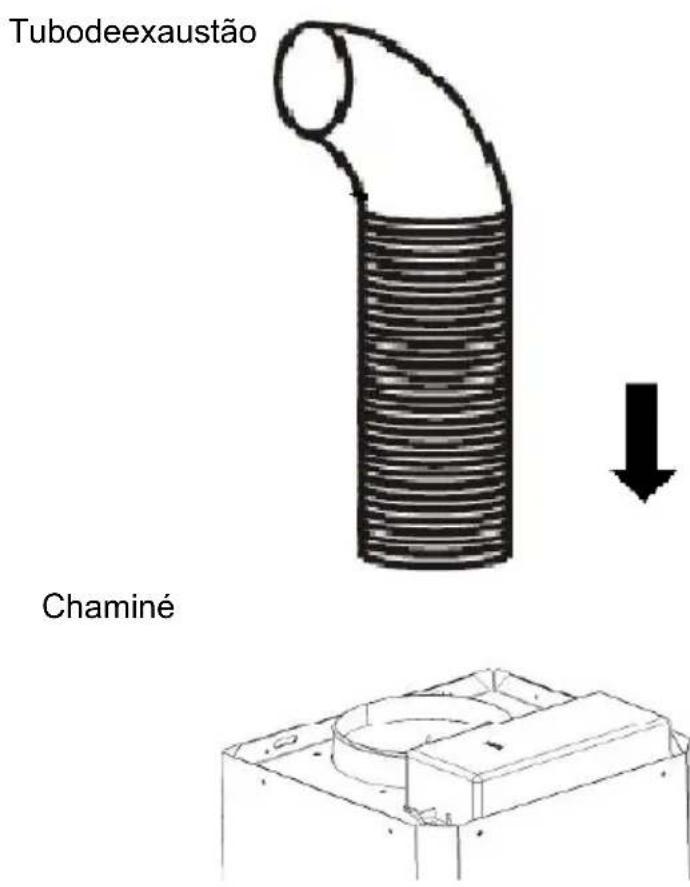

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

Diagram of a pipe with a curved duct and a downward arrow indicating flow or direction (no text or symbols)

Cooker hood

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

i. Place the glass in appropriate position on the top the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

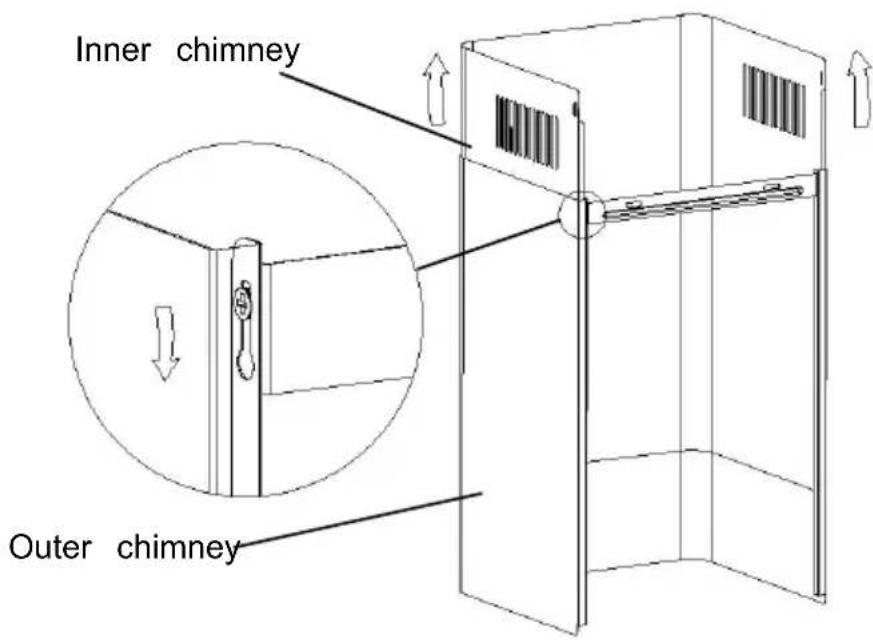

i. By Put the inner chimney into outer chimney .Then pulling out the inner chimney upwards. Adjust to reach the height required

Isometric line drawing of a brick wall with a mounted structure and a circular component, no text or symbols present.

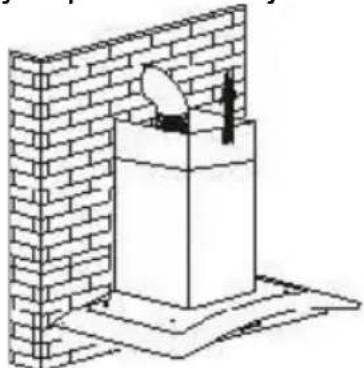

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the screws as showed in below pictures.

8.

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

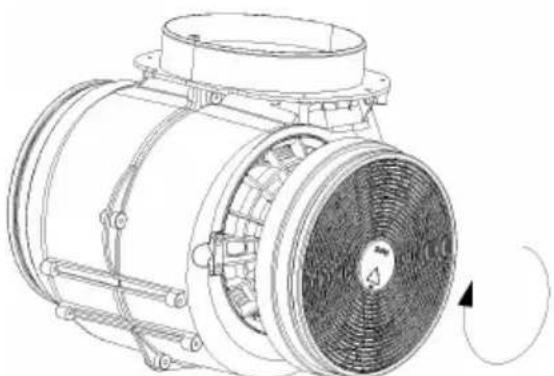

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with no visible text or symbols

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
o When activated carbon filter attached, the suction power will be lowere

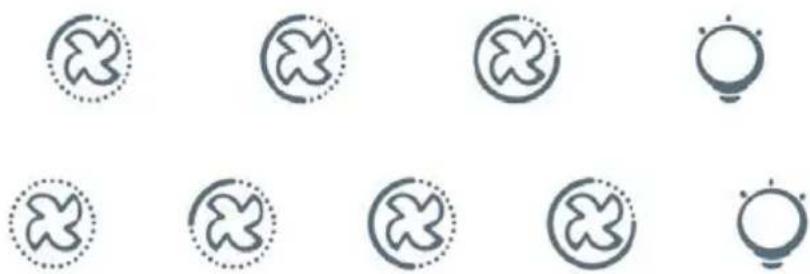

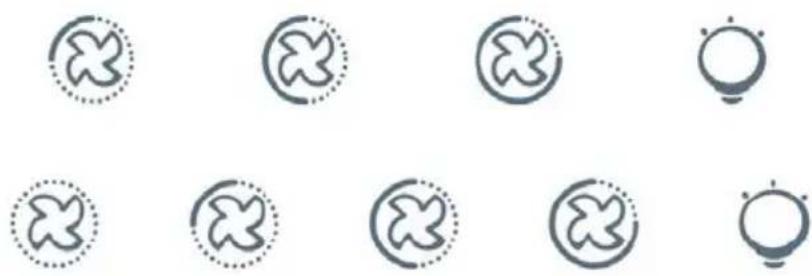

DESCRIPTION OF COMPONENTS

Collection of eight circular and cross-shaped icons with dotted outlines, no text or symbols present

OPERATION

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

① On/Off button

It's used for turning on/off the fan.

+ Speed plus button

For increasing the speed of the fan

- Speed decrease button

For decreasing the speed of the fan.

Light button

8 Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press+ & hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & will turn off automatic & Buzzer sound for 1 second.
Quick timer: F
Quick timer: Press+ & hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & will turn off automatic & Buzzer sound for 1 second.
Quick timer: Pr
Quick timer: Press+ & hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & will turn off automatic & Buzzer sound for 1 second.
Quick timer: Pr
ess+ & hc
old for 1 s
second, D
Digital displ
ay will
flashing & into 5 minutes count down, after 5 minutes motor & will turn off automatic & Buzzer sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, Press to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure electrical circuit lines without any symbols

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair qualified service personnel only.
	The motor is damaged
Both light and fan do not work	Halogen light bulb bur	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply ag
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair b qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair l qualified service personnel only.
	The unit is not hung properly on the bracke	Take down the unit and check whether the bracket is in prope location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75c

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTICE D'INSTALLATION ET D'UTILISATION

Sommaire

INTRODUCTION 42

Installation (Evacuation) 45

Installation (Recyclage) 49

Diagram of airflow or heat transfer through a mechanical structure with directional arrows (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Diagram of a coiled pipe with a downward arrow indicating flow or direction (no text or symbols)

Hotte

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Installation (En recyclage)

Installation (En recyclage)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

Technical line drawing of a mechanical fan or impeller assembly with no visible text or symbols

CLOSE

Enclenché

NOTE :

Grid of eight symbolic icons with dotted outlines, no text or labels present

Utilisation

For decreasing the speed of the fan.

Bouton d'éclairage

8 Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed, "4" pour la fonction Booster.

Quick timer: Press+ & hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic & Buzzer sound for 1 second.

Fonction booster

Pure electrical circuit lines without any symbols

Installation (Wandmontage)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Isometric line drawing of a brick wall with a small object inside, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a piano keyboard (no text or symbols visible)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

HINWEIS:

Eight abstract geometric symbols with dotted outlines, no text or labels present

BEDIENUNG

Pure mechanical diagram showing two downward arrows pointing to a horizontal line with a rectangular component (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Diagram of a pipe with a downward arrow indicating flow or direction (no text or symbols)

Καπέλο

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

7

6.

Isometric line drawing of a chimney mounted on a brick wall, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a piano keyboard (no text or symbols visible)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

ΣΗΜΕΙΩΣΗ:

Grid of eight circular icons with cross and dot patterns, no text or symbols present

ΔΕΙΤΟΥΡΓΙΕΣ

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Per inclinato Modello pannello

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

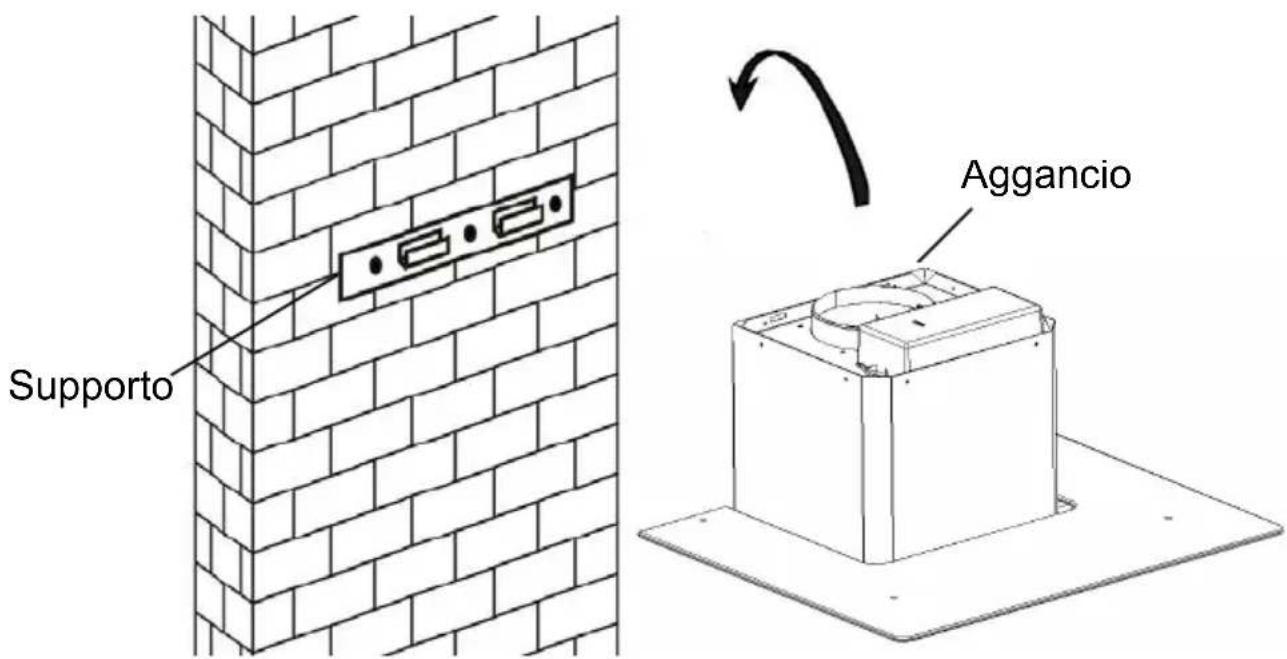

1. Sollevarelacappaedappenderlaalsupporto


Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion or force, no text or symbols present.

Diagram showing a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a mechanical component (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE:

Grid of eight circular icons with cross and dot patterns, no text or symbols present

FUNZIONI

Pure electrical circuit lines without any symbols

(Waste Electrical and Electronic Equipment - WEEE).

MONTAŻ (WERSJA WYWIEWOWA) 98

MONTAŻ (WERSJA Z RECYRKULACJA) 102

PANEL STEROWANIA 103

DZIAŁANIE 103

OBSŁUGA 104

MOŻLIWE USTERKI 105

OCHRONA ŚRODOWISKA 106

WPROWADZENIE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

UWAGA:

Grid of eight circular icons with cross and circle patterns, no text or symbols present

DZIAŁANIE

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Regulations concerning the discharge of air have to be fulfilled.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

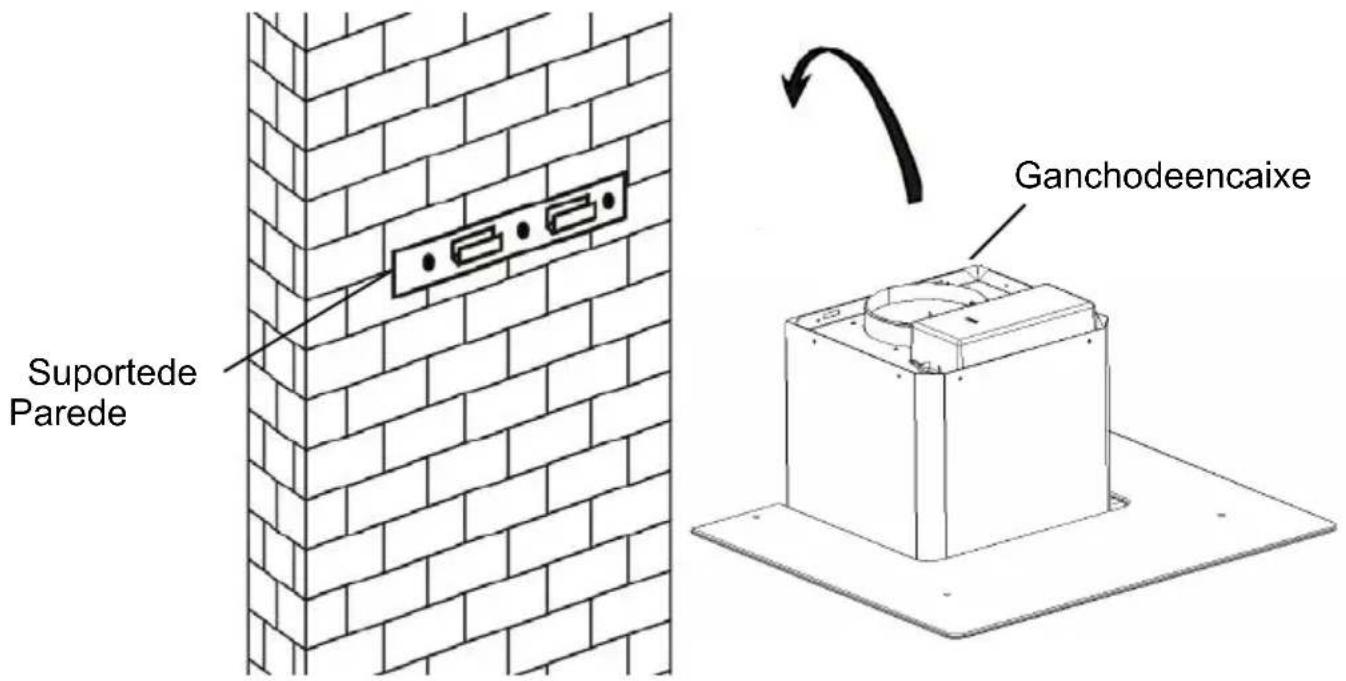

1. Levanteesegureachaminéeencaixe-anosuportedeparededepois destesercolocado.

1. Fixeaválvulaunidireccionalparaasaídadeardoexaustor. De seguidaencaixeotubodesaídadoarnaválvula, comoseexemplifica deseguidanodesenho

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a piano keyboard (no text or symbols visible)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTA:

Grid of eight circular icons with cross and dot patterns, no text or symbols present

FUNCIONAMENTO

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with a metal bracket and directional arrows indicating force or movement (no text or symbols)

Surub (4mmx30mm)

107.5mm

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

INSTALARE (VENTILARE ÎN INTERIOR)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

NOTĂ:

Grid of eight circular icons with cross and dot patterns, no text or symbols present

OPERARE

Pure electrical circuit lines without any symbols

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

1. Pred priključitevanjem cevi izklopite napo in potegnite vtikač iz vtičnice.

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

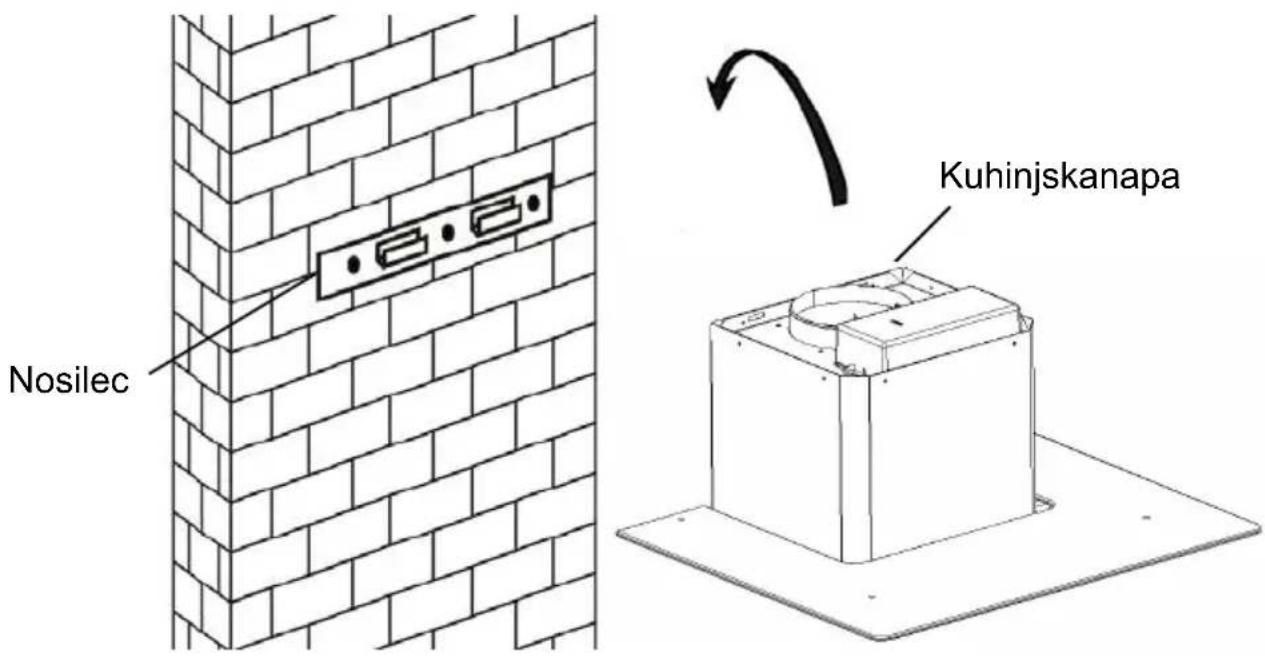

1. Napoobesitenakavljenanosilcu, kistegapritrdilinazid.

1. Naodprtinozaizhodzrakaiznapenamestiteenosmerniventil. Nato pananjnamestitecevzaodvodzraka, kotjetoprikazanospodaj.

Cevzaodvodzraka

Diagram of a pipe with a curved duct and a downward arrow indicating flow or direction (no text or symbols)

Kuhinjskanapa

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

V tem primeru v napo vstavite filter z aktivnim oglem, ki zadrži vonjave. Najprej morate sneti filter za maščobe, nato pa lahko vstavite ogleni filter. Potisnite na zapah in potegnite filter za maščobe navzdol.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Potisnite aktivni ogleni filter v napo in ga zavrtite v desno, v smeri vrtenja urinega kazalca. Postopek ponovite na drugi strani nape.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

(PRITRJEVANJE)
CLOSE

OPOMBA:

Grid of eight circular symbols with dotted outlines, no text or labels present

Pure electrical circuit lines without any symbols

Odklopite žico za žarnico in z nape odklopite držalo žarnice in žico. Pomembno: Ni mogoče zamenjati samo žarnico, ampak potrebujete komplet – žarnico, nosilec in žico. (lučka LED: G4, MAX 1.5W)

Pritrdite novo žarnico z nosilcem in žico tako, kot je bila pritrjena pregorela žarnica. Nato ponovno priključite žico.

Ponovno namestite steklo in privijte vijake. Prepričajte se, da ste jih do konc zategnili.

ODPRAVLJANJE NEPRAVILNOST V DELOVANJU

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Diagram showing a cylindrical pipe being reduced by a downward arrow, with a 3D mechanical component below (no text or symbols)

6.

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Illustration of two hand-drawn diagrams showing a hand pressing down on a flat surface with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

NOTA:

Grid of eight circular icons with cross and circle patterns, no text or symbols present

FUNCIONAMIENTO

Pure schematic lines showing a road with directional arrows indicating flow or movement (no text or symbols)

INSTALLATIE (VENTILATIE BUITEN) 165

INSTALLATIE (VENTLATIE BINNEN) 169

BESCHRIJVING VAN DE COMPONENTEN 170

WERKING 171

ONDERHOUD 171

PROBLEMEN OPLOSSEN 172

OVEREENSTEMMING MET RICHTLIJNEN 173

MILIEUBESCHERMING 173

INTRODUCTIE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

Diagram of a coiled pipe with a downward arrow indicating flow or direction (no text or symbols)

Afzuigkap

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Diagram of a brick wall with a mounted structure and a satellite dish, no text or symbols present

INSTALLATIE (BINNEN VENTILATIE)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTA:

① Aan / uit-knop

This hood has a booster function. To activate the booster, Press to ⊕ speed 4, enter into highest speedwhile the hood is in use and it willincrease speed for 5 minutes, beforeslowing down again.

ONDERHOUD

Pure diagram of a cable or pipeline with directional arrows indicating flow or movement (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a 3D rectangular device with internal components and alignment lines (no text or symbols)

Isometric line drawing of a brick wall with a cylindrical object inserted into a container (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

MEGJEGYZÉS:

Grid of nine circular symbols with cross and dot patterns, no text or labels present

ÜZEMELTETÉS

① Be/ki gomb

Pure mechanical diagram showing two downward arrows pointing to a central component (no text or symbols)
