Product Type	Electric Pressure Cooker
Brand	Eta
Model	Tauro 2131 90000
Capacity (min - max)	0.86 - 3.94 L
Weight	Approx. 4.6 kg
Power Supply	See type label (typical 220-240 V, 50/60 Hz)
Power Consumption	See type label (typical 800-1000 W)
Operating Pressure	30 - 70 kPa
Maximum Pressure	160 kPa
Keep Warm Temperature Range	60 - 65 °C
Cooking Programs	Pressure cooking, Slow cooking, Warming, Cooking without lid, Steam cooking, Delayed start
Safety Features	Lid lock safety system, Temperature sensor, Thermal safety cut-off, Pressure limit valve, Steam release valve, Memory function (up to 30 min power outage)
Material	Stainless steel outer body, Non-stick cooking pot
Accessories Included	Measuring cup, Spoon, Condensation collector, Power cord, Steaming adaptor
Cleaning & Maintenance	Clean outer body with soft damp cloth; wash cooking pot and lid in hot water with mild detergent; gasket and grommets can be removed for cleaning or replacement
Dishwasher Safe Parts	Cooking pot only
Spare Parts Availability	Gasket, grommets (safety valve and pressure limit valve) are replaceable; contact service for other parts
Standby Power	< 1.0 W
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - Tauro 2131 90000 Eta

How do I clean the gasket (B5) of the lid?

Remove the gasket by gently pulling it from the holder and the inner side of the lid. Wash it in hot water with mild detergent, rinse, and dry. If worn or damaged, replace with a new gasket of the same type. Insert it back behind the holder as far as it will go.

What does error code E1 mean?

Error code E1 indicates a pressure sensor failure. Stop the cooking process immediately, disconnect the appliance from the mains, and contact the service department without delay.

Can I use the cooking pot alone on a stove or in a microwave?

No. The cooking pot is designed only for use with the Eta Tauro pressure cooker base. Do not use it on electric, gas, induction, halogen stoves, open fire, or in a microwave/steam oven. This could damage the pot and cause injury.

How do I release pressure before opening the lid?

First, disconnect the pressure cooker from the power supply. Carefully set the pressure limit valve (B4) to the 'Steam' position and wait until all steam is released (the safety valve B2 must be in the down position). Use protective gloves or a cloth as steam is very hot. Only then turn the lid anticlockwise to open.

What is the maximum amount of food I can cook?

Do not fill the cooking pot above the 4/5 mark (3.94 L) including water and ingredients. For foods that expand (like rice), do not exceed the 3/5 mark (2.89 L). The minimum amount is 1/5 mark (0.86 L).

Can I use the delayed start function with perishable ingredients?

No. Do not use delayed start with ingredients that spoil rapidly, such as fresh milk, eggs, yoghurt, cheese, onion, or fruit. They could spoil before cooking begins. Only use delayed start with recipes you have successfully tried before.

Why does steam escape from the pressure limit valve during cooking?

During cooking and keep-warm mode, a small amount of steam escaping from the pressure limit valve (B4) is normal. It produces a hissing sound. This indicates the valve is functioning correctly. However, if excessive steam escapes, check that the valve is set to the 'Closed' position and that the grommet is clean and not damaged.

How do I set the pressure cooking time?

Press the 'Pressure cooking' button (display shows 40 minutes). Use the +/- buttons to adjust the time from 1 to 99 minutes. Press START/STOP to begin. The display will show moving segments while pressurizing, then countdown begins when pressure is reached.

What should I do if the lid cannot be opened after steam is released?

If the lid is stuck, the safety valve (B2) may still be in the up position. Use a suitable tool (e.g., a skewer) to gently push the safety valve down. Ensure all pressure is released before attempting to open.

Is the cooking pot dishwasher safe?

Yes, the cooking pot can be washed in a dishwasher. However, hand washing with hot water and mild detergent using a soft brush is also fine. Avoid using metal utensils or abrasive cleaners that may scratch the non-stick surface.

USER MANUAL Tauro 2131 90000 Eta

Electric pressure cooker • INSTRUCTIONS FOR USE

GB 31-42

Elektromos kukta • HASZNÁLATI UTASÍTÁS

H 43-55

Black and white photo of a Tauro heat exchanger with control panel and digital buttons (no visible text or symbols on the main body)

cz I. BEZPEČNOSTNÍ UPOZORNĚNÍ 5
II. POPIS SPOTŘEBIČE (obr. 1) 8
III. PŘÍPRAVA A POUŽITÍ 9
IV. ÚDRŽBA (obr. 7) 13
V. ŘEŠENÍ PROBLÉMŮ 15
VI. EKOLOGIE 16
VII. TECHNICKÉ ÚDAJE 16

SK I. BEZPEČNOSTNÉ UPOZORNENIA 18
II. OPIS SPOTREBIČA (obr. 1) 21
III. PRÍPRAVA A POUŽITIE 22
IV. ÚDRŽBA (obr. 7) 26
V. RIEŠENIE PROBLÉMOV 27
VI. EKOLÓGIA 28
VII. TECHNICKÉ ÚDAJE 29

GB I. SAFETY WARNING 31

II. DESCRIPTION OF THE APPLIANCE (fig. 1) 34

III. PREPARATION AND USE 35

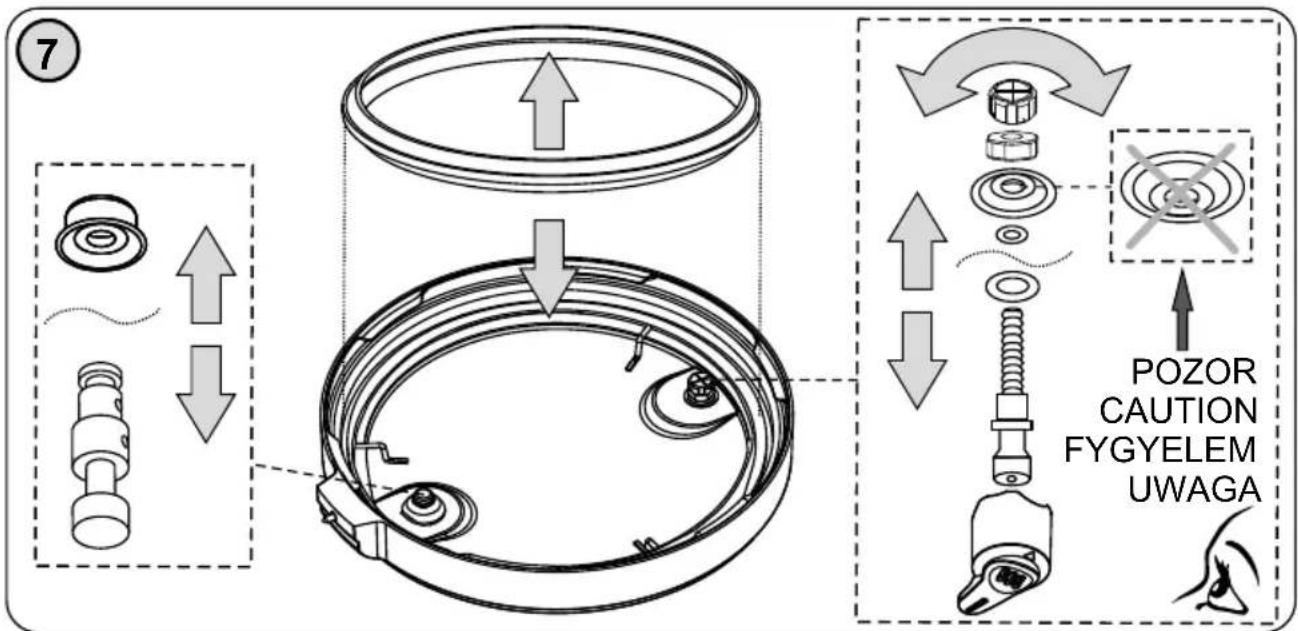

IV. MAINTENANCE (fig. 7) 39

V. TROUBLESHOOTING 40

VI. ENVIRONMENTAL PROTECTION 41

VII. TECHNICAL DATA 42

HU I. BIZTONSÁGI ELŐÍRÁSOK

1. Before first use add water to approx 2/5 level of the pot and boil/pressure for 5 minutes.
2. Always allow a 10 minute interval between cooking sessions.
3. Dry the outer od the cooking pot prior to use.
4. Ensure that cooking pot is correctly rotated to have good contact with the heating plate.

Before using this pressure cooker read the instruction manual first and familiarize yourself with all important safeguards and operating instructons. DO NOT forcibly remove the lid. If there is any resistance when opening the lid, it indicates that the pressure cooker is still under pressure. The pressure cooker contains hot contents which could spray or erupt if the lid is forced open and cause serious bodily injury.

1. Before first use add water to approx 2/5 level of the pot and boil/pressure for 5 minutes.
2. Always allow a 10 minute interval between cooking sessions.
3. Dry the outer od the cooking pot prior to use.
4. Ensure that cooking pot is correctly rotated to have good contact with the heating plate.

Before using this pressure cooker read the instruction manual first and familiarize yourself with all important safeguards and operating instructons.

DO NOT forcibly remove the lid. If there is any resistance when opening the lid, it indicates that the pressure cooker is still under pressure.

The pressure cooker contains hot contents which could spray or erupt if the lid is forced open and cause serious bodily injury.

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing

I. SAFETY WARNINGS

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- This product can be used by children at the age of 8 years and older and people with reduced physical or mental abilities or lack of experience and knowledge if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. Cleaning and maintenance by the user cannot be carried out by unsupervised children.

- Keep the appliance and its power cord out of reach of children.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell into water. In this case, take the appliance to a special service to check its safety and proper function.

- If the power cord of the appliance is damaged, disconnect it immediately from the power supply. The power cord must be replaced by the manufacturer, its service technician or a similarly qualified person to avoid an injury caused by the electric power or fire.

- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- Pay careful attention when handling the appliance to avoid injury, (e.g. burns, scalding).

- After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.

- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- ATTENTION: Do not use this heater in series with an external timer, remote controller or any other device that switches on the appliance automatically, since a fire risk exists when the heater is accidentally covered or displaced at the moment it switches on..

• Check whether the data on the type label correspond with the voltage in your socket.
• The power cord plug has to be connected to a properly connected and grounded socket according to national standards!

- Do not insert or take the plug out of a socket with wet hands and do not pull the power cord!

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- This appliance is not intended for outdoor use.

- We recommend that you do not leave the appliance in operation without supervision and supervise it for the entire time that food is being prepared!

- Do not use the cooking pot on its own without the pressure cooker (e.g. for preparing meals on an electric/gas/induction/halogen stove or in a hot air/microwave/steam oven).

- Do not use the appliance for heating a room!

- Do not use the appliance as a fryer.

- Do not use the pot on its own (e.g. for preparing meals on an electric / gas / induction / halogen stove or on an open fire) or in a microwave oven.

- Do not turn on the appliance unless there is a sufficient amount of ingredients for the meal preparation in the pot.

- Do not use the pot if it is cracked and do not use if for a long-term storage of food (e.g. in a freezer).

- Do not allow water, or food containing water, to freeze in the pot. It could damage the pot (crack it).

- Never immerse the appliance into water or wash it in running water, except for the parts mentioned in the Maintenance chapter.

- Let the appliance cool down before maintenance or storing it.

- It is not allowed to modify the surface of the appliance in any way (e.g. using a self-adhesive wallpaper, foils, etc.)!

- The steam line (i.e. safety valve B2, the pressure limit valve B4 and the protective cover B8), which form a part of the lid and which enable steam to escape must always be kept clean. At the same time regularly check their condition, whether they are blocked (e.g. by food remains), worn out or damaged.

- Do not remove the lid of the pressure cooker until the pressure in the pressure cooker declines (i.e. all the steam is released) and until the safety valve is in the down position.

- Do not switch on the pot without the inserted container or without inserted substances in the pot.

- Water or any other liquid cannot get into the inner part of the pot, i.e. between the external and the internal container.

- Do not insert an aluminium foil or anything else between the heating plate and the internal container.

- Do not use the internal container independently without the pot (e.g. for preparing meals on an electric / gas / induction / halogen cooker or on open fire.

- Use plastic or wooden kitchen utensils for mixing and ladling meals as metal utensils may damage the surface of the internal container.

- Do not insert the appliance into any body holes.

- Never put the appliance close to objects or under objects that can be damaged by steam, e.g. walls, kitchen cabinets, cupboards, paintings or curtains. Leaking steam could damage them.

- Do not use the appliance in the environment that is saturated with explosive or flammable steams.

- Be careful when lifting the lid and always remove it in the direction away from yourself.

- Do not place the appliance on unstable, fragile and flammable surfaces (e.g. glass, paper and plastic, varnished wooden plates and various fabrics/table cloths).

- Use the appliance in the working position only at places with no risk of its turning over and in sufficient distance from heat sources (e.g. heater, electric/gas stove, cooker, etc.) and wet surfaces (sinks, wash basins, etc.).

- When cooking, do not touch places where hot steam is coming out; there is a risk of burning and scalding.

- When handling the container and the lid, use the protective kitchen gloves or a towel.

- Do not let any objects on the lid of the pot during operation (e.g. protective gloves, towels) that could cause covering the holes for steam outlet.

- Do not carry the appliance when it is hot; there is a risk of getting burned and scalded in the case of possible tilting.

- When moving the pressure cooker do not hold it by the lid handle, rather use the handle A7 in the bottom of the case!

- For maintenance or repairs, disassemble only those parts of the electric pot that are mentioned in these instructions for use. Never disassemble the appliance or its parts and do not replace them with other ones.

- Use the pot only with the power cord that makes up its part!

- The appliance is portable and it is equipped with a movable connector with a plug which ensures double-pole disconnection from power supply.

- The power cord must not be damaged with sharp or hot objects, open fire and it must not be sunk into water.

- Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

- Check the condition of the power cord of the appliance regularly.

- If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.

– Use the appliance only with original accessories from the producer.

- Use the appliance only for the purpose it is intended for as specified in this manual. Never use the appliance for any other purpose.

- The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, injury, burning, scalding, fire) and its guarantee for the appliance does not apply in situations when the safety warnings above are not complied with.

The electric pressure cooker is equipped with many features that ensure its safe operation.

1) Safety system for opening and closing of the lid

If there is pressure inside the pressure cooker, the safety system (lid lock) prevents the lid from being opened.

2) Temperature sensor

The pressure cooker monitors the internal temperature and based on it regulates the heating intensity.

3) Temperature control (thermal safety)

If the cooking pot is empty or the temperature reaches or exceeds the permitted level, the device will automatically cut off electricity supply to the heating plate.

4) Pressure limit valve

If the pressure inside the cooker exceeds the maximum permitted level, the steam will be safely released by an automatic valve.

5) Pressure limit valve cover

Prevents food from sticking to the pressure limit valve during cooking and so prevents it from becoming blocked.

6) Memory

If there is an electrical power outage (max. 30 minutes), the pressure cooker will automatically recommence the cooking process after the power supply is restored.

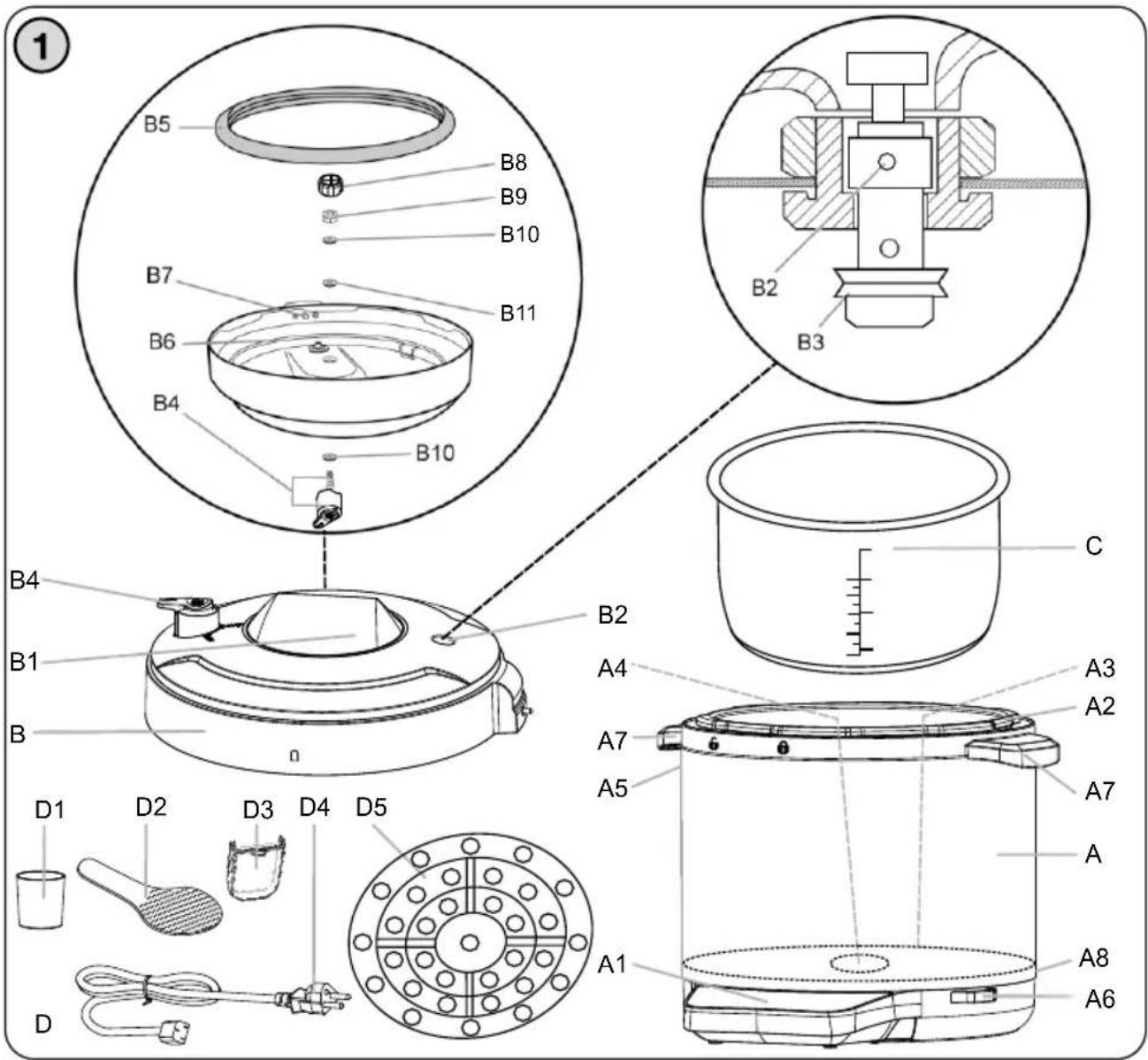

II. DESCRIPTION OF THE APPLIANCE AND ACCESSORIES (pic. 1)

A – pressure cooker

A1 – control panel A5 – condensation collector holder

A2 – outer body A6 – spoon holder

A3 – heating plate A7 – carry handles

A4 – temperature sensor A8 – power slot

B - lid

B1 – handle B6 – gasket holder

B2 – safety valve B7 – lid lock safety

B3 – grommet B8 – cover

B4 – steam pressure limit valve B9 – nut (with the function open/closed) B10 – washer

B5 – gasket B11– grommet

C - cooking pot

D - accessories

D1 – measuring cup D3 – condensation collector

D2 – spoon D4 – power cord

D5 – adaptor for warming up and cooking of foodstuff in steam

DISPLAY – BASIC SETUP

After turning on the pressure cooker the default setting will appear on the screen, the display will turn on (00) and a sound will be made (1× beep).

Control panel

= "pressure cooking" button (pre-set time: 40 minutes),

= "slow cooking" button (pre-set time: 5 hours),

= "warming up" button (pre-set time: 1 hour),

= "cooking without the lid" button (pre-set time: 20 minutes),

= "steam cooking" button (pre-set time: 20 minutes),

= "delayed start" button (from 0.5 to 24 hours),

+ / - = buttons used to set the duration of the individual programmes or delayed start time (+ increasing / - decreasing the time).

START / STOP = button used to start or stop the selected programme.

The sound signal function will be activated:

• when the appliance is plugged in to the mains,
• when you press any of the programme buttons (1× short beep),
• when a set programme is completed (3× beeps).

The signal lights will be activated:

– the indicator light is flashing when you are setting the parameters of the relevant programme,
– the indicator light is continuously ON when the relevant programme is active,
– the indicator light (dot) on the display is flashing when the relevant programme is active,
- indicator segments (bars) on the display are moving when the relevant programme is active and the pressure cooker is being warmed up + pressurized.

ATTENTION

• If unusual symbols appear on the display, disconnect the appliance from the mains power supply and then reconnect it.
• Only use the delayed start function for recipes with which you have had success before. Do not change these recipes.

!

III. PREPARATION AND USE

Remove all packaging materials, take out the pressure cooker and all accessories. Remove all advertising adhesive foils, stickers or paper from the appliance. Please, do not remove the warning labels. Place the pressure cooker on a dry and even surface (e.g. kitchen table) out of the reach of children. Before first use clean the parts that will come in contact with food using warm water with detergent, thoroughly rinse with clean water and wipe dry, if necessary allow to dry. Insert the cooking pot filled with approximately by the 2/5 mark of clean water back into the pressure cooker and leave the lid on. Then set the programme „Pressure cooking“ and turn on the appliance under supervision for approximately 5 minutes, then allow the pressure cooker to cool down. A short mild emission of smoke may occur, this is not a defect and is no reason for complaint. Now the appliance is ready for use.

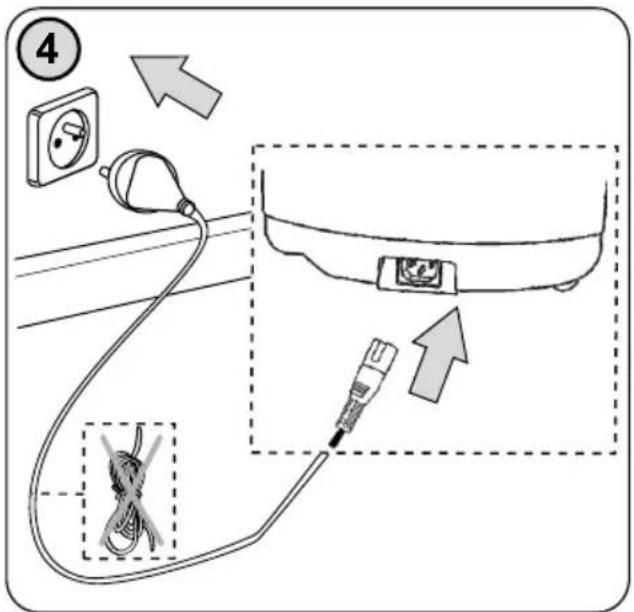

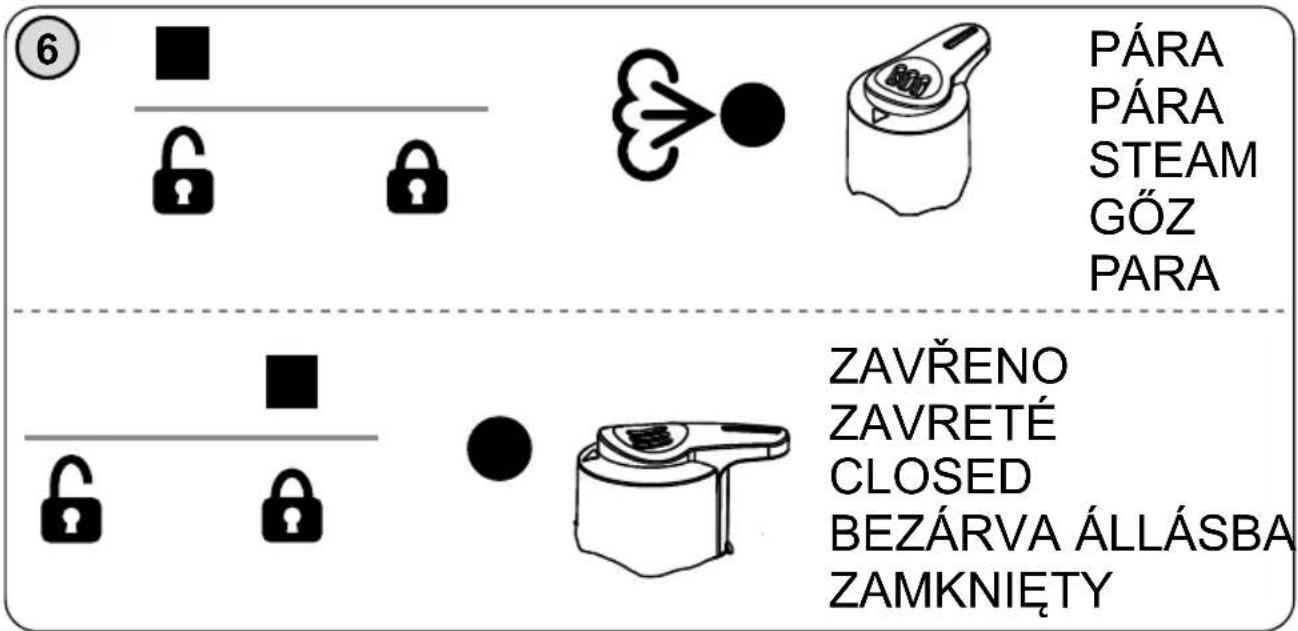

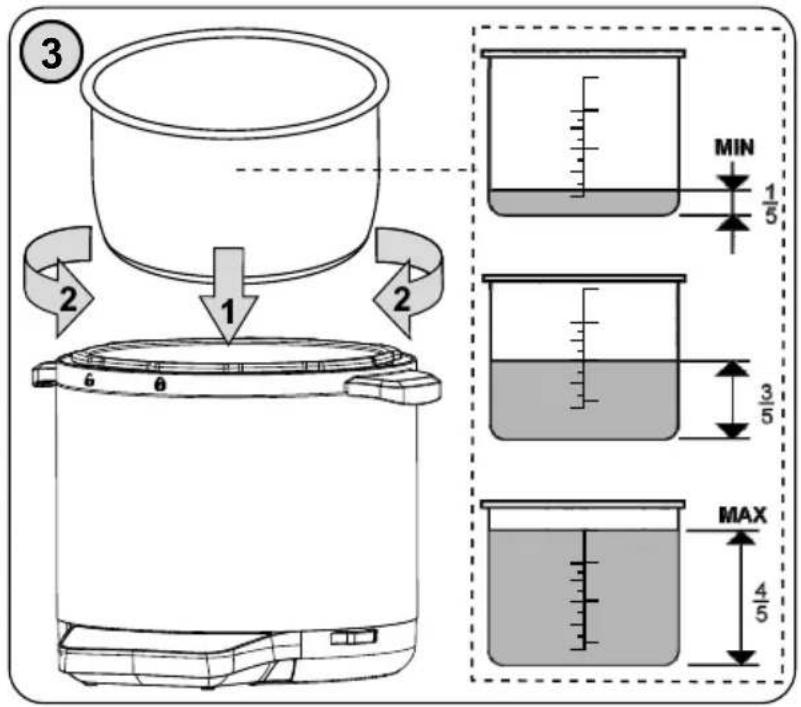

Assembly of the pressure cooker for cooking (pic. 2, 3, 4, 5, 6)

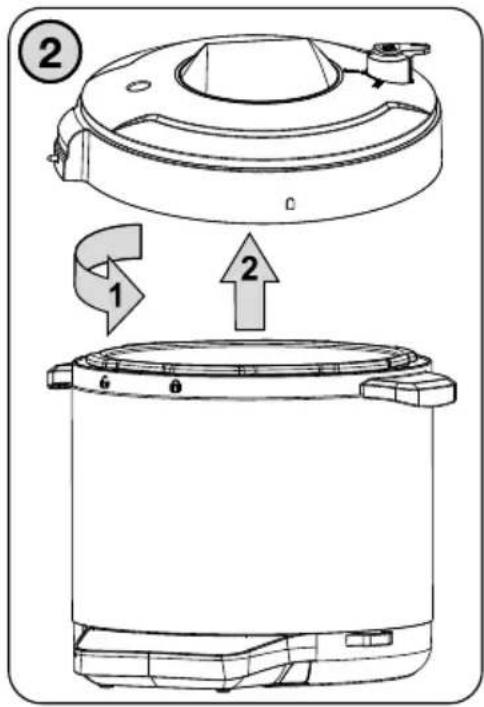

Hold the lid handle B1, turning it in the clockwise as far as possible and lift it upwards. Take out the cooking pot C and for example using the measuring cup D1 or spoon D2 add the necessary ingredients and fill it with water according to the relevant recipe. The total amount of ingredients together with water must not exceed the 4/5=FULL (3.94 l) mark in the cooking pot. When preparing food, which increases in volume during the cooking process, do not fill the cooking pot over the 3/5 (2.89 l) mark. However the amount of food being cooked must not be less than indicated by the 1/5 (0.86 l) mark. Using an appropriate textile or paper wipe clean the top edge of the cooking pot C and possibly all other parts, which have been soiled while the cooking pot was being filled (e.g. the external base). Also clean the inner top edge of the outer body A2 and make sure that there are no food remains on the heating plate A3. Then insert the cooking pot C into the outer body A2. After the cooking pot is inserted turn it to both sides so that it is seated properly on the heating plate. ATTENTION: Check that the gasket B5 is clean, dry and correctly seated in its place in the lid B. Set the pressure control valve B4 to the position „Steam “ and check that the safety valve B2 is in the down position. Hold the lid by the handle B1, place it horizontally on to the outer body of the pressure cooker A, pushing down on it lightly while turn it anticlockwise direction until it can go no further.

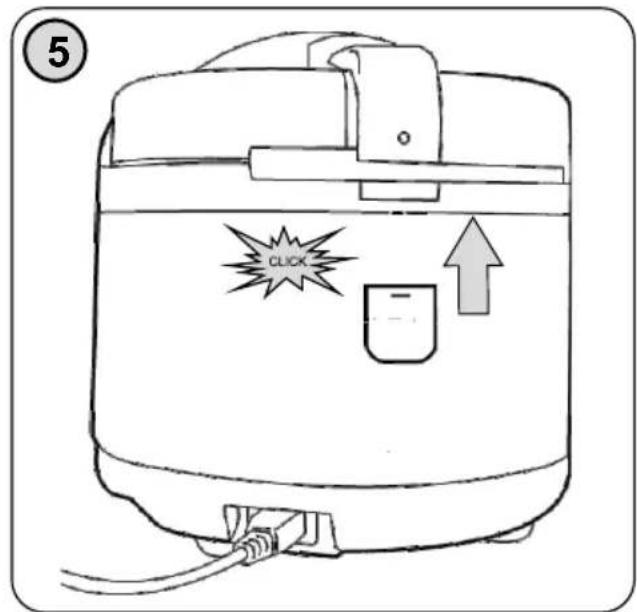

A properly secured lid is indicated by an audible click sound. Do not close the lid using excessive force! Set the steam pressure control valve B4 to the position „Closed ●“. Fully insert the end of the power cord D4 into the connection socket of the pressure cooker A8 and insert the plug into an electric power socket.

Pressure cooking

The pressure cooker allows you to set the cooking time manually.

1) By pressing the button, select the "Pressure cooking" programme [number 40 will be shown on the display].
2) With the cooking time buttons (+ or −), set the required cooking time. The minimum value is 1 minute, while the maximum value is 99 minutes.
3) By pressing the START / STOP button, set the required programme (moving segments will be shown on the display).
4) As soon as the temperature and pressure start increasing in the pressure cooker, the safety valve B2 will close the opening in the lid and prevent release of steam from the pressure cooker. For safety reasons, the lid cannot be removed at this stage. Do not try to remove the lid by force!
5) When the required temperature and pressure is reached (the display shows the time set), the countdown of the time set starts (in 1 minute steps).
6) When the pre-set time elapses, the programme stops (you will hear a signal sound, number 8.0 is shown on the display) and the mode of the pressure cooker changes to "maintaining temperature" with the time set to 8 hours.

Slow cooking

The pressure cooker allows you to manually set the time of slow cooking.

1) By pressing the button, select the "Slow cooking" programme [number 5.0 will be shown on the display].
2) Using the cooking time buttons (+ or −), set the required time of slow cooking. The minimum value is 30 minutes, while the maximum value is 24 hours.
3) By pressing the START / STOP button, start the selected programme (the set time will be shown on the display) and the countdown of the time set starts (in 0.5 hour steps). The temperature is maintained within approx. 80 – 90 °C.
4) When the pre-set time elapses, the programme stops (you will hear a signal sound, number 0.0 will be shown on the display) and the food or speciality may now be removed from the pressure cooker.

Warming up

The pressure cooker allows you to set the warming time manually.

1) By pressing the button, select the "Warming up" programme [number 1.0 will be shown on the display].
2) With the cooking time buttons (+ or −), set the required time of automatic cooking. The minimum value is 30 minutes, while the maximum value is 24 hours.
3) By pressing the START / STOP button, start the selected programme (the set time will be shown on the display) and the countdown of the time set starts (in 0.5 hour steps). The temperature is maintained within approx. 60 – 65 °C.
4) When the pre-set time elapses, the programme stops (you will hear a signal sound, number 0.0 will be shown on the display) and the food or speciality may now be removed from the pressure cooker.

Cooking without the lid

The pressure cooker allows you to prepare food (e.g. to fry onions, meat) as if it was typical electric/gas cooker or el. pot when the lid is removed.

1) By pressing the button, select the "Cooking without the lid" programme [number 20 will be shown on the display].
2) With the cooking time buttons (+ or -), set the required cooking time. The minimum value is 1 minute, while the maximum value is 20 minutes.
3) By pressing the START / STOP button, set the required programme (moving segments will be shown on the display).
4) As soon as the temperature reaches approx. 100 °C, the countdown of the pre-set time starts (in 1 minute steps). The temperature is maintained within approx. 150 - 180 °C.
5) When the pre-set time elapses, the programme stops (you will hear a signal sound, number 0.0 will be shown on the display) and the food or speciality may now be removed from the pressure cooker.

Steam cooking

The pressure cooker allows you to set the cooking time manually.

1) By pressing the button, select the "Steam cooking" programme [number 20 will be shown on the display].
2) With the cooking time buttons (+ or -), set the required cooking time. The minimum value is 5 minutes, while the maximum value is 30 minutes.
3) By pressing the START / STOP button, set the required programme (moving segments will be shown on the display).
4) As soon as temperature and pressure start increasing in the pressure cooker, the safety valve B2 will close the opening in the lid and prevent release of steam from the pressure cooker. For safety reasons, the lid cannot be removed at this stage. Do not try to remove the lid by force!
5) When the required temperature and pressure is reached (the display shows the time set), the countdown of the pre-set time starts (in 1 minute steps).
6) Then set the pressure control valve B4 to the position „Steam ➕●“.
7) When the pre-set time elapses, the programme stops (you will hear a signal sound, number 8.0 is shown on the display) and the mode of the pressure cooker changes to "maintaining temperature" with the time set to 8 hours.

ATTENTION

• During the cooking process and while maintaining temperature, steam is released from the limit valve B4, which makes a characteristic „hissing“ sound. This event is completely normal and it is not a reason for complaint.
• If while cooking you need to remove the lid for any reason (e.g. to add ingredients / to season / to mix the food) it is always necessary to first reduce the pressure inside the pressure cooker (i.e. to release steam) and only then remove the lid. For mixing use the spoon D2, which you can place in the holder A6 while cooking. In this way the spoon will always remain hygienically clean.
  – During operation it is possible to view the progress of the programme on the display. As the programme progresses the digits of the set time gradually decrease.
  – Never leave finished meals in the pressure cooker with the Udržování teploty (Keep warm) function turned on for longer than necessary. The meal could start to spoil.
• A selected programme can be ended at any time by pressing the START / STOP button

Adaptor for warming up and cooking of foodstuff in steam (D5)

Fill the pot with water up to the 1/5 sign (amount 0.86 l). Place the adaptor in the container and put the food you wish to steam onto it. Close the pot with the lid. Use the Steam cooking programme.

Automatic cooking with time delay

The pressure cooker can start the cooking process with a time delay, i.e. after the set time elapses. The process runs automatically and no further intervention is required. To set cooking with a time delay, please proceed as follows:

1) By pressing the appropriate button, select the required programme (i.e. Pressure cooking / Slow cooking).
2) With the cooking time buttons (+ or -), set the required cooking time.
3) Press the Time delay button [number 0.5 will be shown on the display].
4) With the cooking time buttons (+ or -), set the required delay time. The minimum value is 30 minutes, while the maximum value is 24 hours.
5) By pressing the START / STOP button, the countdown is started. The time on the display will automatically decrease by 0.1 hours until it reaches zero and the selected cooking programme is started.
6) When the time set for the selected programme elapses, the programme stops (you will hear a signal sound, number 8.0 will be shown on the display) and the mode of the pressure cooker changes to “maintaining temperature” with the time set to 8 hours.

ATTENTION

• When working with the time delay never use ingredients that spoil rapidly such as fresh milk, eggs, fruit, yoghurt, cheese, onion, etc. because they could spoil before the cooking starts!
• A selected time and programme can be ended at any time by pressing the START / STOP button.

Removing cooked food

1) Disconnect the pressure cooker from the power supply by pulling the plug of the power cord D4 out of the el. power socket.
2) Carefully set the pressure limit valve B4 to the position „Steam ➕●“ and wait until the steam is released from the pressure cooker (the safety valve B2 must be in the down position). ATTENTION: steam is very hot! Use appropriate protective aids (e.g. a wiping cloth, protective gloves).
3) Hold the lid by the handle B1 and turn it slowly in the anticlockwise direction as far as possible and then take it off by pulling it upwards and put it aside. ATTENTION: Hot water may remain on the inside surface of the lid! Use appropriate protective aids (e.g. a wiping cloth, protective gloves).
4) Take the cooked food out using a suitable ladle.

ATTENTION

• Do not forget that the cooking pot C and the inside part of the lid B are hot!
• If you used the pressure cooker to cook soup, do not release the steam immediately after finishing cooking because liquid could squirt out together with the steam. Wait until the pressure cooker cools down and the safety valve B2 in the lid goes to the down position. Only then remove the lid.

!

Tips for cooking in an electric pressure cooker

Consider the following cooking tips as examples and inspiration, the purpose of which is not to provide instructions but to show various ways of cooking food. Preparation (cooking) times depend on the amount, type and quality of the used ingredients, but as a rule it takes from a few minutes to tens of minutes. Choose the amount of processed ingredients so that the maximum content of the cooking pot marked by a line is not exceeded when they are processed. Adhere to the amount of water prescribed in the recipes. However, always pour a sufficient amount of water under the food, otherwise due to the lack of water the pressure cooker could overheat before the cooking process is completed. All ingredients can be in a fully frozen condition, however, make sure that all spices are evenly distributed over all ingredients. The food will not be overcooked. When cooking rice do not exceed the maximum amount of 10 measuring cups of rice. The pressure cooker is suitable for cooking traditional meals such as soups, goulashes, single course meals, rice, hard boiled eggs, stewed meats, stewed vegetables, whole boiled potatoes, cabbage, preserved fruits, mushroom dishes and many others. You may use the following table of preset times of individual programmes as a guide for determining the approximate cooking time:

Type of meal Cooking time (min.)
Rice (potatoes) 11
Vegetables 15
Soup (bones) 40
Poultry (chicken, duck, goose) 30
Meat 40
Fish (eggs) 10
Beans 25
Heater (suitable for heating already cooked food and foods like cooled rice)	30

If cooking or stewing food use the suitable cooking time as shown in the menu for similar types of foods, or you may set the time in the Steam cooking programme. After using the pressure cooker for some time you will use your own times gained through experience with cooking.

IV. MAINTENANCE (pic. 7)

Before carrying out any maintenance disconnect the appliance by pulling out the plug on the power cord from the el. power socket! Only clean the pressure cooker once it has cooled down! Clean regularly after every use! Do not use abrasive and aggressive cleaning agents (e.g. sharp items, scrapers, chemical solvents and thinners, caustic agents used for cleaning pipes or other solvents)!

Outer body A

Use cleaning agents designated by their usage instructions for use on stainless steel surfaces and clean by wiping with a soft damp cloth. Take off the condensation collector D3 by pulling it downwards. Pour out the condensate, wash the cooking pot with water and allow it to dry. When it is dry return it to the holder A5 (fig. 5).

Cooking pot C

Wash in hot water with a standard detergent e.g. using the brush, rinse with clean water and wipe dry (you can use a dishwasher). The cooking pot has a non-stick surface coat.

Do not use metal utensils, which could scratch the surface during cleaning. It is normal for the colour of the surface to change over time. This change in no way changes the properties of the surface and is not a reason for complaint about the appliance!

Lid B

Wash in hot water with a standard detergent e.g. using the brush, rinse with clean water and wipe dry. While cleaning take care not to damage the safety valves B2, B4 and the gaskets B3, B11.

Cleaning/replacement of gasket B5 (lid)

Gradually remove the gasket from the holder (i.e. the retaining ring) and the inner side of the lid by gently pulling it out. Clean the gasket. If the gasket is worn or damaged replace it with a new one (same type). Insert the gasket in the reverse sequence behind the holder B6 as far as it will go.

Cleaning/replacement of grommet B3 (safety valve)

From the inner side of the lid gently pull the grommet B3 from valve B2. Clean the grommet. If the grommet is worn or damaged replace it with a new one (same type). In the reverse sequence insert the grommet into the valve groove. ATTENTION: The valve must be able to move freely in the lid!

Cleaning/replacement of grommet B11 (steam pressure limit valve)

Pull out the steam limit valve cover B4 from the outer side of the lid. Unscrew the cover B8 from the inner side of the lid. Using a suitable tool (e.g. size 13 spanner) unscrew the nut B9, then remove the washer B10 and the grommet B11. Clean all the parts. If the grommet is worn or damaged replace it with a new one (same type). In the reverse sequence assemble the individual parts in the correct order and position (pull the nut tight with appropriate force). Ensure that the contact surface and the sealing elements are in order. Never dry plastic moulded parts above a heat source (e.g. fire stove, electric /gas stove). Some foods may stain the accessories in a certain way. This however has no effect on the operation of the appliance and is not cause for a claim or complaint regarding the appliance! After some time this staining usually goes away by itself.

Storage

Before storing make sure that the pressure cooker is cool. Insert accessories D into the cooking pot C. Store the pressure cooker in a safe dry location, out of the reach of children.

V. TROUBLESHOOTING

PROBLEM CAUSE	SOLUTION
The pressure cooker is not working	The power is not connected	Check the power cord, plug and el. socket
It is not possible to seat or secure the lid on the pressure cooker	Gasket B5 is not in its place	Place the gasket in the correct place in the lid
	Safety valve B2 is in the up position	Check the grommet B3 and if necessary clean it (see Maintenance)
		Using a suitable tool (e.g. skewer) push the safety valve into the down position
The lid cannot be opened after the steam has been fully released	Safety valve B2 is still in the up position	Using a suitable tool (e.g. skewer) push the safety valve into the down position
A large amount of steam is escaping around the edge of the outer body	Lid B is not properly closed	Check the attachment of the lid on the pressure cooker
	Gasket B5 is not in its place	Place the gasket in the correct place in the lid
	There are food remains on the gasket B5	Remove the gasket from the lid and clean it (see Maintenance)
	Gasket B5 is worn out or damaged	Replace the damaged gasket with a new one of the same type (see Maintenance)
	Lid B has been damaged (e.g. by being dropped on the floor)	Contact the service department
Large amount of steam is escaping from safety valve B2	The grommet B3 is soiled (e.g. food remains)	Remove the grommet from the valve and clean it (see Maintenance)
	The grommet B3 is worn out or damaged	Replace the damaged grommet with a new one of the same type (see Maintenance)
large amount of steam is escaping from the pressure limit valve B4	The pressure limit valve B4 is set in the position „Steam ➕●	Set the limit valve to the position „Closed ●“
	The grommet B11 is soiled (e.g. food remains)	Take the grommet out of the valve and clean it (see Maintenance)
	Grommet B11 is worn out or damaged	Replace the damaged grommet with a new one of the same type (see Maintenance)
The pressure cooker is emitting an unpleasant odour	The cooking pot C or the heating plate A3 are soiled	Check and if necessary clean the contact surfaces of the cooking pot and the heating plate

If a serious malfunction occurs on the pressure cooker while it is cooking, the display on the control panel will show one of the following error codes. If this occurs stop the cooking process, disconnect the pressure cooker from the el. mains and contact the service department without delay.

Error code E1 E3 E4 E5
Malfunction	Pressure sensor failure	Sensor short circuit	Sensor circuit interrupted	Overheating of the pressure cooker

VI. ENVIRONMENTAL PROTECTION

Printed signs of materials used for manufacture, packing, components and accessories, as well as their recycling, are on all the pieces if their dimensions enable it.

The symbols on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed together with municipal wastes. Please, hand them over to the collection points designed for their correct disposal, where they will be accepted free of charge. By correct disposal of this product you can help to preserve valuable natural resources and help to prevent possible negative impacts to the environment and to human health, which could be the results of incorrect waste disposal. For further details ask the municipal authorities or the nearest collecting point. Penalties can be charged for incorrect disposal of such wastes, according to national regulations. If the appliance is to be put out of operation definitely, we recommend cutting off the feeder cable, to disable its use.

Expert service must do the large maintenance or to intervene into inside parts of the appliance! Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

VII. TECHNICAL DATA

Voltage (\~V/Hz) Shown on the type label of the appliance

Wattage (W) Shown on the type label of the appliance

Volume of the cooking pot min. - max. (I) 0.86 - 3.94

Weight approx (kg) 4.6

Operating pressure (kPa) 30 - 70

Maximum pressure (kPa) 160

Temperature range for maintaining temperature (°C) 60 – 65

Input in standby mode is < 1,00 W.

The manufacturer reserves the right for any insignificant deviations from the standard finished product which do not have any effect on the functioning of the product.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

Must be removed before use.

Inner body sticker

1. Before first use add water to approx 2/5 level of the pot and boil/pressure for 5 minutes.
2. Always allow a 10 minute interval between cooking sessions.
3. Dry the outer od the cooking pot prior to use.
4. Ensure that cooking pot is correctly rotated to have good contact with the heating plate.

Before using this pressure cooker read the instruction manual first and familiarize yourself with all important safeguards and operating instrucitons.

DO NOT forcibly remove the lid. If there is any resistance when opening the lid, it indicates that the pressure cooker is still under pressure. The pressure cooker contains hot contents which could spray or erupt if the lid is forced open and cause serious bodily injury.

VENT, SEAL, CUP, HOT. DO NOT COVER. HOUSEHOLD USE ONLY. CAUTION: BE CAREFUL OF STEAM. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Caution: Hot Surface

eta 2131

Tauro

HASZNÁLATI ÚTMUTATÓ

1. Before first use add water to approx 2/5 level of the pot and boil/pressure for 5 minutes.
2. Always allow a 10 minute interval between cooking sessions.
3. Dry the outer od the cooking pot prior to use.
4. Ensure that cooking pot is correctly rotated to have good contact with the heating plate.

Before using this pressure cooker read the instruction manual first and familiarize yourself with all important safeguards and operating instructons.

DO NOT forcibly remove the lid. If there is any resistance when opening the lid, it indicates that the pressure cooker is still under pressure. The pressure cooker contains hot contents which could spray or erupt if the lid is forced open and cause serious bodily injury.

1. Before first use add water to approx 2/5 level of the pot and boil/pressure for 5 minutes.
2. Always allow a 10 minute interval between cooking sessions.
3. Dry the outer od the cooking pot prior to use.
4. Ensure that cooking pot is correctly rotated to have good contact with the heating plate.

Before using this pressure cooker read the instruction manual first and familiarize yourself with all important safeguards and operating instructons.

DO NOT forcibly remove the lid. If there is any resistance when opening the lid, it indicates that the pressure cooker is still under pressure. The pressure cooker contains hot contents which could spray or erupt if the lid is forced open and cause serious bodily injury.
