Finestro 3262 90000 - Steam cleaner Eta - Free user manual and instructions

Product Type	Cordless Window Vacuum Cleaner
Brand	Eta
Model	Finestro 3262 90000
Dimensions (H x W x D)	337 x 135 x 283 mm
Weight	Approx. 0.8 kg
Power Supply	Adapter: 100–240 V AC / 5 V DC; Battery: 3.7 V Li-Ion
Charging Time (first use)	At least 4 hours
Charging Time (standard)	Approx. 2.5 hours
Operating Time	Approx. 30 minutes
Dirt Container Capacity	Max 150 ml
Detergent Container Capacity	300 ml
Squeegee Width	28 cm
Noise Level	66 dB(A)
Protection Class (vacuum cleaner / adapter)	III / II
Included Accessories	Adapter, spray container, textile mop, squeegee, drain cap
Intended Use	Wet smooth surfaces (windows, mirrors, tiles)
Battery Replacement	Replaceable by cutting leads after complete discharge (see manual)
Warranty	24 months (does not cover battery capacity loss due to use/age)

Frequently Asked Questions - Finestro 3262 90000 Eta

How long does it take to fully charge the battery?

For the first use, charge for at least 4 hours. Subsequent charges take approximately 2.5 hours. The blue LED will stop flashing when fully charged.

Can I use the vacuum while it is charging?

No, the appliance cannot be used while charging. Always turn off the device before connecting the adapter.

What surfaces can I clean with this window vacuum?

It is designed for wet smooth surfaces such as windows, mirrors, ceramic tiles, and facing. Do not use on carpets or for vacuuming dust.

How do I empty the dirt container?

Press the container locking button (B1) to remove the container, then pour out the collected liquid through the drain (B3) after removing the drain cap (B4). Rinse the container under running water.

What should I do if the suction power decreases?

Recharge the battery as soon as suction weakens. Also check that the dirt container is not full and the squeegee is clean.

Can I use any cleaning solution in the spray container?

Only use non-foaming, non-alcohol based cleaners. Avoid flammable or aggressive detergents to prevent damage.

How do I replace the battery?

First, completely discharge the battery by letting the appliance run until the motor stops. Then remove all screws, cut the leads, and replace with a compatible 3.7V Li-Ion battery. This should be done by a qualified person.

What does the blue LED indicate?

Steady blue = power on / fully charged. Slow flash = charging. Rapid flash (20 times) = battery low, the device will soon turn off.

How to clean the squeegee and mop?

Wipe the squeegee with a wet cloth. The textile mop can be rinsed under water or washed in a washing machine. Allow all parts to dry before reuse.

What is the optimal angle for using the squeegee?

Hold the squeegee at an angle of 45° to 90° to the surface for best water removal (see Fig. 3 in manual).

USER MANUAL Finestro 3262 90000 Eta

Product photo of a white hairless eau shaver with a black spray gun, no visible text or symbols

ENG The pictures are only illustrative, the supplied accessory and appliance may differ.

V. CLEANING AND MAINTENANCE 18

VI. ENVIRONMENTAL PROTECTION 18

VII. TECHNICAL DATA 18

HU I. BIZTONSÁGI ELŐÍRÁSOK 20

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

GENERAL PROVISIONS:

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label corresponds with the voltage in your socket. The power cord plug may only be connected to the electrical socket complying with the applicable standards.

- This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Never use the appliance if its adaptor or plug is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.

- Never immerse the charger, the battery and the motor part of the appliance cleaner into water (even partially) and protect them against humidity!

- Always turn the appliance off before emptying the tank or before maintenance.

- Never leave the product unattended when in operation!

- Do not charge the battery if electrolyte is leaking from it.

- The appliance must be disconnected from the power adapter when removing the battery.

- Do not through the battery into fire. There is a risk of explosion!

- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.

- Only use this appliance for the purpose it was designed for, as specified in this manual. Never use the appliance for any other purpose.

- The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with.

USE OF THE APPLIANCE:

- Only safe low voltage corresponding to the appliance label is to be applied. The appliance may only be used with the power adapter supplied with it.

• The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• Never use the appliance nor touch the adaptor with wet hands or feet!
• This appliance is designed solely for cleaning wet smooth surfaces (windows, mirrors, ceramic tiles and facing, etc.).
• Do not use this appliance to vacuum dust.
• Do not vacuum a larger quantity of liquids.
• Do not use foaming detergents, alcohol-based cleaning agents or any other flammable or aggressive detergents with this appliance.
• Never use (switch on) the vacuum cleaner if it is placed in the holder and it is being charged!
• Always switch off the appliance when charging the battery and after the vacuum cleaner was used.

ADAPTER:

- If the adapter of this appliance is damaged, it must be replaced by the manufacturer, its service technician or a person with similar qualifications so as to avoid any danger.

• Use the charger in a room only.
• The adaptor supplied with this appliance is intended for this appliance only, do not use it for other purposes. Also, use only the supplied adaptor with this appliance, do not use any other adaptor for charging (e.g. from another appliance).
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

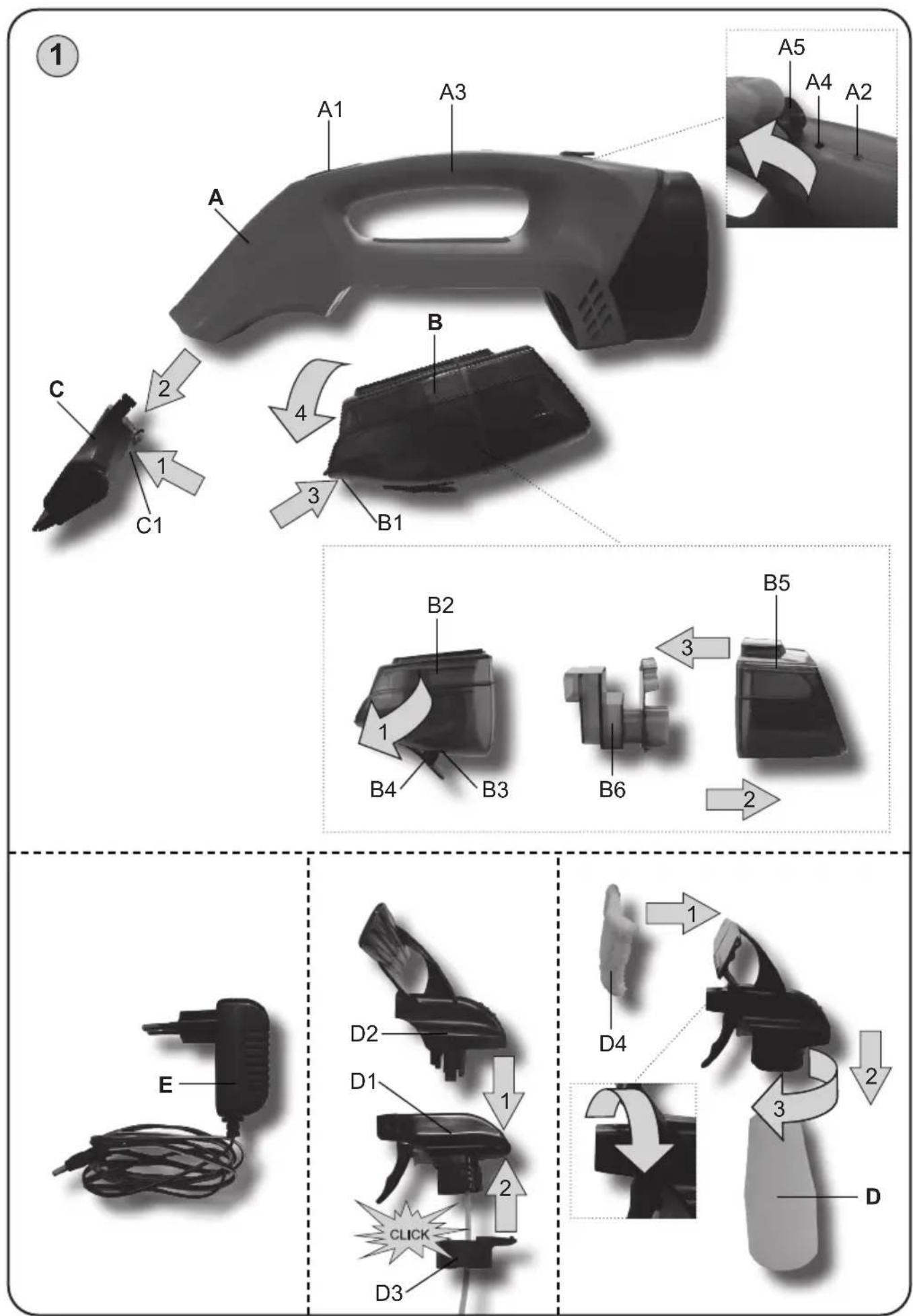

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A – window cleaner drive

A1 - ON/OFF button

A2 – signal lights

A3 - handle

A4 – power connector

A5 – power connector rubber cap

B – dirt container (max. 150 ml)

B1 – container locking button
B2 – front part of the container
B3 – drain
B4 – drain cap
B5 – rear part of the container
B6 - separator

C - squeegee (width 28 cm)

C1 – squeegee lock button

D - detergent container (300 ml)

D1 – sprayer
D2 – plastic part with mop fixture
D3 – safety plastic ring
D4 – textile mop

E - adapter

III. APPLIANCE PREPARATION

Remove all packing material, take out the appliance and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance.

APPLIANCE ASSEMBLY

When assembling the appliance, follow the procedure indicated in Fig. 1. When removing the container B and squeegee C, press the relevant locking buttons first (B1, C1).

ASSEMBLY OF THE DETERGENT CONTAINER

When assembling the container D, follow the procedure indicated in Fig. 1.

CHARGING THE ACCUMULATOR

Turn the appliance off prior to charging! Connect the adapter E to the appliance and plug it to the mains. The accumulator has to be charged at least for 4 hours prior to the first use. After that, the standard charging time is approx. 2,5 hours. The status and progress of charging is indicated by indicator A2. A fully charged accumulator provides operating time of approx. 30 minutes.

Signal lights (A2)

Blue light on continuously Appliance operation signal lights / battery full charge status indication

Flashes blue Accumulator is charging.

Flashes blue quickly (20x) Discharged battery (the appliance is about to switch off)

Warning

• The appliance cannot be used when being charged. When disconnected from the adapter, the appliance will remain switched off.
• Do not exceed the specified time of charging! As soon as the signal light lights up blue, disconnect the adapter from the mains.
• Let the vacuum cleaner recharge as soon as its suction performance is weaker.
• When using the vacuum cleaner for an extended period of time or in a hot environment, the accumulator might be too hot for charging. Let the accumulator cool down prior to charging.

IV. USE OF APPLIANCE

Let the appliance charge sufficiently prior to using.

CONTROL

ON/OFF button (A1) -

vacuum cleaner ON/OFF switch

PROCEDURE FOR USE

1. With the spray container D, mop and suitable cleaning agent, remove any coarse dirt.

2. Press the squeegee C gently to the surface you are cleaning and wipe off the entire surface with smooth strokes, thus soaking up any excessive moisture and dirt with the window cleaner. Keep an eye on the MAX line during use and refill the container B if necessary!

3. Switch off the appliance and empty the container B after use.

Notes

• Before you remove the container B from the appliance, empty it first!
• Apart from the spray container and mop supplied, you can also use other suitable aids to remove mechanical impurities.

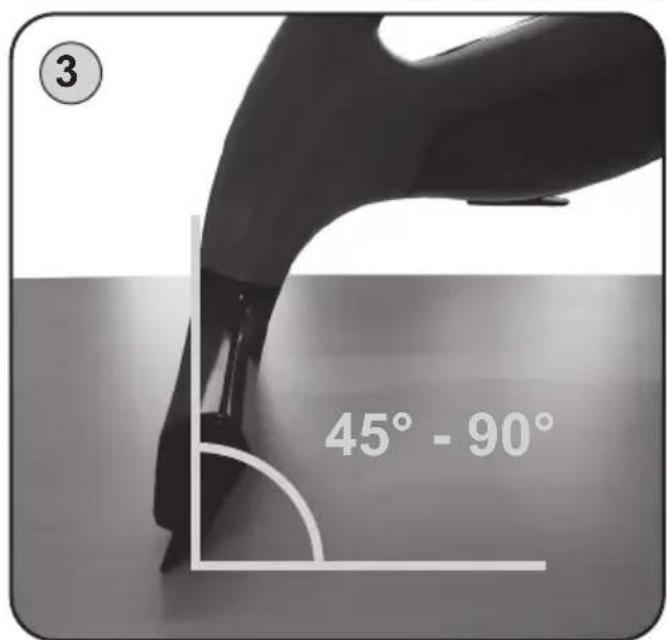

• Keep the recommended angle of 45 to 90^ between the surface and squeegee (Fig. 3) to ensure proper operation.
• If you wish to store the cleaning agent in container D for further use, turn the spray valve to the "OFF" position to avoid excessive evaporation.
  – Pour the collected dirt into the drain.

V. CLEANING AND MAINTENANCE

Clean the appliance and adapter surface with a soft wet cloth. Do not use any rough and aggressive detergents!

Other parts

Clean the squeegee C with a wet cloth. Rinse the plastic parts (B, B2, B5, B6, D, D1, D2, D3) under running water. The textile mop D4 can be rinsed under running water or washed in a washing machine.

Allow it to dry after maintenance.

VI. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal of the product, hand it over at special collection places where it will be received free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. The appliance is equipped with the Li-Ion battery with long life. For environmental protection it is necessary to remove the battery from the appliance after its service life and the battery and the appliance must be disposed of safely using special collection networks. Ask for more details at the local authority or at the local waste collection site.

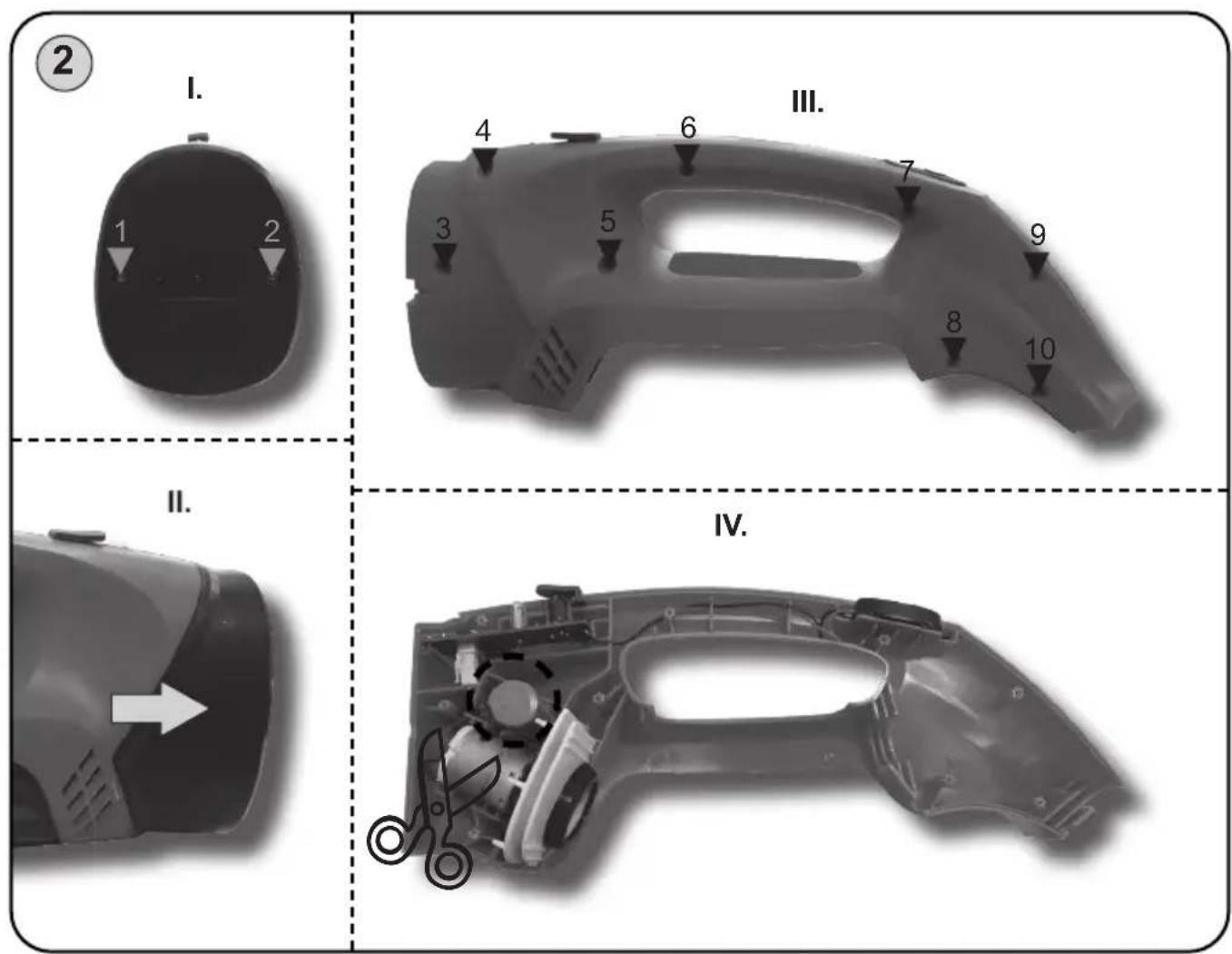

Removing the accumulator (Fig. 2)

You can remove the accumulator from the appliance only after they have been completely discharged (i.e. let the appliance run until its motor stops). Remove all the screws with a suitable screwdriver. Cut off and remove the battery.

VII. TECHNICAL DATA

Protection class (vacuum cleaner / charging adapter) III. / II.

Accumulator 3.7 V Li-Ion

Adapter 100-240 V (AC) / 5 V (DC)

Weight (kg) approx. 0.8

Size of the product (mm) 337 x 135 x 283

Acoustic noise level of 66 dB(A) re 1pW

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.
