Ultracompact SM156843 - Toaster MOULINEX - Free user manual and instructions

Product type	Compact toaster
Brand	Moulinex
Model	Ultracompact SM156843
Usage	Domestic use only
Plate coating	Non-stick
Main functions	Toasting bread, browning adjustment, temperature maintenance (green indicator)
Estimated capacity	2 slices
First use	Wash the plates, pour a little oil and wipe with a soft cloth
Cleaning	With a sponge and dish soap. Do not use metal sponge or scouring powder. Do not put in dishwasher.
Recommended accessories	Plastic or wooden spatula
Power supply	Plug with built-in earth. Fully unwind the cord. Extension cord with at least equivalent section and earth plug.
Safety	Hot surfaces, do not immerse the appliance or cord, keep out of reach of children under 8 years
Installation precautions	Do not place in a corner or against a wall, nor on a fragile support (glass, tablecloth, varnished furniture)
Environment	Recyclable appliance, dispose at collection point
Warranty	Professional use not covered

Frequently Asked Questions - Ultracompact SM156843 MOULINEX

How to clean the toaster after use?

Make sure the appliance is cold and unplugged. Clean the plates and body with a sponge and dish soap. Never use metal sponge or scouring powder. The appliance and cord are not dishwasher safe.

Can I use an extension cord?

Yes, provided it has an at least equivalent section and a plug with built-in earth. Fully unwind the cord of the appliance and the extension cord to avoid overheating.

What to do in case of mild burn?

Immediately run cold water over the burn. If the burn is severe, call a doctor.

Can the appliance be used by children?

This appliance can be used by children aged 8 and above under supervision. Children under 8 must be kept away from the appliance and cord.

Why does the appliance emit odor or smoke during first use?

This is normal during the first use. It is a slight emission of odor or smoke due to heating of new materials. This will disappear after a few uses.

How to avoid damaging the non-stick coating?

Always use a plastic or wooden spatula on the plates. Never cut food directly on the plates and do not use metal utensils.

Can I immerse the appliance in water?

No, never immerse the appliance or cord in water. For cleaning, use a damp sponge as indicated.

What type of socket should I use?

Plug the appliance only into a socket with built-in earth compatible with the power and voltage indicated under the appliance.

How do I know if the temperature is maintained?

The green indicator turns off and on regularly to indicate that the temperature is maintained. This is normal.

Where should I place the appliance for safe use?

Place the appliance on a stable surface, away from walls and corners to avoid overheating. Avoid fragile supports like glass or tablecloths. Ensure the cord does not obstruct traffic.

USER MANUAL Ultracompact SM156843 MOULINEX

3D rendered image of a white rectangular griddle or flatton with black clamps, no text or symbols visible.

CONSIGNES DE SÉCURITÉ

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS:

- This appliance is intended for domestic household use only.

It is not intended to be used in the following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Never leave the appliance unattended when in use.

• Remove all packaging materials, stickers and access from the inside and the outside of the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Accessible surface temperatures can be high when the appliance is operating.

• If need be, make sure to choose an extension cord of equivalent diameter with an earthed socket.

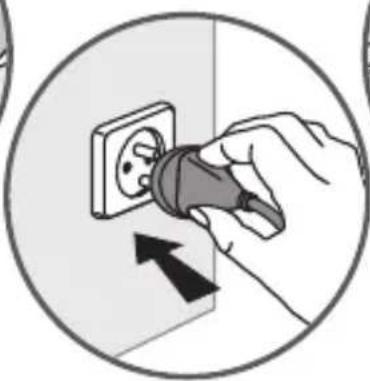

  • Always plug the appliance into an earthed socket.

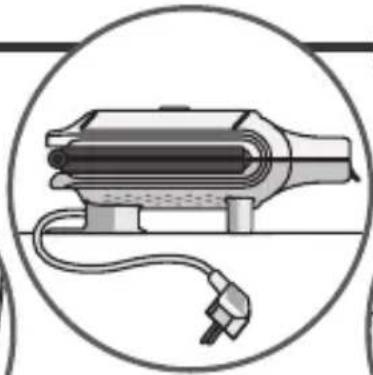

• Fully unwind the power cord.
• Position the power cord carefully, whether an extension is used or not, so that guests can move freely around the table without tripping over it.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Never place the appliance directly on a fragile surfac (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.
• If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Make sure that the electric power supply is compatib with the power rating and voltage indicated on the bottom of the appliance.
• Do not immerse the appliance in water.
• Do not immerse the appliance, the control panel or power cord in water.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

Prevention of accidents at home

• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.
• For your safety, this appliance conforms to all applicable standards and regulations (Low

DO

• Read carefully the instructions, common to different versions depending on the accessories supplied with your appliance, and keep them within reach.

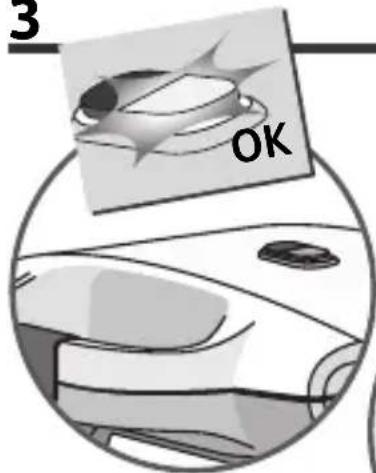

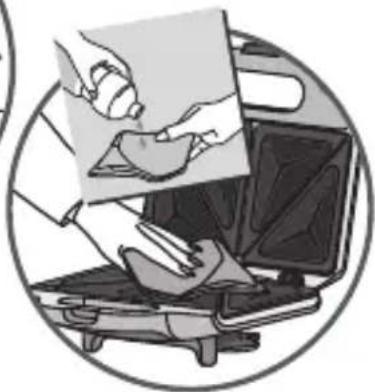

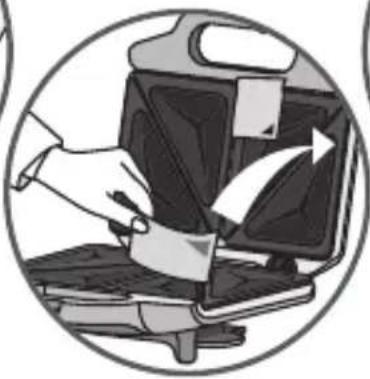

• Before first use, wash the plate(s) (follow paragraph 4), pour a little cooking oil onto the plate(s) and wipe with a soft cloth or paper kitchen towel.

DO NOT

• Never leave the appliance unattended when plugged in or in use.
• Do not place cooking utensils on the cooking surfaces of the appliance.
• Never cut food directly on the plates.
• Do not touch the hot surfaces of the appliance but use the handle.

Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).

On first use, there may be a slight odour and a little smoke during the first few minutes.

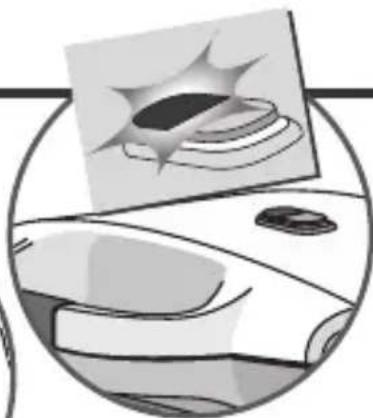

The green light goes out and lights up again regularly during the cooking process, to show that the selected temperature is maintained.

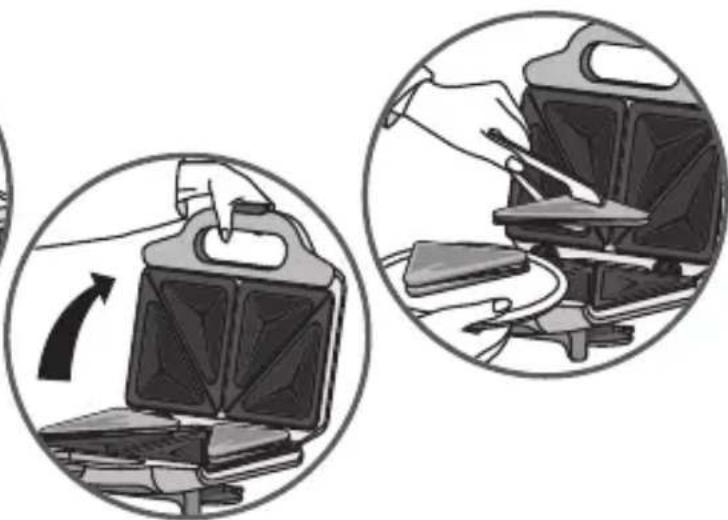

• Always use a wooden or plastic spatula to avoid damaging the cooking plate.

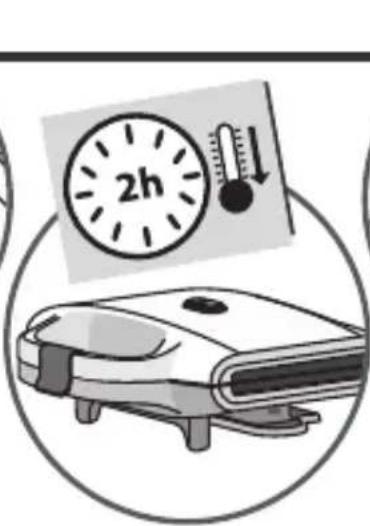

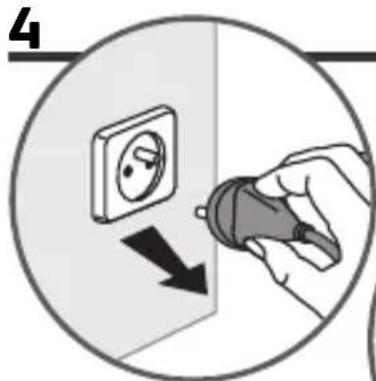

• Check that the appliance is cooled and unplugged before cleaning.

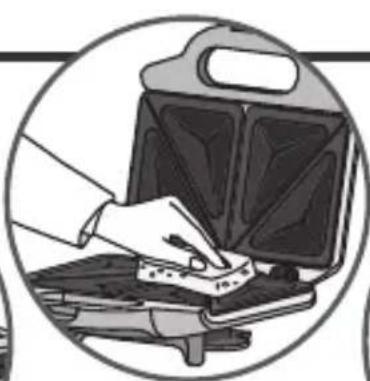

• Clean the plates and body of the appliance using a sponge and washing-up liquid.

• Do not use metal scourers or scouring powders to avoid damaging the cooking surface (e.g.: non-stick coating, ...).

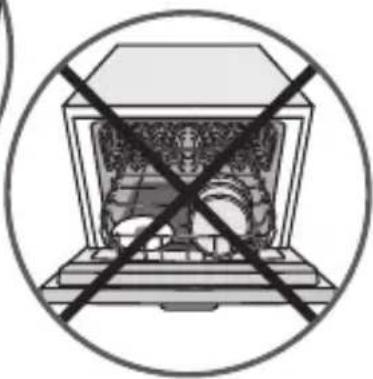

• The appliance and its power supply cord must not be put in the dishwasher.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

HVAD MAN IKKE SKAL G∅RE

BEZBEDNOSNA UPUTSTVA

VAŽNA UPOZORENJA:

CE NU TREBUIE FĂCUT:

• . ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∪ ∩

Illustration of an open box with a stack of documents and an upward arrow, enclosed in a circle (no text or symbols)

1

Illustration of a hand using a tool to press down an open computer monitor (no text or symbols visible)

2

Illustration of a cylindrical device with a plug and cable, enclosed in a circular frame (no text or symbols)

3

Illustration of an open box being lifted by a handbag (no text or symbols)

Illustration of hands using a laptop to clean or manage the screen (no text or symbols visible)

4

2

5

Illustration of a hand inserting a plug into an electrical outlet, with an arrow indicating direction (no text or symbols)

6

Illustration of a car with a magnified inset showing a charging cable (no text or symbols)

7

3

Circular diagram showing a car interior with a magnified inset of a helmet and 'OK' label (no readable text or symbols)

8

Illustration of a hand holding a container with an arrow indicating rotation (no text or symbols)

9

Illustration of various food items including cookies, pastries, and baked goods arranged in a row (no text or symbols)

Illustration of a hand using a smartphone to write on a computer monitor (no text or symbols visible)

10

11

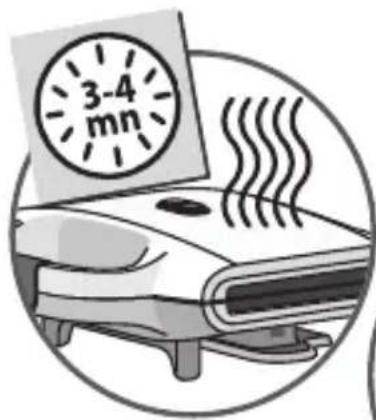

Illustration of a steaming hot air conditioner with a magnified inset showing '3-4 mn' (no text or symbols on the device itself)

12 14

Illustration showing a computer setup with a hand operating a desktop monitor and a scroll, both depicted in circular frames (no text or symbols)

13

*selon modèle
* afhankelijk van het model
* je nach Modell
* secondo il modello
* según modelo
* consoante o modelo
* depending on the model
*ανάλογα με το μοντέλο
* modele göre
* afhængig af modellen
*avhengig av modell
*beroende på modell
* mallista riippuen
* w zależności od modelu
* в зависимости от модели
*залежно від моделі
* podle modelu
* podl'a modelu
* modelltöl függöen

15 17

16 18

Illustration of a hand using a computer to clean or edit documents on a keyboard (no text or symbols visible)

Cross-sectional diagram of a device with internal components and no visible text or symbols

19 21

Illustration of a hand cleaning a small electronic device with a paper clip, enclosed in a circular frame (no text or symbols)

20

Illustration of a padlock inside a shelf, enclosed in a circular frame (no text or symbols)

* glede na model
* u zavisnosti od modela
* zavisno od modela
* в зависимост от модела
* үлгісіне қарай
* în funcție de model
* ovisno o modelu
* söltuvalt mudelist
* priklausomai nuo modelio
* atkarībā no modela
* үлгісіне қарай

* حسب الموديل

* برحسب مدل

FR 1 - 5

NL 6 - 9

DE 10 - 15

IT 16 - 19

ES 20 - 23

PT 24 - 27

EN 28 - 31

EL 32 - 35

TR 36 - 39

DA 40 - 43

NO 44 - 47

SV 48 - 51

FI 52 - 55

PL 56 - 59

RU 60 - 63

UK 64 - 67

CS 68 - 71

SK 72 - 75

HU 76 - 79

SL 80 - 83

SR 84 - 87

BS 88 - 91

HR 92 - 95

RO 96 - 99

BG 100 - 103

ET 104 - 107

LT 108 - 111

LV 112 - 115

AR 116 - 119

FA 120 - 123

KK 124 - 127
