LT260827 - Toaster MOULINEX - Free user manual and instructions

Product type	Toaster
Brand	Moulinex
Model	LT260827
Intended use	Household only
Power supply	Alternating current (see rating plate)
Capacity	2 standard bread slices
Functions	Bread toasting, reheating pastries (depending on model)
Ejection system	Mechanical, separate from electrical cut-off
Crumb tray	Removable, located at the bottom
Cleaning	Damp cloth; do not immerse
Safety	Automatic shut-off at end of cycle, overheating protection, thermal cut-out
Cord length	Approximately 0.8 m (estimate)
Materials	Plastic and metal (hot parts)
Compliance	CE standards, Low Voltage Directive, EMC
Warranty	Contact authorized after-sales service

Frequently Asked Questions - LT260827 MOULINEX

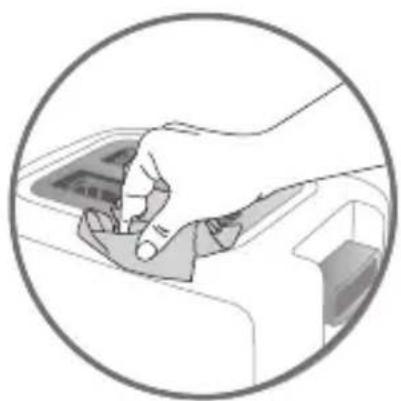

How to clean my Moulinex LT260827 toaster?

Use a damp cloth to clean the parts in contact with the bread. Never immerse the appliance in water. Empty the crumb tray located at the bottom regularly.

Can I toast breads with icing or small pieces?

No, do not toast breads that may melt (with icing) or drip into the toaster. Also avoid small pieces or croutons that could cause a fire hazard.

What to do if a slice of bread gets stuck in the toaster?

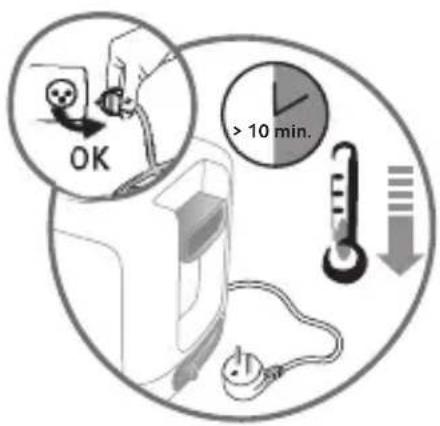

Unplug the appliance and wait for it to cool down before removing the bread. Never attempt to remove it during the toasting cycle with a metal utensil.

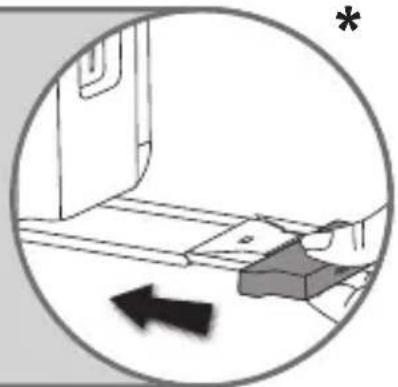

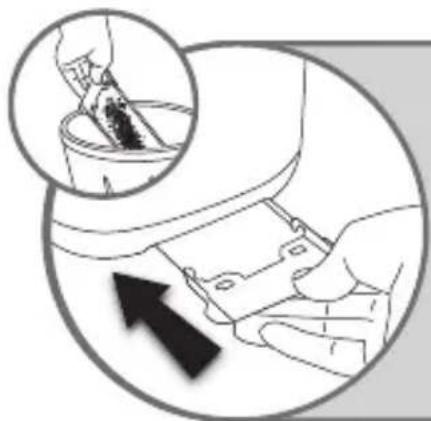

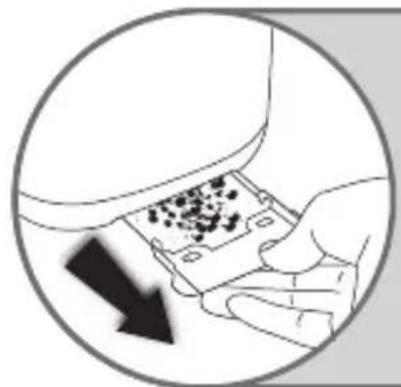

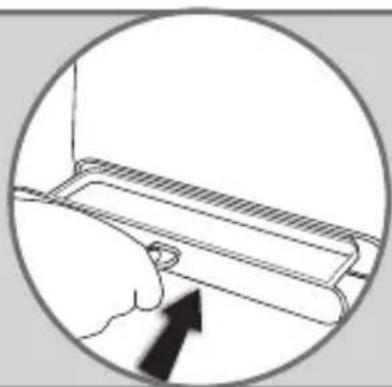

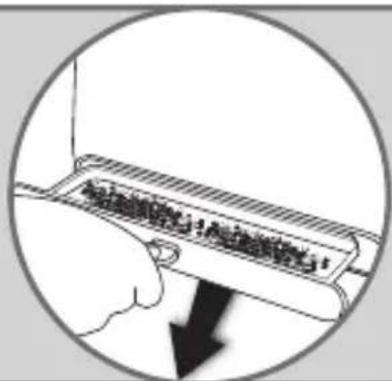

How to empty the crumb tray?

The crumb tray is located in the lower part of the toaster. Open the flap and empty the crumbs regularly to avoid any fire risk.

Can I use an extension cord with this toaster?

Yes, but only an extension cord in good condition with a grounded outlet and a conductor cross-section at least equal to that of the supplied cable.

Is the appliance suitable for use by children?

Children over 8 years old may use it under supervision. Children must not play with the appliance or perform cleaning without supervision.

What to do in case of malfunction or damaged cable?

Unplug the appliance immediately and contact the nearest authorized after-sales service. Do not attempt to repair it yourself.

Can I toast frozen foods or reheat dishes?

No, do not use the toaster for cooking, grilling, reheating, or defrosting frozen dishes. Only bread and pastries (depending on model) are suitable.

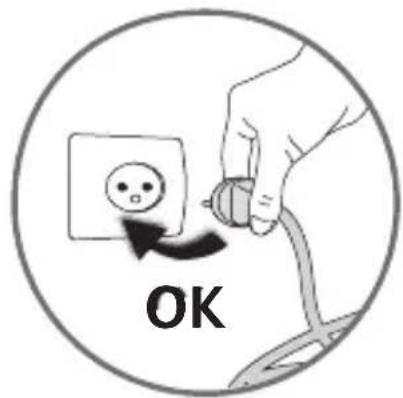

How to correctly plug in the appliance?

Ensure the mains voltage matches that indicated on the appliance. Always plug into a grounded outlet. The carriage button must be in the up position when plugging in.

Where to find spare parts for the LT260827?

Contact a Moulinex authorized after-sales service center. The list of service stations is provided with the appliance. Only use accessories recommended by the manufacturer.

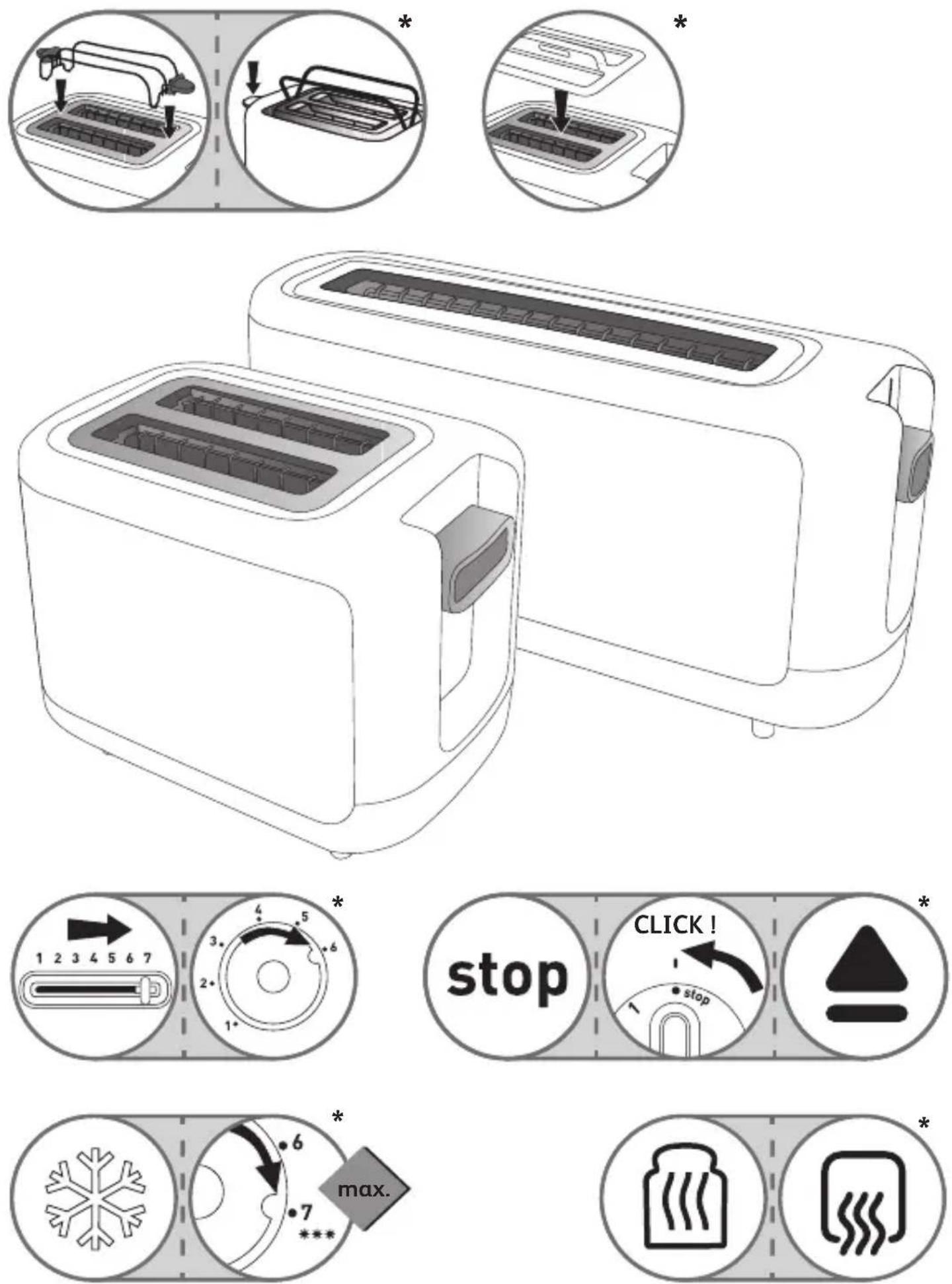

USER MANUAL LT260827 MOULINEX

Simple line drawing of a bread loaf with three vertical lines inside (no text or symbols)

* Selon modèle - Afhankelijk van de model - Je nach Modell - Depending on model - Secondo il modello - Según modelo - Dependendo do modelo - Aváloya με το μοντέλο - Modele göre - بر حسب مدل - حسب الموديل Afhængigt af modellen - Avhengig av modell - Beroende på modell - Mallista riippuen - 모델에 따라 다름

Stop at any time

Arrêt à tout moment - Stop op eender welk ogenblik - Stopp-Taste - Arresto in qualsiasi momento - Parar en cualquier momento - Parar em qualquer altura - Απενεργοποίηση ανά πάσα στιγμή - Arzulanan anda durdurma -

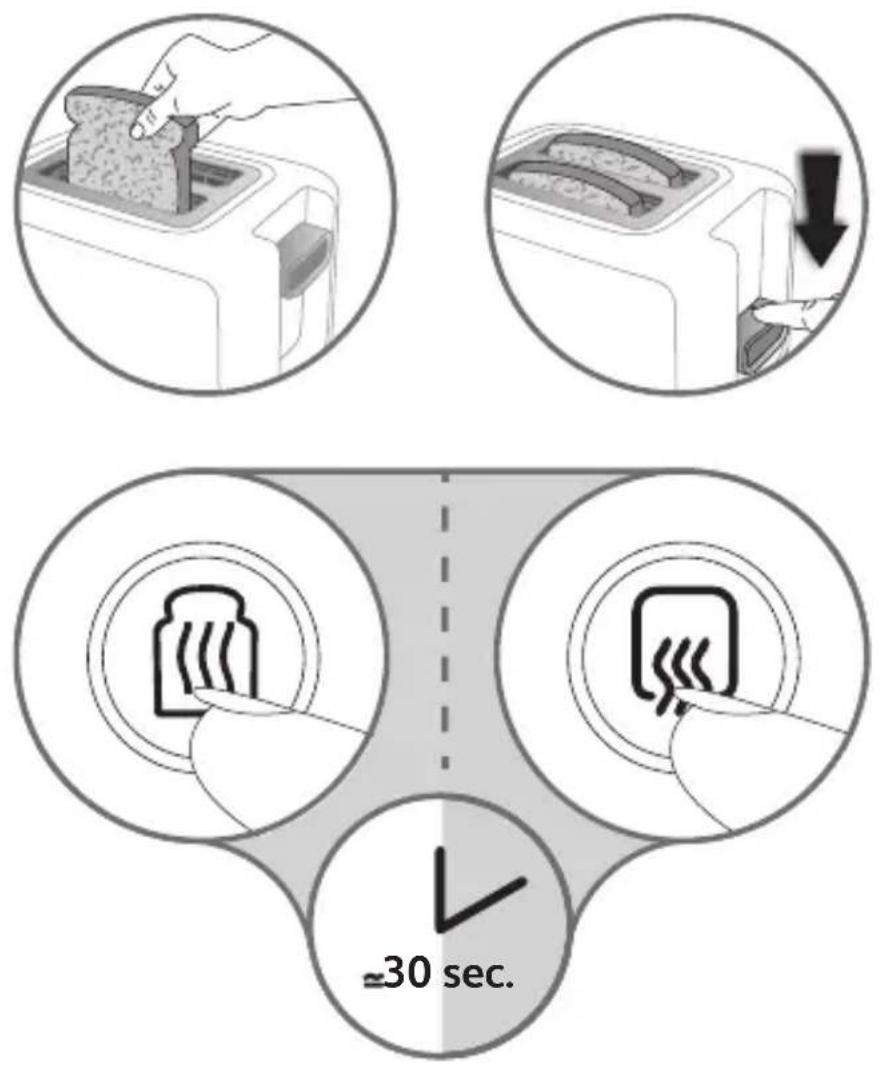

Function to defrost bread

Fonction pour décongeler du pain - Functie om brood te ontdooien - Auftaufunktion - Arresto in qualsiasi momento - Función para descongelar el pan - Função de descongelação do pão - Λειτουργία ξεπαγώματος ψωμιού - Ekmek buz çözme fonksiyonu - -calt يخ زدایی نان وظيفة إزالة تجقد الخبز Funktion til optøning af brød - Funksjonen tine brød - Avfrostningsfunktion för brød - Leivänsulatustoiminto - 빨해 동기 늁

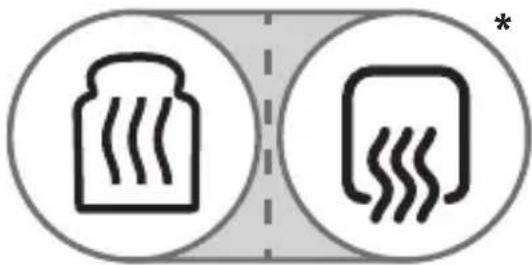

Two circular icons with steam symbols inside, separated by a dashed line (no text or numbers)

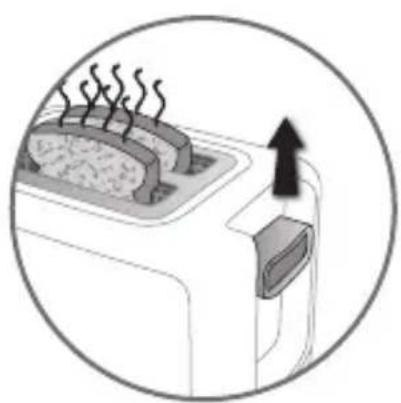

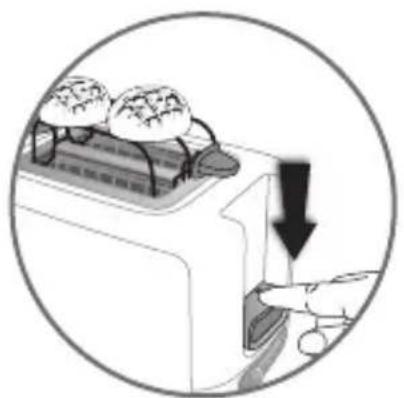

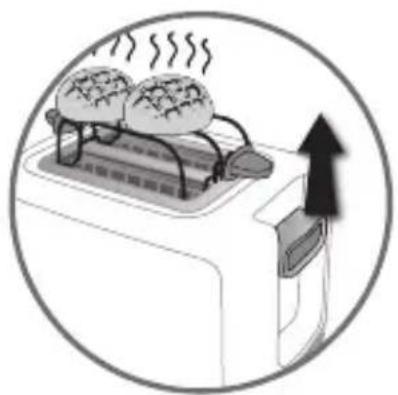

Automatic function to reheat bread

Fonction automatique pour réchauffer du pain - Automatische functie om brood opnieuw op te warmen - Automatische Aufwärmfunktion - Funzione automatica di riscaldamento del pane - Función automática para recalentar el pan - Função automática de reaquecimento do pão - Autóματη λειτουργία ζεστάματος ψωμιού - Otomatik ekmek ɪsɪtma fonksiyonu -

- حالت خودكار برای گرم کردن نان - وظيفة تلقائية ل ereادة تсхخين الخبرز funktion for opvarmning af brød - Funksjonen automatisk gjenoppvarming av brød - Automatisk funktion för att värma upp brød - Automaattinen toiminto leivän lämmittämiseksi - 자동빵 가 열 기 능

1

Illustration of hands pressing a tray with an upward arrow (no text or symbols)

Illustration of a hand inserting a card into a device (no text or symbols visible)

Illustration of a hand holding a pen over a document with a cross mark (no text or symbols)

2

Illustration of two steaming bread slices (no text or symbols)

Illustration of a hand pressing down on a rectangular object, enclosed in a circular frame (no text or symbols)

Close-up of a hand pressing down on a device component with a black downward arrow indicating compression (no text or symbols)

Diagram of a microwave oven with heat transfer arrows indicating airflow (no text or symbols)

Circular diagram showing a hand pressing down on a surface with a warning symbol (no text or labels)

3

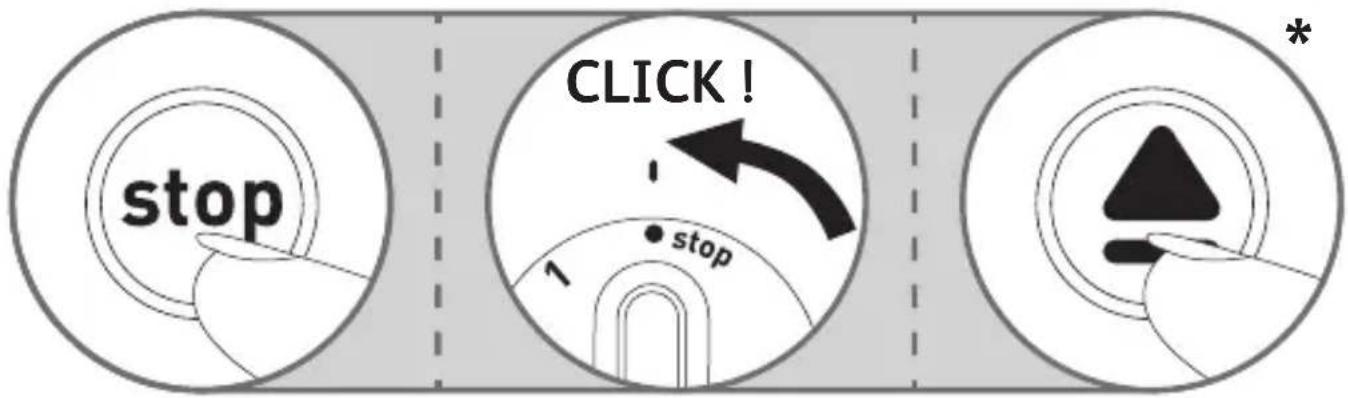

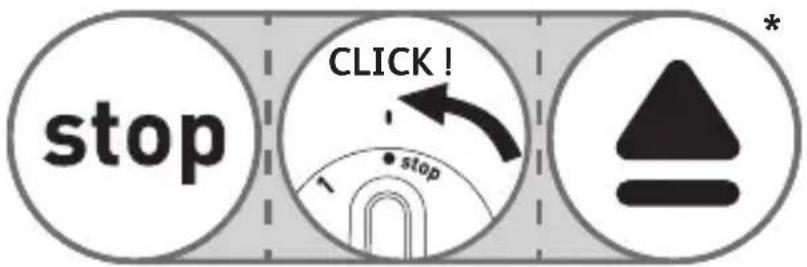

stop

4

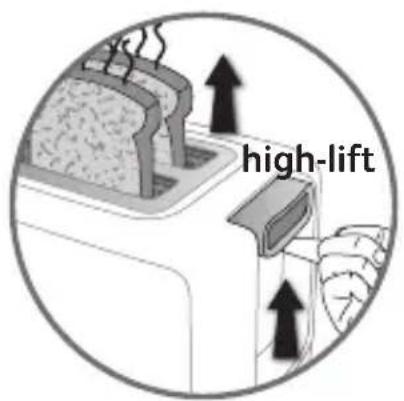

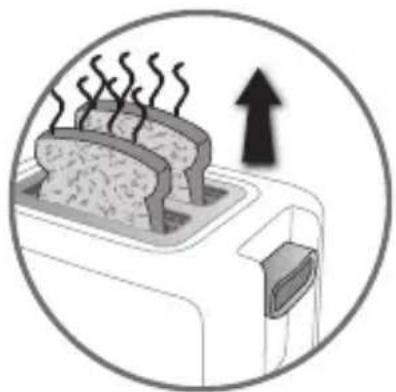

Illustration of a toaster oven with steaming food and an upward arrow indicating heat or energy (no text or symbols)

5

6

Simple line drawing of two bread slices with floral patterns and a small asterisk (no text or symbols)

Illustration of a hand using a printer to press down an air conditioner, showing two states of cooling (no text or symbols present)

Illustration of a computer with a mouse and brain on top, showing a hand interacting with it (no text or symbols present)

Illustration of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a toaster with steaming bread rolls and a rising arrow, no text or symbols present

7

Illustration of a hand inserting a card into a device (no text or symbols visible)

Illustration of a toaster with a hand inserting a tray into the front panel, showing a black arrow indicating motion (no text or symbols present)

Illustration of hands using a computer to press a component with a downward arrow (no text or symbols)

Close-up of a hand inserting a card into a folder, with a downward arrow indicating compression (no text or symbols visible)

Diagram showing a hand using a tool to interact with a car, with an inset magnified view of the tool inside (no text or symbols present)

Diagram of a hand holding a flexible object with an arrow indicating direction (no text or symbols)

Simple line drawing of a door with a bag and an arrow pointing to it, enclosed in a circle (no text or symbols)

Diagram of a device interior with a central rectangular chamber and wiring, enclosed in a circle (no text or symbols)

8

CONSIGNES DE SÉCURITÉ PRÉCAUTIONS IMPORTANTES :

- In bed & breakfast locaties.

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS:

• This appliance is not intended to be operated using an external timer or separate remote control system.
• This appliance is intended to be used in household only.
  It is not intended to be used in following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children must be supervised to ensure that they do not play with the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Bread can burn, therefore the appliance must not be used near or below curtains and other combustible materials such as curtains, drapes or wood (shelving, cupboards...) it should be attended when in use.

- This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Use a dust cloth on parts that come into contact with bread.
• Make sure you dispose of any crumbs regularly by emptying the crumb-tray which is on the lower part of the toaster.

For your safety, this appliance conforms with applicable standards and regulations (Directives on low voltage, electromagnetic compatibility, materials in contact with foodstuffs, environment, etc.)

In accordance with the CSC notice of 2/12/04, this product features a mechanical design allowing the bread ejection mechanism to be detached from the power cut-off element.

• Check that the electricity supply voltage corresponds to the voltage indicated on the appliance (ac current only).
• Given the many standards in effect, if this toaster is used in a country other than the country where it was purchased, have it checked by an approved service centre (see enclosed after sales service information).
• Check that the electricity installation is sufficient to supply the power required by this appliance.
  • Always plug the toaster into an earthed socket.
• Use extension leads which are in good condition, with an earthed connection, and with a minimum rating of 10A.

TO PREVENT ANY ACCIDENTS

When using electrical appliances, basic safety precautions should always be followed:

DO:

• Carefully read and follow all the instructions for use.
• Close supervision is necessary when the toaster is used by or near children or certain disabled persons who are not familiar with these instructions and should only use this toaster under surveillance of a responsible adult.
• The toaster must always be used in the upright position, never on its side or tilted forwards or backwards.

Before each use make sure that the crumb tray is fitted correctly.

• Regularly remove crumbs from the crumb tray.
- The bread control lever must be in the "Up" position before plugging in or unplugging the appliance.
- Unplug the appliance if it shows any working abnormalities.
- Unplug from the power socket when not in use during and before cleaning. Allow to cool down before cleaning or storing.
- To unplug remove the plug from the wall socket (when the toasting cycle is finished).
- If the bread jams in the slots after toasting and the elements do not switch off, unplug the plug immediately and wait for the appliance to cool before attempting to remove the bread.
- Bread can burn, therefore do not use this appliance near any flammable materials such as curtains, under shelving or under wall cupboards.
- Use on a flat, stable heat-resistant work surface, away from any contact with water and never use underneath a built in kitchen alcove.

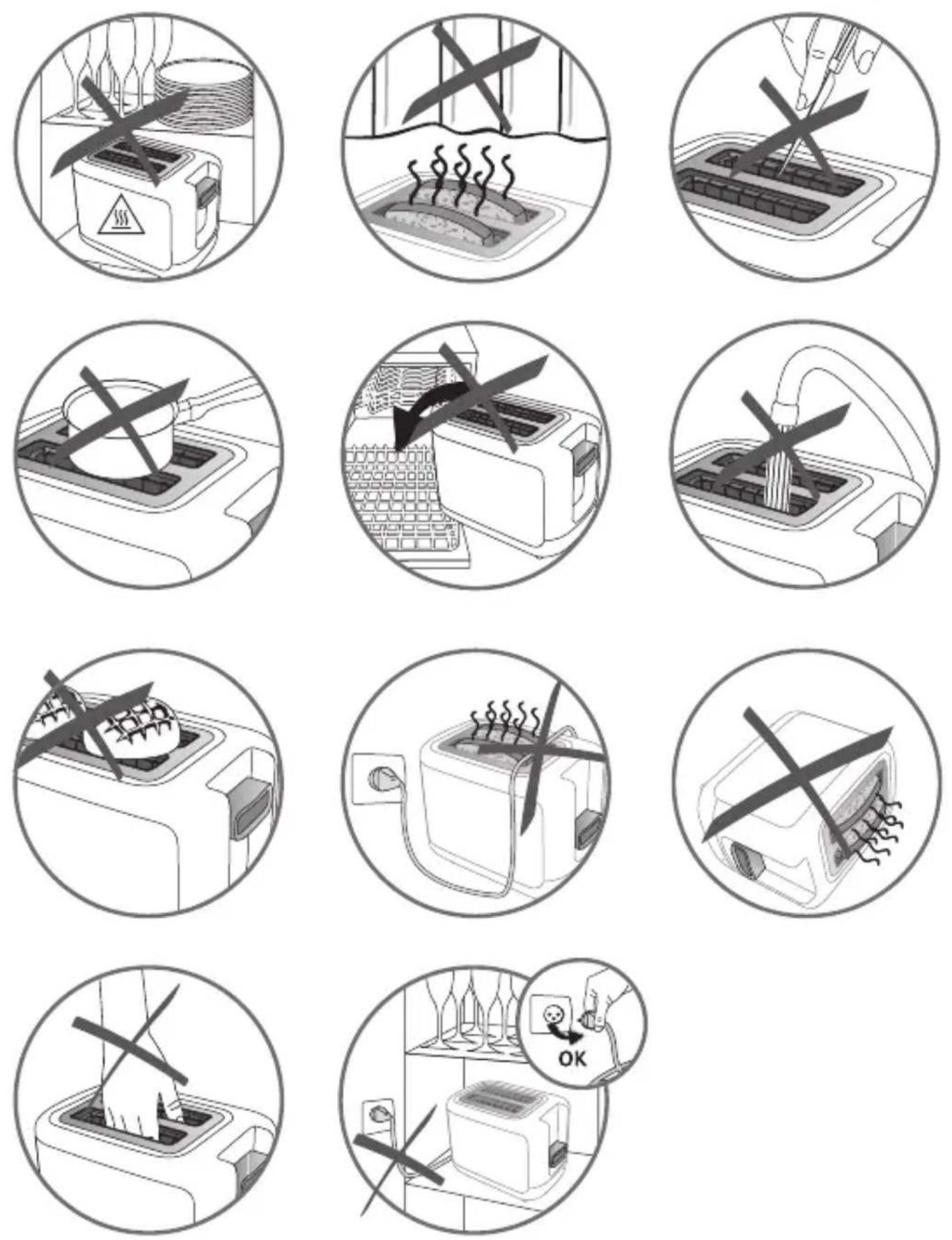

DO NOT:

• Do not let the toaster operate unattended, particularly when toasting for the first time or when settings have been changed.
• Do not store the cord or the plug between the slots in the appliance.
• Do not unplug the appliance by pulling on the cord.
• Do not move or carry the appliance during use.
• Do not leave the appliance within the reach of children.
• Do not use outdoors. Avoid humid environments.
• Do not use the appliance for any other use other than that for which it was designed.

• Do not touch the metal parts or hot surfaces of the appliance when it is working.

• Oversized foods, metal foil packages, or utensils (spoon, knife, etc.) must not be inserted into a toaster as they may cause an electric shock or fire.

• Do not use accessory attachments that are not recommended by the manufacturer as this may be dangerous.
• To protect yourself against an electrical shock do not immerse the cord, plugs, or appliance in water or other liquids.

Do not place any sugar coated type of bread in the toaster or anything that may melt or drop into the toaster, do not toast small pieces of bread or croutons as this may cause damage to the toaster or a risk a fire.

Do not try to toast very thick slices of bread that could become stuck in the toasting slots.

- Do not use this appliance if:

- it has a damaged cord.

- the appliance has been dropped and has visible damage or does not operate properly.

In any of these instances, the appliance must be sent to your local approved after-sales service centre to avoid any risk of danger. Refer to the guarantee enclosed.

• Do not let the cord hang over the edge of the worktop or come into contact with hot surfaces.
• Do not place on or near a gas burner, electric ring/hob, or near a heated oven.
• Do not cover this appliance while in use.
• Do not put paper towels, cardboard or plastic in, on or under the toaster.

If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth.

• Do not attempt to dislodge food once the toasting cycle is engaged.
• Do not use this appliance as a source of heating or drying.
• Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products.
• Do not use the appliance to toast bread and warm croissants (or similar products) at the same time (depending on model).
• The metal frame can become very hot. Do not touch it! Use an oven glove or tongs (depending on model).
• Do not use any abrasive cleaning agents (no soda-based scouring products, no scouring pads...), no metallic utensils, metal scouring pads etc.
• For appliances with a metallic finish: Do not use any cleaning products designed for metals: use a soft cloth with a window or glass cleaner.

SAVE THESE INSTRUCTIONS

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

NORME DI SICUREZZA PRECAUZIONI IMPORTANTI:

FOREBYGGELSE AF UHELD I HJEMMET:

HVAD MAN IKKE SKAL G∅RE:
