Product Type	Cordless Jigsaw
Brand	Ferm
Model	FPJS-1800LK
Voltage	18 V (Lithium-Ion battery)
No-load speed	800 - 2800 /min (variable)
Wood cutting capacity	70 mm
Metal cutting capacity	10 mm
Cutting angle	0 - 45° (adjustable)
Weight	1.68 kg
Sound pressure level (Lpa)	82 dB(A)
Sound power level (Lwa)	93 dB(A)
Vibration value	12.1 m/s²
Blade length	18 mm
Blade type	T-shank
Compatible battery	FPB-1800L (Lithium-Ion) or FPB-1800N (NiMH)
Compatible charger	FPL-1800 (Lithium-Ion and NiMH)
Package contents	Jigsaw, 1 wood blade, charger, battery, Allen key, storage case, manual
Display	LCD screen with charge indicator and remaining battery time
Lighting	Work LED
Orbital action adjustment	4 levels (0 - III)
Safety	Lock-off button, protective cover, blade guard
Maintenance	Clean the ventilation slots regularly with a soft cloth
Warranty	Extended warranty (see warranty card)

Frequently Asked Questions - FPJS-1800LK Ferm

How to change the blade of the FPJS-1800LK jigsaw?

To change the blade, first remove the battery. Then, lift the blade clamp lever, insert the new blade (teeth facing up and forward), then release the lever to secure it. Make sure the blade is firmly in place before reinserting the battery.

How to adjust the cutting speed?

Use the rotary knob on top of the saw. Turn it to the right to increase speed (maximum position 6). For soft materials, choose high speed; for hard materials, choose a slower speed.

How to make bevel cuts with this saw?

Loosen the two hex screws under the base plate using the provided Allen key. Tilt the base plate to the desired angle (up to 45°), then retighten the screws. The angle can be read on the protractor.

What is the orbital action adjustment (pendulum)?

The amplitude adjustment (levels 0 to III) optimizes the cut according to the material. For soft materials, use levels II or III; for hard materials, use level 0 or I. For curves, use level 0.

What is the battery runtime?

The runtime depends on the battery type and usage. The LCD screen displays the remaining minutes of operation (for Lithium-Ion battery) as well as the charge level (10 bars = full). Use compatible batteries (FPB-1800L or FPB-1800N).

Can I cut metal with this jigsaw?

Yes, the saw can cut metal up to 10 mm thick. Use a fine metal-cutting blade, a slower speed, and set the orbital action to 0. Wear protective gear.

How to use the plunge cutting function?

Place the rounded front of the base plate on the workpiece, turn on the saw, and lower it slowly until it cuts through the material. Then continue the cut normally. You can also drill a starter hole for the blade.

How to clean and maintain the jigsaw?

Regularly clean the ventilation slots with a soft cloth to prevent overheating. Do not use solvents. The machine does not require additional lubrication. Store it in the provided case.

What to do if the saw does not start?

Check that the battery is inserted and locked. Make sure the lock-off button is not engaged. If the problem persists, contact customer service (see warranty card for contact details).

What are the essential safety instructions?

Always wear safety goggles and a dust mask. Do not use the tool in wet conditions. Secure the workpiece with a clamp. Wait for the blade to come to a complete stop before removing the saw.

USER MANUAL FPJS-1800LK Ferm

FERM® JUST A PERFECT TOOL

Two FERM power switch devices shown from different angles, one with a digital display and the other with blue buttons and a 18V 2.2Ah Li-ion device (no text or symbols on main body)

GB USERS MANUAL 06

P MANUAL DE INSTRUÇÕES 29

I) MANUALE UTILIZZATI 33

S ) BRUKSANVISNING 38

FIN KÄYTTÖOHJE 42

Technical line drawing of a sewing machine component with no visible text or symbols

Technical line drawing of a car front panel with internal components and mounting holes (no text or labels)

Fig. C

Line drawing of a mechanical component with no visible text or symbols

Fig. D

Fig. E

Fig. F

Technical line drawing of a mechanical device with a rotating base and internal components (no text or symbols)

Fig. G

Fig. H

JIG SAW

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the text refer to the diagrams on pages 2 - 5.

Read the operating instructions carefully before using this device. Familiarize yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Applications

The jig saw can be used to cut workpieces of various materials (wood, aluminium, plastic, metal etc.) precisely to size and in any desired shape.

Contents

1. Machine information
2. Safety instructions
3. Mounting accessories
4. Operation
5. Service & maintenance

1. MACHINE INFORMATION

Technical specifications

Voltage 18 V ---

Speed, no load 800-2800/min

Max. cutting capacity wood 70 mm

Max cutting capacity metal 10 mm

Max. cutting stroke 18 mm

Cutting angle 0-45°

Weight 1.68 kg

Lpa Sound pressure level 82 dB(A)

Lwa Sound power level 93 dB(A)

Vibration 12.1 m/s

2

Contents of packing

1 Charger
1 Lithium-Ion battery
1 Storage case
1 Jig saw
1 Saw blade for wood
1 Hex key
1 Operating instructions
1 Safety instructions
1 Warranty card

Check the appliance, any loose parts and accessories for damage caused during transport.

Product information

Fig. A

1. Speed control
2. Lock off knob
3. Switch
4. Battery release button
5. Saw blade storage cover
6. Protractor
7. Base plate
8. Pendulum
9. Saw buckle
10. Guard
11. Light button
12. LCD Display

2. SAFETY INSTRUCTIONS

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

The number of revolution of the machine can be electronically set.

Wear a dust mask. Working with wood, metals and other materials may produce dust that is harmful to health. Do not work with material containing asbestos!

Do not dispose of in household waste.

Special safety instructions

Read the following safety instructions and also the enclosed safety instructions.

Before using the appliance

Check the following points:

Has the saw blade lost any teeth and is it • showing cracks or fractures?

If so, replace the saw blade immediately. Is there enough room under the workpiece so that the saw blade does not come into contact with the floor or work table as it moves up and down?

Do the teeth of the saw blade point upwards?• Always wear protective goggles when using • the appliance.

Maintain the appliance carefully.

Do not use the appliance in a wet environment.

Do not use the appliance for material which contains asbestos.

Never leave the jig saw unattended.

Using the appliance

Clamp the workpiece that you will be sawing in • firmly into place.

Remove any wood residue that is near or • stuck to the surface of the saw blade; do not use your hand for this. Switch the appliance off before removing any residue!

Always switch the jig saw on in idle, i.e. switch the jig saw on before bringing it into contact with the workpiece.

When sawing the wood watch out for knots, • nails, cracks and/or dirt deposits. These can cause the saw blade to jam dangerously. Also watch out for this with waste wood. This often requires less careful sawing, so there is a danger that you may not be quite so careful about watching out for irregularities in the wood.

Do not saw workpieces that are thicker than the length of the saw blade.

• Do not touch metal parts of the jig saw when sawing in walls or floors in which there could be electricity cables. Hold the jig saw tightly with both hands on the plastic grip so that you do not touch parts that could become live if you accidentally saw through an electricity cable.
• When you have finished sawing, switch off the appliance first and wait until the saw blade comes to a standstill before removing it from the workpiece.

- Keep the plastic guard in place while the jig saw is in use.

3. MOUNTING ACCESSORIES

Prior to mounting an accessory always remove the battery.

Selecting the saw blade

The jig saw is suitable for all commercially available T-shank saw blades. The profile and the teeth vary is according to the material that you want to saw. A fine tooth will give you a smooth and precise saw cut. Use a narrow profile if you want to saw curves or if you are going to saw figures.

The maximum saw capacity in wood is 70 mm.

To select the right saw, proceed as follows:

• First of all try a saw blade with coarse teeth.
• If you don't get a smooth and precise saw cut, try a saw blade with a finer tooth.
  For plastic, aluminium and steel always use a • saw blade with a very fine tooth.
  For metal, only use saw blades, suitable for metal.

In general you will work faster but less precisely with a coarse tooth than with a fine tooth.

For an optimum result always make sure the saw blade is sharp.

Saw blade

Type of workpiece

Coarse

Wood

Medium

Wood

Fine

Plastic, aluminium, steel

Very fine

Cutting curves (wood)

Assembling saw blade

Fig. B

To assemble the saw, proceed as follows:

• Push the saw buckle clamp up and hold.
• Place the saw in the saw buckle. Make sure that the teeth point upwards and forward. The smooth side of the saw must rest against the wheel.
• Push the saw as far into the buckle as possible.
  Secure the saw by gently releasing the saw • buckle clamp. Make sure that the saw blade sits correctly in the saw buckle. A crooked blade can result in an unsatisfactory cut.

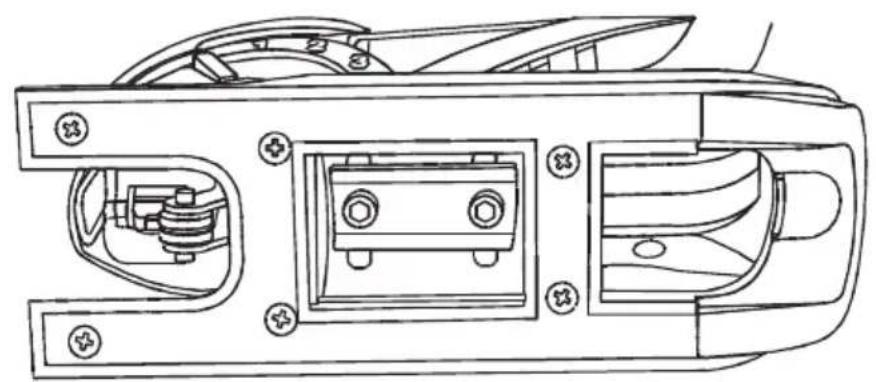

Adjusting the bottom plate

Fig. C + D

Adjust the angle of the bottom plate as follows:

A. Loosen the socket head screws with the Allen key supplied.
B. Turn the bottom plate to the right or left in the desired sawing angle.
You can read this on the protractor. The maximum sawing angle is 45^ .
C. Tighten the socket head screws again.

Connecting and removing the battery

Fig. A + E

Insert the battery into the base of the • appliance, as shown on the illustration. Push the battery until it latches in.

Press the locking button (4) on either side • before removing the battery, and disengage the battery from the base of the appliance.

Only use batteries of the following type. Using any other batteries could cause serious injury or damage the tool.

CDA1051: FPB-1800L, 18V Lithium-Ion.

CDA1053: FPB-1800N, 18V NiMH.

The following charger can be used to charge these batteries.

CDA1052: FPL-1800 (Lithium-Ion and NiMH).

CDA1054: FPL-1800N (NiMH only).

4. OPERATION

Always follow the safety notes and the relevant safety code.

Switching on and off

This machine is equipped with a safety switch. Start the machine by pressing the "lock off" button (to disengage the switch) and switch on the machine.

Release the (On/Off) switch to switch the machine off.

Speed control

Fig. A

The speed of the saw blade can be controlled with the rotary knob at the top of the jig saw.

The higher the position, the higher the speed.

The highest position is 6. The ideal sawing speed will depend on the profile and the tooth of the saw blade and on the material you want to saw. For soft materials, select a reasonably high speed and a coarse tooth. If you want to saw hard materials, select a lower speed and a fine tooth.

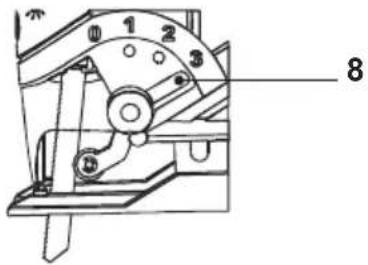

Pendulum setting

Fig. F

For an optimum sawing result you must set the way in which the teeth of the saw blade grip the material. You do this by adjusting the pendulum (8).

Soft material (wood, plastics etc.): set the • pendulum to level II or III. For a sharp saw cut, use pendulum level 0 or I.

Medium-hard material (hardwood, aluminium • etc.): set the pendulum depending on the application. For thin material use pendulum level 0, or I if you are working with rasps or knives.

Hard material (steel etc.): set the pendulum to • level 0.

Curves: set pendulum to level 0.

You can adjust the pendulum level while the appliance is in operation.

Guard

Fig. A

The jig saw is fitted with a guard (10). Make sure that this guard is always mounted correctly while the jig saw is in use.

Sawing

• Switch on the jig saw.
  Place the bottom plate of the appliance on the work piece.
• Move slowly towards the previously drawn sawing line and press the jig saw forward slowly. Press the bottom plate firmly against the work piece. If you do not do this the jig saw is likely to vibrate and the saw blade will break.

Let the jig saw do the work. Do not press too hard on the jig saw.

Cutting in

Fig. G

If the starting position of the work piece to be sawn is not the side, or if no hole has been drilled, you must cut in. To do this, proceed as follows:

Put the jig saw on the rounded front of the • bottom plate.

Switch on the appliance and slowly lower the • jig saw until it touches the work piece.

Let the jig saw cut into the work piece gently • without forcing it.

When you are through the work piece, take the jig saw out of the hole.

Place the appliance in the normal position in • the sawn hole and continue the saw cut.

You can also cut in by first drilling a hole in the work piece. To do this, use a bit that makes a hole big enough for the saw blade. Now you can carry out the steps described under 'Sawing'.

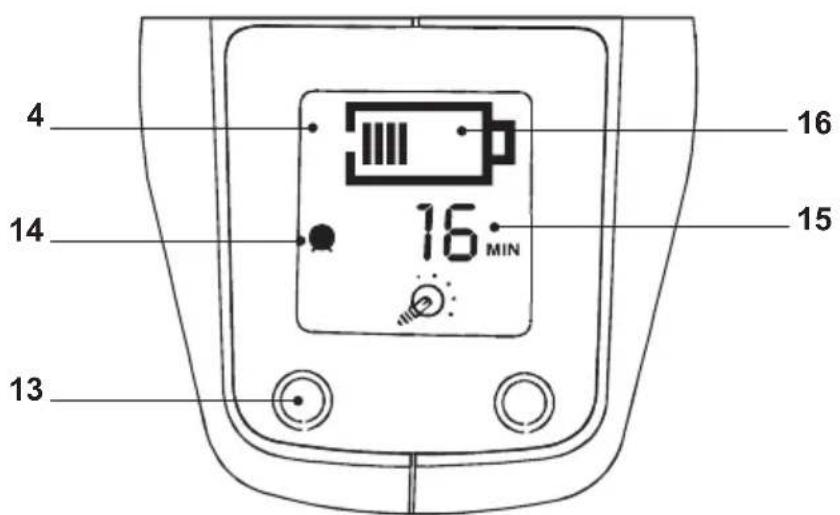

LCD display

Fig. H

This machine is equipped with an LCD display: To turn the display on, press the display button (13) once. To turn the display off, press the display button again.

The clock (14) and minutes (15) remaining • icons indicate the number of minutes of running time that are available before the battery requires recharging (Lithium-Ion battery only)

The battery icon (16) indicates the amount of • charge remaining in the battery. Each charge bar displayed indicates approximately 10% charge remaining in the battery. A total of 10 charge bars indicates a fully charged battery.

LED work light

Fig. 1

Press the light button to switch the LED work light on. Press the light button again to switch the LED work light off.

Saw blade storage

Fig. J

Saw blades can be stored in the bottom plate: Pull the bottom blade cover from the bottom • plate.

Insert the saw blade in the bottom blade cover.

Slide the bottom blade cover back into the • bottom plate.

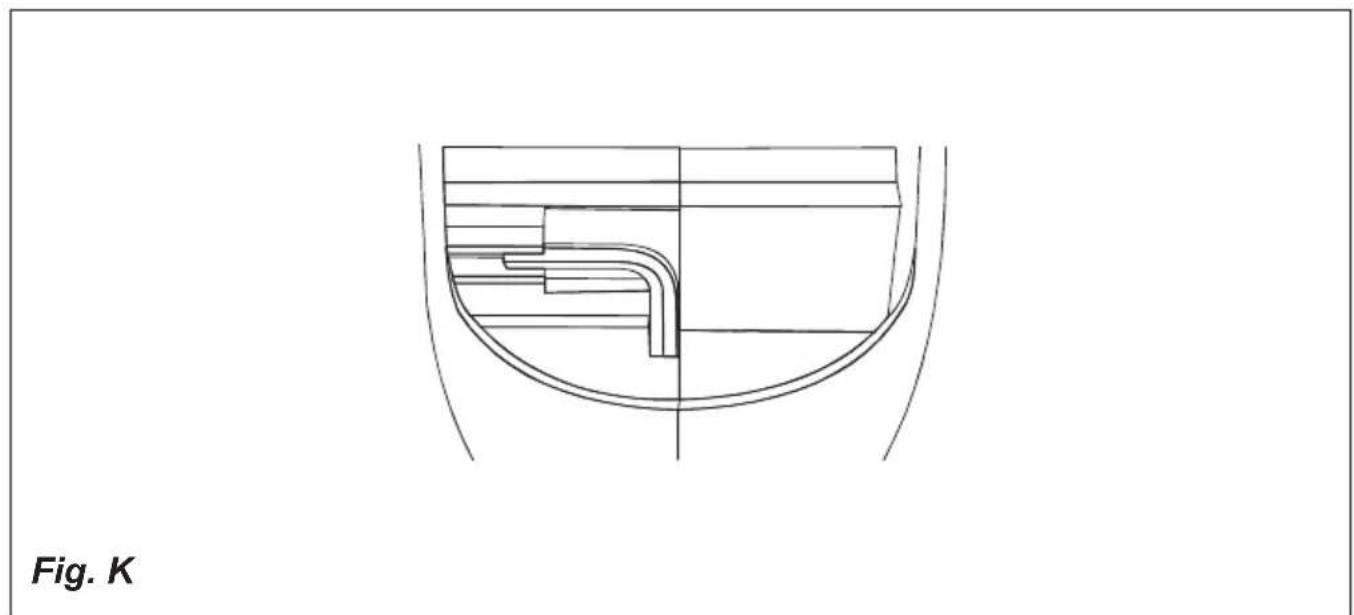

Hex key storage

Fig. K

The included hex key can be stored in the battery compartment.

5. SERVICE & MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

The machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material.

Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Warranty

The warranty conditions can be found on the separately enclosed warranty card.

DEKUPIERSÄGE

1. MACHINEINFORMATIE

Technische specificaties

CDA1053: FPB-1800N, 18V NiMH.

CDA1053: FPB-1800N, 18V NiMH

CDA1051: FPB-1800L, 18V ioni di litio CDA1053: FPB-1800N, 18V NiMH

plast, aluminium, stål

fina skärkurvor (trä)

CDA1053: FPB-1800N, 18V NiMH

Fint plast, aluminium, stål

Veldig fint kurver(treverk)

CDA1053: FPB-1800N, 18V NiMH.

5. SERVICE OG VEDLIKEHOLD

CDA1053: FPB-1800N, 18 V NiMH

DECLARATION OF CONFORMITY FPJS-1800LK - JIG SAW

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(D) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijk heid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(F) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(E) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(P) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(I) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(S) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser:
(FIN) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(N) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DK) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(H) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:

(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:
(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SLO) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka żemiau paminétus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(EST) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornoLšu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SB) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RUS) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UA) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам:
(GR) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα:

EN55014-1, EN55014-2, EN60745-1, EN60745-2-11 EN61000-3-2, EN61000-3-3

98/37/EC, 2004/108/EC, 2002/95/EC, 2002/96/EC, 2006/95/EC

Zwolle, 01-03-2008

J.A. Bakker-van Ingen CEO Ferm BV

J. Lodewijk Quality Manager Ferm Global

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

Spare parts list JSM1019 - FPJS-1800LK

Position Description No.
1(2x) + 2(10x) Torx screws set 490034
3+4+ 42 till 44 Housing 490035
5 Switch 490036
6+9 Variable speed 490037
7+8 Lock on lever 490038
10+11 LED light 490039
12 Metal guard 490040
13 till 25 +38 Gear box		490041
26+27 Rotor + stator		490042
28 till 33 Pendulum complete		490043
34+35+48 Guiding roller assy		490044
39 Carbon brush assy		490045
40 Battery release assy		490012
41 Plastic guard		490046
45 till 47 +54 Plunger assy		490047
49+50 Sole plate		490048
51 Allen key 3mm		407850
52+53 LCD assy		490000

Exploded view

GB Subject to change
