| Product Type | Cordless Vacuum Cleaner |
| Brand | Hitachi |
| Model | R 14DL |
| Voltage | 14.4 V |
| Motor Type | DC Motor |
| Dust Capacity | 670 mL |
| Continuous Operation Time | Approx. 23 min (with BCL1430 battery) |
| Weight (without battery) | 0.84 kg |
| Compatible Batteries | BCL1415, BCL1430 |
| Compatible Chargers | UC18YRL, UC18YRSL (7.2 V – 18 V) |

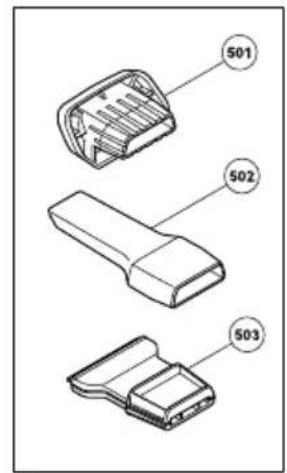

| Standard Accessories | Brush Nozzle, Crevice Nozzle, Squeegee Nozzle |
| Applications | Light-duty dry and wet vacuuming |
| Filter Type | Washable (cold water only, do not machine wash) |
| Safety Features | Overload protection, battery overheating protection |
| Maintenance | Regular filter cleaning, screw inspection |
| Service | Hitachi Authorized Service Center |
| Storage Temperature | Below 40°C |
| Material | Plastic housing |
| Power Source | Rechargeable lithium-ion battery |
Frequently Asked Questions - R 14DL HITACHI
User questions about R 14DL HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual R 14DL - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. R 14DL by HITACHI.
USER MANUAL R 14DL HITACHI
R 14DL · R 18DL R 14DSL · R 18DSL


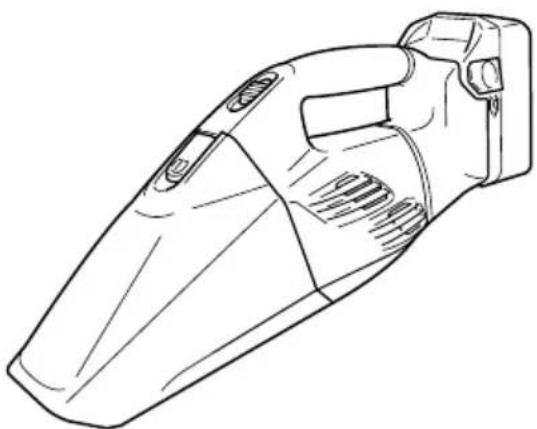

Line drawing of a handheld vacuum cleaner device (no text or symbols)R18DSL
2
3
4
5
6
7
8
9
10
11 12
13


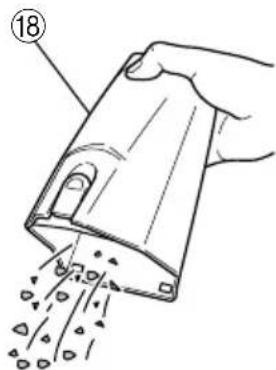

Hand holding a mechanical device with particles being poured into it (no text or symbols visible)14
WARNING (R14DSL/R18DSL)


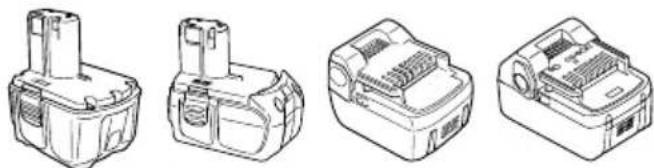

Four technical line drawings of battery modules, shown from different angles (no text or symbols)BCL1415 BCL1815 BSL1415 BSL1815X

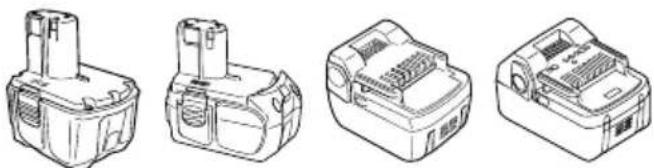

BCL1430 EBM1830 BSL1415X BSL1830
BSL1430

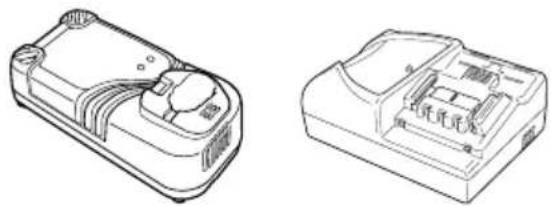

2. Laddare
○UC18YRL (Laddspänning: 7,2 V - 18 V)
○UC18YRSL (Laddspänning: 7,2 V - 18 V)
ADVARSEL (R14DSL/R18DSL)
○BCL1415, BCL1430 (til R14DL)
○BCL1815, EBM1830 (til R18DL)
○BSL1415, BSL1415X, BSL1430 (til R14DSL)
○BSL1815X, BSL1830 (til R18DSL)

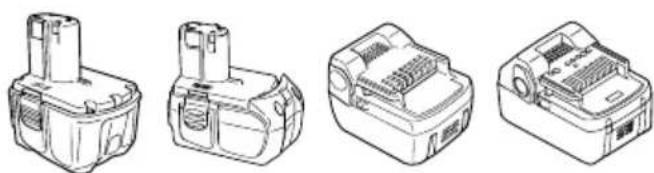

BCL1430 EBM1830 BSL1415X BSL1830
BSL1430
2. Oplader
ADVARSEL (R14DSL/R18DSL)
Hvis et elektrisk ledende objekt kommer i kontakt med tilkoblingspunktene til lithium ion batteriet, kan dette resultere i kortslutning og brannfare. Følg disse forholdsreglene når batteriet lagres.
○BCL1415, BCL1430 (For R14DL)
○BCL1815, EBM1830 (For R18DL)
○BSL1415, BSL1415X, BSL1430 (For R14DSL)
○BSL1815X, BSL1830 (For R18DSL)
BCL1430 EBM1830 BSL1415X BSL1830
BSL1430
2. Lader
○UC18YRL (Ladespenning: 7,2 V - 18 V)
○UC18YRSL (Ladespenning: 7,2 V - 18 V)
VEDLIKEHOLD OG INSPEKSJON
○BCL1415, BCL1430 (Mallille R14DL)
○BCL1815, EBM1830 (Mallille R18DL)
○BSL1415, BSL1415X, BSL1430 (Mallille R14DSL)
○BSL1815X, BSL1830 (Mallille R18DSL)
BCL1430 EBM1830 BSL1415X BSL1830
BSL1430

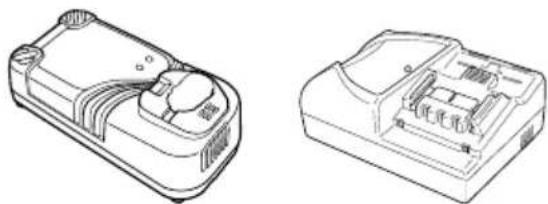

2. Laturi
○UC18YRL (Latausjännite: 7,2 V – 18 V)
○UC18YRSL (Latausjännite: 7,2 V – 18 V)
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools' operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of children and infirm persons.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.
In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.
- When the battery power remaining runs out, the motor stops.
In such case, charge it up immediately.
-
If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
-
If the battery is overheated under overload work, the battery power may stop.
In this case, stop using the battery and let the battery cool. After that, you can use it again. (BSL1830)
Furthermore, please heed the following warning and caution.
WARNING
In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.
- Make sure that swarf and dust do not collect on the battery.
○During work make sure that swarf and dust do not fall on the battery.
○Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
○Do not store an unused battery in a location exposed to swarf and dust.
Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
-
Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
-
Do not use an apparently damaged or deformed battery.
-
Do not use the battery in reverse polarity.
-
Do not connect directly to an electrical outlets or car cigarette lighter sockets.
-
Do not use the battery for a purpose other than those specified.
-
If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
-
Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
-
Keep away from fire immediately when leakage or foul odor are detected.
-
Do not use in a location where strong static electricity generates.
-
If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
CAUTION
-
If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.
-
If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately. There is a possibility that this can cause skin irritation.
-
If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.
WARNING (R14DSL/R18DSL)
If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.
○Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
○Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits. (See Fig. 4)
PRECAUTIONS FOR CORDLESS CLEANER
- Always charge the battery at a temperature of 0 – 40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40°C.
The most suitable temperature for charging is that of 20 - 25°C.
- When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.
Do not charge more than two batteries consecutively. - Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
- Never disassemble the rechargeable battery and charger.
- Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
- Do not dispose of the battery in fire. If the battery is burnt, it may explode
- Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
- Using an exhausted battery will damage the charger.
- Do not insert object into the air ventilation slots of the charger.
Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger. - Prevent the appliance from sucking in the following: Fire or injury may result.
○ Foaming liquids such as oil, hot water, chemicals or detergent.
○ Generated spark during metal grinding or cutting.
○ High temperature things, such as lighted cigarette.
○ Inflammable substances (gasoline, thinner, benzine, kerosene, paint, etc.), explosive substances (nitroglycerine, etc.), combustible substances (aluminum, zinc, magnesium, titanium, red phosphorus, yellow phosphorus, celluloid, etc.)
○ Sharp things, such as nail and razor.
Solidification materials, such as cement powder and toner, and conductive fine dusts, such as metal powder and carbon powder.
11. Set the filter correctly before use. Do not use the appliance without the filter or with it set in a wrong position, or do not use a torn filter. May cause failures, such as motor burnout.
12. This appliance is for indoor use. Do not use in the rain. Keep away from water or oil.
Malfunction may result as this appliance is not waterproof.
13. Do not use the appliance with its suction opening or exhaust opening obstructed. The temperature of the motor may rise abnormally, causing troubles such as deformation of parts or motor burnout.
14. Do not operate the appliance when the suction opening is blocked.
The motor may overheat, causing deformation of parts or malfunction of the motor.
15. When you drop or bump the appliance accidentally, check for breakage, crack, or deformation in the appliance. Breakage, crack or deformation may cause injuries.
16. When the appliance is out of condition or emits abnormal sound during use, immediately turn off the switch and request repair from your local retailer or authorized servicing agent. If you continue to use the appliance as it is, it may lead to injuries.
SPECIFICATIONS
| Model R14DL R18DL R14DSL R18DSL | ||||
| Battery voltage 14.4 V 18 V 14.4 V 18 V | ||||
| Motor DC motor | ||||
| Dust collecting capacity 670 mL | ||||
| Continuous operating time | Approx. 23 min.(using BCL1430) | Approx. 29 min. (using EBM1830) | Approx. 23 min. (using BSL1430) | Approx. 29 min. (using BSL1830) |
| Usable battery BCL1415 BCL1815(Optional accessories) BCL1430 | EBM1830 | BSL1415BSL1415XBSL1430 | BSL1815XBSL1830 | |
| Usable charger(Optional accessory) | UC18YRL | UC18YRSL | ||
| Weight (without battery) | 0.84 kg | 0.85 kg | ||
STANDARD ACCESSORIES
○ Brush Nozzle .... 1
○ Crevice Nozzle .... 1
○ Squeegee Nozzle .... 1
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES (sold separately)
1. Battery
○ BCL1415, BCL1430 (For R14DL)
○ BCL1815, EBM1830 (For R18DL)
○ BSL1415, BSL1415X, BSL1430 (For R14DSL)
○ BSL1815X, BSL1830 (For R18DSL)
BCL1430 EBM1830 BSL1415X BSL1830
BSL1430
2. Charger
○UC18YRL (Charging voltage: 7.2 V - 18 V)
○UC18YRSL (Charging voltage: 7.2 V - 18 V)
Optional accessories are subject to change without notice.
APPLICATIONS
○Light-duty vacuuming of dry surfaces
○Light-duty vacuuming of damp or wet surfaces
BATTERY REMOVAL/INSTALLATION
1. Battery removal

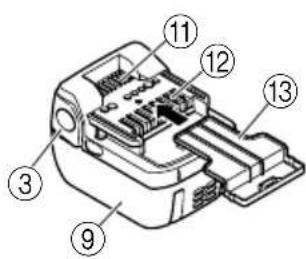

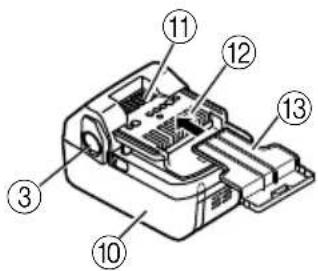

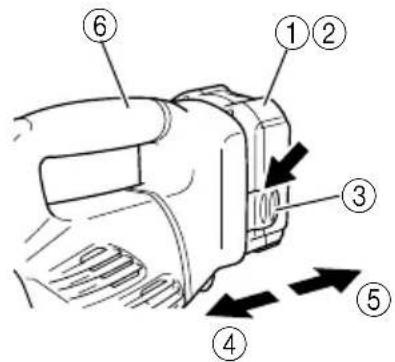

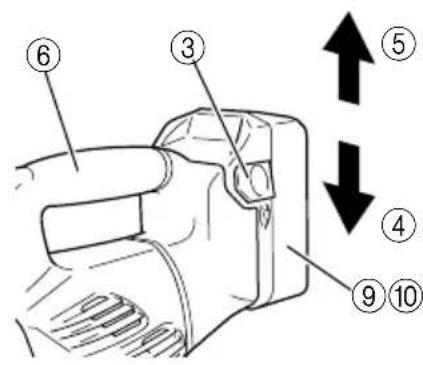

Hold the handle tightly and push the battery latch (2 pcs.) to remove the battery (see Figs. 1, 2, 4 and 5).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see Figs. 1, 2, 4 and 5).
CHARGING

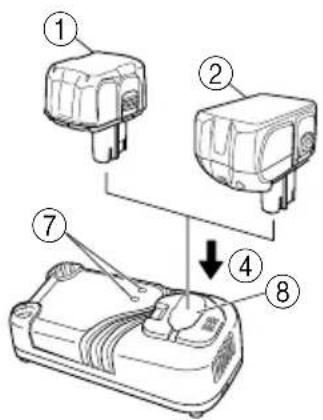

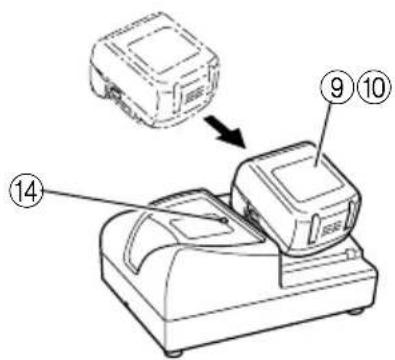

For rechargeable batteries, please charge in according to the handling instructions of the charger which you are using. (Figs. 3 and 6)
PRIOR TO OPERATION
1. Setting up and checking the work environment
Check if the work environment is suitable by following the precautions.
2. Mounting and dismounting the water guard and filter
Before using the appliance, check that the filter is securely mounted. (Figs. 7 and 8)
(1) Mounting

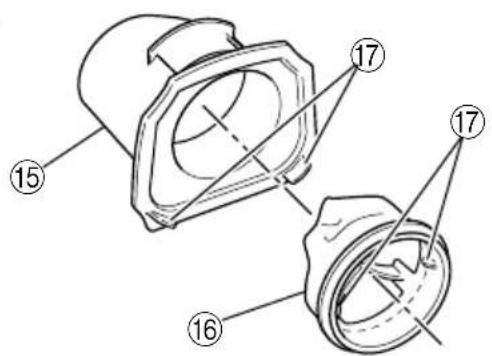

①Match the outside diameter of the filter to the inside diameter of the water guard and insert as far as the filter ring will go. (Fig. 7)

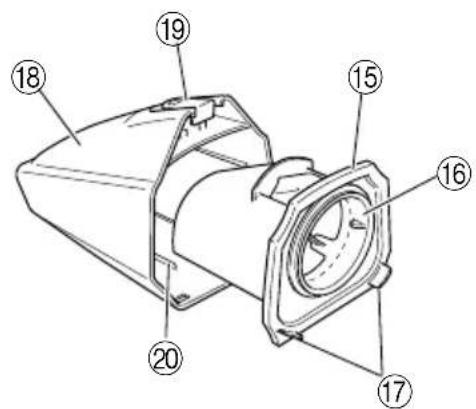

②Match the shape of the water guard (with the filter attached) to the shape of the hole in the dust case and insert as far as it will go (6 points). (Fig. 8)
(2) Dismounting
To dismount the water guard and the filter, follow the above procedures in reverse.
3. Attaching and removing the suction opening

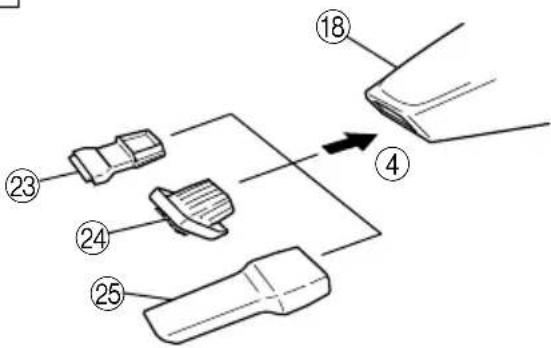

Insert the suction opening into the suction port of the appliance as required. (Fig. 10)
HOW TO USE THE CORDLESS CLEANER
CAUTION
To prevent accidents when installing or removing the rechargeable battery, make sure that the appliance is switched off.
○Make sure that the rechargeable battery is properly installed.
If not properly installed, the battery may fall out, causing injury.
1. Switch operation

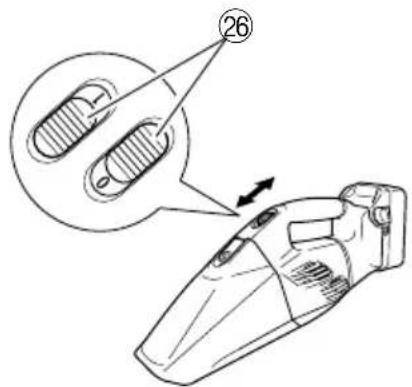

Flip the switch towards you to start operation and back to stop operation. (Fig. 11)
2. Vacuuming water
Attach the squeegee nozzle as required. (Figs. 10 and 12)
CAUTION

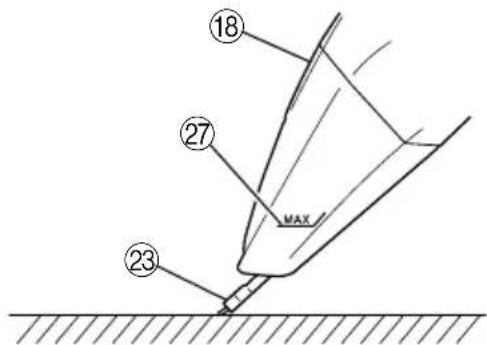

○The maximum line on the dust case indicates the maximum amount of water that can be vacuumed. Do not vacuum beyond this line. (Fig. 12)
○Empty the water immediately after vacuuming.
○Do not carry the appliance with water in the dust case.
3. Emptying the dust case
CAUTION
To prevent accidents, make sure the power is switched off and remove the rechargeable battery from the appliance.
○Do not subject the dust case to strong impacts as this may cause deformation or damage.
○Empty the dust case frequently and keep the appliance, filter, etc. clean. Failure to do so may reduce vacuuming efficiency or cause malfunction of the motor or odor.
(1) Press the release button and remove the dust case. (Fig. 9)
(2) Hold the knob on the water guard (with the filter attached) to remove it from the dust case. (Fig. 8)
(3) Empty the dust case. (Fig. 13)
(4) Take hold of the knob on the filter and remove the filter from the water guard. (Fig. 7)
(5) Lightly tap the filter to remove all the dust. (Fig. 14)
(6) Fit the filter to the water guard. Match the outside diameter of the filter to the inside diameter of the water guard and insert as far as the filter ring will go. (Fig. 7)
(7) Match the shape of the water guard (with the filter attached) to the shape of the hole in the dust case and insert as far as it will go (6 points). (Fig. 8)

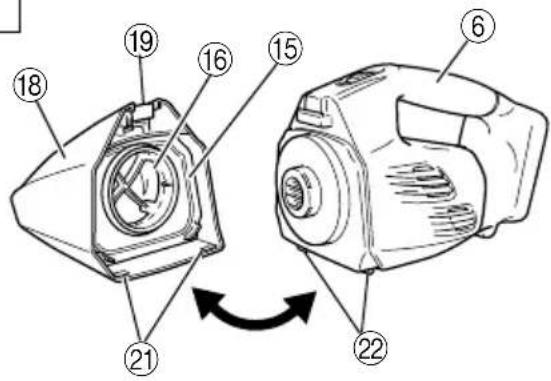

(8) Insert the projecting part of the appliance into the hole in the dust case and fit the dust case to the appliance. (Fig. 9)
MAINTENANCE AND INSPECTION
1. Cleaning the filter
CAUTION
○Do not wash the filter in a washing machine.
○Do not wash the filter in hot water or dry it by fire.
If the vacuuming efficiency is poor even when the dust case has been emptied, remove the filter and wash it in cold or warm water. (The water should not be hot to the touch.)
After washing, dry out of direct sunlight.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very "heart" of the power tool.
Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.
4. Cleaning on the outside
When the coldless cleaner is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.
5. Storage
Store the coldless cleaner in a place in which the temperature is less than 40^ C and out of reach of children.
6. Service parts list
CAUTION
Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.
In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts may be changed without prior notice.
NOTE
Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

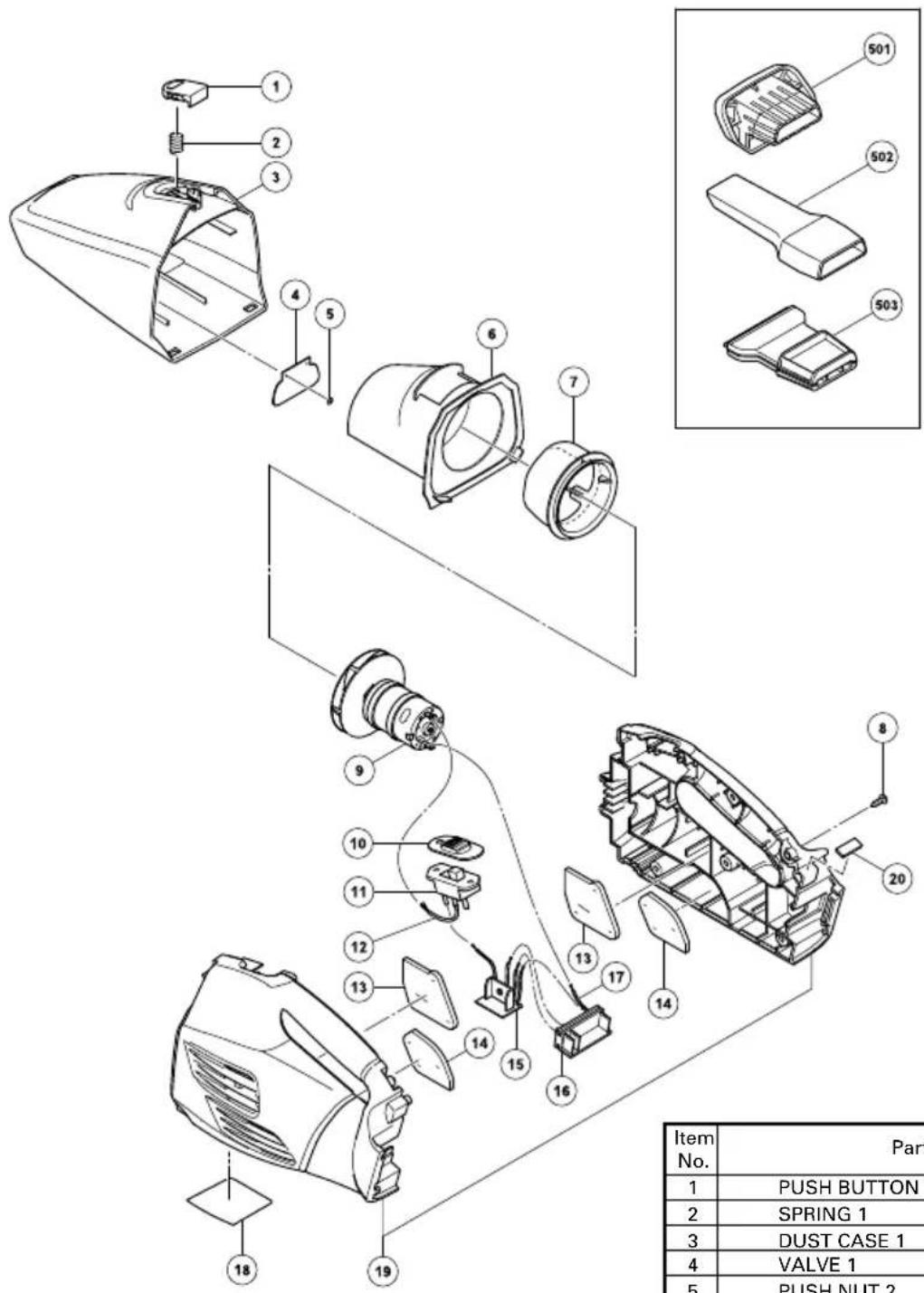

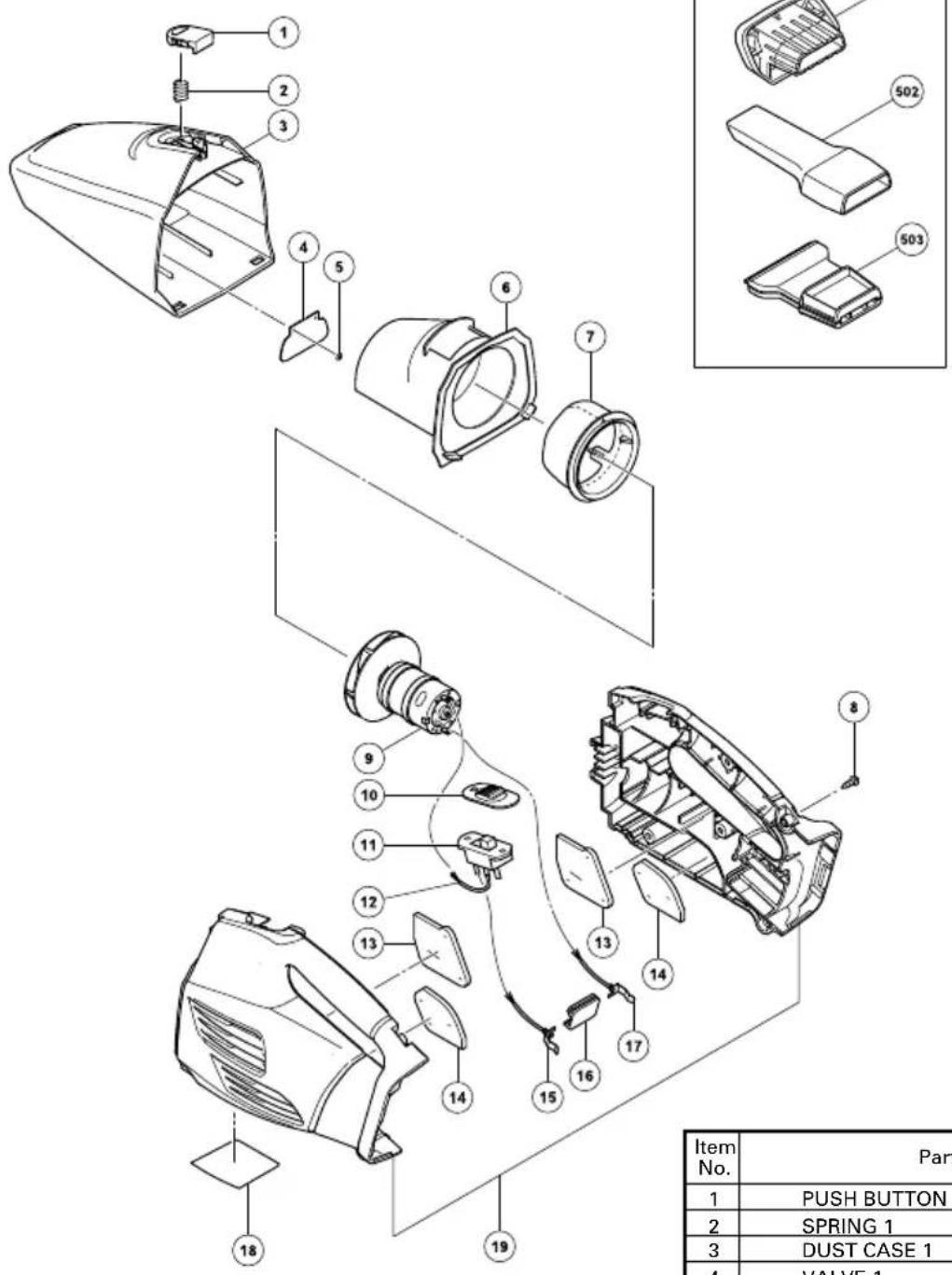

R14DL/R18DL
| Item No. | Part Name Q'TY | |
| 1 | PUSH BUTTON 1 | |
| 2 | SPRING 1 | |
| 3 | DUST CASE 1 | |
| 4 | VALVE 1 | |
| 5 | PUSH NUT 2 | |
| 6 | WATER GUARD 1 | |
| 7 | FILTER 1 | |
| 8 | TAPPING SCREW (W/FLANGE) D4×20 6 | |
| 9 | MOTOR 1 | |
| 10 | SWITCH COVER 1 | |
| 11 | SLIDE SWITCH 1 | |
| 12 | INTERNAL WIRE 1 | |
| 13 | NOISE PACKING (A) 2 | |
| 14 | NOISE PACKING (B) 2 | |
| 15 | TERMINAL | 1 |
| 16 | TERMINAL SUPPORT (A) | 1 |
| 17 | TERMINAL | 1 |
| 18 | NAME PLATE | 1 |
| 19 | HOUSING (A) (B) SET | 1 |
| 501 | BRUSH NOZZLE | 1 |
| 502 | CREVICE NOZZLE | 1 |
| 503 | SQUEEGEE NOZZLE | 1 |
| Item No. | Part Name Q'TY | |
| 1 | PUSH BUTTON 1 | |
| 2 | SPRING 1 | |
| 3 | DUST CASE 1 | |
| 4 | VALVE 1 | |
| 5 | PUSH NUT 2 | |
| 6 | WATER GUARD 1 | |
| 7 | FILTER 1 | |
| 8 | TAPPING SCREW (W/FLANGE) D4×20 6 | |
| 9 | MOTOR 1 | |
| 10 | SWITCH COVER 1 | |
| 11 | SLIDE SWITCH 1 | |
| 12 | INTERNAL WIRE 1 | |
| 13 | NOISE PACKING (A) 2 | |
| 14 | NOISE PACKING (B) 2 | |
| 15 | PCB ASS'Y 1 | |
| 16 | BATTERY TERMINAL | 1 |
| 17 | INTERNAL WIRE 1 | |
| 18 | NAME PLATE | 1 |
| 19 | HOUSING (C) (D) SET | 1 |
| 20 | PACKING | 1 |
| 501 | BRUSH NOZZLE | 1 |
| 502 | CREVICE NOZZLE | 1 |
Kjeller Vest 7
Postboks 124, 2007 Kjeller, Norway
Tel: (+47) 6692 6600
Fax: (+47) 6692 6650
URL: http://www.markt.no
Hitachi Power Tools Sweden AB
Rotebergsvagen 2B
SE-192 78 Sollentuna, Sweden
Tel: (+46) 8 598 999 00
Fax: (+46) 8 598 999 40
URL: http://www.markt.se
Hitachi Power Tools Denmark AS
Lillebaeltsvej 90
DK-6715 Esbjerg N, Denmark
Tel: (+45) 75 14 32 00
Fax: (+45) 75 14 36 66
URL: http://www.markt.dk
Hitachi Power Tools Finland OY
Tupalankatu 9
FIN-15680 Lahti, Finland
Tel: (+358) 20 7431 530
Fax: (+358) 20 7431 531
URL: http://www.markt.fi
| Svenska | Suomi | ||
| EF-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi tillkännagiver med eget ansvar att denna produkt överensstämmer med standard eller standardiserat dokument EN60335, EN55014 och EN61000 i enlighet med råddirektiven 2004/108/EF, 2006/95/EF och 98/37/EF. Denna produkt uppfyller även de nödvändiga kraven för 2006/42/EF som kommer att gälla från 29 december 2009.Denna deklaration gäller för CE-märkningen på produkten. | EY-ILMOITUS YHDENMUKAISUUDESTAYksinomaisella vastuudella vakuutamme, että tämä tuote vastaa normeja tai normitettuja dokumentteja EN60335, EN55014 ja EN61000 yhteisön ohjeiden 2004/108/EY, 2006/95/EY ja 98/37/EY mukaisesti. Tämä tuotetäyttää myös 29. joulukuuta 2009 lähtien sovellettavan direktiivin 2006/42/EY olennaiset vaatimukset.Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään. | ||
| Dansk | English | ||
| EF-OVERENSS TEMMELSESERKLÆRINGVi erlkærer os fuldstændige ansvarlige for, at dette produkt modsvarer gældende standard eller de standardiserede dokumenter EN60335, EN55014 og EN61000 i overensstemmelse med EF-direktiver 2004/108/EF, 2006/95/EF og 98/37/EF. Dette produkt opfylder også de obligatoriske krav i 2006/42/EF, der anvendes fra d. 29. december 2009.Denne erklæring qælder produkter, der er mærket med CE. | EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standardized documents EN60335, EN55014 and EN61000 in accordance with Council Directives 2004/108/EC, 2006/95/EC and 98/37/EC. This product also complies with the essential requirements of 2006/42/EC to be applied from 29 December 2009.This declaration is applicable to the product affixed CE marking. | ||
| Norsk | |||
| EF'S ERKLÆRING OM OVERENSSTEMMELSEVi erklærer herved at vi påtar oss eneansvaret for at dette produktet er i overensstermmelse med normer eller standardiserte dokumenter EN60335, EN55014 og EN61000 i samsvar med Rådsdirektiver 2004/108/EF, 2006/95/EF og 98/37/EF. Dette produktet følger de vesentlige kravene i 2006/42/EF som gjelder fra 29. desember 2009.Denne erklæringen gjelder produktets påklistrede CE-merking. | |||
| Representative office in Europe Hitachi Power Tools Europe GmbH Siemensring 34, 47877 Willich 1, F. R. Germany Head office in Japan Hitachi Koki Co., Ltd. Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan | |||
Hitachi Koki Co., Ltd.
- WARNING (R14DSL/R18DSL)
- Laddare
- ADVARSEL (R14DSL/R18DSL)
- Oplader
- Lader
- VEDLIKEHOLD OG INSPEKSJON
- Laturi
- Save all warnings and instructions for future reference.
- 1) Work area safety
- 2) Electrical safety
- 3) Personal safety
- 4) Power tool use and care
- PRECAUTION
- CAUTION ON LITHIUM-ION BATTERY
- WARNING
- CAUTION
- PRECAUTIONS FOR CORDLESS CLEANER
- STANDARD ACCESSORIES
- OPTIONAL ACCESSORIES (sold separately)
- Battery
- Charger
- APPLICATIONS
- BATTERY REMOVAL/INSTALLATION
- Battery removal
- Battery installation
- CHARGING
- PRIOR TO OPERATION
- Setting up and checking the work environment
- Mounting and dismounting the water guard and filter
- Mounting
- Dismounting
- Attaching and removing the suction opening
- HOW TO USE THE CORDLESS CLEANER
- Switch operation
- Vacuuming water
- Emptying the dust case
- MAINTENANCE AND INSPECTION
- Cleaning the filter
- Inspecting the mounting screws
- Maintenance of the motor
- Cleaning on the outside
- Storage
- Service parts list
- MODIFICATIONS
- NOTE
- Hitachi Power Tools Norway AS
- Hitachi Power Tools Sweden AB
- Hitachi Power Tools Denmark AS
- Hitachi Power Tools Finland OY
- Hitachi Koki Co., Ltd.
Brand : HITACHI
Model : R 14DL
Category : Vacuum Cleaner
