USER MANUAL DV 12DV HITACHI

Line drawing of a handheld electric drill bit (no text or symbols)

Read through carefully and understand these instructions before use.

Bruksanvisning

Brugsanvisning

Bruksanvisning

Käyttöohjeet

Handling Instructions

1

2

3

4

5

6

7

8

	Svenska Dansk Norsk
1	Uppladdningsbart batteri Genopladeligt batteri Oppladbart batteri
2	Lås Smæklås Sperrehake
3	Dra ut Træk ud Dra ut
4	Passa in Ilæg Sett i
5	Handtag Håndtag Håndtak
6	Tryck Tryk Skyv
7	Passa in Ilæg Sett i
8	Signallampa Kontrollampe Pilot-lys
9	Hål för iläggning av det Hul til tilslutning af det uppladdningsbara batteriet	Hull for tilkoppling av det opladelige batteri	oppladbare bateriet
10	Borrsochel	Kappe	Justeringsring
11	Triangelmärke	Trekant-mærke	Trekantmerke
12	Borrmärke	Bor-mærke	Drillmerke
13	Hammarmärke	Hammer-mærke	Hammermerke
14	Svag åtdragningskraft	Svag	Svak
15	Stark åtdragningskraft	Ståerk	Sterk
16	Vit Linje	Hvid linie	Hvit linje
17	Hastighetsomkopplare	Omskifterknap	Omskifterbryter
18	Låg hastighet	Lav hastighed	Lav hastighet
19	Hög hastighet	Høj hastighed	Høy hastighet
20	Ring	Ring	Ring
21	Chuckhylsa	Muffe	Muffe
22	Dra åt Fastgøre Stramme
23	Lossa	Løsne Løsne
24	Väljarspak fogr rotationsriktning	Omskifter	Velgerspak
25	Startomkopplare	Aftråkkerkontakt	Starbryter
26	Lägena (R) (höger) och (L) (väster)	(R) og (L) afmærkning	(R) og (L) merker
27	Hake	Krog	Krok
28	Skåra	Rille Spor
29	Utskjutande del	Fremspring	Utspring

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

1. Borebits til mure

Diameter, 6.5 mm 8 mm 9.5 mm 10 mm

Technical line drawing of a mechanical component with no visible text or symbols

VEDLIKEHOLD OG INSPEKSJON

Technical line drawing of a mechanical connector or fitting (no text or symbols)

WARNING! When using battery operated tools, basic safety precautions should always be followed to reduce the risk of fire, leaking batteries and personal injury, including the following.

Read all these instructions before operating this product and save these instructions.

For safe operations:

1. Keep work area clean. Cluttered areas and benches invite injuries.
2. Consider work area environment. Do not expose tools to rain. Do not use tools in damp or wet locations. Keep work area well lit. Do not use tools where there is risk to cause fire or explosion.
3. Keep children away. Do not let visitors touch the tool. All visitors should be kept away from work area.
4. Store batteries or idle tools. When not in use, tools and batteries should be stored separately in a dry, high or locked up place, out of reach of children. Ensure that battery terminals cannot be shorted by other metal parts such as screws nails etc.
5. Do not force the tool. It will do the job better and safer at the rate for which it was intended.
6. Use the right tool. Do not force small tools or attachments to do the job of a heavy duty tool. Do not use tools for purposes not intended.
7. Dress properly. Do not wear loose clothing or jewellery, they can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protecting hair covering to contain long hair.
8. Use safety glasses. Also use face or dust mask if the cutting operation is dusty.
9. Connect dust extraction equipment. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
10. Do not abuse the cord (if fitted). Never carry the tool by the cord or yank it to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges.
11. Secure work. Use clamps or a vice to hold the work. It is safer than using your hand and it frees both hands to operate the tool.
12. Do not overreach. Keep proper footing and balance at all times.
13. Maintain tools with care. Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubrication and changing accessories. Inspect tool cords periodically and if damaged, have it repaired by authorized service facility. Keep handles dry, clean, and free from oil and grease.
14. Disconnect tools. Where the designs permits, disconnect the tool from its battery pack, when not in use, before servicing, and when changing accessories such as blades, bits and cutters.
15. Remove adjusting keys and wrenches. Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.
16. Avoid unintentional starting. Do not carry the tool with a finger on the switch.
17. Stay alert. Watch what you are doing. Use common sense. Do not operate the tool when you are tired.
18. Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, free running

of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated in this handling instructions. Have defective switches replaced by an authorized service facility. Do not use the tool if the switch does not turn it on and off.

1. Warning

○The use of any accessory or attachment, other than those recommended in this handling instructions, may present a risk of personal injury.
- Ensure that the battery pack is correct for the tool. - Ensure that the outside surface of battery pack or tool is clean and dry before plugging into charger.
○Ensure that batteries are charged using the correct charger recommended by the manufacturer. In-correct use may result in a risk of electric shock, overheating or leakage of corrosive liquid from the battery.
20. Have your tool repaired by a qualified person. This tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.
21. Disposal of battery Ensure battery is disposed of safely as instructed by the manufacturer.
22. If under abusive conditions, liquid is ejected from the battery, avoid contact If this accidentally occurs, frush with water. If liquid contacts eyes additionally, seek medical help.

PRECAUTIONS FOR CORDLESS IMPACT DRILL

1. Always charge the battery at a temperature of 10 - 40°C. A temperature of less than 10°C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40°C. The most suitable temperature for charging is that of 20 - 25°C.
2. Do not use the charger continuously. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.
3. Do not charge the battery for more than 2 hour. The battery will be fully charged in about 1 hour and charging should be stopped when 1 hour has elapsed from commencement. Disconnect the charger power cord from the AC outlet.
4. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
5. Never disassemble the rechargeable battery and charger.
6. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
7. Do not dispose of the battery in fire. If the battery is burnt, it may explode.
8. When drilling into wall, floor or ceiling, check for buried electric power cable, etc.
9. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

10. Using an exhausted battery will damage the charger.

11. Do not insert foreign object into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

SPECIFICATIONS

POWER TOOL

Model DV12DV
No-load speed (Low/High) 0 - 350/0 - 1250 min			-1
No-load impact rate (Low/High) 0 - 5250/0 - 18750 min			-1
Capacity	Drilling	Brick 10 mm
		Wood 18 mm
		Metal Steel: 10	mm, Aluminum: 10 mm
	Driving	Machine screw	6 mm
		Wood screw	5.1 mm (diameter) · 32 mm (length) (Requires a pilot hole)
Rechargeable battery (FEB12S)			Ni-Cd battery, 12 V
Weight 1.9 kg

CHARGER

Model UC12SD
Charging time Approx. 1 hour (at 20°C)
Charging voltage 12 V
Weight 1.4 kg

STANDARD ACCESSORIES

DV12DV

1 Plus driver bit (No. 2 · 55L) .....12 Charger (UC12SD) .....13 Plastic case .....14 Hook .....1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES .....(sold separately)

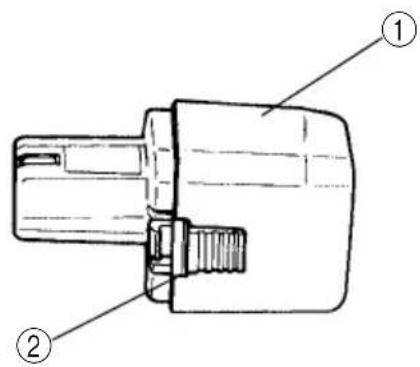

1. Battery (FEB12S)

Technical line drawing of a mechanical connector or fitting (no text or symbols)

1. Drill bit for brick

Diameter, 6.5 mm, 8 mm, 9.5 mm, 10 mm

Optional accessories are subject to change without notice.

1. Wear ear protections Exposure to noise can cause hearing loss.
2. When mounting a bit into the keyless chuck, tighten the sleeve securely. If the sleeve is not tight, the bit may slip or come off, causing injury.

APPLICATIONS

○ Drilling of brick and concrete block, etc.
○ Driving and removing of machine screws, wood screws, tapping screws, etc.
○ Drilling of various metals.
○ Drilling of various woods.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch to remove the battery (see Figs. 1 and 2).

CAUTION

Never short-circuit the battery.

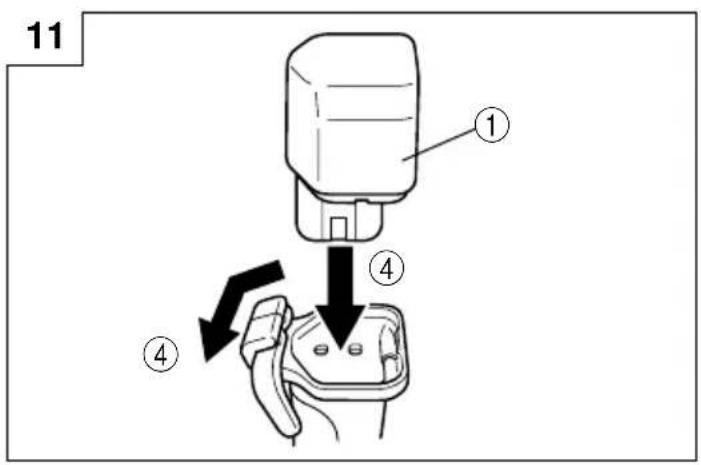

1. Battery installation

Insert the battery while observing its polarities (see Fig. 2).

CHARGING

Before using the impact drill, charge the battery as follows.

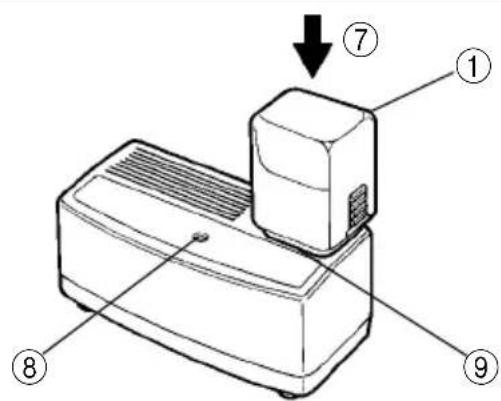

1. Insert the battery in the charger.
   Position the battery so that the nameplate faces toward the nameplate of the charger and press in the battery until it comes into contact with the bottom surface. (See Figs. 1 and 3.)
2. Connect the charger power cord to the receptacle. Connecting the power cord will turn on the charger (the pilot lamp lights up).

CAUTION

If the pilot lamp does not light up, pull out the power cord from the receptacle and check the battery mounting condition.

About 1 hour is required to fully charge the battery at a temperature of about 20^ C. The pilot lamp goes off to indicate that the battery is fully charged.

The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than two hours have elapsed after starting of the charging, stop the charging and contact your HITACHI AUTHORIZED SERVICE CENTER.

CAUTION

If the battery is heated due to direct sunlight, etc., just after operation, the charger pilot lamp may not light up. At that time cool the battery first, then start charging.

1. Disconnect the charger power cord from the receptacle.
2. Hold the charger tight and pull out the battery.

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by following the precautions.

HOW TO USE

1. Confirm the cap position (see Fig. 4)

The three modes of screwdriver, drill and impact drill can be switched by the position of the cap in this unit.

(1) When using this unit as a screwdriver, line up the one of the numbers “1, 3, 5 ... 22” on the cap, or the white dots, with the triangle mark on the outer body.
(2) When using this unit as a drill, align the cap drill mark “AID” with the triangle mark on the outer body.
(3) When using this unit as an impact drill, align the cap hammer mark "T" with the triangle mark on the outer body.

CAUTIONS

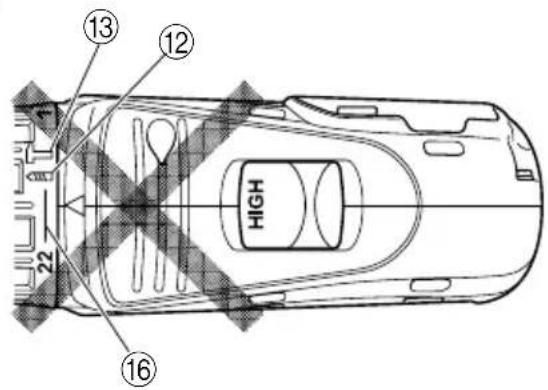

○The cap cannot be set between the numerals “1, 3, 5 ... 22” or the white dots.

○Do not use with the cap numeral between “22” and the white line at the middle of the drill mark. Doing so may cause damage. (See Fig. 5)

2. Tightening torque adjustment

(1) Tightening torque

Tightening torque should correspond in its intensity to the screw diameter. When too strong torque is used, the screw head may be broken or be injured. Be sure to adjust the cap position according to the screw diameter.

(2) Tightening torque indication

The tightening torque differs depending on the type of screw and the material being tightened.

The unit indicates the tightening torque with the numbers “1, 3, 5 ... 22” on the cap, and a white dots. The tightening torque at position “1” is the weakest and the torque is strongest at the highest number. (See Fig. 4)

(3) Adjusting the tightening torque

Rotate the cap and line up the numbers “1, 3, 5, ... 22” on the cap, or the white dots, with the triangle mark on the outer body. Adjust the cap in the weak or the strong torque direction according to the torque you need.

CAUTIONS

○The motor rotation may be locked to cease while the unit is used as drill. While operating the impact drill, take care not to lock the motor.
○Too long hammering may cause the screw broken due to excessive tightening.

3. Rotation to Impact changeover (See Fig. 4.).

The “Rotation (Rotation only)” and “Impact (Impact + Rotation)” can be switched by aligning the drill mark “◀” or the hammer mark “T” with the triangle mark on the outer body.

To make holes in the metal, wood or plastic, switch to "Rotation (Rotation only)".
○To make holes in bricks or concrete blocks, switch to "Impact (Impact + Rotation)".

CAUTION

If an operation which is normally performed at the "Rotation" setting is performed at "Impact" setting, the effect of making holes does not only increase but it may also damage the bit or other parts.

4. Change rotation speed

Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (see Figs. 6 and 7).

When the shift knob is set to "LOW", the drill rotates at a low speed. When set to "HIGH", the drill rotates at a high speed.

CAUTION

○When changing the rotational speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.

When setting the shift knob to “HIGH” (high speed) and the position of the cap is “17” or “22”, it may happen that the clutch does not engage and that the motor is locked. In such a case, please set the shift knob to “LOW” (low speed).

○If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

5. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown in Table.1.

Table 1

Work Suggestions
Drilling	Brick	Use for drilling purpose.
	Wood
	Steel
	Aluminum
Driving	Machine screw Use the bit and socket matching the screw diameter.
	Wood screw Use after drilling a pilot hole.

6. How to select tightening power and rotational speed

Table 2

Use Cap Position			Rotating speed selection (Position of the shift knob)
			LOW (Low speed)	HIGH (High speed)
Driving	Machine screw	1 — 22	For 4 mm or smaller diameter screw.	For 6 mm or smaller diameter screw.
	Wood screw	1 —	For 5.1 mm or smaller nominal diameter screw.	For 3.8 mm or smaller nominal diameter screw.
Drilling Wood	Brick	T	—	For drilling with a carbide tipped drill bit.
	Wood	I	For 18 mm or smaller diameters.	For 18 mm or smaller diameters.
	Metal	I	For drilling with a metal working drill bit.	—

CAUTION

☐ The selection examples shown in Table 2 should be considered as general standard. As different types of tightening screws and different materials to be tightened are used in actual works proper adjustments are naturally necessary.

When using the impact drill with a machine screw at HIGH (high speed), a screw may damage or a bit may lose due to the tightening torque is too strong. Use the impact drill at LOW (low speed) when using a machine screw.

7. Mounting and dismounting of the bit.

(1) Mounting the bit After inserting a driver bit, etc. into the keyless drill chuck, firmly grasp the ring and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front). (See Fig. 8)

○If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened additionally.

(2) Dismounting the bit Firmly grasp the ring and loosen the sleeve by turning it toward the left (in the counter-clockwise direction as viewed from the front). (See Fig. 8)

CAUTION: When it is no longer possible to loosen the sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 11 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

NOTE

○There is a plus driver bit on side of the main unit. The bit can be removed by pulling it forward. After using the bit, make sure to firmly attach it to the main body again.

8. Confirm that the battery is mounted correctly.

9. Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the selector button. The L-side of the selector button is pushed to turn the bit counterclockwise. (See Fig. 9). (The (L) and (R) marks are provided on the body.)

CAUTION:

Always use this unit with clockwise rotation, when using it as an impact drill.

10. Switch operation

When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.

○The rotational speed of the drill can be controlled by varying the amount that the trigger is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

NOTE

○A buzzing noise is produced when the motor is about to rotate; This is only a noise, not a machine failure.

11. For drilling into brick

Excessive pressing force never increases drilling speed. It will not only damage the drill tip or reduce working efficiency, but could also shorten the service life of drill bit. Operate the impact drill within 10-15 kg pressing force while drilling into brick.

12. Using the hook

The provided hook is so designed that it can be installed and removed on either right or left by one touch.

Use it correctly as occasion demands.

(1) Installing the hook

To begin with, remove the battery from the tool. Subsequently, insert the hook so that the grooves at 2 locations of the hook and the 2 protrusions of the hook installing part of the tool come together, check and confirm that the hook is securely fixed, and then install the battery. (See Figs. 10 and 11)

(2) Removing the hook

Remove the hook following the order of installation in reverse.

CAUTION

○Fix the hook securely before use. Any use with imperfect installation of the hook as is can result in injuries.

When you use the hook, be absolutely sure that it is in a state where the battery is installed. If you use it in a state where the battery is removed, the hook can come off or drop and result in injuries.

When you carry it hanging on a waist belt, do not install it on the drill chuck, but you can do so on the driver bit. If drills and the like with a sharp point are installed, injuries can result.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of as dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Cleaning on the outside

When the impact drill is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

4. Storage

Store the impact drill in a place in which the temperature is less than 40^ C and out of reach of children.

5. Service parts list

A : Item No.

B : Code No.

C : No. Used

D:Remarks

CAUTION:

Repair, modification and inspection of Hitachi Power Tools must be carried out by an Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Information concerning airborne noise and vibration

The measured values were determined according to EN50260 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 102 dB (A) Measured A-weighted sound pressure level: 91 dB (A) Uncertainty KpA: 3 dB (A).

Wear ear protection.

The typical weighted root mean square acceleration value: 8 m/s ^2 .

Simple line drawing of a quill pen in an inkwell (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Svenska

Only for EU countries

Do not dispose of electric tools together with household waste material!

In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Svenska		Suomi
EF-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi tillkännagiver med eget ansvar att denna produkt överensstämmer med standard eller standardiserat dokument EN50260, EN60745, EN55014 och EN61000 i enlighet med råddirektiven 89/336/E∅S och 98/37/EF.Denna deklaration gäller för CE-märkningen på produkten.		EY-ILMOITUS YHDENMUKAISUUDESTAYksinomaisella vastuudella vakuutamme, että tämä tuote vastaa normeja tai normitettuja dokumentteja EN50260, EN60745, EN55014 ja EN61000 yhteisön ohjeiden 89/336/ETY ja 98/37/EY mukaisesti.Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään.
Dansk		English
EF-DEKLARATION OM ENSARTETHEDVi eklærer os fuldstændige ansvarlige for, at dette produkt modsvarer gældende standard eller de standardiserede dokumenter EN50260, EN60745, EN55014 og EN61000 i overensstemmelse med EF-direktiver 89/336/E∅F og 98 /37/EF.Denne erklæring gælder produkter, der er mærket med CE.		EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standardized documents EN50260, EN60745, EN55014 and EN61000 in accordance with Council Directives 89/336/EEC and 98/37/EC.This declaration is applicable to the product affixed CE marking.
Norsk
EF's ERKLÆRING OM OVERENSSTEMMELSEVierklærerherved at vi påtar oss e neansvaret for at dette produktet er i overensstermmelse med normer eller standardiserte dokumenter EN50260, EN60745, EN55014 og EN61000 i samsvar med Rådsdirektiver 89/336/E∅S og 98/37/EF.Denne erklæringen gjelder produktets påklistrede CE-merking.
Representative office in Europe Hitachi Power Tools Europe GmbH Siemensring 34, 47877 Willich1, F. R. Germany Head office in Japan Hitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan		CE30. 12. 2005J. KatoK. KatoBoard Director

Hitachi Koki Co., Ltd.
