DS 9DVB2 - Drill HITACHI - Free user manual and instructions

Product Type	Cordless Driver Drill
Model	DS 9DVB2
Brand	Hitachi
Voltage	9.6 V
No-Load Speed (Low/High)	0 - 300 / 0 - 1100 min-1
Drilling Capacity (Wood)	21 mm (thickness 18 mm)
Drilling Capacity (Metal Steel)	10 mm (thickness 1.6 mm)
Drilling Capacity (Metal Aluminum)	10 mm (thickness 1.6 mm)
Driving Capacity (Machine Screw)	6 mm
Driving Capacity (Wood Screw)	5.5 mm diameter × 63 mm length (requires pilot hole)
Battery Type	Rechargeable Ni-Cd or Ni-MH (EB914, EB9B, EB9H, EB926H, EB930H)
Battery Voltage	9.6 V
Charger	UC14YFA (included)
Chuck Type	Keyless chuck
Torque Adjustment	22-position clutch (numbers 1-22 plus drill mode)
Weight	1.7 kg
Dimensions (approx.)	Compact design for one-hand operation
Speed Control	Variable speed trigger with two-speed gearbox (Low/High)
Rotation Direction	Forward/reverse selector button
Accessories Included	Plus driver bit (No.2 × 55L), charger (UC14YFA), 2 batteries, plastic case
Safety Features	Automatic spindle lock, overload protection, low battery discharge prevention
Maintenance	Clean with soft dry cloth; store below 40°C

Frequently Asked Questions - DS 9DVB2 HITACHI

What battery types are compatible with the Hitachi DS 9DVB2?

The DS 9DVB2 uses 9.6 V rechargeable batteries: EB914 (Ni-Cd 1.4 Ah), EB9B (Ni-Cd 2.0 Ah), EB9H (Ni-MH 2.2 Ah), EB926H (Ni-MH 2.6 Ah), and EB930H (Ni-MH 3.0 Ah).

How do I adjust the torque on the drill?

Rotate the cap to align one of the numbers (1 to 22) or the white dots with the triangle mark on the body. Position 1 is lowest torque, increasing to 22. For drilling, align the drill mark ''###'' with the triangle.

What is the maximum drilling capacity in wood?

The DS 9DVB2 can drill up to 21 mm diameter in wood (thickness 18 mm) when using the appropriate drill bit.

How long does it take to fully charge the battery?

With the UC14YFA charger, a fully discharged battery takes approximately 40 to 70 minutes at 20°C, depending on battery capacity. The pilot lamp turns off when charging is complete.

Can I use the drill with a high-speed setting for all tasks?

No. Use LOW speed for high torque applications like driving screws or drilling large holes. Use HIGH speed for smaller holes or light drilling. Refer to the speed selection table in the manual.

How do I change the drill bit?

Loosen the keyless chuck sleeve by turning it counterclockwise (left). Insert the bit, then tighten the sleeve clockwise (right) firmly until the bit is secured.

What should I do if the battery gets hot?

Allow the battery to cool down before recharging. The charger may indicate a green light if the battery is too hot. Recharge only when battery temperature is between 0°C and 45°C.

Is the drill suitable for driving screws into metal?

Yes, but only for machine screws up to 6 mm diameter. Pre-drill a pilot hole for wood screws. For metal drilling, use dedicated metal drill bits at low speed.

How do I maintain the drill?

After use, wipe the drill with a soft dry cloth. Do not use solvents. Store in a dry place below 40°C. Regularly check and tighten all screws. For repairs, contact a Hitachi authorized service center.

What safety precautions should I take while using the drill?

Always wear eye protection. Keep the work area clean and well-lit. Avoid using in explosive atmospheres. Ensure the switch is off before connecting battery. Do not lock the motor; release trigger if it stalls.

USER MANUAL DS 9DVB2 HITACHI

Line drawing of a handheld electric drill press with attached base case (no text or symbols)

DS14DVB2

Read through carefully and understand these instructions before use.

Bruksanvisning

Brugsanvisning

Bruksanvisning

Käyttöohjeet

Handling Instructions

Hitachi Koki

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Line drawing of hands using a tool to adjust or install a device component (no text or symbols visible)

17

18

19

20

	Svenska Dansk	Norsk Suomi English
1	9,6 volts uppladdningsbart batteri (gäller DS9DVB2)	9,6 V genopladeligt 9,6 V oppladbart 9,6 V battery (til DS9DVB2) (for DS9DVB2) (mallille DS9DVB2) (For DS9DVB2)	6 V oppladbart 9,6 V lapattava 9.6 V Rechargeable battery (mallille DS9DVB2) (For DS9DVB2)	V lapattava 9.6 V Rechargeable battery (mallille DS9DVB2) (For DS9DVB2)	V lapattava 9.6 V Rechargeable battery (mallille DS9DVB2) (For DS9DVB2)
2	12 volts uppladdningsbart batteri (gäller DS12DVB2)	12 V genopladeligt 12 V oppladbart 12 V lapattava 12 V Rechargeable batteri (til DS12DVB2) (for DS12DVB2) (mallille DS12DVB2) (For DS12DVB2)	V oppladbart 12 V lapattava 12 V rechargeable battery (mallille DS12DVB2) (For DS12DVB2)	V lapattava 12 V Rechargeable battery (mallille DS12DVB2) (For DS12DVB2)	V lapattava 12 V rechargeable battery (mallille DS12DVB2) (For DS12DVB2)
3	14,4 volts uppladdningsbart batteri (gäller DS14DVB2)	14,4 V genopladeligt 14,4 V oppladbart batteri (til DS14DVB2) (for DS14DVB2) (mallille DS14DVB2) (For DS14DVB2)	14,4 V oppladbart batteri (mallille DS14DVB2) (mallille DS14DVB2)	14,4 V lapattava 14,4 V lapattava (mallille DS14DVB2) (For DS14DVB2)	14.4 V Rechargeable battery (mallille DS14DVB2)
4	18 volts uppladdningsbart batteri (gäller DS18DVB2)	18 V genopladeligt 18 V oppladbart 18 V lapattava 18 V Rechargeable batteri (til DS18DVB2) (for DS18DVB2) (mallille DS18DVB2) (For DS18DVB2)	V oppladbart 18 V lapattava 18 V rechargeable battery (mallille DS18DVB2) (mallille DS18DVB2)	V lapattava 18 V rechargeable battery (mallille DS18DVB2) (For DS18DVB2)	V lapattava 18 V rechargeable battery (mallille DS18DVB2)
5	Lås	Smæklås	Sperrehake	Salpa	Latch
6	Dra ut Træk ud	Dra ut Ota ulos	Pull out
7	Passa in	llæg	Sett i	Paina sisään	Insert
8	Handtag	Håndtag	Håndtak	Kahva	Handle
9	Tryck	Tryk	Skyv	Työnnä	Push
10	Passa in	llæg	Sett i	Paina sisään	Insert
11	Signallampa	Kontrollampe	Pilot-lys	Markkivalo	Pilot lamp
12	Hål för iläggning Hul av det uppladdningsbara batteriet batteri	til tilslutning af Hull for det opladelige det oppatteriet battery	tilkopling av pladbare	Ladattavan pariston liitäntäaukko	Hole for connecting the rechargeable
13	Borrläge Boremærkrning	Bormerke Porausmerkki Drill mark
14	Borrsockel Kappe Hette	Holkki Cap
15	Triangelmärke	Trekantmærke	Trekantmerke	Kolmikulmiomerkki	Triangle mark
16	Svag åtdragningskraft	Svag	Svak	Kevyt	Weak
17	Stark åtdragningskraft	Stærk Sterk	Vahva	Strong
18	Vit linje	Hvid linie	Hvit linje	Valkoinen viiva	White line
19	Hastighetsomkopplare	Omskifterknap	Omskifterbryter	Liukunäppäin	Shift knob
20	Låg hastighet	Lav hastighed	Lav hastighet	Hidas	Low speed
21	Hög hastighet	Høj hastighed	Høy hastighet	Nopea	High speed
22	Chuckhylsa	Muffe Muffe Holkki	Sleeve
23	Dra åt	Fastgøre	Stramme	Kiristää	Tighten
24	Lossa	Løsne	Løsne Irrottaa	Loosen
25	Startomkopplare	Aftrækkerkontakt	Starbryter	Käynnistysliipaisin	Trigger switch
26	Väljarknapp	Vælgerknap	Velgerknapp	Valintapainike	Selector button
27	Lägena (R) (höger) och (L) (väster)	(R og L) afmærkning	(R og L) merker	(R ja L) merkit	(R and L) marks
28	Hake	Krog	Krok	Koukku	Hook
29	Lossa	Løsne	Løsne Irrottaa	Loosen
30	Fjäder	Fjeder	Fjær	Jousi	Spring
31	Större diametern vänd utåt	Større diameter vender bort	Den største diameteren vender bort	Suurempi halkaisija osoittaa poispäin	Larger diameter faces away
32	Utbuktning	Fremspringende del	Utspring	Esiintyöntyvä osa	Protruded section
33	Spår	Rille	Spor	Vako	Groove
34	Krok med belysning	Krog med lys	Krok med lys	Kiinnitys valon kanssa	Hook with light
35	Omkopplare	Kontakt	Bryter Kytkin	Switch

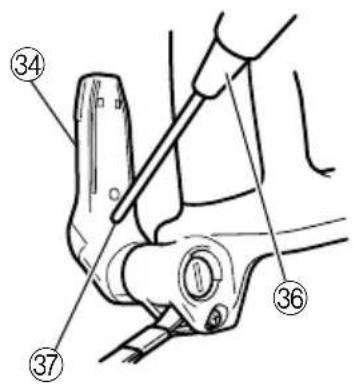

36	Stjärnskruvmejsel	Krydskærvskruetrækker	Stjerneskrutrekker	Ristipääruuvimeisseli	Phillips-head screwdriver
37	Skruv	Skrue	Skrue	Ruuvi	Screw
38	Pil	Pil	Pil	Nuoli	Arrow
39	Haklock	Krogdæksel	Hakedeksel	Koukun suoja	Hook cover
40	Inskärning	Indhak	Hakk	Kolo	Indentation
41	Utskjutande tagg	Fremspring	Framspring	Ullkonema	Protuberance
42	AAAA batterier	AAAA-batterier	AAAA-batterier	AAAA-paristot	AAAA batteries

	Symboler⚠️VARNINGNedan visas de symbolersom används för maskinen.Se till att du förstår vad debetyder innan verktygetanvänds.	Symboler⚠️ADVARSELDet følgende viser symboler,som anvendes for maskinen.Vær sikker på, at du forstårderes betydning, inden dubegynder at brugemaskinen.	Symboler⚠️ADVARSELFølgende symboler brukes formaskinen. Sørg for å forståbetydningen av dissesymbolene før maskinen tas ibruk.
	Läs alla säkerhetsvarningaroch alla instruktioner.Underlåtenhet att följavarningarna ochinstruktionerna nedan kanresultera i elstötar, brandoch/eller allvarliga skador.	Læs allesikkerhedsadvarsler oginstruktioner.Det kan medføre elektriskstød, brand og/eller alvorligpersonskade, hvis alleadvarslerne oginstruktionerne nedenforikke overholdes.	Les alle advarsler ogsikkerhetsinstruksjoner.Hvis du ikke følger alleadvarsler og instruksjoner kanbruk av utstyret resultere ielektrisk støt, brann og/elleralvorlig personskade.
	Gäller endast EU-länderElektriska verktyg får intekastas i hushållssoporna!Enligt direktivet 2002/96/EGsom avser äldre elektriskoch elektronisk utrustningoch dess tillämpning enligtnationell lagstiftning skauttjänta elektriska verktygsorteras separat och lämnastill miljövänlig återvinning.	Kun for EU-landeElværktøj må ikkebortskaffes som almindeligtaffald!I henhold til det europæiskedirektiv 2002/96/EF ombortskaffelse af elektriske ogelektroniske produkter oggældende nationallovgivning skal brugtelværktøj indsamles separatog bortskaffes på en måde,der skåner miljøet mestmuligt.	Kun for EU-landKast aldri elektroverktøy ihusholdningsavfallet!I henhold til EU-direktiv2002/96/EF om kasserteelektriske og elektroniskeprodukter og direktivetsiverksetting i nasjonal rett,må elektroverktøy som ikkelenger skal brukes, samlesseparat og returneres til etmiljøvennliggjenvinningsanlegg.
	Symbolit⚠️VAROITUSSeuraavassa on näytettykoneessa käytetyt symbolit.Varmista, että ymmärrätniiden merkityksen ennenkuin aloitat koneen käytön.	Symbols⚠️WARNINGThe following show symbolsused for the machine. Besure that you understandtheir meaning before use.
	Lue kaikki turvallisuuttakoskevat varoitukset jakaikkiohjeet.Jos varoituksia ja ohjeita einoudateta, on olemassasähköiskun, tulipalon ja/taivakavan henkilövahingonvaara.	Read all safety warningsand all instructions.Failure to follow thewarnings and instructionsmay result in electric shock,fire and/or serious injury.
	Koskee vain EU-maitaÄlä hävitä sähkötyökaluatavallisen kotitalousjätteenmukana!Vanhoja sähkö- jaelektroniikkalaitteitakoskevan EU-direktiivin2002/96/ETY ja senmaakohtaisten sovellustenmukaisesti käytetytsähkötyökalut ontoimitettava ongelmajätteenkeräyspisteeseen jaohjattavaympäristöystävälliseenkierrätykseen.	Only for EU countriesDo not dispose of electricstools together withhousehold waste material!In observance of EuropeanDirective 2002/96/EC onwaste electrical andelectronic equipment and itsimplementation inaccordance with nationallaw, electric tools that havereached the end of their lifemust be collectedseparately and returned toan environmentallycompatible recyclingfacility.

ALLMÄNNA SÄKERHETSVARNINGAR FÖR ELEKTRISKA VERKTYG

WARNING

Line drawing of a cylindrical electronic device with ports and casing (no text or symbols)

1. Batteri (EB1214S, EB1214L, EB1220BL, EB1222HL, EB1226HL, EB1230HL) (För DS12DVB2)

Technical line drawing of a mechanical component with mounting holes and internal slots (no text or symbols)

Line drawing of a battery pack with a cylindrical top and side slots (no text or symbols)

1. Batteri (EB1814SL, EB1820, EB1820L, EB1826HL, EB1830HL) (För DS18DVB2)

Line drawing of a battery pack with no text or symbols

AT IAGTTAGE MED HENSYN

TIL BATTERIDREVET BOREMASKINE

Line drawing of a cylindrical electronic device with a button and mounting bracket (no text or symbols)

1. Batteri (EB1214S, EB1214L, EB1220BL, EB1222HL, EB1226HL, EB1230HL) (För DS12DVB2)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a battery pack with a cylindrical top and mounting base (no text or symbols)

1. Batteri (EB1814SL, EB1820, EB1820L, EB1826HL, EB1830HL) (För DS18DVB2)

Line drawing of a battery pack with no text or symbols

Line drawing of a cylindrical electronic device with ports and mounting base (no text or symbols)

1. Batteri (EB1214S, EB1214L, EB1220BL, EB1222HL, EB1226HL, EB1230HL) (For DS12DVB2)

Technical line drawing of a mechanical component with mounting holes and internal slots (no text or symbols)

Line drawing of a rectangular electronic component with a cylindrical top and side slots (no text or symbols)

1. Batteri (EB1814SL, EB1820, EB1820L, EB1826HL, EB1830HL) (For DS18DVB2)

Line drawing of a battery pack with mounting holes and casing (no text or symbols)

VEDLIKEHOLD OG INSPEKSJON

Line drawing of a cylindrical electronic device with ports and casing (no text or symbols)

1. Paristo (EB1214S, EB1214L, EB1220BL, EB1222HL, EB1226HL, EB1230HL) (DS12DVB2:Ile)

Line drawing of a mechanical component with mounting holes and internal slots (no text or symbols)

1. Paristo (EB1414S, EB1414, EB14B, EB1426H, EB1430H) (DS14DVB2:Ile)

Technical line drawing of a mechanical component with no visible text or symbols

1. Paristo (EB1814SL, EB1820, EB1820L, EB1826HL, EB1830HL) (DS18DVB2:Ile)

Line drawing of a battery pack with mounting holes and internal compartments (no text or symbols)

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

PRECAUTIONS FOR CORDLESS DRIVER DRILL

1. Always charge the battery at a temperature of 0 – 40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40°C. The most suitable temperature for charging is that of 20 – 25°C.

2. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery. Do not charge more than two batteries consecutively.

3. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

4. Never disassemble the rechargeable battery and charger.

5. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

6. Do not dispose of the battery in fire. If the battery is burnt, it may explode.

7. When drilling in wall, floor or ceiling, check for buried electric power cord, etc.

8. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

9. Using an exhausted battery will damage the charger.

10. Do not insert object into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

11. When mounting a bit into the keyless chuck, tighten the sleeve adequately. If the sleeve is not tight, the bit may slip or fall out, causing injury.

SPECIFICATIONS

POWER TOOL

Model DS9DVB2 DS12DVB2
No-load speed (Low/High) 0 - 300			/ 0 - 1100 min ^-1	0 - 350 / 0 - 1300 min ^2
Capacity	Drilling	Wood(Thickness 18 mm)	21 mm 32 mm
		Metal Steel: 10mm, Steel: 13 mm,(Thickness 1.6 mm)Aluminum: 10 mm Aluminum: 13 mm
	Driving	Machine screw 6 mm 6 mm
		Wood screw	5.5 mm (diameter) × 63 mm (length)(Requires a pilot hole)	8 mm (diameter) × 38 mm (length)(Requires a pilot hole)
Rechargeable battery			EB914: Ni-Cd 9.6 V (1.4 Ah 8 cells)EB9B: Ni-Cd 9.6 V (2.0 Ah 8 cells)EB9H: Ni-MH 9.6 V (2.2 Ah 8 cells)EB926H: Ni-MH 9.6 V (2.6 Ah 8 cells)EB930H: Ni-MH 9.6 V (3.0 Ah 8 cells)	EB1214S: Ni-Cd 12 V (1.4 Ah 10 cells)EB1214L: Ni-Cd 12 V (1.4 Ah 10 cells)EB1220BL: Ni-Cd 12 V (2.0 Ah 10 cells)EB1222HL: Ni-MH 12 V (2.2 Ah 10 cells)EB1226HL: Ni-MH 12 V (2.6 Ah 10 cells)EB1230HL: Ni-MH 12 V (3.0 Ah 10 cells)
Weight			1.7 kg	1.9 kg
Model DS14DVB2 DS18DVB2
No-load speed (Low/High) 0 - 350			/ 0 - 1200 min-1	0 - 400 / 0 - 1400 min†
Capacity	Drilling	Wood(Thickness 18 mm)	36 mm 38 mm
		Metal Steel: 13(Thickness 1.6 mm)	mm, Steel: 13 mm,Aluminum: 13 mm Aluminum: 13 mm
	Driving	Machine screw 6 mm 6 mm
		Wood screw	8 mm (diameter) × 50 mm (length)(Requires a pilot hole) (Requires a pilot hole)	8 mm (diameter) × 75 mm (length)
Rechargeable battery			EB1414S: Ni-Cd 14.4 V (1.4 Ah 12 cells)EB1414: Ni-Cd 14.4 V (1.4 Ah 12 cells)EB14B: Ni-Cd 14.4 V (2.0 Ah 12 cells)EB1426H: Ni-MH 14.4 V (2.6 Ah 12 cells)EB1430H: Ni-MH 14.4 V (3.0 Ah 12 cells)	EB1814SL: Ni-Cd 18 V (1.4 Ah 15 cells)EB1820: Ni-Cd 18 V (2.0 Ah 15 cells)EB1820L: Ni-Cd 18 V (2.0 Ah 15 cells)EB1826HL: Ni-MH 18 V (2.6 Ah 15 cells)EB1830HL: Ni-MH 18 V (3.0 Ah 15 cells)
Weight			2.1 kg	2.4 kg

CHARGER

Model	UC12SD/UC14SD/UC18SD UC24YFA	UC14YFA/
Charging voltage	12/14.4/18 V	7.2 - 14.4/7.2 - 24 V
Weight 1.6 kg	0.6 kg

STANDARD ACCESSORIES

In addition to the main unit (1), the package contains the accessories listed in the table below.

DS9DVB2	1 Plus driver bit (No.2 × 55L) ...... 1
	2 Charger (UC14YFA) ...... 1
	3 Battery ...... 2
	4 Plastic case ...... 1
DS12DVB2	1 Plus driver bit (No.2 × 55L) ...... 1
	2 Charger (UC12SD or UC14YFA) ... 1
	3 Battery ...... 2orBattery ...... 3[DS12DVB2 (3SLSK)]
	4 Plastic case ...... 1
DS14DVB2	1 Plus driver bit (No.2 × 55L) ...... 1
	2 Charger (UC14SD or UC14YFA) ... 1
	3 Battery ...... 2orBattery ...... 3[DS14DVB2 (3SSK)]
	4 Plastic case ...... 1
DS18DVB2	1 Plus driver bit (No.2 × 55L) ...... 1
	2 Charger (UC18SD or UC24YFA) ... 1
	3 Battery ...... 2
	4 Plastic case ...... 1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Battery (EB914, EB9B, EB9H, EB926H, EB930H) (For DS9DVB2)

Line drawing of a cylindrical electronic device with ports and a button (no text or symbols)

1. Battery (EB1214S, EB1214L, EB1220BL, EB1222HL, EB1226HL, EB1230HL) (For DS12DVB2)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical or electrical component with no visible text or symbols

1. Battery (EB1814SL, EB1820, EB1820L, EB1826HL, EB1830HL)

(For DS18DVB2)

Line drawing of a battery pack with mounting holes and internal components (no text or symbols)

Optional accessories are subject to change without notice.

APPLICATIONS

○Driving and removing of machine screws, wood screws, tapping screws, etc.
○Drilling of various metals.
○Drilling of various woods.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

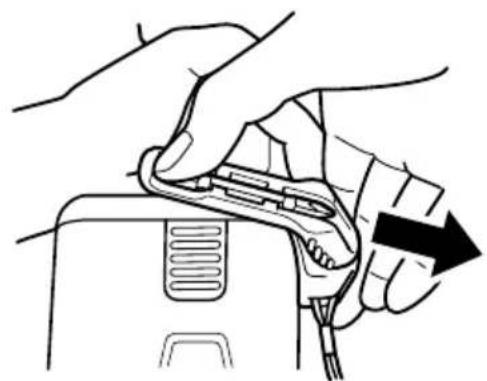

Hold the handle tightly and push the battery latch (1 pc. or 2 pcs.) to remove the battery (See Figs. 1 and 2).

CAUTION

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see Fig. 2).

CHARGING

Before using the driver drill, charge the battery as follows.

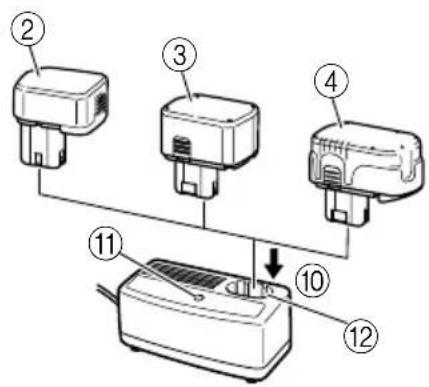

1. Insert the battery into the charger

Insert the battery firmly while observing its direction, until it contacts the bottom of the charger (See Fig. 3).

CAUTION

The UC12SD, UC14SD, and UC18SD models are the exclusively designed chargers. These cannot charge batteries except the specified batteries. It is possible to insert the batteries other than the specified into the chargers and some of them may light up the pilot lamps. However, you are requested to exercise utmost caution not to charge batteries other than specified ones because these can not only be charged but also such actions can result in the malfunction of chargers.

2. Connect the charger power cord to the receptacle

Connecting the power cord will turn on the charger (the pilot lamp lights up).

CAUTION

If the pilot lamp does not light up, pull out the power cord from the AC outlet and check the battery mounting condition.

About 60 minutes are required to fully charge the battery at a temperature of about 20^ C. The pilot lamp goes off to indicate that the battery is fully charged.

The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low.

When the pilot lamp does not go off even if more than 120 minutes have elapsed after starting of the charging, stop the charging and contact your HITACHI authorized service center.

CAUTION

If the battery is heated due to direct sunlight, etc., just after operation, the charger pilot lamp may not light up. At that time, cool the battery first, then start charging.

3. Disconnect the charger's power cord from the receptacle

4. Hold the charger firmly and pull out the battery NOTE

After operation, pull out batteries from the charger first, and then keep the batteries properly.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging batteries 2 – 3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

Before using the driver drill, charge the battery as follows.

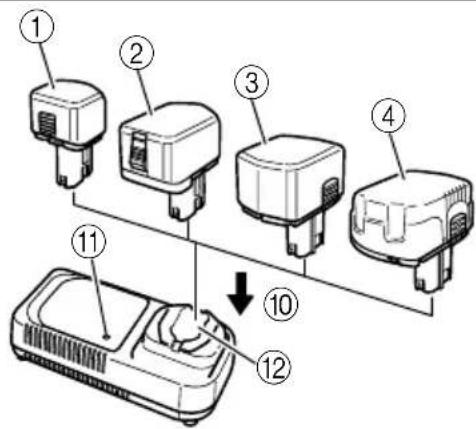

1. Connect the charger's power cord to a receptacle

When the power cord is connected, the charger's pilot lamp will blink in red (At 1-second intervals).

2. Insert the battery into the charger

Firmly insert the battery into the charger till it contacts the bottom of the charger and checking the polarities as shown in Fig. 4.

CAUTION

If the batteries are inserted in the reverse direction, not only recharging will become impossible, but it may also cause problems in the charger such as a deformed recharging terminal.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red (At 1-second intervals) (See Table 1).

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
While charging	Lights (RED)	Lights continuously
Charging complete	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
Charging impossible	Flickers (RED)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger.
Charging impossible	Lights (GREEN)	Lights continuously	The battery temperature is high, making recharging impossible.

(2) Regarding the temperatures of the rechargeable battery The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 2 Recharging ranges of batteries

Rechargeable batteries	Temperatures at which the battery can be recharged
EB914, EB9B, EB1214S, EB1214L, EB1220BL, EB1414S, EB1414, EB14B, EB1814SL, EB1820, EB1820L	-5°C - 60°C
EB9H, EB926H, EB930H, EB1222HL, EB1226HL, EB1230HL, EB1426H, EB1430H, EB1826HL, EB1830HL	0°C - 45°C

(3) Regarding recharging time Depending on the combination of the charger and batteries, the charging time will become as shown in Table 3.

Table 3 Charging time (At 20°C)

Battery\Charger	UC14YFA UC24YFA
EB914, EB1214S,EB1214L, EB1414S,EB1414	Approx. 40 min.	Approx. 40 min.
EB1814S
EB9B, EB1220BL,EB14B	Approx. 50 min.	Approx. 50 min.
EB1820, EB1820L
EB9H, EB1222HL,	Approx. 55 min.	Approx. 55 min.
EB926H, EB1226HL,EB1426H	Approx. 50 min.	Approx. 60 min.
EB1826HL
EB930H, EB1230HL,EB1430H	Approx. 70 min.	Approx. 70 min.
EB1830HL

NOTE

The charging time may vary according to temperature and power source voltage.

1. Disconnect the charger's power cord from the receptacle

2. Hold the charger firmly and pull out the battery NOTE

After operation, pull out batteries from the charger first, and then keep the batteries properly.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

○If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the batety has just been used, the pilot lamp of the charger lights up green. In such a case, first let the battery cool, then start charging.
When the pilot lamp flickers in red (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.
○Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC14YFA/UC24YFA is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by following the precautions.

HOW TO USE

1. Confirm the cap position (see Fig. 5)

The tightening torque of this unit can be adjusted according to the cap position, at which the cap is set.

(1) When using this unit as a screwdriver, line up the one of the numbers "1, 3, 5 ... 22" on the cap, or the white dots, with the triangle mark on the outer body.

(2) When using this unit as a drill, align the cap drill mark "###" with the triangle mark on the outer body.

CAUTION

○The cap cannot be set between the numerals "1, 3, 5 ... 22" or the white dots.

○Do not use with the cap numeral between "22" and the white line at the middle of the drill mark. Doing so may cause damage (See Fig. 6).

2. Tightening torque adjustment

(1) Tightening torque

Tightening torque should correspond in its intensity to the screw diameter. When too strong torque is used, the screw head may be broken or be injured. Be sure to adjust the cap position according to the screw diameter.

(2) Tightening torque indication

The tightening torque differs depending on the type of screw and the material being tightened.

The unit indicates the tightening torque with the numbers "1, 3, 5 ... 22" on the cap, and a white dots. The tightening torque at position "1" is the weakest and the torque is strongest at the highest number (See Fig. 5).

(3) Adjusting the tightening torque

Rotate the cap and line up the numbers "1, 3, 5, ... 22" on the cap, or the white dots, with the triangle mark on the outer body. Adjust the cap in the weak or the strong torque direction according to the torque you need.

CAUTION

☐The motor rotation may be locked to cease while the unit is used as drill. While operating the driver drill, take care not to lock the motor.
○Too long hammering may cause the screw broken due to excessive tightening.

3. Change rotation speed

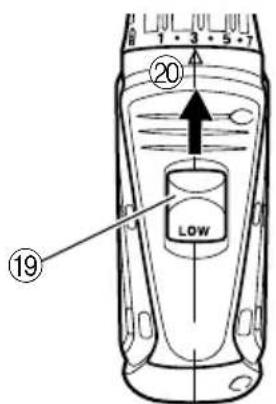

Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (see Figs. 7 and 8).

When the shift knob is set to "LOW", the drill rotates at a low speed. When set to "HIGH", the drill rotates at a high speed.

CAUTION

○When changing the rotational speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.

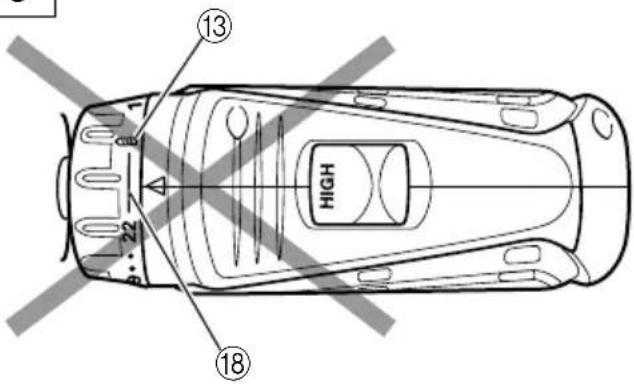

When setting the shift knob to "HIGH" (high speed) and the position of the cap is "17" or "22", it may happen that the clutch does not engage and that the motor is locked. In such a case, please set the shift knob to "LOW" (low speed).

○If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

4. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown in Table 4.

Table 4

Work Suggestions
Drilling Steel	Wood
	Use for drilling purpose.
	Aluminum
Driving	Machine screw Use the bit or socket matching the screw diameter.
	Wood screw Use after drilling a pilot hole.

5. How to select tightening torque and rotational speed

Table 5

Use Cap Position			Rotating speed selection (Position of the shift knob)
			LOW (Low speed) HIGH	(High speed)
Driving	Machine screw 1	-22	For 4 mm or smaller diameter screws.	For 6 mm or smaller diameter screws.
	Wood screw 1 -		For 8 mm or smaller nominal diameter screws. (DS18DVB2/DS14DVB2/DS12DVB2)	For 4.8 mm or smaller nominal diameter screws.
			For 5.5 mm or smaller nominal diameter screws. (DS9DVB2)
Drilling	Wood		For 38 mm or smaller diameters. (DS18DVB2)	For 24 mm or smaller diameters. (DS18DVB2)
			For 36 mm or smaller diameters. (DS14DVB2)	For 18 mm or smaller diameters. (DS14DVB2/DS12DVB2/DS9DVB2)
			For 32 mm or smaller diameters. (DS12DVB2)
			For 21 mm or smaller diameters. (DS9DVB2)
	Metal		For drilling with a metal working drill bit.	——

CAUTION

☐ The selection examples shown in Table 5 should be considered as general standard. As different types of tightening screws and different materials to be tightened are used in actual works proper adjustments are naturally necessary.

When using the driver drill with a machine screw at HIGH (high speed), a screw may damage or a bit may lose due to the tightening torque is too strong. Use the driver drill at LOW (low speed) when using a machine screw.

NOTE

The use of the battery EB9H, EB926H, EB930H, EB1222HL, EB1226HL, EB1230HL, EB1426H, EB1430H, EB1826HL and EB1830HL in a cold condition (below 0 degree Centigrade) can sometimes result in the weakened tightening torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up.

6. Mounting and dismounting of the bit

(1) Mounting the bit

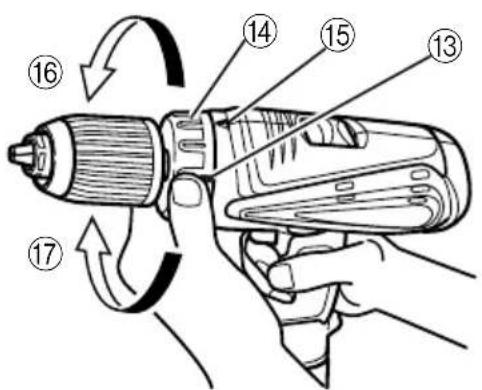

Loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front) to open the clip on the keyless chuck. After inserting a driver bit, etc., into the keyless drill chuck, and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front) (See Fig. 9).

○If the sleeve becomes loose during operation, tighten it further.

The tightening force becomes stronger when the sleeve is tightened additionally.

(2) Dismounting the bit

Loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front), and then take out the bit ect. (See Fig. 9).

NOTE

If the sleeve is tightened in a state where the clip of the keyless chuck is opened to a maximum limit, a click noise may occur. This is the noise that occurs when the loosening of the keyless chuck is prevented and is not a malfunction.

CAUTION

When it is no longer possible to loosen the sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 11 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

7. Automatic spindle-lock mechanism

This unit has automatic spindle-lock mechanism for quick bit changes.

8. Confirm that the battery is mounted correctly

9. Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the selector button.

The L-side of the selector button is pushed to turn the bit counterclockwise (See Fig. 10) (The (L) and (R) marks are provided on the body).

10. Switch operation

When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.

☐The rotational speed of the drill can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

NOTE

○A buzzing noise is produced when the motor is about to rotate; This is only a noise, not a machine failure.

11. Using the hook

CAUTION

When using the hook, pay sufficient attention so that the main equipment does not fall. If the tool falls, there is a risk of accident.

☐Do not attach the tip tool except phillips bit to the tool main unit when carrying the tool main unit with the hook suspended from a waist belt.

Injury may result if you carry the equipment suspended from the waist belt with sharp tipped components such as drill bit attached.

The hook can be installed on the right or left side and the angle can be adjusted in 5 steps between 0^ and 80^ .

(1) Operating the hook

(a) Pull out the hook toward you in the direction of arrow (A) and turn in the direction of arrow (B) (Fig. 11).

(b) The angle can be adjusted in 5 steps ( 0^ , 20^ , 40^ , 60^ , 80^ ).

Adjust the angle of the hook to the desired position for use.

(2) Switching the hook position

CAUTION

Incomplete installation of the hook may result in bodily injury when used.

(a) Securely hold the main unit and remove the screw using a slotted head screwdriver or a coin (Fig. 12).

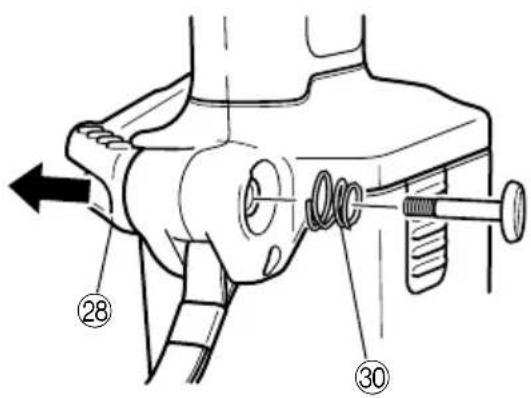

(b) Remove the hook and spring (Fig. 13).
(c) Install the hook and spring on the other side and securely fasten with screw (Fig. 14).

NOTE

Pay attention to the spring orientation. Install the spring with larger diameter away from you (Fig. 14).

(3) Using the bit holder (Hook with bit holder)

○Installing the bit

Slide the bit from the side in the direction of Fig. 15, and then insert firmly until the groove on the bit locks in the protruded section of the hook.

○Removing the bit

Securely hold the main unit and pull out the bit by holding the tip with your thumb (Fig. 16).

CAUTION

○The bit may come loose from the hook and cause bodily injury when reversing the direction of the bit as shown in Fig. 15 or when using the driver with the bit stored incomplete.
○Only Hitachi STANDARD ACCESSORIES phillips bit (No. 2 × 55L; Code No. 318236) may be used. Do not use other bits since they may come loose.
(4) Using as an auxiliary light (Hook with light)

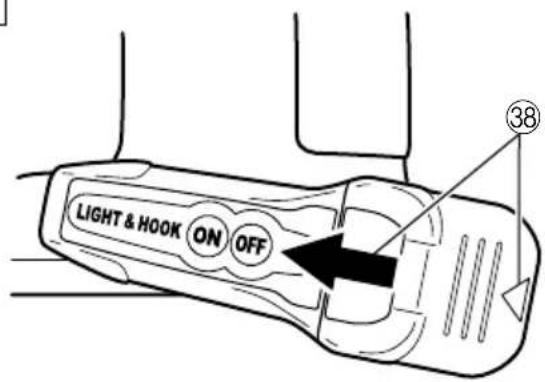

(a) Press the switch to turn off the light.

If forgotten, the light will turn off automatically after 15 minutes.

(b) The direction of the light can be adjusted within the range of hook positions 1 - 5 (Fig. 17).

○Lighting time

AAAA manganese batteries: approx. 15 hrs.

AAAA alkali batteries: approx. 30 hrs.

CAUTION

Do not look directly into the light.

Such actions could result in eye injury.

(5) Replacing the batteries

(a) Loosen the hook screw with a phillips-head screwdriver (No. 1) (Fig. 18).

Remove the hook cover by pushing in the direction of the arrow (Fig. 19).

(b) Remove the old batteries and insert the new batteries. Align with the hook indications and position the plus (+) and minus (−) terminals correctly (Fig. 20).

(c) Align the indentation in the hook main body with the protuberance of the hook cover, press the hook cover in the direction opposite to that of the arrow shown in Fig. 19 and then tighten the screw. Use commercially available AAAA batteries(1.5 V).

NOTE

Do not tighten the screw excessively. Such action could strip the screw threads.

CAUTION

○Failure to observe the following can result in battery leakage, rust or malfunction.

Position the plus (+) and minus (−) terminals correctly. Replace both batteries at the same time. Do not mix old and new batteries.

Remove exhausted batteries from the hook immediately.

○Do not discard batteries together with normal trash and do not throw batteries into fire.
○Store batteries out of the reach of children.
○Use batteries correctly in accordance with the battery specifications and indications.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of as dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Cleaning on the outside

When the driver drill is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

4. Storage

Store the driver drill in a place in which the temperature is less than 40^ C and out of reach of children.

5. Service parts list

CAUTION

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

Information concerning airborne noise and vibration

The measured values were determined according to EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 82 dB (A)

Measured A-weighted sound pressure level: 71 dB (A)

Uncertainty KpA: 3 dB (A).

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN60745.

As drill:

Vibration emission value ah,D=1.1~m/s^2

Uncertainty K = 1.5 m/s ^4

WARNING

○The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used.

To identify the safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Item Item No.	Part Name	No.	Part Name
1	SPECIAL SCREW(LEFT HAND) M6 × 23	30	TAPPING SCREW(W/WASHER) D3 × 16
2	DRILL CHUCK(W/O CHUCK WRENCH)	31 NAME PLATE
3 GEAR BOX ASS'Y 32			MACHINE SCREW(W/SP. WASHER) M4 × 6
4 CAP 33 HOUSING (A).(B) SET
5 CLICK SPRING 34			INTERNAL WIRE (BLACK) 100L
6 NUT 35			INTERNAL WIRE (RED) 130L
7 SPRING 36			DC-SPEED CONTROL SWITCH
8 THRUST WASHER 37 PUSHING BUTTON
9 FRONT CASE 38 FERRITE CORE
10 ROLLER 39 SHIFT KNOB
11 STEEL BALL D5 40 HITACHI LABEL
12 LOCK RING 41 TERMINAL SUPPORT (A)
14 RING GEAR 42 HOOK ASS'Y
15 CARRIER 43 V-LOCK NUT M5
16	PLANET GEAR (C) SET (3 PCS.)	44 HOOK ASS'Y (W/LIGHT)
17	WASHER (A)	45	TAPPING SCREW D2 × 6
18 REAR CASE	46 STRAP (BLACK)
19	SCREW SET D3X12 (4 PCS.)	47 HOOK SPRING
20 SHIFT ARM 48 SPECIAL SCREW (A) M5
21 SLIDE RING GEAR	49 BATTERY
22 PINION (C)	501 CHARGER
23	PLANET GEAR (B) SET (3 PCS.)	502	+ DRIVER BIT NO.2 55L
24 PINION (B)	503 CASE
25	PLANET GEAR (A) SET (3 PCS.)
26 FIRST RING GEAR
27 WASHER (B)
28 MOTOR SPACER
29 MOTOR

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Hitachi Power Tools Norway AS

Kjeller Vest 7

Postboks 124, 2007 Kjeller, Norway

Tel: [phone]

Fax: [phone]

URL: http://www.markt.no

Hitachi Power Tools Sweden AB

Rotebergsvagen 2B

SE-192 78 Sollentuna, Sweden

Tel: [phone]

Fax: [phone]

URL: http://www.markt.se

Hitachi Power Tools Denmark AS

Lillebaeltsvej 90

DK-6715 Esbjerg N, Denmark

Tel: [phone]

Fax: [phone]

URL: http://www.markt.dk

Hitachi Power Tools Finland OY

Tupalankatu 9

FIN-15680 Lahti, Finland

Tel: [phone]

Fax: [phone]

URL: http://www.markt.fi

Svenska		Suomi
EF-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi tillkännagiver med eget ansvar att denna produkt överensstämmer med standard eller standardiserat dokument EN60745, EN60335, EN55014 och EN61000 i enlighet med räddirektiven 2004/108/EF, 2006/95/EF och 98/37/EF. Denna produkt uppfyller även de nödvändiga kraven för 2006/42/EF som kommer att gälla istället för 98/37/EF från 29 december 2009.Den europeiska standardansvarige på Hitachi Koki Europe Ltd. är auktoriserad att utarbeta den tekniska filen.Denna deklaration gäller för CE-märkningen på produkten.		EY-ILMOITUS YHDENMUKAISUUDESTAYksinomaisella vastuudella vakuutamme, että tämä tuote vastaa normeja tai normitettuja dokumentteja EN60745, EN60335, EN55014 ja EN61000 yhteisön ohjeiden 2004/108/EY, 2006/95/EY ja 98/37/EY mukaisesti. Tämä tuote täyttää myös direktiivin 98/37/EY sijasta 29. joulukuuta 2009 lähtien sovellettavan direktiivin 2006/42/EY olennaiset vaatimukset.Hitachi Koki Europe Ltd.:n eurooppalaisten standardien johtaja on valtuutettu laatimaan tekniset asiakirjat.Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään.
Dansk		English
EF-OVERENSS TEMMELSESERKLÆRINGVi erlkærer os fuldstændige ansvarlige for, at dette produkt modsvarer gældende standard eller de standardiserede dokumenter EN60745, EN60335, EN55014 og EN61000 i overensstemmelse med EF-direktiver 2004/108/EF, 2006/95/EF og 98/37/EF. Dette produkt opfylder også de obligatoriske krav i 2006/42/EF, der anvendes fra d. 29. december 2009 i stedet for 98/37/EF.Chefen for europæiske standarder hos Hitachi Koki Europe Ltd. er autoriseret til at kompilere den tekniske fil.Denne erklæring gælder produkter, der er mærket med CE.		EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standardized documents EN60745, EN60335, EN55014 and EN61000 in accordance with Council Directives 2004/108/EC, 2006/95/EC and 98/37/EC. This product also complies with the essential requirements of 2006/42/EC to be applied from 29 December 2009 instead of 98/37/EC.The European Standards Manager at Hitachi Koki Europe Ltd. is authorized to compile the technical file.This declaration is applicable to the product affixed CE marking.
Norsk
EF'S ERKLÆRING OM OVERENSSTEMMELSEVi erklærer herved at vi påtar oss eneansvaret for at dette produktet er i overensstermmelse med normer eller standardiserte dokumenter EN60745, EN60335, EN55014 og EN61000 i samsvar med Rådsdirektiver 2004/108/EF, 2006/95/EF og 98/37/EF. Dette produktet følger de vesentlige kravene i 2006/42/EF som gjelder fra 29. desember 2009 i stedet for 98/37/EF.Lederen for europeiske standarder ved Hitachi Koki Europe Ltd. har fullmakt til å utarbeide det tekniske dokumentet.Denne erklæringen gjelder produktets påklistrede CE-merking.
Representative office in EuropeHitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich 1, F. R. GermanyTechnical file at:Hitachi Koki Europe Ltd.Clonshaugh Business & Technology Park, Dublin 17, IrelandHead office in JapanHitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan

Hitachi Koki Co., Ltd.
