Product Type	Range Hood
Brand	Franke
Model	FCR 925 TC
Width	90 cm
Height (Adjustable)	60 - 90 cm
Depth	50 cm
Weight	Approx. 15 kg
Power Supply	220 - 240 V, 50 Hz
Motor Power	250 W
Extraction Capacity (Max)	650 m³/h
Noise Level (Max)	65 dB
Control Type	Electronic push buttons
Number of Speeds	3 + Intensive
Lighting	LED, 2 x 3 W
Grease Filter	Aluminum mesh, washable
Carbon Filter Option	Yes, sold separately
Duct Diameter	150 mm
Energy Class	B
Material	Stainless steel
Installation	Wall-mounted

Frequently Asked Questions - FCR 925 TC FRANKE

How do I install the Franke FCR 925 TC range hood?

Install the hood at least 65 cm above electric hobs or 75 cm above gas hobs. Use the mounting template and secure with provided screws. Ensure ducting is connected to an external outlet or use recirculation mode with a carbon filter.

How often should I clean the grease filters?

Clean the aluminum mesh filters every 3 months or more frequently with heavy use. Wash by hand with warm soapy water or in the dishwasher at low temperature. Allow to dry completely before reinstalling.

Can I use the hood in recirculation mode?

Yes, the FCR 925 TC can be used in recirculation mode. You need to install a carbon filter (sold separately) to absorb odors. Replace the carbon filter every 6-12 months.

Why is my range hood making loud noises?

Loud noises may be due to loose parts, blocked ducting, or a worn motor. Check that the filters are clean and properly seated. Ensure the ductwork is not obstructed. If noise persists, contact a qualified technician.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a professional. Contact Franke customer service for assistance. Do not attempt to replace them yourself to avoid electrical hazards.

What is the maximum extraction capacity?

The maximum extraction capacity is 650 m³/h. This is achieved at the highest speed setting. Actual performance depends on duct length and bends.

Can I wash the carbon filter?

No, carbon filters are not washable and must be replaced when saturated. Typically every 6 to 12 months depending on usage. Dispose of old filters according to local regulations.

How do I reset the filter saturation indicator?

Press and hold the timer button (usually marked with a clock symbol) for 3-5 seconds until the indicator light turns off. Refer to the manual for exact procedure as it may vary by model.

What is the recommended duct diameter?

The recommended duct diameter is 150 mm. Using a smaller diameter will reduce performance and increase noise. Ensure ducting is as short and straight as possible.

Where can I buy replacement parts?

Replacement parts such as filters and LED modules can be purchased from Franke authorized dealers or online. Use the model number FCR 925 TC to find compatible parts.

USER MANUAL FCR 925 TC FRANKE

GB Instructions for use and installation Cooker Hood

RECOMMENDATIONS AND SUGGESTIONS 4

CHARACTERISTICS 7

INSTALLATION 8

USE 11

MAINTENANCE 12

INDICE

IT

CONSIGLI E SUGGERIMENTI....13

CARATTERISTICHE....16

INSTALLAZIONE 17

USO 20

MANUTENZIONE 21

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS 22

CARACTERISTIQUES 25

INSTALLATION 26

UTILISATION 29

ENTRETIEN 30

INHALTSVERZEICHNIS

DE

The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
  Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

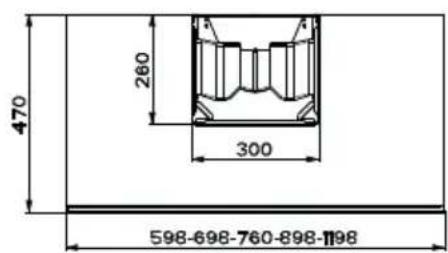

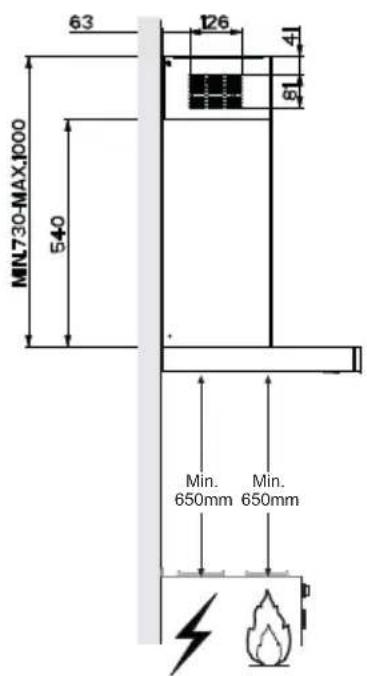

Dimensions

Components

Ref.	Q.ty	Product	Components
1	1	Hood	Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic	Chimney comprising:
2.1		1	Upper Section
2.2		1	Lower Section
9	1	Reducer	Flange ø 150-120 mm
10		1	Damper
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Brackets
7.3 1 Air Outlet Connection Support

11	8	Wall	Plugs
12a	8	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5

Q.ty	Documentation
1	Instruction Manual

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
  • Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
  • Fully tighten support screws 12a.
• Adjust screws Vr to level the hood body.
• If necessary, it is possible to fasten the hood to the wall using more screws with wall plugs, which can be positioned from inside the hood canopy.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm, the choice of which is left to the installer.

To install a ø 150

• To install the dumper 10
- Fix the pipe in position using sufficient pipe clamps (not supplied).

To install a 0 120

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the dumper 10.
  • Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with a screw.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe ∅ 150 mm, the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

- Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets by using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

- Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.

- Fix the lower part laterally to the hood body by using the 2 screws 12c (2,9 x 9,5) supplied.

Control panel

T1T2T3T4L
|	|	|	|	|
○	1	2⊗	3i	≡

Button	Function
T1	Turns the Motor off.
T2	Turns the motor on at speed one	Buttons T1+T2 are lit.
T3	Turns the Motor on at speed two	Buttons T1+T3 are lit.
	Press and hold for 2 seconds to activate switch-off with a 30 minute delay (Motor+Lights). It is possible to change the operating speed with this function activated.	Buttons T1+ (T2 or T3 or T4, respectively) flash.
T4	Turns the Motor on at speed three	Buttons T1+T4 are lit.
	Press and hold for 2 seconds to activate Intensive speed with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.	The Button flashes.
L	Turns the Lighting system on and off at maximum intensity.	Button on
	Press and hold for 2 seconds to turn the Lighting system on and off at reduced intensity.	Button on

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7μW. Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- For replacement contact technical support. ("To purchase contact technical support")
