Product type	Electric grass trimmer
Brand	Black & Decker
Model	GL710
Supply voltage	230 V AC
Power consumption	520 W
No-load speed	6 500 min⁻¹
Weight	3.2 kg
Power source	Mains (corded)
Cutting line length	11 cm (max. overhang)
Cutting line diameter (estimated)	1.5 mm
Cutting modes	Edging and cutting (adjustable)
Adjustable height	Yes, telescopic (3 positions)
Motor	Electric, double insulated
Integrated line cutter	Yes
Line feed system	Automatic
Sound pressure level (guaranteed)	96 dB(A)
Replacement spool	Ref. A6495 (available)
Warranty	24 months
Standards	CE, EN 60335, 2000/14/CE
Protection	Double insulation
Maintenance and cleaning	Clean the ventilation slots and motor housing regularly

Frequently Asked Questions - GL710 BLACK & DECKER

How to adjust the height of the grass trimmer?

Press the adjustment button (6), gently pull the tube (7) to the desired height, then release the button to lock it. Three positions are available.

How to replace the cutting line spool?

Hold the tabs (17) pressed and remove the cover (18). Remove the empty spool, insert the new spool aligning the lines in the slots (23). Insert the line ends into the eyelets (20), then replace the cover pushing until you hear two clicks.

Why does the device run slowly?

Check that the spool housing rotates freely and clean it if necessary. Make sure the cutting line does not exceed 11 cm from the housing. If so, cut it to the correct length.

How to start and stop the device?

To turn on, press the switch (1). To turn off, release the switch. Never block the switch in the on position.

What types of cutting line are recommended?

Only use suitable Black & Decker cutting lines. Never use metal wire or fishing line. The replacement spools have reference A6495.

How to maintain the device?

Regularly clean the ventilation slots with a soft brush or dry cloth. Clean the motor housing with a damp cloth. Do not use abrasive or solvent-based products.

Can I use an extension cord?

Yes, use an extension cord approved for outdoor use, with a minimum cross-section of 1.5 mm² for a maximum length of 30 m. Uncoil the cable completely. Check that it is not damaged.

What if the automatic line feed does not work?

Remove the spool cover, pull the line so that it protrudes by 11 cm. If the spool is empty, install a new one. Clean the cover and the housing. Check that the trigger moves freely.

How to use the device in edging mode?

Press the adjustment button (6) and rotate the tube (7) to place the head in edging position (fig. C). Tilt the device slightly for a cleaner cut.

What safety precautions should be observed?

Wear safety glasses, reinforced shoes and long trousers. Keep children and pets at least 6 m away. Do not use the device in the rain. Check that the cable is not damaged before each use.

USER MANUAL GL710 BLACK & DECKER

GL701

GL710

GL716

GL720

GL741

English (Original instructions) 5

Line drawing of a person using a handheld device to lift a pole (no text or symbols)

ENGLISH

Intended use

Your Black & Decker trimmer has been designed for trimming and finishing lawn edges and to cut grass in confined spaces. This appliance is intended for consumer use only.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

◆ Read all of this manual carefully before operating the appliance.
The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
◆ Retain this manual for future reference.

Using your appliance

Always take care when using the appliance.

◆ Always use safety glasses or goggles.
- Never allow children or people unfamiliar with the instructions to use the appliance.
Do not allow children or animals to come near the work area or to touch the appliance or power supply cord.
◆ Close supervision is necessary when the appliance is used near children.
- This appliance is not intended for use by young or infi rm persons without supervision.
- This appliance is not to be used as a toy.
- Only use the appliance in daylight or good artificial light.
◆ Use in a dry location only. Do not allow the appliance to become wet.
♦ Do not immerse the appliance in water.
Do not open the body casing. There are not user-serviceable parts inside.
Do not operate the appliance in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
To reduce the risk of damage to plugs or cords, never pull the cable to remove the plug from a socket.

Safety of others

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

◆ Children must be supervised to ensure that they do not play with the appliance.

After use

When not in use, the appliance should be stored in a dry, well ventilated place out of reach of children.
◆ Children should not have access to stored appliances.
When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.

Inspection and repairs

Before use, check the appliance for damaged or defective parts. Check for breakage of parts and any other conditions that may affect its operation.
Do not use the appliance if any part is damaged or defective.
◆ Have any damaged or defective parts repaired or replaced by an authorised repair agent.
- Never attempt to remove or replace any parts other than those specified in this manual.

Using an extension cable

Always use an approved extension cable suitable for the power input of this appliance (see technical data). The extension cable must be suitable for outdoor use and marked accordingly. Up to 30 m of 1.5 mm ^2 HO5VV-F extension cable can be used without loss of product performance. Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely.

Additional safety instructions for grass trimmers

Warning! Cutting elements continue to rotate after the motor is switched off.

• Be familiar with the controls and the proper use of the appliance.
  Before use, check the power supply cord and extension cord for signs of damage, ageing and wear. If a cord becomes damaged during use, disconnect the cord from the mains supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
• Do not use the appliance if the cords are damaged or worn.
  ◆ Wear stout shoes or boots to protect your feet.

ENGLISH

◆ Wear long trousers to protect your legs.
Before using the appliance, check that your cutting path is free from sticks, stones, wire and any other obstacles.
Only use the appliance in the upright position, with the cutting line near the ground. Never switch the appliance on in any other position.
◆ Move slowly when using the appliance. Be aware that freshly cut grass is damp and slippery.
Do not work on steep slopes. Work across the face of slopes, not up and down.
- Never cross gravel paths or roads while the appliance is running.
- Never touch the cutting line while the appliance is running.
Do not put the appliance down until the cutting line has come to a complete standstill.
◆ Use only the appropriate type of cutting line. Never use metal cutting line or fi shing line.
♦ Be careful not to touch the line trimming blade.
Take care to keep the mains cable away from the cutting line. Always be aware of the position of the cable.
♦ Keep hands and feet away from the cutting line at all times, especially when switching on the motor.
Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
- Never operate the appliance with damaged guards or without guards in place.
Take care against injury from any device fitted for trimming the fi lament line length. After extending new cutter line always return the machine to its normal operating position before switching on.
◆ Always ensure that the ventilation slots are kept clear of debris.
Do not use the lawn trimmer (edge trimmer), if the cords are damaged or worn.
♦ Keep extension cords away from cutting elements.

Labels on appliance

The following warning symbols are found on the appliance:

Read the manual prior to operation.

Wear safety glasses or goggles when operating this appliance.

Keep people and animals at least 6 m away from the cutting area.

Do not expose the appliance to rain or high humidity.

Electrical safety

This appliance is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Features

This appliance includes some or all of the following features.

1. On/off switch
2. Handle
3. Cable restraint
4. Power inlet
5. Secondary handle
6. Adjustment button
7. Tube
8. Guard
9. Line trimming blade
10. Spool housing
11. Cutting line
12. Edge guide

Assembly

Warning! Before assembly, make sure that the appliance is switched off and unplugged.

Fitting the guard (fi g. A)

♦ Remove the hexagonal screws (13) from the head (14).
◆ Place the guard (8) onto the appliance as shown.
♦ Firmly press the guard until it snaps into place.
◆ Secure the guard with the hexagonal screws.
♦ Tighten the hexagonal screws using the hexagonal key (15) provided.

Warning! Never use the appliance unless the guard is properly fitted.

Releasing the cutting line

In transit, the cutting line is taped to the spool housing.

♦ Remove the tape holding the cutting line (11) to the spool housing (10).

Connecting the appliance to the mains

◆ Connect the female plug of a suitable extension cable to the power inlet (4).
◆ Loop the cable through the cable restraint (3).

ENGLISH

♦ Insert the mains plug into a mains outlet. Warning! The extension cable must be suitable for outdoor use.

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

♦ Injuries caused by touching any rotating/moving parts.
♦ Injuries caused when changing any parts, blades or accessories.
♦ Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
◆ Impairment of hearing.
Health hazards caused by breathing dust developed when using your tool (example:-working with wood, especially oak, beech and MDF.)

Use

Warning! Let the tool work at its own pace. Do not overload.

Setting the appliance to trimming or edging mode (fi g. B - D)

The appliance can be used in trimming mode as shown in fi g. B or in edging mode to trim overhanging grass along lawn edges and fl ower beds as shown in fi g. C.

Trimming mode (fi g. B & D)

For trimming, the trimmer head should be in the position shown in fig. B. If it is not:

♦ Depress the adjustment button (6).
♦ Rotate the tube (7), while releasing the button.
When the head is in position, the button will lock into place.

Note: The tube will only rotate in one direction.

Edging mode (fi g. C & D)

For edging, the trimmer head should be in the position shown in fig. C. If it is not:

♦ Depress the adjustment button (6).
♦ Rotate the tube (7), while releasing the button.
When the head is in position, the button will lock into place.

Note: The tube will only rotate in one direction.

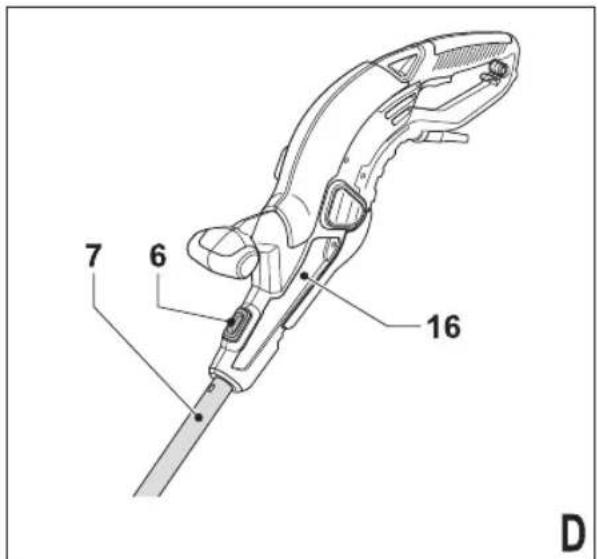

Adjusting the height of the appliance (fi g. D)

This appliance has a telescopic mechanism, allowing you to set it to a comfortable height. There are three height settings.

To adjust the height setting, proceed as follows:

♦ Depress the adjustment button (6).
♦ Gently pull the tube (7) out of the motor housing (16) to the desired height, while releasing the button.
- When the tube is in position, the button will lock into place.

Switching on and off

• To switch the appliance on, squeeze the trigger lever (1).
• To switch the appliance off, release the trigger lever.

Warning! Never attempt to lock the trigger lever in the on position.

Hints for optimum use

General

In order to achieve optimum cutting results, only cut dry grass.

Trimming

◆ Hold the appliance as shown in fig. B.
♦ Gently swing the trimmer from side to side.
When cutting long grass, work in stages from the top. Take small cuts.
♦ Keep the appliance away from hard objects and delicate plants.
- If the appliance starts running slowly, reduce the load.

Edging

Optimum cutting results are achieved on edges deeper than 50 mm.

Do not use the appliance to create edges. To create edges, use an edging spade.
◆ Guide the appliance as shown in fig. C.
◆ To make a closer cut, slightly tilt the appliance.

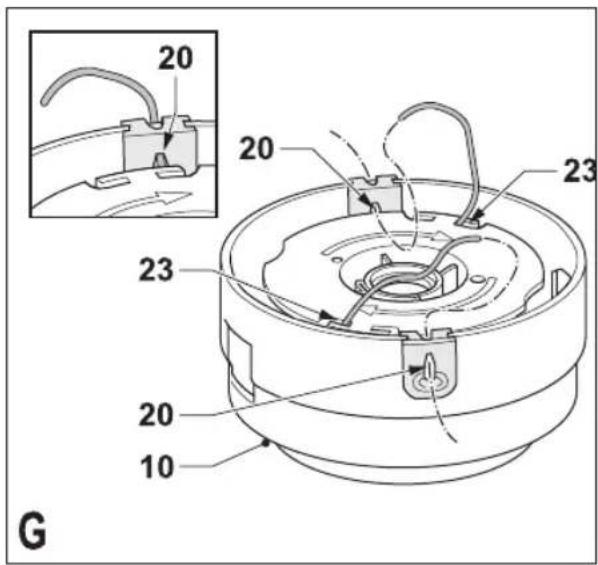

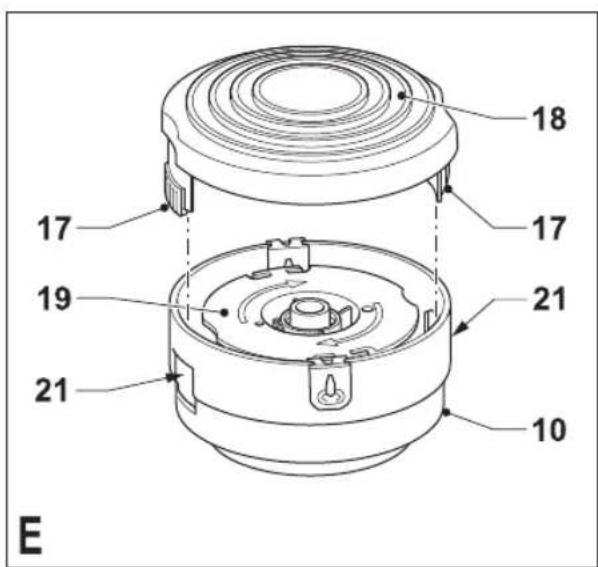

Fitting a new spool of cutting line (fi g. E & G)

Replacement spools of cutting line are available from your Black & Decker dealer (cat. no. A6495).

♦ Keep the tabs (17) depressed and remove the spool cover (18) from the housing (10).
◆ Remove the empty spool (19) from the spool housing.
◆ Remove any dirt and grass from the spool cover and housing.

ENGLISH

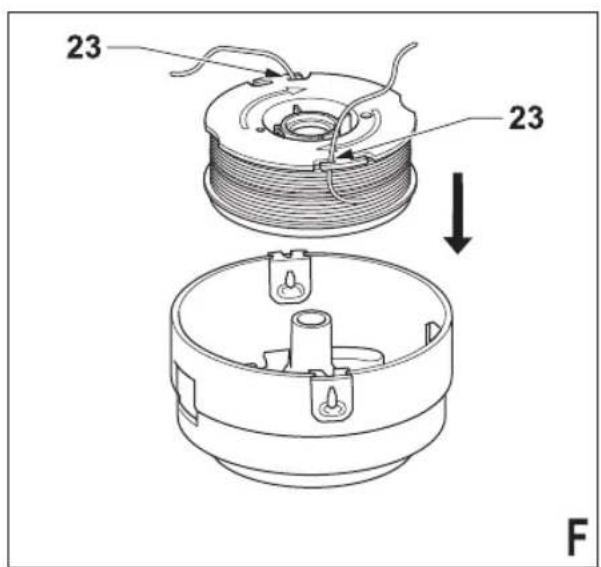

Place the new spool onto the boss in the spool housing with the lines parked in the slots (23) (fi g. F).
◆ Insert the line ends through the appropriate eyelets (20) in the housing (10). Pull the slack line until it pulls out of the parked slots (23) (fi g. G).
♦ Align the tabs (17) on the spool cover with the cut outs (21) in the housing.
♦ Push the cover (18) onto the housing (10) until it snaps securely into place.

Note: Make sure that the cover is positioned, listen for two audible clicks to ensure both tabs (17) are correctly located.

Warning! If the cutting lines protrude beyond the trimming blade (9), cut them off so that they just reach the blade.

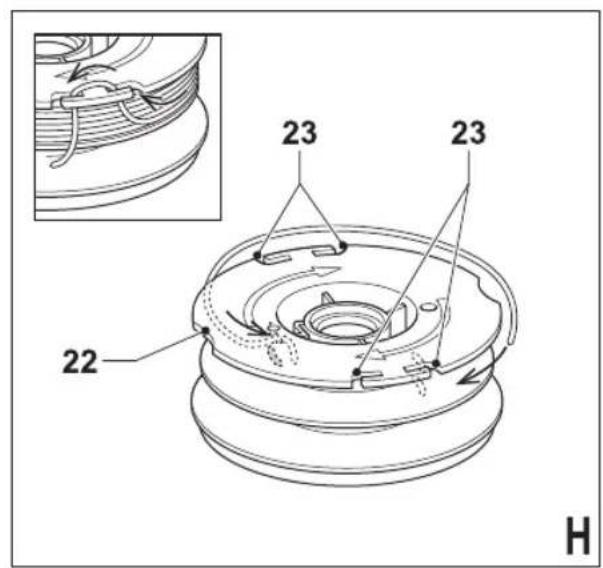

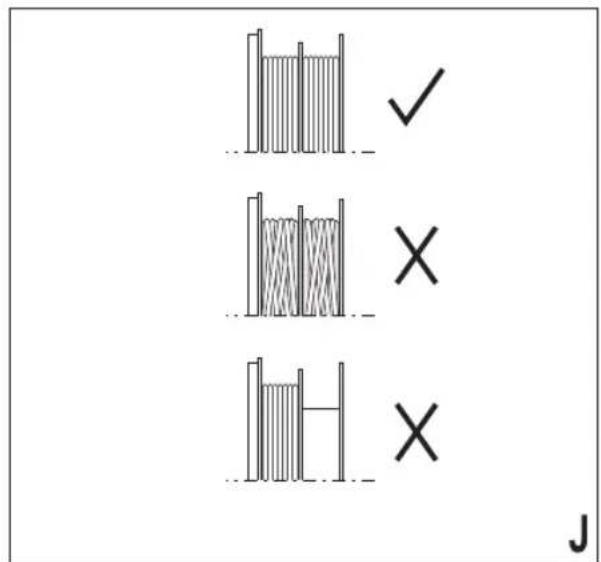

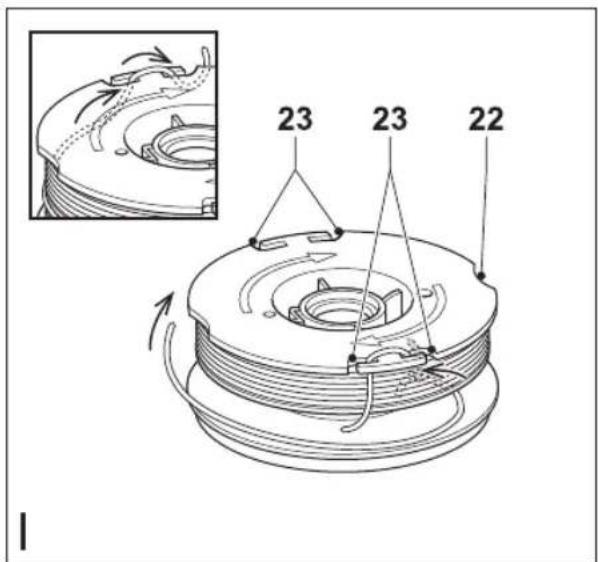

Winding new line onto an empty spool (fi g. H - J)

You may wind new cutting line onto an empty spool.

Replacement packs of cutting line are available from your Black & Decker dealer (cat. no. A6171).

◆ Remove the empty spool from the appliance as described above.
- Remove any remaining cutting line from the spool.
- First wind new line onto the uppermost part of the spool:

• Feed 2 cm of cutting line into one of the slots in the upper section of the spool as shown.
• Wind the cutting line onto the spool in the direction of the arrow. Make sure to wind the line on neatly and in layers. Do not criss-cross.
• When the wound cutting line reaches the recesses (22), cut the line.
• Temporarily park the line in the slots (23) on one side of the spool as shown.

♦ Repeat the above procedure for the second cutting line on the lower section of the spool. Park the line in the unused slots (23).
◆ Proceed as described above to fit the spool on the appliance. Do not forget to release the cutting line from the parking slots (23).

Warning! Only use the appropriate type of Black & Decker cutting line. Ensure that cutting line is present in both sections of the spool.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

♦ Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fi tting instructions supplied with good quality plugs. Recommended fuse: 5 A.

Troubleshooting

If your tool seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your local Black & Decker repair agent.

Warning! Before proceeding, unplug the tool.

Appliance runs slowly

◆ Check that the spool housing can rotate freely. Carefully clean it if necessary.
Check that the cutting line does not protrude more than 11 cm from the spool housing. If it does, cut it off so that it just reaches the line trimming blade.

Automatic line feed does not work

• Keep the tabs depressed and remove the spool cover from the housing.
  ♦ Pull the cutting line until it protrudes 11 cm from the housing. If insufficient cutting line is left on the spool, install a new spool of cutting line as instructed above.
  ♦ Align the tabs on the spool cover with the cut outs in the housing.
  ♦ Push the cover onto the housing until it snaps securely into place.
  If the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

If the automatic line feed still does not work or the spool is jammed, try the following suggestions:

◆ Carefully clean the spool cover and housing.
◆ Remove the spool and check if the lever can move freely.
♦ Remove the spool and unwind the cutting line, then wind it on neatly again as described above. Replace the spool as instructed.

ENGLISH

Maintenance

Your Black & Decker corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Warning! Before performing any maintenance on corded/ cordless power tools:

♦ Switch off and unplug the appliance/tool.
Or switch off and remove the battery from the appliance/ tool if the appliance/tool has a separate battery pack.
- Or run the battery down completely if it is integral and then switch off.
◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
♦ Regularly clean the ventilation slots in your appliance/tool/ charger using a soft brush or dry cloth.
♦ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
♦ Regularly open the chuck and tap it to remove any dust from the interior (when fitted).

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker offi ce at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Technical data

GL701 GL710 GL716TYPE 3-5 TYPE 3-5 TYPE 3-5
Input voltage V	AC	230	230	230
Power input	W 550	520	580
No-load speed	min ^-1	6,500	6,500	6,500
Weight	kg 3.2	3.2	3.2

GL720 GL741

TYPE 3-5 TYPE 3-5

Input voltage V	AC	230	230
Power input	W	600	700
No-load speed	min ^-1	6,500	6,500
Weight	kg	3.2	3.2

Hand/arm weighted vibration value according to EN 786: = 7.5 m/s ^2 , Uncertainty (K) = 1.5 m/s ^2

EC declaration of conformity

MACHINERY DIRECTIVE

OUTDOOR NOISE DIRECTIVE

GL701/GL710/GL716/GL720/GL741

Black & Decker declares that these products described under "technical data" are in compliance with: 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009), EN 60335-1, EN 60335-2-91

2000/14/EC, Lawn Trimmer L ≤ 50 cm, Annex VIII

KEMA Quality B.V., Utrechtseweg 310, 6802 ED

Arnhem, The Netherlands

Notified Body ID No.: 0344

Level of acoustic power according to 2000/14/EC (Article 12, Annex III, L ≤ 50 cm):

L_WA (measure sound power) 95 dB(A)

Uncertainty (K) = 3 dB(A)

L_WA (guaranteed sound powerr) 96 dB(A)

Uncertainty (K) = 3 dB(A)

These products also comply with directive

2004/108/EC. For more information, please

contact Black & Decker at the following address

or refer to the back of the manual.

ENGLISH

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Kevin Hewitt

Vice-President Global

Engineering

Black & Decker Europe,

210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

1-10-2009

UK patent application no.: 059745.6

European Community design application nos.:

340385-0001 & 339544-0001

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;
- The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker offi ce at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website

www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at

www.blackanddecker.co.uk

DEUTSCH

GL701/GL710/GL716/GL720/GL741

210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

1-10-2009

GL701/GL710/GL716/GL720/GL741

GL701/GL710/GL716/GL720/GL741

210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

1. 1. 2009

GL701/GL710/GL716/GL720/GL741

210 Bath Road, Slough,

Berkshire, SL1 3YD

Egyesült Királyság

1-10-2009

210 Bath Road, Slough, 1016. Budapest,

Berkshire, SL13YD, Mészáros u. 58/B

Egyesült Királyság

POLSKI

Przeznaczenie

GL701/GL710/GL716/GL720/GL741

Arnhem, The Netherlands

Vice-President Global

Techniczny

Black & Decker Europe,

210 Bath Road, Slough,

Berkshire, SL1 3YD

Wielka Brytania

1-10-2009

GL701/GL710/GL716/GL720/GL741

GL701/GL710/GL716/GL720/GL741

210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

1-10-2009

GL701/GL710/GL716/GL720/GL741

210 Bath Road, Slough,

Berkshire, SL1 3YD

Великобританія

1-10-2009

№ заявки на патент Великобританії: 059745.6

GL701/GL710/GL716/GL720/GL741

210 Bath Road, Slough,

Berkshire, SL1 3YD

Ingiltere

1-10-2009
