K100D SUPER - Digital SLR Camera PENTAX - Free user manual and instructions

Product type	Digital SLR camera
Brand	PENTAX
Model	K100D SUPER
Sensor	CCD 23.5 × 15.7 mm, 6.1 million effective pixels
Image stabilizer	Yes, sensor shift (SR), 2-3.5 stops
Sensor cleaning	Yes, CCD vibration (SP anti-dust coating)
Autofocus	11 points (9 cross-type at center), phase detection
Viewfinder	Optical, 0.85x magnification, 96% coverage, diopter adjustment -2.5 to +1.5 m⁻¹
LCD screen	2.5 inches, 210,000 pixels, brightness adjustable
Dimensions	Approx. 129.5 × 92.5 × 70 mm (without lens)
Weight	Approx. 560 g (with batteries and memory card)
Power supply	2 CR-V3 batteries or 4 AA batteries (lithium, rechargeable Ni-MH, alkaline); AC adapter D-AC76 (optional)
Lens mount	PENTAX K (BAYONET), compatible DA, D FA, FA J, etc.
Built-in flash	Yes, guide number approx. 11 (ISO 200), modes: auto, forced, red-eye reduction, 2nd curtain sync
Storage	SD/SDHC memory card
Image formats	JPEG (★★★/★★/★), RAW (PEF)
Connectivity	USB 2.0, video output (NTSC/PAL), wired remote terminal
ISO sensitivity	200-3200 (in 1 EV steps), auto or manual
Exposure modes	P, Tv, Av, M, B, AUTO PICT, Scene (8 modes)
Light metering	Multi-zone, center-weighted, spot
Shutter speed	30 sec to 1/4000 sec, Bulb
Maintenance and cleaning	Clean the exterior with a dry cloth. Remove dust from the sensor using the built-in function. Do not use solvents.
Safety	Do not disassemble the camera. Do not look at the sun through the viewfinder. Use the specified AC adapter. Keep batteries out of reach of children.
General information	12-month warranty. Approximate weight and dimensions. Instruction manual available in multiple languages. PictBridge compatible.

Frequently Asked Questions - K100D SUPER PENTAX

How to activate the shake reduction function on the K100D Super?

Flip the shake reduction switch on top of the camera. When the shutter button is pressed halfway, the SR icon appears in the viewfinder indicating stabilization is active. Turn it off if using a tripod.

What types of batteries can I use with the K100D Super?

You can use 2 CR-V3 (non-rechargeable) batteries or 4 AA lithium, rechargeable Ni-MH, or alkaline batteries. Ni-MH batteries are recommended for heavy use. Do not use rechargeable CR-V3 batteries.

How to set the date and time on the camera?

Turn on the camera, press the MENU button, navigate to the Preferences tab, select Date setting. Use the arrow keys to set the format, date, and time. Confirm with OK.

What to do if the camera does not autofocus?

Check that the focus mode switch is set to AF. If the subject has low contrast (white wall), is very bright (backlit), or moves quickly, focusing may fail. Switch to manual focus (MF) by turning the lens ring.

How to use the built-in flash in forced mode?

Press the UP button (located near the flash) to manually raise the flash. The flash will fire for every shot, regardless of mode. To return to automatic, push the flash down.

What scene modes are available and how to select them?

Turn the mode dial to SCN, then press Fn and OK. Choose from: Night scene, Beach & Snow, Text, Sunset, Children, Pet, Candlelight, Museum. Confirm with OK.

How to clean the sensor of the K100D Super?

Go to the Preferences menu, select Sensor cleaning. The camera will vibrate the CCD to dislodge dust. If needed, use a blower after raising the mirror (see manual p.189). Avoid direct contact with the sensor.

Why are photos blurry even with stabilization enabled?

Stabilization compensates for camera shake, not subject movement. If the subject moves, increase shutter speed or use Moving object mode. In macro, stabilization is less effective; use a tripod.

How to print directly from the camera?

Connect the camera to a PictBridge compatible printer via USB cable. In playback mode, select the desired image, press MENU, then choose Print and follow instructions. You can print a single image or all.

What to do if the memory card is not recognized?

Check that the card is inserted correctly (label facing the LCD screen). If it is new or was used on another device, format it via Preferences > Format. Make sure the write-protect switch is unlocked.

USER MANUAL K100D SUPER PENTAX

Appareil photo....14

Line drawing of a rectangular electronic component with a recessed top (no text or symbols)

Simple line drawing of a circular ring or washer (no text or symbols)

Line drawing of a USB cable with connector and connectors (no text or symbols)

Câble USB I-USB17

Line drawing of a coiled cable with two connectors (no text or symbols)

Câble vidéo I-VC28

Line drawing of a mechanical clamp or grip with two bands and a handle (no text or symbols)

Courroie O-ST53

Piles alcalines AA* (quatre)

PENTAX PHOTO Browser 3/ PENTAX PHOTO Laboratory 3 Manuel d'utilisation

Diagram of a car suspension system with rope and belt, showing motion arrows (no text or symbols)

Diagram of a car suspension system with rope and directional arrows indicating motion (no text or symbols)

Insertion des piles

Diagram of a battery assembly with multiple cylindrical components and a downward arrow indicating a component (no text or symbols present)

3

Diagram of a camera module with an open panel and directional arrow indicating motion (no text or symbols)

Technical line drawing of a camera module with no visible text or symbols

Diagram of a Pentax DSLR camera with lens assembly, showing aperture and lens components (no text or symbols)

4

Line drawing of a Pentax DSLR camera with lens and scroll arrows indicating motion (no text or symbols)

Line drawing of a DSLR camera with lens and adjustment arrow (no text or symbols)

Line drawing of a car interior showing a door and vent with directional arrows indicating movement (no text or symbols)

Black-and-white photo of a park pathway with trees and fence, no visible text or symbols

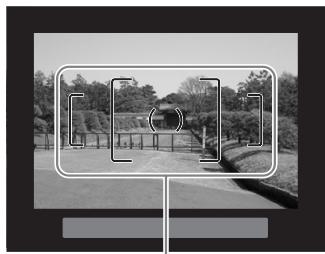

Mire AF

Diagram of a car interior showing a door with directional arrows indicating movement or flow (no text or symbols present)

Line drawing of a person adjusting a camera lens (no text or symbols)

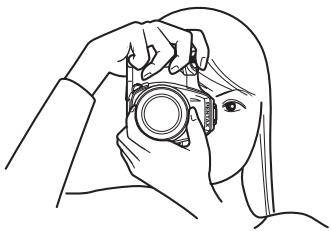

Position horizontale

Line drawing of a person adjusting a camera (no text or symbols)

Position verticale

3

Illustration of a person holding a Pentax DSLR camera (no text or symbols visible)

4

Line drawing of a person holding a DSLR camera, no text or symbols present

Black-and-white outdoor photo of a park with trees and a fence, no visible text or symbols

Illustration of a person holding a DSLR camera, with an arrow pointing to the camera (no text or symbols present)

6

Top: PENTAX DSLR camera with control panel and front view of a garden path (no text or symbols on main image)

Black and white photo of three fruits on a checkered tablecloth (no text or symbols)

Black-and-white photo of three fruits on a checkered tablecloth (no text or symbols)

5

Illustration of a person holding a Pentax DSLR camera (no text or symbols visible)

Black-and-white outdoor scene with a fence, trees, and a building in the background (no visible text or symbols)

Téléobjectif

Cartoon illustration of a girl with long hair looking downward, surrounded by floating objects (no text or symbols)

Illustration of a girl with long hair looking at a tree trunk (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or labels)

Three smiling people posing together with camera frame overlays (no text or symbols)

8

Line drawing of a Pentax DSLR camera with no visible text or symbols

Diagram of a car air vent with directional arrows indicating airflow or movement (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Diagram of a car air vent with directional arrows indicating airflow or movement (no text or symbols)

Black-and-white outdoor photo of a park with trees, a fence, and a building in the background (no visible text or symbols)

2

Black-and-white outdoor photo of a park with trees, a railing, and a building in the background (no visible text or symbols)

2

Exterior view of a traditional Japanese-style building with tiled roof and gate structure (no signage)

Black-and-white outdoor photo of a park with trees, a fence, and a building in the background (no visible text or symbols)

Black-and-white outdoor photo of a park with trees, a fence, and a building in the background (no visible text or symbols)

Diaporama

Black-and-white photo of a parkside with a gate, trees, and a small building in the background (no visible text or symbols)

3

Line drawing of a DSLR camera connected to a monitor via cable (no text or symbols)

Black-and-white photo of a fluffy white dog sitting on grass, with no visible text or symbols in the main image area.

Black-and-white outdoor photo of a park with trees, a fence, and a building in the background (no visible text or symbols)

2

Black-and-white outdoor photo of a park with trees, a fence, and a building in the background (no visible text or symbols)

Diagram of a mechanical device with gears and a magnifying glass, no visible text or symbols

Grid of black-and-white historical photos showing European-style buildings and rivers, no visible text or symbols

3

Black-and-white outdoor photo of a park with trees, a fence, and a building in the background (no visible text or symbols)

Select. Mode impression

Choisir une image

Toutes les images

Impression auto DPOF

OK OK

Select. Mode impression

Choisir une image

Toutes les images

Impression auto DPOF

OK OK

2

Illustration of a person holding a DSLR camera, with no text or symbols present

Black-and-white outdoor photo of a paved path with trees and a fence, no visible text or symbols

Illustration of a person standing beside a large industrial structure with smokestacks and water tank (no text or symbols)

(Exemple)

Illustration of a woman holding a bag, standing in front of a bridge structure (no text or symbols)

Illustration of a person standing beside a bridge with a cable-stayed bridge and river in the background (no text or symbols)

Line drawing of a person holding a Pentax DSLR camera (no text or symbols)

Black-and-white outdoor photo of a park with trees and a fence, no visible text or symbols

Illustration of a person holding a Pentax DSLR camera (no text or symbols on the camera body)

Illustration of a fountain with water spray and trees (no text or symbols)

Illustration of a snowy landscape with trees and smokestacks (no text or symbols)

Black and white close-up of a leafy plant with blurred foliage background (no text or symbols)

Black-and-white close-up of poppy flowers and daisies in a garden setting (no text or symbols)

Profondeur de champ

Pure geometric diagram with grid and central circle (no text or symbols)

3D wireframe surface plot showing a smooth, peaked curve with grid lines (no axis labels or text)

Diagram of a car dashboard with directional arrows indicating movement (no text or symbols)

Signal d'exposition

Signal d'exposition

Diagram of a car dashboard with directional arrows indicating motion (no text or symbols)

Signal d'exposition

Diagram of a car dashboard with directional arrows indicating movement or rotation (no text or symbols)

Black-and-white landscape illustration featuring a winding river, rolling hills, and scattered trees under a cloudy sky (no text or symbols)

Exposition normale

Black-and-white landscape illustration featuring a winding river, rolling hills, and scattered trees under a cloudy sky (no text or symbols)

Sous-exposition

Black-and-white landscape illustration featuring rolling hills, a winding river, and scattered trees under a cloudy sky (no text or symbols)

Surexposition

Line drawing of a person sitting at a table with flowers and a vase, displayed within a smartphone camera interface (no text or symbols on the main image)

$$ L 1 = 1 5, 6 \div 4 = \text { environ } 3, 9 (m) $$

$$ \mathrm{L} 2 = 3, 9 \div 5 = \text { environ } 0, 8 (\mathrm{m}) $$

$$ F = 1 5, 6 \div 5, 2 = 3 $$

Line drawing of a DSLR camera setup with tripod-mounted camera and coiled cable (no text or symbols)

Line drawing of three camera setup devices: tripod-mounted, flat-screen, and DSLR camera with coiled cable (no text or symbols)
