SHBS 500 C2 - Coupe-ongles SILVERCREST - Free user manual and instructions

Product type	Beard and hair clipper
Brand	SilverCrest
Model	SHBS 500 C2
Power supply	Li-ion battery 3.7 V / 500 mAh + power adapter 5 V, 1000 mA
Mains input voltage	100-240 V ~ 50/60 Hz
Adjustable cutting lengths	1-33 mm (comb 1: 1/3/6/9/12/15 mm, comb 2: 18/21/24/27/30/33 mm)
Main functions	Hair and beard cutting, thinning, trimming without comb (1-2 mm)
Wireless runtime	Approximately 60 minutes
Charging time	90 minutes
Blade cleaning	With water, then oiling after each use
Included accessories	2 adjustable combs, comb, scissors, cleaning brush, oil, storage pouch
Safety	Turn off before changing comb, do not use near water, do not immerse, IP20 (power adapter)
Warranty	3 years
Protection class	II (power adapter)
Operating temperature	-10 °C to +40 °C
Mains operation	Possible even with empty battery
Spare parts	Accessories available by online order

Frequently Asked Questions - SHBS 500 C2 SILVERCREST

How to adjust the cutting length?

To adjust the length, press the back of the comb and slide it to the desired value (visible on the side of the comb). Adjustment can only be done when the device is off.

How to use the thinning function?

Push the slider upward towards the shaving head to activate the function. This reduces hair volume without changing length.

How to clean the clipper?

Unplug the device and remove the comb. Rinse the comb with water. For the shaving head, remove it by pushing it backwards, brush off residue, then rinse the blades with water. Dry and oil after each use.

How long does it take to recharge the clipper?

Full charging takes about 90 minutes. During charging, the red light flashes; when charged, the blue light flashes.

Can I use the clipper with mains power?

Yes, you can use the device plugged into mains even if the battery is empty. Make sure the device is off before plugging in the power adapter.

What to do if the clipper stops working?

First check that the device is charged or plugged in. Clean and oil the blades. If the problem persists, contact after-sales service. Do not attempt to repair yourself.

How to change the comb?

Turn off the device. To remove, push the comb upward with moderate force. To install, slide it into the guides until it clicks.

Is the device waterproof?

No, the device is not waterproof. Do not use it near water and do not immerse it. The power adapter is protected against solid objects (IP20) but not against water.

What is the battery runtime?

Once fully charged, the wireless runtime is approximately 60 minutes.

Where can I order accessories?

You can order accessories on the SilverCrest website or by scanning the QR code in the manual. Customer service can also provide information.

USER MANUAL SHBS 500 C2 SILVERCREST

Contents

1. Overview 3
2. Intended purpose 4
3. Safety information .... 4
4. Items supplied 7
5. Charging 7
6. Operation 7

6.1 Pushing on/ removing the comb attachments.... 7
6.2 Cutting hair.... 7
6.3 Thinning hair.... 8
6.4 Cutting hairlines and beard.... 8

1. Cleaning and care 9
2. Disposal 9
3. Ordering accessories .... 10
4. Troubleshooting 10
5. Technical specifications .... 11
6. Warranty of the HOYER Handel GmbH 12

1. Overview

1 Comb attachment, adjustable
2 Blades, part of the shaving head
3 Slider for thinning function
- without thinning function - thinning function activated

4 Oa/ off switch

5 Battery symbol

is lit blue: device in battery mode without power unit flashing blue during charging: battery is fully charged

6 Plug symbol

Flashing red: battery almost empty is lit red during charging: the battery is being charged

7 Connection for power unit

8 Power unit

9 Comb attachment fastener

10 Shaving head

11 Marking of the cutting length in mm

not shown:

12 Comb
13 Scissors
14 Cleaning brush
15 Oil
16 Storage pouch

Thank you for your trust!

Congratulations on your new hair and beard trimmer.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
• Keep these operating instructions for reference.
• If you pass the device on to someone else, please include these operating instructions. The user instructions are a part of the product.

We hope you enjoy your new hair and beard trimmer!

2. Intended purpose

The hair and beard trimmer is intended exclusively for trimming human hair. Only use the device for dry hair.

The device is designed for private home use and must not be used for commercial purposes. The device must only be used indoors.

Foreseeable misuse

WARNING! Risk of material damage!

- Do not use the device to cut artificial hair or animal hair.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks. Children must not play with the device. Cleaning and user maintenance must not be performed by unsupervised children.
• Children under the age of 8 must be kept away from the device and the power cable.
• Only use the included original power adaptor for mains operation.
• WARNING! Keep the device dry.

DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: There is a risk of suffocation.
• Keep the device out of the reach of children.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

• Do not use this device in the vicinity of bathtubs, showers, washbasins or other vessels containing water.
• Protect the device from moisture, water drops and water spray.
• Never touch the device with wet hands.
• The device, the cable and the power unit must not fall into water or other liq-

uids and must not be rinsed under running water.

• If the device has fallen into water, pull out the power unit immediately, and only then remove the device from the water. Do not use the device again, but have this checked by a specialist.
• Should liquid enter the device, have it checked before starting the device up again.
• If the device is used in a bathroom, the power unit must be pulled out after use, as the proximity of water represents a hazard, even when the device is switched off.
• Installation of a residual current device (FI/ RCD) with a rated residual operating current of no more than 30 mA is recommended to provide additional protection. Ask your electrician for advice. The installation should only be carried out by a qualified electrician.

DANGER! Risk of electric shock

- Never put the device into operation if there are visible damages to the device, the power unit or the cable or if the device has been dropped before.

- Connect the cable to the device before plugging the power unit into a wall socket.

- Only connect the power unit to a properly installed, easily accessible wall socket, the voltage of which corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

- Ensure that the cable cannot be damaged by sharp edges or hot surfaces.

- Ensure that the cable is not trapped or crushed.

- When removing the power unit from the wall socket, always pull the power unit and never the cable.

- Pull the power unit out of the wall socket ... ... after every use, ... after each charging process, ... if there is a fault, ... before connecting the device to the cable, ... before you clean the device, and ... during thunderstorms.

- To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

DANGER from batteries

- Protect the battery against mechanical damages. Fire hazard!

- Do not expose the device to direct sunshine or heat. The ambient temperature should not be lower than -10 °C and higher than +40 °C.

- The charge contacts on the device must not be connected by metallic objects.

- Thebattery may only be charged with the original accessory (power unit).

- Should the electrolyte solution leak out of the battery, avoid contact with eyes, mucous membranes and skin. Rinse immediately with plenty of clean water

and consult a doctor. The electrolyte solution can cause irritation.

WARNING! Risk of injury from cutting

• The tips of the comb attachments and shaving head are sharp. Handle with care.
• Do not use the device if the attachment shows damages.
• Switch off the device before pinning up or changing the attachments and each time before cleaning.

WARNING! Risk of injury

• Place the cable in such a way that no one trips over it or steps on it.
• Do not use the device on open wounds, cuts, sunburn or blisters.

WARNING! Risk of material damage

• Only use the original accessories.
• Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire.
• Do not cover the power unit to prevent overheating.
• The blades of the shaving head may be cleaned with water. Do not use any other liquids.
• Do not use any astringent or abrasive cleaning agents.

4. Items supplied

1 hair and beard trimmer
1 power unit 8
2 adjustable comb attachments 1 :
Attachment 1: 1/3/6/9/12/15 mm
Attachment 2: 18/21/24/27/30/33 mm
1 comb 12
1 scissors 13
1 cleaning brush 14
1 oil 15
1 storage pouch 16
1 set of operating instructions

5. Charging

NOTES:

• Before the device is used for the first time, and during the following charging procedures, the device should be charged for 90 minutes in each case.

• When the batteries are almost empty, the plug symbol 6 flashes in red. The device can then only be used for a short time without being connected to the electricity supply.

• Switch off the device with the on/off switch 4 if necessary.

• Connect the power unit 8 to the connector 7 of the device.

• Insert the power unit 8 into a readily accessible wall socket whose voltage matches the voltage stated on the rating plate.

• The plug symbol 6 is lit red and the battery is charged. When the battery is fully charged, the battery symbol 5 flashes in blue. When the battery is fully charged, the device can be used for approximately 60 minutes without being connected to the power supply.

6. Operation

Regardless of the charging state of the battery, the hair and beard trimmer can always be mains-operated.

1. Before switching to mains operation, ensure that the device is switched off.
2. Connect the power unit 8 to the connection 7 of the device.
3. Insert the power unit 8 into a readily accessible wall socket whose voltage matches the voltage stated on the rating plate.
4. Switch on the device with the on/off switch 4.

6.1 Pushing on/ removing the comb attachments

WARNING! Risk of injury!

- Switch off the device before replacing or changing the comb attachments 1.

Pushing on

- In order to attach a comb attachment 1, push this over the guide rails on the side of the device onto the comb attachment fastener 9, until it is heard to click into place.

Removing

1. Push the comb attachment 1 upwards using a moderate amount of force. The comb attachment 1 is released from the comb attachment fastener 9.

2. Remove the comb attachment 1.

6.2 Cutting hair

NOTES:

• The hair to be dressed must be dry.
- The cutting length may deviate depending on the cutting angle.

• Place a sheet or cape around throat and neck to prevent cut-off hair from dropping into the collar.

• Comb the hair well.

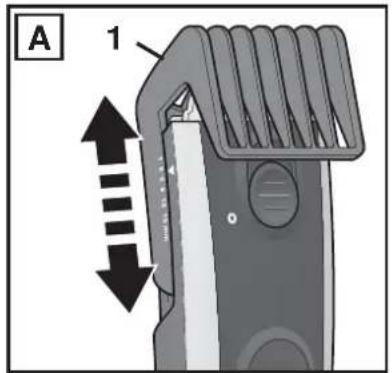

  • Figure A: first, start with a longer cutting length and then, in the course of the cutting process, use progressively shorter cutting lengths. Adjust the cutting length according to the desired hair length. Press on the rear of the comb attachment 1 to adjust it, and read the cutting lengths by using the marking 11 on the side of the comb attachment 1.

• It is only possible to adjust the cutting length of the comb attachment 1 when the device is switched off.

• The cutting length setting of the comb attachment 1 is only locked when the device is switched on.

NOTE: ensure that the comb attachment 1 is still firmly attached to the device after adjustment.

• Start by cutting the hair in the neck or on the sides and cut towards the centre of the head. Then, cut the front section of the hair towards the centre of the head.
• Hold the device in such a way that the comb attachment 1 lies as flat as possible on the head. Move the device through your hair smoothly and in only one direction so as to avoid catching.
• If possible, cut against direction of hair growth.
• In order to catch all the hair, move the device several times through each section of the hair.
• Comb the hair repeatedly and well.
• In order to achieve a straight cutting line for cutting lengths over 20 mm, the device should be passed through the hair several times from different directions.

6.3 Thinning hair

Use the thinning function to reduce the volume of the hair without changing its length.

- Push the slider 3 upwards towards the shaving head 10. The thinning function integrated into the shaving head 10 is extended upwards.

6.4 Cutting hairlines and beard

WARNING! Risk of injury!

- The points of the shaving head 10 are sharp. Handle with care.

• Figure A: adjust the cutting length according to the desired hair length. Press on the rear of the comb attachment 1 to adjust it, and read the cutting lengths by using the marking 11 on the side of the comb attachment 1. Now, shorten your beard step-by-step.

• It is only possible to adjust the cutting length of the comb attachment 1 when the device is switched off.
• The cutting length setting of the comb attachment 1 is only locked when the device is switched on.

NOTE: ensure that the comb attachment 1 is still firmly attached to the device after adjustment.

- Use the device only with the shaving head 10 and without comb attachment 1, to cut hair very short or to cut beard and hairline. In this way you can cut hair lengths of 1-2 mm evenly.

7. Cleaning and care

DANGER! Risk of electric shock!

- Pull the power unit 8 out of the wall socket before you clean the device.

WARNING! Risk of injury!

- Always switch off the device before cleaning it.

WARNING! Risk of material damage!

• The blades 2 of the shaving head 10 may be cleaned with water. Do not use any other liquids. Oil the blades as described in the following chapter.
• Do not use any astringent or abrasive cleaning agents.

NOTE: clean and oil the device after every use.

• Remove the comb attachment 1. Rinse the comb attachment 1 with water and let it dry before reattaching it to the device.
• Wipe down the housing of the device with a damp cloth.

Cleaning and oiling the shaving head

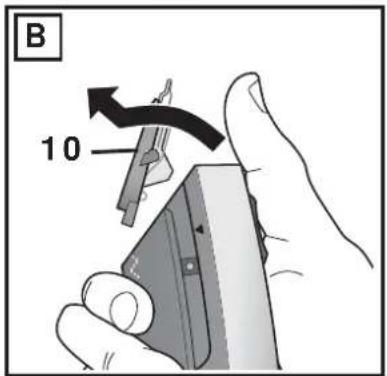

1. Figure B: remove the shaving head 10 from the device by pressing it with the thumb towards the rear.
2. Remove the hair remnants from the shaving head 10 by using the cleaning brush 14 included in the delivery.
3. Clean the blades 2 of the shaving head 10 with water. Do not use any other liquids. Let the shaving head 10 dry.

4. Apply a few drops of the supplied oil 15 to the blades 2 of the shaving head 10 and spread it out evenly. Using a soft cloth, wipe off the surplus oil, if necessary. Only use acid-free oil, such as e.g. sewing machine oil.

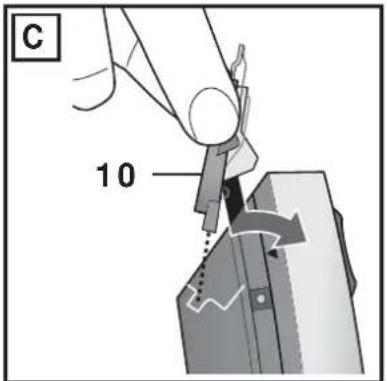

5. Figure C: guide the lug of the shaving head 10 under the edge of the housing and press the shaving head downwards onto the blades 2 until it is heard to lock in place.

8. Disposal

The battery integrated into this device must not be disposed of in household waste. The device must be disposed of properly with the battery installed.

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Two identical line diagrams of a trash bin with diagonal lines crossing it, no text or symbols present.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

9. Ordering accessories

On our website you can find information regarding the accessories that can be reordered.

Order online

shop.hoyerhandel.com

1. Scan the QR code with your smart-phone/ tablet.

2. The QR code will take you to a website where you can reorder.

10. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

- Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Is the battery empty?
The blades 2 of the shaving head 10 are not running smoothly	Has the shaving head been cleaned and the blades oiled?

11. Technical specifications

Model: SHBS 500	C2
Device: Input: 5 V	, ===⊖-⊖⊕, 1000 mA
Power unit (Model SW-050100EU / SW-050100BS):	Input: 100-240 V ~ 50/60 Hz, 0.2 A max.Output: 5 V ——⊖-⊖⊕, 1000 mA
Protection class of the power unit: II	□
Protection type of the power unit:	IP20 (protection against penetration by solid foreign objects with a diameter >12.5 mm)
Battery:	1x3,7 V Li-ion, 500 mAh
Operating temperature: -10 °C to +40 °C

Symbols used

	Double insulation
	Certified Safety. Devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produktsicherheitsgesetz - ProdSG).
	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	Devices with this symbol may only be operated indoors (dry environment).
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
PAP	Recyclable materials: cardboard (except corrugated cardboard)
	Symbol for polarity
	The power unit has the energy efficiency class 5.

Subject to technical modifications.

12. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number
  IAN: 307250 and the purchase receipt as a purchase verification for all inquiries.
• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/ Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/ Min., (peak))

(0,06 EUR/ Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 307250

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Tasköprüstraße 3

DE-22761 Hamburg

GERMANY

Indhold

Two identical line diagrams of a trash bin with crosshair marks, no text or symbols present.

Emballage

shop.hoyerhandel.com

Two identical line diagrams of a trash bin with diagonal lines crossing, no text or symbols present.

shop.hoyerhandel.com

Two identical line diagrams of a trash bin with diagonal cross lines, no text or symbols present.

Verpakking

shop.hoyerhandel.com

Two identical line-drawn trash bin symbols with diagonal lines crossing each other, no text or labels present.

Συσκευασία

shop.hoyerhandel.com

Two identical line-drawn icons of a trash bin with crossed x- and y-axes, no text or symbols present.

shop.hoyerhandel.com
