Product Type	Wine Cooler (Wine Cellar)
Brand	Logik
Model	LWC28B1T16E
Wine Bottle Capacity	28 bottles (0.75L each)
Storage Volume	70 L
Temperature Range	11°C – 18°C
Design Temperature	18°C
Climate Class	N (ambient 16°C – 32°C)
Energy Consumption	164 kWh/year
Energy Efficiency Class	B
Rated Voltage	220-240V~ 50Hz
Rated Current	0.55 A
Overall Dimensions (W x D x H)	450 mm x 525 mm x 725 mm
Defrosting Type	Frost Free
Noise Level	35 dB(A)
Number of Shelves	7
Interior Light	Yes, with button control
Temperature Units	Switchable °C/°F
Levelling Feet	Yes, adjustable
Free Space Requirements	25 mm sides, 50 mm rear, 25 mm top
Intended Use	Indoor household and similar; not for food storage

Frequently Asked Questions - LWC28B1T16E Logik

How do I turn on the wine cooler?

Connect the mains cable to the socket. Press the ▲ button to set the operating temperature. The unit will start cooling.

How do I change between Fahrenheit and Celsius?

Press the °F/°C button on the control panel to switch between temperature units.

How do I turn the interior light on or off?

Press the Light Control Button to switch the interior light on or off.

What is the maximum number of wine bottles I can store?

The wine cooler can hold up to 28 bottles of 0.75L each.

How should I clean the wine cooler?

Clean the interior with a weak solution of bicarbonate soda and warm water, then dry thoroughly. Wipe the exterior with a damp cloth.

Why is there condensation on the outside?

Condensation may appear due to changes in room temperature. Wipe off moisture. If it persists, contact a qualified service agent.

How do I level the wine cooler?

Adjust the levelling feet at the bottom until the unit is stable and the door seals properly.

What does the energy efficiency class B mean?

It means the wine cooler has an energy consumption of 164 kWh per year, which is within the middle range for this category.

Can I store food in this wine cooler?

No, this appliance is intended for wine storage only. Do not store food in it.

How long should I wait before using the wine cooler after moving it?

Wait at least 2 hours after moving to allow the coolant fluid to settle before turning on.

USER MANUAL LWC28B1T16E Logik

Interior view of a modern refrigerator with open shelves and ventilation grilles (no visible text or symbols)

Safety Warnings....7

Unpacking 12

Installation....13

Location....13

Levelling the Unit....13

Free Space Requirements....13

Cleaning Before Use....13

Before Using Your Unit 13

Product Overview....14

Control Panel 14

Operation 15

Switching On Your Wine Cooler 15

Changing between Fahrenheit and Celsius 15

Switching On or Off the Interior Light....15

Stacking the Wine Bottles 15

Storing Wine in Your Wine Cooler 16

Filling Your Wine Cooler....16

Keep the Door Closed....16

Cleaning 17

Cleaning the Inside of the Wine Cooler....17

Cleaning the Outside of the Wine Cooler....17

Maintenance 18

Changing the Internal Light....18

Care When Handling 18

Installation....18

Servicing....18

Switching Off for Long Periods of Time....18

Condensation....18

Disposal....18

Specifications....19

Product Fiche 19

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:

– staff kichen areas in shops, office and other working environment;

– farm houses and by clients in hotels, motels and other residential type environments,

— bed and breakfast type environments;

– catering and similar non-retail applications.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• Children should be supervised to ensure that they do not play with the unit.

• The unit must be manoeuvred by a minimum of 2 persons.

- The unit is not intended to be used exclusively for the storage of wine. Do not store food in this unit.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Keep the appliance and its mains cable out of the reach of children.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use electrical appliances inside the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes).
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

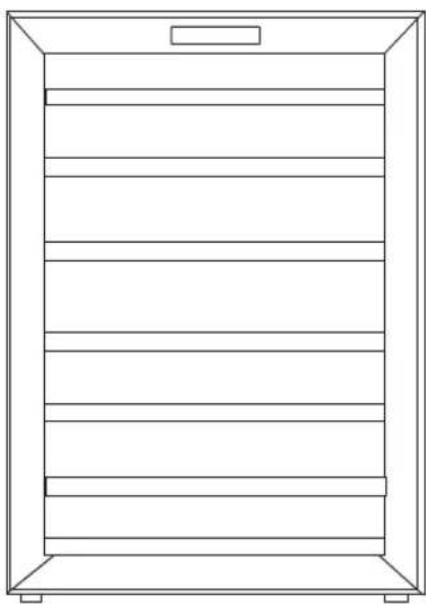

Line drawing of a vertical shelf or rack cabinet with horizontal shelves and a top bracket (no text or symbols)

Main Unit

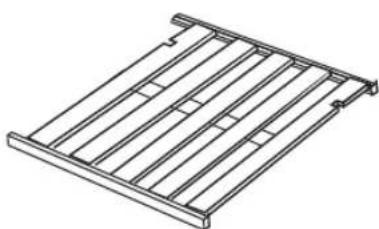

Isometric line drawing of a metal rack structure with slats and supports (no text or symbols)

Shelf x 7 Instruction Manual

Location

When selecting a position for your unit make sure the floor is flat and firm, and that the room is well ventilated with an average room temperature of between 16^ C and 25^ C. Placing the unit in an environment out of this temperature range may affect the cooling performance, designed storage temperature range 11^ C - 18^ C may not be reached. Avoid locating your unit near a heat source, e.g. a cooker, boiler or radiator. Avoid direct sunlight.

Levelling the Unit

To do this adjust the levelling feet of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

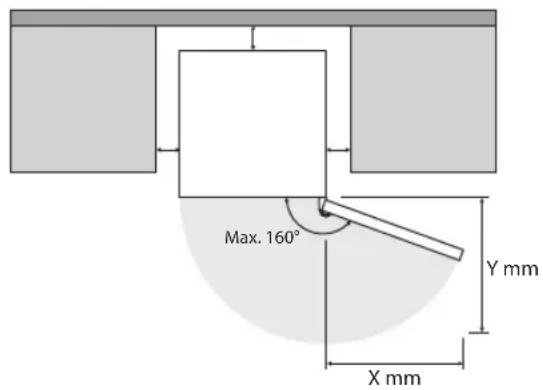

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle of 160^ .

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and bottle rack. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any wine in the unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

GB

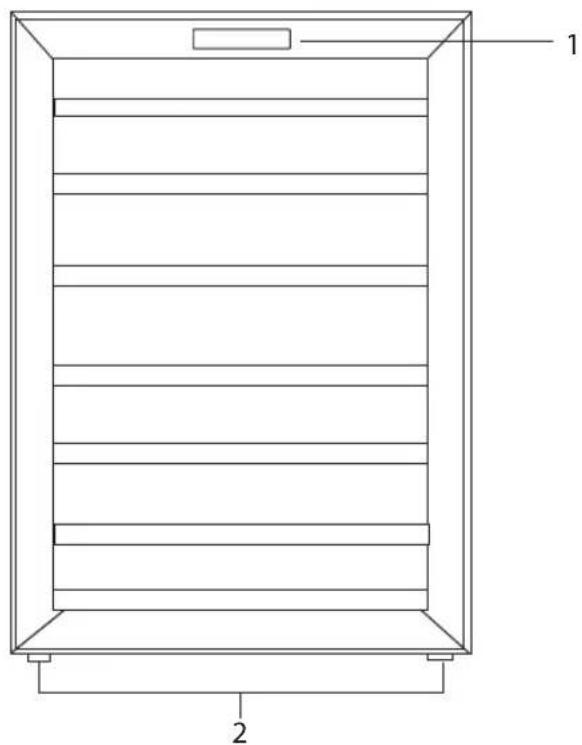

Line drawing of a vertical storage cabinet or rack unit with labeled parts 1 and 2 (no text or symbols on the diagram itself)

1. Control Panel

2. Levelling Feet

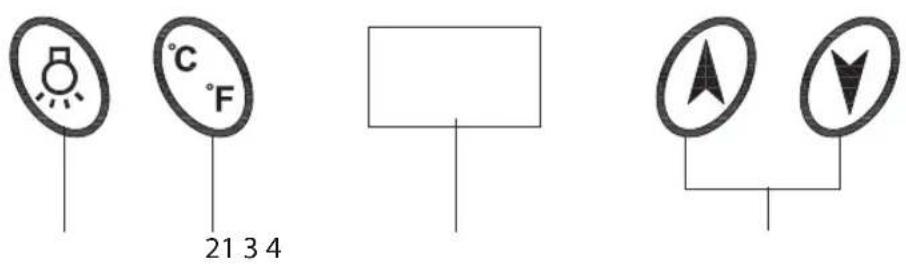

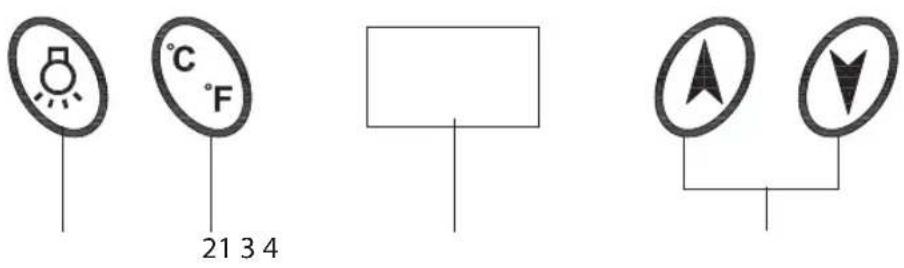

Control Panel

1. Light Control Button

2. Fahrenheit °F / Celsius °C Button

3. Display

4. Temperature Up / Down Buttons

Switching On Your Wine Cooler

Connect the mains cable to the mains socket. Set the operating temperature. Press ▲ to adjust the temperature.

Changing between Fahrenheit and Celsius

Press to change the temperature unit.

Switching On or Off the Interior Light

Press to switch on or off the interior light.

When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the display. This is normal and is due to the length of the activation time. Once the wine cooler is running for a few hours everything will be back to normal.

If you are concerned that the temperature display of wine cooler is not correct and wish to check the temperature you will need a special fridge/freezer thermometer. You may also need a hygrometer to check the humidity of your wine cooler. These are available from most supermarkets and hardware shops.

Place the thermometer and hygrometer on the middle shelf of the wine cooler, where it can be read easily. Leave overnight, compare the temperature of the thermometer and the display in the wine cooler. The humidity in the wine cooler should be between 50%-80% RH depending on the type of wine.

Stacking the Wine Bottles

The shelf system has been designed so that a range of shelf heights can be selected. All the shelves can be adjusted.

When placing the bottles into the wine coolers, make sure there is no contact with the back inner surface.

Max Capacity : 28 bottles

Storing Wine in Your Wine Cooler

Make sure that the bottles are lying on their sides. This ensures that the wine inside is in contact with the cork, which stops the cork from drying out, shrinking, letting air in and spoiling the wine. After a bottle has been opened, the wine comes into contact with air which will start to oxidise the wine. This generally occurs on the wine's contact surface, leaving the remaining wine in good condition. By leaving your bottle standing, you minimise the surface area of the wine which is in contact with air.

If you're serving white, rose or sparkling wine, chill it lightly for at least 2 hours in the wine cooler before serving. Most reds should be served at room temperature, or in the case of lighter reds like Beaujolais, very slightly chilled.

Opened wine will remain in good condition for up to 2 days (for delicate whites), or 3 days (for rich reds), as long as the bottle is resealed and stored in your wine cooler. Special stoppers that keep sparkling wine and champagne bubbling for 1 or 2 days after opening can be bought at most good wine shops. When storing leftover wine, attempt to minimise the oxidation process of the wine. You can use a 'vacuum' which pumps out the air from the bottle leaving it semi-vacuum. The wine should last for about two weeks.

However, if it is a good quality wine and you intend to finish it within one week, all you'll need to do is to replace the cork and leave it standing in your wine cooler.

Different wines are best kept at different temperatures.

Serving Temperatures

Wine Type °F °C

Rose Wine 48-54 9-12

White Wine 48-58 9-14

Sherry (Light) 48-58 9-14

Red Wine 57-64 13-18

Fortified Wine 57-64 13-18

Sherry (Dark) 57-64 13-18

Filling Your Wine Cooler

When filling your wine cooler the greater the amount of cans and bottles placed inside the wine cooler from room temperature, the longer it will take to cool them to the desired temperature. You may wish to temporarily adjust the temperature to a lower setting to speed up the cooling process. If you do this remember to return it to the previous setting once the drinks have reached the required temperature in order to conserve energy.

Keep the Door Closed

To prevent cold air from escaping, limit the number of times your open the door.

Cleaning the Inside of the Wine Cooler

There is usually no need to defrost the wine cooler as any ice that is deposited on the back wall will defrost automatically.

1. Before cleaning the wine cooler always disconnect the mains supply.
2. Remove all the shelves and detachable accessories and wash in warm soapy water, rinse and dry thoroughly.
3. You should clean the interior of the wine cooler with a damp cloth.
4. Check that the drain outlet at the rear wall of the wine cooler compartment is clear of debris as this will affect the automatic defrosting.
5. Empty the water collection tray at the back of the unit. Rinse and dry thoroughly before replacing.
6. Do not let liquid get into the controls or the light.
7. It may be necessary to periodically wipe the bottom part of the storage area.
8. Never clean the appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
9. Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire or explosion.

Cleaning the Outside of the Wine Cooler

Use a damp cloth to clean the wine cooler exterior and a glass cleaner to clean the door. Make sure that the door is closed, to prevent cleaners from getting on the magnetic door seal or inside.

Changing the Internal Light

This is not a user-serviceable part. Please contact a qualified engineer to replace the light for you.

Care When Handling

Ensure the unit is empty and all loose items are secured before moving it. Hold the wine cooler around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Installation

Don't cover or block the sides of your wine cooler. - Keep out of direct sunlight and away from heat sources.

Servicing

This wine cooler should be serviced by a qualified service agent and only genuine spare parts should be used. Under no circumstances should you attempt to repair the wine cooler yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

Switching Off for Long Periods of Time

When the wine cooler is not in use for a long period of time, disconnect it from the mains supply, empty all wine and clean the wine cooler. Leave the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the wine cooler. This maybe due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified service agent for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant and insulation materials used in the unit require special disposal procedures.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

If your unit is fitted with a lock, to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Rated Voltage	220-240V~ 50Hz
Rated Current	0.55 A
Wine Storage Capacity	28 bottles x 0.75L
Storage Temperature	11°C – 18°C
Overall Dimension (W x D x H)	450 mm x 525 mm x 725 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand: Logik

Model: LWC28B1T16E

Household Appliances Category: Category 10

Energy Grading: B

Energy Consumption 164 kWh/year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

Storage Volume: 70 L

Design Temperature: 18°C

Defrosting Type: Frost Free

Temperature Rise Time: N/A

Freezing Capacity: N/A

Climate Class: N. This appliance is intended to be used at an ambient temperature between 16^ C and 32^ C.

Airborne Acoustical Noise: 35 dB(A) re 1 pW

This appliance is not intended to be used exclusively for the storage of wine.

Takk for at du kjøpte ny produkt.

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Hovedenheten

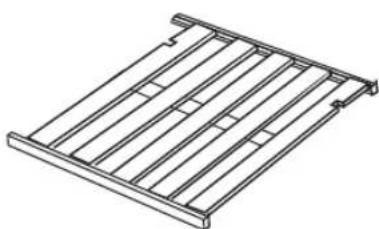

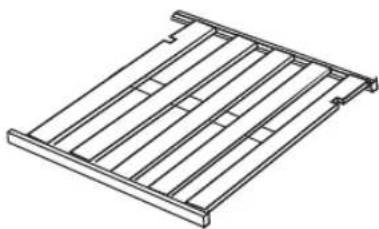

Isometric line drawing of a metal rack structure with slats and supports (no text or symbols)

Line drawing of a vertical storage cabinet or rack unit with labeled parts 1 and 2 (no text or symbols on the diagram itself)

Line drawing of a rectangular cabinet or rack unit with horizontal shelves and a top bracket (no text or symbols)

Huvudenheten

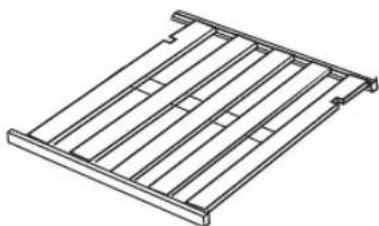

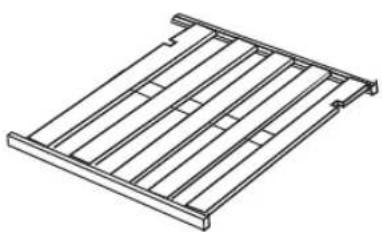

Isometric line drawing of a metal grate structure (no text or symbols)
