USER MANUAL LWC48X15E Logik

Exterior view of a modern stainless steel refrigerator with open doors and glass shelves (no visible text or symbols)

Safety Warnings....8

Unpacking....13

Installation....14

Location....14

Levelling the Unit....14

Free Space Requirements....14

Installing the Unit....14

Installing the Door Handle ....15

Cleaning Before Use....15

Before Using Your Unit 15

Product Overview....16

Control Panel 16

Operation 17

Switching On Your Wine Cooler 17

Changing between Fahrenheit and Celsius 17

Switching On or Off the Interior Light....17

Stacking the Wine Bottles 17

Storing Wine in Your Wine Cooler 18

Filling Your Wine Cooler....18

Keep the Door Closed....18

Cleaning 19

Cleaning the Inside of the Wine Cooler....19

Cleaning the Outside of the Wine Cooler....19

Maintenance 20

Changing the Internal Light....20

Care When Handling 20

Installation....20

Servicing....20

Switching Off for Long Periods of Time....20

Condensation 20

Disposal 21

Specifications....22

Product Fiche 22

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – staff kichen areas in shops, office and other working environment;
  – farm houses and by clients in hotels, motels and other residential type environments,
  – bed and breakfast type environments;
  – catering and similar non-retail applications.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• Children should be supervised to ensure that they do not play with the unit.

• The unit must be manoeuvred by a minimum of 2 persons.

- The wine cooler is intended to be used exclusively for the storage of wine. Do not store food in this wine cooler.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Keep the appliance and its mains cable out of the reach of children.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use electrical appliances inside the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes).

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Wine Cooler.

We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a double-door refrigerator with no text or symbols on the frame (pure technical lines)

Main Unit

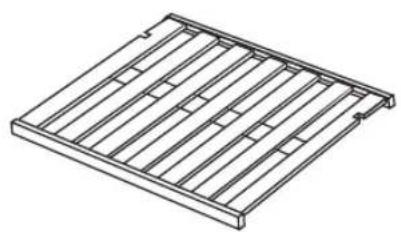

Isometric line drawing of a rectangular metal grate or rack structure with evenly spaced slots (no text or symbols)

Door HandleShelf x 4 Instruction Manual

INSTALLATION

Location

When selecting a position for your unit make sure the floor is flat and firm, and that the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. a cooker, boiler or radiator. Avoid direct sunlight. If you are placing your unit in an outbuilding such as a garage or annex ensure that the unit is placed above the damp course, otherwise condensation will occur on the cabinet. Never place the unit in a wall recess or into fitted cabinets or furniture.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

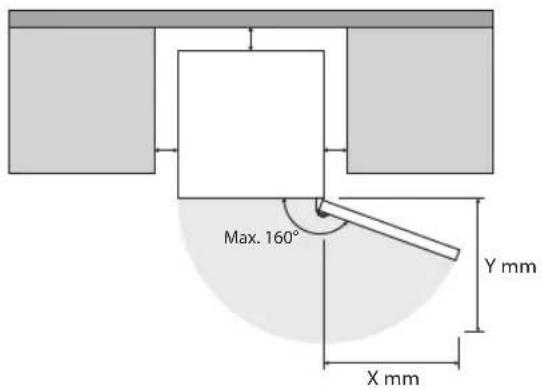

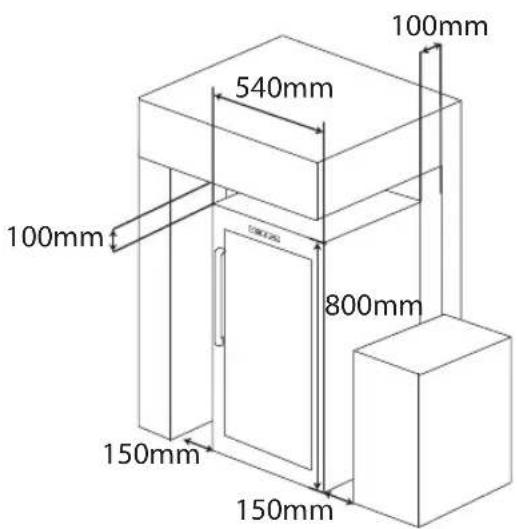

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle of 160°.

Installing the Unit

Your wine cooler can be used as a freestanding or an undercounter unit.

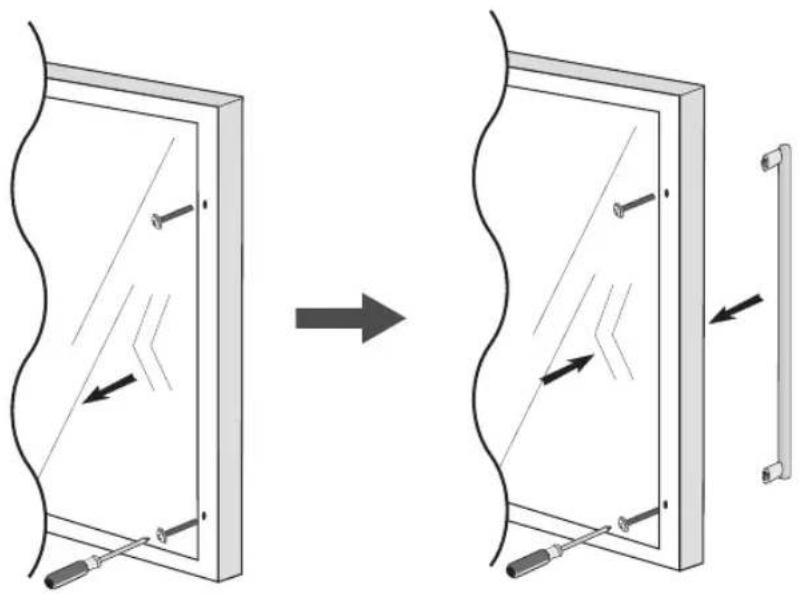

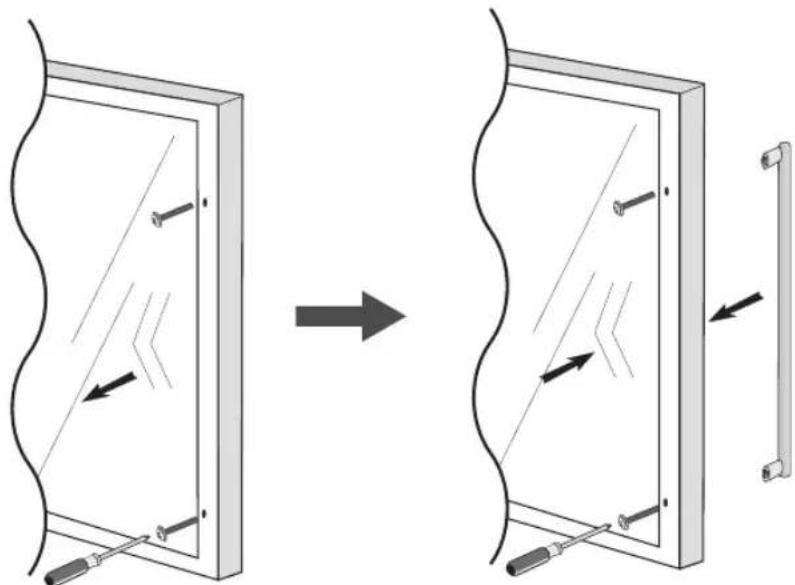

Installing the Door Handle

Diagram showing a device transitioning from a wavy panel to a rectangular frame with arrows indicating motion (no text or symbols present)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and bottle rack. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any wine in the unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

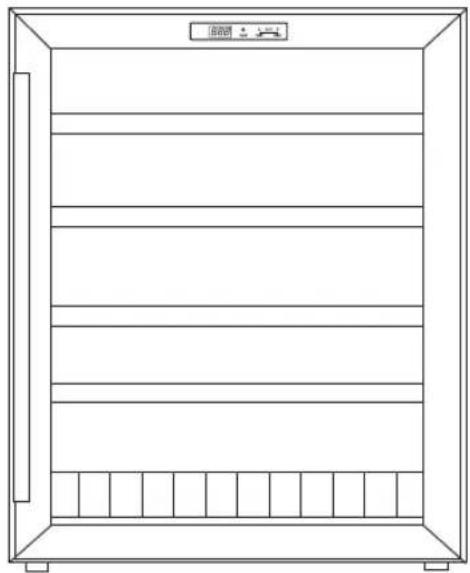

Line drawing of a rectangular oven or refrigerator with labeled parts (1 and 2), no text or symbols present.

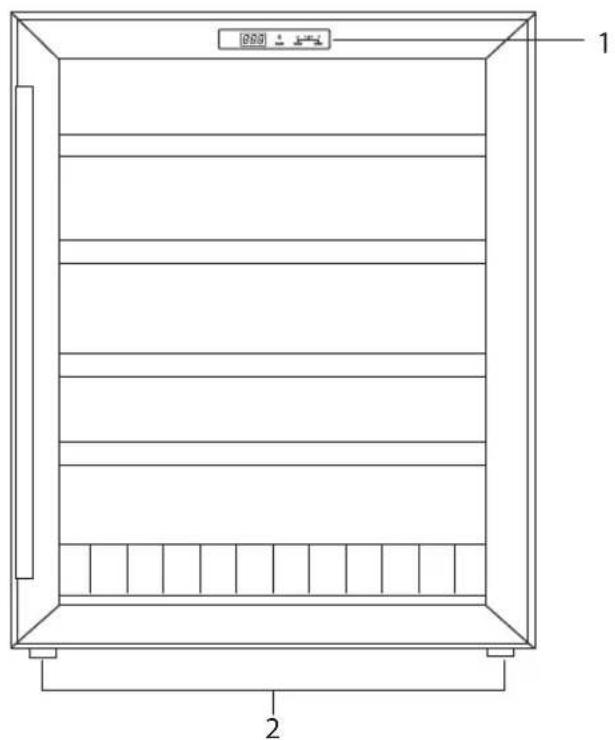

1. Control Panel

2. Levelling Feet

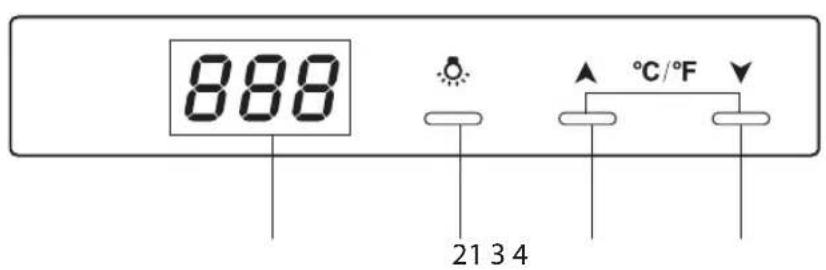

Control Panel

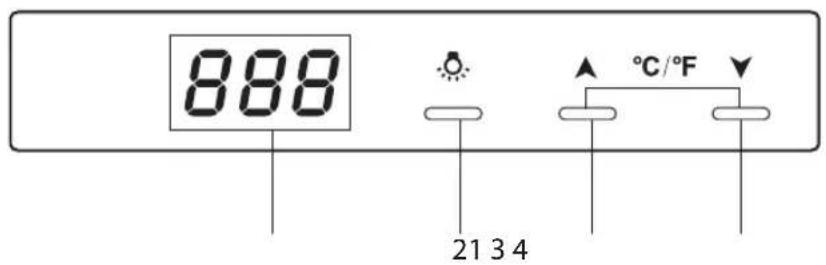

1. Display

2. Temperature increase button

3. Light Control Button

4. Temperature decrease button

Switching On Your Wine Cooler

Connect the mains cable to the mains socket. Set the operating temperature. Press ▲ to adjust the temperature.

Changing between Fahrenheit and Celsius

Press and hold ▲ to change the temperature unit.

Switching On or Off the Interior Light

Press to switch on or off the interior light.

When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the display. This is normal and is due to the length of the activation time. Once the wine cooler is running for a few hours everything will be back to normal.

If you are concerned that the temperature display of wine cooler is not correct and wish to check the temperature you will need a special fridge/freezer thermometer. You may also need a hygrometer to check the humidity of your wine cooler. These are available from most supermarkets and hardware shops.

Place the thermometer and hygrometer on the middle shelf of the wine cooler, where it can be read easily. Leave overnight, compare the temperature of the thermometer and the display in the wine cooler. The humidity in the wine cooler should be between 50%-80% RH depending on the type of wine.

Stacking the Wine Bottles

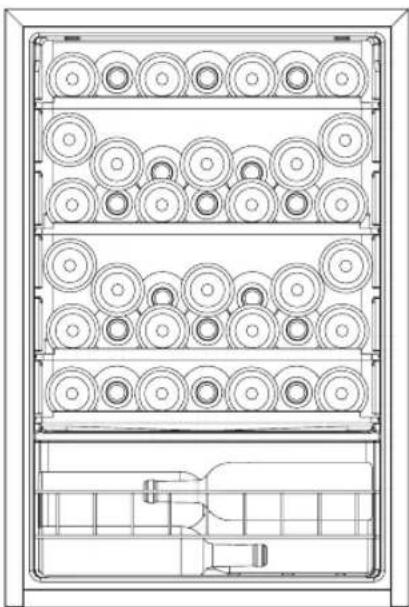

The shelf system has been designed so that a range of shelf heights can be selected. All the shelves can be adjusted. There is also a bottle rack at the bottom of the wine cooler.

When placing the bottles into the wine coolers, make sure there is no contact with the back inner surface.

Max Capacity : 48 bottles

Technical line drawing of a multi-tiered storage unit with circular components and a central mechanism (no text or symbols)

Storing Wine in Your Wine Cooler

One benefit of your new wine cooler is that you can simulate the conditions of a wine cellar.

By using a wine cooler thermometer you can ensure a constant temperature of around 4^ C - 18^ C, which is ideal for storing wine. Make sure that the bottles are lying on their sides. This ensures that the wine inside is in contact with the cork, which stops the cork from drying out, shrinking, letting air in and spoiling the wine. After a bottle has been opened, the wine comes into contact with air which will start to oxidise the wine. This generally occurs on the wine's contact surface, leaving the remaining wine in good condition. By leaving your bottle standing, you minimise the surface area of the wine which is in contact with air.

If you're serving white, rose or sparkling wine, chill it lightly for at least 2 hours in the wine cooler before serving. Most reds should be served at room temperature, or in the case of lighter reds like Beaujolais, very slightly chilled.

Opened wine will remain in good condition for up to 2 days (for delicate whites), or 3 days (for rich reds), as long as the bottle is resealed and stored in your wine cooler. Special stoppers that keep sparkling wine and champagne bubbling for 1 or 2 days after opening can be bought at most good wine shops. When storing leftover wine, attempt to minimise the oxidation process of the wine. You can use a 'vacuum' which pumps out the air from the bottle leaving it semi-vacuum. The wine should last for about two weeks.

However, if it is a good quality wine and you intend to finish it within one week, all you'll need to do is to replace the cork and leave it standing in your wine cooler.

Different wines are best kept at different temperatures.

Serving Temperatures

Wine Type °F °C

Rose Wine 48-54 9-12

White Wine 48-58 9-14

Sherry (Light) 48-58 9-14

Red Wine 57-64 13-18

Fortified Wine 57-64 13-18

Sherry (Dark) 57-64 13-18

Filling Your Wine Cooler

When filling your wine cooler the greater the amount of cans and bottles placed inside the wine cooler from room temperature, the longer it will take to cool them to the desired temperature. You may wish to temporarily adjust the temperature to a lower setting to speed up the cooling process. If you do this remember to return it to the previous setting once the drinks have reached the required temperature in order to conserve energy.

Keep the Door Closed

To prevent cold air from escaping, limit the number of times your open the door.

Cleaning the Inside of the Wine Cooler

There is usually no need to defrost the wine cooler as any ice that is deposited on the back wall will defrost automatically.

1. Before cleaning the wine cooler always disconnect the mains supply.
2. Remove all the shelves and detachable accessories and wash in warm soapy water, rinse and dry thoroughly.
3. You should clean the interior of the wine cooler with a damp cloth.
4. Check that the drain outlet at the rear wall of the wine cooler compartment is clear of debris as this will affect the automatic defrosting.
5. Empty the water collection tray at the back of the unit. Rinse and dry thoroughly before replacing.
6. Do not let liquid get into the controls or the light.
7. It may be necessary to periodically wipe the bottom part of the storage area.
8. Never clean the appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
9. Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire or explosion.

Cleaning the Outside of the Wine Cooler

Use a damp cloth to clean the wine cooler exterior and a glass cleaner to clean the door. Make sure that the door is closed, to prevent cleaners from getting on the magnetic door seal or inside.

Maintenance

Changing the Internal Light

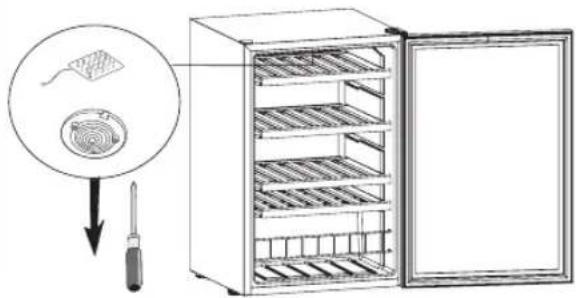

All parts removed must be saved to do the replacement of the light bulb. Before removing the light bulb, either unplug the wine cooler or disconnect the electricity from the main power supply. Failure to do so could result in an electrical shock or personal injury.

1. Remove the screw with a Philips screwdriver.
2. Remove the light bulb cover by pulling the bottom end of the light bulb cover gently.
3. Remove the screw on the light bulb panel.
4. Replace with a 0.5 Watts (12 V) bulb panel that is the same shape and size, and then tighten the screw.
5. Replace the light bulb cover and then tighten the screw.

Care When Handling

Ensure the unit is empty and all loose items are secured before moving it. Hold the wine cooler around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Installation

Don't cover or block the sides of your wine cooler. - Keep out of direct sunlight and away from heat sources.

Servicing

This wine cooler should be serviced by a qualified service agent and only genuine spare parts should be used. Under no circumstances should you attempt to repair the wine cooler yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

Switching Off for Long Periods of Time

When the wine cooler is not in use for a long period of time, disconnect it from the mains supply, empty all wine and clean the wine cooler. Leave the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the wine cooler. This maybe due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified service agent for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant and insulation materials used in the unit require special disposal procedures.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

If your unit is fitted with a lock, to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Specifications

Rated Voltage	220-240V~ 50Hz
Rated Current	0.55 A
Wine Storage Capacity	48 bottles x 0.75L
Storage Volume	128 L
Storage Humidity	50 - 80%
Refrigerant	R600a (32g)
Overall Dimension (W x D x H)	540 mm (W) x 580 mm (D) x 830 mm (H)

Features and specifications are subject to change without prior notice.

Product Fiche

Brand: Logik

Model: LWC48X15E

Household Appliances Category: Category 2 (wine storage appliances)

Energy Grading: B

Energy Consumption 195 kWh/year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

Storage Temperature: 4^ C – 18^ C

Defrosting Type: Frost Free

Temperature Rise Time: N/A

Freezing Capacity: N/A

Climate Class: N, SN. This appliance is intended to be used at an ambient temperature between 16^ C and 32^ C.

Airborne Acoustical Noise: 42 dB(A) re 1 pW

This appliance is intended to be used exclusively for the storage of wine.

Line drawing of a double-door refrigerator with no text or symbols on the frame (pure technical lines)

Hovedenheten

Isometric line drawing of a rectangular metal grate or rack structure with evenly spaced slots (no text or symbols)

Two identical diagrams showing a checkmark and a cross symbol on a stand, no text or labels present.

Montere enheten

Diagram showing a device transitioning from a rectangular frame to a vertical wall, with arrows indicating motion or movement (no text or symbols present)

Line drawing of a rectangular storage cabinet with labeled parts (1 and 2), no text or symbols present.

Technical line drawing of a multi-tiered cylindrical mechanical or electrical enclosure with no visible text or symbols

Å lagre vin i vinkjøleren

En fordel med din nye vinkjøler er at du kan stimulere forholdene som er i en vinkjeller.

Line drawing of a double-door refrigerator with no text or symbols on the cabinet itself

Huvudenheten

Isometric line drawing of a metal grate or rack structure with no text or symbols

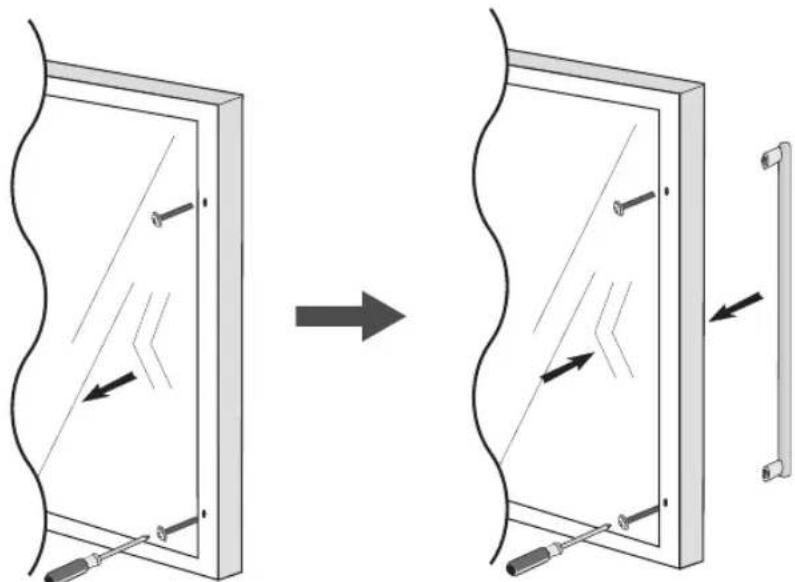

Montera dörrhandtaget

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Line drawing of a rectangular storage cabinet with labeled parts (1 and 2), no text or symbols present.

Technical line drawing of a multi-tiered storage unit with circular components and a central device (no text or symbols)

Line drawing of a double-door refrigerator with no text or symbols on the frame (pure technical lines)

Laitet

Isometric line drawing of a rectangular metal frame with vertical slats (no text or symbols)

Two identical diagrams showing a checkmark inside a document and a cross inside a monitor, both on a stand (no text or symbols)

Oven kahvan asentaminen

Diagram showing a wall-mounted device before and after assembly, with arrows indicating motion direction (no text or symbols)

Line drawing of a rectangular storage cabinet with labeled parts (1 and 2), no text or symbols present.

FI

Line drawing of a double-door refrigerator with no text or symbols on the cabinet itself

Vinskabet

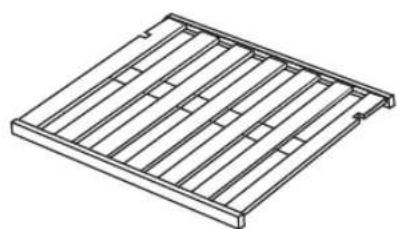

Isometric line drawing of a rectangular metal grate or rack structure with evenly spaced slots (no text or symbols)

Krav til plads

Diagram showing a device transitioning from a wavy panel to a rectangular frame with arrows indicating motion (no text or symbols present)

Rengøring før brug

Line drawing of a rectangular oven or refrigerator with labeled parts (1 and 2), no text or symbols present.

DK

1. Kontrolpanel

2. Nivelleringsfødder

Kontrolpanel

Technical line drawing of a multi-tiered storage unit with circular components and internal compartments (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
