USER MANUAL LWC32B10 Logik

Interior view of a modern stainless steel refrigerator with closed doors and rack compartments (no visible text or labels)

Blank grayscale gradient background with no text, symbols, or discernible features

Contents

Unpacking 4

Installation....5

Location....5

Reversing the Door Swing....5

Levelling the Unit 7

Cleaning Before Use 7

Before Using Your Unit....7

Product Overview 8

Operation 9

Switching On Your Wine Cooler 9

Using the humidifier....10

Filling water in humidifier 10

Stacking the Wine Bottles....10

The Internal Light 10

Noises Inside the Wine Cooler ....11

Storing Wine in Your Wine Cooler....11

Filling Your Wine Cooler 12

Space Around the Wine Cooler 12

Keep the Door Closed....12

Cleaning 13

Cleaning the Inside of the Wine Cooler....13

Cleaning the Outside of the Wine Cooler....13

Cleaning Tips....13

Maintenance 14

Changing the Internal Light 14

Care When Handling 14

Installation....14

Servicing....14

Switching Off for Long Periods of Time....14

Disposal....14

Specification 15

Safety Warnings....16

Thank you for purchasing your new Logik Wine Cooler.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

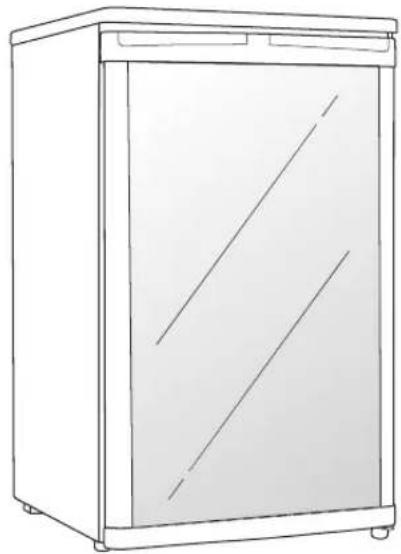

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a rectangular kitchen appliance with a double door and side panel (no text or symbols)

The Main Unit

Top Adjustable Shelf
P.N.: Cjj04A

Adjustable Shelves x 4
P.N.: Cjj04

Shelf
P.N.: Cjj02-01

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Bottle Rack
P.N.: Cjj-14

Instruction Manual
P.N.: LWC32B10-002

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

INSTALLATION

Location

When selecting a position for your unit make sure the floor is flat and firm, and that the room is well ventilated with an average room temperature of between 16^ C and 32^ C. Avoid locating your unit near a heat source, e.g. a cooker, boiler or radiator. Avoid direct sunlight. If you are placing your unit in an outbuilding such as a garage or annex ensure that the unit is placed above the damp course, otherwise condensation will occur on the cabinet. Never place the unit in a wall recess or into fitted cabinets or furniture.

When installing the unit, ensure that 2 cm of free space is left at both sides and 3 cm at the rear of the unit. The door can open to the right or the left, depending on what better suits the location. Please ensure there is adequate space for the door to fully open.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
• All parts removed must be saved to do the reinstallation of the door. You should rest the unit on something solid so that it will not slip during the door change process. Do not lay the unit flat as this may damage the coolant system. Ensure the unit is unplugged and empty.

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door. You should rest the unit on something solid so that it will not slip during the door reversing process.

• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• Tilt the unit carefully. 2 people are required to tilt the unit during the door reversing process.

• Remove the two screws that hold the lower hinge (Right side) to the frame. Also, remove the levelling foot. Remove the left levelling foot and transfer it to the right side.

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

INSTALLATION

1. Place the two screws, the bottom bracket and the levelling feet to one side.
2. Lift the door and place it on a padded surface to prevent scratching it.
3. Remove the top hinge pin and spring inside. Refit on to the opposite side.
4. Set the door back on to the top hinge. Screw the bottom hinge into place on the new side. Also screw in the levelling foot.
5. Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet.

Technical line drawings of mechanical components including a cylindrical pin, flange, and three cylindrical knobs (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Line drawing of a mechanical component with arrows indicating motion, no text or symbols present

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a single refrigerator with lid and frontrest (no text or symbols)

INSTALLATION

Levelling the Unit

To do this use the two levelling feet at the front of the unit.

If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and bottle rack. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any wine in the unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

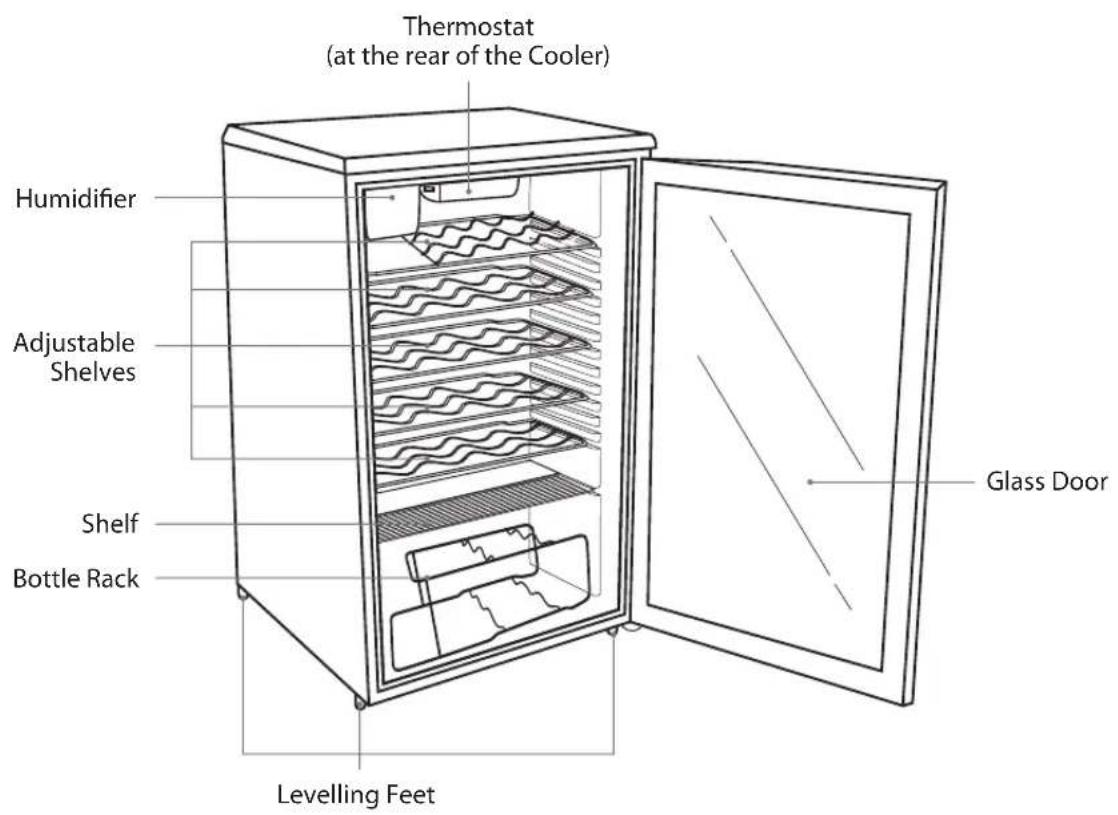

Product Overview

Operation

Switching On Your Wine Cooler

1. The internal temperature of the wine cooler is controlled by a thermostat. There are four settings MIN, NORMAL, MAX and SUPER.
2. Before connecting the wine cooler to the mains socket, make sure that the thermostat control dial, located at the rear of the wine cooler on the right hand side is set to MAX. Connect the mains cable to the mains socket.
3. After the wine cooler has been on for 20 minutes adjust the thermostat control dial to NORMAL. This is the recommended setting when operating at normal room temperature (between 16°C and 32°C).
4. The wine cooler may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
5. If you are concerned that the wine cooler is not being kept cold enough and wish to check the temperature you will need a special fridge/freezer thermometer. You may also need a hygrometer to check the humidity of your wine cooler. These are available from most supermarkets and hardware shops.

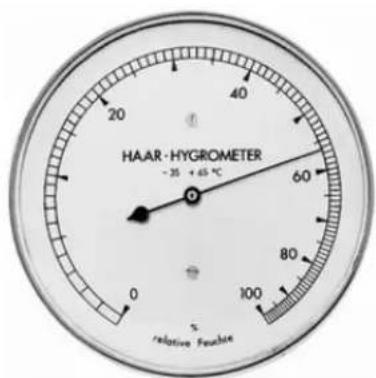

Place the thermometer and hygrometer on the middle shelf of the wine cooler, where it can be read easily. Leave overnight, the temperature in the wine cooler should be between 5°C and 20°C and the humidity in the wine cooler should be between 50%-80% RH depending on the type of wine.

THERMOSTAT CONTROL DIAL

In the MIN position the wine cooler will not operate, but the power supply remains connected.

Using the humidifier

Using the humidifier can protect wine from too much or too less humidity. If your wine cooler is too dry (below 50% RH), the cork dries up. The air can get into the wine and alter its composition.

But the humidity of the wine cooler can't be too high (above 80% RH), as the humidity damages the cork and the smell of the cork will go into the wine.

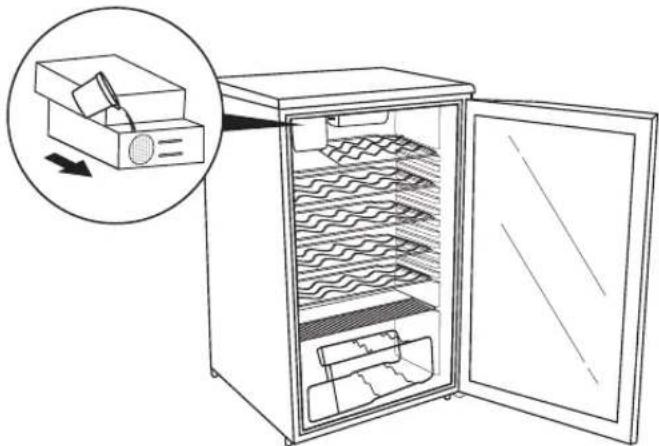

Filling water in humidifier

1. Take out the wine bottle from the bottle rack.
2. No need to remove the humidifier.
3. Use a bottle to fill water into the water tank to the level of 350 ml.
4. Remember to fill water every 6 days (depending on the actual humidity in your wine cooler).

Line drawing of an open refrigerator with a drawer and lid, showing internal storage racks (no text or symbols)

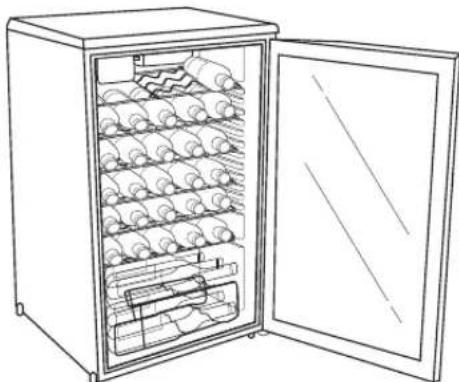

Stacking the Wine Bottles

The shelf system has been designed so that a range of shelf heights can be selected. All the shelves can be adjusted. There is also a bottle rack at the bottom of the wine cooler.

Max Capacity: 32 bottles

The Internal Light

The wine cooler has an internal light which can be left on while the glass door is shut. Switch the ON/OFF button as desired.

The temperature inside the wine cooler will be higher if the internal light is left on.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Noises Inside the Wine Cooler

You may notice that your wine cooler makes some unusual noises. These noises are perfectly normal, and are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your wine cooler.

This is the compressor motor working, as it pumps the refrigerant around the system.

Storing Wine in Your Wine Cooler

One benefit of your new wine cooler is that you can simulate the conditions of a wine cellar.

By using a wine cooler thermometer you can ensure a constant temperature of around 5-20°C, which is ideal for storing wine. Make sure that the bottles are lying on their sides. This ensures that the wine inside is in contact with the cork, which stops the cork drying out, shrinking, letting air in and spoiling the wine. After a bottle has been opened, the wine comes into contact with air which will start to oxidise the wine. This generally occurs on the wine's contact surface, leaving the remaining wine in good condition. By leaving your bottle standing, you minimise the surface area of the wine which is in contact with air.

If you're serving white, rose or sparkling wine, chill it lightly for at least two hours in the wine cooler before serving. Most reds should be served at room temperature, or in the case of lighter reds like Beaujolais, very slightly chilled.

Opened wine will remain in good condition for up to two days (for delicate whites), or three days (for rich reds), as long as the bottle is resealed and stored in your wine cooler. Special stoppers that keep sparkling wine and champagne bubbling for one or two days after opening can be bought at most good wine shops. When storing leftover wine, attempt to minimise the oxidation process of the wine. You can use a 'vacuum' which pumps out the air in the bottle leaving a semi-vacuum. The wine should last for about two weeks.

However, if it is a good quality wine and you intend to finish it within one week, all you'll need to do is to replace the cork and leave it standing in your wine cooler.

Different wines are best kept at different temperatures. To choose the temperature at which to store your wines please consult the table below.

Serving Temperatures

Wine Type °F °C

Rose Wine 48-54 9-12

White Wine 48-58 9-14

Sherry (Light) 48-58 9-14

Red Wine 57-68 13-20

Fortified Wine 57-68 13-20

Sherry (Dark) 57-68 13-20

Filling Your Wine Cooler

When filling your wine cooler the greater the amount of cans and bottles placed inside the wine cooler from room temperature, the longer it will take to cool them to the desired temperature. You may wish to temporarily turn the Thermostat Control Dial to a higher setting to speed up the cooling process. If you do this remember to return it to the previous setting once the drinks have reached the required temperature in order to conserve energy.

Space Around the Wine Cooler

Ensure that 2 cm of free space is left at both sides and 3 cm at the rear of the wine cooler. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

Keep the Door Closed

To prevent cold air escaping, limit the number of times your open the door.

Cleaning

Cleaning the Inside of the Wine Cooler

There is usually no need to defrost the wine cooler as any ice that is deposited on the back wall will defrost automatically.

1. Before cleaning the wine cooler always switch off and disconnect the mains supply.
2. Remove all the shelves and detachable accessories and wash in warm soapy water, rinse and dry thoroughly.
3. If any ice has been deposited on the rear wall, leave the door open and wait until it begins to thaw. As the solid frost loosen, prize it away with a plastic scraper and remove. Never use metal or sharp instruments to remove the ice deposit.
4. You should clean the interior of the wine cooler with a weak solution of bicarbonate of soda.
5. Check that the drain outlet at the rear wall of the wine cooler compartment is clear of debris as this will affect the automatic defrosting.
6. Rinse the wine cooler with warm water using a clean 'wrung-out' sponge or cloth. Then, wipe it dry before replacing the shelves and accessories.
7. Plug in and switch on the mains supply.

Cleaning the Outside of the Wine Cooler

Use a damp cloth to clean the wine cooler exterior and a glass cleaner on the door. Make sure that the door is closed, to prevent polish getting on the magnetic door seal or inside.

Cleaning Tips

Condensation may appear on the outside of the wine cooler. This maybe due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Maintenance

Changing the Internal Light

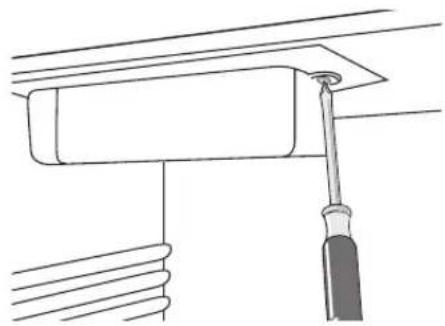

1. Before carrying out the bulb replacement always switch the internal light to OFF, then disconnect the mains supply.

2. Hold and unscrew the light bulb cover.

3. Remove the plastic light bulb cover.

4. Remove the old bulb by unscrewing in an anti-clockwise direction.

5. Replace with a new bulb (10W SES). Please make sure that it is secure in the bulb cover.

6. Refit the light bulb cover and reconnect your wine cooler to the mains supply and switch on.

Line drawing of a mechanical assembly with a screwdriver and spring-loaded component (no text or symbols)

Care When Handling

Hold the wine cooler around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Installation

Don't cover or block the sides of your wine cooler.

Servicing

This wine cooler should be serviced by a qualified technician and only genuine spare parts should be used. Under no circumstances should you attempt to repair the wine cooler yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

Switching Off for Long Periods of Time

When the wine cooler is not in use for a long period of time, disconnect it from the mains supply, empty all wine and clean the wine cooler, leaving the door ajar to prevent unpleasant smells.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant and insulation materials used in the unit require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

If your unit is fitted with a lock, to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Specification

Model LWC32B10
Rated Voltage 230V
Rated Frequency 50Hz
Overall Dimension (Height x Depth x Width)	504 x 514 x 845mm
Overall Gross Volume	112L4.0 cubic feet
Storage Volume	110L3.9 cubic feet
Storage Temperature +5 - +20 °C
Wine Storage Compartment Humidity 50 - 80%
Refrigerant R600a / 19g
Weight 29kg

Features and specifications are subject to change without prior notice.

Safety Warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• Keep ventilation openings in the unit enclosure clear of obstructions.
• Do not use electrical appliances inside the unit, unless they are of the type recommended by the manufacturer.
• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
• Do not discard old refrigerators at will in order to avoid environment pollution.
• Young children should be supervised to ensure that they do not play with the unit.
• Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user).
  • The unit must be maneuvered by a minimum of 2 persons.
• The wine cooler is intended to be used exclusively for the storage of wine. Do not store food in this wine cooler.
• This unit is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the unit by a person responsible for their safety.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or flammable substances in the unit.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Normal energy consumption

Installation site

In a ventilated room. In an enclosed, unventilated room.

Protected from direct sunlight. In direct sunlight.

Not situated near to a heat source (radiator, oven).

Where the ideal ambient room temperature is approx 20^ C.

Increased energy consumption

Situated near to a heat source (radiator, oven).

Where there is a high ambient room temperature.

Use

Only open the doors when necessary and for as short a time as possible.

Store wine in an organised way. If wine is not stored in an organised way, searching for an item will mean the door is open for longer.

Do not over-fill the unit to allow air to circulate.

Frequent opening of the doors for long periods will cause a loss of coldness.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Top Adjustable shelf Cjj04A
Adjustable shelf Cjj04
Shelf Cjj02-01
Bottle Rack Cjj-14

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available

we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England

(P.N.: LWC32B10-002)

Blank gray gradient rectangle with no text, symbols, or discernible features
