Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.
| Technical specifications | |||
| VP4360 VP4370 VP4380 | |||
| Battery voltage | 11.1 V | 14.8 V | 18.5 V |
| Charger voltage AC 100-240 V - 50/60 Hz | |||
| Input 70 W 90 W 110 W | |||
| Sound level | ≤80 dB (A) | ≤80 dB (A) | ≤80 dB (A) |
| Battery | LI-Ion 2000 mAh | LI-Ion 2200 mAh | LI-Ion 2200 mAh |
| Operation time | approx. 45 min | approx. 40 min | approx. 35 min |
| Full charging time | approx. 5 h | approx. 4 h | approx. 4 h |
IMPORTANT SAFETY PRECAUTIONS
- Do not use the appliance in any other way than as described in this manual.
- Make sure the mains voltage and current protection correspond to the values on the rating plate of the charging station.
- Do not leave the appliance without supervision when it is turned on.
- When disconnecting the unit from the wall outlet, never pull the power cord, grasp the charger and disconnect it by removing it from the receptacle.
- Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
- Pay extra attention if the appliance is used near children.
- Do not use the appliance as a toy.
- Do not use any accessories other than those recommended by the manufacturer.
- Do not use a charger with a damaged cord or plug and have it repaired immediately by an authorized service centre.
- Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.
VP4360/VP4370/VP4380
43
EN
concept
concept
EN
- Do not touch the appliance with wet hands.
- Do not insert any objects into the openings. Do not use the appliance if any of the openings is clogged.
• Take extra caution when vacuuming on stairs. - If the appliance intake is clogged, switch off the appliance and remove the dirt before switching on again.
- When attaching accessories during cleaning or in the event of a malfunction, switch off the appliance and disconnect the charger from wall socket.
- The appliance is only suitable for home use and is not intended for commercial use.
- Do not vacuum anything burning like cigarettes, matches or hot ash.
- Do not use the appliance in rooms with increased air humidity, do not vacuum flammable liquids (such as petrol) and do not use the appliance in rooms where these substances may be present.
- Never vacuum without vacuum cleaner filters. Every time you use the appliance, make sure the vacuum cleaner filters are properly installed.
- Do not immerse the power cord or the charger in water or any other liquid.
- Check the appliance and the charger cord for damage regularly. Never switch on a damaged appliance.
- Before cleaning and after use of the appliance, switch off the appliance and allow it to cool down.
- Before vacuuming, remove all large or sharp objects from the surface intended for vacuum cleaning, such objects may damage one of the vacuum cleaner filters.
- Do not use the appliance with dirty filters.
- Do not put the battery in fire or expose it to temperatures above 40 °C.
- Do not touch the moving parts of the appliance during operation.
- Do not repair the appliance yourself. Contact an authorized service centre.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
Damages from failure to follow the manufacturer's instructions are not covered by the warranty.
EN
concept
concept
EN

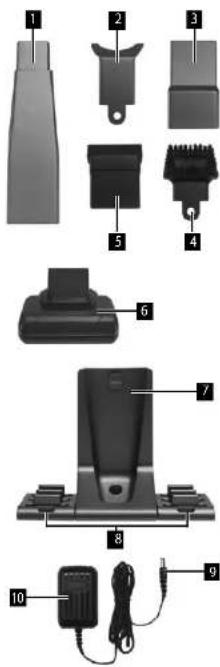

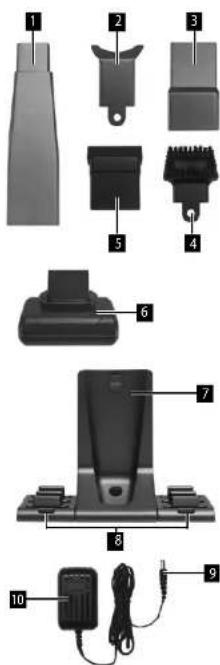

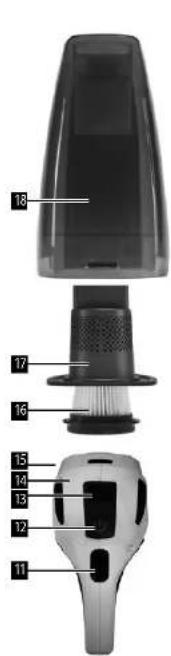

PRODUCT DESCRIPTION
- Long slot nozzle
- Long slot nozzle attachment
- Slot nozzle
- Long slot nozzle attachment - brush
- Nozzle for wet vacuuming
- Turbo nozzle
- Charging base
- Accessory stand
-
Charger connector
-
Charger
- On/Off switch
- Charging indicator
- Dust container release button
- Appliance body
- LED lighting
- HEPA filter
- Filter holder
- Dust container
OPERATING INSTRUCTIONS
ASSEMBLING THE VACUUM CLEANER
Warning
Always switch off the appliance and disconnect the charger from wall socket before assembling or removing accessories!
ACCESSORIES
The following accessories are included in the package for each type of appliance:
- VP4360: 1, 4, 5, 7, 8, 10 (see product description)
- VP4370: 1, 5, 6, 7, 8, 10 (see product description)
- VP4380: 1, 2, 3, 4, 6, 7, 8, 10 (see product description)
Note: For VP4360 and VP4370 vacuum cleaners, only one part of the accessory stand is included, which is sufficient for the accessories included in the product package.
CHARGING THE BATTERY
- Make sure the vacuum cleaner is turned off before charging. The charger (10) can be connected directly to the vacuum cleaner or paired with the charging base (7). Connect the vacuum cleaner to the charger connector (9).
- When charging, the charging indicator (12) flashes red. When fully charged, the indicator light is green. When charging is complete, the appliance automatically switches to recharging. However, do not leave the vacuum cleaner permanently connected to the charger to avoid possible damage to the battery or its capacity.
- If the charging indicator (12) starts flashing green during vacuuming, the vacuum cleaner is discharged and will turn off within about 1 minute.
- If the vacuum cleaner is completely discharged, the charging indicator (12) starts flashing alternately green and red when the appliance is switched on. The vacuum cleaner must be charged.
IF YOU WANT TO KEEP THE BATTERY LIFE AS LONG AS POSSIBLE, CHARGE IT AFTER IT IS FULLY DISCHARGED.
INSTALLING THE CHARGING BASE
The charging base can be used as freestanding (in this case, place the base on a flat and stable surface) or attached to the wall (attach the charging base to the wall with dowels and screws).
Note: In both cases, the accessory stand (8) can be attached to the charging base (7).
USING THE VACUUM CLEANER
Note: VP4360 and VP4370 vacuum cleaners can be used for both dry and wet vacuuming. Make sure that both the filter holder and the HEPA filter are fitted correctly before use.
- Remove the vacuum cleaner from the charging base.
- Slide the switch (11) to position 1 to switch the vacuum cleaner on at a lower power level (the charging indicator (12) light is yellow).
- Slide the switch (11) to position 2 to switch the vacuum cleaner on at a higher power level (the charging indicator (12) light is green).
- For wet vacuuming (VP4360 and VP4370 only), use a wet vacuum nozzle that has a wiper function and the vacuum cleaner sucks liquid when moving backwards. Move the vacuum cleaner very carefully to prevent liquid from entering the vacuum cleaner motor. Do not shake or turn over the vacuum cleaner. The filter holder and the HEPA filter only prevent the liquid from being sucked into the vacuum cleaner motor, but do not act as a protection against liquid ingress into the vacuum cleaner motor. The maximum amount of liquid sucked is approximately 150 ml. At larger amounts, the liquid will flow through the nozzle back out of the dust container.
Note: For wet vacuuming, vacuum only at a lower power level (switch in position 1) and do not overfill the dust container more than the marked "MAX" line.
VP4380 vacuum cleaner is not designed for vacuuming liquids!
46
EN
concept
concept
EN
CHECKING THE FULLNESS OF DUST CONTAINER
If the suction power of the vacuum cleaner is reduced or the dust container is full, empty it and clean the vacuum cleaner filter.
MAINTENANCE
It is recommended to empty the dust container and clean the vacuum cleaner filters after each use of the vacuum cleaner.
EMPTYING THE DUST CONTAINER
-
Disconnect the charger from the mains.
-
Hold the vacuum cleaner down with a dust container.
-
Press the latch to release the dust container.
-
Remove the filter holder and empty the vacuum cleaner dust container.
-
Reverse the procedure to attach the filter holder and the filter and put the dust container back.
CLEANING AND REPLACING THE PERMANENT FILTER
The vacuum cleaner filter can be cleaned by mechanical tapping and cleaning with a soft brush. A much soiled filter can be washed after this step and cleaned with a soft brush in lukewarm water without detergents.
It is important to let the wet parts dry thoroughly. A wet filter would be depleted by vacuuming! Do not use a hair dryer for drying!
Note: Wet cleaning can cause more wear on the filter and thereby shortening its life.
- The filter should be cleaned or replaced with visible soiling or when the suction power of the vacuum cleaner drops. Check it after each use of the vacuum cleaner.
• To avoid damaging the vacuum cleaner, do not use it without a properly fitted filter and filter holder.
- You can purchase a suitable filter type from your dealer or order from the manufacturer.
CLEANING AND MAINTENANCE
Accessories and vacuum cleaner can be cleaned with a damp cloth.
Do not immerse the power cord or the charger in water or any other liquid.
Do not use aggressive substances such as solvents or abrasives for cleaning!
TROUBLESHOOTING
| Problem Cause Remedy | ||
| The motor is not working. The battery is discharged. Charge the battery. | ||
| Reduction of suction power. | Filled or clogged dust container. | Empty and clean the dust container. |
| The filter is clogged Clean or replace the filter. | ||
| Operating time at full charge is less than 1 minute. | The battery life is over. Replace the battery with a new one. Contact an authorized service centre. | |
| The vacuum cleaner is warming up. | Warming up of the vacuum cleaner during operation is normal, it is not a malfunction. | |
ACCESSORIES
The following accessories can be purchased for the appliance:
Filter order code 42392245 price according to the valid price list
BATTERY DISPOSAL
The appliance contains a Li-Ion battery. This type of battery contains substances that can damage the environment in their disintegration. Before disposing of the appliance or replacing the battery, the original battery must be removed and returned to a suitable collection point.
To remove the battery, open the cover on the bottom of the vacuum cleaner.
48
EN
concept
concept
DE
SERVICE CENTRE
Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.
ENVIRONMENTAL CONCERNS
- Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste. - Dispose the plastic bags made of polyethylene (PE) of as sorted waste.
Recycling of the appliance at the end of its lifespan:
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance.
The product meets all the necessary requirements of the EU directives applicable to the specific product.
Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.
