GSP-131 - Smartphone DENVER - Free user manual and instructions

Product type	Senior smartphone
Brand	Denver
Model	GSP-131
Category	Mobile phone
Power supply	Rechargeable lithium-ion battery, mains charger
Connectivity	Bluetooth, USB, headphone jack
Screen	Not specified in the manual
Main functions	Calls, SMS, FM radio, directory, alarm, calculator, calendar
SOS function	Dedicated SOS button, sends message and calls up to 5 numbers
Storage	microSD card (not included)
SIM card	One standard SIM slot
Battery	Lithium-ion, charging via jack or base
SAR	0.728 W/kg (maximum value)
Safety	Complies with ICNIRP guidelines, do not expose to heat or water
Maintenance	Clean with a soft cloth, avoid moisture
Recycling	Device and battery must be recycled separately
General information	Importer: Inter Sales A/S, Denmark

Frequently Asked Questions - GSP-131 DENVER

How to insert the SIM card and memory card on the Denver GSP-131?

Turn off the phone, remove the back cover and battery. Insert the SIM card into the slot, gold contacts facing down. For the microSD card, open the latch, insert the card contacts down, then lock. Replace the battery and cover.

How to turn on and off the Denver GSP-131?

To turn on or off, press and hold the red end call key. The keypad locks automatically when closing the flip.

How to charge the battery of the Denver GSP-131?

Connect the charger to a mains socket, then plug the jack into the charging base or directly into the USB port on the side. An audible signal indicates the start and end of charging. Use only original chargers.

How does the SOS button work on the Denver GSP-131?

The SOS button is located on the back. Activate it via Menu > SOS > Activated key. Set up to 5 numbers in the list. In an emergency, press for 2-3 seconds: an alarm sounds, an SOS message is sent, then the phone calls each number 3 times (25 seconds each) until answered. The call goes to speakerphone.

How to listen to FM radio without headphones?

The GSP-131 has an internal antenna, so no headphones are needed. Access FM Radio from the main menu. Use the options to auto or manual search, save stations, and switch to speaker.

How to add a contact on the Denver GSP-131?

Go to Menu > Contacts > Options > New. Choose to save to SIM or phone. Enter name and number, then press Save.

How to activate Bluetooth and pair a device?

In Menu > Settings > Connections > Bluetooth > Turn on Bluetooth. Then select Paired device to search for devices. Select the desired device and confirm pairing on both devices.

How to set the date and time on the Denver GSP-131?

Go to Menu > Settings > Phone settings > Date and Time. Set the desired values. You can also set the format.

How to reset the Denver GSP-131 to factory settings?

In Menu > Settings > Phone settings > Restore. Enter the password 1234 to confirm. Warning: this erases all data.

How to use speed dial on the Denver GSP-131?

In Menu > Contacts > Options > More > Speed dial. Assign numbers to keys 2 to 9. To call, press and hold the corresponding key.

USER MANUAL GSP-131 DENVER

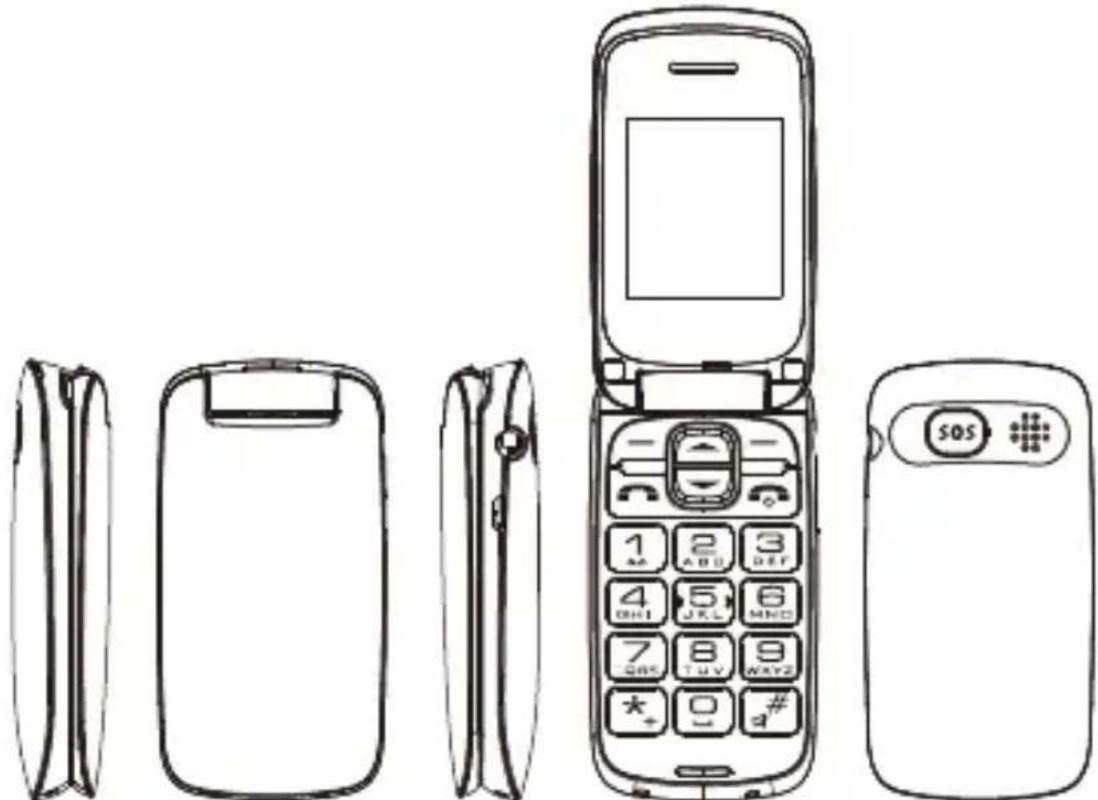

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

User Guide
English

ENG-1

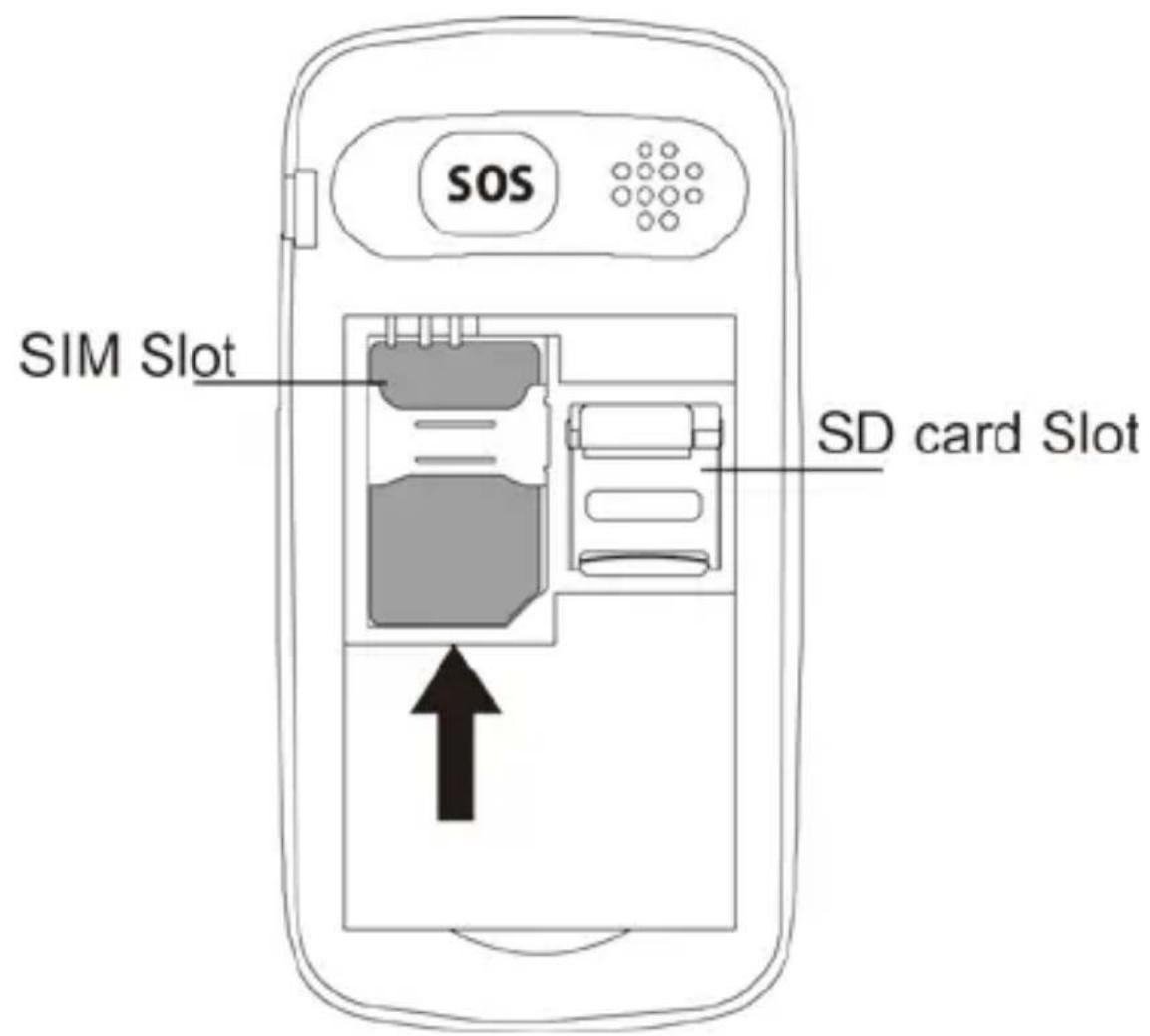

Insert the SIM card: The SIM card contains your phone number, PIN code, links to operatorservices, contacts and SMSmessages. To access the compartment containing the SIM slot, turn off the phone and lift up the cover starting from the slit on the bottom right corner. Remove the battery. Insert the SIM card into the slot with the gold contacts facing down.

ENG-2

Inserting a memory card: in order to use media player functions, a micro-SD memory card is required (not included in the package): the card must be placed into the rearof the phone to the right of the SIM slot. Insert the micro-SD card as shown, with the gold contacts facing downwards: open the metal shutter by pushing it towards "open" and lock it again after inserting the card by pushing it in the opposite direction ("lock").

Turn ON, Turn OFF and keypad lock: to turn on and turn off the phone, press and hold the red end call key. The keypad locks by closing the flip.

Connecting to a PC: use the USB cable to connect GSP-131 to a computer. Select U Disk on your phone. You can save files on SD card.

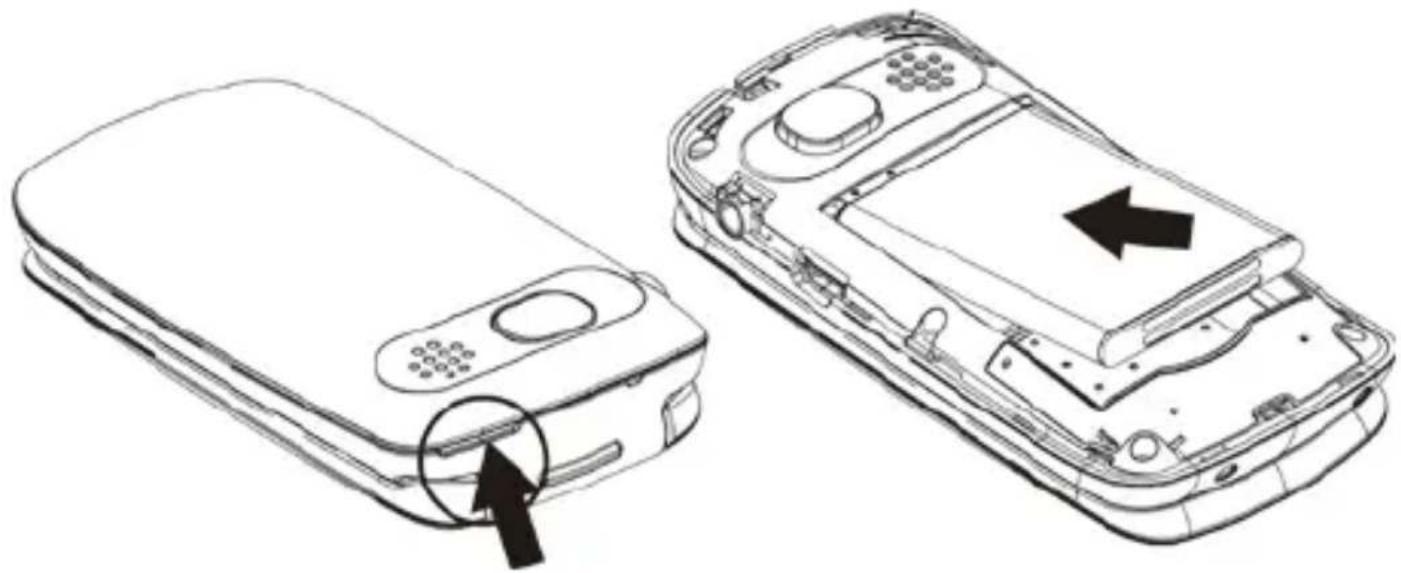

Inserting the Battery: your device is provided with a lithium-ion battery and is designed to be used exclusively with original batteries and chargers. The battery must be inserted into the rear of the phone. Insert the battery into the battery compartment with the contacts facing up corresponding to those of the phone. When done, put the rear cover back into position as shown in the following illustrations.

Line drawing of two open mobile phones with one showing a device close-up and the other displaying a screen (no text or symbols)

Charging the battery: charge the battery before starting to use the device. Connect the charger to a mains wall socket, and then plug the jack into the charging base (wait for a moment until an audio feedback notifies the charging start) or put it directly into the micro USB port on the right side of the phone. When charging has been completed/is complete, a second audio feedback will be heard

Attention: To preserve the functionality of the product and the integrity of the warranty, we recommend the use of original chargers. Please charge the battery indoors, in a dry and favorable environment. It's normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity only after several complete charging cycles.

ENG-4

FM radio: GSP-131 has an internal radio antenna so that no headset is needed to listen to the radio. To power ON/OFF the Radio, access FM Radio from the main menu. By selecting Options, you have access to the following functions:

• Automatic Search: to automatically search for radio stations
• Channel list: to manually browse saved channels
• Save: to save searched stations
• Manual search: for the manual search of radio channels
• Speaker: reproduces the radio with the speaker instead of the headphones
• Background: keeps playing in background even after exiting from the radio app screen
• FM Record: to record the current radio channel
• File list: List of recorded files

Use the UP and DOWN selection keys for volume.

Shortcuts: Menu > Settings > Phone Setting > Shortcut setting. UP and DOWN selection keys can open some shortcuts; by default, the UP selection key directly enters the Music Player, while the DOWN selection key opens the alarm list.

Main menu: To access the Main Menu on your phone, press the selection key on the top left

• Messaging: to write and read SMS text messages

• Contacts: to manage and save contacts

• Calls Log: Missed Calls, dialled calls...

• Multimedia: Video player, Recorder
• FM Radio: to turn on and off the radio
• Settings: to customize your phone
• Tools: with My files, Calendar, Calculator, Alarm, STK..
• SOS: to enable and customize the SOS function

Answer an incoming call: respond to an incoming call simply by opening the flip. To set up the answer mode select Settings > Call settings > Answer mode

Making a call: to make a call from the Home screen, select the desired number by using thekeypad and then press the green call button. To end the call, press the red end call key.

Call a number from the contacts:from the main screen, press the upper right selection key; this will automatically open the Contacts. Scroll through contacts with the UP/DOWN keys and press the green call button to call the desired contact.

Call anumber from the call log: from the main screen, press the green call key, the missed, received, and outgoing calls will be automatically displayed.

Scroll with UP/Down keys and press the green call button when you find the number you want to call.

Add contacts to the Contacts: Select Menu > Contacts > Options > New, and choose to save the number on the SIM or the Phone. Enter the name and the new number, then press

Save.

Speed dial:in Menu > Contacts > Options >Others> Speed Dial > Options > Edit, you can assign to keys 2-9 certain numbers that will be called automatically if you press and hold the related button.

Memory status: this feature within the contacts settings allows you to see how much free storage there is on the phone and SIM card.

Human voice tone:GSP-131 Start speaks out loud each number you press. To activate this function, selectMenu > Settings > Profiles >Other alert rings>Dial tone>Human voice tone.

Send and read SMS

Send SMS: from the main screen, choose Menu > Messaging > Write message and write your message. Press Options > Send to > Insert number and enter the number using the numeric keypad or Insert contacts to select from the Contacts the contact you want to text.

Read SMS: when you receive a new text message, the phone displays an envelope icon on the top bar(until the message is read/for as long as the message is unread) and a notification pop up appears on the main screen. Press the upper left selection key to enter the Inbox or access it fromthe main screen by selecting Menu >Messages >Inbox.

Bluetooth: In Settings > Connections> Bluetooth >Open Bluetooth you can turn on Bluetooth.With the Paired Device, you can search for other devices (headsets, phones...). Select the device you would like to associate with and confirm it on both devices.

S.O.S. Function: GSP-131 is equipped with a dedicated button for fast forwarding emergency calls (*). This feature can be turned on and off by selecting Menu> SOS >Button active. SOS button is placed on the rear of the phone In case of emergency, use this function to ask for help from up to five phone numbers, previously set in Menu> SOS >Numbers list; press and hold the SOS button for 2-3 seconds. As soon as the SOS function is activated, the phone will send out a high volume alarm (that can be turned on and off in SOS >Emergency alert). Then, it will send a customizable SOS message to the chosen SOS numbers. Afterwards, the phone will call the 5 SOS numbers, for about 25 seconds each. If there is no answer, there will be a second cycle of calls. This procedure will be repeated for 3 times. If one of the called numbers answers, the cycle will be interrupted and the call will automatically switch to speaker phone (handsfree).

Attention: The S.O.S. calls cycle will be interrupted if the answering machine or voicemail of one of the called SOS numbers takes the call.

Set Ringtones: select Menu > Settings > Profiles >Ring settings > Set as incoming call ringtone, Select Call Ringtone and set the desired tone from those available.

Pressing and hold # button to change Vibration mode, General mode, Silence mode.

Phone Settings: from Menu > Settings > Phone settings, you have/will have access to various settings such as Date and Time, Language, and Display. Select Restore to reset the factory settings of GSP-131: enter the phone password 1234 to confirm the restoring.

Radio frequency (RF) exposure and SAR THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) recommended by international guidelines (ICNIRP). These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for mobile devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit stated in the international guidelines is 2.0 watts/kilogram (W/kg) *. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station, the lower the power output of the device in all tested frequency bands.

Although the SAR is determined at the highest certified power level, the actual SAR of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station, the lower the power output of the device.

SAR values may vary depending on national reporting and testing requirements and the network band. Use of device accessories and enhancements may result in different SAR values.

The SAR limit for mobile devices used by the public is 2.0 W/kg averaged over 10 grams of body tissue. The guidelines incorporate a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national

reporting requirements and the network band.

The highest SAR value for this model phone tested for use is 0.728 W/kg

Warning

• Lithium battery inside!
- Do not try to open the product!
- Do not expose to heat, water, moisture, direct sunlight!

CAUTION!

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

ENG-12

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Imported by:

Inter Sales A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

www.facebook.com/denverelectronics

Hereby, Inter Sales A/S, declares that this model DENVER (GSP-131) is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity may be obtained at Inter Sales A/S Omega 5A, Soeften DK-8382 Hinnerup Denmark

DENVER®

Senior Telefon GSP-131

www.facebook.com/denverelectronics

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a cable and the other displaying a screen (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a device close-up and the other displaying a screen (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a device close-up and the other displaying a screen (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a cable or socket and the other showing internal components (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two smartphones showing internal components and a close-up view of the front panel (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a device close-up and the other displaying a screen (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two mobile phones with one showing a device close-up and the other displaying a screen (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a device close-up and the other displaying a screen (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a device close-up and the other displaying a screen (no text or symbols)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)

Line drawing of two open mobile phones with one showing a device close-up and the other highlighting a screen (no text or symbols present)

Line drawings of a mobile phone showing front, side, and back views with keypad and control buttons (no text or symbols)
