Product Type	Senior Smartphone / Feature Phone
Brand	Denver
Model	BAS-24200M
Dimensions	Approx. 130 x 60 x 15 mm
Weight	Approx. 120 g (including battery)
Display	2.4-inch color display (estimated)
Battery	Lithium-ion, 1000 mAh (estimated), removable
Charger	Travel charger ES007-U050055XOB: AC 100-240V, 50/60Hz, DC 5.0V 0.55A
Charging Port	Micro-USB and desktop charging contacts
SIM Card	Single SIM (standard SIM) + micro-SD shared slot
Memory Card	micro-SD (not included), up to 32 GB (estimated)
Operating Frequency	GSM900 (880.2-914.8 MHz TX, 925.2-959.8 MHz RX); DCS1800 (1710.2-1784.8 MHz TX, 1805.2-1879.8 MHz RX); Bluetooth 2402-2480 MHz; FM 87.5-108 MHz
Transmit Power	GSM: max 2W (GSM900) / 1W (DCS1800); Bluetooth: 3.14 dBm EIRP
SAR Value	Highest SAR: 1.82 mW/g (1.82 W/kg) measured over 10g tissue
Bluetooth	Yes, for hands-free and file transfer
FM Radio	Yes, with internal antenna (headset not required)
Torch	Yes, dedicated button on side
SOS Button	Yes, dedicated button on top, programmable emergency numbers (up to 5)
Key Features	Senior-friendly, large buttons, SOS function, FM radio, torch, hands-free speaker
Operating Temperature	0°C to 40°C
Water Resistance	Not waterproof
Included Accessories	Travel charger, battery (built-in? removable), user manual

Frequently Asked Questions - BAS-24200M DENVER

How do I insert the SIM card?

Turn off the phone and remove the back cover. Take out the battery. Insert the SIM card into the SIM1 slot with gold contacts facing down. The micro-SD card can also be placed in the same slot after opening the metal shutter (push toward 'open'). Reinsert the battery and cover.

How do I use the SOS function?

Go to Menu > First Aid Settings > First Aid Open to enable SOS. Pre-set up to 5 emergency numbers in Menu > First Aid Settings > First Aid List. To activate, press and hold the SOS button on top of the phone for 2-3 seconds. The phone will emit an alarm (can be turned off), send an SOS message, then call each number for about 25 seconds, repeating up to 3 cycles.

How do I charge the battery?

Connect the supplied charger to a wall socket and plug the jack into the micro-USB port on the phone or use the desktop charging cradle. An audio feedback will confirm charging start. When fully charged, a second audio feedback is heard.

How do I turn the phone on/off?

Press and hold the red end call/power key until the phone vibrates or the display turns on/off.

How do I listen to FM radio?

From the main menu, select FM Radio. The phone has an internal antenna so the headset is not required. You can choose automatic or manual search, save channels, and set background play or loudspeaker mode.

How do I set a ringtone?

Go to Menu > Settings > Profiles > General > Customized > Ringtone. Choose from available tones. You can also quickly switch between General and Silent profiles by pressing and holding the # key.

How do I restore factory settings?

Go to Menu > Settings > Phone Settings > Restore settings. Enter password 1234 to confirm. This will reset the phone to factory defaults.

What is the SAR value of this phone?

The highest SAR value tested for this model is 1.82 mW/g (1.82 W/kg) averaged over 10g of body tissue, meeting international guidelines (ICNIRP).

Why does the phone get warm during charging?

It is normal for the battery to warm up slightly during charging. Use only the original charger. The battery reaches full capacity only after several complete charge cycles.

Can I use the phone in the rain?

No, the phone is not waterproof. Do not expose to water, moisture, or direct sunlight. If water enters the unit, stop use immediately to avoid fire or electric shock.

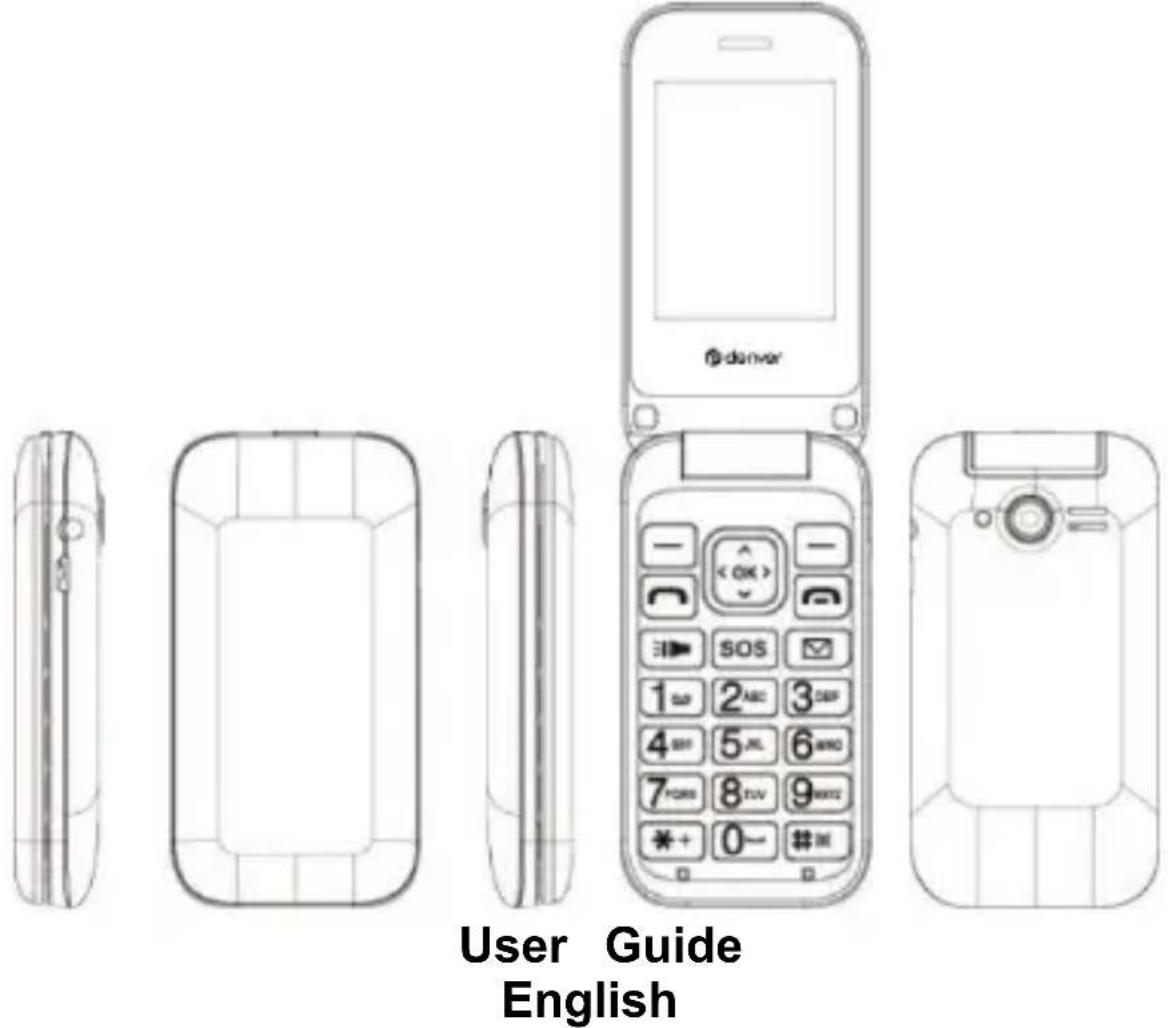

USER MANUAL BAS-24200M DENVER

Senior Phone BAS-24200M NORDIC

facebook.com/denver.eu

Safety information

Please read the safety instructions carefully before using the product for the first time and keep the instructions for future reference.

1. Warning: This product includes lithium-ion battery.
2. Keep product out of the reach of children and pets to chewing and swallowing.
3. Product operating and storage temperature is from 0 de Celsius to 40 degree Celsius. Under and over this tempera might affect the function.
4. Never open the product. Touching the inside electrics cause electric shock. Repairs or service should only be performed by qualified personnel.
5. Do not expose to heat, water, moisture, direct sunlight!

6. The unit is not waterproof. If water or foreign objects are unit, it may result in fire or electric shock. If water or a object enters the unit, stop use immediately.

7. Only charge with supplied Adaptor. The direct plug-in device is used as disconnect device, the disconnect device shall be readily operable. So, make sure there is space around the power outlet for easy access.

8. Do not use non original accessories together with the p as this can make the product functionality abnormal.

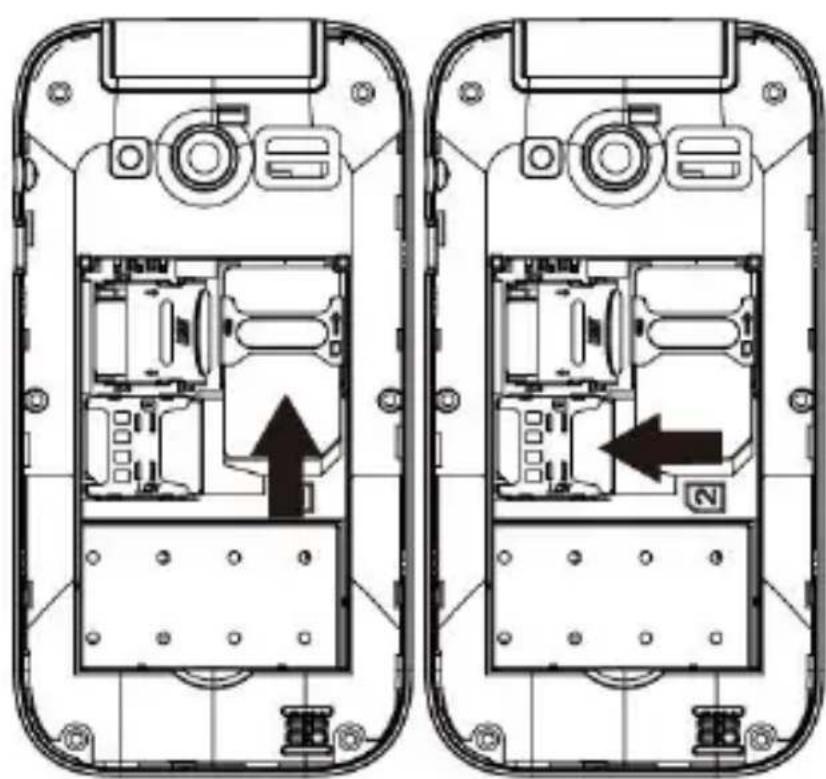

Insert the SIM card: The SIM card links to operator service and stores information such as your phone number, PIN code contacts and SMS messages. To access the SIM slot, turn the phone and lift up the cover starting from the slit on the bottom left corner. Remove the battery. Insert the SIM card the slot with the gold contacts facing down.

Two views of a smartphone showing internal components and wiring (no text or symbols)

ENG-3

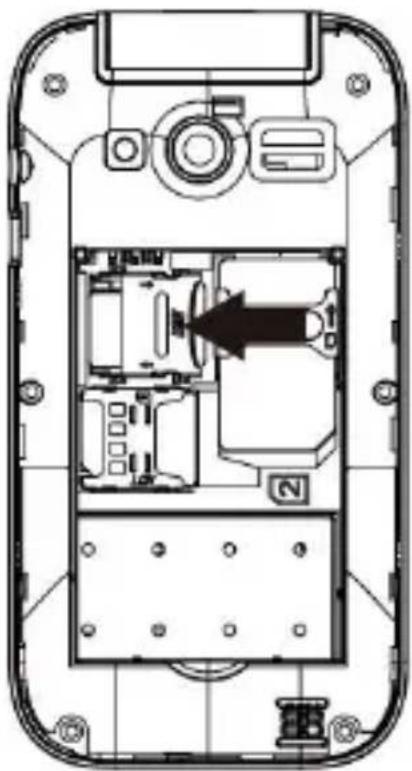

Insert a memory card: In order to use media player func micro-SD memory card is required (not included in the package).The card must be placed into the SIM1 slot on the inside the rear of the phone. Insert the micro-SD card as shown, with the golden contacts facing down..Open the mental shutter by pushing it towards "open", and lock it again after inserting the card by pushing it in the opposite direction ('

Cross-sectional diagram of a mobile phone casing showing internal components and an arrow indicating direction (no text or symbols)

ENG-4

Turn ON / Turn OFF: To turn on and turn off the phone and hold the red end call key.

Lock and unlock keypad: Press the left soft key and * lock/unlock the phone.

Connect to a PC: Use an USB cable to connect the pro computer. Select Mass Storage on your phone. You can s songs to play with the music player in "My Music" folder, SD card.

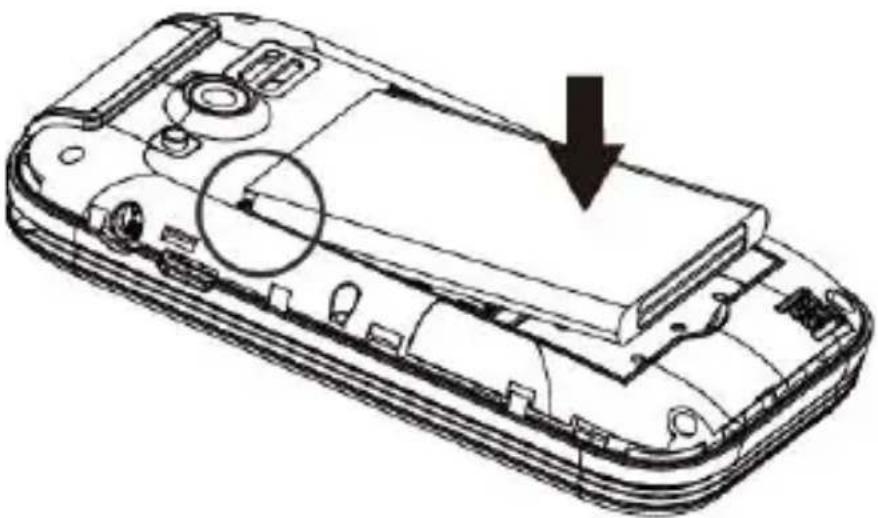

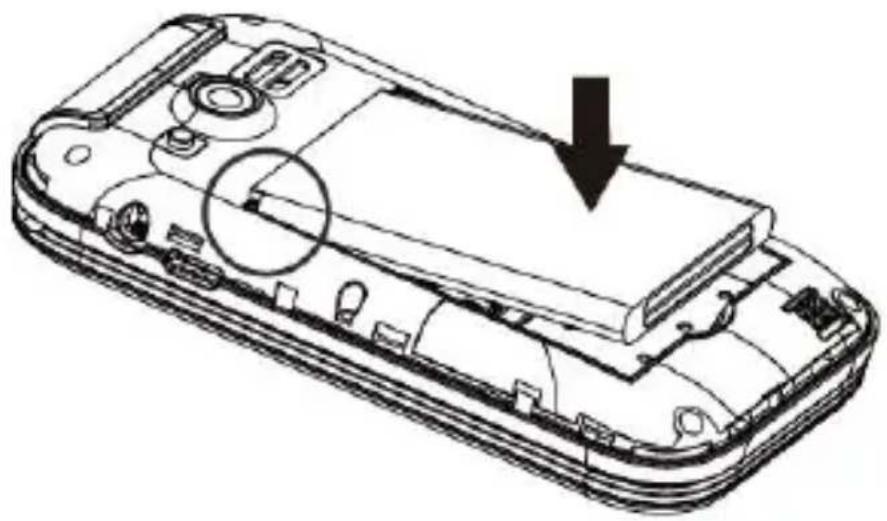

Insert the battery: Your device is provided with a lithium-i battery and is designed to be used exclusively with origina batteries and chargers. The battery must be inserted into t rear of the phone. Insert the battery into the battery compartment with the contacts facing up corresponding to t of the phone. When done, put the rear cover back into p as shown in the following illustrations.

Line drawing of a mobile phone casing with a circular button and camera lens (no text or symbols)

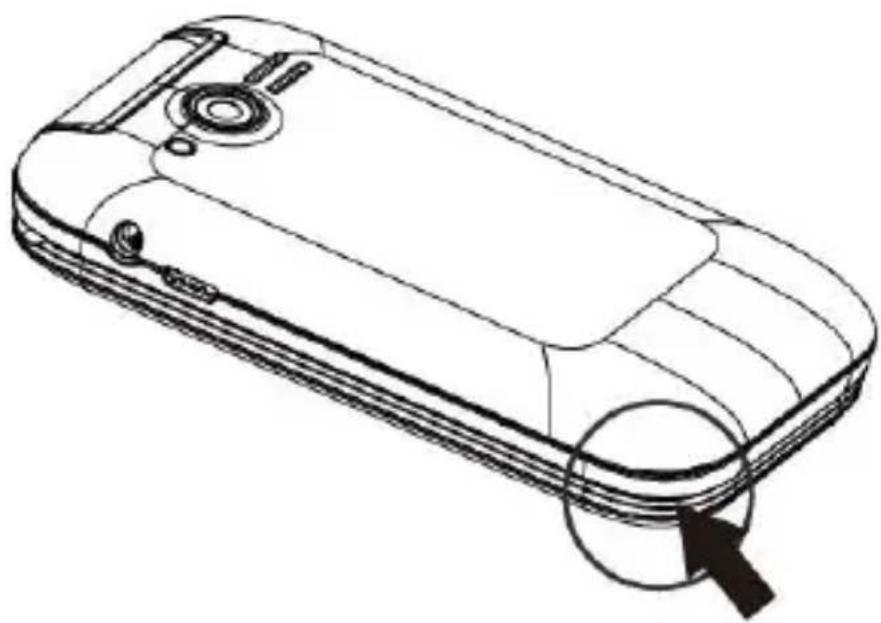

Technical line drawing of a mobile phone casing with an arrow indicating a component (no text or symbols present)

ENG-6

Charge the battery: Charge the battery before starting to the device. Connect the charger to a mains wall socket, a then plug the jack into the charging base (wait for a mon an audio feedback notifies the charging starts) or put it did into the micro USB port. When charging has been complete second audio feedback will be heard.

Attention: To preserve the functionality of the product and integrity of the warranty, were commend the use of the or chargers. Please charge the battery indoors or in a dry a favorable environment. It's normal for the battery to get slight warm during the charging process. The battery will reach its capacity only after several complete charging cycles.

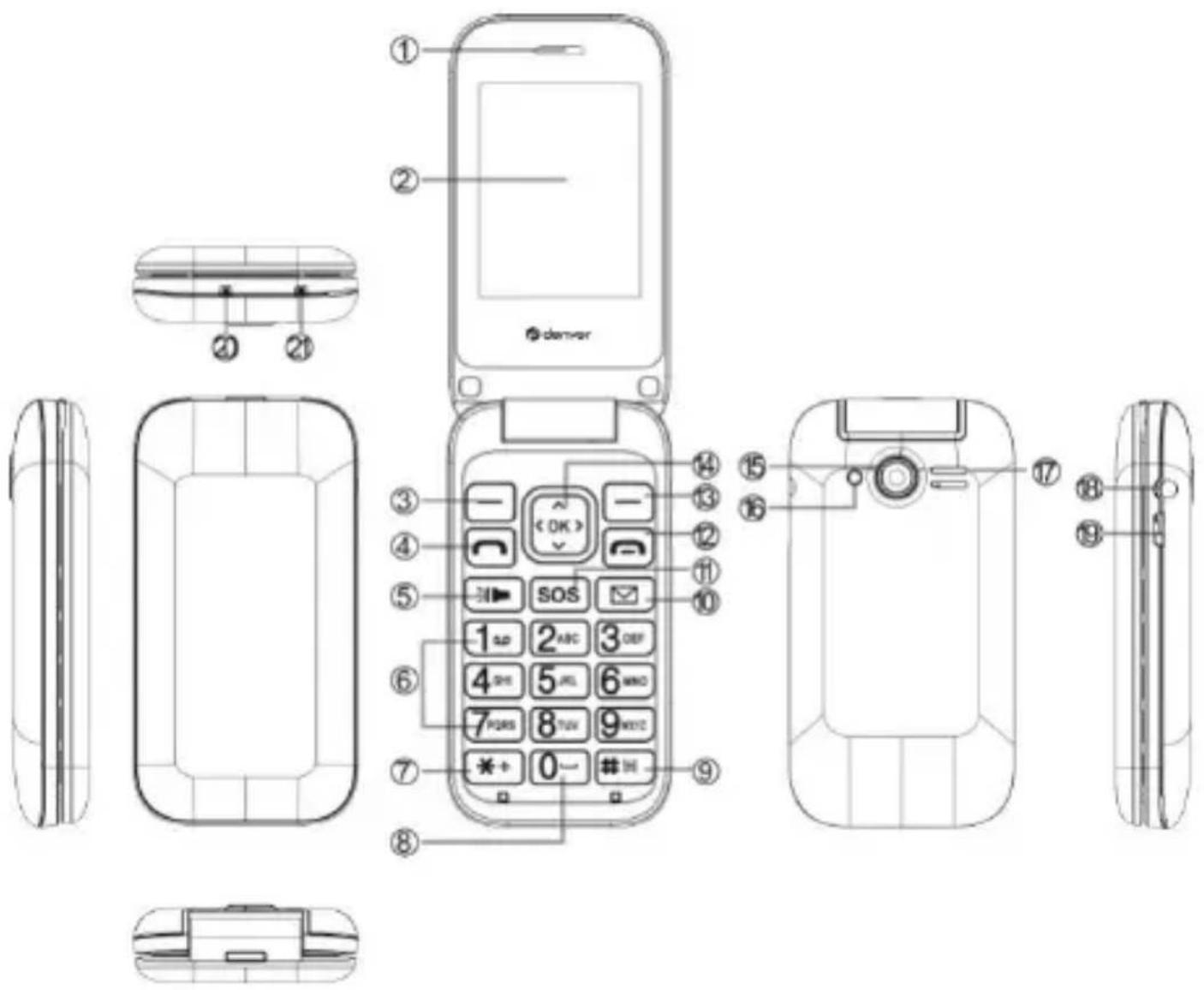

Phone description

ENG-8

1	Receiver
2	Display
3	Left soft key
4	Call button
5	Torch button
6	Number keys
7	* key: Press repeatedly to digit *,+,P,W. under tex insertion mode press to add a symbol. Under som it is possible to use this key to move toward left
8	0 key: Under text insertion mode press to add sp
9	# key: In standby mode press repeatedly to switch general to vibration mode and vice versa; under t insertion mode press to change the writing method Under some menus it is possible to use this key right.
10	Message button
11	SOS button
12	End call/Power on/off
13	Right soft key
14	Navigation key
15	Camera
16	Torch LED
17	Speaker
18	Earphone Jack
19	Micro-USB port
20	Desktop charging
21	Desktop charging

ENG-9

FM radio:BAS-24200M has an internal radio antenna so th headset is needed to listen to the radio. To listen to the access FM Radio from the main menu. By selecting Optic you have accessed to the following functions:

• Channel list: To manually browse saved channels
• Manual search: For the manual search of radio channels
• Automatic search: To automatically search for radio station
• Settings: Background and loudspeaker options

Loudspeaker: Listen to the radio with the speaker instead the headphones (this option only appears when a headphone inserted)

Background: Keep playing in background even after exiting from the radio app screen.

Use the * and # keys for adjusting volume.

Torch: to turn the torch on and off by pressing the short key.

Shortcuts: the UP selection key directly enters the Audio the DOWN selection key for go to settings, the LEFT sele key for Profiles, while the RIGHT selection key for Alarm.

Main menu: By pressing the left soft key to access the Menu on your phone

• Messaging: To write and read SMS text messages
• Phonebook: To manage and save contacts
• Calls History: Missed calls and dialed calls etc.
• First Aid Settings: To enable and customize the SOS fun
• Multimedia: Audio player, sound recorder, and file manag
• FM Radio: To turn on or turn off the radio
• Tools: With calendar, alarm, calculator,flashlight and STK
• Settings: To customize your phone

Answer an incoming call: When there's an incoming call, phone will notify you through vibration, ringing according to profiles settings. The name (if the contact is saved) and p number of the caller is shown on the screen.

Answer a call by pressing the call button.

Makea call: To make a call from the home screen, input desired number by using the keypad and then press the g

ENG-11

call button; to end the call, press the red end call key. Call a number from phonebook: From the main screen, the upper right selection key will automatically open the phonebook. Scroll through contacts with the UP/DOWN keys and press the green call button to call the desired contact

Call a number from the call log: From the main screen, the green call key, the missed, received, and outgoing c will be automatically displayed.

Scroll with UP/Down keys and press the green call button you find the number that you want to call.

During a phone call: When you are on the phone, the functions can be used:

H-Free: Turn on/off hands-free option.

Hold: The current call is on hold and it's possible to repl incoming call.

End single call: Press to end the current call.

Phonebook: It is possible searching phone numbers during phone call.

Messaging: Enter the message screen.

Calls history: It allows to display the calls list.

Mute: The microphone is turned off and the spokesperson v not hear your voice.

ENG-12

Sound recorder: It is possible to record the call.

Volume: Adjust the volume of the speaker or headset.

Add contacts to the phonebook: Phone book allows saving the numbers on the SIM card or on the phone memory.

The option menus are shown as below:

Call: Dial the current number.

New contact: Create a new contact.

View: Allow displaying details of the selected contacts.

Edit: Allow editing contact information.

Send SMS: Send SMS to the chosen number.

Delete: Delete selected entry.

Copy: It allows copying the contacts from the phone mem the SIM card and vice versa.

Move: It allows moving the contacts from the phone memory, the SIM card and vice versa.

Add to blacklist: It allows adding a contact to the blacklist

Mark several: It allows proceeding actions to multiple contains simultaneously.

Phonebook settings: Insertion and edit of the speed dial contacts with 2\~9 number keys, phone memory status and copy/moving/deletion of all contacts in phonebook.

Speed dial: in Menu >Phonebook> Options >Phonebook settings> Speed Dial >OK> Edit, you can assign a number key (2-9) to certain contact for speed dial, press and hold the certain number will automatically call this contact.

Memory status: This feature within the contacts settings allows you to check the free storage on the phone and SIM card.

Send and read SMS

Send SMS: From the main screen, choose Menu > Messaging > Write message and write your message. Press Options > Send to > Number and enter the number using the numeric keypad or Add from phonebook to select the contact you want to text.

Read SMS: When you receive a new text message, the phone displays an envelope icon on the top bar (as long as the message is unread) and a notification pops up on the main screen. Press the upper left selection key to enter the Inbox or access it from the main screen by selecting Menu >Messages >Inbox.

Bluetooth: In Settings > Bluetooth >Power on you can turn on Bluetooth and search for other devices (headsets, phones...) to pair with. Select the device you would like to pair and confirm

it on both devices.

S.O.S. function:BAS-24200 is equipped with a dedicated button for fast forwarding emergency calls (*). This feature be turned on and off by selecting Menu>First Aid Settings>First Aid Open. SOS button is placed on the next phone. In case of emergency, use this function to ask help from up to five phone numbers, previously set in Menu>First Aid Settings>First Aid List; press and hold the SOS button for 2-3 seconds. As soon as the SOS function activated, the phone will send out a high volume alarm (the be turned on and off in First Aid Settings > First Aid I alarm On/Off). Then, it will send a customized SOS message the chosen SOS numbers. Afterwards, the phone will call the SOS numbers, for about 25 seconds each. If there is no there will be a second cycle of calls. This procedure will be repeated for 3 times. If one of the called numbers answer cycle will be interrupted and the call will automatically switch speaker phone (handsfree).

Attention: The S.O.S. calls cycle will be interrupted if t answering machine or voicemail of one of the called S numbers takes the call.

Set ringtones: Select Menu > Settings > Profiles > General > Customized > Ringtone. And set the desired tone from tho

ENG-15

available.

Long press # key to change profile from “Silent” to “Gene quickly.

Phone settings: From Menu > Settings > Phone Settings, will access to various settings such as date and time, lang and display settings.

Select Settings >Restore settings of BAS-24200: enter the phone password 1234 to confirm the restoring.

Radio frequency (RF) exposure and SAR

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) recommended by international guidelines (ICNIRP). These limits are part of comprehensive guidelines and establish permitted levels of RF energy for general population. The guidelines were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The guidelines include a substantial safety margin designed to assure the safety of

persons, regardless of age and health.

The exposure standard for mobile devices employs a unit measurement known as the Specific Absorption Rate, or SA Tests for SAR are conducted using standard operating position with the device transmitting at its highest certified well below maximum value. Although the SAR is determined at the high certified power level, the actual SAR of the device while operating can be well below the maximum value. This is better than the device is designed to operate at multiple power levels to use only the power required to reach the network. In giving the closer you are to a base station, the lower the power of the device.

SAR values may vary depending on national reporting and testing requirements and the network band. Use of device accessories and enhancements may result in different SAR values.

The SAR limit for mobile devices used by the public is 2. averaged over 10 grams of body tissue. The guidelines incorporate a substantial margin of safety to give additional protection for the public and to account for any variations measurements.

The highest SAR value for this model phone tested for us 1.82mW/g.

Warning

• Lithium battery inside!
- Do not try to open the product!
- Do not expose to heat, water, moisture, direct sun

CAUTION!

Manufacturer	Shenzhen East Sun Electronics Co., Ltd.No. 88, Xingye 1st Road, Fenghu 1st Industrial Area, Fuyong Town, Bao'an District, Shenzhen, Guangdong, China
Business License	91440300770306495Y
Model identifier	Travel Charger ES007-U050055XOB
Input voltage	AC 100-240V
Input AC frequency	50/60Hz
Output voltage	DC 5.0V
Output current	0.55A
Output power	2.75W
Average active efficiency	73.33%
Efficiency at low load (10%)	N/A
No-load power consumption	0.070W

Please notice - All products are subject to change without notice. We take reservations for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT

DENVER A/S

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

ENG-20

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment

All cities have established collection points, where electric a electronic equipment and batteries can either be submitted of charge at recycling stations and other collection sites, o collected from the households. Additional information is available at the technical department of your city.

Hereby, Denver A/S declares that the radio equipment type BAS-24200M is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: denver.eu and then click the sea ICON on topline of website. Write modelnumber: BAS-24200 Now enter product page, and red directive is found under downloads/other downloads.

DENVER A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

facebook.com/denver.eu

Operating Frequency Range:

GSM900: 880.2-914.8MHz (TX), 925.2-959.8MHz (RX);

DCS1800: 1710.2-1784.8 MHz (TX), 1805.2-1879.8 MHz (RX

Bluetooth:2402 \~ 2480 MHz (TX/RX);

FM: 87.5 - 108 MHz (Rx)

Transmit Power:

Max. 2W/Max. 1W

Bluetooth: 3.14 dBm EIRP

denver

Seniortelefon

BAS-24200M NORDIC

facebook.com/denver.eu

Two views of a smartphone showing internal components and wiring (no text or symbols)

DAN-3

Cross-sectional diagram of a smartphone showing internal components and an arrow indicating direction (no text or symbols)

DAN-4

Line drawing of a mobile phone casing with a circular button and adjustment knob (no text or symbols)

Technical line drawing of a mobile phone casing with an arrow indicating a component (no text or symbols present)

DAN-6

DAN-8

Two open-sectional views of a smartphone showing internal components and wiring (no text or symbols)

Cross-sectional diagram of a mobile phone casing showing internal components and an arrow indicating direction (no text or symbols)

SWE-4

Line drawing of a mobile phone casing with a circular button and camera lens (no text or symbols)

Technical line drawing of a mobile phone casing with an arrow indicating a component (no text or symbols present)

Käyttöopas
Finnis

Turvallisuustiedot

Two views of a mobile phone showing internal components and wiring (no text or symbols)

FIN-3

Cross-sectional diagram of a mobile phone showing internal components and wiring (no text or labels)

FIN-4

Line drawing of a mobile phone casing with a circular button and scroll wheel (no text or symbols)

Line drawing of a mobile phone casing with an arrow pointing to the internal panel (no text or symbols present)

FIN-6

FIN-8

Brukerhåndbok Norsk

Two views of a smartphone showing internal components and wiring (no text or symbols)

NOR-3

Cross-sectional diagram of a mobile phone showing internal components and wiring (no text or labels)

NOR-4

Technical line drawing of a mobile phone showing internal components and a close-up of the casing (no text or symbols)

NOR-6

NOR-8

(Push "2" for support)

E-Mail

For technical questions, please write to:

[e-mail]

For all other questions please write to:

[e-mail]

Benelux/France

Denver Benelux BV

Barwoutswaarder 13C+D

3449 HE Woerden

The Netherlands

Phone: [phone]

E-Mail: [e-mail]

Spain/Portugal

Denver AS Spain S.A.

Denver Germany GmbH Service

Gutenbergstrasse 1

94036 Passau

Phone: [phone]

E-Mail

[e-mail]

Fairfixx GmbH

Repair and service

E-Mobility/Hoverboards/Balanceboards,

Smartphones & Tablets)

Tel.: [phone]

If your country is not listed above, please write an email to

[e-mail]
