K7 - Digital SLR Camera PENTAX - Free user manual and instructions

Product Type	Digital SLR Camera
Brand	PENTAX
Model	K-7
Sensor	CMOS 23.4 x 15.6 mm, 14.6 effective megapixels
Image Stabilization	SR (Shake Reduction) via sensor shift
Autofocus	11 points (9 cross-type in center)
Viewfinder	Pentaprism, coverage ~100%, magnification ~0.9x
LCD Screen	3 inches, approx. 921,000 pixels
Dimensions (approx.)	130.5 x 97.5 x 72.5 mm
Weight (with battery and card)	Approx. 670 g
Power Supply	Rechargeable lithium-ion battery D-LI90; charger D-BC90; AC adapter K-AC50 (optional)
File Types	JPEG, RAW (PEF or DNG), RAW+JPEG
Video Recording	Yes (resolution and details not specified in the manual)
Built-in Flash	Yes, guide number approx. 13 (ISO 100/m)
Weather Resistance	Magnesium alloy body, dust and water seals
Dust Removal System	Ultrasonic vibration of CMOS sensor
Maintenance and Cleaning	Clean exterior with soft cloth; avoid solvents; professional sensor cleaning recommended
Safety	Do not disassemble; avoid looking at the sun through the viewfinder; use only recommended accessories
Spare Parts and Repairability	Optional accessories: D-BG4 grip, external flashes, remote control, etc.; repair by PENTAX authorized service center
General Information	361-page manual; multiple languages; compatible with DA, DA L, D FA, FA J lenses and lenses with A position

Frequently Asked Questions - K7 PENTAX

Which lenses can I use with the PENTAX K-7?

You can use DA, DA L, D FA, FA J lenses as well as those with an A (auto) aperture position. For other lenses, set the parameter [37. Using aperture ring] to [Permitted] in the custom settings menu.

How do I charge the D-LI90 battery?

Use only the supplied D-BC90 charger. Connect the power cord, insert the battery with the ▲ mark facing up, and wait until the indicator turns off (approx. 390 minutes). Do not charge other types of batteries.

What should I do if the screen remains black or shows an error message?

Check that the battery is charged and properly inserted. If the screen does not turn on, remove and reinsert the battery. If an error message appears (e.g., [Battery exhausted]), recharge or replace the battery. Refer to the Error Messages section on page 328 of the manual.

The image stabilizer (SR) makes noise, is this normal?

Yes, it is normal. The Shake Reduction system moves the sensor to compensate for vibrations, which may produce noise when moving the camera (e.g., changing composition). This does not affect image quality.

How do I clean the CMOS sensor of the K-7?

The K-7 has a dust removal system using ultrasonic vibrations (page 318). You can also use a blower after removing the lens. For professional cleaning, contact a PENTAX repair center (fee-based service).

Can I use a non-PENTAX external flash?

It is recommended to use compatible PENTAX external flashes (e.g., AF360FGZ, AF540FGZ). Flashes from other brands may not work correctly or could damage the camera. See the Using the Flash chapter (page 181) for details.

How do I record videos with the K-7?

Turn the mode dial to the Video (∅) position. Use the Live View function to compose the image. Press the shutter button to start and stop recording. The maximum duration depends on the memory card and resolution.

What file formats are available?

You can save in JPEG (various sizes and qualities), RAW (PEF or DNG), or RAW+JPEG. RAW format allows lossless post-processing. RAW images can be developed directly in the camera (page 265).

How do I reset to default settings?

Access the [C Custom Settings] menu or use the Reset function (page 312). You can also clear saved settings by recording the default values via the [Shooting Mode 4] menu (Memory).

What should I do if the memory card is not recognized?

Ensure the card is an SD or SDHC and inserted correctly (label facing the screen). Format the card in the camera (menu [◀ Preferences] > [Formatting]). If the problem persists, try another card or contact customer service.

USER MANUAL K7 PENTAX

Black Pentax DSLR camera with visible lens and aperture (no text or symbols on body)

Sur-impression....158

Shake Reduction (SR)

Line drawing of a U-shaped mechanical component with a recessed cutout (no text or symbols)

Simple line drawing of a circular ring or washer (no text or symbols)

Line drawing of a coiled electrical cable with connectors (no text or symbols)

Câble USB I-USB7

Line drawing of a coiled electrical probe with two connectors (no text or symbols)

Câble AV I-AVC7

Line drawing of a mechanical clamp or connector with two bands and a dotted cap (no text or symbols)

Courroie O-ST53

Batterie lithium-ion rechargeable D-LI90

Line drawing of a rectangular electronic device with internal ports and connectors (no text or symbols)

Line drawing of a black cable with two terminal connectors (no text or symbols)

Simple line drawing of a circular object with concentric rings (no text or symbols)

Simple line drawing of a circular object with concentric rings (no text or symbols)

Abstract grayscale shape resembling a mountain or peak against a dark gray background (no text or symbols)

Image sombre

Abstract white silhouette on a gray background, no text or symbols present

Abstract white silhouette on gray background, no text or symbols present

Image lumineuse

14 Sur-impression (p.158)

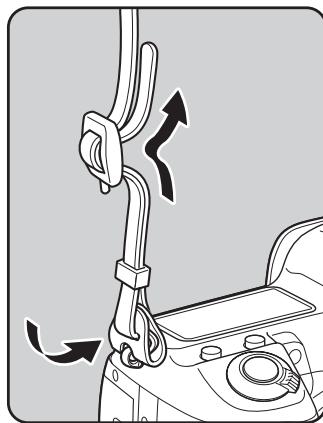

Line drawing of a mechanical device with a belt and clasp, showing a curved arrow indicating rotation (no text or symbols)

Diagram of a rope knot being tied on a device (no text or symbols)

Diagram of a mechanical device with attached clamps and arrows indicating motion (no text or symbols)

Diagram of a DSLR camera with a close-up view showing the internal components (no text or symbols present)

Technical line drawing of a DSLR camera with lens and control panel (no text or symbols)

Line drawing of a DSLR camera with attached cable and connector (no text or symbols)

Line drawing of a Pentax DSLR camera with no text or symbols on the body, showing lens and frame structure (no readable text or symbols)

Diagram of a Pentax DSLR camera with labeled parts (no text or symbols on the device itself)

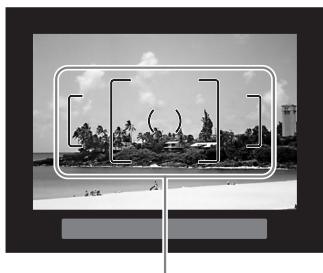

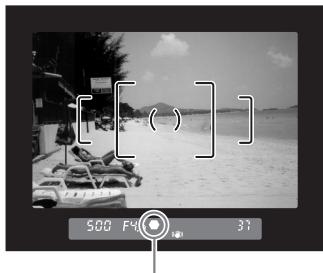

Black-and-white beach scene with palm trees and distant buildings under a cloudy sky (no visible text or symbols)

Mire AF

Close-up of a camera module with a black arrow pointing to the lock mechanism (no text or symbols visible)

Line drawing of a person holding a camera, with an arrow indicating the camera's tip (no text or symbols present)

Position horizontale

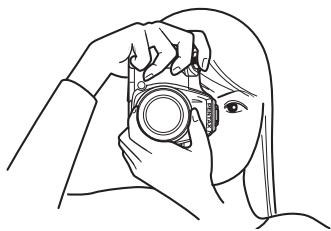

Line drawing of a person holding a camera, no text or symbols present

Position verticale

Technical line drawing of a DSLR camera with control panel and dial (no text or symbols)

Illustration of a person using a DSLR camera to adjust lens (no text or symbols visible)

Illustration of a person holding a DSLR camera, with no visible text or symbols

Illustration of a person holding a DSLR camera, with an arrow pointing to the camera (no text or symbols present)

6

Two black-and-white photos: top shows a DSLR camera with screen, bottom shows a park pathway and a small building labeled 'Supprimer' (no other text or symbols)

Illustration of a person using a DSLR camera to adjust lens (no text or symbols visible)

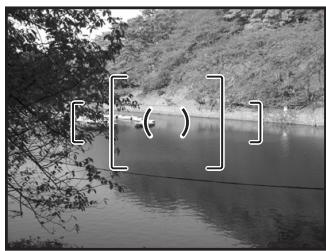

Grand-angle

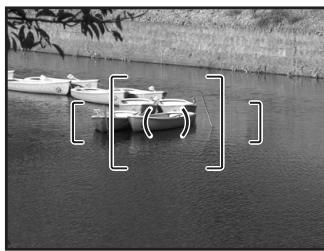

Black-and-white photo of two small boats on a calm riverbank, with tree branches in the background (no text or symbols visible)

Téléobjectif

Close-up of a camera mode dial with buttons and a pointer (no text or symbols visible)

Black-and-white cartoon illustration of a girl with long hair looking at a tree (no text or symbols)

Illustration of a girl with long hair looking at a tree trunk, surrounded by falling leaves (no text or symbols)

Diagram showing a DSLR camera with control panel and playback button, no text or symbols present

Line drawing of a camera front panel with control buttons and an upward arrow (no text or symbols)

Illustration of a fountain with water spray and trees (no text or symbols)

Illustration of a snowy landscape with smoke and snowflakes, no text or symbols present

Black and white close-up of a leaf with visible veins, set against blurred foliage (no text or symbols)

Black-and-white close-up of poppy flowers and daisies (no text or symbols)

Close-up of a camera mode dial with labeled buttons (no text or symbols beyond standard markings)

2

Line drawing of a mechanical component with a knob and directional arrow (no text or symbols)

Close-up of a camera mode dial with no visible text or symbols on the dial face (pure technical diagram)

Technical line drawing of a mechanical component with a knob and directional arrow (no text or symbols)

Diagram of a mechanical component with a knob and directional arrow (no text or symbols)

Technical line drawing of a camera's internal components (no text or symbols)

Grid of 25 identical empty squares arranged in a 4x4 pattern (no text or symbols)

3D wireframe surface plot showing a smooth, curved peak (no text or symbols)

Simple diagram with a central circle and two adjacent rectangular boxes, no text or symbols present.

Illustration of a person holding a DSLR camera, with an arrow pointing to the camera (no text or symbols present)

(Superposer zone AF)

Illustration of a person standing near a large structure with a chimney, possibly a fire or industrial facility (no text or symbols visible)

Illustration of a woman standing in front of a bridge, holding a book (no text or symbols present)

Line drawing of a person using a DSLR camera with lens and scroll (no text or symbols)

Line drawing of a person using a DSLR camera with a curved arrow indicating rotation (no text or symbols)

Line drawing of a woman sitting beside a vase with flowers, no text or symbols present

Black-and-white photo of a wooden pier with a gazebo on calm water, no visible text or symbols

Black-and-white photo of three fruits on a checkered tablecloth (no text or symbols)

Black-and-white photo of three apples on a checkered tablecloth (no text or symbols)

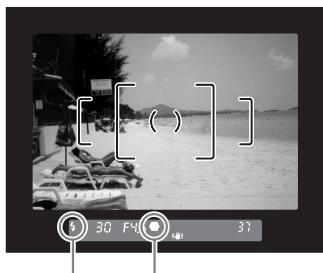

Beach scene with palm trees and parked chairs, no visible text or symbols

Line drawing of a Pentax DSLR camera with no visible text or symbols

Line drawing of a DSLR camera with an arrow indicating compression or disassembly (no text or symbols present)

Close-up of a camera lens component with an arrow pointing to the lens (no text or symbols visible)

Black-and-white landscape illustration featuring a winding river, rolling hills, and scattered trees under a cloudy sky (no text or symbols)

Exposition normale

Black-and-white landscape illustration featuring a winding river, hills, and trees under a cloudy sky (no text or symbols)

Sous-exposition

Simple landscape illustration with hills, trees, and a winding river (no text or symbols)

Surexposition

Diagram of a DSLR camera with attached cable and connector, showing internal components and wiring (no text or symbols)

Close-up of a camera mode dial with buttons and a 'USER' label (no additional text or symbols)

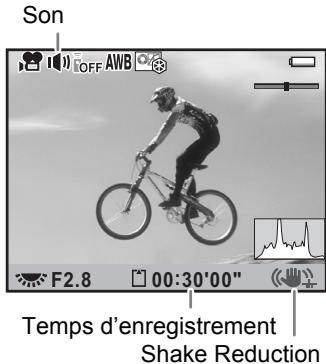

Black-and-white photo of a person riding a bicycle against a sky background, with no visible text or symbols in the main image area.

Illustration of a white sedan with motion blur effect (no text or symbols)

Synchro lente

Illustration of a car speeding with motion lines (no text or symbols)

Synchro 2e rideau

$$ F = 1 3 \div 4 = 3, 2 5 $$

Line drawing of a DSLR camera setup with tripod-mounted sensor and coiled cable (no text or symbols)

Line drawing of three DSLR camera setups with tripod-mounted cameras and coiled cables (no text or symbols)
