SWV 300 C1 - Wi-Fi Antenna SILVERCREST - Free user manual and instructions

Product Type	WLAN Amplifier / Wi-Fi Repeater
Brand	SilverCrest
Model	SWV 300 C1
Dimensions (L x H x D)	54 x 76 x 81 mm
Weight	88 g
Power Supply	100-240 V~, 50/60 Hz, 6 W max
WLAN Standards	802.11 b / g / n
Frequency	2.4 GHz
Maximum Data Rate	300 Mbit/s
Operating Modes	Repeater, Client, Access Point (Router)
Simplified Configuration	WPS (button)
Encryption	WPA, WPA2, WEP (128/64)
Ports	1 x WAN/LAN (RJ-45), 1 x LAN (RJ-45)
Operating Temperature	5 to 35 °C
Operating Humidity	85% max
Storage Temperature	-20 to 60 °C
Maintenance	Clean, dry cloth; do not open
Package Contents	WLAN Amplifier, 2 network cables, instruction manual
Warranty	3 years

Frequently Asked Questions - SWV 300 C1 SILVERCREST

How to configure the WLAN amplifier in repeater mode with WPS?

Place the amplifier 2-3 meters from the router, plug it in and turn it on. Press the WPS button on the amplifier for at least 6 seconds (the Power/WPS LED flashes), then press the WPS button on the router within 2 minutes. The connection is established automatically.

What to do if the Power/WPS LED does not light up?

Check that the main switch is ON. Test the socket with another device. If the problem persists, contact customer service.

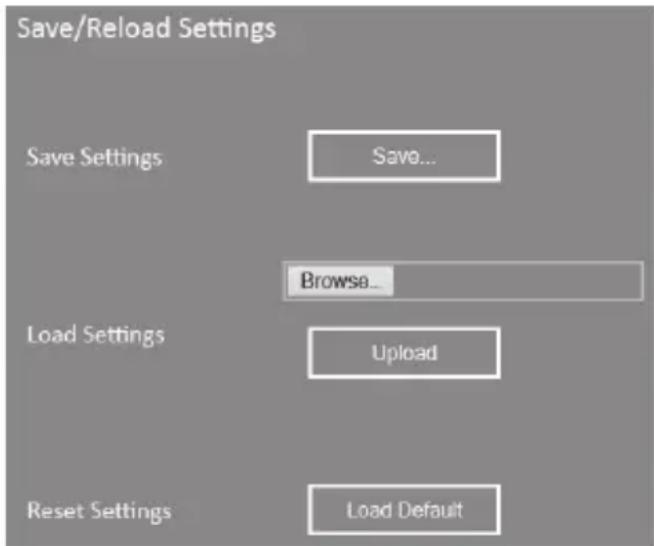

How to reset the amplifier to factory settings?

Use a pointed object (paperclip) to press the Reset button (5) for about 10 seconds, until the Power/WPS LED turns off. The device restarts and restores its default settings.

Can I use the amplifier as an access point if my router has no WLAN?

Yes, in Access Point mode, connect the amplifier to the router via the network cable. Configure it via the web interface (http://repeater.setup) to create a WLAN network.

What is the default password to access the configuration interface?

The default username and password are both admin. You can change them in the Management > Password menu.

How to connect a TV without Wi-Fi to the Internet via the amplifier?

Use Client mode: set the selector to Client, configure the amplifier via WPS or manually to connect to the router. Connect your TV to the amplifier using a network cable (LAN port).

What is the maximum range of the amplifier?

Range depends on the environment (walls, interference). Generally, the amplifier can extend the signal up to several tens of meters. The ideal location is halfway between the router and devices.

Can the LEDs be disabled?

Yes, in the configuration menu under Management > LED Control, you can disable all LEDs except the Power/WPS LED. The device restarts after the change.

How to update the amplifier firmware?

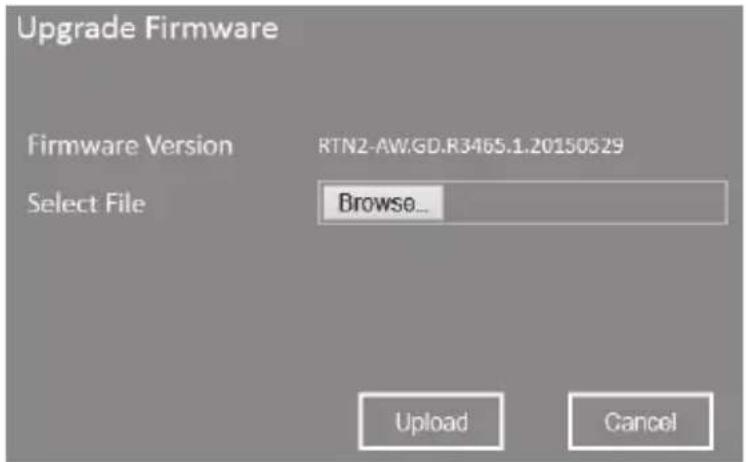

Download the new firmware from the manufacturer's website. Log in to the web interface, go to Management > Update firmware, select the file and follow the instructions. Note: settings will be reset.

What to do if manual configuration via http://repeater.setup does not work?

Check that the computer is connected to the amplifier (via cable or to the SWV 300 C1 network) and that the address is entered correctly. If necessary, reset the device and try again.

USER MANUAL SWV 300 C1 SILVERCREST

User manual and service information

IAN 106969

IAN 106969

DE AT CH

Deutsch......2

Français....79

Italiano....156

English....233

Inhalt

Einleitung....5

Coiled white network cable with connectors, labeled 'B' in top-left corner (no other text or symbols)

C

Simple line drawing of an open book with no text or symbols visible

A SilverCrest SWV 300 C1 WLAN-Verstärker

B 2 x Netzwerkkabel

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Diagram of a wireless router with WiFi ports and signal icons, no text or symbols present

26 - Deutsch

Illustration of a TV connected to a silver Crest wireless device with signal waves (no text or symbols on device)

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Diagram of a wireless router with WiFi ports and signal icons, no text or symbols present

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Simple gear icon with no text or symbols

Verwaltung

Kennwort

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Coiled white network cable with connectors, labeled 'B' in top-left corner (no other text or symbols)

C

Simple line drawing of an open book with no text or symbols visible

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Diagram of a wireless router with WiFi connections and a hand cursor pointing to the button (no text or symbols on the device itself)

Illustration of a TV connected to a silver Crest wireless device with signal waves (no text or symbols on device)

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Diagram of a wireless router with WiFi connections and a hand cursor pointing to the button (no text or symbols on the device itself)

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

● Activer ○ Désactiver

Protection

○ Activer ◎ Désactiver

Regroupement

- Activer ○ Désactiver

GI court

● Activer ○ Désactiver

Partition WLAN

○ Activer Ⓞ Désactiver

STBC

Activer Désactiver

20/40 MHz coexistent

○ Activer ◎ Désactiver

Puissance RF

100% 70% 50% 30%

Appliquer

Simple gear icon with no text or symbols

Gestion

Mot de passe

Symbol of a trash bin crossed with no visible text or labels

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Diagram of a wireless router with WiFi ports and signal icons, no text or symbols present

Illustration of a TV displaying and connected to a silver Crest wireless device with signal waves (no text or symbols on the device itself)

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Diagram of a wireless router with WiFi ports and signal icons, no text or symbols present

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Simple gear icon with no text or symbols

Gestione

Password

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Safety instructions.... 242

Storage when not in use 249

Copyright 249

Prior to use 250

First use 251

SilverCrest SWV 300 C1

Setting mode....251

Repeater Mode 252

WPS - The easiest type of configuration....254

Manual configuration 256

Client Mode....262

WPS - The easiest type of configuration....264

Manual configuration 266

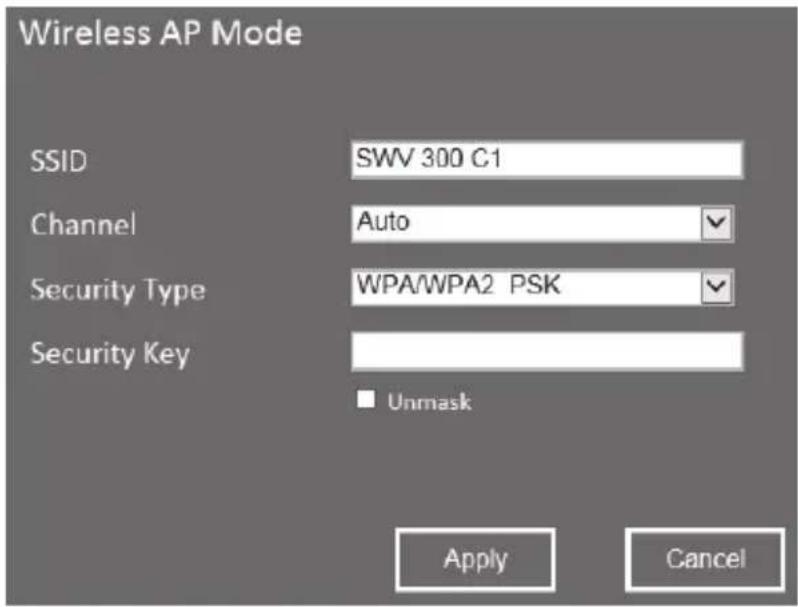

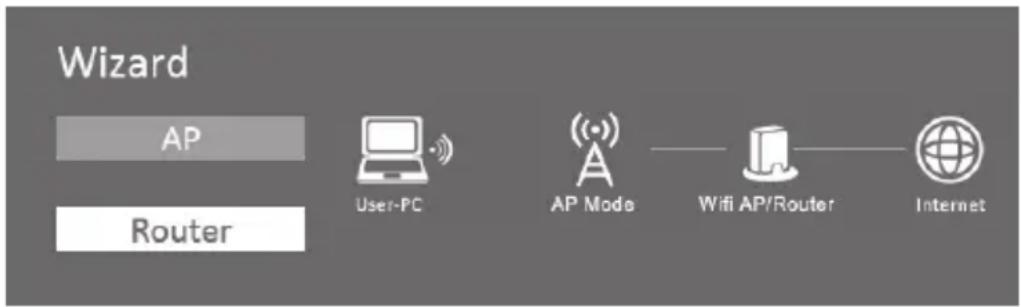

Access Point (AP) Mode (Router Mode) 271

WPS - Connect to the AP (Router Mode) 279

Manual connection to the AP....280

Configuration menu of the wifi range extender 281

Wizard....284

Wireless status....284

WiFi (Wireless) 286

234 - English

SilverCrest SWV 300 C1

Network 294

Management....296

Status....304

Environmental and disposal information 305

Conformity information 306

Troubleshooting 306

Warranty and servicing advice.... 308

Introduction

Thank you for purchasing a SilverCrest product.

The SilverCrest Wifi Range Extender SWV 300 C1, hereinafter referred to as wifi range extender, increases the range of an existing wireless network. The built-in WPS function enables it to be easily connected to a secure wireless network.

Read these operating instructions carefully before first using the device as they contain important information on installation, usage, storage and disposal of the wifi range extender.

Intended use

This wifi range extender is an information technology device. It increases the range of an existing wireless network. The wifi range extender can also be used as an access point (AP), for example, to use a router without its own wireless network as a "wireless router". In addition, the wifi range extender can be connected as a client to end devices with a LAN interface (for example, computer, notebook or TV set), which do not have their own wireless network. It is only designed for private use and not for industrial or commercial purposes. Furthermore, the wifi range extender may not be used outdoors or in tropical climates. This device complies with all standards and directives specified in the Declaration of Conformity. In the event of any modification to the wifi range extender that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases. Please observe the regulations and laws in the country of use.

Supplied items

Check the contents to ensure they are complete. You must notify our Customer Service immediately if parts are missing.

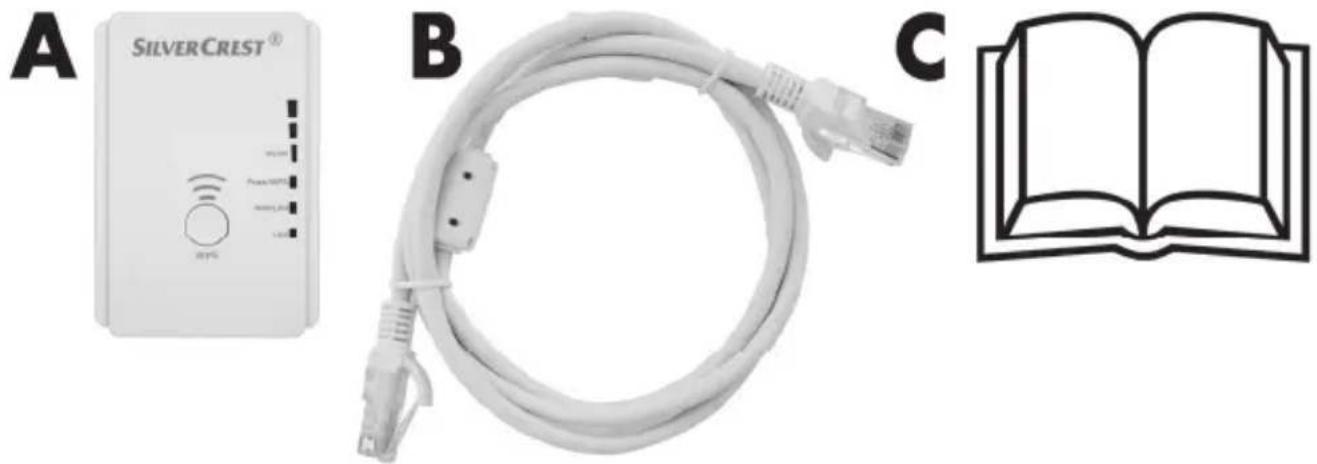

A SilverCrest Wifi Range Extender SWV 300 C1

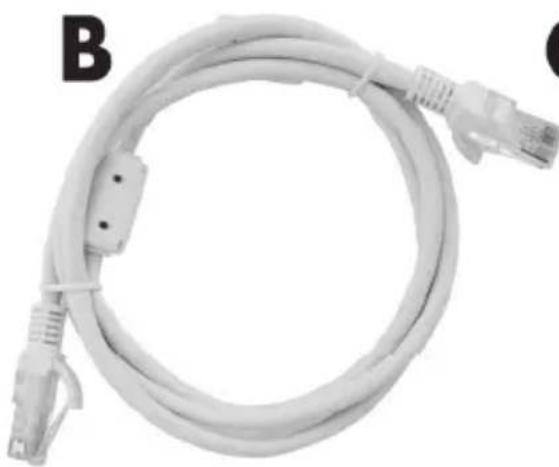

B 2 network cables
C These operating instructions (symbolic representation)

A separate flyer relating to the "GNU General Public License" is enclosed with this wifi range extender. This flyer can also be downloaded at www.lidl-service.com.

238 - English

Overview

These operating instructions have a fold-out cover. The wifi range extender is illustrated with numbers on the inside cover. The numbers indicate the following:

1 Field strength indicator
2 Power/WPS LED
3 WAN/LAN LED
4 LAN LED
5 Reset
6 WAN/LAN socket (network socket, RJ-45)
7 LAN socket (network socket, RJ-45)
8 Mode selector
9 WPS button
10 Main switch

LED indicators

LED Status Meaning
Field strength indicator (1)	lights up The more	bars that light up, the better the reception(all bars light up in AP mode)
	flashes	No reception
Power/WPS (2) flashes WPS connection is being established or WPS signal of another device is expected
WAN/LAN (3) lights up Connection is established
LAN (4) lights up Connection is established

Technical data

Input voltage	100-240 V~, 50/60 Hz
Power consumption max. 6 W
WLAN standards 802.11b, 802.11g, 802.11n
Frequency band 2.4GHz
Data transfer rate up to 300Mbit/s
Encryption WPA, WPA2, WEP (128/64) *
Dimensions (W x H x D) approx. 54 x 76 x 81mm
Weight approx. 88g
Operating temperature, air humidity 5 to 35°C; max. 85% rel. humidity
Storage temperature, air humidity -20 to 60°C; max. 90% rel. humidity

* WEP (128/64) encryption only with 802.11b/g.

The technical data and design may be changed without notification.

Safety instructions

Before using the device for the first time, please read the following instructions carefully even if you are familiar with using electronic devices. Store these operating instructions in a safe place for future reference. If you pass on the wifi range extender to someone else, be sure to always include these instructions as they are an integral part of the device.

DANGER! This symbol in conjunction with the "danger" note indicates an imminent dangerous situation which, if not prevented, could result in serious injury or even death.

WARNING! This symbol in conjunction with the "warning" note indicates important information for safe operation of the device and the safety of the user.

This symbol indicates other important information on the topic.

Operating environment

The wifi range extender is not designed for use in environments with a high temperature or humidity (e.g. bathrooms), and must be kept free from dust. Operating temperatures and operating air humidity: 5^ C to 35^ C, max. 85% rel. humidity.

Please always maintain the wifi range extender at a minimum distance of 20 cm from the body to avoid exposure to radio radiation.

DANGER! Ensure that

• no direct heat sources (e.g. heating) can affect the device
• no direct sunlight or bright artificial light reaches the device
• the device is not in the immediate vicinity of magnetic fields (e.g. speakers)
• no fire sources (e.g. burning candles) are placed on or near the device
• no foreign objects penetrate the device

- contact with sprayed and dripping water and corrosive liquids is avoided and the device is never operated near water; in particular it should never be immersed (do not place any objects filled with liquids, for example, vases or drinks, on or near the device)

English - 243

• the device is not subjected to any extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the device was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the device has reached ambient temperature before use
• the device is never subjected to excessive shocks and vibrations
• the device is never touched with wet hands as there is a risk of an electric shock
• the housing openings, which ventilate the wifi range extender, are never covered or enclosed as there is a risk of fire

If the aforementioned instructions are not adhered to, it poses a risk to your health or the device could be damaged.

DANGER! Operational safety

• Only connect the wifi range extender to a freely accessible socket so that it can be quickly disconnected from the mains in the event of danger (smoke, fumes or smell of burning). The socket must always be easily accessible during operation also.
• The main switch (10) of this device does not fully disconnect the device from the mains. Even if the device is not being used, it consumes minimal power. Disconnect the wifi range extender from the mains if the device will not be used for a prolonged period (e.g. during holidays). This minimises the

risk of fire or smouldering, which always exists when an electrical device is connected to power supply. To disconnect the wifi range extender completely from the power supply, you must remove its mains plug from the socket.

• Always disconnect the wifi range extender from the mains power supply before a storm or thunderstorm if there is the risk of lightning as the wifi range extender can be irreparably damaged by high voltage surges if lightning strikes.
• Never use any adapter plugs or extension cables which are damaged or which do not comply with valid safety standards.

DANGER! Children and persons with disabilities

Electrical devices do not belong in the hands of children. Persons with physical, mental or sensory disabilities should also only use electrical devices within the scope of their abilities. Never allow children or persons with disabilities to use electrical devices unsupervised, unless they have been instructed accordingly or are supervised by a person responsible for their safety. Children should always be

supervised to ensure that they do not play with this device. Small parts can be fatal if swallowed. Always keep plastic packaging out of reach.

DANGER! It poses a suffocation risk.

DANGER! Radio interface

Do not use the device on aircraft, in hospitals, operating rooms or in the vicinity of medical electronic systems. The transmitted radio waves can impair the functionality of sensitive devices. Keep the device at least 20 cm away from any pacemakers or implantable cardioverter defibrillators because the proper functioning of the pacemaker or implantable cardioverter defibrillator can be impaired by radio waves. The transmitted radio waves can cause interference in hearing aids. Do not place the device in the vicinity of flammable gases or in a potentially explosive environment (e.g. paint shop) when the radio components are switched on because the transmitted radio waves can cause an explosion or a fire. The range of the radio waves is dependent on conditions in the surrounding environment. In the event of data traffic via a wireless connection, it is also possible for unauthorised third parties to receive data. Targa GmbH is not responsible for radio or television interference caused by unauthorised changes to

this device. In addition, Targa assumes no responsibility for the replacement or exchange of connecting lines and devices not indicated by Targa GmbH. The user is solely responsible for the elimination of interference caused by such unauthorised changes and for the replacement or exchange of the devices.

WARNING! Cables

Always handle the cables by the plug and do not pull on the cables themselves. Never place furniture or other heavy objects on the cable and take care that the cable is not kinked, especially near the plug and connection sockets. Never make knots in any of the cables or tie them together with other cables. Ensure that all cables are placed so that no one can trip over them and they do not cause an obstruction.

WARNING! Maintenance / cleaning

It is necessary to repair the device if it has been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture. Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, the device must be switched off immediately and its mains plug must be removed from the socket. In such cases, the device should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the device. Only use a clean, dry cloth for cleaning and never use any corrosive liquids. Never try to open the housing of the device This would void your warranty.

Storage when not in use

If the device will not be used for a long period of time, disconnect the wifi range extender from the mains power supply. Ensure that the storage temperature remains between -20^ and 60^ . The air humidity should not exceed 90% rel. humidity.

Note: the temperature range and relative air humidity for storage and use are quite different; please see the information in the "Operating environment" section.

Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only.

It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data.

The text and illustrations are based on the state of the art at the time of printing.

Prior to use

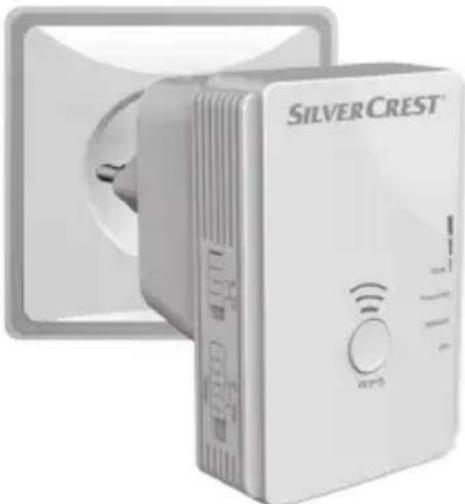

Take the wifi range extender and the accessories out of the packaging and remove all packaging material completely.

Check the wifi range extender for signs of damage. If it is damaged, the wifi range extender must not be used.

The wifi range extender increases the range of your wireless network. The wifi range extender supports the following three modes:

Repeater

The range of your wireless network (WLAN) is extended. Thus wireless devices, which are outside the range of your wireless network, can be connected to the network via the wifi range extender.

Client

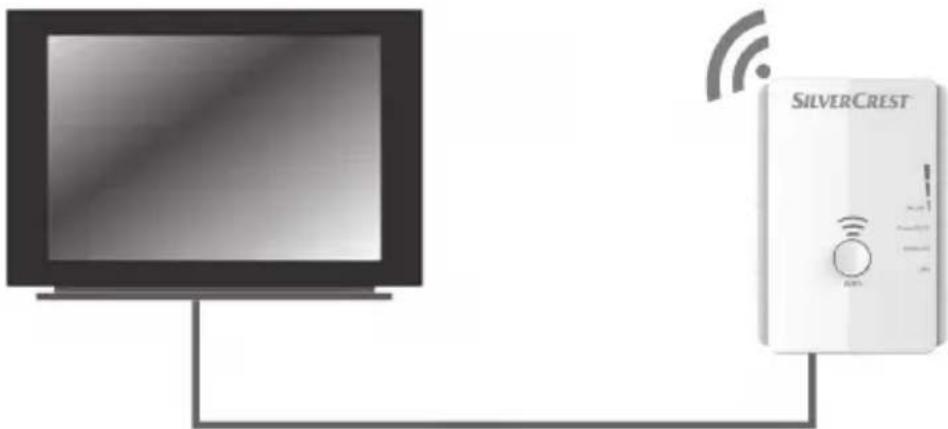

You can connect an end device with a LAN interface (for example, computer, notebook or TV set), which has no own wireless network, to the wifi range extender via the LAN cable (network cable). The wifi range extender can now connect your end device wirelessly to an existing wireless router.

As we cannot guarantee compatibility with all devices, please read the operating instructions for your device.

Access Point (AP)

This mode can be used, for example, to provide a router without its own wireless network as a "wireless router". The router must be connected to the wifi range extender via the LAN cable (network cable, see "Supplied items").

WARNING! Only use the network cable supplied with the device.

First use

Setting mode

Select the desired mode using the mode selector (8). To do so, move the mode selector (8) to the desired position (Access Point, Repeater or Client).

Repeater Mode

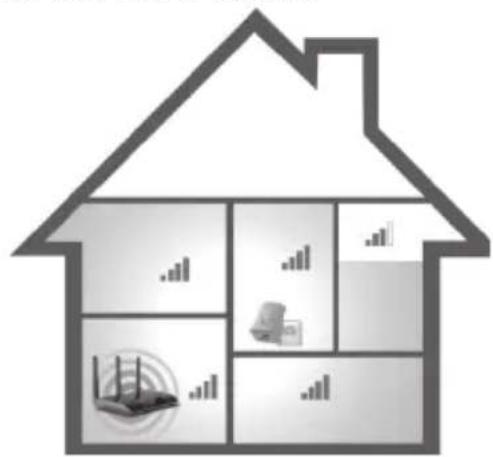

Repeater Mode is used to extend the range of your wireless network. Wireless outside the range of your wireless network can be connected to the network via the wifi range extender.

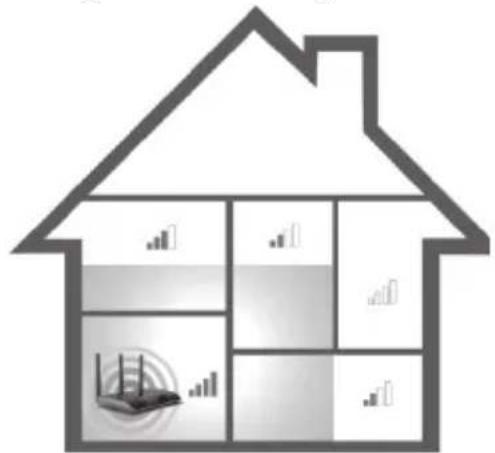

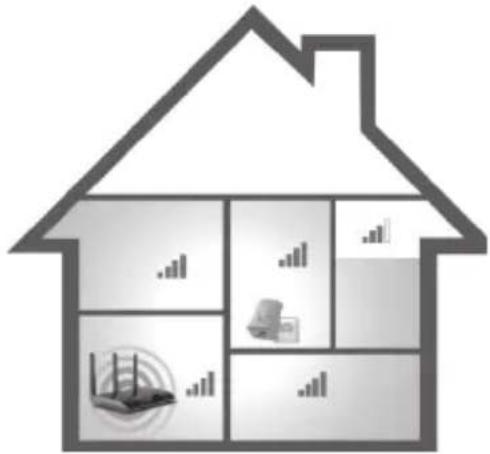

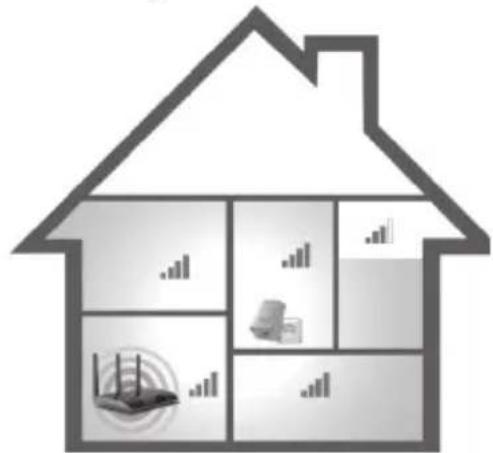

Range without wifi range extender Range with wifi range extender

The mode selector (8) must be set to the "Repeater" position for Repeater Mode.

The wifi range extender should be placed near (approx. 2-3 metres) the wireless router the first time it is used.

Insert the wifi range extender into a socket that is always easily accessible.

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Then switch on the wifi range extender by turning the main switch (10) to the "ON" position. The wifi range extender requires a certain amount of time (boot time) after it is switched on before it is ready to use. After switching the device on, wait for approximately 30 seconds before using the wifi range extender.

There are two different ways to configure the wifi range extender. If your wireless router supports WPS, you can use this simple function to easily set up the wifi range extender. If you would like to use a wireless router without WPS, you must connect the wifi range extender via a network cable or wireless network to your computer and configure it.

WPS - The easiest type of configuration

This is the easiest way to configure the wifi range extender. First, check whether your wireless router supports WPS. For further details, please read the operating instructions for your wireless router.

1. Press the WPS button (9) on the wifi range extender for at least 6 seconds. The Power/WPS LED (2) now flashes for approx. 2 minutes.

1. Within these 2 minutes, please press the connection button (WPS) on your wireless router. For further details, please read the operating instructions for your wireless router.

Diagram of a wireless router with WiFi ports and signal icons, no text or symbols present

(Symbolic representation, connection button (WPS) can be differently arranged and referred to depending on the router model.)

The wifi range extender then automatically connects to your wireless router and applies all of the settings. Once the connection has been successfully established, the field strength indicator (1) displays the signal strength. The wifi range extender can then be used. The wifi range extender can be accessed via the SSID (wireless name) and the network key of your wireless router.

You can then use the wifi range extender where the wireless signal is to be extended. The optimal location for the wifi range extender is exactly in the middle between your wireless router and the wireless devices which are to be connected to the network using the wifi range extender. Test other locations if the wifi range extender does not work there. Insert the wifi range extender only into a socket that is easily accessible.

It is possible to configure multiple wifi range extenders. These should be configured one after the other.

If your wireless router does not support WPS or the connection fails for some other reason, you must manually configure the wifi range extender.

Manual configuration

There are two different ways to configure the wifi range extender.

If you are not using the network default settings on your computer and have manually set an IP address, you must restore the network settings to Automatically obtain an IP address. For further details, please read the operating instructions for your computer.

1. You can then configure the wifi range extender via the network cable. If you want to configure the wifi range extender via the network cable, you must connect the wifi range extender to your computer. Use the network cable included with the device for this purpose. Insert one end of the network cable into the WAN/LAN socket (6) or the LAN socket (7) of the wifi range extender and the other end into the LAN socket of your computer.

2. Alternatively, you can perform the configuration via a wireless network. To do so, start the search for available wireless networks on your computer. The network SWV 300 C1 is displayed in the list of available wireless networks. Select the network SWV 300 C1 and click on the Connect button to connect wirelessly to the wifi range extender. After having pressed the Connect button, you may have to click the option Connect without configuring the network.

Open the Internet browser on your computer. Enter http://repeater.setup in the address line of the Internet browser and confirm the entry with the Enter button.

The login window of the wifi range extender opens. Select the desired language and enter admin as the user name and password. Then click on the Submit button. The configuration menu of the wifi range extender will then open.

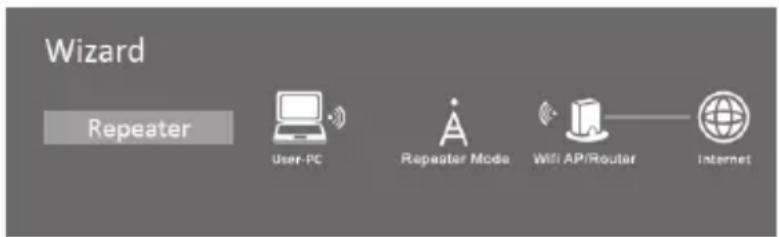

Perform the configuration using the wizard. To do so, click on the Repeater button in the Wizard field.

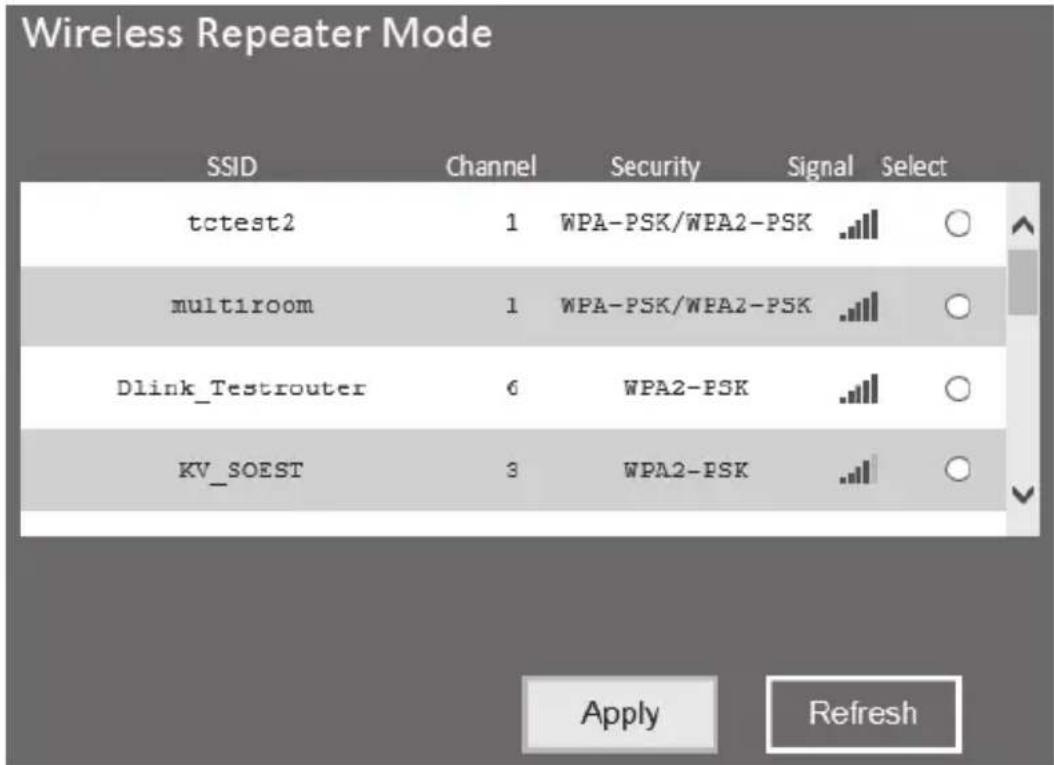

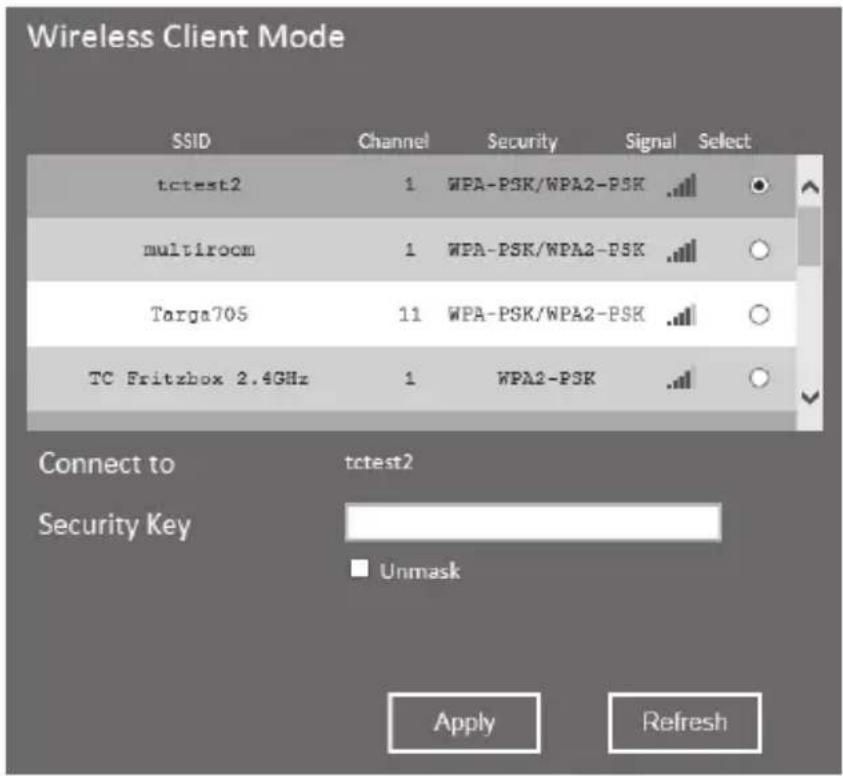

From the list, select a wireless network whose range you want to extend by choosing the corresponding network in the "Select" field.

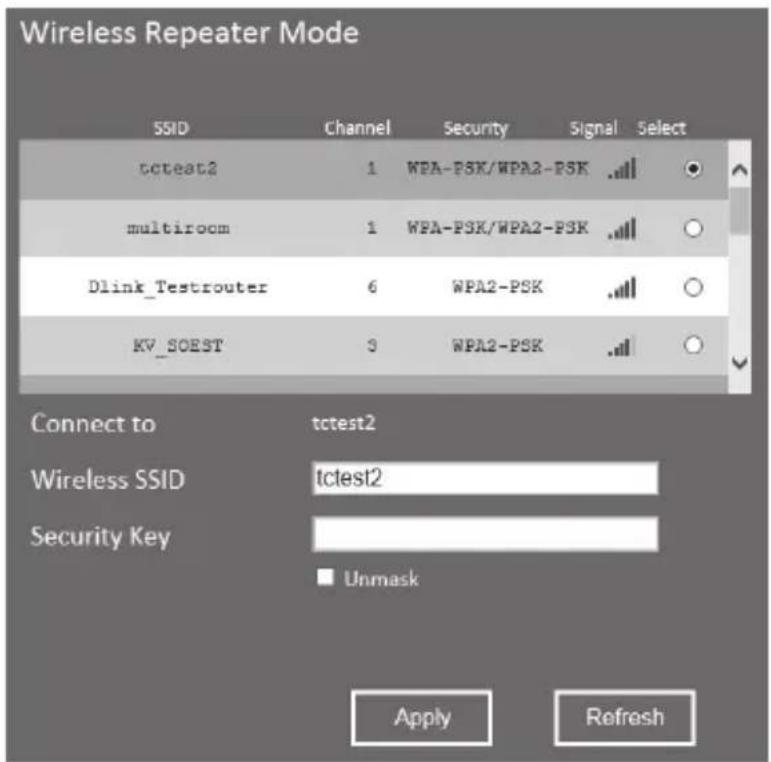

After having selected a wireless network, you can then specify any SSID for the wifi range extender for Wireless SSID. Enter the network key of your wireless router for Security key. Set the check mark for Unmask to display the registered security key. After completing the entry, click on the Apply button.

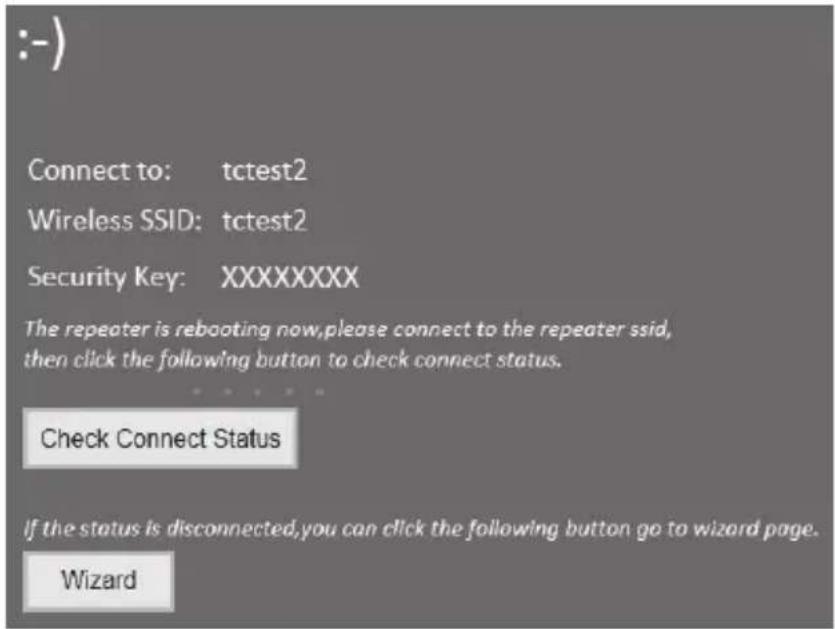

This will reboot the wifi range extender. Wait approximately 30 seconds before making any further entries.

After the reboot has been completed, the wifi range extender is accessible under the specified SSID and the network key of your wireless router.

If you would like to return to the configuration menu, you can click on WIFI Repeater in the title bar or enter repeater.setup in the address line of the Internet browser. Note that a connection must be

established with the wifi range extender for this purpose. To do so, connect the wifi range extender if necessary to your computer via a network cable.

Once the connection has been successfully established, the field strength indicator (1) displays the signal strength. The wifi range extender can then be used. The wifi range extender can now be accessed via the previously specified SSID (wireless name) and the network key of your wireless router.

You can then use the wifi range extender where the wireless signal is to be extended. The optimal location for the wifi range extender is exactly in the middle between your wireless router and the wireless devices which are to be connected to the network using the wifi range extender. Test other locations if the wifi range extender does not work there. Insert the wifi range extender only into a socket that is easily accessible.

If you would like to open the configuration menu, you must ensure that there is a valid connection to the wifi range extender. To do so, connect the wifi range extender if necessary to your computer via a network cable.

Client Mode

Client Mode enables end devices with a LAN interface (for example, computer, notebook or TV set), which have no own wireless network, to connect wirelessly to an existing wireless router.

Example of use:

Illustration of a TV connected to a silver Crest wireless device with signal waves (no text or symbols on device)

The mode selector (8) must be set to the "Client" position for Client Mode.

The wifi range extender should be placed near (approx. 2-3 metres) the wireless router the first time it is used.

Insert the wifi range extender into a socket that is always easily accessible.

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Then switch on the wifi range extender by turning the main switch (10) to the "ON" position. The wifi range extender requires a certain amount of time (boot time) after it is switched on before it is ready to use. After switching the device on, wait for approximately 30 seconds before using the wifi range extender.

There are two different ways to configure the wifi range extender. If your wireless router supports WPS, you can use this simple function to easily set up the wifi range extender. If you would like to use a wireless router without WPS, you must connect the wifi range extender to your computer via a network cable and configure it.

WPS - The easiest type of configuration

This is the easiest way to configure the wifi range extender. First, check whether your wireless router supports WPS. For further details, please read the operating instructions for your wireless router.

1. Press the WPS button (9) on the wifi range extender for at least 6 seconds. The Power/WPS LED (2) now flashes for approx. 2 minutes.

1. Within these 2 minutes, please press the connection button (WPS) on your wireless router. For further details, please read the operating instructions for your wireless router.

Diagram of a wireless router with WiFi ports and signal icons, no text or symbols present

(Symbolic representation, connection button (WPS) can be differently arranged and referred to depending on the router model.)

The wifi range extender then automatically connects to your wireless router and applies all of the settings. Once the connection has been successfully established, the field strength indicator (1) displays the signal strength. You can then use the wifi range extender where your end device is to be connected wirelessly with your router.

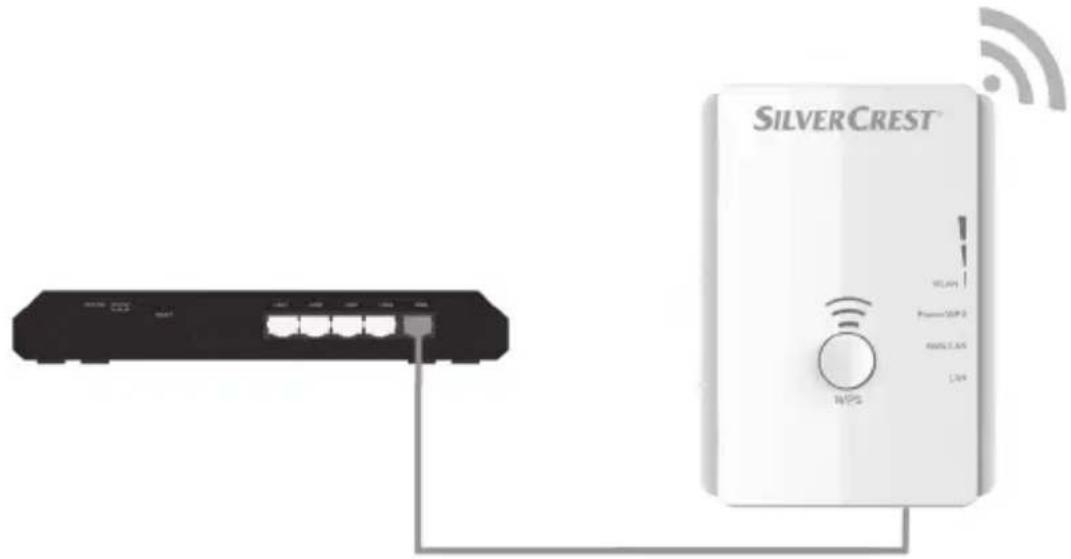

Connect the wifi range extender to your end device. Use the network cable included with the device for this purpose. Insert one end of the network cable into the WAN/LAN socket (6) or the LAN socket (7) of the wifi range extender and the other end into the LAN socket of your end device. Insert the wifi range extender only into a socket that is easily accessible.

If your wireless router does not support WPS or the connection fails for some other reason, you must manually configure the wifi range extender.

Manual configuration

If you are not using the network default settings on your computer and have manually set an IP address, you must restore the network settings to Automatically obtain an IP address. For further details, please read the operating instructions for your computer.

You then have to configure the wifi range extender via the network cable. To do so, you have to connect the wifi range extender to your computer. Use the network cable included with the device. Insert one end of the network cable into the WAN/LAN socket (6) or the LAN socket (7) of the wifi range extender and the other end into the LAN socket of your computer.

Open the Internet browser on your computer. Enter http://repeater.setup in the address line of the Internet browser and confirm the entry with the Enter button.

The login window of the wifi range extender opens. Select the desired language and enter admin as the user name and password. Then click on the Submit button. The configuration menu of the wifi range extender will then open.

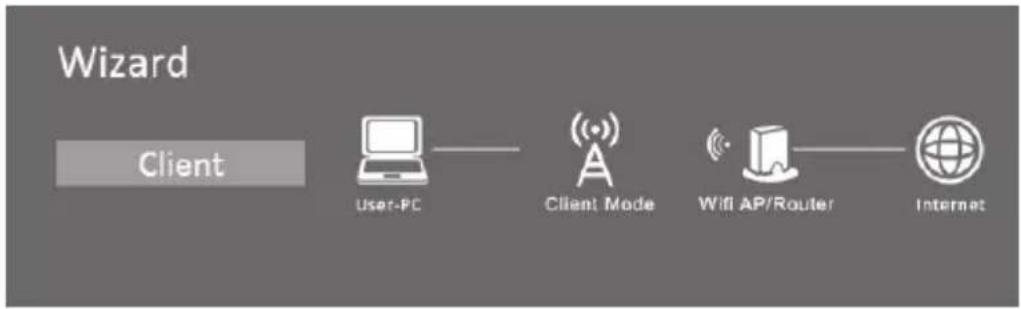

Perform the configuration using the wizard. To do so, click on the Client button in the Wizard field.


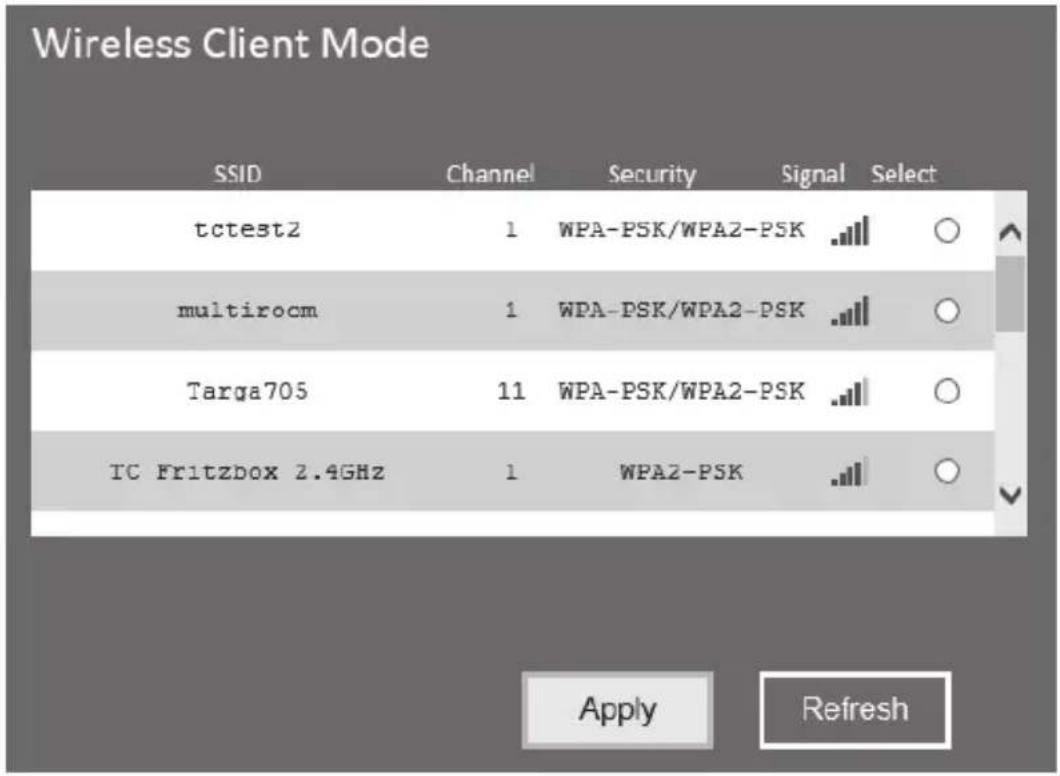

From the list, select a wireless network with which you want to connect the wifi range extender by choosing the corresponding network in the "Select" field.

After having selected a wireless network, you must then specify the network key of your wireless router for Security key. Set the check mark for Unmask to display the registered security key.

After completing the entry, click on the Apply button.

This will reboot the wifi range extender. Wait approximately 30 seconds before making any further entries.

After the reboot has been completed, you can connect the wifi range extender to your end device (for example, computer, notebook or TV set) via the network cable. Use the network cable included with the device for this purpose. Insert one end of the network cable into the WAN/LAN socket (6) or the LAN socket (7) of the wifi range extender and the other end into the LAN socket of your end device. Insert the wifi range extender only into a socket that is easily accessible.

270 - English

Access Point (AP) Mode (Router Mode)

Use the AP Mode to obtain a "wireless access point". The wireless end devices will connect to the wifi range extender in this mode. You can also use this mode, for example, to make a formerly non-wireless-enabled router wireless-enabled.

Example of use:

The mode selector (8) must be set to the "Access Point" position for AP Mode.

Insert the wifi range extender into a socket that is always easily accessible.

Exterior view of a silver Crest wall-mounted device with ventilation slots and control buttons (no readable text or symbols beyond branding)

Then switch on the wifi range extender by turning the main switch (10) to the "ON" position. The wifi range extender requires a certain amount of time (boot time) after it is switched on before it is ready to use. After switching the device on, wait for approximately 30 seconds before using the wifi range extender.

There are two different ways to configure the wifi range extender.

If you are not using the network default settings on your computer and have manually set an IP address, you must restore the network settings to Automatically obtain an IP address. For further details, please read the operating instructions for your computer.

1. You can then configure the wifi range extender via the network cable. If you want to configure the wifi range extender via the network cable, you must connect the wifi range extender to your computer. Use the network cable included with the device for this purpose. Insert one end of the network cable into the WAN/LAN socket (6) or the LAN socket (7) of the wifi range extender and the other end into the LAN socket of your computer.
2. Alternatively, you can perform the configuration via a wireless network. To do so, start the search for available wireless networks on your computer. The network SWV 300 C1 is displayed in the list of available wireless networks. Select the network SWV 300 C1 and click on the Connect button to connect wirelessly to the wifi range extender. After having pressed the Connect button, you may have to click the option Connect without configuring the network.

Open the Internet browser on your computer. Enter http://repeater.setup in the address line of the Internet browser and confirm the entry with the Enter button.

The login window of the wifi range extender opens. Select the desired language and enter admin as the user name and password. Then click on the Submit button. The configuration menu of the wifi range extender will then open.

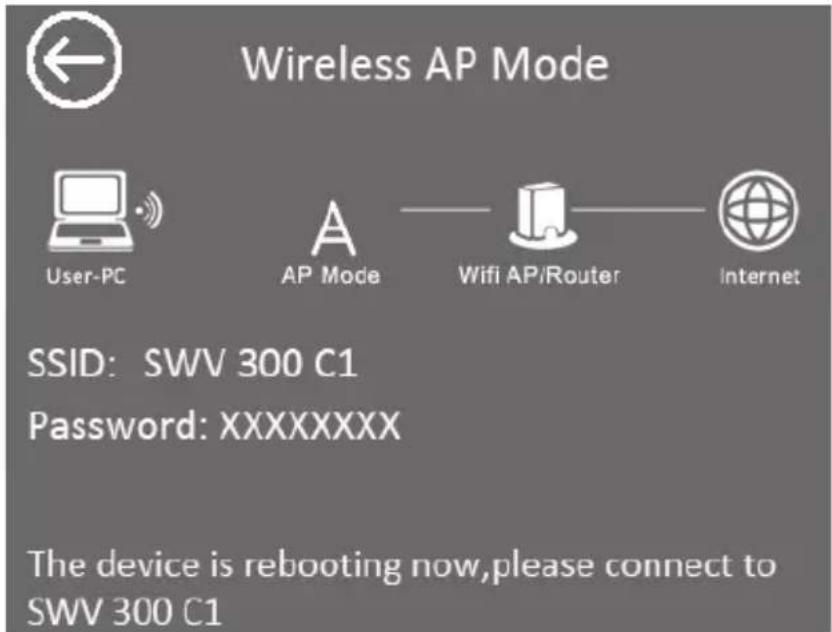

Perform the configuration using the wizard. To do so, click on the AP button in the Wizard field to configure the wifi range extender as an access point.

To configure the wifi range extender as a router, click on the Router button. In this mode, for example, you can use a DSL modem as a wireless router if it is connected to the wifi range extender. As a result, your end devices can connect wirelessly to the wifi range extender and use the Internet connection via your DSL modem and Internet service provider.

If you have selected Router Mode, you then have to select the type of Internet access. The following options can be selected:

• Internet service providers offer a fixed IP address – the IP address must be fixed with this option. Contact your Internet service provider for the IP address.
• Automatically obtain an IP address – the IP address is assigned automatically by the Internet service provider with this option. No further entries are required here.
• ADSL dial-up – you must specify the user name and password for your Internet service provider with this option. Contact your Internet service provider for the user name and password.

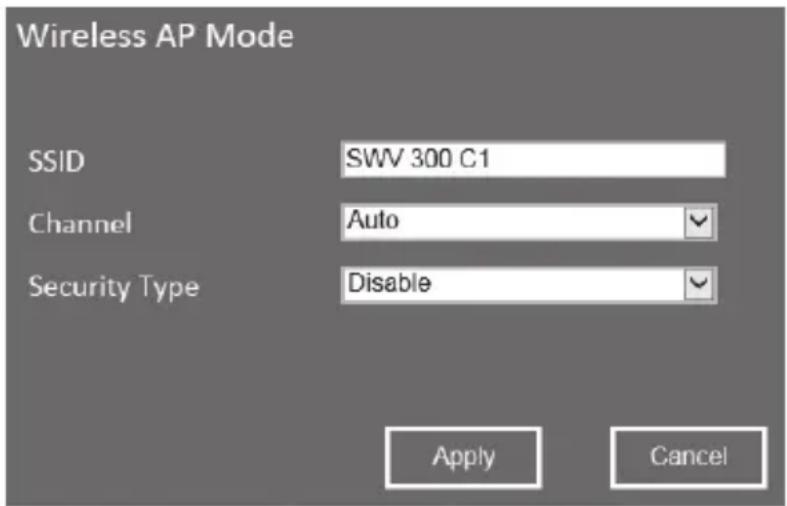

Enter any SSID for the wifi range extender for SSID. With Channel, you can set a channel number or use the Auto option to enable the automatic assignment of a channel number. Select an encryption for Security type to protect your network against unauthorised access. You can also set up the network as unsecured by selecting the Disable option. However, we would recommend that you set up an encryption.

After having selected an encryption, you must then specify a network key for Security key. Set the check mark for Unmask to display the registered security key. Take particular note of the network key or keep it in a safe place.

After completing the entry, click on the Apply button.

This will reboot the wifi range extender. Wait approximately 30 seconds before making any further entries.

After the reboot has been completed, the wifi range extender is accessible under the specified SSID and the network key.

WPS - Connect to the AP (Router Mode)

This is the easiest way to establish a connection to the AP. First, check whether your end device supports WPS. For further details, please read the operating instructions for your end device.

1. Press the WPS button (9) on the wifi range extender for at least 3 seconds. The Power/WPS LED (2) now flashes for approx. 2 minutes.

1. Within these 2 minutes, please press the connection button (WPS) on your end device. For further details, please read the operating instructions for your end device.

Your end device then automatically connects to your wifi range extender (AP) and applies all of the settings. You can then access the wifi range extender (AP) wirelessly.

If your end device does not support WPS, you can also manually establish the connection to the wifi range extender (AP).

Manual connection to the AP

For a manual connection to the wifi range extender (AP), you must find available wireless networks on your end device. The wifi range extender (AP) is displayed under the specified SSID (wireless name) in the list of available wireless networks. Then select the corresponding SSID (wireless name) to connect your end device wirelessly with the wifi range extender (AP). Then enter the network key you assigned. For further details, please read the operating instructions for your end device.

Configuration menu of the wifi range extender

You can open the configuration menu of the wifi range extender on your computer with an Internet browser. In this configuration menu, you can make advanced settings of the wifi range extender, display information or install a new firmware version.

There are two different ways to configure the wifi range extender.

If you are not using the network default settings on your computer and have manually set an IP address, you must restore the network settings to Automatically obtain an IP address. For further details, please read the operating instructions for your computer.

1. You can then configure the wifi range extender via the network cable. If you want to configure the wifi range extender via the network cable, you must connect the wifi range extender to your computer. Use the network cable included with the device for this purpose. Insert one end of the network cable into the WAN/LAN socket (6) or the LAN socket (7) of the wifi range extender and the other end into the LAN socket of your computer.

2. Alternatively, you can perform the configuration via a wireless network. To do so, start the search for available wireless networks on your computer. The network SWV 300 C1 is displayed in the list of available wireless networks. Select the network SWV 300 C1 and click on the Connect

button to connect wirelessly to the wifi range extender. After having pressed the Connect button, you may have to click the option Connect without configuring the network.

If you use the wifi range extender in Client Mode (mode selector is at "Client"), the configuration is possible only via the network cable.

After you have established the connection as previously described, open the Internet browser on your computer. Enter http://repeater.setup in the address line of the Internet browser and confirm the entry with the Enter button.

The login window of the wifi range extender opens. Select the desired language and enter admin as the user name and password. Then click on the Submit button.

The configuration menu of the wifi range extender will then open.

You can close the configuration menu by clicking on the Log off button on the top right of the display. The configuration menu is divided into the following headings:

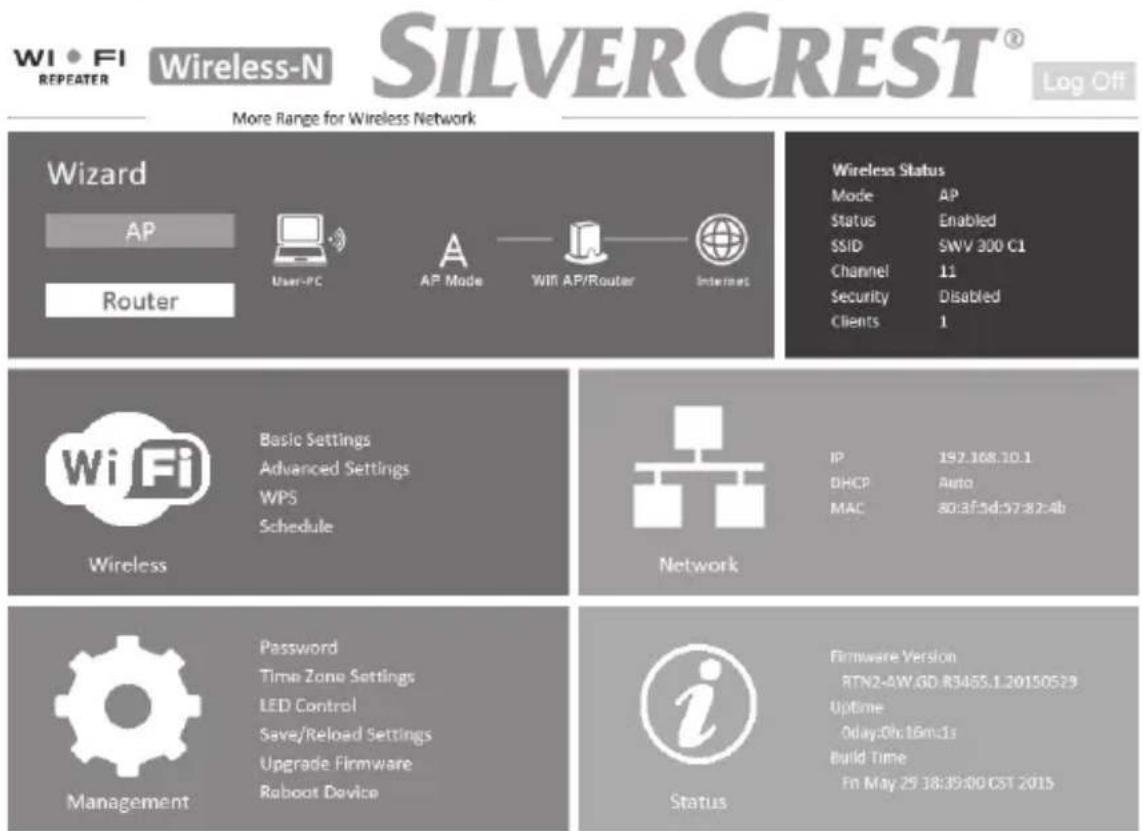

Wizard

This Wizard enables the easy configuration of your wifi range extender. The currently set mode (Repeater, Client or AP) is displayed here. To start the Wizard, click on the Repeater, Client, AP or Router button. Follow the on-screen instructions of the Wizard.

Wireless status

Information about the wireless network of the wifi range extender is displayed here. Note that, depending on the selected mode (Repeater, Client or AP) of the wifi range extender, it is possible that not all options are displayed.

Mode

The operating mode that is currently set for the wifi range extender is displayed here.

Status

The current status of the wifi range extender is displayed here.

SSID

The SSID of the wifi range extender is displayed here.

Connected to

This displays the wireless device which is connected to the wifi range extender.

Channel

The channel which is used by the wifi range extender is displayed here.

Security

This displays the encryption which is used by the wifi range extender.

Clients

This displays the number of clients (end devices) with which the wifi range extender is connected.

WiFi (Wireless)

You can make additional settings for the wireless network here. To do so, click on the icon or directly on the desired option.

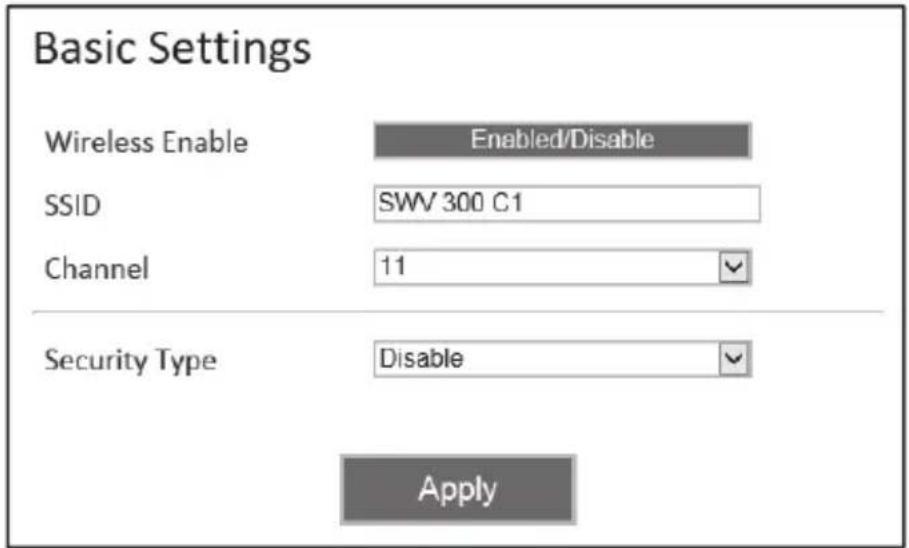

Basic Settings

Wireless Enable

You can enable or disable the wireless network here. To do so, click on the Enabled/Disable button. The wireless network is enabled if the Enabled/Disable button is green. The wireless network is disabled if the Disabled/Enable button is grey. Please note that wireless access to the wifi range

extender is no longer possible if it is disabled. Connect the wifi range extender via a network cable to your computer in order to regain access to the wifi range extender.

SSID

You can adjust the SSID (wireless name) of the wifi range extender here. The SSID of the router is specified here in Repeater Mode.

Channel

Set a channel number or choose the Auto option to enable the automatic assignment of a channel number.

Security type

Set an encryption for the network here.

Click on the Apply button to confirm changed settings. This will reboot the wifi range extender. Wait approximately 30 seconds before making any further entries.

We recommend that you use WPA/WPA2 PSK encryption because it provides maximum security. If your wireless devices do not support WPA/WPA2 PSK encryption, you have to use other encryption.

Advanced Settings

Advanced Settings

RegDomain	ETSI
Band	802.11 BGN
Broadcast SSID	Enable
WMM	Disable

Preamble Type

● Long Preamble

○ Short Preamble

IAPP

● Enable

○ Disable

Protection

○ Enable

● Disable

Aggregation

● Enable

○ Disable

Short GI

● Enable

○ Disable

WLAN Partition

○ Enable

● Disable

STBC

● Enable

○ Disable

20/40MHz Coexist

○ Enable

● Disable

RF Power

100%

70%

50%

30%

Apply

This option should only be used by experienced users. Network settings can be made here. As the settings have to be customised to your network, they will not be discussed further here. You can obtain more information via our service hotline (see page 309).

Click on the Apply button to confirm changed settings.

WPS

WPS Enable

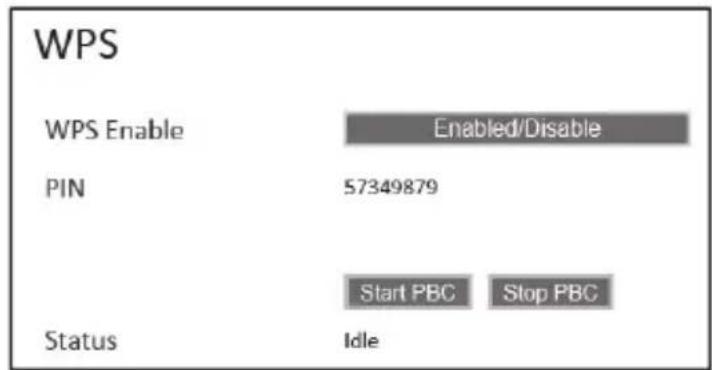

WPS is enabled in the original condition of the device. You can enable or disable WPS here. Click on the Enabled/Disable button to disable WPS. WPS is enabled if the Enabled/Disable button is green. WPS is disabled if the Disabled/Enable button is grey. Click on the Disabled/Enable button to enable WPS. Please note that when WPS is disabled, there can be no connection to the wireless device via WPS. The WPS button (9) on the wifi range extender does not work also.

PIN

The WPS PIN of the wifi range extender is displayed here. You can use this WPS PIN to connect the wifi range extender to your wireless router. To do so, your wireless router must support the WPS PIN method. Enter the WPS PIN on your wireless router. For further details, please read the operating instructions for your wireless router. The wifi range extender then automatically connects to your wireless router and applies all of the settings. Once the connection has been successfully established, the field strength indicator (1) lights up. The wifi range extender can then be used.

Start PBC / Stop PBC

Here, you can connect the wifi range extender to a WPS-enabled end device. Click on the Start PBC button to start WPS. The Power/WPS LED (2) of the wifi range extender now flashes for approximately 2 minutes. Within these 2 minutes, please press the connection button (WPS) on your end device. For further details, please read the operating instructions for your end device. The wifi range extender then automatically connects to your end device. Once the connection has been successfully established, the field strength indicator (1) lights up. The wifi range extender can then be used. You can stop WPS by clicking on the Stop PBC button.

Status

The current WPS status of the wifi range extender is displayed here. The following indicators are possible: Idle - The WPS scan was not started yet, Started - The WPS scan was started, Connecting - The WPS connection is established, Successfully - The WPS connection has been

290 - English

successfully established, Failed - The WPS connection failed, Overlap - Several devices try to establish a WPS connection at the same time and Timeout! - The WPS connection could not be established due to the timeout.

Schedule

The Schedule option is available only in AP and Repeater Mode.

Schedule
Enable Schedule
Disabled/Enable

Enable	Day	From	To
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun ∜	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour 00 √ Min
	Sun √	00 √ Hour 00 √ Min	00 √ Hour	00 √ Min

Apply

Here, you can set a timer for the wireless network to switch it on and off automatically. To do so, click on the Disabled/Enable button. If the Enabled/Disable button is green, the timer for the wireless network is enabled. If the Disabled/Enable button is grey, the timer for the wireless network is disabled.

Once the timer for the wireless network is enabled, you can set up to 10 rules. To enable a rule, click on the relevant box in the Enable column. In the relevant row, select the desired day or Everyday for every day. Then specify the period of time when the wireless network is to be switched on.

Click on the Apply button to confirm changed settings.

The wifi range extender requires an Internet connection for the Schedule option. Also note a possible overlap with a timer on your router, that is, that this can only switch off the wireless network after the repeater. In the "Time zone settings" menu of the wifi range extender, check whether the time and date are set correctly.

Network

The IP address used, the set DHCP Mode and the MAC address of the wifi range extender are displayed directly here. Click on the "Network" icon to adjust the network settings.

IP address

You can change the IP address of the wifi range extender here.

DHCP

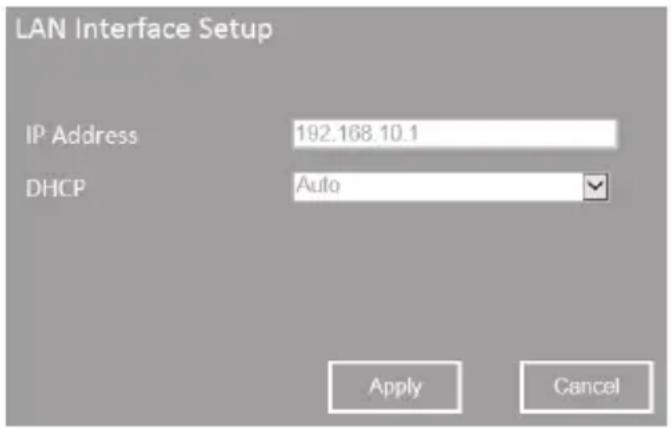

You can set the DHCP Mode here. The following options can be selected: Disable, Server and Auto. The Auto option is enabled in the original condition of the device. With the Auto option, IP addresses are assigned automatically. The assignments are permanent here and are not removed. The

advantage here is that an end device always has the same IP address. The disadvantage is that new end devices do not receive an IP address if the address range is completely assigned, even if IP addresses are no longer actively used. This is in contrast to the Server option where IP addresses are assigned automatically and recorded in a table. The assignment is not permanent here, however, and end devices may be assigned another IP address.

Click on the Apply button to confirm changed settings or on Cancel to discard the changed settings.

Management

Here, you can make additional settings or install a new firmware version. Click on the "Management" icon or directly on the desired option:

Simple gear icon with no text or symbols

Management

Password

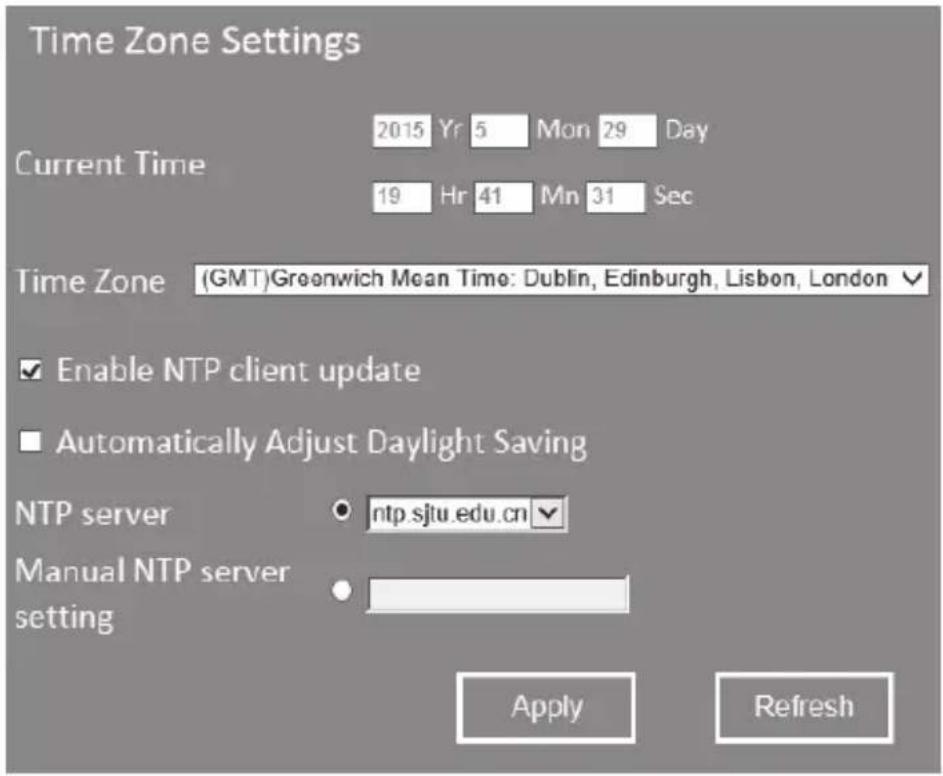

Time Zone Settings

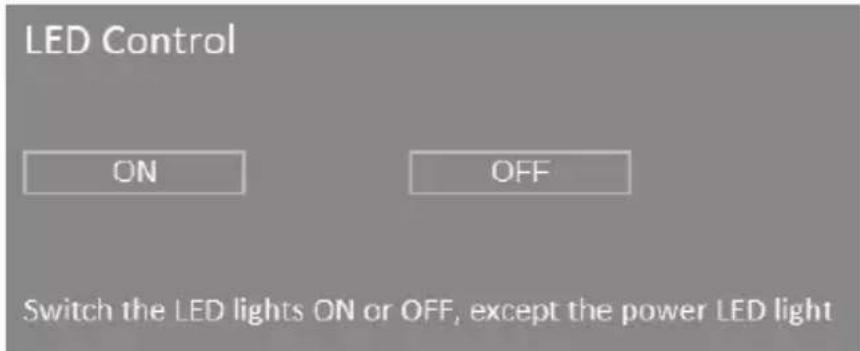

LED Control

Save/Reload Settings

Upgrade Firmware

Reboot Device

Password

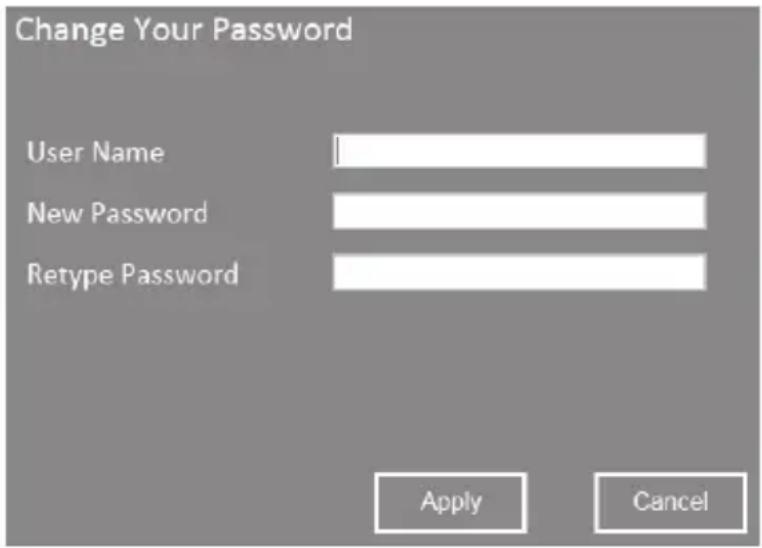

Here, you can change the preset password (admin) for the login to the wifi range extender. To do so, enter a user name and then enter the new password twice.

To confirm the changed password, click on the Apply button or on Cancel to cancel it.

Take particular note of the user name and password or keep it in a safe place!

Time zone settings

You can set the date and time here. To do so, enter the date and time in the relevant fields.

For Time zone, enter the relevant time zone in which you are located.

A check mark is set for Enable NTP client update to synchronize the time via an NTP server (Network Time Protocol). The time and date are synchronized here with a server via the Internet. Enable the automatic conversion of summer/winter time by setting a check mark for Automatically adjust daylight saving.

Now select a specified NTP server in the NTP server field or specify the address of an NTP server in the Manual NTP setting field.

To confirm the changed settings, click on the Apply button. You can refresh the view by clicking on the Refresh button.

LED control

The LEDs of the wifi range extender can be switched on or off here. However, this has no effect on the Power/WPS LED (2) as it cannot be switched off.

Click on the OFF button to switch off the LEDs. To switch on the LEDs again, you must click on the ON button.

Please note that the wifi range extender reboots after switching the LEDS on or off.

Save/Reload settings

You can save, load and reset the configuration of the wifi range extender here.

Click on the Save... button to save the configuration of the wifi range extender to a file on your computer.

To select a backed-up configuration, click on the Browse... button and then select the desired configuration file on your computer. Now click on the Upload button to load the previously selected configuration file.

Click on the Load default button to reset the wifi range extender to the factory default settings. Confirm the following confirmation prompt with OK to finally load the factory default settings or click Cancel to cancel the process.

Note that all previously changed settings are lost when resetting to the factory default settings.

Upgrading firmware

If you have received a new firmware version, you can install it. To do so, click on the Browse... button and then select the new firmware version on your computer. Then follow the on-screen i install the firmware version.

Note that when upgrading the firmware, the wifi range extender is reset to factory default settings and all previously changed settings are lost.

Reboot Device

The wifi range extender can be rebooted here.

To do so, click on the Reboot button. Confirm the following confirmation prompt with OK to finally reboot the wifi range extender or click Cancel to cancel the process.

Status

The firmware version used, the operating time since it was last switched on, and the creation date (build time) of the installed firmware version of the wifi range extender are displayed here. Click on the "Status" icon to display additional information. Detailed information on the system, WLAN and LAN is then displayed.

Environmental and disposal information

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

When this symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at designated disposal points. Disposal of old devices in this manner will prevent harm to the environment and human health hazards. For further information regarding disposal of old devices in accordance with the directive, contact your local authorities, waste disposal office or the shop where you bought the device.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Conformity information

This device meets the basic requirements and other relevant regulations of the Low Voltage Directive 2006/95/EC, the R&TTE Directive 1999/5/EC, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of this manual.

Troubleshooting

You can solve most problems yourself using the following table. If the problem still persists after you have worked through these approaches, contact our service hotline (see page 309). Do not perform any repairs personally!

The Power/WPS LED (2) does not light up.

• Check whether the main switch (10) is in the "ON" position.
• Socket defective or fuse tripped; use another device to check the socket.

No wireless connection to the wireless router

• The distance to the wireless router is too great, thus reduce it.
• The router's wireless function is disabled; enable the wireless function.

No LAN connection

- Check whether the network cable is inserted correctly into the WAN/LAN socket (6) or LAN socket (7) of the wifi range extender and into the LAN socket of your end device.

Connection with the WPS button fails

• Establish the connection with the WPS button again.
• Reset the wifi range extender to the factory default settings. Press the Reset button (5) for approximately 10 seconds with a sharp object until the Power/WPS LED (2) goes out. This will reboot the wifi range extender. The wifi range extender requires a certain amount of time (boot time) before it is ready to use. Wait for approximately 30 seconds before using the wifi range extender. Then establish the connection with the WPS button again.
• Eliminate sources of interference between the wifi range extender and the wireless router.
• The distance between the wifi range extender and the wireless router is too great, thus reduce it.

The configuration menu of the wifi range extender is not shown.

• The address http://repeater.setup was entered into the address line of the Internet browser incorrectly; check and correct the entry.
• The configuration of the wifi range extender is incorrect. Reset the wifi range extender to the factory default settings. To do so, press the Reset button (5) for approximately 10 seconds with a sharp object until the Power/WPS LED (2) goes out. This will reboot the wifi range extender. The wifi range

extender requires a certain amount of time (boot time) before it is ready to us approximately 30 seconds before using the wifi range extender.

Warranty and servicing advice

Warranty of TARGA GmbH

This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: 0207 - 36 50 744

E-Mail: [e-mail]

Phone: 01 - 242 15 83

E-Mail: [e-mail]

Phone: 800 - 62 175

E-Mail: [e-mail]

Phone: 800 - 92 496

E-Mail: [e-mail]

IAN: 106969

Manufacturer

TARGA GmbH

Coesterweg 45

59494 SOEST

GERMANY

CE

EU-Declaration of Conformity

Address:	Targa GmbHCoesterweg 4559494 Soest, Germany
Product:	Wifi repeater
Model:	Silvercrest SWV 300 C1
Identification number:	IAN 105959
The product complies with the requirements of the following European directives:
2006/95/EC	Low voltage directive
1999/5/EC	R&TTE
2009/125/EC	Energy Related Products
2011/65/EU	Restriction of the use of certain hazardous substances in electrical and electronic equipment

Compliance was proved by the application of the following standards:

EMC/R&TTE:	EN 301 489-1 V1.9.2
	EN 301 489-17 V2.2.1
	EN 300 328 V1.8.1
	EN 62311.2008
	EN 50385.2002

Safety: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011

ErP: EN 50564 with Regulation 1275/2008

RoHS: EN 50581:2012

Year of CE marking: 2015

Soest, 31th of March 2015

Matthias Klauke, Managing Director
