| Product type | Bluetooth Headset |
| Brand | SilverCrest |
| Model | SBH 3.0 A1 / SBH 3.0 B1 |
| Dimensions (L × W × H) | Approx. 43 × 18 × 30 mm (without ear hook) |
| Weight | Approx. 10 g (with ear hook) |
| Power supply | Lithium-polymer battery 85 mAh, rechargeable via USB (5 V, max. 500 mA) |
| Charging time | Approx. 3 hours |
| Talk time | Up to 4.5 hours |
| Standby time | Up to 120 hours |
| Bluetooth version | Bluetooth V3.0 |
| Bluetooth range | Up to 10 m |
| Supported profiles | HSP, HFP |
| Main functions | Answer/end/reject a call, redial last number, volume control via phone, adjustable ear hook (left/right ear) |
| Package contents | Headset, ear hook, 3 ear tips (small, medium, large), USB charging cable, instruction manual |
| Care and cleaning | Clean with a slightly damp cloth, removable ear tips washable with water |
| Safety | Turn off in airplanes, hospitals, within 20 cm of a pacemaker; do not expose to heat, moisture, flames; avoid shocks |
| Spare parts and repairability | Ear tips available. Repairs for qualified personnel only, do not open the casing |
| Warranty | 3 years (excluding consumables) |
| Operating temperature | +5 °C to +35 °C |
| Storage temperature | -20 °C to +45 °C |
| Country of origin | Germany (TARGA GmbH) |
Frequently Asked Questions - SBH 3.0 A1 SILVERCREST
User questions about SBH 3.0 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kit de montage pour voiture in PDF format for free! Find your manual SBH 3.0 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SBH 3.0 A1 by SILVERCREST.
USER MANUAL SBH 3.0 A1 SILVERCREST
Last Information Update:
09/2015-Ident.-No.:SBH3.0B1092015-1
DE AT CH
User manual and service information
IAN 270819
IAN 270819
Deutsch 2
Français 32
Italiano 62
English 92
Inhalt
Warenzeichen 4
Einleitung 4
Diagram showing a mechanical device being lifted from a spring, with no visible text or symbolsnatural_image
Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)natural_image
Line drawing of a human head profile with an earpiece inserted, showing ear structure and motion (no text or symbols)natural_image
Diagram showing a mechanical device being lifted from a spring, with no visible text or symbolsnatural_image
Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)natural_image
Warning symbol with exclamation mark inside a triangle (no text or numbers)natural_image
Line drawing of a human head profile with an earpiece inserted, showing motion (no text or symbols)natural_image
Diagram showing a mechanical device being lifted from a spring, with no visible text or symbolsnatural_image
Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)Safety instructions....99
Overview 106
Initial start-up 107
Charging the battery 107
Switch headset on/off 108
Connect headset to mobile phone 108
Use headset 111
Change ear cushion 111
Accept/End call 112
Reject call.... 113
Redialling....113
Adjust the volume 113
Cleaning 114
Storing the headset when not in use ...... 114
Environmental and waste disposal information....115
Marks of conformity 116
Troubleshooting....116
Notes on guarantee and service 118
Trademark
The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc. (Special Interest Group).
USB is a registered trademark.
Other names and products may be trademarks or registered trademarks of their respective owners.
Introduction
Thank you for choosing a SilverCrest product. The SilverCrest Bluetooth® Headset SBH 3.0 B1, referred to in the following as 'headset', can be used with compatible mobile phones.
Intended use
This headset is an electronic device allowing you to make hands-free calls using a compatible mobile phone. It is operated via a multi-function button. The adjustable strap allows you to wear the headset comfortably either on your left or right ear. The headset may only be used for private purposes and is not for industrial or commercial use. The headset should also not be used in tropical climates. The manufacturer shall not be liable for any damages or faults arising as a result of unauthorised modification of the headset. Please observe the national regulations and/or laws of the country in which the headset is used.

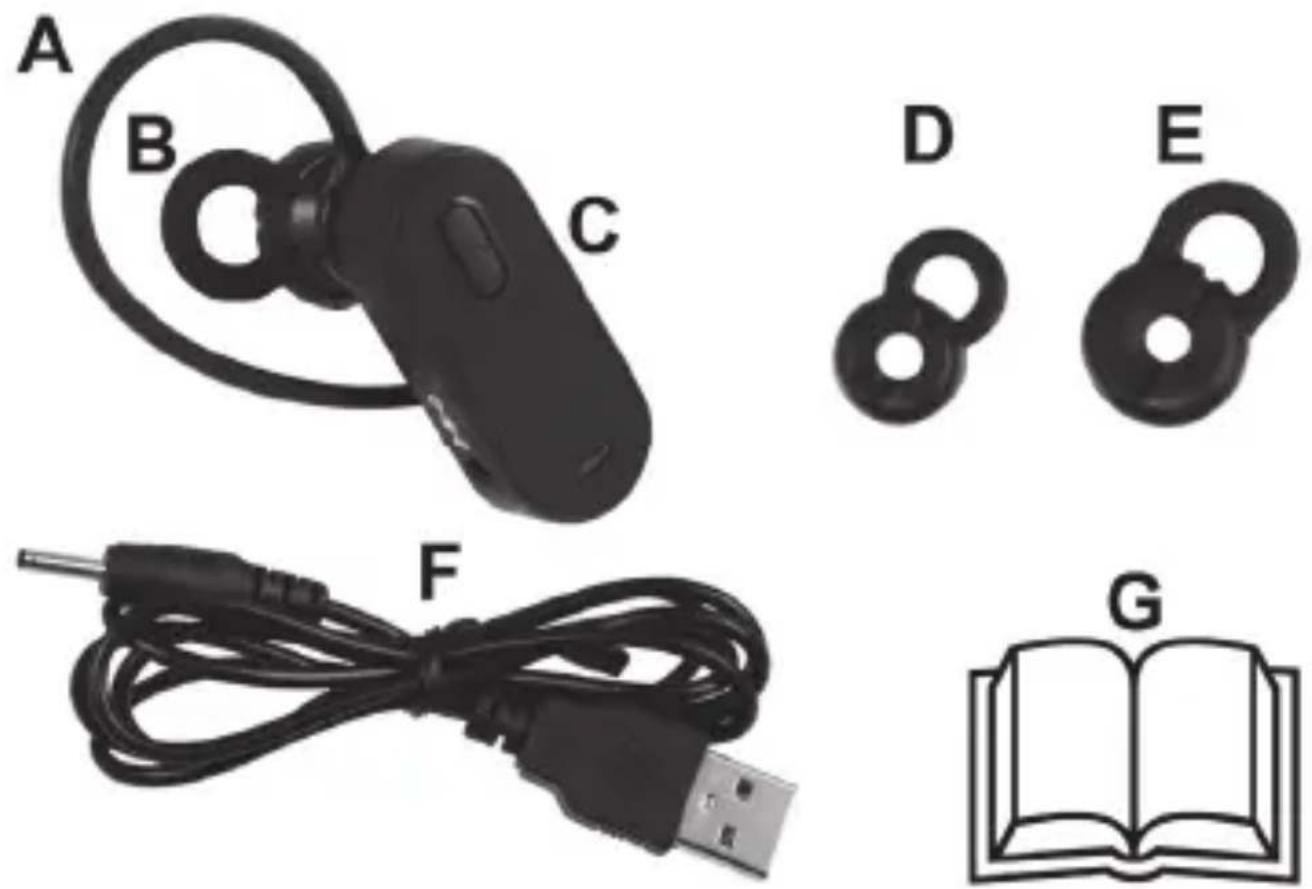

Package contents
Unpack the headset and all accessories. Remove all packaging materials and check all parts for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.
A Strap (attached)
B Ear cushion - medium (attached)
C SilverCrest Bluetooth®Headset SBH 3.0 B1
D Ear cushion - small
E Ear cushion - large
F USB charging cable
G These instructions (picture symbol)
Technical data
| Dimensions(W x H x D) | Approx. 43 x 30 x 18 mm(not including ear clip) |
| Weight Approx. 10 g (includingear clip) | |
| Operating voltage 5 V | ### |
| Current consumption Max. 500 mA via USB | |
| Battery Lithium polymer 85 mAh | |
| Talk time Up to 4.5 hours | |
| Standby time Up to 120 hours | |
| Charging time Approx. 3 hours | |
| Bluetooth® | V3.0 |
| Bluetooth® range Up to 10 m | |
| Supported profiles HSP, HFP | |
| Storage temperature -20°C to +45°C, | |
| Operating temperature +5°C to +35°C | |
| Atmospheric humidity(relative humidity) Max. 85% |
The specifications and design are subject to change without notice.
Safety instructions
Before using the headset for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic devices. Keep this manual in a safe place for future reference. If you give the headset away or sell it, please ensure that you also pass on this manual. It is part of the device.
Explanation of the hazard symbols used in this manual
DANGER This icon, in conjunction with the word 'Danger', indicates an impending dangerous situation which, if not prevented, may lead to serious injuries or even death.
WARNING This icon, in conjunction with the word 'Warning', indicates important information for the safe operation of the device and user safety.
DANGER Wireless interface
Switch the headset off if you are on a plane, in a hospital, operating room or in the vicinity of a medical electronic system. The radio waves transmitted can damage the functioning of sensitive devices. Keep the headset at least 20 cm away from a pacemaker or an implanted defibrillator, as otherwise the correct functioning of the pacemaker could be adversely affected by radio waves. The radio waves transmitted can cause static noise in hearing aids. When wireless components are switched on, do not place the headset in the vicinity of flammable gases or in a potentially explosive environment (for
example, paint shop), as the radio waves transmitted can trigger an explosion or a fire. The range of the radio waves depends on the setting and ambient conditions. When transmitting data via a wireless connection, it is also possible for unauthorised third parties to receive this data. TARGA GmbH is not responsible for wireless or radio interference caused by unauthorised changes to this device. Furthermore, TARGA accepts no liability for replacing or exchanging connecting cables and devices that were not specified by TARGA GmbH. The user alone is responsible for remedying malfunctions caused by such unauthorised changes and replacing or exchanging devices.
DANGER Risk of explosion
The headset must not be thrown into a fire, as the integrated battery may explode.
WARNING Please make sure that:
- the headset is not exposed to direct sources of heat (for example, heaters)
- if you use the headset inside a car parked in direct sunlight, please be aware that temperatures may exceed +45 °C. Keep sensitive electronic devices outside your car.
- the headset is not exposed to direct sunlight or strong artificial light
- contact with splashing and dripping water and corrosive liquids is avoided, and that the headset is not operated in the vicinity of water. In particular, the headset should never be immersed, nor should any containers filled with liquids, for example vases or drinks, be placed on or near the headset.
-
no naked flames (for example, burning candles) are placed on or near the headset.
-
no foreign bodies penetrate into the headset.
- the headset is not placed close to magnetic fields (for example, loudspeakers).
- the headset is not exposed to excessive temperature fluctuations, as otherwise condensation can occur and lead to electrical short circuits; if, however, the headset has been exposed to large temperature fluctuations, wait approximately two hours until the headset has reached ambient temperature before starting it up.
- the headset is not exposed to excessive shocks and vibrations
- always lay connected cables in such a way that nobody can stand or trip on them. There is a risk of injury.
- always take hold of all cables by the plug and do not pull on the cable itself. Do not place any items of furniture or other heavy objects on cables. Make sure that the cables are not bent, particularly at the plug
and at the connecting sockets. Never make a knot in a cable and do not connect it with other cables.
DANGER Children and people with disabilities
This headset can be used by children aged eight and over, as well as by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, providing they are supervised or have been instructed in the safe use of the headset and understand the resulting dangers. Children must not play with the headset. Cleaning and user maintenance must not be carried out by children unless they are supervised.
Therefore, also keep the packaging film away from children.
Risk of suffocation
WARNING Maintenance / Repair
Repair work is required if the headset has been damaged, for example, the headset housing is damaged, liquids or objects have got inside the headset, or if the headset has been exposed to rain or moisture. Repair work is also required if the headset does not work properly or has been dropped. If you notice any smoke, unusual noises or smells, switch the headset off immediately. In these cases, you must not continue to use the headset until it has been checked by a specialist. All repair work should only be carried out by qualified specialists. Do not try to open the housing of the headset, as this will void your guarantee.

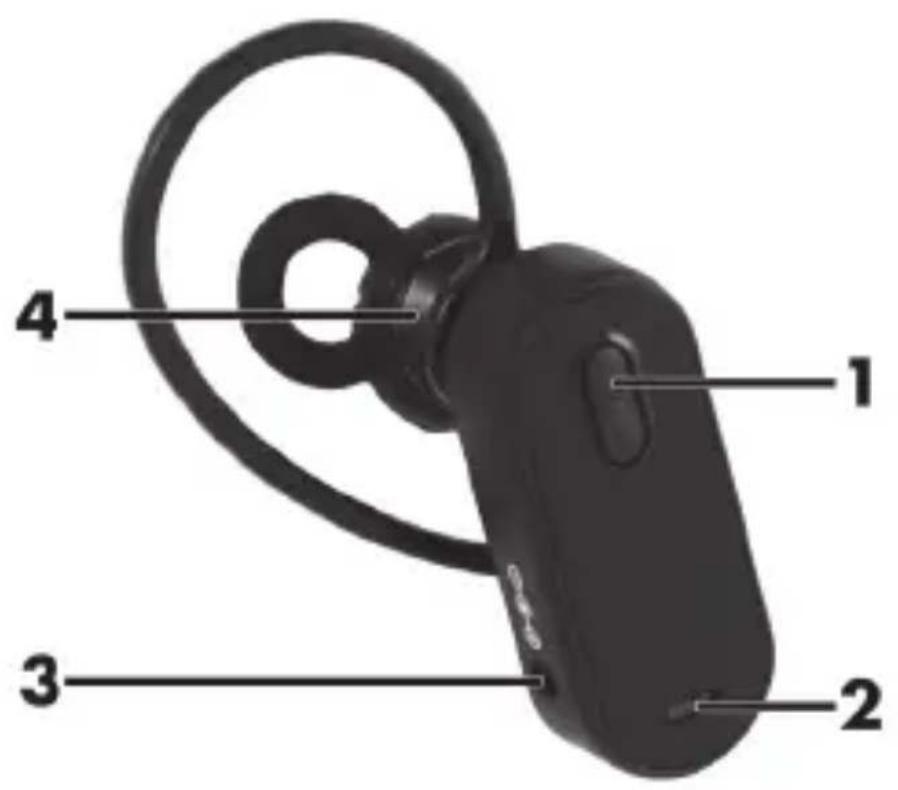

Overview
This user manual also has a cover that can be unfolded. Unfold this cover page so that you can always set controls.
1 Multi-function button
2 LEDs (blue/orange)
3 Charging connection
4 Earpiece
Initial start-up
Charging the battery
Before initial start-up or if the integrated battery is flat, charge the headset up as follows:
- Connect the USB charging cable (F) to the charging connection (3) and to an unused USB connection on your computer (which must be switched on) or a USB power supply pack (not included in the package contents).
- The LED (2) lights up orange while the battery is charging and goes out once the battery is fully charged.
The headset should not be covered while charging, as the device can heat up in the process.
The LED (2) will flash orange if the battery needs charging.
Switch headset on/off
Hold down the multi-function button (1) for approx. three seconds to switch the headset on. The LED (2) rapidly flashes blue several times indicating a search for the last connected Bluetooth® device. The headset must be connected to a mobile phone if this has not been done already. Please note the instructions in the next section for connecting your mobile phone.
Hold down the multi-function button (1) for approx. three seconds to switch the headset off. The LED (2)flashes orange when the headset is switched off.
Connect headset to mobile phone
Proceed as follows to connect the headset to your mobile phone:
- Switch the headset off.
-
Hold down the multi-function button (1) for approx. six seconds to start pairing mode.
-
The LED (2) now flashes blue and orange alternately. The headset will now remain in search mode for approx. two minutes. During this time you can use the Bluetooth® function to connect a compatible mobile phone to the headset.
- Now connect your mobile phone to the headset via Bluetooth®. To do so, refer to your mobile phone manual. From the list of devices detected, select device 'SBH 3.0 B1' and establish the connection. Enter '000' if you are asked for a PIN.
Once a connection is established, the LED (2) briefly flashes blue once approx. every three seconds. As soon as the mobile phone is switched off or is out of range, a search is performed (the LED (2) rapidly flashes blue several times) or the headset goes into standby mode (not connected) and the LED (2) briefly flashes blue once every ten seconds (depends on the phone model).
Bring the mobile phone back into range of the headset or switch it on to re-establish the connection to the headset
automatically. With some models, you need to establish the connection again via your mobile phone. Only one mobile phone can be actively connected to the headset. If you want to connect another mobile phone to the headset, you need to repeat the pairing step as described above.
Use headset

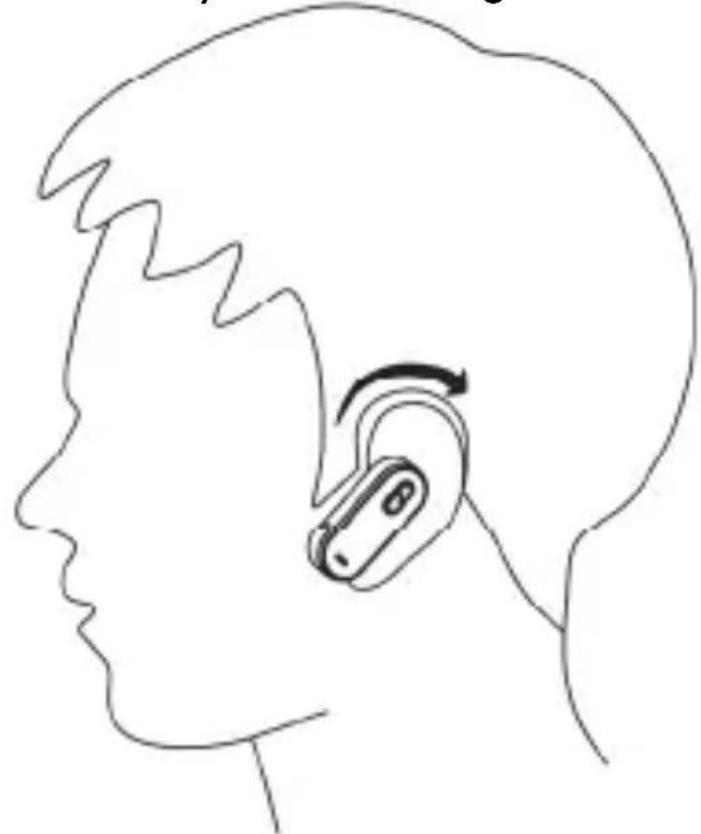

The adjustable strap (A) allows you to wear the headset comfortably either on your left or right ear.


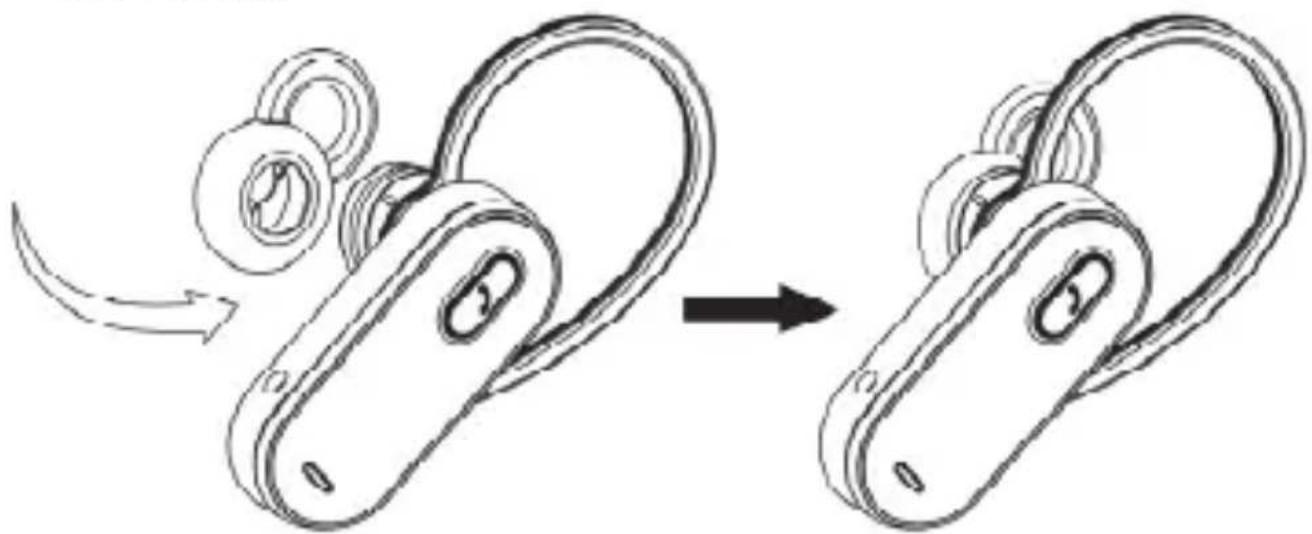

The headset comes fitted with the medium ear cushion (B). If the ear cushion does not fit properly it can be changed. Proceed as follows to change the ear cushion:
- Carefully remove the ear cushion from the earpiece (4) using your fingers.
- Select the appropriate ear cushion, small (D) or large (E), and push it onto the earpiece (4) until it slides into the recess.
Briefly press the multi-function button (1) to make a call. Incoming calls are signalled via the headset even if your mobile phone is on silent. Briefly press the multi-function button (1) again to end a call. A short signal tone will sound as confirmation.
Reject call
To reject an incoming call, hold down the multi-function button (1) for approx. two seconds until a signal tone sounds. Release the multi-function button (1) immediately after the signal tone, otherwise the call will not be rejected and the headset switches off.
Redialling
To redial the last number called, hold down the multi-function button (1) for approx. a second until a signal tone sounds. Release the multi-function button (1) immediately after the signal tone, otherwise the number will not be redialled.
Adjust the volume
You can adjust the headset volume using your mobile phone. To do so, refer to your mobile phone manual.
Cleaning
Use a slightly damp cloth to clean the headset and never use cleaning agents or solvents that react with plastics. Ensure that no liquids enter the housing.
Remove the ear cushion to clean it. Wash the ear cushion under running water. Dry the ear cushion thoroughly. Wait until the ear cushion is completely dry before putting it back onto the earpiece (4).
Storing the headset when not in use
If the headset is not going to be used for a long period of time, you should recharge the battery on a regular basis. This helps maintain battery performance. Keep the clean headset and accessories in a cool, dry place.
Environmental and waste disposal information
The built-in battery cannot be removed for disposal.
Make sure the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally sound manner.
Marks of conformity
CE This device conforms to the basic requirements and other relevant provisions in EMC Directive 2004/108/EC and the Low-Voltage Directive 2006/95/EC, the R&TTE Directive 1999/5/EC as well as the RoHS Directive 2011/65/EU. The corresponding declaration of conformity can be found at the end of this manual.
Troubleshooting
Headset will not switch on
- Charge the battery.
Headset will not charge
- When using a charging device (for example, USB power bank) with automatic charging switch-off, the headset may not charge due to the low charging current. Charge the headset using a USB connection on your computer or a USB power supply pack.
No sound signal with Bluetooth® connection
- Switch the headset on.
- Try to connect the headset to your mobile phone again.
No Bluetooth® connection established
- Check whether the Bluetooth® function is enabled on your mobile phone.
- The distance between the headset and mobile phone is too great. Reduce the distance.
Not all of the functions described work
- All the functions described depend on the range of functions available on the mobile phone you are using.
Notes on guarantee and service
Warranty of TARGA GmbH
This device is sold with three years warrant date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.
Service
Phone: 020 - 70 49 04 03
E-Mail: service.GB@targa-online.co
Phone: 01-4370121
E-Mail: service.IE@targa-online.com
Phone: 027 78 11 03
E-Mail: service.MT@targa-online.co
Phone: 02 - 20 09 025
E-Mail: service.CY@targa-online.com
IAN: 270819
Manufacturer
TARGA GmbH
Coesterweg 45
59494 SOEST
GERMANY
CE
EU Declaration of Conformity
Address:
Targa GmbH
Coesterweg 45
59494 Soest, Germany
Product:
Bluetooth Mono I headset
Model:
SilverCrest SBH 3.0 B1
Identification number:
IAN 270819
The product complies with the requirements of the following European directives:
2004/108/EC
Electromagnetic Compatibility
2006/95/EC
Low Voltage
1999/5/EC
R&TTE
2011/66/EU
Restriction of the use of certain hazardous substances in electrical and electronic equipment
Compliance was proved by the application of the following standards:
EMC/R&TTE
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
EN 300 328 V1.8.1
Safety:
EN 60950-1:2006+A11:2009+A1:2010
+A12:2011
EN 62479:2010
Rohs:
EN 50581:2012
Year of CE marking:
2015
Soest, 25 ^th of September, 2015
Matthias Klauke, Managing Director
