Product type Compact digital camera
Brand PENTAX
Model OPTIO S30
Dimensions (W × H × D) 89 mm × 58.5 mm × 25.5 mm (excluding protrusions)
Weight (net) 125 g (without battery or memory card)
Weight (operational) 175 g (with battery and memory card)
Power source Two AA batteries (alkaline, lithium, Ni-MH, nickel-manganese) or one CR-V3 battery; AC adapter D-AC5 (optional)
Sensor 3.34 megapixel CCD (total), 3.2 effective megapixels
Lens 3x optical zoom (focal length 5.8–17.4 mm, equivalent 38–114 mm in 24×36)
Digital zoom Up to 8x (combined with optical zoom)
LCD screen 1.6-inch color TFT screen, 85,000 pixels
Viewfinder Real-image optical zoom
Shooting modes Auto selection, program, picture (10 scenes), night, landscape, portrait, movie, digital effect, voice recorder
Maximum resolution (still image) 2048 × 1536 pixels
Video resolution 320 × 240 pixels, 30 fps, with sound
Flash Built-in flash with red-eye reduction; range 0.2–3.5 m (wide-angle)
Storage media 11 MB internal memory + SD memory card
Connections USB 1.1, video output (NTSC/PAL), external power input
Maintenance and cleaning Clean with a dry, soft cloth; avoid solvents, alcohol, thinner. Protect from water, sand, shocks.
Safety Do not disassemble; do not touch internal parts; use only recommended AC adapter; remove battery if leaking.
Spare parts and repairability Batteries, SD card, D-AC5 AC adapter, USB/AV cables, strap, case, remote control, waterproof case. Repairs by PENTAX authorized center.
Warranty 12 months against manufacturing defects (excluding batteries, normal wear)

Frequently Asked Questions - OPTIO S30 PENTAX

What types of batteries can I use with the PENTAX OPTIO S30?
You can use two AA batteries (alkaline, lithium, nickel-manganese or rechargeable Ni-MH) or one CR-V3 battery. The D-AC5 AC adapter (optional) is recommended for extended use.
How can I transfer photos to my computer?
Use the supplied USB cable (I-USB7) and connect the camera to the computer. The USB connection mode can be set in the Preferences menu. ACDSee for PENTAX software is included for image management.
What should I do if the LCD screen is damaged?
Be careful: if the screen is broken, avoid contact with glass fragments and liquid crystal. If contact occurs with skin, eyes, or mouth, rinse thoroughly and consult a doctor. Contact a PENTAX authorized repair center.
Can I use a high-capacity SD memory card?
Yes, the camera accepts SD memory cards. For optimal performance, use cards from a recognized brand. The number of recordable images depends on the card capacity and quality settings.
How can I take macro photos?
Press the right navigation button (▶) several times until the macro icon (flower) appears. The minimum focusing distance is approximately 18 cm in macro mode and 6 cm in super macro mode.
What does the message 'Card locked' mean?
The SD memory card has a write-protection switch. If this message appears, check that the switch on the side of the card is in the unlocked position (upwards).
How do I set the date and time on the camera?
When first turned on, the setting screen appears. You can also change these settings via the Preferences menu: select 'Date setting' and follow the on-screen instructions to set the format, date, and time.
Can I print my photos directly without a computer?
Yes, thanks to the PictBridge function. Connect the camera to a compatible printer via the USB cable, then select the images to print from the Playback menu (DPOF or direct print).
How do I clean the lens and body?
Use a soft, dry cloth to wipe the lens and body. Never use solvents like alcohol or thinner. If the lens is very dirty, a slightly damp microfiber cloth can be used, then dry immediately.
What should I do if the camera does not turn on?
Check that the batteries are inserted correctly (observe + and - polarities) and that they are charged. If the problem persists, try new batteries or use the AC adapter. If nothing works, contact a PENTAX repair center.

User questions about OPTIO S30 PENTAX

4 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

How to troubleshoot battery issues with the PENTAX OPTIO S30 camera?
Frequently Asked Questions - 06/03/2026
Response Notice-Facile

If you are experiencing issues with the batteries of your PENTAX OPTIO S30 camera, here are several steps to follow to diagnose and resolve the problem:

1. Check battery insertion

  • Make sure the batteries are inserted correctly, respecting the indicated polarity (+ and -).
  • Incorrect positioning may prevent the device from turning on or functioning properly.

2. Use the correct type of batteries

  • The PENTAX OPTIO S30 typically uses standard or rechargeable AA batteries.
  • Use new or fully charged batteries to ensure sufficient power supply.

3. Check the condition of the batteries

  • Worn or depleted batteries can cause malfunctions.
  • Always replace batteries with new ones or recharge them if you are using rechargeable batteries.

4. Clean the contacts

  • Check the metal contacts inside the battery compartment.
  • If you notice corrosion or dirt, gently clean them with a dry cloth or an eraser to ensure good electrical contact.

5. Test with another set of batteries

  • If possible, try another set of batteries to determine if the problem is with the batteries or the device.

By following these tips, you should be able to resolve most battery-related issues with your PENTAX OPTIO S30. If the problem persists despite these checks, it may be a hardware defect requiring specialized technical assistance.

Respond (be the first)
What memory card and capacity can I use with the PENTAX OPTIO S30?
Frequently Asked Questions - 22/11/2025
Response Notice-Facile

The PENTAX OPTIO S30 uses a SD (Secure Digital) memory card as external storage. The device also has approximately 11 MB of built-in memory to save photos in the absence of a card.

Compatible card type: You must use a standard SD memory card. Photographs are saved to the SD memory card if it is present in the slot; otherwise, they are automatically saved to the device's built-in memory.

Capacity and number of images: The number of images that can be recorded depends on the capacity of your SD memory card, the chosen resolution (640×480, 1024×768, 1600×1200, 2048×1536 pixels), and the quality level (Good, Very Good, or Excellent). For example, with a 16 MB SD card, you can save approximately 6 photos at 2048×1536 resolution in 'Very Good' quality, or up to 89 photos at 640×480 resolution with the same quality.

Best practices: Before using a new SD memory card or a card that has been used in another device, format it directly in the PENTAX OPTIO S30 via the Preferences menu. The SD memory card is equipped with a write-protection switch: set it to the [LOCK] position to protect your data. Handle the card carefully and avoid removing it during data recording or playback.

Important: Only insert or remove the SD memory card when the device is completely turned off. An SD memory card can become very hot immediately after use; remove it carefully. For more details on specific card compatibility or maximum supported capacities, consult the official PENTAX support or customer service.

Respond (be the first)
How do I format the memory card of my PENTAX OPTIO S30 camera?
Frequently Asked Questions - 22/11/2025
Response Notice-Facile

To format the memory card of your PENTAX OPTIO S30 digital camera, follow the steps below:

Steps to format the memory card:

  1. Turn on the device: Insert the memory card into the device and power it on.
  2. Access the main menu: Press the Menu button on the device.
  3. Find the formatting settings: Use the navigation arrows to access the settings or configuration tab (often represented by a gear icon).
  4. Select the formatting option: Look for the Format or Card Formatting option and select it.
  5. Confirm the formatting: The device will ask you to confirm this action. Confirm by selecting Yes or OK. Be careful, this will erase all data on the card.
  6. Wait during formatting: The process usually takes only a few seconds. Once completed, a confirmation message will appear.
  7. Check the proper functioning: After formatting, take a photo to verify that the memory card is working correctly.

Additional information:

  • Formatting generally uses the FAT32 file system, compatible with most digital cameras.
  • Before formatting, back up all important data as this operation permanently deletes all data on the card.
Respond (be the first)
How to resolve a memory card error on a PENTAX OPTIO S30 camera?
Frequently Asked Questions - 22/11/2025
Response Notice-Facile

A memory card error on your PENTAX OPTIO S30 can have several causes. Here’s how to identify and resolve the issue depending on the nature of the error.

If your device displays "Memory Card Error", it means that the SD card has a problem preventing photo recording. Start by turning off the device before handling the card. Remove the SD memory card by gently pushing it until it releases. Carefully inspect the card: clean the gold contacts with a soft, dry cloth, check for scratches, cracks, or deformities. Reinsert it correctly, respecting the indicated orientation (label facing forward), then close the compartment.

The card may also not be formatted correctly. Your PENTAX OPTIO S30 can only use SD memory cards formatted directly with this device. If you formatted the card on a computer or another camera, it will not work. Format the card using the device menu: turn on the PENTAX OPTIO S30, access the main menu, select the "Format SD Memory Card" option, then confirm. Note: formatting deletes all data. Never turn off the device during this operation, as it may permanently damage the card.

Also check the write protection switch located on the side of the SD card. If this switch is in the locked position, the card is write-protected and photos cannot be saved. Unlock it by sliding the switch the other way.

If the problem persists after these checks, test with another compatible SD memory card. This will help you determine if your original card is defective or if the issue lies with the device. Note that your PENTAX OPTIO S30 also has approximately 11 MB of built-in memory, which you can use temporarily if the SD card is faulty.

Some essential precautions to follow to avoid errors: never remove the SD memory card during recording or formatting, do not deform it, and avoid shocks; wait for the card to cool down after prolonged use before handling it; use an SD card with sufficient speed to avoid recording interruptions.

If none of these solutions work, it is recommended to have the device checked by PENTAX customer service, as this may indicate a problem with the card connector or the internal memory of the PENTAX OPTIO S30.

Respond (be the first)

Download the instructions for your Digital Camera in PDF format for free! Find your manual OPTIO S30 - PENTAX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OPTIO S30 by PENTAX.

USER MANUAL OPTIO S30 PENTAX

natural_image Line drawing of a digital camera with lens and control buttons (no text or symbols)

Lecture/suppression/édition 82

natural_image Line drawing of a digital camera with lens and control buttons (no text or symbols)

Appareil photo Optio S40/S30

PENTAX OPTIO S30 - Lecture/suppression/édition 82 - 1

natural_image Line drawing of a U-shaped object with a loop and handle (no text or symbols)

Courroie O-ST20 (*)

PENTAX OPTIO S30 - Lecture/suppression/édition 82 - 2

natural_image Simple line drawing of a circular object with concentric rings (no text or symbols)
natural_image Line drawing of a coiled cable with two connectors (no text or symbols)

Câble AV I-AVC7 (*)

PENTAX OPTIO S30 - Lecture/suppression/édition 82 - 3

natural_image Line drawing of a multi-pin electrical connector with coiled cable (no text or symbols)

Câble USB I-USB7 (*)

PENTAX OPTIO S30 - Lecture/suppression/édition 82 - 4
Deux batteries AA

PENTAX Optio S40 Optio S30 Operating Mechanics 1 To ensure the new performance from Optio S40 to the Operating Manual/Reversing Mechanism.

natural_image Black-and-white photo of a sitting lion with camera frame, no visible text or symbols

OK ↓ ↑ OK

Two circular icons with 'OK' labels and directional arrows, indicating status or action indicators.

Écran suivant

OK ↑ ↓ OK

Écran suivant

Écran suivant

PENTAX OPTIO S30 - Menu [▶ Lecture] - 2

natural_image Grayscale outdoor scene with blurred buildings and a smiley face icon, no readable text or symbols

PENTAX OPTIO S30 - Menu [▶ Lecture] - 3

natural_image Black-and-white photo of a blurred outdoor scene with buildings and a camera interface overlay (no readable text or symbols)
natural_image Grayscale abstract image with blurred shapes and small icons, no readable text or symbols
natural_image Grayscale outdoor scene with a small icon showing a square and a downward arrow, no readable text or symbols present.
natural_image Grayscale outdoor scene with a flagpole and two small square icons, no visible text or symbols
natural_image Exterior view of a modern office building (no signage)

PENTAX OPTIO S30 - Menu [▶ Lecture] - 4

natural_image Exterior view of a building with two white rectangular cutouts (no signage or text visible)

PENTAX OPTIO S30 - Menu [▶ Lecture] - 5

PENTAX 1

PENTAX OPTIO S30 - Menu [▶ Lecture] - 7

PICT

PENTAX OPTIO S30 - Menu [▶ Lecture] - 8

PENTAX OPTIO S30 - Menu [▶ Lecture] - 9

PENTAX OPTIO S30 - Menu [▶ Lecture] - 10

PENTAX OPTIO S30 - Menu [▶ Lecture] - 11

PENTAX OPTIO S30 - Menu [▶ Lecture] - 12

MF P 3m 1 0.3 .18 04/25/2004 10:25

retardateur

PENTAX OPTIO S30 - Menu [▶ Lecture] - 14

natural_image Grayscale outdoor scene with buildings and a fence, no visible text or symbols
natural_image Aerial view of a shark in flight with camera app interface (no readable text or symbols)
natural_image Black-and-white photo of a rural courtyard with buildings and trees, no visible text or symbols

Affichage activé

natural_image Grayscale outdoor scene with buildings and a person, no visible text or symbols

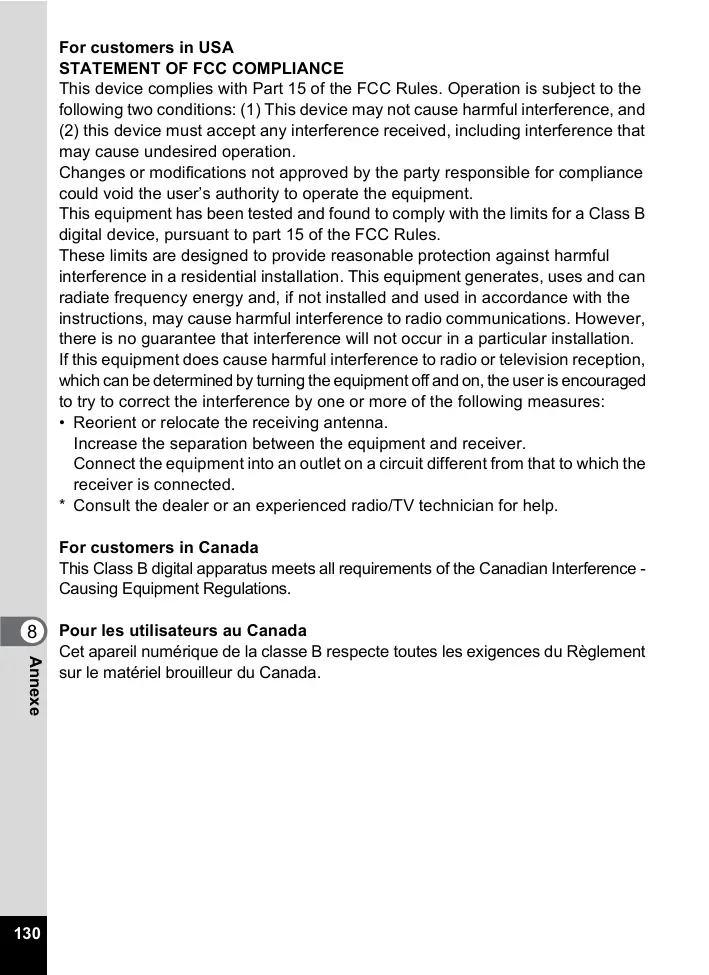

For customers in USA

STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment Regulations.

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We:

Pentax Imaging Company A Division of PENTAX of America, Inc.

Located at:

600 12 ^th Street, Suite 300 Golden, Colorado 80401 U.S.A. Phone: 303-799-8000 FAX: 303-790-1131

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name:

PENTAX Digital Still Camera

Model Number:

Optio S40

Contact person:

Customer Service Manager

Issued Date and Place:

February, 2004, Colorado

Revised Date and Place:

April, 2004, Colorado

(Revised for Company Name change)

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We:

Pentax Imaging Company A Division of PENTAX of America, Inc.

Located at:

600 12 ^th Street, Suite 300 Golden, Colorado 80401 U.S.A. Phone: 303-799-8000 FAX: 303-790-1131

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: PENTAX Digital Still Camera

Model Number: Optio S30

Contact person: Customer Service Manager

Date and Place: April, 2004, Colorado

PENTAX Corporation 2-36-9, Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN (http://www.pentax.co.jp/)

PENTAX Europe GmbH (European Headquarters)

Julius-Vosseler-Strasse, 104, 22527 Hamburg, GERMANY (HQ - http://www.pentaxeurope.com) (Germany - http://www.pentax.de)

PENTAX U.K. Limited PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K. (http://www.pentax.co.uk)

PENTAX France S.A.S. 12/14, rue Jean Poulmarch, 95106 Argenteuil Cedex, FRANCE PENTAX Benelux B.V. (for Netherlands) Spinveld 25, 4815 HR Breda, NETHERLANDS (http://www.pentax.nl) (for Belgium & Luxembourg) Weiveldlaan 3-5, 1930 Zaventem, BELGIUM (http://www.pentax.be)

PENTAX Imaging Company A Division of PENTAX of America, Inc.

600 12 ^th Street, Suite 300 Golden, Colorado 80401, U.S.A. (http://www.pentax.com)

PENTAX Canada Inc. 1770 Argentina Road Mississauga, Ontario L5N 3S7, CANADA (http://www.pentaxcanada.ca)

PENTAX

for your precious moments

Copyright © PENTAX Corporation 2004

FOM 01.05.2004 Printed in Belgium
