80 OXYGEN - Tablet ARCHOS - Free user manual and instructions

Product type	Touchscreen tablet
Brand	ARCHOS
Model	80 OXYGEN
Operating system	Android 6.0 (Marshmallow)
Screen	8 inches (diagonal), type not specified
Connectivity	WiFi 802.11 b/g/n, Micro-USB, Micro-HDMI, 3.5 mm headphone jack
Expandable storage	Micro-SD card slot (not included)
Front camera	Present (resolution not specified)
Rear camera	Present (resolution not specified)
Power supply	Rechargeable Li-ion battery (charges via Micro-USB)
Dimensions (estimated)	Approximately 210 x 130 x 9 mm
Weight (estimated)	Approximately 350 g
Main functions	Web browsing, messaging, multimedia playback, games, Google Play applications
Security	Screen lock (password, pattern, etc.), Android Device Manager
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid moisture and abrasive products.
General information	User manual available in multiple languages. System updates via Settings > About tablet > Update.

Frequently Asked Questions - 80 OXYGEN ARCHOS

How to fully charge the battery of the ARCHOS 80 OXYGEN tablet?

Plug the charging cable into the Micro-USB port and connect it to its power adapter. Plug the adapter into a power outlet and allow the battery to charge fully before first use.

How to turn on the tablet for the first time?

Press and hold the ON/OFF button until the screen turns on. Then follow the on-screen instructions to set up the language, WiFi, accounts, and other initial settings.

How to connect to a WiFi network?

Pull down the status bar to see notifications, then touch it again to access quick settings. Tap the WiFi icon to enable it, select the network name (SSID), and enter the password if required (private network with lock icon).

How to move an icon on the home screen?

Press and hold the icon until positioning lines appear, then drag it to the desired location and release.

How to remove an icon from the home screen?

Press and hold the icon, drag it to the top of the screen, and drop it on the Remove icon that appears.

How to uninstall an application?

From the All apps screen, press and hold the app icon, then drag it to the top of the screen and drop it on the Uninstall icon.

How to create an applications folder?

On the home screen, drop one icon directly onto another icon. The two icons will then be grouped into a new folder.

How to change the tablet's wallpaper?

Press and hold an empty area on the home screen, then select Wallpapers from the menu that appears.

How to lock the device to protect my data?

Go to Settings > Security, then select a lock type: pattern, PIN, or password. Follow the on-screen instructions to set it up.

What to do if the tablet is frozen or unresponsive?

Press the ON/OFF button for about 10 seconds until the device restarts. If the problem persists, perform a reset via Settings > Backup & reset > Reset your device.

USER MANUAL 80 OXYGEN ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Front view of a blank tablet device labeled 'ARCHOS' (no additional text or symbols)

ARCHOS 80 Oxygen

Charger adapter

Quick start guide

Illustration of a black cable with a USB port icon (no text or symbols)

Charging cable

Warranty, legal and safety notice

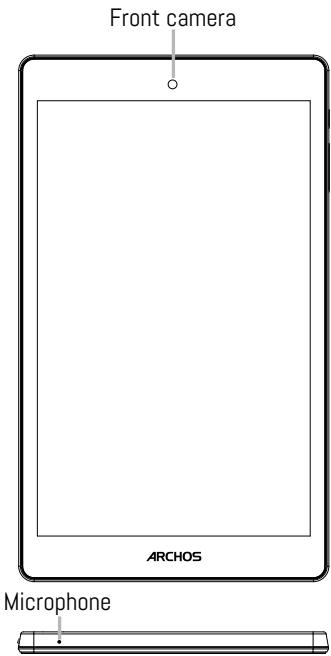

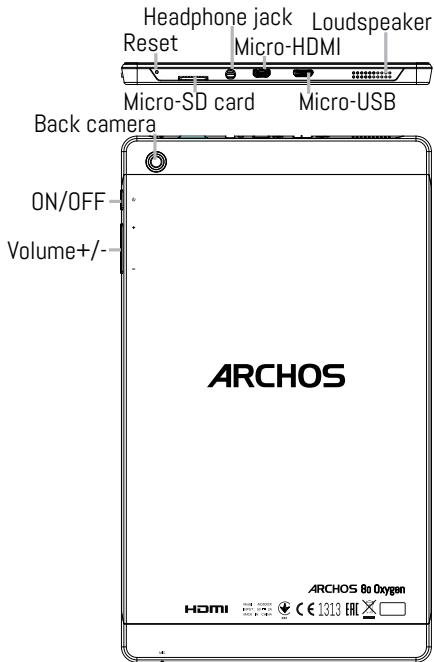

Describing your device

Your device is running Android 6.0 operating system. Updates could be offered to improve the device's performance. To check if any update is available, go to: Settings > About tablet > Check for update.

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.
   NOTE: You can skip some steps and define them later from the Settings app.

Activating WiFi connection

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon ▼ to activate the WiFi connection ▼.
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to.
   Private networks are shown with a lock icon and will require you to enter your password.

Hints & tips

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security. Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

- If your device is frozen:

Press the ON/OFF button for 10 seconds.

- If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

- If your device functioning is too slow:

Close all apps which are not currently used.

- If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

- If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

Contactez-nous

www.archos.com, click Support > After-sales support

Front view of a blank tablet device labeled 'ARCHOS' (no additional text or symbols)

ARCHOS 80 Oxygen

Adaptateur

Simple line drawing of a USB cable with a connector (no text or symbols)

Câble de charge

Front view of a blank tablet device with no visible text or symbols on the screen or body.

ARCHOS 80 Oxygen

Lade-/Netzgerät

Benutzerhandbuch

Illustration of a black cable with a USB port icon (no text or symbols)

Ladekabel

Front view of a blank tablet device labeled 'ARCHOS' at the bottom (no other text or symbols visible)

ARCHOS 80 Oxygen

Adaptador/cargador

Guía de usuario

Illustration of a black cable with a USB port icon (no text or symbols)

Cable de carga

Front view of a blank tablet device labeled 'ARCHOS' at the bottom (no other text or symbols visible)

ARCHOS 80 Oxygen

Caricabatterie

Guida dell'utente

Simple line drawing of a USB cable with a connector (no text or symbols)

Cavo di caricamento

Front view of a blank tablet device labeled 'ARCHOS' at the bottom (no other text or symbols visible)

ARCHOS 80 Oxygen

Oplader/adapter

Simple line drawing of a black cable with a connector icon (no text or symbols)

Oplaadkabel

Front view of a blank tablet device with no visible text or symbols on the screen or body.

ARCHOS 80 Oxygen

Guia do usuário

Simple line drawing of a USB cable with a connector (no text or symbols)

Front view of a blank tablet device labeled 'ARCHOS' (no additional text or symbols)

ARCHOS 80 Oxygen

Краткое руководство

Simple line drawing of a USB cable with a connector (no text or symbols)

Front view of a blank tablet device labeled 'ARCHOS' (no additional text or symbols)

ARCHOS 80 Oxygen

Ładowarka

Illustration of a black cable with a USB port icon (no text or symbols)

Kabel do ładowania

Front view of a blank tablet device labeled 'ARCHOS' (no additional text or symbols)

ARCHOS 80 Oxygen

Illustration of a black cable with a USB port icon (no text or symbols)

Töltőkábel

A készülék leírása

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 24 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian	None	Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html Archos company (Contact adress : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC800X.pdf

com/support/download/conformity/CE_DOC_AC800X.pdf

C€1313
