| Product type | Touchscreen tablet |
| Brand | Archos |
| Model | Xenon 80c |
| Screen | 8 inches, capacitive touchscreen |
| Dimensions | Approximately 210 x 155 x 10 mm |
| Weight | Approximately 350 g |
| Power supply | Rechargeable lithium-ion battery, 5V power adapter |
| Operating system | Android |
| Main functions | Internet browsing, multimedia playback, Android apps, camera, Wi-Fi, Bluetooth |
| Storage | Internal memory 8 GB (or according to version), expandable via microSD card |
| Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 4.0, microUSB |
| Sensors | Accelerometer, light sensor |
| Camera | Front and rear camera (variable resolution) |
| Speakers | Built-in speaker, 3.5 mm headphone jack |
| Care and cleaning | Clean with a soft, dry cloth. Do not use harsh chemicals. |
| Safety | Do not expose to water, excessive heat, or shocks. |
| Spare parts and repairability | Parts available through Archos after-sales service. Repair possible by a professional. |
| General information | Entry-level tablet, ideal for everyday use. Comes with USB cable and power adapter. |
Frequently Asked Questions - Xenon 80c ARCHOS
User questions about Xenon 80c ARCHOS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tablet in PDF format for free! Find your manual Xenon 80c - ARCHOS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Xenon 80c by ARCHOS.
USER MANUAL Xenon 80c ARCHOS
Package contents....2
Getting started....3
Description of the device....4
Inserting SIM & Micro-SD cards....5
3G & WiFi connection....6
The Android™ interface....8
ARCHOS Fusion Storage....12
Getting familiar with Android™....14
Troubleshooting....16
For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html
Package Contents
ARCHOS 80c Xenon
QSG booklet
Warranty, legal & safety booklet
USB cable
Charger
2
Getting Started

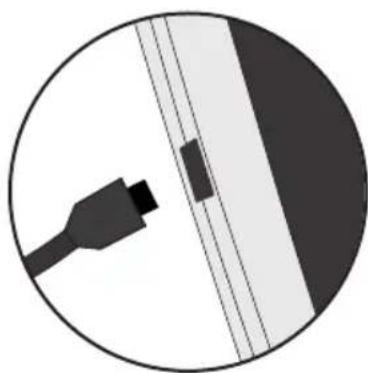

Charging
- Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
- Press the Power button to turn on the device. -You can use your ARCHOS whilst it charges. -Let your device charge completely the first time you use it. -Use only the supplied charger.
When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.
TIP:
To receive more complete service, please register your product. From a computer, go to www.archos.com/register.

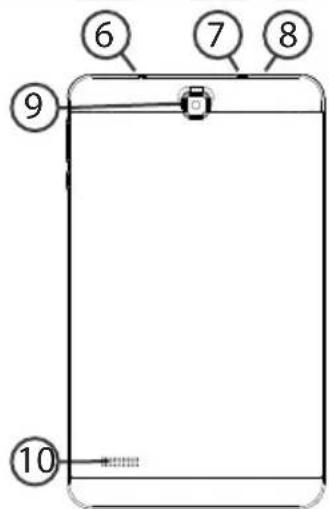

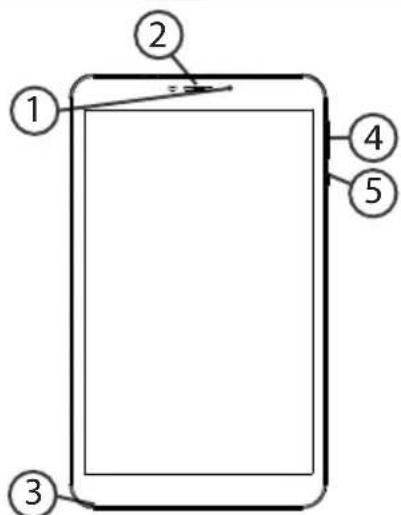

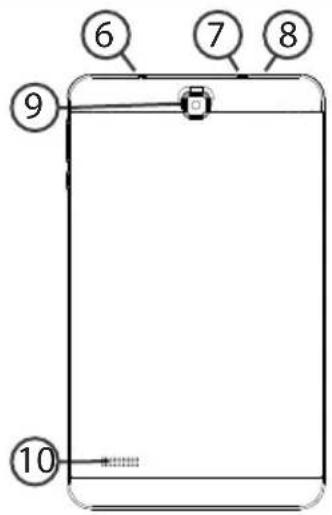

Description of the device
① Webcam
⑤ ON/OFF button
⑧ Hardware reset
② Loudspeaker
⑥ Headphone jack
⑨ Camera
③ Microphone
⑦ Micro-USB port
⑩ Loudspeaker
④ Volume buttons
Inserting SIM & Micro-SD cards
WARNING: Make sure to turn off your device before inserting the SIM & memory cards.
Opening
Use the notch to remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage the cover.
Inserting a SIM card
For your SIM card, slide it facing downwards in the slot.
Inserting a Memory card
Slide it facing downwards in the slot TIF
Closing
Replace the back cover clicking it back into position.
3G & WiFi connection
Mobile data connection
If your mobile phone subscription includes a mobile data option, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your provider's 4G or 3G network.
Activating/Deactivating the mobile data
| 1. Touch and pull down the status bar to display it. | |
| 2. Touch again the bar to reveal the quick settings. | |
| 3. Select the Settings icon. | |
| 4. In Wireless & networks, select Data usage, then the SIM card tab. | |
| 5. Slide the Mobile data switch to turn on/off. |
WiFi connection
WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.
| 1. Touch and pull down the status bar to display it. |  |
| 2. Touch again the bar to reveal the quick settings. | |
| 3. Select the WiFi icon □to activate the WiFi connection [IMAGE] |  |
| 4. Select “WiFi” below the WiFi icon. |  |
| 5. Touch the name of network you want to connect to.Private networks are shown with a lock icon and will require you to enter your password. |  |

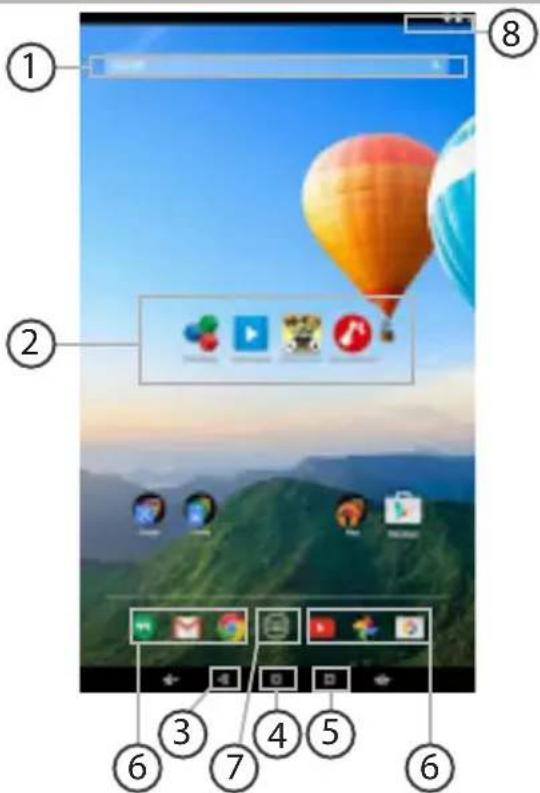

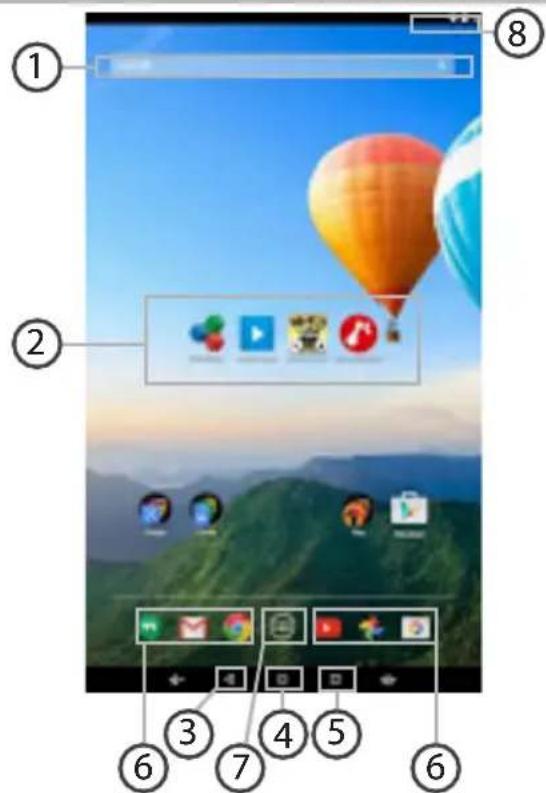

The Android™ Interface
8
① Google™ Search Touch "Google" for text search or touch the microphone icon for voice search. ② Android™ apps shortcuts Touch to start an application. ③ Back button ④ Home button ⑤ Recent apps buttons ⑥ Permanent Android™ apps shortcuts Touch to start an application ⑦ All Apps button Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here. ⑧ The status bar Displays notifications and quick settings
Touch "Google" for text search or touch the microphone icon for voice search. ② Android™ apps shortcuts: Touch to start an application. ③ Back button ④ Home button ⑤ Recent apps buttons ⑥ Permanent Android™ apps shortcuts: Touch to start an application. ⑦ All Apps button: Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here. ⑧ The status bar: Displays notifications and quick settings.
*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.
*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

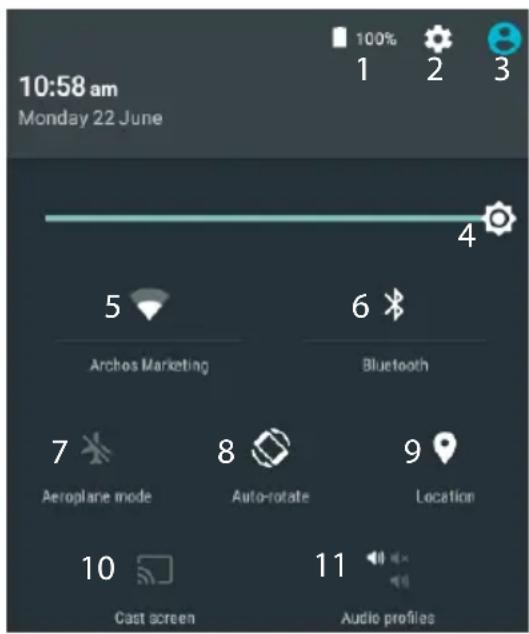

1 Percentage of battery remaining 2 To access all your settings. 3 Current user 4 To adjust the screen brightness. 5 To turn on/off your WiFi connection. 6 To turn on/off your Bluetooth connection. 7 To activate/deactivate all wireless connections, especially when flying. 8 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 9 Location services
1 Percentage of battery remaining 2 To access all your settings. 3 Current user 4 To adjust the screen brightness. 5 To turn on/off your WiFi connection. 6 To turn on/off your Bluetooth connection. 7 To activate/deactivate all wireless connections, especially when flying. 8 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 9 Location services
10 To mirror your Android device to the TV so you can enjoy your great content exactly as you see it on your mobile device.
11 To select a notification type
The Recent Apps
Opens a list of thumbnail images of apps you've worked with recently:
Touch: to open an app.
Swipe left or right: to close an app.
Scroll up or down: to view other recent apps
ARCHOS Fusion Storage
Setting up fusion storage
- Insert a micro-SD card in the device's micro-SD card slot. Make sure to insert the card in the right direction.

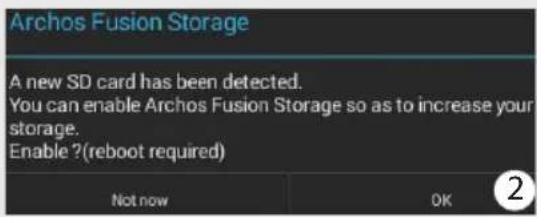

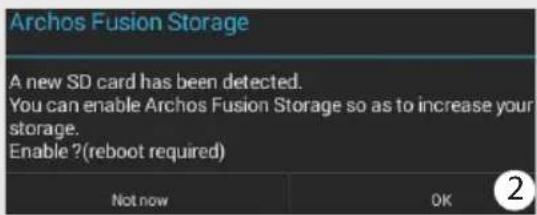

Your device will detect the micro-SD card automatically and offers you to merge the internal storage with the micro-SD card.
- Select "OK".

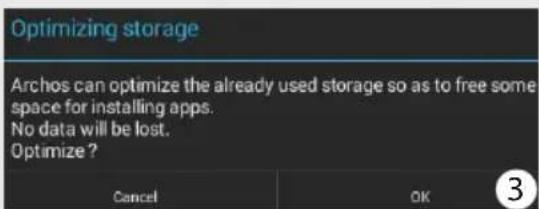

- Select "OK" in the Optimizing storage window to confirm your choice.
The device will reboot.
- When the device restarts, you are informed that the ARCHOS Fusion storage is active. -In the status bar, a notification is displayed.
- Select the Settings app, then ARCHOS Fusion Storage. The merged storage is displayed.
Disabling fusion storage
- Select the Settings app.
- In the Settings app, select ARCHOS Fusion Storage.
- When the ARCHOS Fusion Storage is active, select "Disable ARCHOS Fusion Storage" and confirm. Your device will reboot in order to apply the changes.
OPTIONS
Disable Archos Fusion Storage
Get back to the initial configuration
Tip:
We recommend you to turn off the device before inserting the micro-SD card.
Getting familiar with Android™
Moving a home screen item:
Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

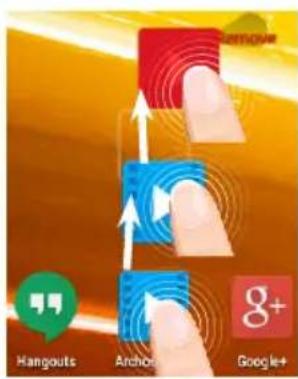

Removing a home screen item:
Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.
Uninstalling an item:
From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.
Creating application folders:
Drop one app icon over another on a home screen and the two icons will be combined.
Changing your wallpaper:
Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.
Widgets:
Hold your finger on a home screen at an empty location, then choose from the list: Widgets.
Troubleshooting
If your device is frozen:
Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.
If your device doesn't turn on:
- Charge your device.
- Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.
My tablet cannot connect to a network or "No service" is displayed
Try connecting in another location. Verify the network coverage with your operator.
Unable to make outgoing calls
Make sure your phone is connected to a network, and the network is not overloaded or unavailable.
Unable to receive incoming calls
Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).
SIM card PIN locked
Contact your network operator to obtain the PUK code (Personal Unblocking Key).
If your WiFi reception is too low:
Make sure you are not far from the WiFi hotspot.
Update the firmware of the device: http://www.archos.com/support.
Reset and redefine your connection parameters.
Contact your WiFi connection provider.
Table of contents
ARCHOS 80c Xenon
24
① Google™ Search
Anchor Game-5d 2 Linkwing Routler Tigorak High-2001 Afield
Archos GamePast 2 Unboxing Inbound 1 Golden Eagle - DNT Home
Archise GamePad 2 Unboxing Session: 1 year ago 20% History
Get back to the initial configuration
Tip:
ARCHOS 80c Xenon
User manual
40
① Google™ Search
Airfresh GamePast 2 Unlocking Treasure 1. Value only: Data shares
(2) Introduction to the counterparty
Arches GameF50 2 (Roboing fishing) 1. sales per: 2000 units
(4) Resolutions of this shareholders' meeting
ARCHOS 80c Xenon
User guide
3G & WiFi connection
① Google™ Search
Archae Gaimel-Post 2 Unboxing Included Pigee Sligo - 2001 (Hawes)
Arches Game Post 3 Unboxing Involve: 1 year ago: 20% World
Archise GamePad 2 Unboving Position 3 years ago - 20% Hereby
Changing the background:
ARCHOS 80c Xenon
User Guide
① Webcam
⑤ ON/OFF buttons
72
① Google™ Search
Arthos GamePost 2 (Unboxing Involve) 1 year ago (-0% Review)
Archives GameP2012 (Roboing) Year ago: 2005; Idaho
Archos Fusion Storage
A new SD card has been detected. You can enable Archos Fusion Storage so as to increase your storage. Enable? (reboot required)
Not now
2
Optimizing storage
Archos can optimize the already used storage so as to free some space for installing apps. No data will be lost. Optimize?
Cancel
OK
3
Get back to the initial configuration
Tip:
ARCHOS 80c Xenon
3G & WiFi connection
Mobile data connection
The Android™ Interface
① Google™ Search
Get back to the initial configuration
Tip:
ARCHOS 80c Xenon
User guide
3G & WiFi connection
WiFi connection
104
① Google™ Search
ARCHOS 80c Xenon
Quick start guide
120
① Google™ Search
(四) 发行机构
Changing wallpaper:
Widgets:
ARCHOS 80c Xenon
① Front camera
⑤ Power button
⑧ Hardware reset
Android™ interface
*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.
Quick setup
Return to initial configuration
Tip:
Deleting an item:
Changing wallpaper:
ARCHOS 80c Xenon
152
① Google™ search
Get back to the initial configuration
Tip:
Remove an item:
ARCHOS 80c Xenon
① Front camera
3G AND WIFI CONNECTION
3G connection
ANDROID INTERFACE
172172
Remove an application:
Change wallpaper:
Widgets:
ARCHOS 80c Xenon
User manual
Warranty card
Reset
Rear camera
External speaker
Data connection
Entertainment your way
Warranty card
National restrictions
This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and public service
France Outdoor use limited
to 10 mW e.i.r.p.
within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow
current relaxed regulation. Full implementation
planned 2012
Italy None If used outside of own premises, general
authorization is required.
Luxembourg None General authorization required for network and
service supply (not for spectrum)
Norway Implemented This subsection does not apply for the geographical
area within a radius of 20 km from the centre of
Ny-Alesund
Russian Federation None Only for indoor applications
Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.
Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html
Open Source Software Offer
The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.
For the open source files contained herein, please access the "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of the Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of the GNU General Public License, Version 2 at the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.
Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.
This offer is valid to anyone in receipt of this information.
Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC
SAR
Head: 0.036 W/kg
Body: 1.680 W/kg
C€1313
196
- PACKAGE CONTENTS
- GETTING STARTED
- CHARGING
- TIP
- DESCRIPTION OF THE DEVICE
- INSERTING SIM & MICRO-SD CARDS
- OPENING
- INSERTING A SIM CARD
- INSERTING A MEMORY CARD
- CLOSING
- G & WIFI CONNECTION
- MOBILE DATA CONNECTION
- ACTIVATING/DEACTIVATING THE MOBILE DATA
- WIFI CONNECTION
- THE ANDROID™ INTERFACE
- NEW MULTI-USER SUPPORT FOR TABLETS LETS DIFFERENT USERS HAVE THEIR OWN SEPARATE, CUSTOMIZABLE SPACES ON A SINGLE DEVICE. ADD USERS IN SETTINGS > DEVICE
- PERCENTAGE OF BATTERY REMAINING 2 TO ACCESS ALL YOUR SETTINGS. 3 CURRENT USER 4 TO ADJUST THE SCREEN BRIGHTNESS. 5 TO TURN ON/OFF YOUR WIFI CONNECTION. 6 TO TURN ON/OFF YOUR BLUETOOTH CONNECTION. 7 TO ACTIVATE/DEACTIVATE ALL WIRELESS CONNECTIONS, ESPECIALLY WHEN FLYING. 8 TO ACTIVATE/DEACTIVATE AUTOMATIC SCREEN ORIENTATION AS YOU TURN YOUR ARCHOS. 9 LOCATION SERVICES
- THE RECENT APPS
- ARCHOS FUSION STORAGE
- SETTING UP FUSION STORAGE
- DISABLING FUSION STORAGE
- OPTIONS
- DISABLE ARCHOS FUSION STORAGE
- GETTING FAMILIAR WITH ANDROID™
- MOVING A HOME SCREEN ITEM
- REMOVING A HOME SCREEN ITEM
- UNINSTALLING AN ITEM
- CREATING APPLICATION FOLDERS
- CHANGING YOUR WALLPAPER
- WIDGETS
- TROUBLESHOOTING
- IF YOUR DEVICE IS FROZEN
- IF YOUR DEVICE DOESN'T TURN ON
- MY TABLET CANNOT CONNECT TO A NETWORK OR "NO SERVICE" IS DISPLAYED
- UNABLE TO MAKE OUTGOING CALLS
- UNABLE TO RECEIVE INCOMING CALLS
- SIM CARD PIN LOCKED
- IF YOUR WIFI RECEPTION IS TOO LOW
- TABLE OF CONTENTS
- CHANGING THE BACKGROUND
- OPTIMIZING STORAGE
- GET BACK TO THE INITIAL CONFIGURATION
- ① GOOGLE™ SEARCH
- CHANGING WALLPAPER
- ANDROID™ INTERFACE
- QUICK SETUP
- RETURN TO INITIAL CONFIGURATION
- DELETING AN ITEM
- REMOVE AN ITEM
- G AND WIFI CONNECTION
- G CONNECTION
- ANDROID INTERFACE
- REMOVE AN APPLICATION
- CHANGE WALLPAPER
- WARRANTY CARD
- NATIONAL RESTRICTIONS
- OPEN SOURCE SOFTWARE OFFER
- SAR
- C€
Brand : ARCHOS
Model : Xenon 80c
Category : Tablet
