ARCHOS 101 OXYGEN - Tablet

101 OXYGEN - Tablet ARCHOS - Free user manual and instructions

Find the device manual for free 101 OXYGEN ARCHOS in PDF.

📄 142 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice ARCHOS 101 OXYGEN - page 5
Pick your language and provide your email: we'll send you a specifically translated version.
Product typeTouchscreen tablet
BrandARCHOS
Model101 OXYGEN
Operating systemAndroid (Android interface)
Screen10.1 inches (based on model reference)
WiFi connectivityWiFi 802.11 b/g/n
Bluetooth connectivityBluetooth (unspecified)
Portsmicro-USB (OTG), mini-HDMI, 3.5mm audio jack, micro-SD reader
CameraFront webcam and rear camera with flash
SpeakerBuilt-in speaker
MicrophoneBuilt-in microphone
BatteryRechargeable Li-Po battery (charger included)
ButtonsVolume, power, reset
Box contentsTablet, power cable, quick start guide, warranty and legal notices guide
Main functionsInternet browsing, apps, multimedia, games, video/audio playback, photo taking
SecurityScreen lock by PIN, pattern or password
Care and cleaningClean with a soft dry cloth, avoid liquids
RecyclingDo not dispose with household waste, follow local regulations

Frequently Asked Questions - 101 OXYGEN ARCHOS

How to turn on the ARCHOS 101 OXYGEN tablet?
Press the On/Off button for a few seconds. If the battery is discharged, first plug in the charger for at least 10 minutes.
How to connect the tablet to a WiFi network?
Swipe down the status bar, enable WiFi, then select your network and enter the password if necessary.
How to transfer files between the tablet and a computer?
Use the provided micro-USB cable. Connect the tablet's micro-USB port to a computer USB port. The tablet appears as a storage device.
What to do if the tablet is unresponsive?
Press the On/Off button for 10 seconds to force a shutdown. If necessary, use the reset button with a paperclip.
How to extend battery life?
Reduce screen brightness and disable wireless connections (WiFi, Bluetooth) when not in use.
How to install or uninstall apps?
To install, open the Play Store and download the app. To uninstall, hold the app icon in the All apps menu and drag it to Uninstall.
How to change the wallpaper?
Press and hold on an empty spot on the home screen, then choose Wallpapers and select an image.
How to lock the screen with a code?
Go to Settings > Security > Screen lock, then choose the lock type (pattern, PIN or password).
How to use a USB drive or SD card?
Insert a micro-SD card into the appropriate slot. For a USB device, use an OTG adapter on the micro-USB port. The tablet automatically detects the storage.
Where to find the serial number and warranty information?
The serial number is usually found under the tablet or in the settings. The warranty is described in the warranty guide provided with the device.

User questions about 101 OXYGEN ARCHOS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Tablet in PDF format for free! Find your manual 101 OXYGEN - ARCHOS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 101 OXYGEN by ARCHOS.

USER MANUAL 101 OXYGEN ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Through the wizard....6

Connecting to a WiFi network....7

The Android ^TM interface....8

Getting familiar with Android ^TM ....12

Troubleshooting....14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

ARCHOS 101 OXYGEN - 1

ARCHOS 101 OXYGEN - 2

natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - 3

ARCHOS 101 OXYGEN - 4

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

Package Content

ARCHOS 101 OXYGEN - Package Content - 1

natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Package Content - 2

text_image ARCHOS

QSG booklet

ARCHOS 101 OXYGEN - Package Content - 3

text_image Warranty

Warranty, legal & safety booklet

ARCHOS 101 OXYGEN - Package Content - 4

natural_image Black cable with a USB port connector (no text or symbols visible)

USB cable

ARCHOS 101 OXYGEN - Package Content - 5

natural_image Simple black-and-white line drawing of a plug connected to a coiled cable (no text or symbols)

Charger

2

ARCHOS 101 OXYGEN - Package Content - 6

Getting Started

Charging

ARCHOS 101 OXYGEN - Charging - 1

natural_image Circular diagram showing a connector inserted into a panel with a central dot (no text or symbols)
  1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging.
  2. Press the Power button to turn on the device.
    The charging indicator light is on when the battery is charging.

  3. You can use your ARCHOS whilst it charges.

  4. Let your device charge completely the first time you use it.
  5. Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

ARCHOS 101 OXYGEN - TIP: - 1

Description of the device

ARCHOS 101 OXYGEN - Description of the device - 1

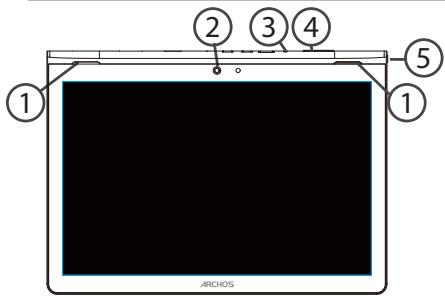

text_image ① ② ③ ④ ⑤ ① ARCHOS

ARCHOS 101 OXYGEN - Description of the device - 2

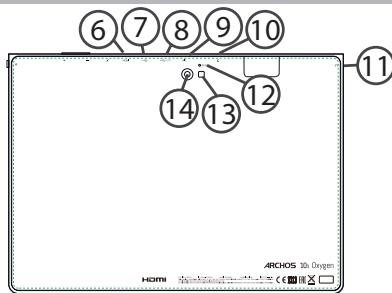

text_image ⑥⑦⑧⑨⑩ ⑭⑮⑯⑰ 14⑬⑭ 12 11 ARCHOS 10 Open HOME

① Loudspeaker
② Front camera
③ Volume buttons
④ Power connector
⑤ ON/OFF button

⑥ Mini-HDMI video output ^(1)
⑦ Micro-USB port
⑧ Micro-USB host port ^(2)
⑨ Microphone
⑩ Micro-SD card slot

⑪ Headphone jack
⑫ Reset button
⑬ Flash light
⑭ Back camera

ARCHOS 101 OXYGEN - Description of the device - 3

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

  • Touch-screen calibration
  • Language
  • Date & time
  • WiFi connection
  • Location service options
  • 3rd party apps

ARCHOS 101 OXYGEN - Through the Wizard - 1

ARCHOS 101 OXYGEN - Through the Wizard - 2

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 1

natural_image Digital interface screenshot showing a colorful abstract background with a fingerprint icon and status bar (no readable text or symbols)

① Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 2

natural_image Illustration of a finger pressing a horizontal line on a black background (no text or symbols)

② Pull the blue line down to display the status dashboard.

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 3

text_image WI-FI OFF EMERGENCY CALLS ONLY AUTO ROTATE

③ Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 4

text_image Wi-Fi N

④ Slide the WiFi switch to "ON" positon.

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 5

text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP

⑤The ARCHOS will scan for Wifi networks in range. Touch the name of network you want to connect to.

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 6

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 7

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 8

ARCHOS 101 OXYGEN - Connecting to a WiFi Network - 9

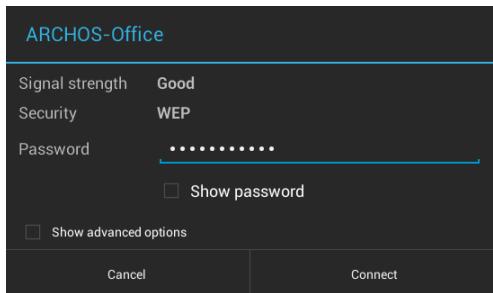

text_image ARCHOS-Office Signal strength Good Security WEP Password ...... □ Show password □ Show advanced options Cancel Connect

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

  • When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
  • To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

ARCHOS 101 OXYGEN - TIPS: - 1

The Android™ Interface

ARCHOS 101 OXYGEN - The Android™ Interface - 1

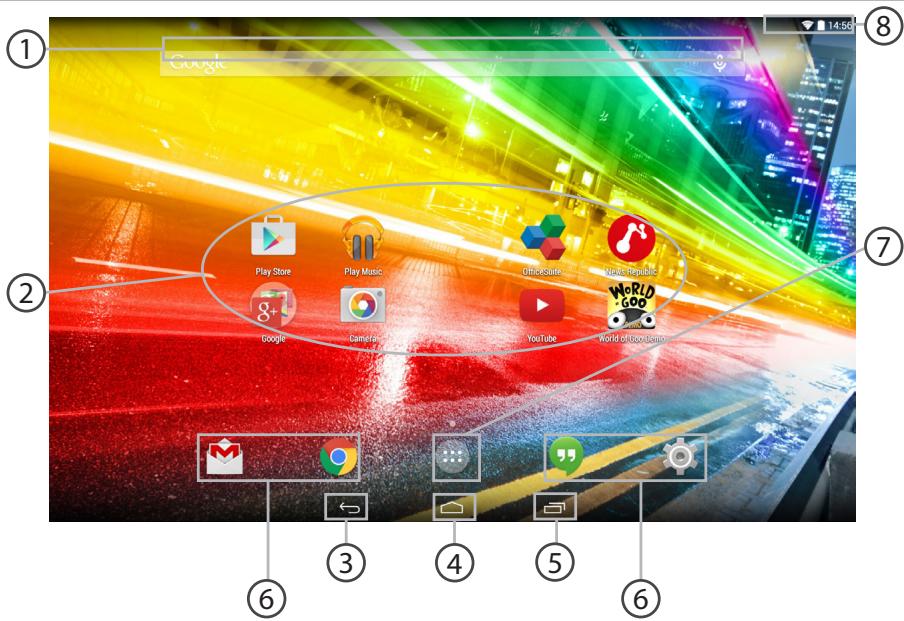

text_image ① Google ② Play Store Play Music Offications World Music ⑦ ⑥ ③ ④ ⑤ ⑥

ARCHOS 101 OXYGEN - The Android™ Interface - 2

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.

② Android™ apps shortcuts

Touch to start an application.

③ Back button

④ Home button

⑤ Recent apps buttons

⑥ Permanent Android™ apps shortcuts

Touch to start an application

⑦ All Apps button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

⑧ The status bar

Displays notifications and quick settings

ARCHOS 101 OXYGEN - The Android™ Interface - 3

The Android™ Interface

ARCHOS 101 OXYGEN - The Android™ Interface - 1

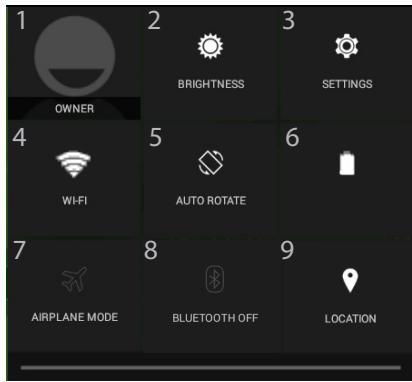

text_image 1 OWNER 2 BRIGHTNESS 3 SETTINGS 4 WIFI 5 AUTO ROTATE 6 7 AIRPLANE MODE 8 BLUETOOTH OFF 9 LOCATION

The Quick settings

1 Current user*
2 To adjust the screen brightness.
3 To access all your settings.
4 To turn on/off your WiFi connection.
5 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
6 Percentage of battery remaining
7 To activate/deactivate all wireless connections, especially when flying.
8 To turn on/off your Bluetooth connection.
9 Location services

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

ARCHOS 101 OXYGEN - The Quick settings - 1

ARCHOS 101 OXYGEN - The Quick settings - 2

ARCHOS 101 OXYGEN - The Quick settings - 3

natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - The Quick settings - 4

ARCHOS 101 OXYGEN - The Quick settings - 5

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, light yellow, pink, cyan, and gray (no text or symbols)

EN

ARCHOS 101 OXYGEN - The Quick settings - 6

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

ARCHOS 101 OXYGEN - The Recent Apps - 1

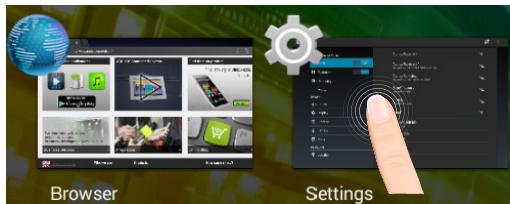

text_image Browser Settings

Touch: to open an app.

Hold down: to display options

ARCHOS 101 OXYGEN - The Recent Apps - 2

text_image Browser Settings

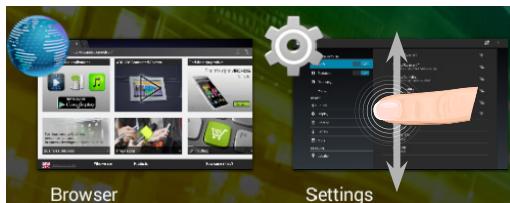

Swipe up or down: to close an app.

ARCHOS 101 OXYGEN - The Recent Apps - 3

ARCHOS 101 OXYGEN - The Recent Apps - 4

Getting familiar with Android™

ARCHOS 101 OXYGEN - Getting familiar with Android™ - 1

text_image Screenshot of iOS home screen interface showing app icons and bidirectional arrows between two screens

The extended home screen:

Navigate between different home screen panels by swiping left and right.

ARCHOS 101 OXYGEN - The extended home screen: - 1

text_image Screenshot of a mobile app interface showing a finger pointing at a list of app icons with Chinese labels.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

ARCHOS 101 OXYGEN - Moving a home screen item: - 1

natural_image Illustration of a hand interacting with a touchscreen display showing two square images and arrows (no text or symbols)

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

ARCHOS 101 OXYGEN - Removing a home screen item: - 1

text_image Email Files Maps Email Gmail Google Mapping Tool Maps Movie Studio Navigation

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

ARCHOS 101 OXYGEN - Uninstalling an item: - 1

ARCHOS 101 OXYGEN - Uninstalling an item: - 2

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

ARCHOS 101 OXYGEN - Creating application folders: - 1

text_image WALLPAPER WIDEWATER SETTINGS

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

ARCHOS 101 OXYGEN - Widgets: - 1

text_image WALLPAPERS SETTINGS

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

ARCHOS 101 OXYGEN - Changing your wallpaper: - 1

text_image Security Choose screen lock None Slide Pattern PIN Password

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

ARCHOS 101 OXYGEN - Locking the touchscreen: - 1

ARCHOS 101 OXYGEN - Locking the touchscreen: - 2

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

  1. Charge your device.
  2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.
Update the firmware of the device: http://www.archos.com/support.
Reset and redefine your connection parameters.
Contact your WiFi connection provider.

ARCHOS 101 OXYGEN - If your WiFi reception is too low: - 1

ARCHOS 101 OXYGEN - If your WiFi reception is too low: - 2

Table des matières

natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Table des matières - 1

ARCHOS 101 OXYGEN - Table des matières - 2

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

Contenu de la boîte

ARCHOS 101 OXYGEN - Contenu de la boîte - 1

natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Contenu de la boîte - 2

text_image ARCHOS
natural_image Black cable with a USB port icon, no text or symbols present

Câble USB

ARCHOS 101 OXYGEN - Contenu de la boîte - 3

natural_image Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Chargeur

Mise en route

Charger la batterie

ARCHOS 101 OXYGEN - Charger la batterie - 1

natural_image Circular diagram showing a connector inserted into a device, with no visible text or symbols.
text_image ⑥⑦⑧⑨⑩ ⑭⑮⑯ ⑭⑰⑱ ⑪ ARCHOS 10.00pm
natural_image Digital interface screenshot showing a Wi-Fi notification icon and a fingerprint with a finger symbol (no readable text or symbols)
natural_image Hand holding a white horizontal line with concentric circles, against a black background (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
text_image ARCHOS-Office Signal strength Good Security WEP Password ...... □ Show password □ Show advanced options Cancel Connect
text_image Screenshot of a macOS desktop with icons and bidirectional arrows indicating bidirectional interaction between apps.
text_image Screenshot of a mobile app interface showing a hand interacting with a grid of app icons including Music, Gaming, and Social Media.
natural_image Illustration of a hand interacting with a touchscreen display showing three square icons (no text or symbols)
text_image Security Choose screen lock None Slide Pattern PIN Password
natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Charger la batterie - 2

text_image ARCHOS

Benutzerhandbuch

ARCHOS 101 OXYGEN - Charger la batterie - 3

text_image Warranty
natural_image Black cable with a connector icon (no text or symbols)

USB Kabel

ARCHOS 101 OXYGEN - Charger la batterie - 4

natural_image Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Ladegerät

Erste Schritte

Aufladen des Akkus

ARCHOS 101 OXYGEN - Aufladen des Akkus - 1

natural_image Circular diagram showing a plug inserted into a panel with a dot at the center (no text or symbols)
natural_image Digital interface screenshot showing a lock icon and a fingerprint symbol (no readable text or symbols)

ARCHOS 101 OXYGEN - Aufladen des Akkus - 2

natural_image Illustration of a finger pressing a horizontal line on a black background (no text or symbols)

ARCHOS 101 OXYGEN - Aufladen des Akkus - 3

text_image WI-FI OFF EMERGENCY CALLS ONLY AUTO ROTATE

ARCHOS 101 OXYGEN - Aufladen des Akkus - 4

text_image Wi-Fi N

ARCHOS 101 OXYGEN - Aufladen des Akkus - 5

text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
text_image ARCHOS-Office Signal strength Good Security WEP Password ...... □ Show password □ Show advanced options Cancel Connect
text_image Screenshot of a mobile app interface with Chinese menu options and a finger pointing to the screen.
natural_image Illustration of a finger interacting with three square icons on a blue background (no text or symbols)
Security Choose screen lock
None
Slide
Pattern
PIN
Password
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Aufladen des Akkus - 6

ARCHOS 101 OXYGEN - Aufladen des Akkus - 7

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)
natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Aufladen des Akkus - 8

text_image ARCHOS

Guía de usuario

ARCHOS 101 OXYGEN - Aufladen des Akkus - 9

text_image Warranty
natural_image Black cable with a connector icon (no text or symbols)

Cable USB

ARCHOS 101 OXYGEN - Aufladen des Akkus - 10

natural_image Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Cargador

natural_image Circular diagram with a plug and diagonal lines, no text or symbols present
natural_image Digital interface screenshot showing a colorful abstract background with a fingerprint icon and status bar (no readable text or symbols)
natural_image Illustration of a finger pressing a horizontal line on a black background (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
text_image ARCHOS-Office Signal strength Good Security WEP Password ...... □ Show password □ Show advanced options Cancel Connect
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Aufladen des Akkus - 11

ARCHOS 101 OXYGEN - Aufladen des Akkus - 12

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

① Google™ Search

natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Aufladen des Akkus - 13

ARCHOS 101 OXYGEN - Aufladen des Akkus - 14

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray (no text or symbols)

ARCHOS 101 OXYGEN - Aufladen des Akkus - 15

text_image Screenshot of a mobile app interface showing a finger pointing at a grid of app icons with Chinese labels.
natural_image Illustration of a hand interacting with a touchscreen display showing two square images and arrows (no text or symbols)
Security Choose screen lock
None
Slide
Pattern
PIN
Password
natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Aufladen des Akkus - 16

text_image ARCHOS

Guida dell'utente

ARCHOS 101 OXYGEN - Aufladen des Akkus - 17

text_image Warranty
natural_image Black cable with a connector icon (no text or symbols)

Cavo USB

ARCHOS 101 OXYGEN - Aufladen des Akkus - 18

natural_image Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Caricatore

Avvio

natural_image Circular diagram with a plug and diagonal lines, no text or symbols present
natural_image Digital interface screenshot showing a Wi-Fi notification icon and a fingerprint sensor (no readable text or symbols)
natural_image Illustration of a finger pressing a horizontal line on a black background (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
text_image ARCHOS-Office Signal strength Good Security WEP Password ...... □ Show password □ Show advanced options Cancel Connect
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Avvio - 1

ARCHOS 101 OXYGEN - Avvio - 2

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

① Google™ Search

text_image Screenshot of a mobile app interface showing bidirectional arrows between iOS and Google app icons.
text_image Screenshot of a mobile app interface showing a hand interacting with a grid of app icons including Music, Gaming, and Social Media.
natural_image Illustration of a hand interacting with a touchscreen display showing three square images (no text or symbols)
text_image Security Choose screen lock None Slide Pattern PIN Password
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Avvio - 3

ARCHOS 101 OXYGEN - Avvio - 4

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)
natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Avvio - 5

text_image ARCHOS
natural_image Black cable with a connector icon (no text or symbols)

USB-kabel

ARCHOS 101 OXYGEN - Avvio - 6

natural_image Simple black-and-white line drawing of a plug connected to a coiled cable (no text or symbols)

Lader

Aan de slag

De batterijen laden

ARCHOS 101 OXYGEN - De batterijen laden - 1

natural_image Circular diagram with a plug and diagonal stripe, no text or symbols present
natural_image Digital interface screenshot showing a colorful abstract background with a fingerprint icon and status bar (no readable text or symbols)

ARCHOS 101 OXYGEN - De batterijen laden - 2

natural_image Illustration of a finger pressing a horizontal line with concentric circles (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - De batterijen laden - 3

ARCHOS 101 OXYGEN - De batterijen laden - 4

natural_image Color palette bar with solid and dotted squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray (no text or symbols)

① Google™ Search

natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - De batterijen laden - 5

ARCHOS 101 OXYGEN - De batterijen laden - 6

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray (no text or symbols)

ARCHOS 101 OXYGEN - De batterijen laden - 7

Recente apps

text_image Screenshot of a mobile app interface showing bidirectional arrows between iOS and Google app icons.
text_image Screenshot of a mobile app interface showing a hand interacting with a grid of app icons including Music, Gaming, and Social Media.
natural_image Illustration of a hand interacting with a touchscreen display showing three square images (no text or symbols)
text_image Security Choose screen lock None Slide Pattern PIN Password
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Recente apps - 1

ARCHOS 101 OXYGEN - Recente apps - 2

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)
natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Recente apps - 3

text_image ARCHOS

Guia do usuário

ARCHOS 101 OXYGEN - Recente apps - 4

text_image Warranty
natural_image Black cable with a connector icon (no text or symbols)

Cabo USB

ARCHOS 101 OXYGEN - Recente apps - 5

natural_image Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Carregador

Início

Carregar a bateria

ARCHOS 101 OXYGEN - Carregar a bateria - 1

natural_image Circular diagram showing a plug inserted into a panel with a dot at the center (no text or symbols)
natural_image Digital interface screenshot showing a colorful abstract background with a fingerprint icon and status bar (no readable text or symbols)
natural_image Hand holding a white horizontal line with concentric circles, against a black background (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Carregar a bateria - 2

ARCHOS 101 OXYGEN - Carregar a bateria - 3

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

① Google™ Search

natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Carregar a bateria - 4

ARCHOS 101 OXYGEN - Carregar a bateria - 5

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray (no text or symbols)

ARCHOS 101 OXYGEN - Carregar a bateria - 6

Aplicações recentes

text_image Screenshot of iOS home screen interface showing app icons and bidirectional arrows between two main screens
text_image Screenshot of a mobile app interface showing a finger pointing at a grid of app icons with Chinese labels.
natural_image Illustration of a hand interacting with a touchscreen display showing two square images and arrows (no text or symbols)
text_image Security Choose screen lock None Slide Pattern PIN Password

Bloquear o ecrã táctil:

natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Bloquear o ecrã táctil: - 1

text_image ARCHOS

Краткое руководство

ARCHOS 101 OXYGEN - Bloquear o ecrã táctil: - 2

text_image Warranty
natural_image Black cable with a connector icon (no text or symbols)

Кабель USB

ARCHOS 101 OXYGEN - Bloquear o ecrã táctil: - 3

natural_image Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Зарядное устройство

Начало работы

Зарядка

ARCHOS 101 OXYGEN - Зарядка - 1

natural_image Circular diagram showing a plug inserted into a channel with a dot marking the center (no text or symbols)
natural_image Digital interface screenshot showing a Wi-Fi notification icon and a fingerprint sensor (no readable text or symbols)
natural_image Illustration of a finger pressing a horizontal line on a black background (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Зарядка - 2

ARCHOS 101 OXYGEN - Зарядка - 3

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, light yellow, pink, cyan, and gray (no text or symbols)

ARCHOS 101 OXYGEN - Зарядка - 4

text_image Screenshot of a mobile app interface showing bidirectional arrows between iOS and Google app icons.
text_image Screenshot of a mobile app interface showing a hand interacting with a grid of app icons including Music, Gaming, and Social Media.
natural_image Illustration of a hand interacting with a touchscreen display showing three square images (no text or symbols)
text_image Security Choose screen lock None Slide Pattern PIN Password
natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - Зарядка - 5

text_image ARCHOS
text_image GWarrantja
natural_image Simple black cable with a connector icon, no text or symbols present

Kabel USB

ARCHOS 101 OXYGEN - Зарядка - 6

natural_image Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Ładowarka

natural_image Diagram of a connector inserted into a circular frame with diagonal lines and a central dot (no text or symbols)
natural_image Digital interface screenshot showing a Wi-Fi notification icon and a fingerprint sensor (no readable text or symbols)
natural_image Illustration of a finger pressing a horizontal line on a black background (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

ARCHOS 101 OXYGEN - Зарядка - 7

ARCHOS 101 OXYGEN - Зарядка - 8

ARCHOS 101 OXYGEN - Зарядка - 9

natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Зарядка - 10

ARCHOS 101 OXYGEN - Зарядка - 11

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

ARCHOS 101 OXYGEN - Зарядка - 12

text_image Screenshot of a macOS desktop with icons and bidirectional arrows indicating bidirectional interaction between apps.
text_image Screenshot of a mobile app interface showing a finger pointing at a grid of app icons with labels like Music, Play Music, and YouTube.
natural_image Illustration of a hand interacting with a touchscreen display showing three square icons (no text or symbols)
text_image Security Choose screen lock None Slide Pattern PIN Password
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Зарядка - 13

ARCHOS 101 OXYGEN - Зарядка - 14

natural_image Color palette bar with eight distinct squares in yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, and gray (no text or symbols)

A csomag tartalma

ARCHOS 101 OXYGEN - A csomag tartalma - 1

natural_image Front view of a tablet device labeled 'ARCHOS' with no visible text or symbols on the screen or body.

ARCHOS 101 Oxygen

ARCHOS 101 OXYGEN - A csomag tartalma - 2

text_image ARCHOS
natural_image Black cable with a connector icon (no text or symbols)

USB-kábel

ARCHOS 101 OXYGEN - A csomag tartalma - 3

natural_image Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Töltő

Első lépések

Töltés

ARCHOS 101 OXYGEN - Töltés - 1

natural_image Circular diagram with a plug and diagonal lines, no text or symbols present
natural_image Digital interface screenshot showing a Wi-Fi notification icon and a fingerprint sensor (no readable text or symbols)
natural_image Illustration of a finger pressing a horizontal line on a black background (no text or symbols)
text_image ARCHOS-Tech Connected ARCHOS-Office Secured with WEP
natural_image Gradient color bar transitioning from black to white (no text or symbols)

ARCHOS 101 OXYGEN - Töltés - 2

ARCHOS 101 OXYGEN - Töltés - 3

natural_image Color palette bar with 10 solid color blocks (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) on white background

ARCHOS 101 OXYGEN - Töltés - 4

text_image Screenshot of a macOS desktop with icons and bidirectional arrows indicating bidirectional interaction between apps.
text_image Screenshot of a mobile app interface showing a finger pointing at a grid of app icons with labels like Music, Play Music, and YouTube.
natural_image Illustration of a hand interacting with a touchscreen display showing three square icons (no text or symbols)
text_image Security Choose screen lock None Slide Pattern PIN Password

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

CountryRestrictionReason/remark
BulgariaNoneGeneral authorization required for outdoor use and public service
FranceOutdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHzMilitary Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
ItalyNoneIf used outside of own premises, general authorization is required.
LuxembourgNoneGeneral authorization required for network and service supply (not for spectrum)
NorwayImplementedThis subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian FederationNoneOnly for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

ARCHOS 101 OXYGEN - National restrictions - 1

ARCHOS 101 OXYGEN - National restrictions - 2

ARCHOS 101 OXYGEN - National restrictions - 3

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

C € 0700

142

ARCHOS 101 OXYGEN - Open Source Software Offer - 1

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ARCHOS

Model : 101 OXYGEN

Category : Tablet
