L100BR16E - Blender Logik - Free user manual and instructions

Product Type	Blender
Brand	Logik
Model	L100BR16E
Capacity	1.5 liters
Power Consumption	500 W
Voltage	220-240 V, 50 Hz
Number of Speed Settings	2 speeds + pulse
Blade Material	Stainless steel
Jug Material	Plastic (BPA-free)
Dimensions (H x W x D)	38 x 16 x 16 cm
Weight	1.2 kg
Cord Length	1.0 m
Dishwasher Safe Parts	Jug and lid
Safety Features	Non-slip feet, safety lock lid
Overheat Protection	Yes
Ice Crushing Capability	Yes
Measurement Markings	On jug in ml and oz
Warranty	2 years
Repairability Index	7.5 / 10
Spare Parts Available	Yes (jug, blades, lid, seal)
Included Accessories	Blender jug, lid, measuring cap

Frequently Asked Questions - L100BR16E Logik

How do I use the Logik L100BR16E blender?

Place the jug on the base, add ingredients, secure the lid, and select speed. Use pulse for short bursts.

Can I crush ice with this blender?

Yes, the stainless steel blades can crush ice. Use pulse setting for best results.

How do I clean the blender?

The jug and lid are dishwasher safe. For manual cleaning, rinse and wipe dry. Do not immerse the motor base.

What is the maximum capacity?

The jug has a 1.5 liter capacity. Do not exceed the max fill line to avoid spills.

Why is the blender not starting?

Ensure the lid is locked properly and the jug is correctly placed on the base. Check power connection.

Can I blend hot liquids?

No, allow liquids to cool to room temperature before blending to avoid pressure buildup.

How do I replace the blade?

Unplug the blender, remove the jug, unscrew the blade assembly from the bottom. Replace with original spare part.

Is the jug BPA-free?

Yes, the plastic jug is made from BPA-free materials.

What does the pulse function do?

The pulse function provides short bursts of power for controlled chopping or mixing.

Where can I find spare parts?

Spare parts are available from the manufacturer or authorized retailers. Search for L100BR16E spare parts online.

USER MANUAL L100BR16E Logik

L100BL14E/ L100BR16E/ L100BW16E

Instruction Manual

Stainless Steel Blender

Instruksjonsmanual

Blender i rustfritt stål

Instruktionsbok

Mixer i rostfritt stål

Käyttöopas

Black and white photo of a LOGIK blender with visible ingredients in a glass bowl (no text or symbols on the device itself)

Contents

GB

Safety Warnings....4

Unpacking....14

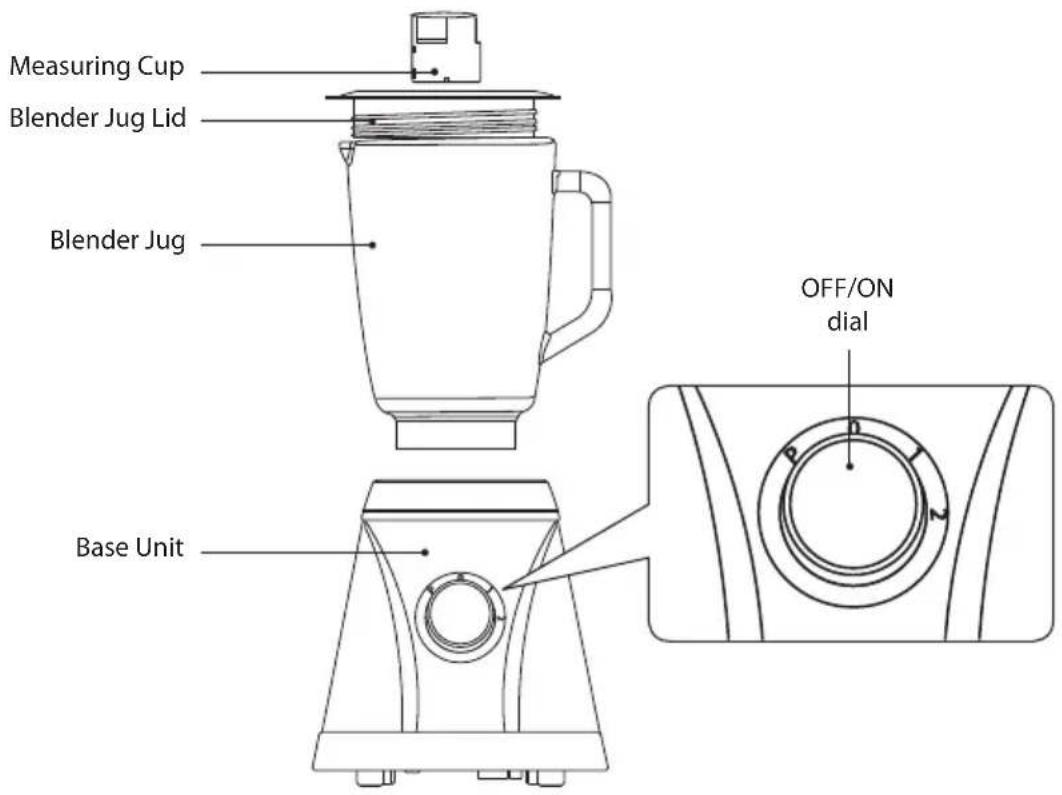

Product Overview....15

First Time Use....15

Preparing and Filling the Ingredients....15

Fitting the Lid....16

Fitting the Measuring Cup 16

Fitting the Jug to the Base Unit 16

Operation 17

After Use....18

Cleaning 18

Cleaning the Blender Jug....18

Cleaning the Base 18

Storage 19

Specifications....19

Sisältö

FI

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using your appliance and keep them for future reference.
• Unplug the appliance from the mains supply when not in use, and before removing, attaching or cleaning any part of the appliance.
• This appliance is for household use only. Do not use it for professional catering.
• Do not use the appliance outdoors.
• Do not immerse the appliance base unit or the mains cable or plug in liquids.
• Do not use the appliance near a source of heat or on an unstable surface.
• Do not use your appliance in damp or wet conditions.
• Never let children operate this appliance. Close supervision is necessary when this appliance is used near children.
• This appliance can be used by persons aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instructions concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years old and are supervised.
• Keep the appliance and its cord out of reach of children less than 8 years old.
• Children should be supervised to ensure that they do not play with the appliance.
• Ensure that the mains cable does not touch any hot surface and that it does not overhang the edge of your work surface.
• There are no user serviceable parts in your appliance.
• Do not operate the appliance with a damaged mains cable or mains plug or after any appliance or attachment damage. Seek qualified technicians for assistance.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not use attachments or accessories which are not recommended by the manufacturer. They may cause malfunction or injury.

- Store the appliance away from direct sunlight and out of the reach of children.

- Do not place your hand in the blender jug. The sharp blades may cause injury.

- Never insert any hard object or implement into the blender jug when it is operating. This may cause damage to the appliance and personal injury.

- Do not place meat containing bones or fruits with large hard stones in the blender jug.

- If the blender becomes clogged, switch off and unplug the mains cable from the mains socket before cleaning the obstruction. Check carefully for damage.

- Do not use the appliance for any purpose not specified in this manual.

- The blender jug should only be used with the base unit provided.

- Ensure the base unit is switched off before removing the blender jug from the base.

- This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environment;

— bed and breakfast type environment;

– catering and similar non-retail applications.

- Make sure the unit is earthed properly during use. Use of any extension sockets must have an earth connection.

Thank you for purchasing your new Logik Blender.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Technical line drawing of a mechanical component with a circular feature and base mount (no text or symbols)

Base Unit Blender Jug

Line drawing of a mug with handle and base (no text or symbols)

Blender Jug Lid

Measuring Cup

Instruction Manual

First Time Use

1. Before using your blender for the first time, wash the jug, lid and measuring cup. Rinse thoroughly and dry.
2. Place the base unit on a stable surface, free from heat and moisture and within easy reach of a mains socket. The mains cable should not be taut.

Preparing and Filling the Ingredients

1. Cut the ingredients into 25mm (1") cubes before placing them into the jug. If the food is very solid or dry, cut the pieces into smaller cubes.
2. Fill the blender jug with the ingredients.
3. Do not overfill the jug. If you are preparing a large quantity, use several smaller batches.
4. If the ingredients are very dry, put some liquid into the jug. You should never try to reduce dry ingredients in the blender.

Fitting the Lid

Place the lid on the top of the jug and slightly push the lid to release the air pressure from the jug. Make sure that the lid is properly secured.

Fitting the Measuring Cup

Place the measuring cup in the slots on the lid and turn anti-clockwise to lock. Make sure the measuring cup is properly secured and locked. To avoid splashing, always operate the blender with the measuring cup firmly in place.

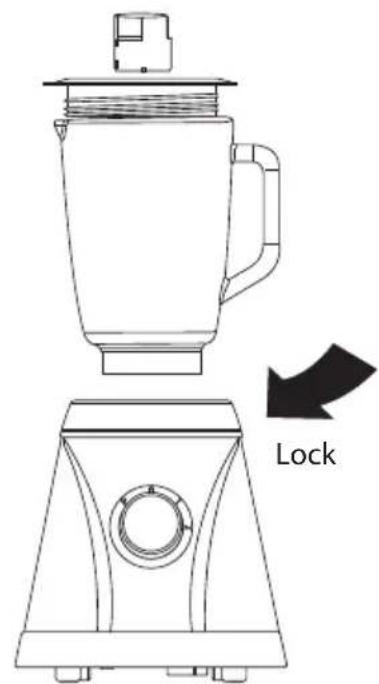

Fitting the Jug to the Base Unit

Place the blender jug on the base unit. If the jug is not properly fitted and locked to the base, the blender will not start.

The jug must be secured and locked to the base, otherwise the blender will not operate!

Ensure the OFF/ON dial is turned to 0 before connecting the power.

1. Open the lid and put food into the jug. Close the lid and slightly push the lid to release the air pressure from the jug.

2. Make sure the jug, measuring cup and the lid are secure and the jug is properly fitted and locked to the base.

3. Plug your blender into the mains and turn the OFF/ON dial to P, 1 or 2. The blue light will illuminate.

4. To stop the operation or power off, turn the OFF/ON dial to 0.

Blender's Operation Modes
Speed selection	Turn the OFF/ON dial to 1 or 2 to adjust the blending speed while blending.
Pulse mode	Turn the OFF/ON dial to P to run the blender intermittently rather than continuously. Turn the dial to this position until you achieve the desired result.

During blending, you can feed in small amounts of food or liquid through the jug lid. To do this:

1. Stop the blender and hold the lid.

2. Turn the measuring cup slowly clockwise to free it and then lift it out.

3. Gradually feed pieces of food or liquids into the jug through the feeder.

4. Fit the measuring cup back when you have finished.

• Do not run the appliance continuously for more than 2 minutes. Allow the blender to rest for 1 minute before using it again.
• Never blend hot liquids in the blender. This is dangerous as the pressure inside the jug will build up and may cause the contents to escape from the jug.
• If you spill liquid on the blender base, immediately switch off, unplug and wipe dry.
  • Do not run the appliance without securing the lid and measuring cup.

After Use

After you have finished blending:

1. To power off, turn the OFF/ON dial to 0.
2. Unplug the blender from the mains socket.
3. Hold the jug by the handle, turn and carefully lift to release the jug. (This may be easier with one hand on the base and one hand holding the jug handle).
4. Lift off the lid and pour or spoon out the contents carefully.

Cleaning

Cleaning the Blender Jug

1. Pour about 500ml of warm soapy water into the jug and place the jug on the base.
2. Use the pulse mode to loosen any food particles and free them from the blades.

- Remove the jug, pour away the water and rinse in fresh running water. Repeat steps 1 and 2 with fresh water.

• Alternatively the jug may be immersed in warm soapy water and cleaned using a long handled brush. Do not touch the blades when cleaning.

- Wash the lid and measuring cup separately in warm soapy water, rinse and allow to dry.

• The jug body should be handled carefully. The jug contains moving parts - do not leave the jug immersed in water for longer than necessary to clean it or you may affect the operating performance of the blender.
• Handle blades with care especially during cleaning as they are extremely sharp.
  • DO NOT wash the jug or attachments in a dishwasher.

Cleaning the Base

1. Ensure the blender is switched off and unplugged from the mains.
2. Wipe the outer surface of the motor unit with a damp cloth. Never use abrasive cleaners or scouring creams.

Never immerse the base in water when cleaning.

After all the components have been washed and dried, re-assemble the blender and store it out of direct sunlight and out of the reach of children.

The mains cable may be wound around the lugs at the bottom of the appliance for easier storage.

Specifications

Model L100BL14E/L100BR16E/L100BW16E
Power 230V~50Hz, 1000W
Capacity of Jug 1.5 L
Duty Cycle 2 minutes ON; 1 minute OFF

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte den nye Logik Blenderen.

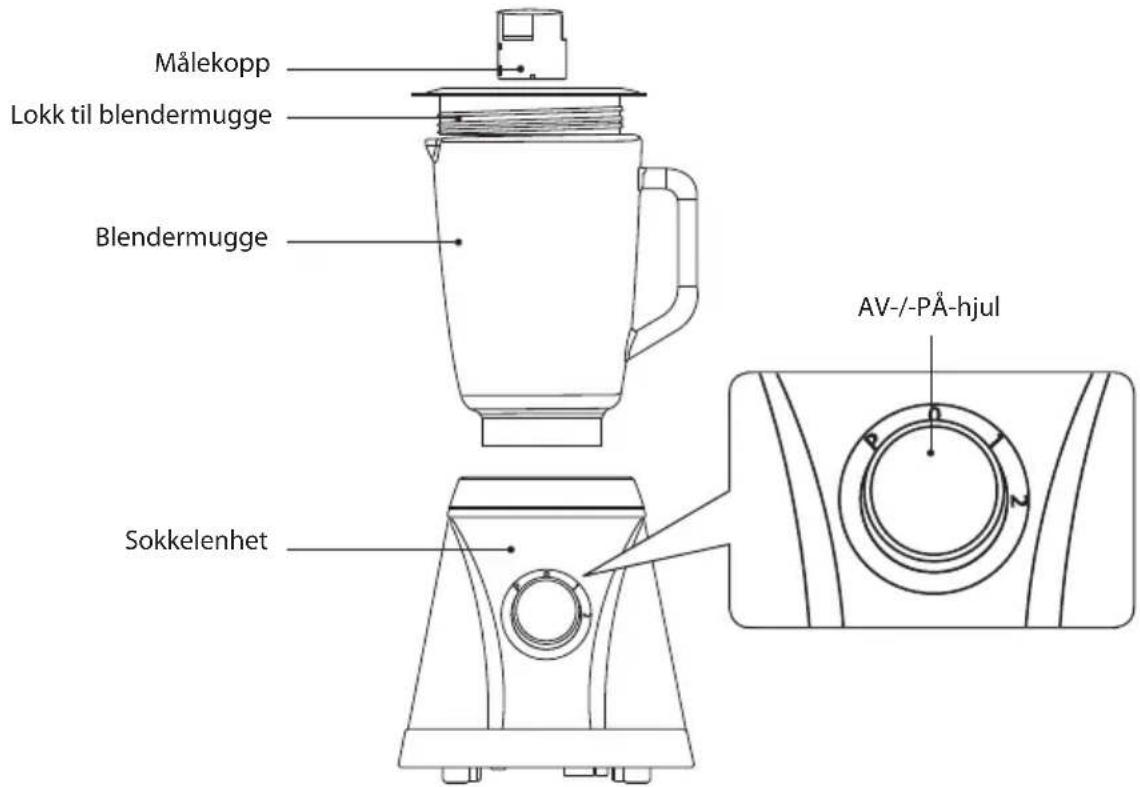

Technical line drawing of a mechanical component with a circular feature and base mount (no text or symbols)

Sokkelenhet Blendermugge

Line drawing of a simple ceramic mug with handle and base (no text or symbols)

Lokk til blendermugge

Målekopp

Bruksanvisning

Førstegangsbruk

1. Før du bruker blenderen for første gang, må du vaske kannen, lokket og målebegeret. Skyll grundig og la tørke.
2. Sett sokkelenheten på en stabil, tørr overflate, unna varme og i nærheten av en stikkontakt. Strømledningen må ikke strekkes.

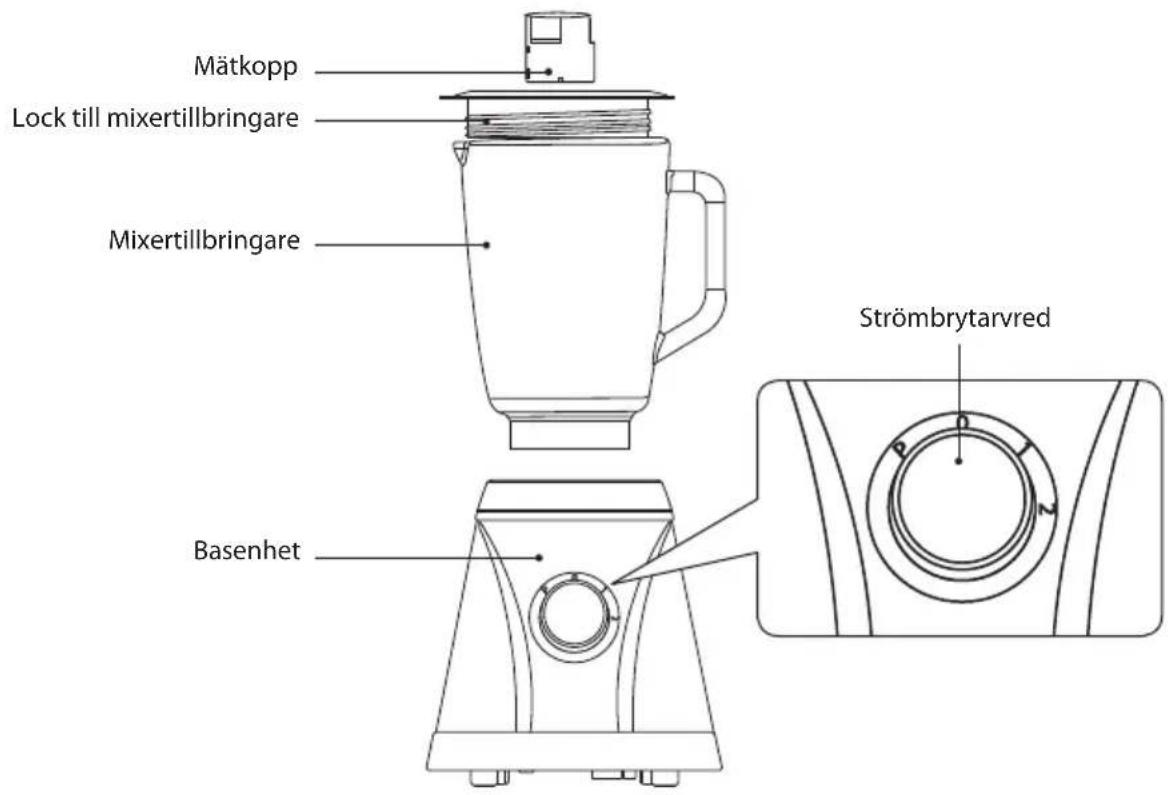

Technical line drawing of a mechanical component with a central circular feature and flanges (no text or symbols)

Basenhet Mixertillbringare

Line drawing of a mug with handle and side legs (no text or symbols)

Lock till mixertillbringare

Mätkopp

Instruktionsmanual

SE

Första användning

Technical line drawing of a mechanical component with a circular feature and base mount (no text or symbols)

Line drawing of a simple ceramic mug with handle and base (no text or symbols)

Käyttöopas

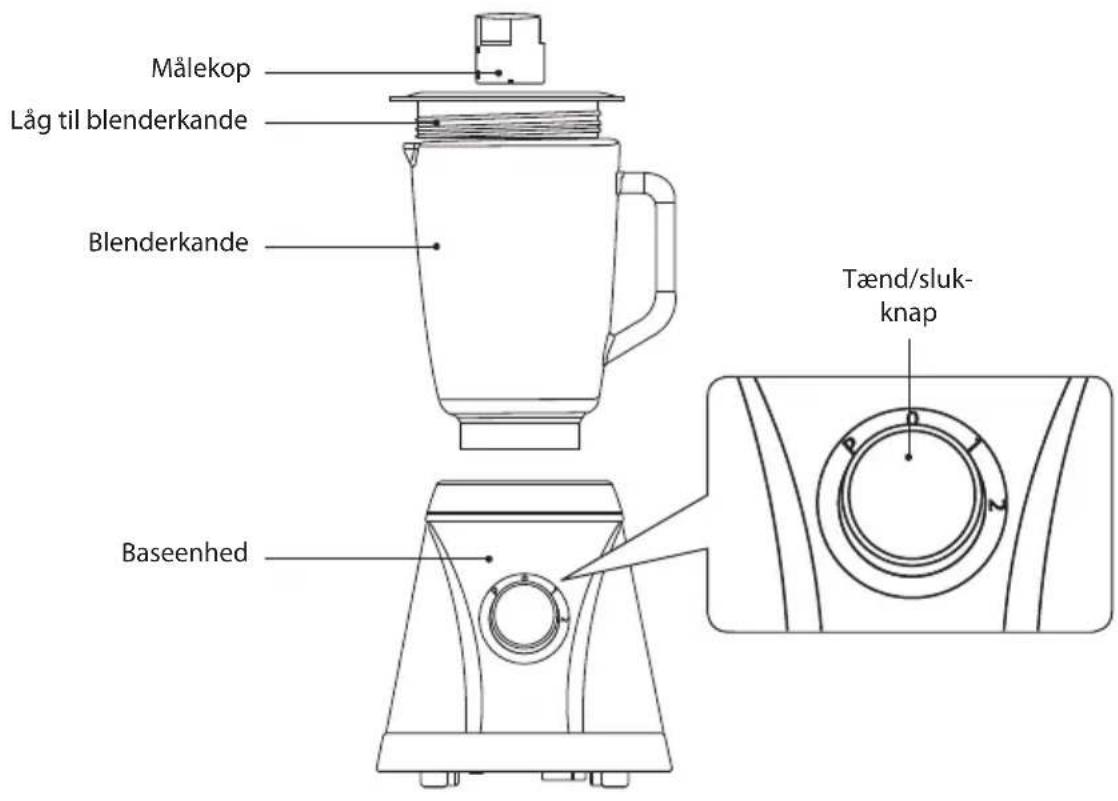

Technical line drawing of a mechanical component with a circular feature and base mount (no text or symbols)

Baseenhed Blenderkande

Line drawing of a mug with handle and base (no text or symbols)

Brugervejledning
