Product Type	Blender
Brand	Logik
Model	L600BK17E
Power Consumption	500 W
Voltage	220-240 V ~ 50/60 Hz
Capacity	1.5 L
Jug Material	Glass
Blade Material	Stainless steel
Speed Settings	2 speeds + pulse
Functions	Blending, crushing ice, milkshakes, soups
Safety Features	Lid lock, non-slip base, overload protection
Dimensions (W x D x H)	20 x 18 x 38 cm
Weight	1.5 kg
Power Cord Length	1.2 m
Detachable Parts	Jug, blade assembly, lid, sealing ring
Dishwasher Safe Parts	Jug, lid, sealing ring (top rack)
Cleaning	Hand wash blade assembly; wipe base with damp cloth
Spare Parts Availability	Replacement jug, blade, lid, and sealing ring available
Warranty	1 year (depending on retailer)

Frequently Asked Questions - L600BK17E Logik

How do I clean the blender?

To clean, remove the jug from the base. Wash the jug, lid, and sealing ring in warm soapy water or on the top rack of the dishwasher. Wipe the blade assembly and base with a damp cloth. Never immerse the base in water.

Can I crush ice with this blender?

Yes, the L600BK17E can crush ice. Use the pulse function and add a small amount of water or liquid to help the process. Do not overfill the jug.

What is the maximum capacity?

The maximum capacity is 1.5 litres (or 6 cups). Do not exceed the max fill line marked on the jug.

Why does the blender stop working during use?

The blender has an overload protection feature. If it stops, unplug it and let it cool down for 15-20 minutes. Remove some ingredients if overloaded.

Can I blend hot liquids?

No, let hot liquids cool to at least 60°C before blending. The steam can build up pressure and cause the lid to pop off.

How do I replace the blade assembly?

Unscrew the locking ring from the bottom of the jug. Remove the old blade assembly and replace it with a new one (L600BK17E spare blade). Tighten the ring securely.

Can I use the blender without the lid?

No, the blender is designed to operate only with the lid securely locked. The safety switch prevents operation without the lid.

What does the pulse function do?

Pulse provides short bursts of power for precise control. Ideal for chopping nuts, crushing ice, or mixing thick ingredients.

Is the jug dishwasher safe?

Yes, the glass jug, lid, and sealing ring are dishwasher safe on the top rack. Hand wash the blade assembly to preserve sharpness.

Where can I find spare parts?

Spare parts such as jugs, blades, lids, and sealing rings are available from Logik authorized dealers or online retailers. Search for L600BK17E spare parts.

USER MANUAL L600BK17E Logik

Black and white photo of a LOGIK blender with strawberry filling, no visible text or symbols on the device itself.

Safety Warnings....5

Unpacking....15

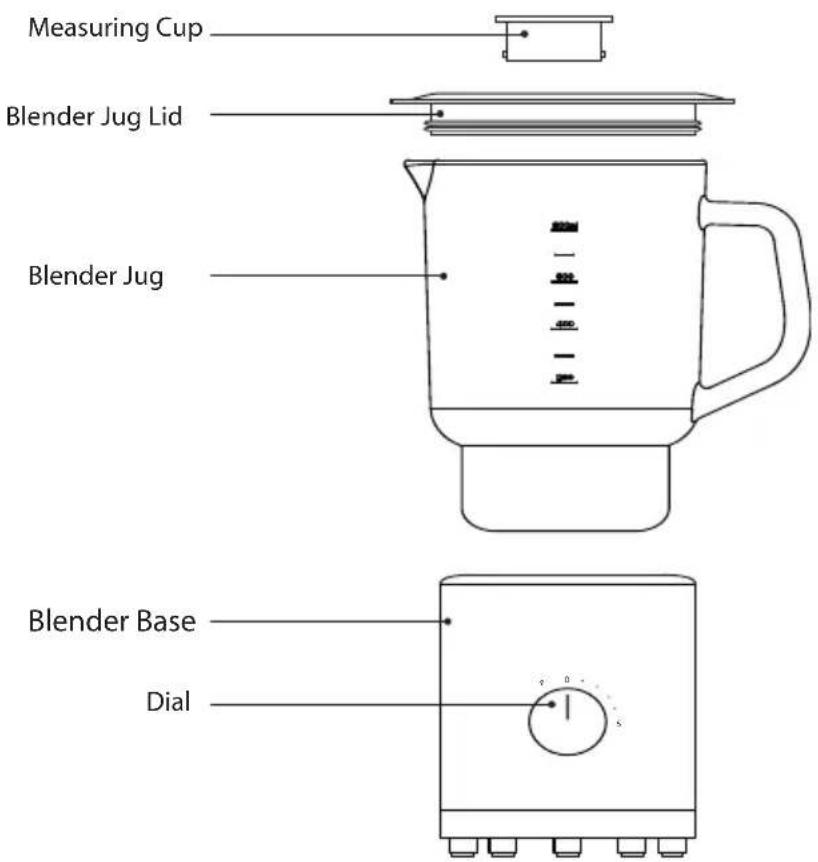

Product Overview....16

First Time Use....16

Preparing and Filling the Ingredients....16

Fitting the Lid....17

Fitting the Measuring Cup 17

Fitting the Jug to the Base Unit....17

Operation 18

Overheating 18

After Use....19

Cleaning 19

Cleaning the Blender Jug....19

Cleaning the Base 20

Storage 20

Specifications....20

NO

Innhold

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using your appliance and keep them for future reference.
• Unplug the appliance from the mains supply when not in use, and before removing, attaching or cleaning any part of the appliance.
  • This appliance is for household use only. Do not use it for professional catering.
  • Do not use the appliance outdoors.
• Do not immerse the appliance base unit or the mains cable or plug in liquids.
• Do not use the appliance near a source of heat or on an unstable surface.
  • Do not use your appliance in damp or wet conditions.
• Never let children operate this appliance. Close supervision is necessary when this appliance is used near children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years old.
  • Children should be supervised to ensure that they do not play with the appliance.
• Ensure that the mains cable does not touch any hot surface and that it does not overhang the edge of your work surface.
  • There are no user serviceable parts in your appliance.
• Do not operate the appliance with a damaged mains cable or mains plug or after any appliance or attachment damage. Seek qualified technicians for assistance.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not use attachments or accessories which are not recommended by the manufacturer. They may cause malfunction or injury.
  • Store the appliance away from direct sunlight and out of the reach of children.
• Do not place your hand in the blender jug. The sharp blades may cause injury.
• Never insert any hard object or implement into the blender jug when it is operating. This may cause damage to the appliance and personal injury.

• Do not place meat containing bones or fruits with large hard stones in the blender jug.

• If the blender becomes clogged, switch off and unplug the mains cable from the mains socket before cleaning the obstruction. Check carefully for damage.
  • Do not use the appliance for any purpose not specified in this manual.
  • The blender jug should only be used with the base unit provided.

• Ensure the base unit is switched off before removing the blender jug from the base.
  • Make sure the unit is earthed properly during use. Use of any extension sockets must have an earth connection. If in doubt, contact a qualified electrician.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

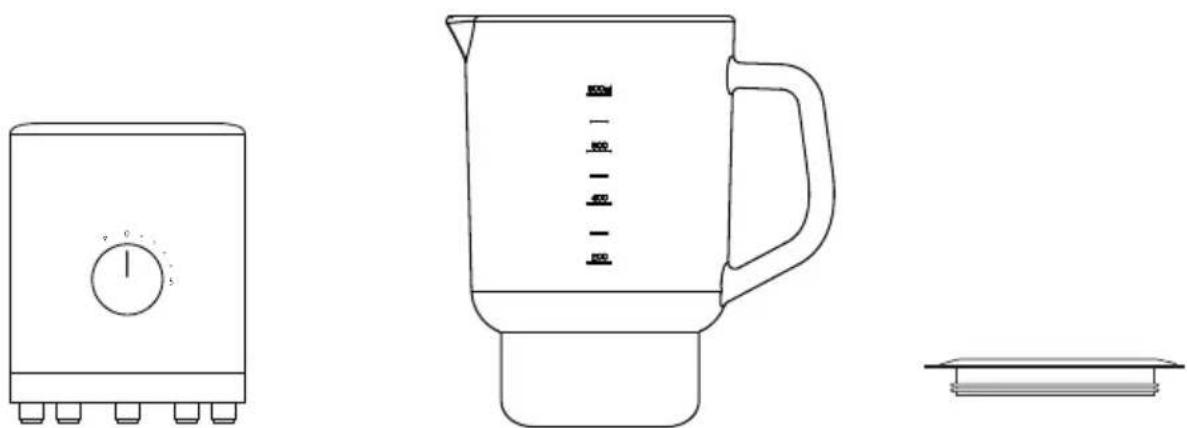

The following items are included:

Blender Base Blender Jug Blender Jug Lid

Measuring Cup

Instruction Manual

First Time Use

1. Before using your blender for the first time, wash the jug, lid and measuring cup. Rinse thoroughly and dry.
2. Place the base unit on a stable surface, free from heat and moisture and within easy reach of a mains socket. The mains cable should not be taut.

Preparing and Filling the Ingredients

1. Cut the ingredients into 25mm (1") cubes before placing them into the jug. If the food is very solid or dry, cut the pieces into smaller cubes.
2. Fill the blender jug with the ingredients.
3. Do not overfill the jug. If you are preparing a large quantity, use several smaller batches.
4. If the ingredients are very dry, put some liquid into the jug. You should never try to reduce dry ingredients in the blender.

Place the lid on the top of the jug and slightly push the lid to release the air pressure from the jug. Make sure that the lid is properly secured.

Fitting the Measuring Cup

Place the measuring cup in the slots on the lid and turn anti-clockwise to lock. Make sure the measuring cup is properly secured and locked. To avoid splashing, always operate the blender with the measuring cup firmly in place.

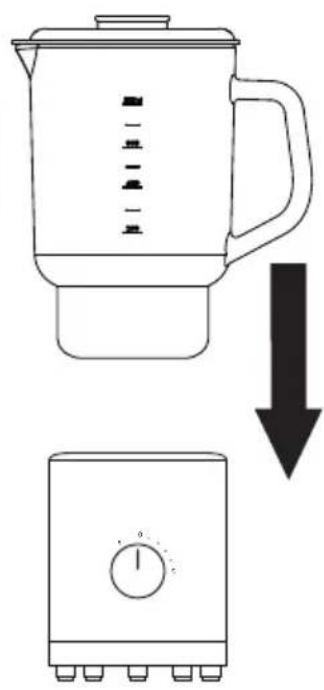

Fitting the Jug to the Base Unit

Place the blender jug on the base unit. If the jug is not properly fitted to the base, the blender will not start.

The jug must be secured to the base, otherwise the blender will not operate!

1. Open the lid and put food into the jug. Close the lid and slightly push the lid to release the air pressure from the jug.
2. Make sure the jug, measuring cup and the lid are secure and the jug is properly fitted and locked to the base.
3. Plug your blender into the mains socket and switch on the power.
4. Turn the control dial to control the blending speed.

P(Pulse)	Stainless steel blade operates with transitorily highest speed, suitable for ice.
0 Turn off the unit.
5 Stainless steel blade operates with the highest speed.

1. To stop the operation, turn the control dial to 0 position.

During blending, you can feed in small amounts of food or liquid through the jug lid. To do this:

1. Stop the blender and hold the lid.
2. Turn the measuring cup slowly clockwise to free it and then lift it out.
3. Gradually feed pieces of food or liquids into the jug through the feeder.
4. Fit the measuring cup back when you have finished.

• Do not run the blender continuously for more than 2 minutes. Allow the blender to rest for 3 minutes before using it again.
• Never blend very hot liquids in the blender. This is dangerous as the contents may erupt.
  • If you spill liquid on the base immediately switch off and wipe dry.
• If the motor stalls turn off the blender immediately, unplug the blender and let it cool for at least 10 minutes.
• Do not run the appliance without securing the lid and measuring cup.

Overheating

The blender comprises a fuse that will protect the unit from overheating. When overheating is detected on the motor, the fuse will stop the power.

Unplug the unit and wait for about 30 minutes before plugging in again. The unit should return to normal operation.

After you have finished blending:

1. Turn the control dial to 0 position.
2. Unplug the blender from the mains socket.
3. Hold the jug by the handle, turn and carefully lift to release the jug. (This may be easier with one hand on the base and one hand holding the jug handle)
4. Lift off the lid and pour or spoon out the contents carefully.

Cleaning

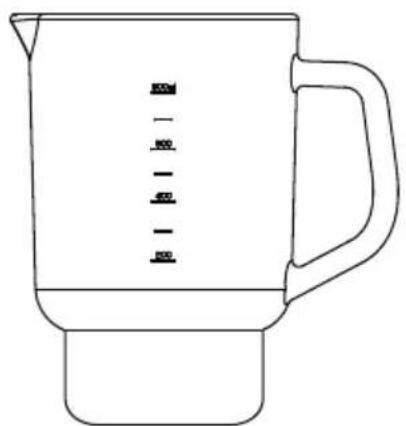

Cleaning the Blender Jug

1. Pour about 500 ml of warm soapy water into the jug and place the jug on the base.

2. Use the pulse mode to loosen any food particles and free them from the blades.

3. Remove the jug, pour away the water and rinse in fresh running water. Repeat steps 1 and 2 with fresh water.
   • Alternatively the jug may be immersed in warm soapy water and cleaned using a long handled brush. Do not touch the blades when cleaning.

4. Wash the lid and measuring cup separately in warm soapy water, rinse and allow to dry.

• The jug body should be handled carefully. The jug contains moving parts - do not leave the jug immersed in water for longer than necessary to clean it or you may affect the operating performance of the blender.
  • Handle blades with care especially during cleaning as they are extremely sharp.
  • DO NOT wash the jug or attachments in a dishwasher.

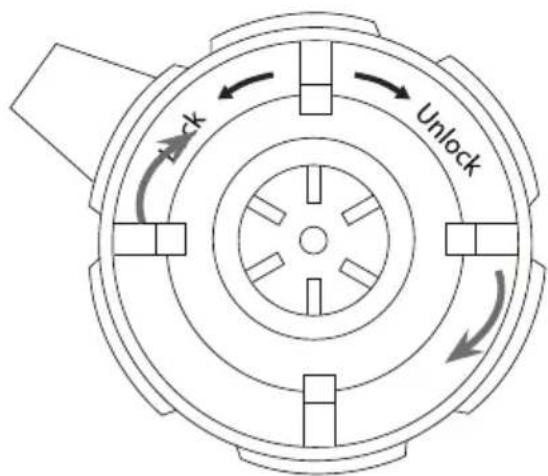

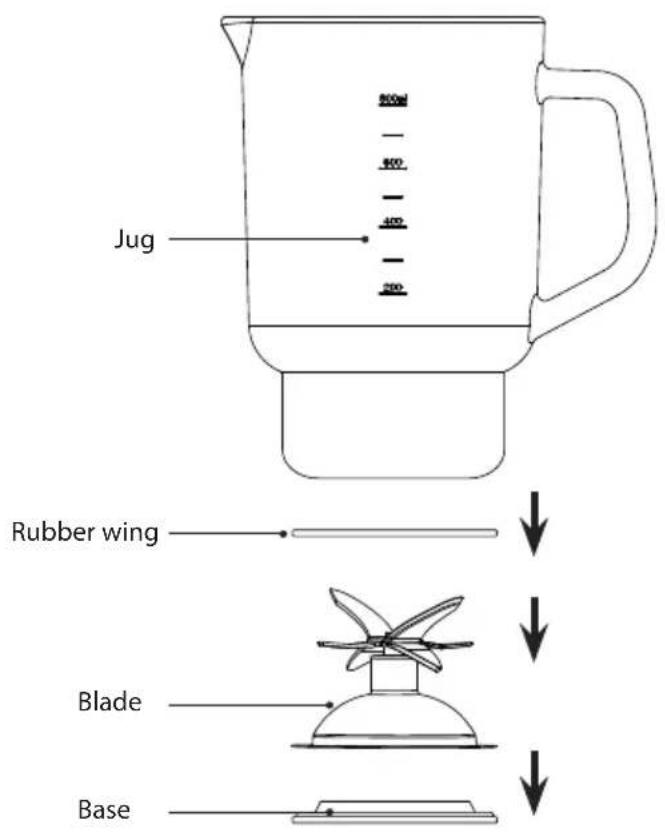

Although it is not advisable to take apart the jug base with the blades, in case you have taken it apart, you should re-install the parts back in the correct order.

1. Rotate clockwise to loosen the jug base.

1. Remove the jug base, blades and the rubber wing from the jug. Caution! The blades are very sharp.
2. After cleaning, assemble the rubber wing, blades and jug base back to the jug.
3. After cleaning, assemble the rubber wing, blades and jug base back to the jug.

Cleaning the base

• Ensure the blender is switched off and unplugged from the mains.
• Wipe the outer surface of the motor unit with a damp cloth. Never use abrasive cleaners or scouring creams.

Never immerse the base in water when cleaning.

Storage

After all the components have been washed and dried, re-assemble the blender and store it out of direct sunlight and out of the reach of children.

The mains cable may be wound around the lugs at the bottom of the appliance for easier storage.

Specifications

Model L600BK17E

Power 220-240V~50Hz, 600W

Capacity of Jug 800 ml

Duty Cycle 2 minutes ON, 3 minutes OFF

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny produktet.

Simple line drawing of a rectangular appliance with a circular dial and six base legs (no text or symbols)

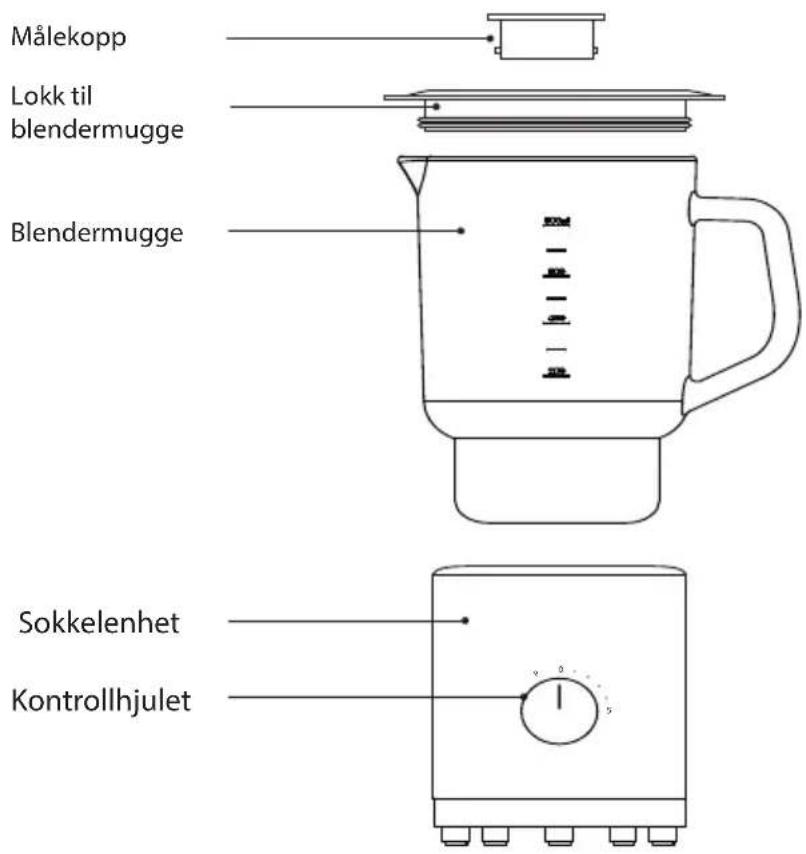

Mikserbase Blendermugge Lokk til
