Product Type	Personal Blender
Brand	Logik
Model	L300GR13E
Power	250 W
Voltage	220-240 V ~ 50 Hz
Bottle Capacity	300 ml (per bottle)
Number of Bottles Included	2
Number of Spill-Proof Lids Included	2
Blade Assembly	Stainless steel, removable
Control Type	Pulse button (press and hold)
Duty Cycle	1 minute on, 3 minutes off
Maximum Continuous Run Time	1 minute
Base Dimensions (approx.)	12 x 12 x 15 cm
Bottle Material	Plastic (BPA-free)
Safety Features	Safety lock: motor only runs when bottle is properly locked; thermal cut-off; no-immersion design
Care Instructions	Hand wash bottle, blade assembly and lid; wipe base with damp cloth. Do not immerse base.
Recommended Ingredient Size	Cut into 25 mm (1 inch) cubes
Usage Warning	Do not blend hot liquids, meat with bones, or hard stones. Keep away from children.
Spare Parts Availability	Contact manufacturer or service agent for replacement parts

Frequently Asked Questions - L300GR13E Logik

Can I blend hot liquids with the Logik L300GR13E blender?

No, do not blend hot liquids. The contents may erupt and cause burns. Allow liquids to cool before blending.

What should I do if the blender motor stalls?

Turn off the blender immediately, unplug it, and let it cool for at least 10 minutes before trying again.

How do I lock the blender bottle onto the base?

Screw the blade assembly onto the bottle, then align the arrow on the bottle with the unlock position on the base. Turn the bottle clockwise to lock until it clicks. The blender will only start when properly locked.

What is the maximum capacity per batch?

The maximum capacity of each bottle is 300 ml. Do not overfill. For larger quantities, process in multiple batches.

How long can I run the blender continuously?

At most 1 minute continuously. After one minute, let the blender rest for at least 3 minutes before using again.

Can I put frozen fruit or ice cubes in the blender?

Yes, but cut ingredients into 25 mm cubes first. Add some liquid to help blending. Do not use dry ingredients without liquid.

How should I clean the blade assembly?

Handle blades carefully as they are extremely sharp. Wash immediately after use with warm soapy water, rinse, and dry thoroughly. Do not use hard objects that could blunt the blades.

Is the blender dishwasher safe?

No. All parts (bottle, blade assembly, lid) should be washed by hand. The base must never be immersed in water; wipe with a damp cloth only.

What should I do if the blender does not start?

Check that the bottle is correctly locked onto the base (arrow aligned and turned clockwise). Ensure the blender is plugged in and the mains socket is switched on. If still not working, check for damage and contact customer support.

Can I use the blender without the lid?

No, always use the spill-proof lid. Blending without the lid may cause splashing and injury. The lid helps contain ingredients and prevents accidents.

USER MANUAL L300GR13E Logik

White kitchen blender with a handle and control knob, no visible text or symbols on the device itself.

Contents

GB

Safety Warnings 5

Unpacking....21

Product Overview 22

First Time Use....22

Preparing and Filling the Ingredients ....22

Fitting the Blender Bottle to the Base Unit 23

Operation....23

After Use 24

Cleaning and Maintenance....24

Specifications....24

Innhold

NO

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using your appliance and keep them for future reference.
• Unplug the appliance from the mains supply when not in use, and before removing, attaching or cleaning any part of the appliance.
• This appliance is for household use only. Do not use it for professional catering.
• Do not use the appliance outdoors.
• Do not immerse the appliance base unit or the mains cable or plug in liquids.
• Do not use the appliance near a source of heat or on an unstable surface.
• Do not use your appliance in damp or wet conditions.
• Never let children operate this appliance. Close supervision is necessary when this appliance is used near children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep the appliance and its cord out of reach of children less than 8 years old.
• Children should be supervised to ensure that they do not play with the appliance.
• Ensure that the mains cable does not touch any hot surface and that it does not overhang the edge of your work surface.
• There are no user serviceable parts in your appliance.
• Do not operate the appliance with a damaged mains cable or mains plug or after any appliance or attachment damage. Seek qualified technicians for assistance.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not use attachments or accessories which are not recommended by the manufacturer. They may cause malfunction or injury.

• Store the appliance away from direct sunlight and out of the reach of children.

• Do not place your hand in the blender jug. The sharp blades may cause injury.

• Never insert any hard object or implement into the blender jug when it is operating. This may cause damage to the appliance and personal injury.
• Do not place meat containing bones or fruits with large hard stones in the blender jug.
• If the blender becomes clogged, switch off and unplug the mains cable from the mains socket before cleaning the obstruction. Check carefully for damage.
• Do not use the appliance for any purpose not specified in this manual.
• The blender jug should only be used with the base unit provided.
• Ensure the base unit is switched off before removing the blender jug from the base.

Thank you for purchasing your new Logik Blender.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a cylindrical device with a side knob and handle (no text or symbols)

Simple line drawing of a cylindrical object with no text or symbols

Blender Base Blender Bottle x 2 Blade Assembly

Spill-Proof Lid x 2

Instruction Manual

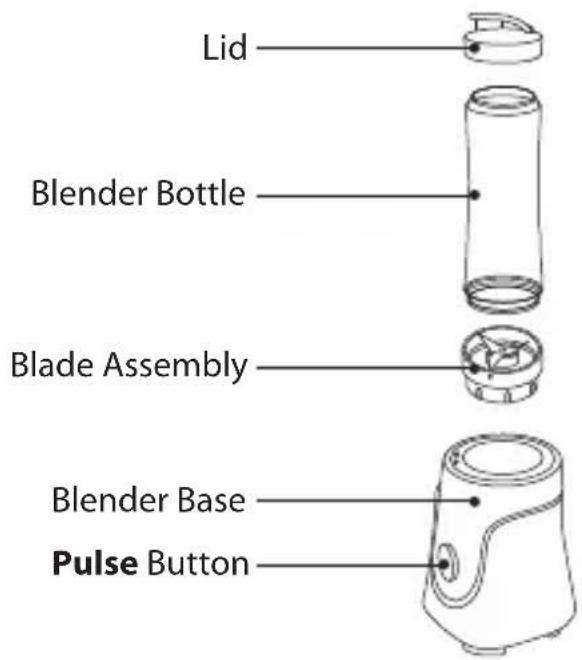

Product Overview

First Time Use

1. Before using your blender for the first time, wash the blender bottle, blade assembly and lid. Rinse thoroughly and dry.

Handle blades with care especially during cleaning as they are extremely sharp.

1. Place the base unit on a stable surface, free from heat and moisture and within easy reach of a mains socket. The mains cable should not be taut.

Preparing and Filling the Ingredients

1. Cut the ingredients into 25mm (1") cubes before placing them into the blender bottle. If the food is very solid or dry, cut the pieces into smaller cubes.
2. Fill the blender bottle with the ingredients.
3. Do not overfill the blender bottle. The maximum capacity is 300 ml. If you are preparing a large quantity use several smaller batches.
4. If the ingredients are very dry, put some liquid into the blender bottle. You should never try to reduce dry ingredients in the blender.

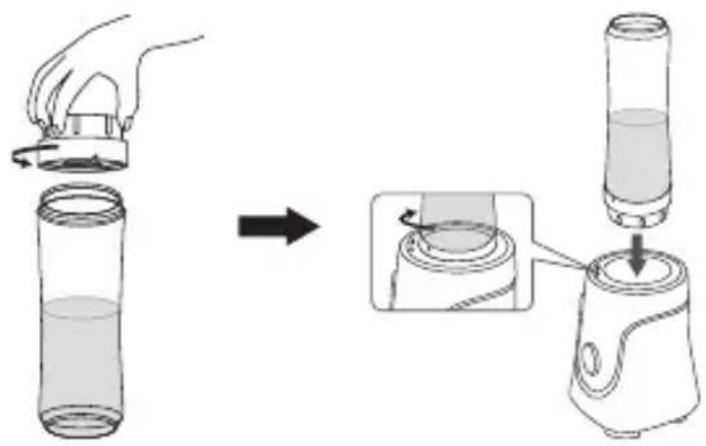

Fitting the Blender Bottle to the Base Unit

1. Screw the blade assembly to the open end of the blender bottle.
2. Turn the bottle upside down. Align the arrow to unlock position and turn the bottle clockwise to lock. To unlock, turn the bottle anti-clockwise. If the bottle is not properly fitted to the base of the blender will not start.

Diagram showing a hand using a vacuum cleaner to lift liquid in a cylindrical container, then adding a component to a final container (no text or symbols present)

Operation

1. Make sure the bottle and the blade assembly are secure and in the lock position.

2. Plug your blender into the mains socket and switch on the power.

3. Press and hold the Pulse button, the blender will start blending. The blender will continue to blend as long as the Pulse button is pressed.

4. To stop the operation, release the Pulse button.

• Do not run the blender continuously for more than 1 minute. After a full 1 minute cycle allow the blender to rest for another 3 minutes before using it again.
• Never blend very hot liquids in the blender. This is dangerous as the contents may erupt.
  • If you spill liquid on the base immediately switch off and wipe dry.
• If the motor stalls turn off the blender immediately, unplug the blender and let it cool for at least 10 minutes.

After Use

After you have finished blending:

1. Unplug the blender from the mains socket.
2. Turn the bottle and blade assembly anti-clockwise to unlock and remove it from the base of the blender.
3. Unscrew the blade assembly, spoon out the contents carefully or replace with the spill-proof lid.

Cleaning and Maintenance

Ensure the blender is switched off and unplugged from the mains socket.

Cleaning the bottle and the blade assembly:

• Immediately after use, always clean the parts that have come into contact with food, using warm soapy water and washing-up liquid.
• Wash all attachments by hand, then dry thoroughly.
• Make sure that the cutting edges of the blades do not come into contact with hard objects. This could cause them to become blunt.

• The unit is protected so as not to operate if the bottle is not attached to the base. Never leave the blade assembled on the base when not in use, always store the blades in a separate location.
• Handle blades with care especially during cleaning as they are extremely sharp.

Cleaning the base:

• Never let the motor unit, mains cable or plug get wet.
- Wipe the motor unit with a damp cloth, then dry. Do not immerse the motor unit in water.

Specifications

Model L300GR13E
Power 220-240V~50Hz, 250 W
Capacity of Bottle 300 ml
Duty Cycle 1 minute ON, 3 minutes OFF

Features and specifications are subject to change without prior notice.

Line drawing of a cylindrical device with a flanged top and side ports (no text or symbols)

Simple line drawing of a cylindrical object with no text or symbols

Mikserbase Mikserflaske x 2 Bladinnretning

Instruksjonsmanual

NO

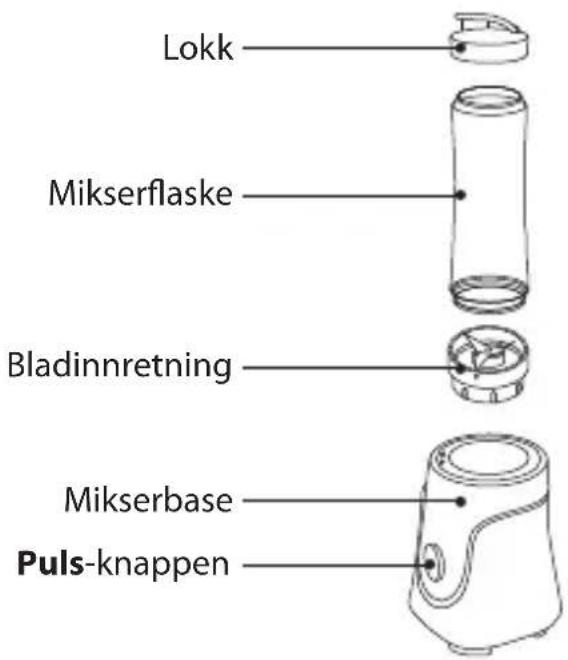

Produktoversikt

Førstegangsbruk

Betjening

Line drawing of a cylindrical device with a circular top and side ports (no text or symbols)

Mixerbas Mixerskål x 2 Kniv

Simple line drawing of a cylindrical object with rounded ends (no text or symbols)

Spillsäkert lock x 2

Instruktionsbok

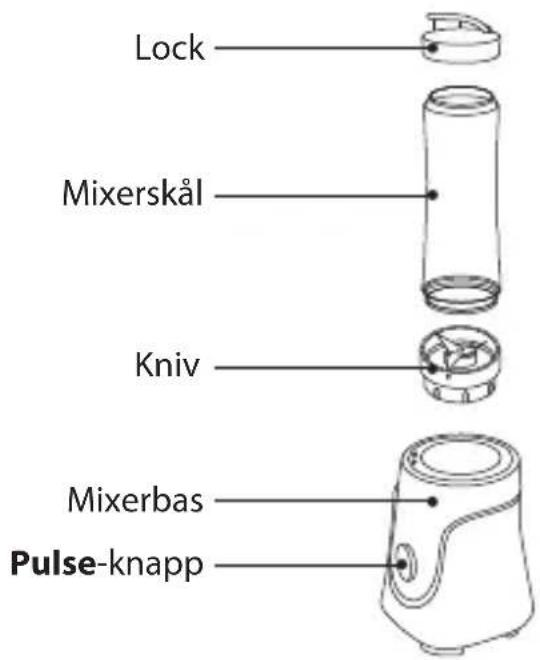

Produktöversikt

SE

Första användning

Diagram showing a hand holding a device next to a cylindrical container, then being inserted into a stand (no text or symbols present)

Användning

Line drawing of a cylindrical device with a curved handle and circular top (no text or symbols)

Simple line drawing of a cylindrical object with no text or symbols

Käyttöopas

Diagram showing a hand holding a device next to a cylindrical container, then being inserted into a stand (no text or symbols present)

Käyttö

Line drawing of a cylindrical device with a curved handle and circular top (no text or symbols)

Simple line drawing of a cylindrical object with no text or symbols

Brugervejledning

DK

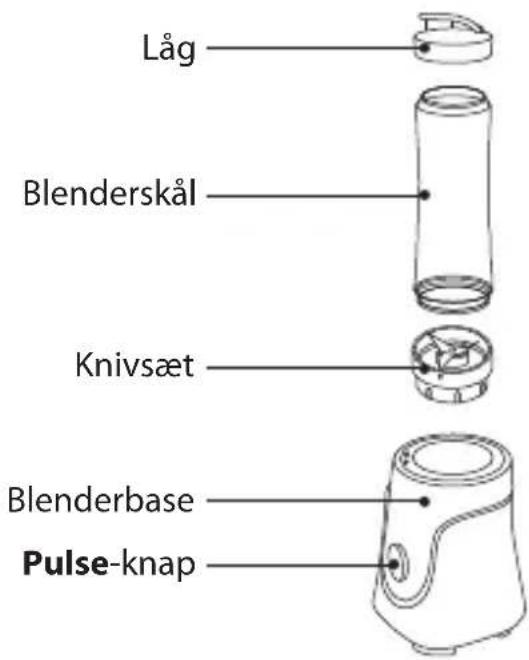

Produktoversigt

Ved første brug

Diagram showing a hand using a vacuum cleaner to lift liquid in a cylindrical container, then adding a component to a final container (no text or symbols present)

DK

Betjening

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

GB www.knowhow.com/knowledgebank

www.lefdal.com/support

SE www.elgiganten.se/support
