L16BSS10 - Blender Logik - Free user manual and instructions

Product Type	Blender
Brand	Logik
Model	L16BSS10
Power Supply	230V~ 50Hz, 500W
Maximum Capacity	1.6 litres (recommended max 1.25 litres)
Speed Settings	5 speeds + Pulse (P)
Duty Cycle	3 minutes ON, 5 minutes OFF
Jug Material	Stainless Steel
Blade Material	Stainless Steel
Safety Features	Safety lid lock; stopper lock; blender will not operate if lid or jug is not properly locked
Cleaning Instructions	Jug and attachments hand wash only with warm soapy water; do not immerse base in water; base wipe with damp cloth; not dishwasher safe
Storage	Cable can be wound around lugs at bottom of unit; store in cool, dry place out of reach of children
Included Accessories	Blender jug, lid, stopper/measuring cup, instruction manual
Spare Parts Availability	Yes, via Partmaster.co.uk (UK only)
Warranty	Not specified; contact retailer for details

Frequently Asked Questions - L16BSS10 Logik

What is the maximum capacity of the blender jug?

The maximum capacity is 1.6 litres, but it is recommended not to exceed 1.25 litres for optimal performance. Do not overfill.

Can I blend hot liquids?

No, never blend very hot liquids in the blender. This is dangerous as the contents may erupt. Allow hot liquids to cool before blending.

How do I use the pulse function?

Turn the Speed Selector to 'P' and hold it there for short bursts. Release it to stop; the selector automatically returns to '0'.

How long can I operate the blender continuously?

Do not run the blender for more than 3 minutes continuously. After a full 3-minute cycle, allow it to rest for at least 5 minutes before using again.

Can I wash the jug in a dishwasher?

No, the jug and attachments are not dishwasher safe. Wash them by hand with warm soapy water and rinse thoroughly.

The blender won't start. What could be wrong?

Ensure the lid is properly locked (you should hear a click) and the jug is correctly fitted to the base. If not, the blender will not operate. Also check the power supply.

How do I clean the base unit?

Switch off and unplug the blender. Wipe the outer surface of the motor unit with a damp cloth. Never use abrasive cleaners or immerse the base in water.

Can I blend bones or hard stones?

No, do not place meat containing bones or fruits with large hard stones in the blender jug. This may damage the appliance and cause injury.

How do I store the blender?

After washing and drying all components, reassemble the blender. Store it out of direct sunlight and out of reach of children. The cable can be wound around the lugs at the bottom for easier storage.

Where can I buy spare parts?

Spare parts are available from Partmaster.co.uk (UK customers only). You can visit their website or call 0870 6001 338.

USER MANUAL L16BSS10 Logik

Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock.

- Read all the instructions carefully before using your appliance and keep them for future reference.

- Unplug the appliance from the mains supply when not in use, when removing or attaching the blender jug, or before cleaning any part of the appliance.

- This appliance is for household use only. Do not use it for professional catering. - Do not use the appliance outdoors.

- Do not immerse the appliance base unit or the mains cable or plug in liquids.

- Do not use the appliance near a source of heat or on an unstable surface.

- Do not use your appliance in damp or wet conditions.

- Never let children operate this appliance. Close supervision is necessary when this appliance is used near children.

- This appliance is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- Ensure that the mains cable does not touch any hot surface and that it does not overhang the edge of your work surface.

• There are no user serviceable parts in your appliance.

- Do not operate the appliance with a damaged mains cable or mains plug or after the appliance or any attachment has been damaged. Seek qualified technicians for assistance.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Do not use attachments or accessories which are not recommended by the manufacturer. They may cause malfunction or injury.

- Store the appliance away from direct sunlight and out of the reach of children. When operating your blender:

- Do not place your hand in the blender jug. The sharp blade may cause injury.

- Never insert any hard object or implement into the blender jug when it is operating. This may cause damage to the appliance and personal injury.

- Do not place meat containing bones or fruits with large hard stones in the blender jug.

- If the blender becomes clogged, switch off and unplug the mains cable from the mains socket before cleaning the obstruction. Check carefully for damage.

- Do not use the appliance for any purpose not expressly specified in this manual.

CLEANING

Cleaning the blender jug:

1. Pour about 500ml of warm soapy water into the jug and place the jug on the base.

2. Turn and hold the Speed Selector to "P" for a few seconds to loosen any food particles and free them from the blades.

- Remove the jug, pour away the water and rinse in fresh running water. Repeat 1 and 2 with fresh water.

- Alternatively the jug may be immersed in warm soapy water and cleaned using a long handled brush. Do not touch the blades when cleaning.

- Wash the lid and stopper separately in warm soapy water, rinse and allow to dry.

- CAUTION: The jug body should be handled carefully. The jug contains moving parts - do not leave the jug immersed in water for any longer than necessary to clean it or you may affect the operating performance of the blender.

- DO NOT wash the jug or attachments in a dishwasher.

Cleaning the base:

- Ensure the blender is switched off and unplugged from the mains. - Wipe the outer surface of the motor unit with a damp cloth. Never use abrasive cleaners or scouring creams.

er immerse the base in water when cleaning.

STORAGE

After all the components have been washed and dried, re-assemble the blender and store it out of direct sunlight and out of the reach of children.

The cable may be wound around the lugs at the bottom of the appliance for easier storage.

SPECIFICATIONS

Power: 230V\~50Hz 500W

Capacity of Jug : 1.6 litres max.

Duty Cycle: 3 minutes ON; 5 minutes OFF

We continually strive to improve our products, specifications may change without prior notice.

Partmaster co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next

day. Visit www.partmaster.co.uk or call 0870 6001 338 (UK customers only) Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DGS Retail Ltd • Maylands Avenue • Hernel Hempstead • Herts • HP2 7TG • England

LOGIK

Stainless Steel Blender

Instruction Manual L16BSS10

Black and white photo of a modern blender with clear glass and black handle (no visible text or symbols)

Congratulations on the purchase of your new Logik Blender. We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

UNPACKING

Remove all packaging from the blender. Retain the packaging. If you dispose of it please do so according to any local regulations.

The following items are included:

• The Main Unit

• The Blender Jug (P.N.: XB9196-5-15)

• The Blender Jug Cover (P.N.: XB9196-2)

- Stopper / Measuring Cup (P.N.: XB9196-1)

• Instruction Manual (P.N.: L16BSS10-A)

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

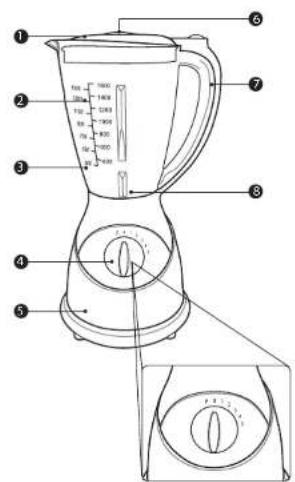

PRODUCT OVERVIEW

① Safety Lid

② Measuring Scale

3 Blender Jua

4 Speed Selector

5 Base Unit

6 Stopper/Measuring Cup

⑦ Handle

8 Blade Assembly

FIRST TIME USE

• Before using your blender for the first time, wash the jug, blade assembly, lid and stopper. Rinse throughly and dry.

- Place the base unit on a stable surface, free from heat and moisture and within easy reach of a mains socket. The mains cable should not be taut.

GB 1GB-2GB 3

PREPARING AND FILLING THE INGREDIENTS

• Cut the ingredients into 25mm (1") cubes before placing them into the blender jug. If the food is very solid or dry, cut the pieces into smaller cubes.
• Fill the blender jug with the ingredients.
• Do not overfill the jug. The maximum capacity is 1600 ml, but we suggest you do not exceed 1250 ml. If you are preparing a large quantity use several smaller batches.
• If the ingredients are very dry, put some liquid into the jug. You should never try to reduce dry ingredients in the blender.

FITTING THE LID

- Place the lid on the top of the jug and turn the lid clockwise. If the lid is properly secured, you will hear a "click" sound.

Two line drawings of a kettle with a lid and handle, showing a rotation arrow (no text or symbols)

FITTING THE STOPPER

The stopper has an integral measuring cup useful for measuring small amounts of ingredients.

- Place the stopper in the slots in the lid and turn clockwise to lock. If the stopper is properly secured, you will hear a "click" sound. To avoid splashing, always operate the blender with the stopper firmly in place.

Two technical line drawings of a mechanical component, one showing a cylindrical part and the other a flanged circular component (no text or symbols)

FITTING THE JUG TO THE BASE UNIT

- Place the jug on the blade assembly as show. The jug will fit only one way round. If the jug is not properly fitted to the base the blender will not start.

The lid must be secured to the jug and the jug to the base otherwise the blender will not operate!

OPERATION

• Make sure the jug and the lid are secure and in the LOCK position.
• Set the selector switch to '0'.
• Plug your blender into the mains and switch on the power.

Blender's Operation Modes
Continuous (Normal) operation	• Select the desired operating speed. There are 5 speeds. Move the Speed Selector progressively to the right to increase the speed. When you start blending use a low speed to begin with and gradually increase the speed if necessary.• To stop the operation, turn the Speed Selector back to '0'.
Pulsed operation	Use this mode when ingredients need to be blended in small repeated bursts.• Turn the Speed Selector to 'P' and hold it there for a short period of time.• To stop the operation, release the Speed Selector which will then automatically return to '0'.

NOTE: Do not run the appliance continuously for more than 3 minutes. After a full 3 minute cycle allow the blender to rest for another 5 minutes before using it again.

During blending, you can feed in small amounts of food or liquid through the jug lid. To do this:

- Hold the lid.

• Turn the stopper slowly anti-clockwise to free it and then lift it out.
• Gradually feed pieces of food or liquids into the jug through the feeder.
  • Fit the stopper back when you have finished.

• Do not run the appliance continuously for more than 3 minutes. After a full 3 minute cycle allow the blender to rest for another 5 minutes before using it again.
• Never blend very hot liquids in the blender. This is dangerous as the contents may erupt.
• If you spill liquid on the blender base immediately switch off and wipe dry.

AFTER USE

After you have finished blending:

• Set the Speed Selector to '0'.
• Hold the jug by the handle and carefully turn it clockwise (towards you) to release the jug. (This may be easier with one hand on the base and one hand holding the jug handle).
  • To pour out the contents, rotate the lid of the jug anticlockwise to free it and then lift off the lid. Pour or spoon the contents out carefully.
• Unplug the blender from the mains socket.
