Product Type	Floor Fan
Brand	Logik
Model	L23WDF17E
Rated Voltage	220-240 V ~
Rated Frequency	50 Hz
Input Power	25 W
Fan Power Input	19.50 W
Maximum Airflow Rate	13.33 m³/min
Maximum Air Velocity	2.79 m/s
Service Value	0.68 (m³/min)/W
Standby Power Consumption	0.0 W
Seasonal Electricity Consumption	6.24 kWh/a
Sound Power Level	52.27 dB(A)
Speed Settings	2 (Low, High) + Off
Oscillation	Yes (push/pull control)
Tilt Adjustment	Yes (up/down with adjusting control)
Safety Features	Lock washer, snap rings, base screw
Included Accessories	Motor unit, blade, front/rear guard, base, screws, manual
Cleaning	Unplug, wipe with damp cloth; do not immerse
Measurement Standard	IEC 60879:1986 (corr.1992)

Frequently Asked Questions - L23WDF17E Logik

How do I assemble the Logik L23WDF17E fan?

Insert the motor unit into the base until the locking tabs click. Secure with the screw from underneath. Attach the rear guard with the lock washer, then slide the blade onto the motor shaft (ensuring snap rings fit inside). Finally, clip the front guard onto the rear guard and tighten with the provided screw.

How many speed settings does the fan have?

The fan has two speed settings (low and high) plus an off position (0). Press the Speed button to cycle through off, low, and high.

How do I make the fan oscillate?

Push the Oscillating Control down to start oscillation. Pull it up to stop oscillation.

Can I adjust the tilt of the fan head?

Yes. Loosen the Adjusting Control, tilt the fan head to the desired angle, then retighten the control.

What is the power consumption and energy efficiency?

The fan has a maximum input power of 25 W and a fan power input of 19.5 W. Its service value is 0.68 (m³/min)/W with a standby consumption of 0.0 W. Seasonal energy consumption is 6.24 kWh/a.

How do I clean the fan?

Unplug the fan from the mains. Use a slightly damp cloth to wipe the outer surfaces. Never immerse the fan in water or use harsh chemicals.

What to do if the fan is not working?

Check that the plug is correctly connected and the mains supply is on. If it still doesn't work, disconnect the fan and consult a repair specialist.

What is the noise level of the fan?

The sound power level is 52.27 dB(A), which is relatively quiet for a floor fan.

Is the fan safe to use?

Yes. Always assemble fully before use, ensure screws are tight, and never operate with damaged guards. The fan includes lock washer and snap rings for secure blade attachment.

What should I do if the airflow seems weak?

Try adjusting to a higher speed setting. Ensure the fan is not obstructed and the guards are clean.

USER MANUAL L23WDF17E Logik

White LOGIK air conditioner fan with mesh grille and visible blades (no text or symbols on fan body)

GB Contents

Safety Warnings ....4

Unpacking 9

Assembling Your Fan 10

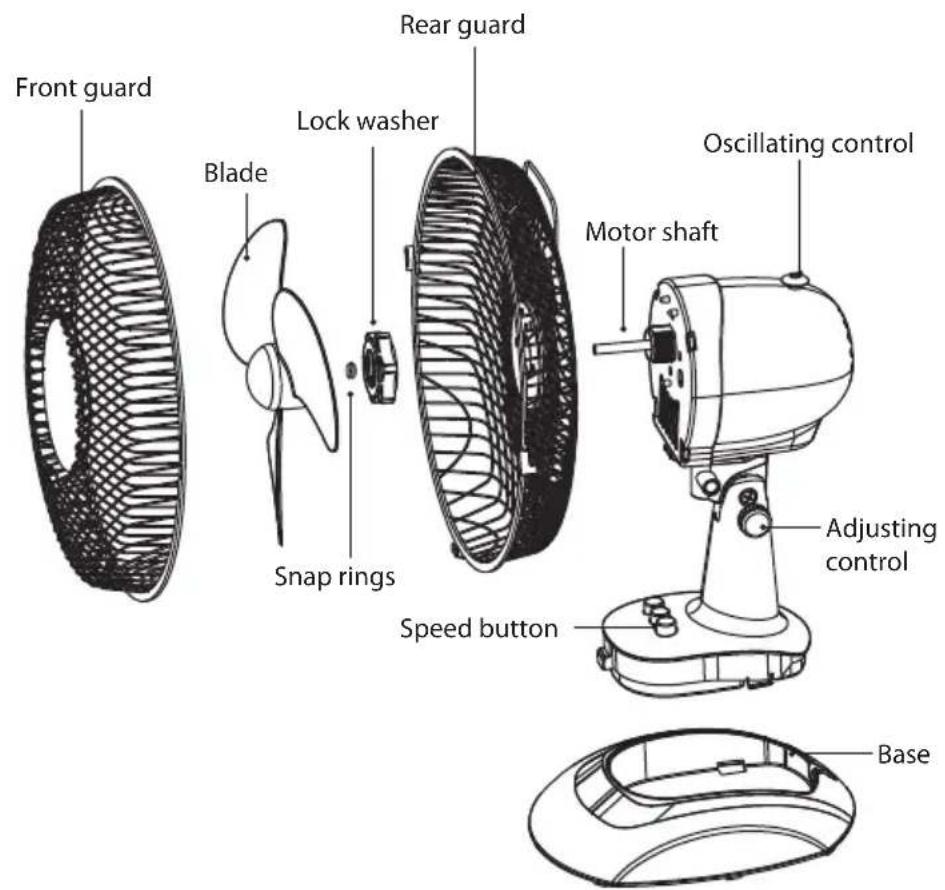

Product Overview 12

How to Use Your Fan 13

Cleaning 13

Hints and Tips....13

Specifications 14

NO Innhold

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a mechanical device with a coiled cable and attached components (no text or symbols)

Motor Unit with Lock Washer and Power Cord

Blade with Snap Rings

Front Guard Rear Guard

Base with Screw (plus an extra set of screw and nut for fan guard)

Instruction Manual

• Avoid using your fan in hazardous areas.
• Do not use your fan if it has not been fully assembled. Make sure that the screw(s) that hold the base parts and the main unit together is(are) tightened securely.

• Do not connect the unit to the mains until the assembly is finished.
  • Use Philips style screwdriver to assemble and secure.

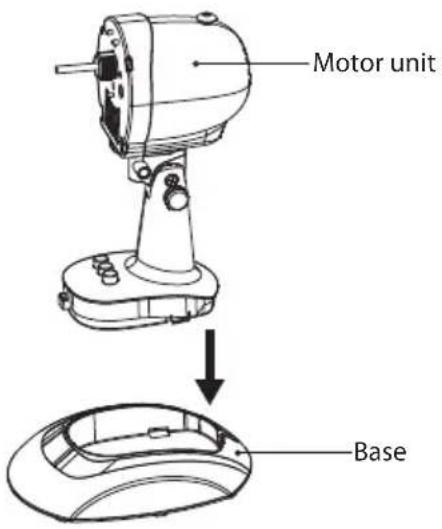

• Insert the motor unit into the base, make sure the locking tabs click into position. Attach the screw on the base bottom and tighten it to secure the motor unit to the base.

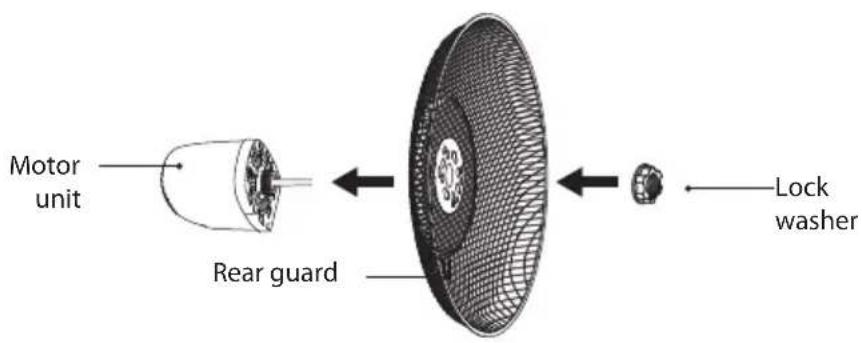

1. Detach the lock washer from the motor unit. Then insert the rear guard and screw back the lock washer.

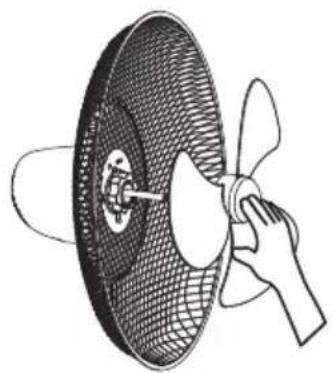

1. Insert the blade into the motor shaft, make sure the snap rings are fitted inside the blade.

Illustration of a hand holding a propeller inside a fan (no text or symbols)

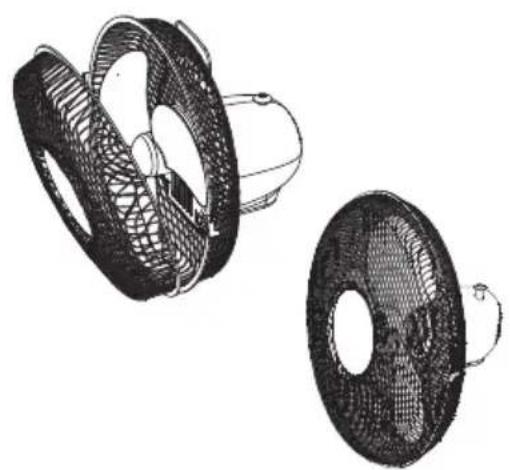

1. Attach the front guard to the rear guard by the clips, then tighten the fan guards with the screw.

Technical illustration of two fan components with mesh surfaces (no text or symbols)

5.

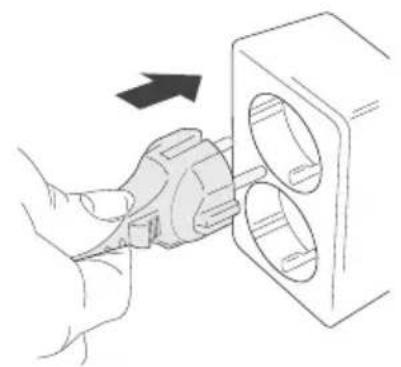

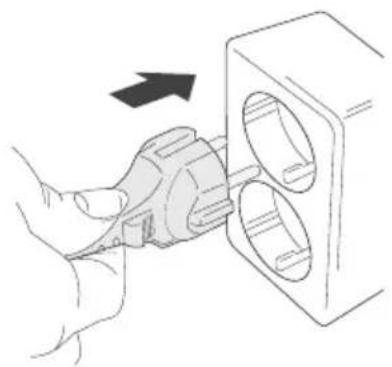

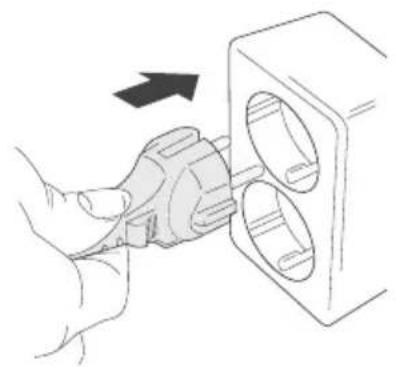

Illustration of a hand inserting a plug into a socket (no text or symbols)

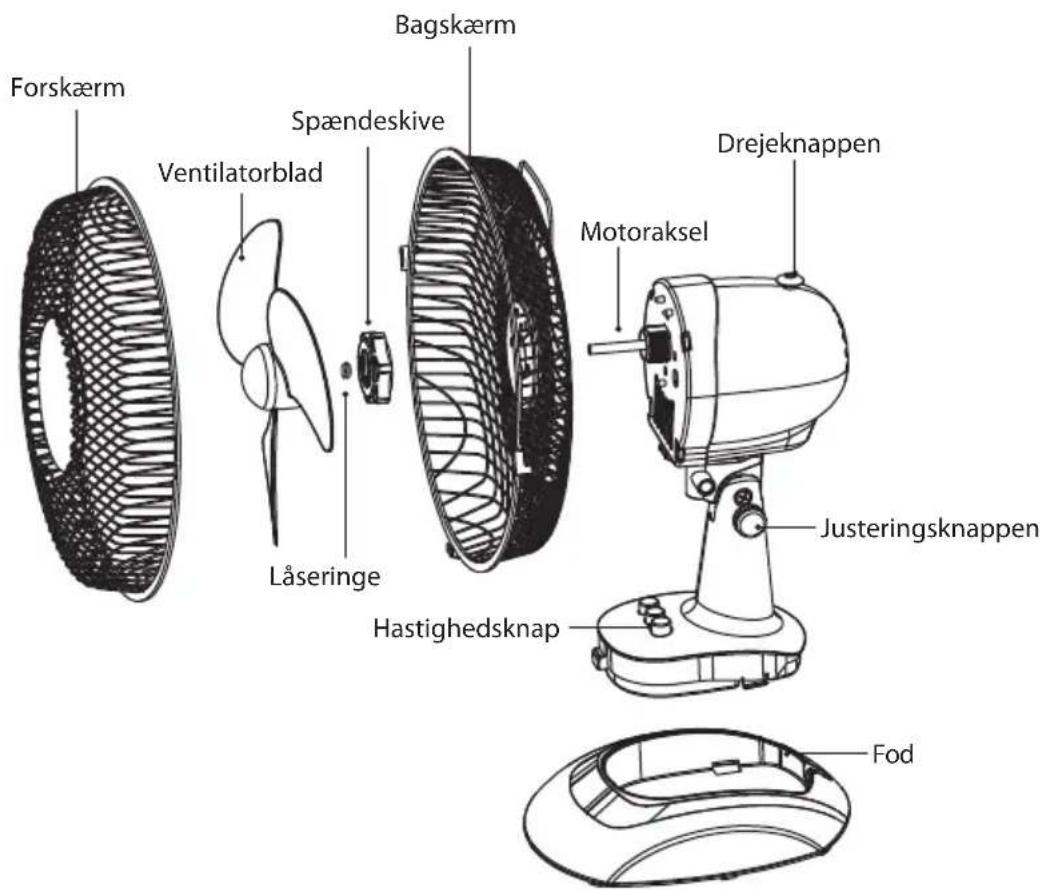

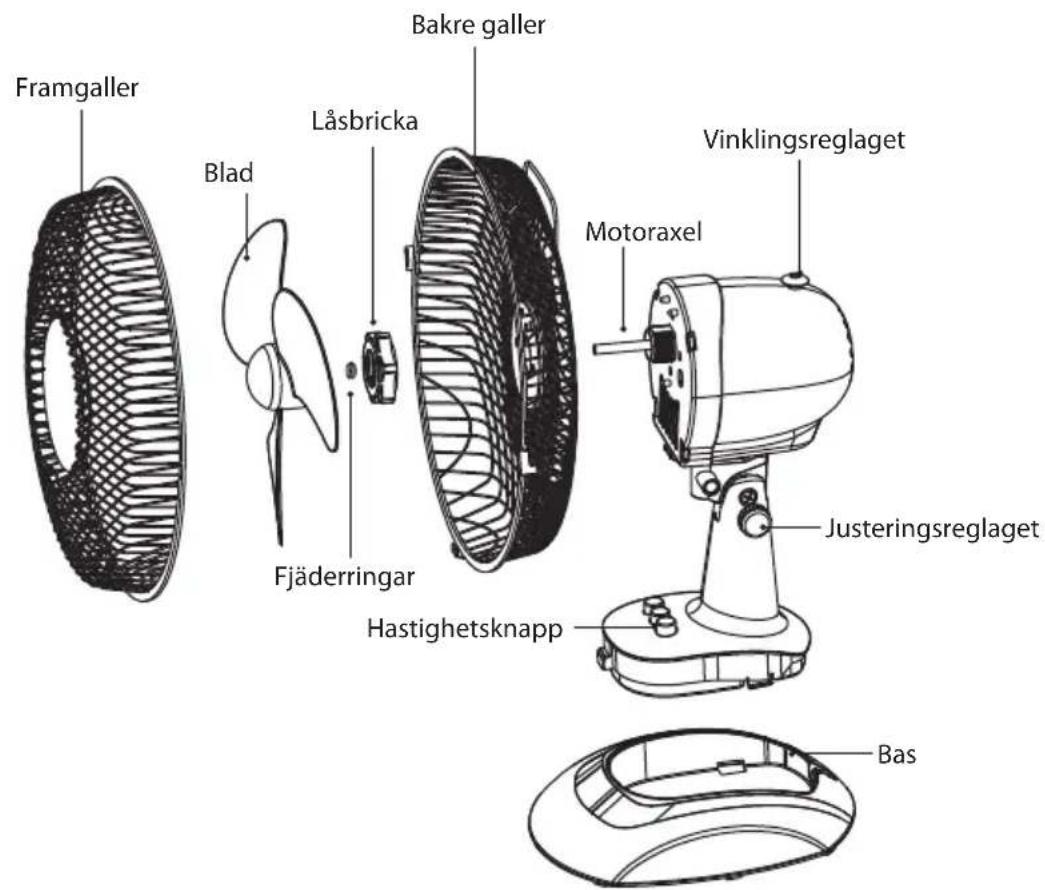

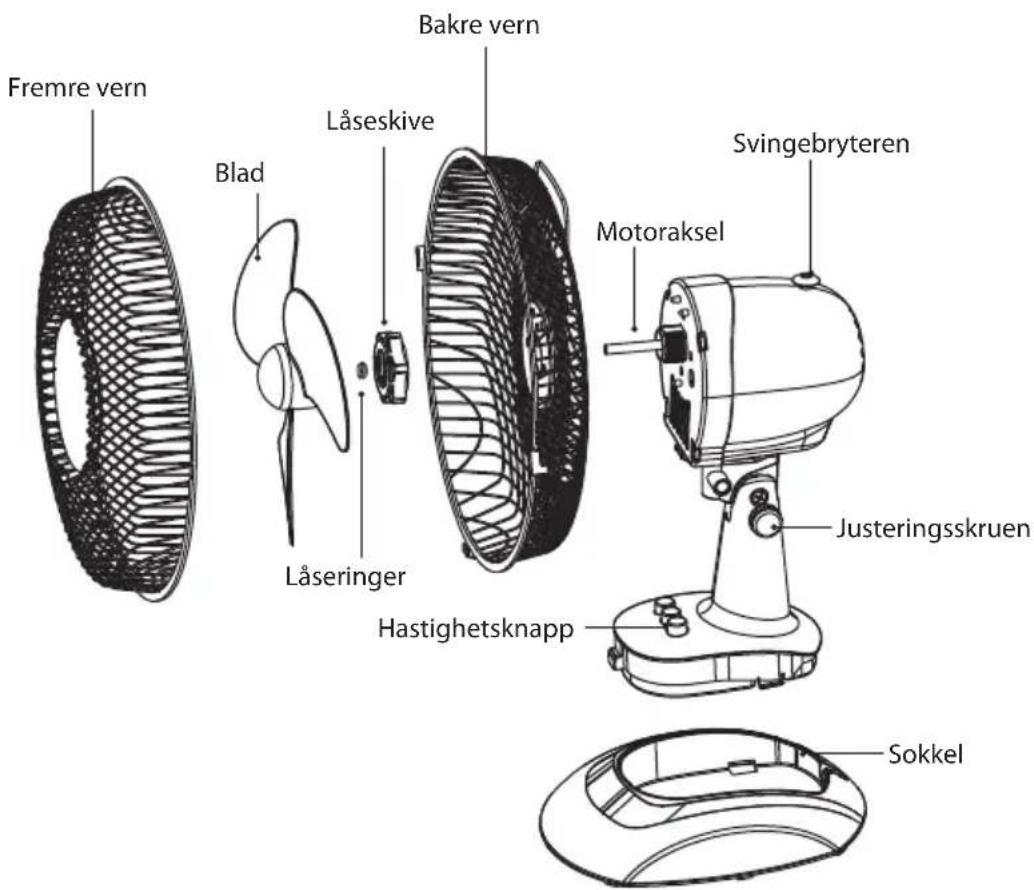

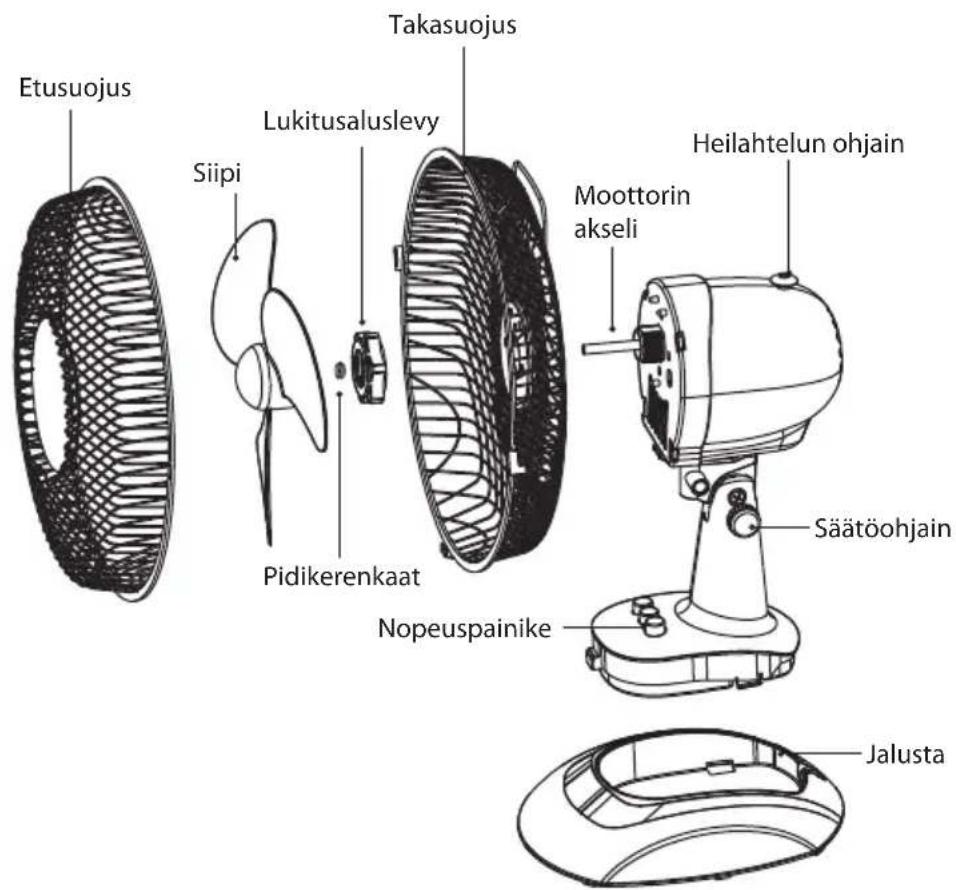

GB

- Press the Speed BUTTON for the required fan speed. The following settings are available:

0 - The Fan is switched Off

1 - The Fan operates at the lowest speed
2 - The Fan operates at the highest speed

• To make the fan head oscillate, push the Oscillating Control down. To stop the oscillation, pull the Oscillating Control up.
  • The head of the fan can be adjusted up or down. To do this:

• Loosen the Adjusting Control.

• Adjust the fan to the desired angle.
• Tighten the Adjusting Control.

Cleaning

Unplug the unit from the mains socket.

Use a slightly damp cloth to wipe the outer body of the unit. Never completely cover the unit with water or use chemicals or detergents as they could damage the unit in some way.

Hints and Tips

Problem Solution
The force of air coming from the unit is weak.	Adjust the speed up to a higher setting.
The unit does not work. Check that the plug	is connected correctly and that the unit is turned on at the mains supply.
Other abnormal conditions. Disconnect the	fan from the wall and consult a repair specialist.

Specifications

Model L23WDF17E
Rated Voltage 220-240 V
Rated Frequency 50 Hz
Input Power 25 W
Maximum Fan Flow Rate (F) 13.33 m	^3 /min
Fan Power Input (P) 19.50 W
Service Value (SV) 0.68 (m	^3 /min)/W
Standby Power Consumption (Psb) 0.0 W
Seasonal Electricity Consumption (Q) 6.24 kWh/a
Fan Sound Power Level (Lwa) 52.27 dB(A)
Maximum Air Velocity (c) 2.79 meters/sec
Measurement Standard for Service Value	IEC 60879:1986 (corr.1992)

Features and specifications are subject to change without prior notice.
