USER MANUAL LHFIP3010E Logik

MICRO HI-FI WITH DOCKING for iPod and CD

INSTRUCTION MANUAL

(iPod not included)

GB

MIKRO-HIFI MED DOKKING for iPod og CD

BRUKSANVISNING

Black industrial machine with digital display and control panel (no visible text or symbols)

(iPod not included)

Unpacking 4

Product Overview 5

Front and Side View ....5

Rear View ....5

Remote Control....6

Remove the Insulating Strip from the Remote Control ....6

Battery Installation for the Remote Control ....6

Remote Control Operation Range 7

LCD Display Window 8

Wall Mounting 8

Connections 9

Speaker Connections 9

Connecting to the Mains Socket 9

For Personal Listening 9

Compatible Disc Types ....10

Basic Operation 10

Powering ON/OFF 10

Selecting Modes ....10

Adjusting the Volume 11

Clock Setting ....11

Timer Setting ....11

Sleep Timer Setting 12

Preset EQ 12

CD / MP3 / WMA Operation ....13

Playback ....13

To Pause Playback ....13

To Stop Playback 13

Skipping to Another Track 13

ID3 Operation (For MP3 / WMA Mode) 14

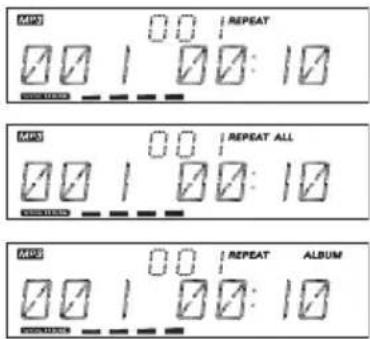

Repeat Playback 14

Random Playback 15

Intro Playback 15

Programmable Playback 15

USB / SD Card Operation 17

iPod Operation 18

Inserting the iPod and Selecting iPod Mode ....18

iPod Playback 18

iPod MENU Mode ....19

Charging Your iPod ....19

AUX Operation....20

Radio Operation 20

Searching for a Station Manually 20

Searching for a Station Automatically 20

Selecting Mono / Stereo 20

Presetting Stations 21

Tuning in to a Preset Station 21

For Better Reception 21

Maintenance 22

Hints and Tips 23

Specifications 24

Safety Warnings 110

Pakke ut 26

Produktoversikt 27

Congratulations on the purchase of your new Logik Micro HiFi with Docking for iPod and CD.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a two-panel kitchen appliance with no text or symbols

The Main Unit Speakers x 2

Remote Control (P.N.: 070-0018DN-01E0)

Quick Start Guide (P.N.: 227-0206DN-123)

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

GB

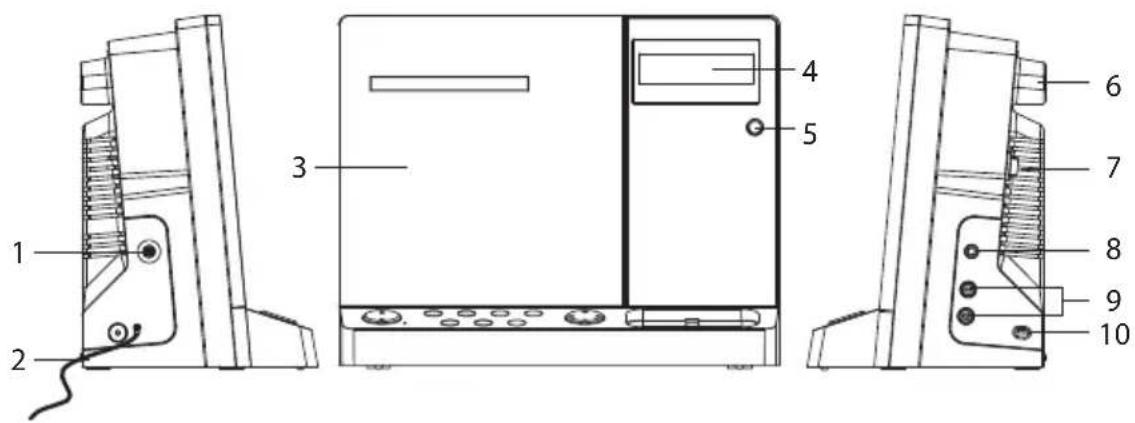

Front and Side View

1. LINE IN Socket
2. FM Aerial
3. Disc Door
4. LCD Display Window

5. Remote Sensor

6. Hitching Hole

7. Power ON/OFF Switch
8. Earphones Socket
9. Speaker Terminals (L/R)
10. Mains Cable

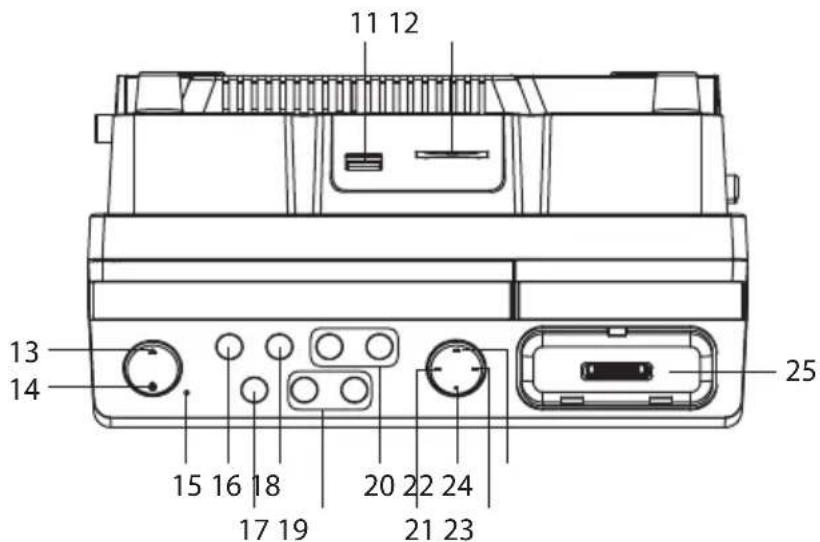

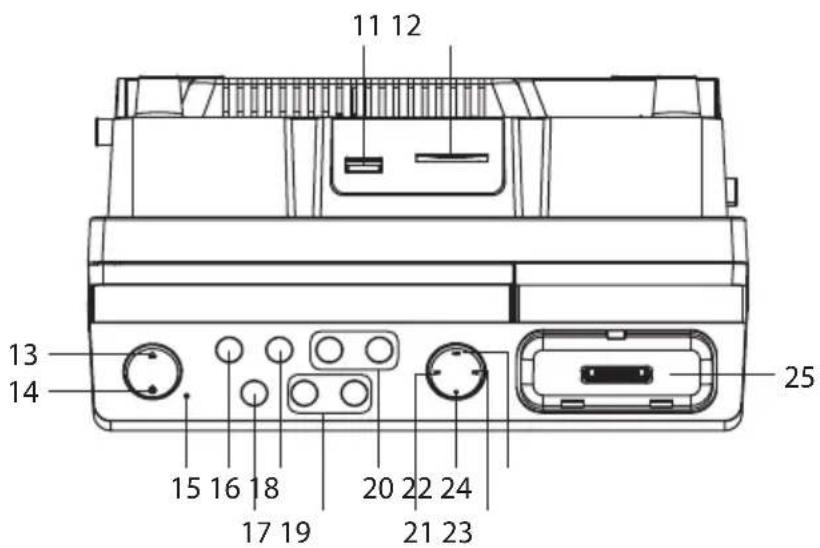

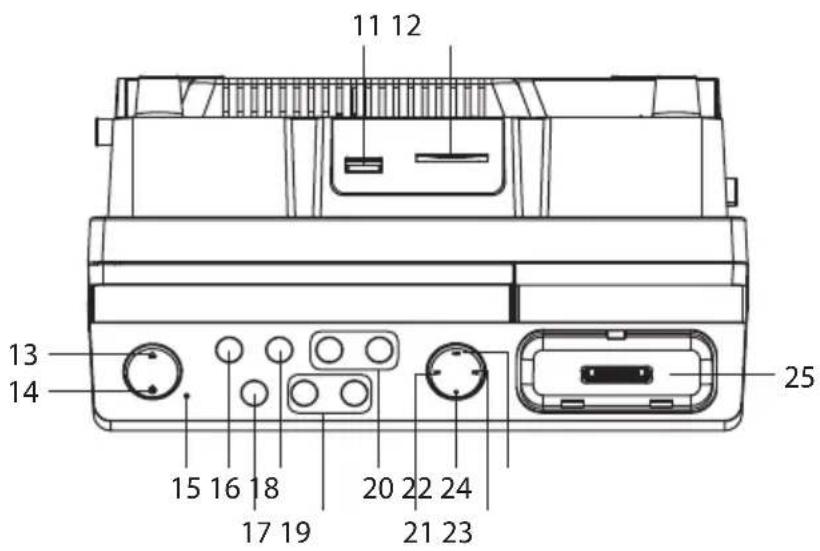

Rear View

1. USB Port
2. SD/MMC Memory Card Port
3. OPEN/CLOSE Button
4. STANDBY/ON Button
5. STANDBY LED Indicator

6. FUNCTION Button

7. TIMER Button

8. MENU Button
9. VOLUME + / - Button
10. PRESETS ▶Buttons
11. SKIP/TUNE SEARCH DOWN Button

12. STOP/MENU Button

13. SKIP/TUNE SEARCH UP Button

14. PLAY/PAUSE/ENTER Button
15. iPod Dock

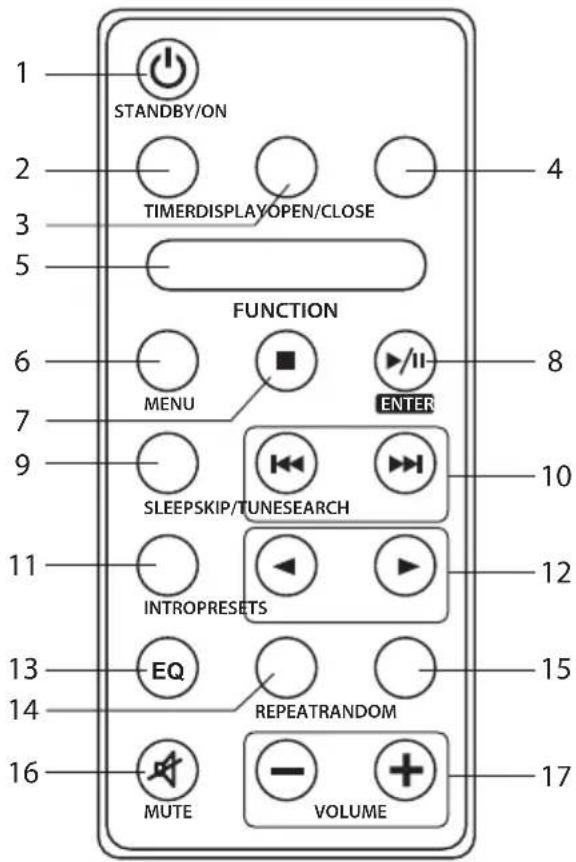

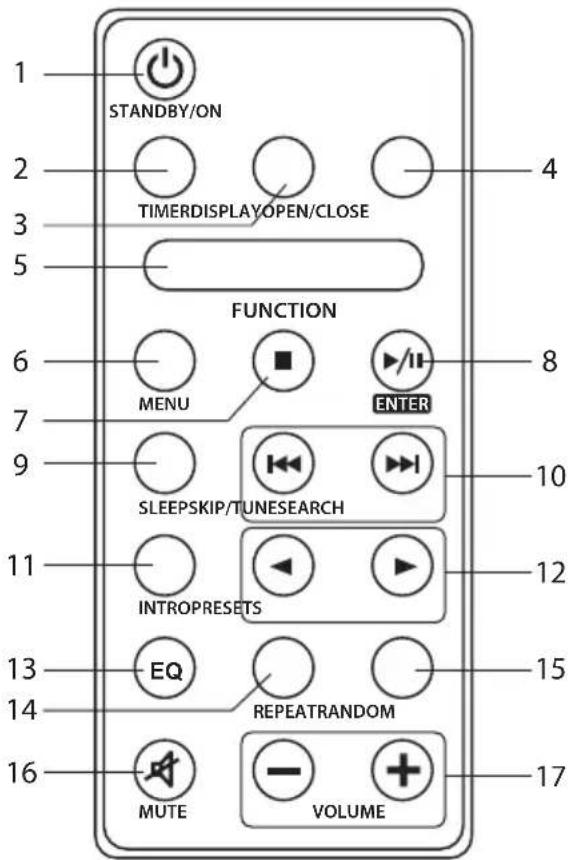

Remote Control

1. STANDBY/ON Button

2. TIMER button

3. DISPLAY Button

4. OPEN/CLOSE Button

5. FUNCTION Button

6. MENU Button

7. ■ Button

8. ▶/II /ENTER Button

9. SLEEP Button

10. SKIP/TUNE SEARCH 🔊️ Buttons

11. INTRO Button

12. PRESETS ▶ Buttons

13. EQ Button

14. REPEAT Button

15. RANDOM Button

16. MUTE Button

17. VOLUME + / - Buttons

Remove the Insulating Strip from the Remote Control

Remove the insulating mylar strip from the battery if the battery is being used for the first time. It is located at the bottom back side of the remote control.

Illustration of a finger pressing down on a curved object with an arrow indicating force (no text or symbols)

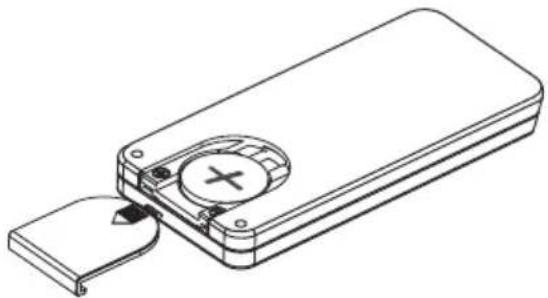

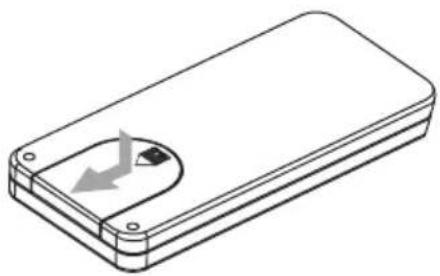

Battery Installation for the Remote Control

1. Press and slide the back cover to open the battery compartment of the remote control.

Technical line drawing of a rectangular electronic device with a curved internal component and mounting holes (no text or symbols)

1. Remove the old battery, and place a new battery in the holder.

Technical line drawing of a remote control device with a circular button and handle (no text or symbols)

1. Close the battery compartment cover.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the battery correctly by following the polarity (+ and -) indications in the battery compartment.
• When the battery is exhausted, the remote control will not function.
  • Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

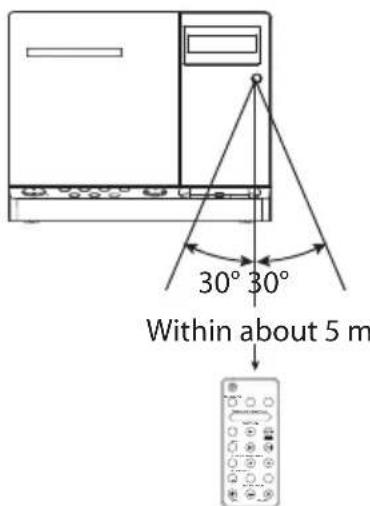

Remote Control Operation Range

Point the remote control at the unit no more than 5 metres from the remote control sensor and within 60° of the front of the unit. The operating distance may vary depending on the brightness of the room.

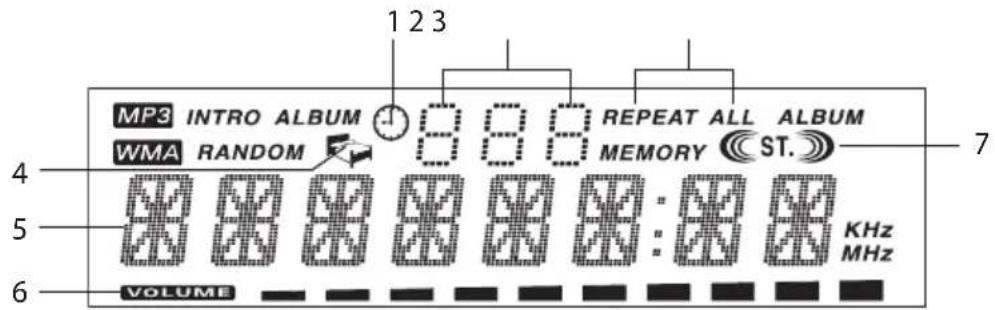

LCD Display Window

GB

1. Timer Indicator
2. Repeat 1 & All Indicator
3. Sleep Indicator
4. Track / Number / Time Indicator
5. Volume Indicator

6. Stereo Indicator

7. Album / Radio Memory Number Indicator

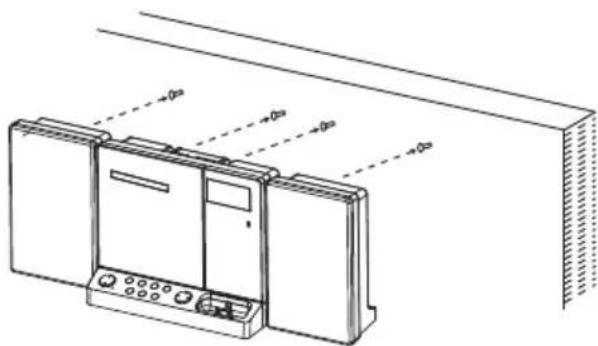

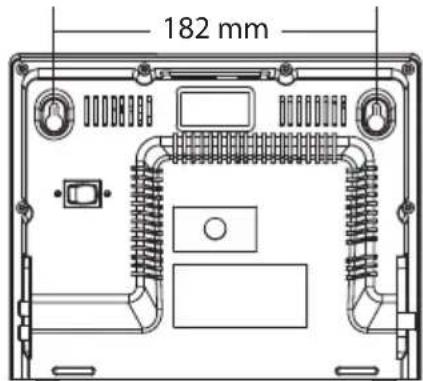

Wall Mounting

Fix the two screws (Size: 3.5*25BA) (not included) into the wall. They should be parallel to each other. The distance between the two screws should be 182 mm.

Technical line drawing of a cabinet or enclosure with mounting holes and internal components, shown without any text or symbols.

This unit is designed for mounting in a vertical position only.

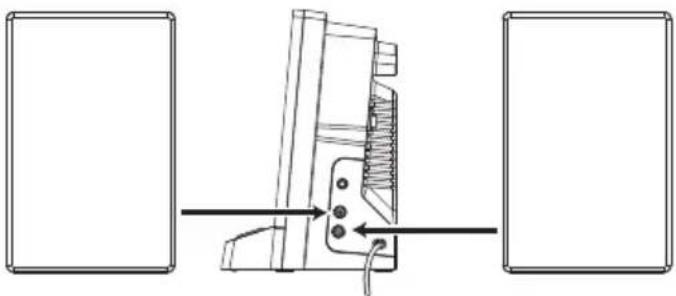

Speaker Connections

Connect the speaker cables at the back of the speakers to the speaker sockets (L/R) at the right side of the unit.

Technical diagram showing a mechanical assembly with two rectangular components connected by a directional arrow (no text or symbols present)

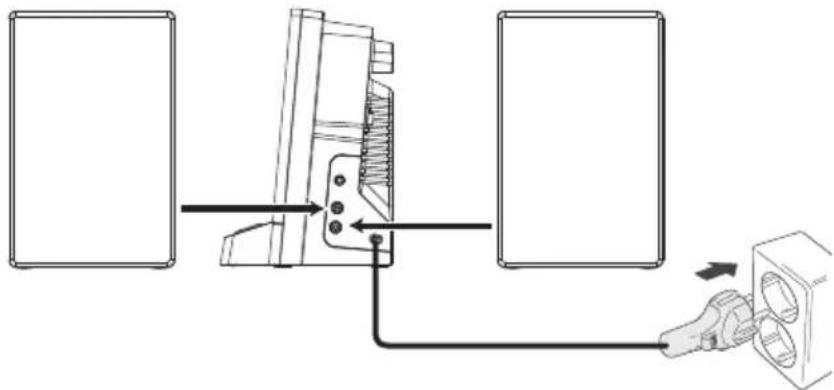

Connecting to the Mains Socket

Connect the mains cable at the rear of the main unit to the mains socket.

To Mains Socket

For Personal Listening

Connect headphones (∅3.5mm stereo mini plug) to the earphones socket. Adjust the volume control to obtain the desired volume level.

When the earphones are connected, the speakers will automatically mute.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
CD-R (CD Recordable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
CD-RW (CD-Rewritable - Audio/Video format or JPEG files)		AUDIO + VIDEO + JPEG
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

Some recorded files may not be able to be played due to the type and format of disc or condition of the recording.

Basic Operation

Powering ON/OFF

When you first connect the unit to the mains socket, switch the POWER ON/OFF switch at the rear of the main unit to the "ON" position. The unit will be in STANDBY mode.

• Press the STANDBY/ON button to switch the unit on.
• Press the STANDBY/ON button again to switch the unit off.
• Disconnect the mains cable from the mains socket if you want to switch the unit off completely.

Selecting Modes

Press the FUNCTION button repeatedly to switch between modes (CD, USB, SD CARD, iPod, AUX or TUNER).

• If there is no signal when the unit is in CD / USB Devices / SD & MMC / iPod mode, the unit will automatically turn off in 15 minutes.
• When the unit is in the iPod mode and if there is no iPod in the iPod dock, the unit will automatically turn off in 15 minutes.
  • While in STANDBY mode, press any button to illuminate the display for 10 seconds.
• To save energy, turn off the unit by switching the POWER ON/OFF switch at the rear of the unit to the "OFF" position.

Adjusting the Volume

Press the VOLUME + / - buttons on the main unit or on the remote control to increase/decrease the volume.

Press the MUTE button on the remote control to switch the sound off. The volume level will flash and the audio output will be temporarily terminated. Press the MUTE button again to resume audio listening.

Clock Setting

Setting the clock can only be done in STANDBY mode.

When the unit is in STANDBY mode the "STANDBY" indicator illuminates.

1. In STANDBY mode, press and hold the MENU button and then press the SKIP/TUNE SEARCH ◀◀▶buttons to select the 12-hour or 24-hour time format on the display.
2. Press the MENU button to confirm the time format. The hour digits will flash.
3. Press the SKIP/TUNE SEARCH 🔊 Buttons to adjust the hour digits and then press the MENU button to confirm. The minute digits will flash.
4. Press the SKIP/TUNE SEARCH 🔊▶▶buttons to adjust the minute digits and then press the MENU button to confirm and finish clock setting.

Timer Setting

The timer function will turn the unit on at a preset time.

1. Press and hold the TIMER button on the remote control until the "ON" indicator and "00:00" show on the display and the hour digits flash.

2. Press the SKIP/TUNE SEARCH 🔊 Buttons to adjust the hour digits and then press the TIMER button to confirm. The minute digits will flash.

1. Press the SKIP/TUNE SEARCH 🔊 buttons to adjust the minute digits and then press the TIMER button to confirm the TIMER ON time.

2. After adjusting "TIMER ON", "OFF" indicator will show on the display and the hour digits flash.

3. Press the SKIP/TUNE SEARCH 🔊 Buttons to adjust the hours digits and then press the TIMER button to

confirm. The minute digits will flash.

1. Press the SKIP/TUNE SEARCH ◀◀◀▶buttons to adjust the minute digits and then press the TIMER button to confirm the TIMER OFF time.
2. Now the "TUNER" indicator will flash on the display. Press the SKIP/TUNE SEARCH ▶▶▶ buttons to select the mode (CD / USB / SD CARD / iPod / TUNER).
3. Press the TIMER button again, the timer "VOL" indicator will flash on the display. Press the SKIP/TUNE SEARCH ◀◀▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>
4. After adjusting "TIMER ON" and "TIMER OFF", press the TIMER button to confirm. The "◎" indicator will show on the display.
5. The unit will be turned on automatically to the selected CD / USB / SD CARD / iPod / TUNER mode and turn off when the timer reaches the preset time.

To cancel timer, press and hold the TIMER button on the remote control until the TIMER indicator goes out.

• Each enable state will be cleared if buttons are not pressed in 10 seconds.
• For the FM tuner timer, it will turn on to the last station you tuned into.
- If the display shows "ERROR" while you set the "TIMER ON" it means both "TIMER ON" and "TIMER OFF" is the same. In this case, please go to "TIMER OFF" to set the off time first.

Sleep Timer Setting

The sleep timer automatically turns the unit off after a certain time.

1. While the unit is on, press the SLEEP button and "00" will show on the display.
2. Press the SLEEP button repeatedly to select the desired sleep time as below:

1. After setting a desired sleep time, the " indicator will show on the display.
2. The unit will automatically turn off once it counts down the sleep time.

To clear the preset sleep time, keep pressing the SLEEP button until "00" shows on the display. The "F" icon will disappear.

Preset EQ

This system supports a variety of equalizers and sound effects.

During playback, press the EQ button on the remote control to select a desired music mode. Each time the EQ button is pressed, the music mode will change to the next one as follows:

GB

Playback

1. Press the OPEN/CLOSE button to open the disc door. Put the disc with the label side up and then close the disc door gently.
2. Press the FUNCTION button repeatedly to select CD mode. The unit will start to read the CD/MP3 disc automatically.
3. If there is no disc or the disc can't be read, "NO DISC" will show on the display.
4. Press the ▶/□/ENTER button the unit will play the first track of the CD disc automatically.

To Pause Playback

Press the ▶/ENTER button to pause the playback, the time elapsed indicator will flash.

To resume playback, press the ▶/11/ENTER button again.

To Stop Playback

Press the ■ button to stop playback.

Skipping to Another Track

• Press the SKIP/TUNE SEARCH ◀◀▶▶▶ buttons to skip to the start of the current track or to skip to the next track.
• Press and hold the SKIP/TUNE SEARCH◀◀▶buttons to skip fast forward / backward of each song.
  • To resume playback, press the ▶/□/ENTER button.

For MP3 / WMA Discs

• During MP3 playback, press the PRESETS◀buttons to skip to the 1st track of the next album.
• During STOP mode, press the PRESETS◀▶buttons repeatedly to select your desired album to play. Press the ▶/II /ENTER button to start playing the 1st track in that album.

ID3 Operation (For MP3 / WMA Mode)

- During MP3 playback, press the DISPLAY button on the remote control to open the ID3 function. If the MP3/WMA file is written "ID3", it will automatically search the information of "TITLE NAME", "ARTIST NAME" and "ALBUM NAME" indicated on the display.

- Press the DISPLAY button again to resume the normal playback.

Repeat Playback

For CD Mode

Repeat Current Track

Press the REPEAT button once, "REPEAT" indicator will show on the display. The current track will be played repeatedly.

Repeat the Entire CD

Press the REPEAT button twice, "REPEAT ALL" indicator will show on the display. All the discs tracks will be played repeatedly in a cycle.

Cancel Playback Mode

Press the REPEAT button three times to cancel the repeat function.

For MP3 / WMA Mode

Repeat Current Track

Press the REPEAT button once, "REPEAT" indicator will show on the display. The current track will be played repeatedly.

Repeat the Entire CD

Press the REPEAT button twice, "REPEAT ALL" indicator will show on the display. All the discs tracks will be played repeatedly in a cycle.

Repeat the Album

Press the REPEAT button three times, "REPEAT ALBUM" indicator will show on the display. The currently album will be played repeatedly in a cycle.

Cancel Playback Mode

Press the REPEAT button four times to cancel the repeat function.

Random Playback

All tracks on the disc can be played in a random order.

• During playback, press the RANDOM button on the remote control. The "RANDOM" indicator will show on the display. All tracks will be played randomly.
  • After all the tracks have played once, the playback will stop automatically.
• To cancel the random playback, press the RANDOM button on the remote control during RANDOM playback. Normal playback will resume.

Intro Playback

• During the playback, press the INTRO button on the remote control. The "INTRO" indicator will show on the display. The unit will play the first 10 seconds of each track.
• Press the INTRO button on the remote control again to resume the normal playback.

Programmable Playback

A program of up to 32 tracks in CD mode or 64 tracks in MP3 / WMA / USB / SD CARD mode can be set to play in a preset order.

For CD Mode

1. In STOP mode, press the MENU button to shift to PROGRAM mode. "MEMORY" indicator will show on the display.

1. Press the SKIP/TUNE SEARCH 🔊 buttons to select the desired track and then press the MENU button to store the track in the memory.
2. To add additional tracks, repeat step 2 (up to 32 tracks).
3. To start playback, press the ▶/□/ENTER button. The first track of the program will start to play. When all tracks have been played, the unit will show the number of tracks and the playing time of the CD tracks.

For MP3 / WMA Mode

1. In STOP mode, press the MENU button to shift to PROGRAM mode. "MEMORY" indicator will show and the album number will flash on the display.

1. Press the PRESETS ◀buttons to select the desired album number and then press the MENU button. The track number will flash on the display.

1. Press the SKIP/TUNE SEARCH ◀◀◀▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>

2. To add additional tracks, repeat step 2 (up to 64 tracks).

3. To start playback, press the ENTER button. It will play starting with the first track of the program. When all tracks have been played, the unit will show the number of tracks and the playing time of the CD tracks.

To Erase the Program

• In STOP mode, you can erase the contents of the memory by pressing the button or by opening the disc door.
• Setting a new program will erase the existing one.

Repeat Playback

For CD mode,

1. Press the REPEAT button once, "REPEAT" indicator will show on the display. The current track will be played repeatedly.
2. Press the REPEAT button twice, "REPEAT ALL" indicator will show on the display. The total number of tracks will be played repeatedly.
3. Press the REPEAT button three times to cancel the repeat function.

For MP3/WMA mode,

1. Press the REPEAT button once, "REPEAT" indicator will show on the display. The current track will be played repeatedly.
2. Press the REPEAT button twice, "REPEAT ALL" indicator will show on the display. The total number of tracks will be played repeatedly.
3. Press the REPEAT button 3 times, "REPEAT ALBUM" indicator will show on the display. The album will be played repeatedly.
4. Press the REPEAT button 4 times to cancel the repeat function.

1. Insert the USB Device or SD/MMC Card into the USB or SD/MMC Card slot.
2. Press the STANDBY/ON ⏻ button to turn on the unit.
3. Press the FUNCTION button repeatedly to select USB or SD/MMC mode. The unit will start to read the total number of the folders and tracks at the same time.

• The unit can play MP3 and WMA only in this mode.
- The unit can support most USB devices and SD/MMC/SDHC Cards. The memory capacity upto 32GB. It cannot access (or access a longer time) the memory capacity over 32GB. Otherwise, make an others to access it.
• It can support USB version 1.1 and 2.0.
- Not support all kinds of "dual voltage-MMC" card nor "MMC-Plus" card.
- The unit does not support the WMA file which is protected "DRM FILE".

1. If the memory device has more than one folder, press the PRESETS buttons to select each folder. Then press the SKIP/TUNE SEARCH I◀◀▶▶▶ button to select the current track in desired folder.

2. Press the ▶/11/ENTER button to play the first track. The display shows the current track number and its elapsed time.

To Pause Playback

Press the ▶/ENTER button to pause the playback, the time elapsed indicator will flash.

To resume playback, press the ▶/11/ENTER button again.

To Stop Playback

Press the ■ button to stop playback.

ID3 Operation

1. If the MP3 and WMA are written in "ID3", press the DISPLAY button during playback. The "ID3 ON" will show on the display, and then it will automatically search more than 64 letters for "TITLE NAME", "ARTIST NAME" or "ALBUM NAME" which move from the right corner to the left corner on the display continuously.
2. Press the DISPLAY button again to resume the normal playback.

Using the iPod dock you can play music files stored on your iPod through the stereo speakers.

Inserting the iPod and Selecting iPod Mode

1. Locate the iPod adapter that came with your iPod into the dock.
2. Connect the iPod to the iPod connector inside the dock.

Diagram showing a device with a top panel and a bottom panel, no text or symbols present

1. Press the STANDBY/ON button to turn on the unit.
2. Press the FUNCTION button repeatedly to select iPod mode.
3. Press the ▶II button to start playing.

• Your iPod will automatically start charging once it is docked.
• Switch off your iPod while listening to the radio to prevent signal interference.
• While your iPod is docked, you can control it from the main unit, the remote control or from the iPod directly.

iPod Playback

Press the ▶/ONTER button to start playing.

To Pause Playback

Press the▶/II /ENTER button to pause the playback. To resume playback, press the▶/II / ENTER button again.

To Stop Playback

Press the ■ button to stop playing.

Skipping to Another Track

Press the SKIP/TUNE SEARCH ◀◀▶▶! buttons to skip forward or backward from the current track.

GB

Locating a Particular Point on a Track

Keep either the button pressed during playback, according to the desired direction, and release at the desired point.

Repeat Playback

Press the REPEAT button on the remote control to play songs repeatedly. Some of the older iPod versions do not support this function.

Random Playback

Press the RANDOM button on the remote control to play songs randomly. Some of the older iPod versions do not support this function.

iPod MENU Mode

1. While the unit is in iPod mode, press the MENU button to enter the iPod MENU mode. The iPod MENU indicator will show on the display.

1. Press the menu. ■ button to return to the previous iPod
2. Press the ▶/11/ENTER button to enter the desired menu folder.
3. Press the SKIP/TUNE SEARCH 🔊 Buttons to navigate up and down in the iPod menu.
4. If you want to return to the previous iPod menu, press the ■ button again.
5. To resume playback, press the MENU button. The unit will return to iPod mode.

Charging Your iPod

1. Your iPod has an internal non-removable battery, the battery may need to be charged if the iPod has not been used for awhile.
2. You can charge the iPod through the unit automatically under the STANDBY or POWER ON mode.

• The iPod battery is 80% charged in about an hour, and fully charged in about a few hours. If you charge it while playing music, it may take longer.

• It is not recommended to charge when using the TUNER mode. It may interfere with the reception.

• Before connecting to the mains socket, use the 3.5mm stereo LINE IN cable (not included) to connect your audio device through this AUX socket at the rear of the unit.

• Connect the mains cable to the mains socket. The unit will be in the STANDBY mode.
• Press the STANDBY/ON ⏻ button to switch the unit on.
• To select the AUX mode, press the FUNCTION button repeatedly to select AUX mode.
• In AUX mode, you may operate your audio device directly for playback features.

Radio Operation

Press the FUNCTION button repeatedly to the TUNER mode that to select the FM station.

Searching for a Station Manually

- To tune for weak station, press the SKIP/TUNE SEARCHI◀◀▶▶! buttons continuously until you reach the correct frequency or the reception is at its best.

Searching for a Station Automatically

• Press and hold the SKIP/TUNE SEARCH ◀◀▶▶I buttons until the tuner starts searching for a station. After tuning into a station, the search stops.
  • The search may not stop at a station with a very weak signal.

Selecting Mono / Stereo

This unit can receive the FM mode only.

• Press the DISPLAY button to select FM stereo station. The "CST." indicator will show on the display.
• Press the DISPLAY button again to select MONO reception.

Presetting Stations

The unit's memory can store a total of 30 FM stations. Presetting allows you to tune in to a station directly.

1. Tune in to a desired station and then press the MENU button. The preset number will flash and the "MEMORY" indicator will show on the display.
2. Press the PRESETS ◀buttons to select the preset number.
3. Press the MENU button again to store it in the memory.
4. Repeat steps 1-3 to store other stations.

• Storing a new station into a preset location will erase the previously stored station in that location.
• Power off will not erase the memory of preset stations. Perform the stations presetting procedures again to store the stations.
• To erase all preset memory, press and hold the PRESETS ◀ button and the ▶/ENTER button at the same time in STANDBY mode. The standby LED and LCD will flash once.

Tuning in to a Preset Station

Press the PRESETS ◀ buttons to select a preset number.

For Better Reception

Fully unwind the FM aerial. Extend the FM aerial and place it in the position that sounds best.

Do not connect the FM aerial to an outside aerial.

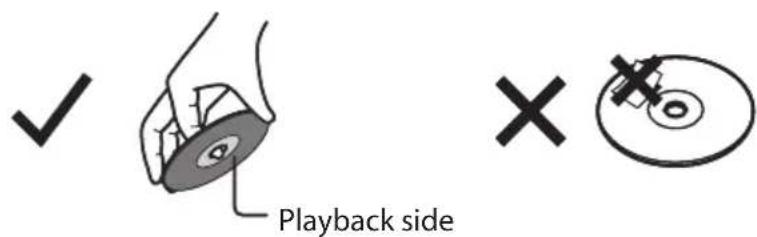

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

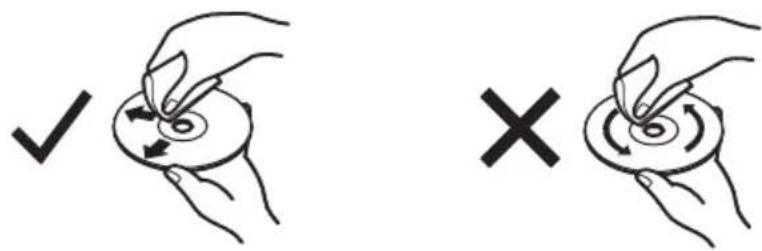

Cleaning Discs

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Cause / Solution
CD
Micro HiFi system does not power on • Make sure the mains adapter is secure in the outlet, and the outlet has power.• Make sure you've selected CD mode.
Disc in place but the unit won't play • Make sure the disc label is facing up.• Make sure the disc is clean.• PAUSE mode may be activated, deactivate it.• Disc may be damaged or dirty; check and clean the disc.
Disc skips • Make sure the unit is on a secure spot.Vibrations or jarring can cause the disc to skip.
RADIO
Poor FM reception • Make sure the FM antenna wire is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
iPod
iPod does not respond to the speaker system.	• iPod may not be docked properly or installed properly. Remove your iPod from the dock and check for obstructions on the connectors in the dock and on your iPod.• Make sure that your iPod is working properly before docking. Please refer to your iPod manual for details.

Specifications

Model LHFiP3010E
Power Supply 230V ~50Hz
Output Power 4.5Watts x 2
Unit Dimension 232 (W) x 125 (D) x 186 (H) mm
Speaker Box Dimension 120 (W) x 80 (D) x 186 (H) mm
N.W.: 2.3 kg
Radio Section
Frequency Range FM 87.5 – 108 Mhz
Compact Disc Section
Optical Pickup 3 - Beam Laser
Frequency Response 100Hz – 16kHz

Specifications and external appearance are subject to change without notice.

NO

Simple line drawing of a front view of a double door with control panel and buttons (no text or symbols)

Hurtigstartsguide (P.N.: 227-0206DN-123)

Hvis elementer mangler eller er skadet, ta kontakt med Partmaster (kun i Storbritannia) Tlf.: 0844 800 3456 for assistanse.

1. LINE IN-kontakt
2. FM-antenne
3. Diskluke
4. LCD-displayvindu

5. Fjernkontrollsensor

6. Heisehull

7. AV/PÅ-bryter
8. ∅retelefon-kontakt
9. Høyttalerterminaler (L/R)
10. Strømledning

Bakside

1. USB-port
2. SD/MMC-minnekortspor
3. ÅPNE/LUKKE-knappen
4. STANDBY/PÅ -knapp
5. STANDBY LED-indikator

6. FUNCTION-knapp

7. TIMER-knapp

8. MENY -knapp
9. VOLUM + / --knapp
10. FORHÅNDSINNSTILLINGER

1. HOPP OVER/STILL INN S∅K OPP -knapp

2. STOPP/MENY -knapp

3. HOPP OVER/ STILL INN S∅K OPP -knapp

4. SPILL/PAUSE/ENTER-knapp
5. iPod-dokkingsstasjon

Fjernkontroll

1. STANDBY/ON -khapp
2. TIMER-knapp
3. DISPLAY-knapp
4. OPEN/CLOSE (ÅPNE/LUKKE)-knappen
5. FUNCTION-knapp
6. MENU (MENY)-knapp
7. Knapp
8. ▶/II/ENTER-knapp
9. SLEEP (DVALE)-knapp
10. SKIP/TUNE SEARCH ◀◀◀◀ (HOPP OVER/STILL INN S∅K)- knapper
11. INTRO-knapp
12. PRESETS ◀▶ (FORHÄNDSINNSTILLINGER) -knapper
13. EQ-knapp
14. REPEAT(GJENTA)-knapp
15. RANDOM (TILFELDIG)-knapp
16. MUTE (DEMP) -knapp
17. VOLUME + / - (VOLUM)-knapper

Line drawing of a finger pressing down on a curved object with an arrow indicating motion (no text or symbols)

Sette batterier i fjernkontrollen

Isometric line drawing of a rectangular electronic device with a circular button and mounting holes (no text or symbols)

Technical line drawing of a remote control device with a circular button and handle (no text or symbols)

1. Sett på batteridekselet.

Technical line drawing of a cabinet or enclosure with control panel and door, no text or symbols present

Denne enheten er kun designet for montering i en vertikal posisjon.

Technical diagram showing a mechanical assembly with two rectangular blocks and a central component, no text or symbols present.

Til stikkontakt

For personlig lytting

Koble til hodetelefoner (∅3,5 mm-stereominiplugg) til øretelefonkontakten. Juster volumkontrollen til ønsket lydnivå.

Simple line drawing of a two-panel kitchen appliance with no text or symbols

Snabbstartguide (Art.nr.: 227-0206DN-123)

1. LINE IN uttag
2. FM-antenn
3. Skivdörr
4. LCD displayfönster

5. Sensor fjärrkontroll

6. Krokhål

7. Strömbrytare PÅ/AV
8. Hörlursuttag
9. Högtalaruttag (V/H)
10. Elkabel

Baksida

1. USB-port
2. SD/MMC minneskortfack
3. ÖPPNA/STÄNG knapp
4. STANDBY/PÅ knapp
5. STANDBY LED Indikator

6. FUNKTIONS knapp

7. TIMER knapp

8. MENU knapp
9. VOLYM + / - knapp
10. FÖRINSTÄLLNINGS- knapp

11. HOPPA ÖVER/ FINJUSTERA SÖKNING NEDÅT knappen

12. STOPP/MENU knapp

13. HOPPA ÖVER/ FINJUSTERA SÖKNING UPPÄT knappen
14. SPELA/PAUS knapp
15. iPod-dockning

Fjärrkontroll

1. STANDBY/ON (PÅ) knapp
2. TIMER knapp
3. DISPLAY knapp
4. OPEN/CLOSE (ÖPPNA/STÄNG) knapp
5. FUNCTIONS (FUNKTIONS) knapp
6. MENU knapp
7. ■ knapp
8. ▶/// ENTER knapp
9. SLEEP (avstängning) knapp
10. SKIP/TUNE SEARCH ◀◀◀ ▶◀◀ (HOPPA ÖVER/SÖK INSTÄLLNING) knapp
11. INTRO knapp
12. PRESETS - ◀▶ (FÖRINSTÄLLNINGS) knapp
13. EQ knapp
14. REPEAT (REPETITONS) knapp
15. RANDOM (SLUMP) knapp
16. MUTE (TYSTA) knapp
17. VOLUME + / - (VOLYM) knapp

Illustration of a finger pressing down on a curved object with an arrow indicating force (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button and arrow indicator (no text or symbols)

Technical line drawing of a remote control device with a circular button and handle (no text or symbols)

1. Stäng batterilocket.

Technical line drawing of a device with labeled components and dimension lines (no text or symbols)

Diagram of a mechanical device with two rectangular blocks connected by an arrow, showing internal components and connection points (no text or symbols)

Till eluttag

Diagram showing a device with a top panel and a bottom panel, no text or symbols present

SE

Simple line drawing of a two-door refrigerator with front and back panels (no text or symbols)

Laite Kaiutin x 2

Kaukosäädin
(Tuotenro: 070-0018DN-01E0)

Line drawing of a finger pressing down on a curved object with an arrow indicating force (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button and arrow indicator (no text or symbols)

Technical line drawing of a remote control device with a circular button and handle (no text or symbols)

1. Sulje paristolokeron kansi.

Pariston käsittely

Technical line drawing of a cabinet or enclosure with control panel and door, shown without any text or symbols

Technical line drawing of a mechanical assembly with two rectangular components and a central component, showing directional arrows (no text or symbols)

Diagram showing a device with a top panel and a bottom panel, no text or symbols present

Simple line drawing of a two-panel kitchen appliance with no text or symbols

Quick-start vejledning
(P.N.: 227-0206DN-123)

Line drawing of a finger pressing a button on a device (no text or symbols)

Isometric line drawing of a rectangular electronic device with a circular button and arrow indicator (no text or symbols)

Technical line drawing of a remote control device with a circular button and handle (no text or symbols)

1. Luk batterirummets dæksel.

Technical line drawing of a device with labeled components and mounting brackets (no text or symbols)

Diagram of a mechanical device with two rectangular blocks and a central component, showing directional arrows (no text or symbols)

Til hovedstik

Diagram showing a device with a top panel and a bottom panel, no text or symbols present

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
- Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
- Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Standby

- The STANDBY/ON button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains adapter from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Class 1 Laser Product

- This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.

• Always remove the disc when the unit is not in use.

• Failure to do so will risk severely damaging the disc and the unit.

- Do not stack devices, heat from other devices may affect the performance of the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

Sikkerhetsadvarsler

NO

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

NO
