USER MANUAL A40 ARCHOS

Package contents. 2
Description of the phone. 3
Assembling. 6
Getting started. 8
3G & WiFi connection. 10
Google account & Contacts. 12
Hints & tips with AndroidTM 14
Troubleshooting. 16

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

Check your product box for the following items:

• ARCHOS 40 Titanium
• Battery
• Headset
• Micro SIM adaptor
• USB cable
• Charger
• Quick start guide
  Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices.

Unapproved accessories may cause your device to malfunction.

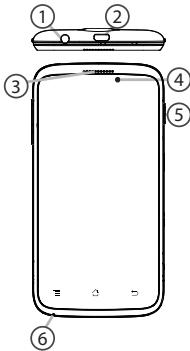

Description of the phone

① Headset jack
② Micro-USB port
③ Loudspeaker
④ Webcam
⑤ ON/OFF button
⑥ Microphone

Description of the phone

⑦ Camera
Volume buttons
⑨ Loudspeaker
10 Flashlight

11Menu
12 Home/Recent apps/Google NOW
13 Back

Menu: open the list of options available on the current screen.

Home/Recent apps/Google NOW: short press to return to the Home screen; double press to open the list of recent applications; long press to access Google Now.

Back: return to the previous screen.

Assembling

Opening

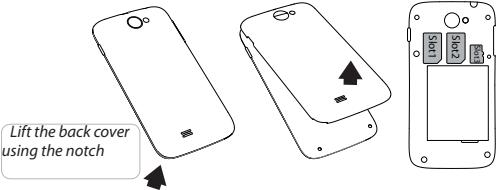

1. Use the notch to remove the back cover.
   Do not bend or twist the back cover excessively. Doing so may damage the cover.
2. Remove the battery.

Inserting SIM cards

For your 3G SIM card, slide it facing downwards in the 2G/3G slot (slot 2). For your standard SIM card, slide it facing downwards in the 2G slot (slot 1).

Inserting a Memory card

Push upwards the memory card slot and lift the cover. Place the Memory card. Close the cover and push it downwards.

Closing

1. Align the battery's 4 contact points with those of the phone and gently press the battery down into place.
2. Replace the back cover clicking it back into position.

Tip:

Before using your device for the first time, charge completely its battery.

Slot1	2G SIM card
Slot2	2G/3G SIM card
Slot3	Memory card up to 64 GB

Getting started

Turn ON

1. Press and hold the ON/OFF button to turn on the device. When you turn on your device, a PIN code may be requested.
2. Type the PIN code supplied with your SIM card.

Beware of typing a wrong PIN code.

1. Select'OK

Turn OFF

To turn off your device, press and hold the ON/OFF button, and then select Power off > OK.

Sound & Notification profiles

1. When the device is turned on, press and hold the ON/OFF button.
2. Select an option.

Tip:

Your device goes in standby mode when you do not use it for a specified period of time. To wake up your device, press the ON/OFF button.

To set the duration, go to Settings > Display > Sleep.

Through the wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Language
• Date & time
  WiFi connection
• Location service options

Touch screen actions:

Tap: touch once to select or launch a menu, option, or application.

Tap and hold: tap an item and hold it for more than 2 seconds.

Drag: tap an item and move it to a new location.

Double-tap: tap an item twice quickly.

Flick: briskly scroll up, down, left, or right to move through lists or screens.

Pinch: place two of your fingers far apart, and then pinch them together.

3G & WiFi connection

3G connection

With your 3G SIM card, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network. When connected to the 3G network, the 3G icon is displayed in the status bar.

Activating the mobile data

To be able to access Internet, the mobile data icon must be activated.

1. Touch and hold the time & battery icons to reveal the status bar.
   2.Pull the blue line down to display the status dashboard.
2. Touch the status dashboard icon
3. Touch the mobile data icon to activate it.

Tip:

When you encounter connection problem's, see the FAQs on www. archos.com or contact your 3G network connection provider.

WiFi connection

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Touch and hold the time & battery icons to reveal the status bar.
   2.Pull the blue line down to display the status dashboard.
2. Touch the status dashboard icon
3. Touch the "Settings" icon to open the settings menu.
4. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
5. Touch "WiFi" to display available networks.
6. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

Google & Contacts

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" >^2 "Accounts">Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen instructions to enter information about the account. Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data are backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".
2. Select your account.

The list of information that can be sync are displayed.
3. Check all information in order to sync them.

You can get them back in case of loss of your device or SIM card.

When your Google account is added to a new device, all your saved information are collected.

Saving your contacts

When your contacts are saved, they are always available on the web and can be synced to any Android phone that's set up with your Google account.

1. Install the SIM card with your contacts in your phone.
2. From a Home or All Apps screen, select the People app
3. Touch the Menu button > "Import/Export".
4. In Import/export contacts, select "Import from SIM card".
5. Select your Google account.
6. Check contacts to be imported and validate.
7. Once the contacts are imported in the Google account, go to "Settings" > "Accounts" > "Google".
8. Select you Google account. Make sure "Contacts" is checked.
9. Select the Menu button, then "Sync now".

Your contacts are saved to via your Google account.

Hints & tips with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Home button

Short press the Home button to go back to the main screen.

Double press the Home button to display all the apps you have opened.

Swipe any app left or right to close it.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch the "All Apps" icon on your home screen. Touch "Widgets" at the top of the screen. From the main Widget screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In "Settings", scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Troubleshooting

My phone is frozen or cannot switch on

Check the battery contacts, remove and reinstall your battery, then turn your phone on. Check the battery power level, charge for at least 20 minutes.

My phone cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

To configure a new 3G network:

On your device, tap Settings.
Select Wireless & networks > More... > Mobile networks.
Select Network settings. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters provided by your 3G provider.

Table des matieres

FR

• ARCHOS 40 Titanium
  -AkkymyTOp
• TapHnType
• Micro SIM aqantrep
• Ka6eJb USB
  -3apndnoe yctpOCTBO
  -KpaTKe pyKOBoDCTBO
• TapaHTnN INHCTpyKUn N 6e3OnaCHOCTN

KOMIOHEtbl, BxOJIaIeB WcOMIIKeT NCTABKn YCTPOrCTBa, IN OCTYHbIe AkeCCSYaBPb MyOT pAaNHaTbCBA T aBcINMOCnT OT perHOHa IIN NocSTaBHa cUyNT. KOMIOHEtbl, BxOJIaIeB WcOMIIKeT K PpNDHa3NaHeBf IIN CNOJb3oBAHnY TOnbKO C dAnHbIM YCTPOrCTBM ON MOryt 7bItb HecOBMeTImbIM cDpyrIMM YCTPOrCTBAMN. IcNoJIb3oBAHnE akCEccyapOB, KOtOpBle He bIyIi pa3peHBe K pIrmMeHENIO C daHHbIM yCTPOrCTBM, MOKET npMBeCTN K eTO HEnICPABHOCTN.

Oncanhe yctpoiCTBa

①TheoDnIrahpNHybpy
② Noprt micro-USB
③ rpoMkoROBOPrntenb
④ Be6-kamepa
5 KHOJKA BKKIOYEHNI BbIKIOYEHMI
⑥ Minkpofoh

RU

Oncanhe yctpoictBa

⑦ Kamepa
KHOHNIpeyIINPOBKNrTPOMOKCTN
⑨romkoBopntenb
10 foHaPikN

11 MeHIO
17 蒲漢鹱的kapan/hoceπihe npinlojexhen/Google Now
13 Hataa

Meho:OTKpbTHe cINnKa cfYHKnI,IOCTyINbIX Ha TeKyIeM 3KpaHe.

IaHbnnk 3KpAn/NoCnEJn HApIOKeHNHaJXMMTe OINn pa3 IInB OBa3BpaT aHa IaHbNk 3KpAn; HaKMHTe JBaKdMn IInIg OTKpbTTH CInNcKa NocLEDHx INIOKeHN. cJeIaTb JInTeBHO HaKMHTe, YTO6b OTKpbTb IpnIOKeHN "Google Now"

Ha3aI: Bo3BpaT K IIpeMbIyIeMy 9KpaHy.

RU

C6opka

OTKpbTne

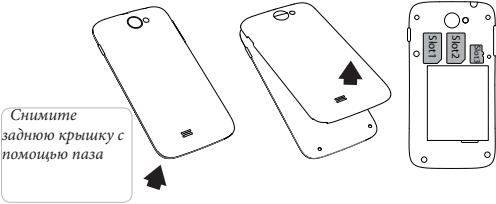

1. CHIMMITE3aHIOIOKpbIiKy
   HeIzHIaJIte I He KcPyUHbIe TKeBxuKU CnLIKOM CINbHO. 3O MoKET PnIBECTN Ke oNpEKeJHIO.
   2.ИЗБЛЕКТЕ6aTapeIO.

BcraBka SIM-kapr

Tó6bby yctahonobt 3G SIM-kapty, BCTaBte ne liuuebov CTOPOHN BHIM B rHe3do 2G/3G (rHe3o2D).
TTo6bIyCTaHOBtBtCtndAPThyO SIM-Kapry, BCTABTe eE nLIEBOv CTOpOHo BHN3B THeZgO 2D (THezgo1.1).

BCTABKa KapTb IIaMaTH

YtObUy 乙TahOBHTb KAPTY naMHTI, HauBbITE Ha THe3do JIra KAPbTI naMHTI b HappanBleHIN BBePx I OTKpoITe KpbIshKy. YctAHOBITE KAPTY naMHTI. 3aKpOITe KpbIshKy I a3dBiHbTe eee BHN3.

3aKpbTne

1. COBECTIVE T4 KOHKI KONTOB KAKOYMIYORA C COBTETBYQIUMI HKOKIMAI H TENEPOHE N OCTOPOXHO HADABITE HA KKKMYRIOT BHN3, YOTb6 3AEBHIVb ETO H A M ECTO.
2. UctahOBITE KpbIuKy akkymyIaTOPa, TaK YTO6bI OHa CO UIeNtKOM CTaHa Ha MeCTO.

Pndka3Kn.

PereqnepBbMnHcnoB3OBaHemycTPOCTBaPONHOCTBOzAPrAte kAKyMMYJITOP.

TeneoH He pearnpyet Ha deIcTBn Wn He BkIOuayeTCA

IIOBepoei KOTAKHTA kAYM/ITROPA, hAENKIEVNI H NIOPTOPH CYAHTOBRE kAYM/ITROP, 3ATEM CHOI ABOO. IIOBEPoei PEOYE BAPDA kAYM/ITROPA, BuONNIE TAPBQY E YEWHEE N MEOHNE 2020

He yadetca noqknoutb tepeoh He moket H cetn, mH oTo6paKaetc coo6eHne No service (Het cet)

Ponitaiytebct y tchatohobt coeDneHn Bpyrom Mecte. PnpoBtey e onpatoa Hn amuHne NopkTbn TceH. PnpoBtey te ponepa, deMeCTBnTeBHa N Maaa SIM-Kapra. Pnoniaytebct BbupabT doCytHyto bct (cTe) bpyuhyo. Pnoniaytebct y tchatohobt coeDneHn no3e, ccnIte bpenykPhxa.

He ydaeTcBbINONHnRbNcXoJaIue Bb13OBbl

Y6eHITcB,HTO TeneoH NOJKNIOUeH K CTeN, HTO CeTb DOCTynHa HnepeperpykeHa.

He ydaetc npHHMaTb BXOJaune Bbl30Bbl

Y68TcBc,TO TEPOEON KIOHNOEN N NOKIOHNOK C cTeN (PiOeBbte, NO cTe bOCTyTHa Hne peRyKePcBc.

3a6JIOKIpOBaH PIN-KoD SIM-KapTbI

06Pubertéctb k onopatry mobiynbou cbraa for nonyuena PUK-ka; (Personal Unblocking Key — nepocharbnb yabaojnpkuyouko kaid).

Hactpoika HOBOI CETN3G

EcnI cyTnTbBO HE tCNOAHOO COENIEHcE C cTIOB NOCTABNACyUcYT CBZM 3G ABTOMATHECNK,
obpNTeHc K NOCTABNACyUcYT CBZM 3G pR OJPOYNHNEPAmAPERETOBPO NKIOHNCHON.
Ha kJepe TcBtBcK oCknteHcN yNKTa Settings (HactoPyrN, BuBepiTe WiLsE & networks > More... Mobile networks (EePCoBPOHBA CBAc b cTc ... DOnOpNHInTeHb... CToE MboBtMbChBn) BuBepiTe Network settings (HctoPocrEt Cb), B pAdzepne Netoworkers (Onepatopu CTe) BuBepiTe Hynhooronepatopra. B pAdzepne Access Point Names (ImMeTa HocNtockDcyta) BuBepiTe pR aBnHbHeMn MMTOK nOCTyNA H BVDIte ToTOhBe Napamptre PNOKIOHNCHEn, PpEOdOCTABNHeBn ToNOCBAtBNOM cYM UCBN CTB 3G.

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings/ About tableLegal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, Inc, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/S/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian

None

Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

SAR

After the laboratory measurement, this mobile phone SAR value is: HEAD: 0.437W/Kg BODY: 0.731W/Kg.
