Compact Fresh 6792 - Food processor OBH NORDICA - Free user manual and instructions

Product Type	Food Processor
Brand	OBH Nordica
Model	Compact Fresh 6792
Power Supply	220-240 V AC, 500 W
Bowl Capacity	1.8 L (max), 1 L (liquids)
Main Functions	Chopping, slicing, grating, blending, mixing
Accessories Included	Steel knife blade, double-sided grating/cutting disc, pusher
Speed Control	2 speeds + pulse function
Safety Features	Interlock (bowl and lid must be correctly positioned); overheat protection; sharp blade warning
Maximum Operation Time	1 minute (with knife blade)
Cleaning	Removable parts dishwasher safe; wipe motor section with damp cloth
Materials	Plastic body, stainless steel blades
Warranty	2 years limited (Sweden, Norway, Denmark, Finland)
Disposal	Separate collection for electrical and electronic equipment

Frequently Asked Questions - Compact Fresh 6792 OBH NORDICA

What is the maximum bowl capacity of the OBH Nordica Compact Fresh 6792?

The maximum bowl capacity is 1.8 litres. For liquid ingredients, the capacity is 1 litre. The measurement scale on the bowl can be used as a guide.

Can I chop hard spices like nutmeg or coffee beans in this food processor?

No, hard spices such as nutmeg, coffee beans, or ice cubes must not be chopped in the food processor as they can damage the knife blade.

Why won't my food processor start?

Ensure the bowl and lid are correctly positioned. The appliance cannot start if they are not properly assembled. Also, if the motor is overheated due to prolonged use or overloading, the overheat protection may have triggered. Unplug and let it cool for at least 30 minutes.

How should I clean the motor section?

Never immerse the motor part in water or any liquid. Use a damp cloth to wipe it clean. All removable parts (bowl, lid, accessories) are dishwasher safe.

What is the maximum operating time when using the steel knife?

The total operation time with the steel knife should not exceed 1 minute. For best results, use the pulse function to avoid over-chopping.

What accessories are included with the Compact Fresh 6792?

The food processor includes a steel knife blade, a double-sided grating/cutting disc, and a pusher. The disc has one side for grating and one for slicing.

Can I use the food processor to mix dough?

The manual does not specifically mention dough mixing. It is designed for chopping, slicing, grating, and blending. For heavy doughs, it is not recommended due to motor limitations.

What should I do if the appliance suddenly stops during use?

This is likely due to the overheat protection activating if the appliance was run for longer than 1 minute or with too much load. Unplug the appliance and allow it to cool for at least half an hour before restarting.

How do I attach the grating/cutting disc?

Choose the desired side (grating or slicing) and attach the disc to the drive shaft in the centre of the bowl with that side facing upwards. Then place the lid on the bowl and turn it clockwise until it clicks.

Is the product covered by a warranty?

Yes, OBH Nordica offers a 2-year limited warranty against manufacturing defects in Sweden, Norway, Denmark, and Finland. The warranty requires a valid proof of purchase and covers repair or replacement at OBH Nordica's discretion.

USER MANUAL Compact Fresh 6792 OBH NORDICA

DESIGNING GOOD LIFE

Food Processor COMPACT FRESH BLACK

Shred, slice and cut in an instant

Making good!

OBH Nordica Denmark A/S

2750 Ballerup

Visiting address: Tempovej 27

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 6792

BEGRENSET GARANTI for OBH Nordica

Garantien

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6792

220-240V vekselstrøm

500 watt

Kapasitet 1,8 liter

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.
4. The appliance must not be immersed into water or other liquids.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. Always pay attention to operate the appliance correct. The appliance should be handled with care, as the knives and the cutting edge of the blades are very sharp! Do not touch the knives or the cutting edge of the blades while they are operating. Be careful when handling the sharp knife and cutting blades, emptying the bowl and during cleaning.

12. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.

13. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.

14. The appliance is for domestic use only.
15. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Wash all removable parts in warm water with a washing-up liquid before use.

NOTE: The blades is extremely sharp and should be handled with extreme care.

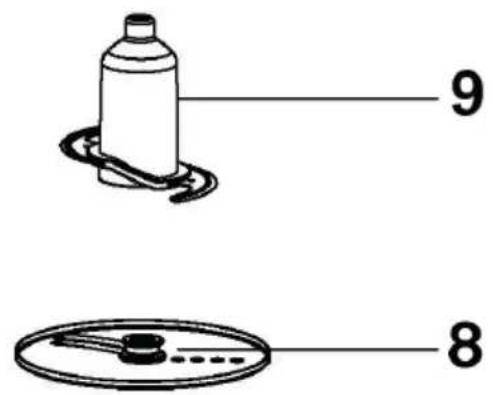

Parts of the appliance (see image page 3)

1. Motor section
2. Drive shaft
3. Bowl
4. Lid
5. Feed tube
6. Pusher
7. Power switch/speed control
8. Double-sided grating/cutting disc
9. Blade

How to use the food processor

The food processor can be used to blend, chop, grate, carve and mix food.

The motor of the food processor drives the cutting blades at high speed to ensure a good and homogeneous result. Consequently, it is important always to place the appliance on an even and dry surface before use.

Make sure that the bowl and lid are correctly positioned on the motor part. If not, the food processor cannot start.

To position the bowl correctly, insert the drive shaft into the hole in the motor section. Put the bowl on the motor part and turn the bowl handle anticlockwise so that the handle points to the right once the bowl is correctly fitted. Mount the wanted accessory to the drive shaft (see section “Mounting of accessories”). Put the lid on the bowl. The plastic rod on the outer side of the

lid shall be to the right of the grip of the bowl. Turn the lid clockwise. The lid has been correctly positioned when you hear a click. Please note that the appliance cannot be started until the bowl and the lid have been correctly positioned.

Always be sure that there are ingredients in the bowl before starting the food processor.

The maximum bowl capacity is 1,8 litre (liquid ingredients 1 l), but when preparing certain foods, the capacity is less – see the section “Quantities and indicative speed”. Use the measurement scale on the bowl as an indication.

Quantities and indicative cooking times

Accessory To be used for: Max. capacity Setting
Knife Chopping	e.g.:Meat Approx. 300 g		Pulse (moment) or 2
Slicing disc Cutting	e.g. vegetables, cheese, potatoes, slicing of fruit		1 or 2
Grating disc Grating	e.g. vegetables, cheese, potatoes, chocolate, fruit		1 or 2

When the bowl and the lid have been correctly positioned, the food processor is ready for use. Check that the speed selector is at position "0" and then plug the appliance in the main supply. Turn the speed selector to the wanted speed for a few seconds. Then turn it back to "0" and see whether you get the result you want. The process is very fast, so do not work too long at a time. Take off the lid by grabbing the hopper and turn counter-clockwise to remove the lid.

Use the function “Pulse” (moment) for short intervals. Keep the contact in that position to make the food processor work. As soon as the button is released, the food processor will stop.

Mounting of accessories

All accessories must be attached to the drive shaft positioned in the centre of the motor section. Then place the bowl over the drive shaft so that it sticks up through the hole in the bowl. Make sure that the bowl is correctly positioned.

Knife (steel) (9)

Please note that the knife is extremely sharp, so please do not touch the blades! Attach the blade to the drive shaft in the centre of the bowl. Put on the lid as previously described. Set the speed selector at "2". The total operation time should not exceed 1 minute.

After use, turn the speed selector back to "0". Remove the blade from the drive shaft by lifting it up. Then remove the bowl from the motor section by turning it clockwise.

Use the "Pulse" function to avoid that the ingredients are too finely chopped.

Normal cooking time is about 30-60 seconds.

The steel knife is used to chop chocolate, cheese, meat, spices, fruit, and vegetables (e.g. onions).

Disc for grating and cutting (8)

Choose if you want to use the grating or slicing side of the disc. Attach it to the drive shaft in the centre of the bowl with your choice of grater or slicer facing upwards. Place the lid on the bowl as described earlier. Set the speed selector at "1" or "2".

The grating and carving disc can be used for cutting potatoes, onions, cucumbers, roots, apples, and carrots etc.

Pusher (6)

Always use the pusher to push firm ingredients into the feed tube. NEVER use your fingers, a spatula or utensils other than the delivered pusher for this purpose. Liquid and small ingredients can advantageously be added via the hopper.

NOTE!

- Hard spices (such as e.g. nutmeg, coffee beans or ice tubes) must not be chopped in the food processor as this might damage the knife.

How to disassemble the appliance

1. Remove the pusher and the feed tube. Turn the lid counter-clockwise, lift it and take it off.
2. Remove the knife, the whisk or the disc.
3. Remove the accessory holder.
4. Turn the bowl clockwise to remove it from the motor part.
5. Remove the driving shaft.

Cleaning and maintenance

Always unplug the appliance before cleaning. The motor part should never be immersed in water or other liquids. Use a damp cloth for cleaning the motor part. All loose parts (bowl, feeder, tube, discs and blades) are dishwasher-proof. Do not use scouring powder or other aggressive detergents as these may scratch or dull the surface.

ATTENTION!

The knife and the cutting blades of the discs are very sharp. So be careful.

Remove any congealed remains after a short soaking with a mild detergent and a soft brush.

IMPORTANT: NEVER IMMERSE THE MOTOR PART INTO ANY KIND OF LIQUID!

Trouble shooting

The appliance does not work: Check	that the food processor has been correctly assembled
	If the appliance is hot because it has been run for longer than one minute and/or with too much in it, the overheat protection may be triggered and the appliance will therefore not start. Unplug the appliance and allow it to cool for at least half an hour before starting it again.
The appliance suddenly stops: If the	appliance is run for longer than one minute, or run with too much in it, the overheat protection may be triggered to protect the motor. Unplug the appliance and allow it to cool for at least half an hour before starting it again.NB! The bowl may come loose if the appliance is run with too much in it.
The motor is running, but the ingredients do not move:	Check that the driving shaft has been correctly mounted.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

OBH Nordica AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com

Technical data

OBH Nordica 6792

220-240 volt AC

500 watt

Capacity 1,8 litres

These instructions are subject to alterations or improvements.
