MUF988SE - Freezer MATSUI - Free user manual and instructions

Brand	Matsui
Model	MUF988SE
Product Type	Upright Freezer
Capacity	98 Liters
Energy Class	E
Annual Energy Consumption	219 kWh
Noise Level	40 dB
Dimensions (H x W x D)	145 x 55 x 60 cm
Weight	38 kg
Power Supply	220-240 V, 50 Hz
Temperature Range	-18°C to -24°C
Control Type	Rotary Thermostat
Defrost System	Manual
Fast Freeze Function	Yes
Interior Light	Yes
Door Alarm	Yes
Lock	Yes (key included)
Number of Drawers/Shelves	3 pull-out drawers, 1 wire shelf
Climate Class	N-ST
Refrigerant	R600a
Compatible Spare Parts	Shelves, door gasket, thermostat, handle

Frequently Asked Questions - MUF988SE MATSUI

How do I install the MUF988SE freezer properly?

Place the freezer on a level, stable surface away from direct sunlight and heat sources. Allow 10 cm clearance around and 30 cm above. Wait 4 hours before plugging in.

What is the ideal temperature setting?

Use the rotary thermostat. For normal freezing, set to medium (around -18°C). For fast freezing, turn to max 2 hours before adding fresh food.

How often should I defrost the freezer?

Defrost when frost build-up reaches 5-10 mm, usually every 6-12 months. Unplug, remove food, leave door open, and wipe melted ice.

How do I clean the freezer?

Unplug and remove contents. Use a mild detergent and warm water. Wipe with a soft cloth. Do not use abrasive cleaners or pour water on controls.

The freezer is making unusual noises – what should I do?

Normal sounds include humming (compressor), gurgling (coolant), and clicks (thermostat). If loud, check leveling, ensure back is clear, and that items inside aren't vibrating.

Why is my freezer not freezing properly?

Check temperature setting, door seal for gaps, ventilation, and overload. If still not cold, the thermostat may need replacement or refrigerant leak – contact service.

How do I use the fast freeze function?

Turn the thermostat to the highest setting (fast freeze position) for 2-4 hours before adding large amounts of fresh food. After 24 hours, return to normal setting.

Can I store hot food in the freezer?

No, let food cool to room temperature first. Storing hot food raises internal temperature, risking spoilage and overworking the compressor.

What is the door alarm for?

If the door is left open for more than 60 seconds, an alarm sounds to prevent temperature rise and energy waste. Close the door firmly to stop it.

How can I save energy with this freezer?

Keep the freezer full but not overstuffed. Defrost regularly. Ensure door seals are clean. Allow space for ventilation. Set temperature to -18°C (not lower).

USER MANUAL MUF988SE MATSUI

White rectangular refrigerator inside a circular frame, no visible text or symbols on the device.

Contents

GB

Introduction your New Freezer....4

— Before Use .... 4

Install your New Freezer 4

• Location....4
  — Reversing the Door Swing .... 5
  — Levelling the Undercounter Larder 6
  — Cleaning Before Use....6

Getting Started 7

• Switching on your Freezer 7
• Adjusting the Temperature....7
  — Fast Freezing....7
  — Noises inside the Freezer! 7
  — Shopping for frozen foods....8
  — Preparations for Freezing....8
  — Thawing frozen food....9

Cleaning....10

• Defrosting 10
• Cleaning Inside the Freezer.... 10
  — Cleaning of the Outside of the Freezer 10
• Cleaning Tips .... 10

Maintenance....11

Disposal 11
Specification 12
Safety Warnings 49

Innehåll

SE

Introduktion till din nya frys....22

Introduction your New Freezer

Before Use

Please read these instructions carefully before using your new Matsui Freezer. The freezer is for indoor, domestic use only

Install your New Freezer

Location

When selecting a position for your Freezer you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your Freezer near a heat source, eg. cooker, boiler or radiator. Also avoid direct sunlight as it may affect the acrylic coating and increase the electrical consumption. Extreme cold ambient temperatures may also cause the appliance not to perform properly. This Freezer is not designed for use in a garage or outdoor installation. Do not drape the Freezer with any covering. When installing, ensure that 2cm (3/4") of free space is left at the sides. The Freezer door can open to the right or the left, depending on what better suits the location. If you want to have the door swing reversed, we recommend you to contact the Service Centre or a qualified technician to assist you. You should only try to reverse the door yourself if you believe that you are qualified to do so.

• Take the door off as it is necessary to tilt the Freezer backward. You should rest the freezer on something solid so that it will not slip during the door change process. DO NOT lay the Freezer flat as this may damage the coolant system.

- Ensure the Freezer is unplugged and empty.

• We recommend that 2 people handle the Freezer during assembly.

Reversing the Door Swing

To change the opening direction yourself, please follow these instructions:

1. Tilt the unit carefully. 2 people are required to tilt the unit during the door reversing process.

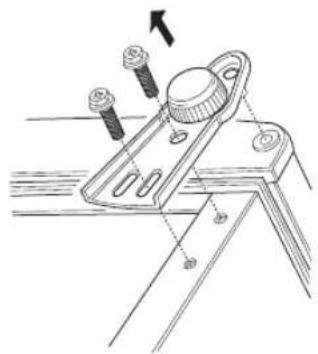

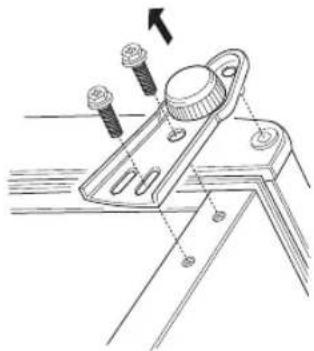

2. Remove the screws and hinge bracket from the base.
3. Slide the door down and remove away from the unit.

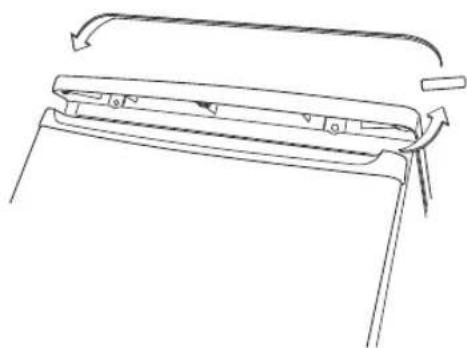

4. Remove the top hinge pin inside the door and refit on the opposite side.
5. Slide the door back on to the top hinge. Screw the bottom hinge into place on the new side.

Two workers exchanging a large cardboard box, no text or symbols present

Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)

Line drawing of a folded paper or sheet with two downward arrows indicating compression or dislocation (no text or symbols)

Line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)

1. Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet.

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal Spanner

Cleaning Before Use

Wipe the inside of the Freezer with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelf in warm soapy water and dry completely before replacing in the fridge. Clean the exterior of the fridge with a damp cloth.

If you require more information refer to the CLEANING section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the fridge.

• Before Switching On!

Do not switch on until two hours after moving the Freezer. The coolant fluid needs time to settle.

Getting Started

Switching on your Freezer

1. Before connecting the freezer to the mains supply make sure that the thermostat control dial is set at position in the MIN, of which MIN is Off.
2. Turn the thermostat knob clockwise to set it to the desired position. Please note that the coldest temperature is SUPER.
3. To ensure the Freezer is cool enough to sufficiently freeze your food wait 24 hours before filling with food.

GB

Adjusting the Temperature

The internal temperature of your Freezer is controlled by a thermostat. SUPER position makes the freezer coldest and it is used for Fast Freezing. The recommended position is between MIN and MAX, but it should be adjusted according to the environment. The appliance may not operate correctly if it is in a particularly hot or cold room or if the door is opened often or for prolonged periods.

Fast Freezing

Fresh food should be frozen as quickly as possible. Setting SUPER makes your freezer operate the coldest (approximately -28°C) continuously. It helps to quickly freeze and retain more of the goodness of your food. Freezing will be completed after 24 hours. Then turn the thermostat control dial back to NORMAL (-18°C). Never freeze large quantities of fresh food at one time.

Noises inside the Freezer!

If you have not owned an Freezer before, you may notice that it makes some rather unusual noises. Most of these are perfectly normal, but you should be aware of them!

Gurgling, whooshing

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your Freezer.

Humming, purring or pulsating

This is the compressor motor working, as it pumps the refrigerant around the system.

Shopping for frozen foods

• Your freezer is 4-star.
• When you are buying frozen food, check the storage guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4-star rating. This is usually the period stated as "Best before" on the front of the packaging. The maximum freezing capacity of this reezer is 4kg in 24 hours.
• Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18°C.
  • Take a quick look at the frozen food package and make sure it is in perfect condition.
  • Always buy frozen products last on your shopping trip or visit to the supermarket. Try to keep frozen food together whilst shopping and on the journey home as this will help to keep the food cold.
• Don't buy frozen food unless you can freeze it straight away. Specially insulated bags can be bought from most supermarkets and hardware shops. These bags can keep frozen food frozen longer.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to thaw and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food in a fridge before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, nor used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.
• Leave a small amount of air space when freezing liquids to allow expansion.
• You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.
• Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.
• You may also add the weight and cooking notes, e.g. "thaw first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Illustration of a hand pouring liquid from a container into a container with a lid (no text or symbols)

Thawing frozen food

1. Take out from the freezer and uncover the frozen food. Let it thaw at room temperature. Don't forget that thawing in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during thawing.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food is not fully thawed.
4. Cook food as soon as possible after thawing.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

• Never refreeze anything that has been thawed out unless you cook it again, to kill off harmful bacteria. Never re-freeze thawed shellfish.
• Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Cleaning

Defrosting

Frost will build up in the Freezer after the unit has been used for a period of time. Scrape away the frost using a plastic scraper.

Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting.

Approximately once per year or when the frost layer exceeds 5cm (2"), defrosting should be carried out. Choose a time when the stock of frozen food is low and proceed the following:

1. Take out the frozen food, turn the freezer off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer or refrigerator. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick rug or blanket to keep it cool.

2. Place a shallow bowl or pan below the freezer. Scrap away the frost using the plastic scraper. Thawing of the remainder can be speeded up by placing a bowl of hot water inside the freezer cabinet and closing the door. As the solid frost loosens, scrap it away with the plastic scraper and remove.

Simple illustration of a gray spatula with a handle and spout (no text or symbols)

1. When defrosting is complete, clean your freezer's interior and exterior.

Cleaning Inside the Freezer

You should clean the freezer internally with a weak solution of bicarbonate of soda. Then rinse it with warm water using a 'wrung-out' sponge or cloth.

Wipe the freezer dry before replacing the basket. Plug in and switch on the mains supply.

Cleaning of the Outside of the Freezer

Use standard furniture polish to clean the freezer exterior. Make sure that the door is closed, to prevent polish getting on the magnetic door seal or inside the cabinet.

Cleaning Tips

Defrost when food stocks are low.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the larder fridge.

Maintenance

Moving your Undercounter Freezer

Care when handling

Hold the Freezer around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Location

Do not locate your Freezer near a heat source, eg. cooker boiler or radiator. Also avoid direct sunlight in outbuildings or sun lounges.

Leveling the Undercounter Freezer

Make sure that the Undercounter Freezer is level. Use the adjustable levelling feet at the front. If the Freezer is not level, the doors and magnetic seal alignments will be affected.

Do not turn on the Undercounter Freezer for 2 Hours

After the Freezer is in place, it needs to be left for 2 hours. The coolant fluid needs time to settle.

Installation

Don't cover or block the vents or grilles of your freezer.

Servicing

Repairs and maintenance of the appliance should only be performed by an authorized, qualified technician.

Disposal

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your appliance and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. Up to date information concerning the disposal of your old appliance and packaging from the new one can be obtained from your local council office.

If disposing of an old Freezer break off any old locks or latches as a safeguard.

Specification

GB

Rated voltage (V): 230
Rated frequency (Hz): 50
Input Current (A): 0.7
Freezer Volume 79
Net Capacity (liters):
(Cubic Feet) 2.8
Weight (kg): 32
Product Dimension (W x D x H) mm 845 x 545 x 570 mm
Refrigerant (weight) 40g
Household Appliances Category Category 8 (upright freezer)
Energy Efficiency Class A
EU Ecolabel N/A
Energy consumption 223 kwh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Frost Free N/A
Temperature Rise Time	>16.5 hours
Freezing Capacity 4kg/24hr
Climate Class	N
This appliance is intended to be used at an ambient temperature between 16°C and 32°C.
Airborne Acoustical Noise	40dB
Built In	N/A

Features and Specification are subject to change without prior notice.

Two workers exchanging a large cardboard box, depicted in line drawing style (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)

Line drawing of a single refrigerator with lid and frontrest (no text or symbols)

Nødvendige verktøy: Phillips skrutrekker / Flat skrutrekker / Sekskantet skrunøkkel

Rengjøring før bruk

During, summing eller vibrering

Illustration of a hand pouring liquid from a container into a container with a small object inside (no text or symbols)

Tine frossenmat

Simple illustration of a spatula with a handle and circular end (no text or symbols)

Line drawing of a single refrigerator with lid and frontrest (no text or symbols)

Illustration of a hand pouring liquid from a container into a container (no text or symbols)

Simple illustration of a spatula with handle and screwdriver (no text or symbols)

Rengöring inuti frysen

Two workers exchanging a large cardboard box, no text or symbols present

Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Illustration of a hand pouring liquid from a container into a container with a magnified view (no text or symbols)

Pakasteiden sulatus

Simple illustration of a spatula with handle and spout (no text or symbols)

Two workers in uniform pulling a large cardboard box (no text or symbols visible)

Technical line drawing of a mechanical clamp or bracket assembly with screws and a central knob (no text or symbols)

Line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with two screws and a central knob (no text or symbols)

Line drawing of a simple refrigerator with lid and frontrest (no text or symbols)

Illustration of a hand pouring liquid from a container into a container (no text or symbols)

Illustration of a kitchen spatula with handle and slotted blade (no text or symbols)

• Do not use electrical appliances such as a hair dryer or heater to defrost your freezer.
• Do not store inflammable gases or liquids inside your freezerl.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Säkerhet

SE

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

NO
