VC 020O - Vacuum Cleaner HYUNDAI - Free user manual and instructions

Product Type	Vacuum Cleaner (Cylinder/Canister)
Brand	Hyundai
Model	VC 020O
Dimensions (L x W x H)	250 x 250 x 400 mm
Weight	4.5 kg
Power Supply	220-240 V ~ 50/60 Hz, 2000 W
Cord Length	6 m
Dust Capacity	2.0 L (bagged)
Filtration System	HEPA 13 filter + motor protection filter
Suction Power Control	Yes, electronic slider on handle
Main Functions	Dry vacuuming, adjustable suction, automatic cord rewind, dust bag full indicator
Included Accessories	Combination floor nozzle, crevice nozzle, upholstery brush
Noise Level	78 dB(A)
Maintenance	Change dust bag when full; clean HEPA filter every 3 months; wash motor protection filter if necessary
Safety Features	Overheat protection, automatic shut-off when overfilled, dust bag missing prevent start
Spare Parts Availability	HEPA filter, dust bags (type HY-VC-20), motor filter
Repairability Index	6.5 / 10 (user-replaceable parts: bag, filters, brush roll)
Certifications	CE, RoHS
Color	Black with red accents
Warranty	2 years

Frequently Asked Questions - VC 020O HYUNDAI

How do I change the dust bag on the Hyundai VC 020O?

Open the bag compartment lid, remove the full bag by pulling the cardboard tab, and dispose of it. Insert a new bag (type HY-VC-20) until it clicks. Close the lid securely.

What should I do if the suction power drops?

Check if the dust bag is full or the filters are clogged. Empty/replace the bag and clean the HEPA filter by tapping it gently. Also ensure the hose and nozzle are not blocked.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3 months. Remove it from the vacuum, tap off loose dust, or rinse with water (let dry completely for 24 hours before reinserting). Replace every 6-12 months.

Why does my vacuum cleaner turn off automatically?

The vacuum has overheat protection. It may shut off if the motor overheats due to a blocked hose or full bag. Unplug, let it cool for 30 minutes, and remove any blockages. It will restart automatically.

Can I use the Hyundai VC 020O on hardwood floors?

Yes, the included combination floor nozzle has a brush setting suitable for hardwood. Slide the switch on the nozzle to expose the bristles to avoid scratching.

How do I rewind the power cord?

Press the cord rewind button located on the top of the vacuum. Guide the cord gently with your hand to avoid whipping. Do not let the plug snap against the unit.

What is the noise level of this vacuum?

The Hyundai VC 020O operates at approximately 78 dB(A), which is average for a canister vacuum. Use ear protection if you are sensitive to noise.

Where can I buy replacement dust bags?

Replacement dust bags (type HY-VC-20) are available online (e.g., Amazon, official Hyundai parts stores) or at major home appliance retailers. Check the model number to ensure compatibility.

The cord does not retract fully. What should I do?

Ensure the cord is not twisted or kinked. Pull out a few meters and try rewinding again. If the issue persists, the rewind mechanism may be damaged; contact customer service.

How do I clean the motor protection filter?

The motor protection filter is located behind the dust bag. Remove it and wash it under lukewarm water. Let it dry completely before reinstalling. Replace if torn or after 1 year.

USER MANUAL VC 020O HYUNDAI

Exterior view of a modern vacuum cleaner (no text or symbols visible)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ / NAVODILA ZA UPORABO

STOJATÝ VYSAVAČ, 2 V 1 / STOJATÝ VYSÁVAČ, 2 V 1 ODKURZACZ STOJĄCY, 2 W 1 / STICK VACUUM CLEANER, 2-IN-1 ÁLLÓ PORSZÍVÓ, 2 AZ 1-BEN / POKONČNI BATERIJSKI SESALNIK

CE

Sequence of three-step mechanical assembly process showing a component being inserted into a base, with arrows indicating the process flow (no text or symbols present)

Technical line drawing of a mechanical device with labeled component B, showing internal components and directional arrows (no text or symbols beyond labels)

Line drawing of a container being extruded into a lid, with arrows indicating the process (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Three-step black-and-white photo sequence showing a mechanical component before and after assembly, with no visible text or symbols.

Technical line drawing of a mechanical component with labeled part B, showing cross-sectional and exploded views (no text or symbols present)

Illustration of a container being extruded into a lid, showing internal structure and disposal (no text or symbols)

Three-step black-and-white photo sequence showing a mechanical component before and after assembly, with arrows indicating the process (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (B and an arrow indicating rotation), no readable text or symbols present.

Illustration of a bottle being poured into a container with an arrow indicating the process (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

GENERAL SAFETY INSTRUCTIONS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
• Do not leave the appliance plugged in power supply without supervision!
• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged and it is leaking. In this case take the appliance to a special service to check its safety and proper function.
• The appliance is designed exclusively for private use and for the envisaged purpose.
  • This appliance is not fit for commercial use.
• Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Pay careful attention to the following "Special Safety Instructions for this unit".

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

• Check before operation that the local power supply is the same as the specifications on the rating label.
• Don't let children play with this machine.
• Please unplug the cleaner from the supply before cleaning it.

• Don't used in excess convention, operation farina place (example cement, plaster). Otherwise it is will reduced useful life. Even damage vakuum cleaner.

• Do not suck up red hot ashes, glowing cigarette ends or matches, sharp objects, glass splinters.

• Do not suck up liquids!
• Never use this machine when the suction power becomes very weak. When this happens, please check if the dust box is full.
  • Fully assemble cleaner before operating
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
  • Turn off all controls before unplugging.
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.
• Keep openings away from your face and body.
  • Use extra care when cleaning on stairs.
• Do not immerse the hand vacuum into water or other liquids.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
  • Use only on dry, indoor surfaces.
• Do not use without filters in place.
• Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
• Do not use the cleaner to clean your pets or any animal.
• Do not use for any purpose other than described in this user's guide.

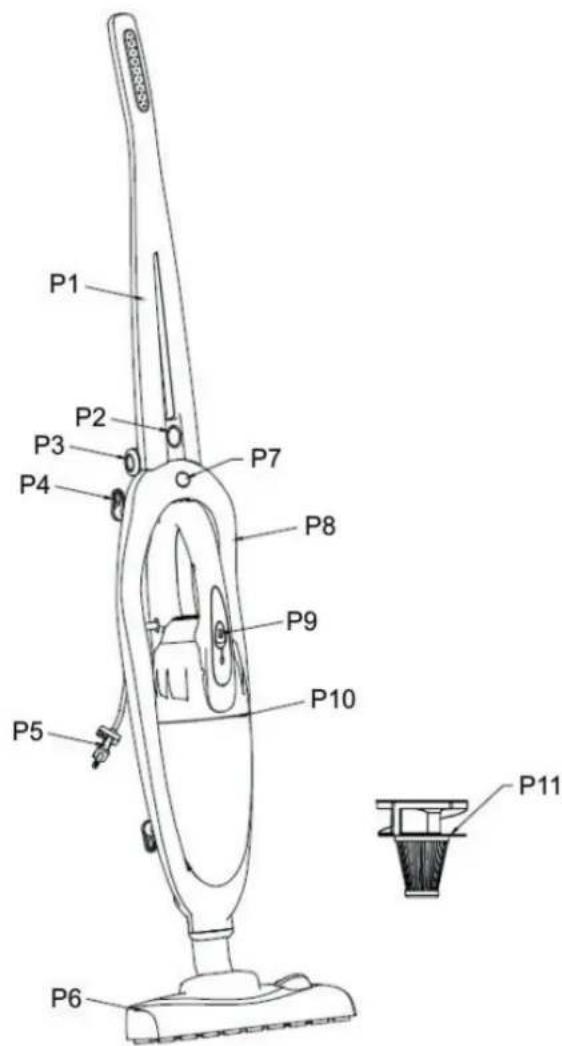

DESCRIPTION OF THE CONTROLS

P1 Upper handle
P2 Handle folding button
P3 Handle foldable axis
P4 Buckle for cord
P5 Power cord
P6 Brush assembly
P7 Release button
P8 Main body
P9 Handy Vacuum cleaner switch
P10 Handy Vacuum cleaner
P11 HEPA filter

UNPACKING AND ASSEMBLY

Check that all the parts in the box.

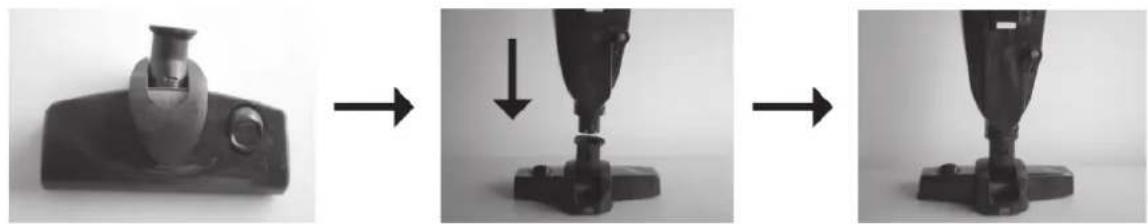

1. Fit the brush by carefully inserting it into the vacuum compartment.

Three-step black-and-white photo sequence showing a mechanical component before and after assembly, with no visible text or symbols.

1. Position the charging station close to a mains socket (well away from heat sources or wet places). Insert the adaptor into the mains socket and connect the charging station.

VACUUMING FLOORS AND CARPETS

You should regularly check that the brush are clean in order to avoid scratching sensitive floors. Start the device by pushing the on/off button away from you.

VACUUMING TABLES, FURNITURE, CAR SEATS ETC.

Remove the hand unit by pressing in the release buttons.

EMPTYING/CLEANING

Careful cleaning of the dust container and filters

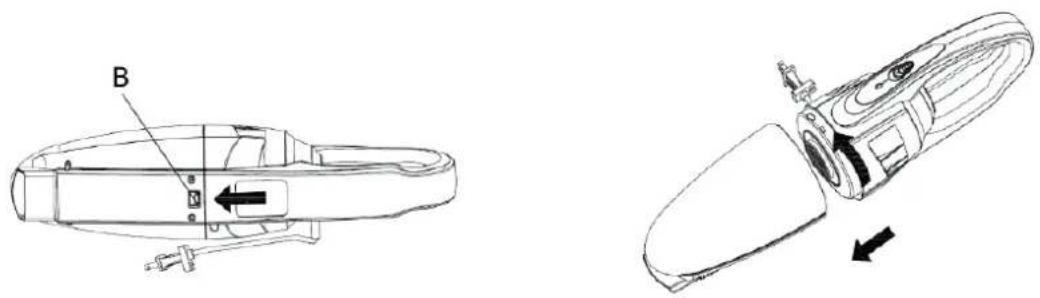

1. Remove the whole dust container by pressing the release button and turning the dust container off.

Technical line drawings of a mechanical device with labeled component B, showing internal components and directional arrows (no text or symbols beyond labels)

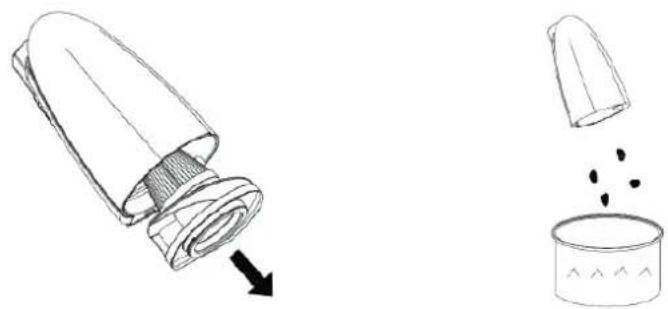

1. Pulling out the filters and emptying the contents of the dust container into a suitable vessel or bag. (The filter can be shaken clean or cleaned and rinsed using warm water. Make sure that the parts are dry before they are assembled.)

Illustration of a bottle being poured into a container with scattered seeds (no text or symbols)

1. Re-install the components

Firstly Re-install the filter after the filter baffle plate in the dust container. Place to match up with the both ventilation positions. Secondly assembling the dust container following up the opposite procedures when detaching the dust container.

Cleaning the brush

If the brush becomes blocked or jammed for any reason, the vacuum will be lower down. The brush may then need to be cleaned. First turn off the device, and then carefully use a pair of scissors or a sharp knife to remove any items such as threads that may have become entangled.

Cleaning of wheel axles

If a wheel is jammed by threads or dirt:

Remove the wheels by carefully prizing them loose using a screwdriver inserted into the cavity. Remove threads or any other objects that may have become jammed in the wheels axles. Reassemble the wheels by pressing them tightly together.

TECHNICAL SPECIFICATIONS

• Stick vacuum cleaner
  • 2-in-1 stick vacuum cleaner
• Usage as hand vacuum cleaner or stick vacuum cleaner - electric sweeper
• Extra strong suction power
• Bagless vacuuming – includes permanent HEPA filter
  • Capacity of dust container: 0,5 l
• Parking position
• Foldable handle for easy storage
• Cord lenght 7 m
  • Color: blue-silver (020 B), silver-orange (020 O)
  • Power supply: 230 V \~ 50 Hz
  • Size: 25,5 x 114 x 15 cm

Input in off mode is 0.00 W.

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

Three-step black-and-white photo sequence showing a device being adjusted, with no visible text or symbols.

Technical line drawing of a mechanical component with labeled parts (A, B) and directional arrows indicating movement or assembly (no text or symbols beyond labels)

Illustration of a bottle being poured into a container with scattered seeds (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Three-step sequence showing a mechanical component being processed, with arrows indicating the process (no text or symbols present)

Technical line drawing of a mechanical device with labeled component B, showing internal components and directional arrows (no text or symbols beyond labels)

Line drawing of a container being inserted into a lid, with an arrow indicating the process (no text or symbols present)

1. Ponovno sestavite vse komponente. Najprej v posodico vstavite nastavek za filter nato filter. Vstavite tako da se ustrezno prilega ventilacijskim.

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

Licensed by Hyundai Corporation, Korea.
