Product Type	Digital Outdoor Antenna (DVB-T)
Brand	Zehnder
Model	AS 07
Frequency Range	VHF 47–230 MHz (Channels 2–12); UHF 470–890 MHz (Channels 21–69)
Amplifier Gain	20 ±3 dB
Power Supply (with adapter)	9V DC / 100 mA
Power Supply (via DVB-T receiver)	5V DC / 50 mA
Power Adapter Input	AC 230V / 50Hz
Dimensions (L x H x W)	112 x 210 x 60 mm
Maximum Mast Diameter	35 mm
Installation Methods	Wall-mounted, pole-mounted, multi-directional adjustable
Housing Protection	Water-proof and UV-resistant
Directionality	High directionality with tunable mechanism
Amplifier Technology	Low noise amplifier
Package Contents	Main unit, multi-directional base, wall mounting package (4 plastic poles, 4 screws), pole mounting kit (2 U-bolts, 4 butterfly washers), power inserter, AC adapter, IEC-to-F coaxial cable, manual
Connector Type (Antenna)	F-female
Connector Type (Receiver)	IEC male
Water-Drop Loop	Recommended for outdoor installations
Disposal	Not household waste; dispose at designated collection points according to EU Directive 2002/96/EC

Frequently Asked Questions - AS 07 ZEHNDER

What is the Zehnder AS 07 antenna used for?

The Zehnder AS 07 is a digital outdoor antenna designed for receiving digital terrestrial television (DVB-T) signals in the VHF and UHF bands.

Can I install the antenna indoors or outdoors?

Yes, the AS 07 can be installed both indoors and outdoors. For outdoor installation, ensure proper water-proofing and use a water-drop loop on the cable before entering your home.

What are the mounting options for this antenna?

The antenna supports wall-mounted and pole-mounted installations. It comes with a multi-directional base allowing you to adjust the direction for optimal reception.

How do I power the antenna?

The antenna can be powered in two ways: via the DVB-T receiver or TV (5V DC/50 mA output) or using the supplied AC adapter (9V DC/100 mA) with the power inserter.

What frequency range does the AS 07 cover?

It covers VHF 47–230 MHz (channels 2–12) and UHF 470–890 MHz (channels 21–69), making it suitable for most terrestrial broadcasts.

How do I improve reception if the signal quality is poor?

Adjust the antenna orientation using the multi-directional base while checking the signal strength and quality on your Set Top Box. Install the antenna as high as possible and away from sources of interference like air conditioners or microwave ovens.

What is included in the package?

The package includes the main unit, multi-directional base, wall mounting hardware (plastic poles, screws), pole mounting kit (U-bolts, washers), power inserter, AC adapter, coaxial cable, and the manual.

Can I use my own coaxial cable?

Yes, you can use any standard coaxial cable with F-type connectors for the antenna side and IEC connectors for the receiver side. Ensure all connections are tight and weatherproofed for outdoor use.

How do I dispose of the antenna at the end of its life?

Do not dispose of it with household waste. According to the EU WEEE Directive, take it to a designated public collection point for proper recycling.

What is the amplifier gain of the AS 07?

The integrated low-noise amplifier provides a gain of 20 ±3 dB, ensuring strong signal amplification for distant or weak signals.

USER MANUAL AS 07 ZEHNDER

DVB-T Outdoor Antenne

MODELL: AS 07

Line drawing of a cylindrical device with a flanged base and mounting bracket (no text or symbols)

Verwendungszweck

Diagram showing two views of a device with directional arrows indicating movement or force (no text or symbols present)

Mastmontage:

Diagram showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

Powering by Power Inserter

DVB-T Outdoor Antenna

MODEL: AS 07

Thanks for your purchasing this AS 07 Digital Outdoor Antenna.

Before your installation,

Please read this manual carefully and keep this manual for further information.

Line drawing of a cylindrical device with a flanged base and mounting bracket (no text or symbols)

INTRODUCTION

AS 07 is a special designed for digital terrestrial broadcasting reception. With state-of-art low noise amplifier technology and circuitry, it will provide best reception. And compact and stylish housing, it can be accompany with your digital STB.

With UV protected housing and water-proof sealing, AS 07 series antenna can be installed on your wall, window-shelter and with bundle pole fixing kit, you can put AS 07 series on the wooden or metal pole. With special multi-directional tunable mechanism, you can turn your antenna to any direction to get the best reception

Feature:

• Compact and Stylish design
  ● different installations method, wall-mounted or pole-mounted installation
• UHF 470\~890MHz
  ● VHF 47\~230MHz
  Gain 20dB
  ● Low noise amplifier technology
  ● High Directionality
  ● Water-proof and anti-UV housing

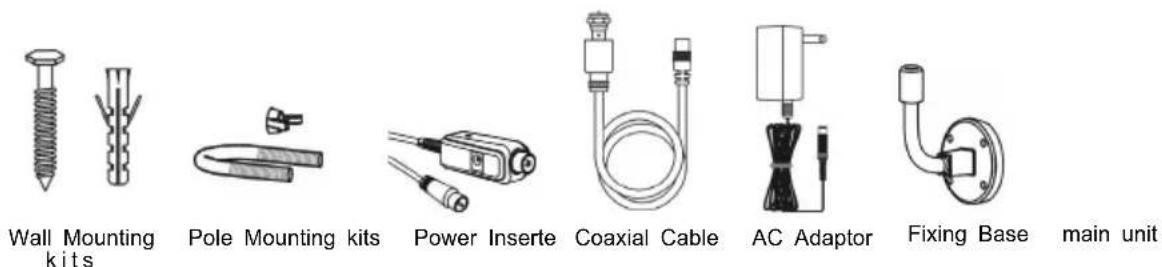

PACKAGE CONTENT

Please check the content before your installation

1. AS 07 main unit
2. Mutli-directional base
3. Wall mounting package(plastic poleX4, screw X4)
4. Pole Mounting kits( U type screws X2, butterfly type washer X4)
5. Powerinserter
6. AC Adaptor X1
7. IEC male to F female coaxial cable X1
8. Operational Manual

INSTALLATION

Notice:

For the best reception, Please check the following conditions

1. Far away the source of interference: Far away those big power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven. Etc
2. Installed As high as possible: In case of digital terrestrial reception, if there are some interceptions between Antenna and transmission tower, it will cause the signal loss temporary. So if the antenna is installed as high as possible, those interceptions will be reduced.

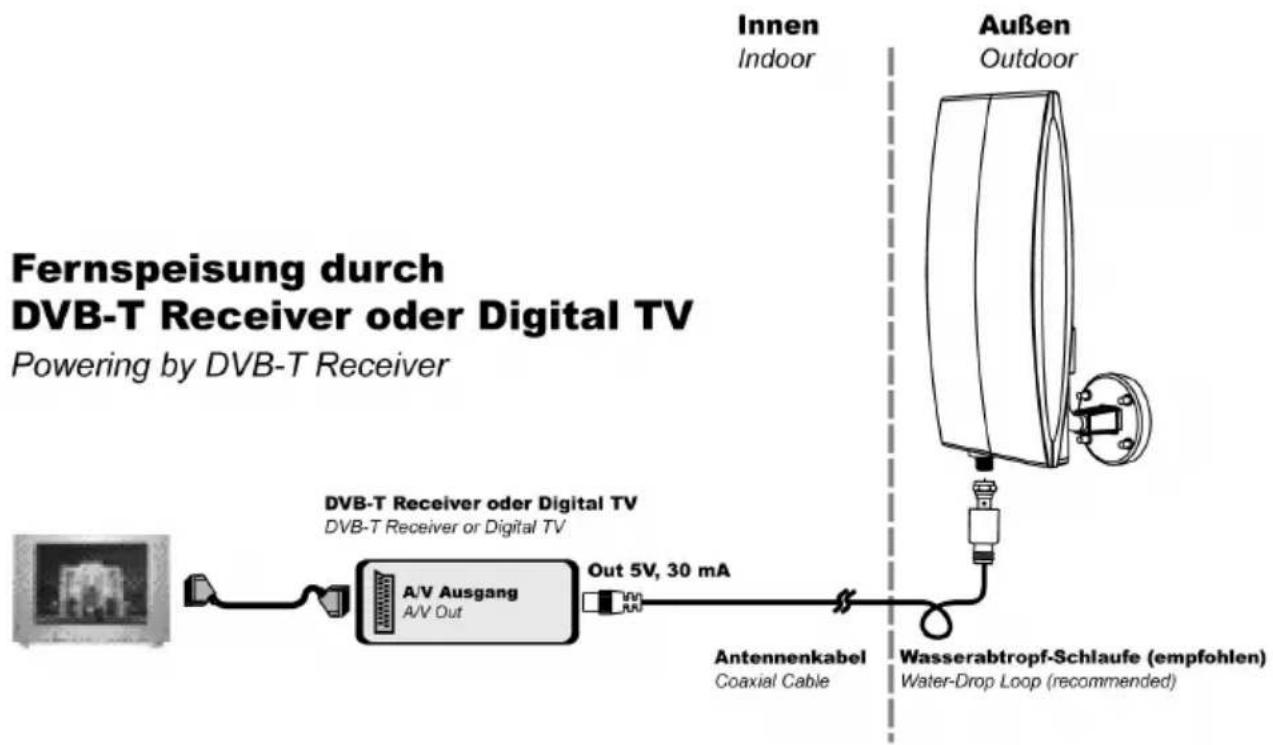

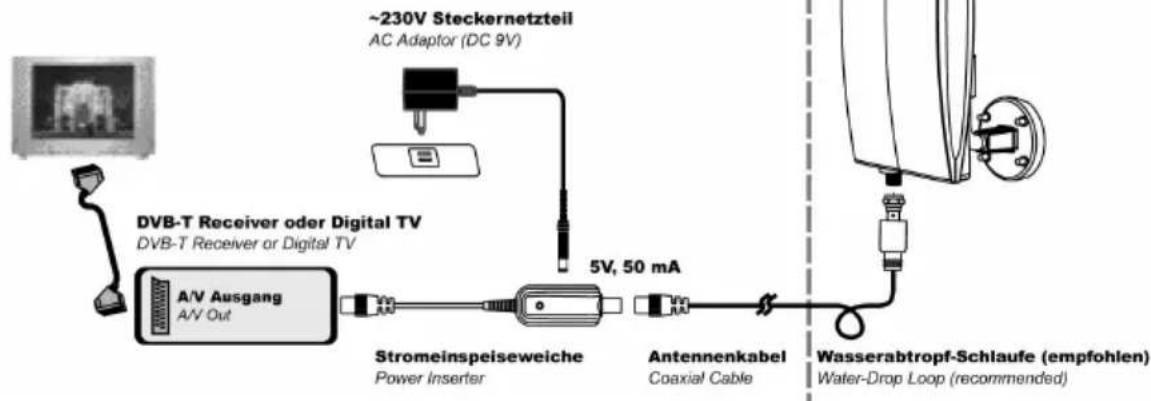

Powering by Power Inserter

The normal installation is like the above

Condition 1: Powering the Antenna by STB or Digital TV

Step 1. Take out the main unit AS 07

Step 2. Take out the multi-directional base. Fixed it on the wooden pole or at a wall (as figure, please check the follow paragraph for information)

Step 3. fix the main unit to the multi-directional base

Step 4. Take the Coaxial(IEC male to F female) Cable connect the IEC Male end to the IEC Female End of your Set Top Box or TV Set and F female the F-Female End of the AS 07.

Please note: all the connection should be fixed. It is recommended that you should had a water-drop loop at the end of cable before entering your home.)

Step 5Adjust the orientation of AS 07. (Normally speaking, the signal is horizontal direction.)

Condition 2:

Powering the antenna by AC adaptor( in cases that there is no DC power out from the STB or Digital TV, you need to do this installation)

Tips for correct Antenna Adjustment

When you finished the installation, you can use your Set Top Box to check the signal strength and quality. If the quality is not good enough to have good picture, you can move the antenna to get the best reception position, when you find the best position, please fixed it. If not, you can change the reception direction by adjust the main unit

Indoor /Outdoor Wall Mounted installation

If you want to hook this unit onto a brick wall or RC wall, please follow the steps bellow

Before the following step, please make sure that you have enough protection when you try to drill on the wall.

Step 1. Mark the fixing position with pencil or another pen( please use the multi-directional base to mark the position)

Diagram showing a device before and after assembly, with no text or symbols present.

Step 2. Take the electric drill, using 5.8mm drill bit( please note , when you use the electric drill, you should better to wear the protection device. And the drill bit should be fixed, otherwise there will be a serious injuring happened when the bit is broken or loose). Drill the depth to 35mm. Then clean the hole.

Please note, if you want to install On a wooden wall, you don't need to drill holes before!

Step 3. Take out the plastic pole, using hammer to ham it into the hole made by step1

Step 4. Take out the screws attached, using screw driver to fix these screws through the base and fix it on the wall.

Step 5. Fix the main unit on the multi-directional base

Step 6. Take the Coaxial(IEC male to IEC female) Cable connect the IEC Male end to the IEC Female End of your Set Top Box or TV Set and IEC female to "Receiver" on power inserter. Take another coaxial (F male to IEC male) cable, connect the F-male End to the F-Female End of the AS 07 and IEC male to "Antenna" on Power inserter. Please note: all the connection should be fixed. It is recommended that you should had a water-drop loop at the end of cable before entering your home. (if your installation is outdoor)

Step 7. Take out the AC-DC Adaptor, connect the barrel end to the DC input of Power inserter, AC end to the AC Outlet. Please note use only supplied AC adaptor

Step 8. Adjust the orientation of AS 07. (Normally speaking, the signal is horizontal direction.)

Pole Mounted application

Step 1. Take a wooden pole or metallic pole

Step 2. Take the pole mounting kits

Step 3. Hooks 2 U type screws on the pole. Take the multi-directional base through screws. Fixed 4 butterfly type washers and fixed them.

Step 4. Fix the main unit on the multi-directional base

Step 5. Take the Coaxial(IEC male to IEC female) Cable connect the IEC Male end to the IEC Female End of your Set Top Box or TV Set and IEC

female to "Receiver" on power inserter. Take another coaxial (F male to IEC male) cable, connect the F-male End to the F-Female End of the AS 07 and IEC male to "Antenna" on Power inserter. Please note: all the connection should be fixed. It is recommended that you should had a water-drop loop at the end of cable before entering your home.) (if your installation is outdoor)

Step 6. Take out the AC-DC Adaptor, connect the barrel end to the DC input of Power inserter, AC end to the AC Outlet. Please note use only supplied AC adaptor

Step 7. Adjust the orientation of AS 07.

(Normally speaking, the signal is horizontal direction.)

Specifications:

Frequency Range	VHF 47~230MHz, Channel 02~12, UHF 470~890MHz, CH 21~69
Amplifier Gain 20 ±3 dB
Power supply 9V DC/100mA	A, with power adaptor5V DC/50mA, with DVB-T receiver
Power Adaptor AC ~230V/50Hz; DC 9V/100mA
Size: L x H x W 112 x 210 x	60 mm
Mast diameter Max. 35mm

Disposal

Electronic equipment is not household waste. In accordance with directive 2002/9 6/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of 27th January 2003 on used electrical and electronic equipment, it must be disposed of properly.

„At the end of its service life, take this unit for disposal at the designated public collection points."
